  1. Designing Experiments • Introduction • 2k factorial designs • 2kr factorial designs • 2k-p fractional factorial designs • One-factor experiments • Two-factor full factorial design without replications • Two-factor full factorial design with replications • General full factorial designs with k factors

  2. Introduction To Experiment Design • You know your metrics • You know your factors • System parameters that are going to be varied in the study – affect the response variable • You know your levels • The alternative values that the factors will take on • You’ve got your method selected -- instrumentation and test workloads • Now what?

  3. Goals in Experiment Design • Obtain maximum information • With minimum work • Typically meaning minimum number of experiments • More experiments aren’t better if you’re the one who has to perform them • Well-designed experiments are also easier to analyze

  4. Experimental Replications • The system under study will be run with varying levels of different factors, potentially with differing workloads • A run with a particular set of levels and other inputs is a replication • Often, you need to do multiple replications with a single set of levels and other inputs • For statistical validation

  5. Interacting Factors • Some factors have effects completely independent of each other • Doubling the factor’s level may halve the response, regardless of other factors • But the effects of some factors depends on the values of other factors • Interacting factors • Presence of interacting factors complicates experimental design

  6. Basic Problem in Designing Experiments • You have chosen some number of factors • They may or may not interact • How can you design an experiment that captures the full range of the levels? • With minimum amount of work • Which combination or combinations of the levels of the factors do you measure?

  7. Common Mistakes in Experimentation • Ignoring experimental error • Uncontrolled parameters • Not isolating effects of different factors • One-factor-at-a-time experiment designs • Interactions ignored • Designs require too many experiments

  8. Types of Experimental Designs • Simple designs • Full factorial design • Fractional factorial design

  9. Experimental Design (l1,0, l1,1, … , l1,n1-1) x (l2,0, l2,1, … , l2,n2-1) x … x (lk,0, lk,1, … , lk,nk-1) k different factors, each factor with nilevels Factor 1 Factor 2 Factor k

  10. Simple Designs • Vary one factor at a time • For k factors with ith factor having ni levels - • Assumes factors don’t interact • Usually more effort than required • Don’t use it, usually

  11. fix Simple Designs (l1,0, l1,1, … , l1,n-1) x (l2,0, l2,1, … , l2,n-1) x … x (lk,0, lk,1, … , lk,n-1) Factor 1 Factor 2 Factor k vary

  12. Simple Designs (l1,0, l1,1, … , l1,n-1) x (l2,0, l2,1, … , l2,n-1) x … x (lk,0, lk,1, … , lk,n-1) Factor 1 Factor 2 Factor k

  13. Full Factorial Designs • For k factors with ith factor having ni levels - • Test every possible combination of factors’ levels • Captures full information about interaction • A heck of a lot of work, though

  14. Full Factorial Designs (l1,0, l1,1, … , l1,n-1) x (l2,0, l2,1, … , l2,n-1) x … x (lk,0, lk,1, … , lk,n-1) Factor 1 Factor 2 Factor k

  15. Reducing the Work in Full Factorial Designs • Reduce number of levels per factor • Generally a good choice • Especially if you know which factors are most important - use more levels for them • Reduce the number of factors • But don’t drop important ones • Use fractional factorial designs

  16. Fractional Factorial Designs • Only measure some combination of the levels of the factors • Must design carefully to best capture any possible interactions • Less work, but more chance of inaccuracy • Especially useful if some factors are known not to interact

  17. Fractional Factorial Designs (l1,0, l1,1, … , l1,n-1) x (l2,0, l2,1, … , l2,n-1) x … x (lk,0, lk,1, … , lk,n-1) Factor 1 Factor 2 Factor k

  18. 2k Factorial Designs • Used to determine the effect of k factors • Each with two alternatives or levels • Often used as a preliminary to a larger performance study • Each factor measured at its maximum and minimum level • Perhaps offering insight on importance and interaction of various factors

  19. Unidirectional Effects • Effects that only increase as the level of a factor increases • Or visa versa • If this characteristic is known to apply, a 2k factorial design at minimum and maximum levels is useful • Shows whether the factor has a significant effect

  20. 22 Factorial Designs • Two factors with two levels each • Simplest kind of factorial experiment design • Concepts developed here generalize • A form of regression can be easily used here • Simplest to show with an example

  21. 22 Factorial Design Example • The Time Warp Operating System • Designed to run discrete event simulations in parallel • Using an optimistic method • Goal is fastest possible completion of a given simulation • Usually quality is expressed in terms of speedup • Here, the simpler metric of runtime is used

  22. Factors and Levels for Time Warp Example • First factor - number of nodes used to run the simulation • Vary between 8 and 64 • Second factor - whether or not dynamic load management is used • To migrate work from node to node as load in the simulation changes • Other factors exists, but ignore them for now

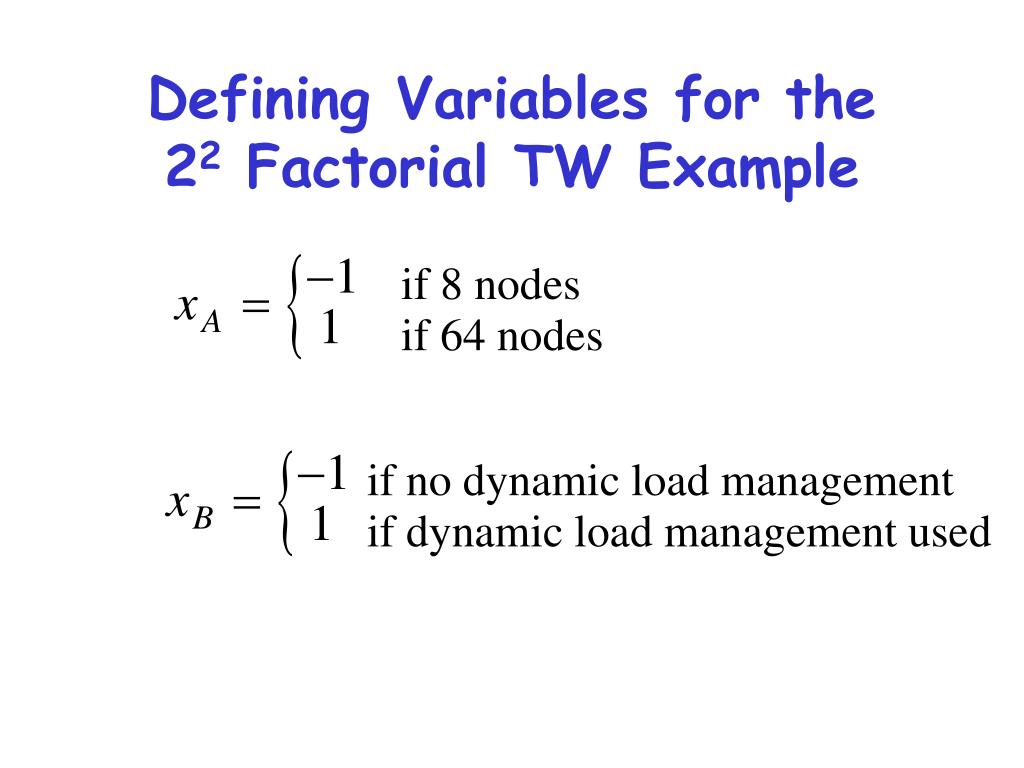

  23. Defining Variables for the 22 Factorial TW Example if 8 nodes if 64 nodes if no dynamic load management if dynamic load management used

  24. Sample Data For Example • Single runs of one benchmark simulation 8 Nodes 64 Nodes NO DLM 820 217 DLM 776 197

  25. Regression Model for Example • y = q0 + qAxA + qBxB + qABxAxB • Note this is a nonlinear model 820 = q0 -qA - qB + qAB 217 = q0 +qA - qB - qAB 776 = q0 -qA + qB - qAB 197 = q0 +qA + qB + qAB

  26. Regression Model, Con’t • 4 equations in 4 unknowns Another way to look at it shown in this table - Experiment A B y 1 -1 -1 y1 2 1 -1 y2 3 -1 1 y3 4 1 1 y4

  27. Solving the Equations q0 = 1/4(820 + 217 + 776 + 197) = 502.5 qA = 1/4(-820 + 217 - 776 + 197) = -295.5 qB = 1/4(-820 - 217 + 776 + 197) = -16 qAB = 1/4(820 - 217 - 776 + 197) = 6 So, y = 502.5 - 295.5xA - 16xB + 6xAxB

  28. The Sign Table Method • Another way of looking at the problem in a tabular form I A B AB y 1 -1 -1 1 820 1 1 -1 -1 217 1 -1 1 -1 776 1 1 1 1 197 2010 -1182 -64 24 Total 502.5 -295.5 -16 6 Total/4

  29. Allocation of Variation for 22 Model • Calculate the sample variance of y Numerator is the SST - total variation SST = 22qA2 + 22qB2 + 22qAB2 • We can use this to explain what causes the variation in y

  30. Terms in the SST • 22qA2 is part of variation explained by the effect of A - SSA • 22qB2 is part of variation explained by the effect of B - SSB • 22qAB2 is part of variation explained by the effect of the interaction of A and B - SSAB SST = SSA + SSB + SSAB

  31. Variations in Our Example • SST = 350449 • SSA = 349281 • SSB = 1024 • SSAB = 144 • We can now calculate the fraction of the total variation caused by each effect (e.g. SSA/SST)

  32. Fractions of Variation in Our Example • Fraction explained by A is 99.67% • Fraction explained by B is 0.29% • Fraction explained by the interaction of A and B is 0.04% • So almost all the variation comes from the number of nodes • So if you want to run faster, apply more nodes, don’t turn on dynamic load management

  33. General 2k Factorial Designs • Used to explain the effects of k factors, each with two alternatives or levels • 22 factorial designs are a special case • Methods developed there extend to the more general case • But many more possible interactions between pairs (and trios, etc.) of factors

  34. 2k Factorial Designs With Replications • 2k factorial designs do not allow for estimation of experimental error • No experiment is ever repeated • But usually experimental error is present • And often it’s important • Handle the issue by replicating experiments • But which to replicate, and how often?

  35. 2kr Factorial Designs • Replicate each experiment r times • Allows quantification of experimental error • Again, easiest to first look at the case of only 2 factors

  36. 22r Factorial Designs • 2 factors, 2 levels each, with r replications at each of the four combinations • y = q0 + qAxA + qBxB + qABxAxB + e • Now we need to compute effects, estimate the errors, and allocate variation • We can also produce confidence intervals for effects and predicted responses

  37. Computing Effects for 22r Factorial Experiments • We can use the sign table, as before • But instead of single observations, regress off the mean of the r observations • Compute errors for each replication using similar tabular method • Similar methods used for allocation of variance and calculating confidence intervals

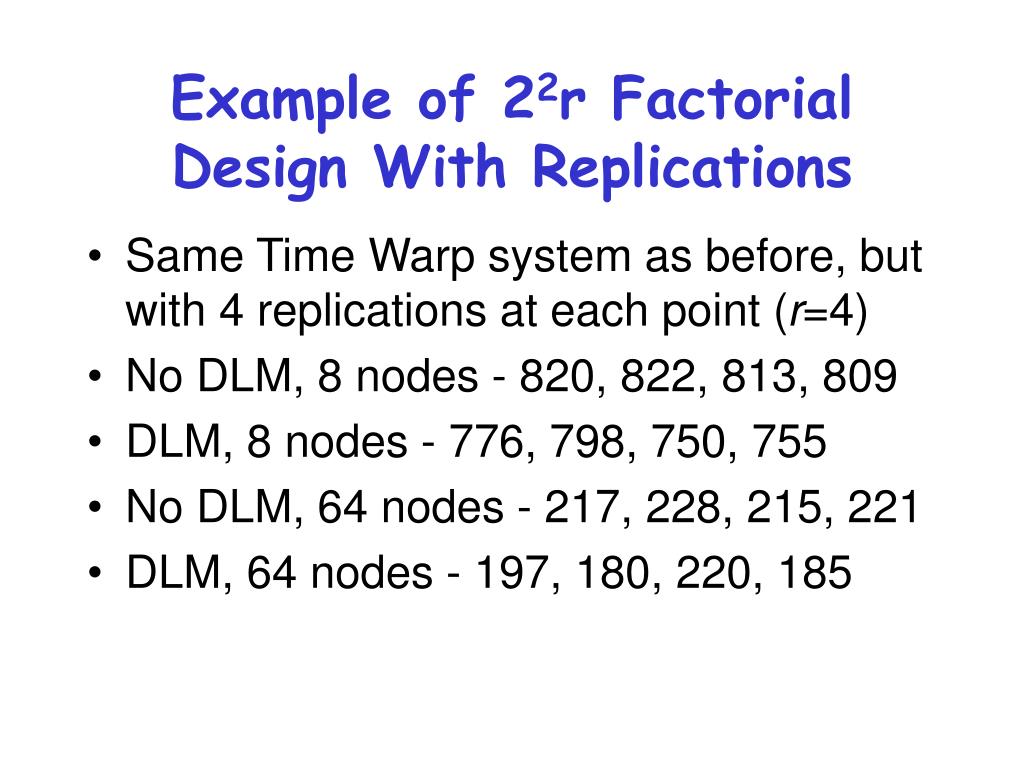

  38. Example of 22r Factorial Design With Replications • Same Time Warp system as before, but with 4 replications at each point (r=4) • No DLM, 8 nodes - 820, 822, 813, 809 • DLM, 8 nodes - 776, 798, 750, 755 • No DLM, 64 nodes - 217, 228, 215, 221 • DLM, 64 nodes - 197, 180, 220, 185

  39. 22r Factorial Example Analysis Matrix I A B AB y Mean 1 -1 -1 1 (820,822,813,809) 816 1 1 -1 -1 (217,228,215,221) 220.25 1 -1 1 -1 (776,798,750,755) 769.75 1 1 1 1 (197,180,220,185) 195.5 2001.5 -1170 -71 21.5 Total 500.4 -292.5 -17.75 5.4 Total/4 q0= 500.4 qA= -292.5 qB= -17.75 qAB= 5.4

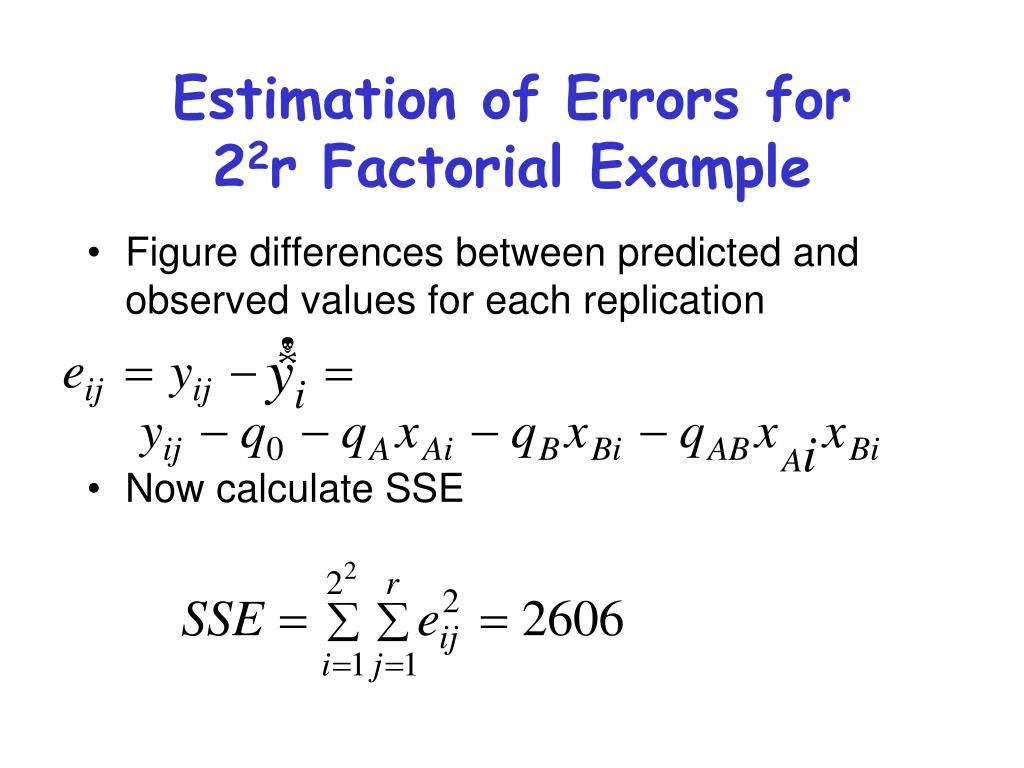

  40. N yi Estimation of Errors for 22r Factorial Example • Figure differences between predicted and observed values for each replication • Now calculate SSE

  41. Allocating Variation • We can determine the percentage of variation due to each factor’s impact • Just like 2k designs without replication • But we can also isolate the variation due to experimental errors • Methods are similar to other regression techniques for allocating variation

  42. Variation Allocation in Example • We’ve already figured SSE • We also need SST, SSA, SSB, and SSAB • Also, SST = SSA + SSB + SSAB + SSE • Use same formulae as before for SSA, SSB, and SSAB

  43. Sums of Squares for Example • SST = SSY - SS0 = 1,377,009.75 • SSA = 1,368,900 • SSB = 5041 • SSAB = 462.25 • Percentage of variation for A is 99.4% • Percentage of variation for B is 0.4% • Percentage of variation for A/B interaction is 0.03% • And 0.2% (apx.) is due to experimental errors

  44. Confidence Intervals For Effects • Computed effects are random variables • Thus, we would like to specify how confident we are that they are correct • Using the usual confidence interval methods • First, must figure Mean Square of Errors

  45. Calculating Variances of Effects • Variance of all effects is the same - • So standard deviation is also the same • In calculations, use t- or z-value for 22(r-1) degrees of freedom

  46. Calculating Confidence Intervals of Effects for Example • At 90% level, using the t-value for 12 degrees of freedom, 1.782 • And standard deviation of effects is 3.68 • Confidence intervals are qi-+(1.782)(3.68) • q0 - (493.8,506.9) • qA - (-299.1,-285.9) • qB - (-24.3,-11.2) • qAB - (-1.2,11.9)

  47. Predicted Responses • We already have predicted all the means we can predict from this kind of model • We measured four, we can “predict” four • However, we can predict how close we would get to the sample mean if we ran m more experiments

  48. N N N y ym ym Formula for Predicted Means • For m future experiments, the predicted mean is Where

  49. N ym Example of Predicted Means • What would we predict as a confidence interval of the response for no dynamic load management at 8 nodes for 7 more tests? • 90% confidence interval is (811.6,820.4) • We’re 90% confident that the mean would be in this range

  50. Visual Tests for Verifying Assumptions • What assumptions have we been making? • Model errors are statistically independent • Model errors are additive • Errors are normally distributed • Errors have constant standard deviation • Effects of errors are additive • Which boils down to independent, normally distributed observations with constant variance
