Processing technology 1

PROCESSING TECHNOLOGY 1

Fluid Statics


Pressure

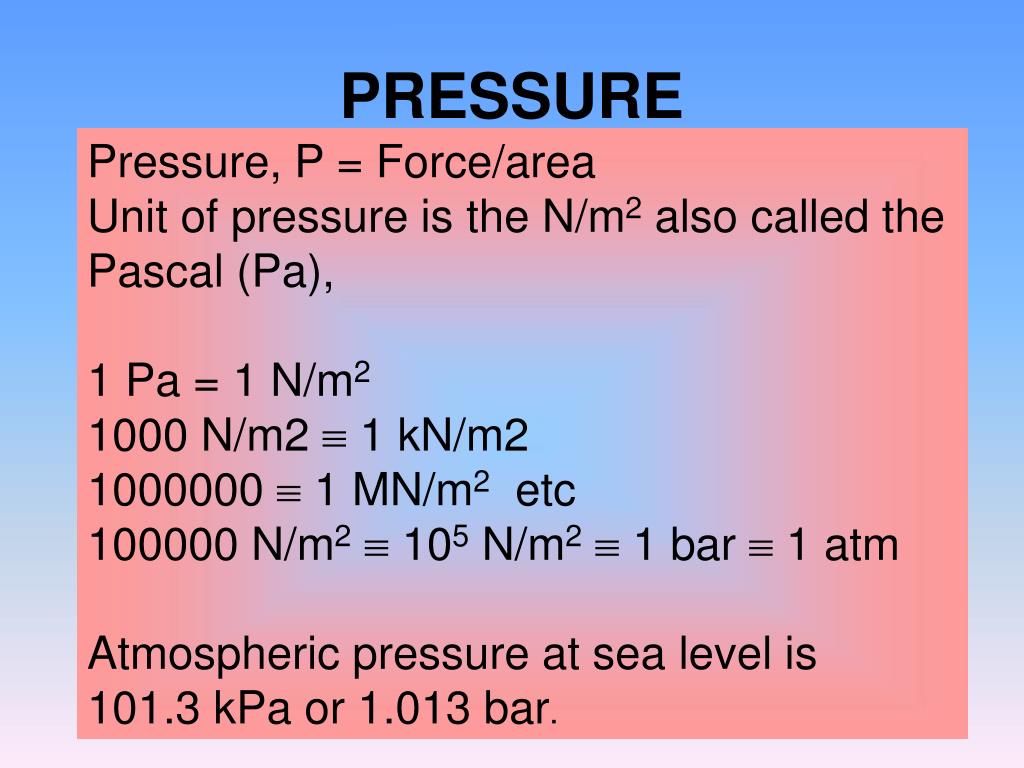

PRESSURE

Pressure, P = Force/area

Unit of pressure is the N/m2 also called the

Pascal (Pa),

1 Pa = 1 N/m2

1000 N/m2  1 kN/m2

1000000  1 MN/m2 etc

100000 N/m2 105 N/m2 1 bar  1 atm

Atmospheric pressure at sea level is

101.3 kPa or 1.013 bar.


Gauge and absolute pressures

Gauge and Absolute Pressures

Many instruments show gauge pressure,

i.e., the amount by which the pressure

exceeds the atmospheric pressure, the

sum of the two gives the absolute pressure.

Absolute pressure, Pabsolute = Pgauge + Patmospheric


Pressure variation in a static fluid

A

A

P1

P2

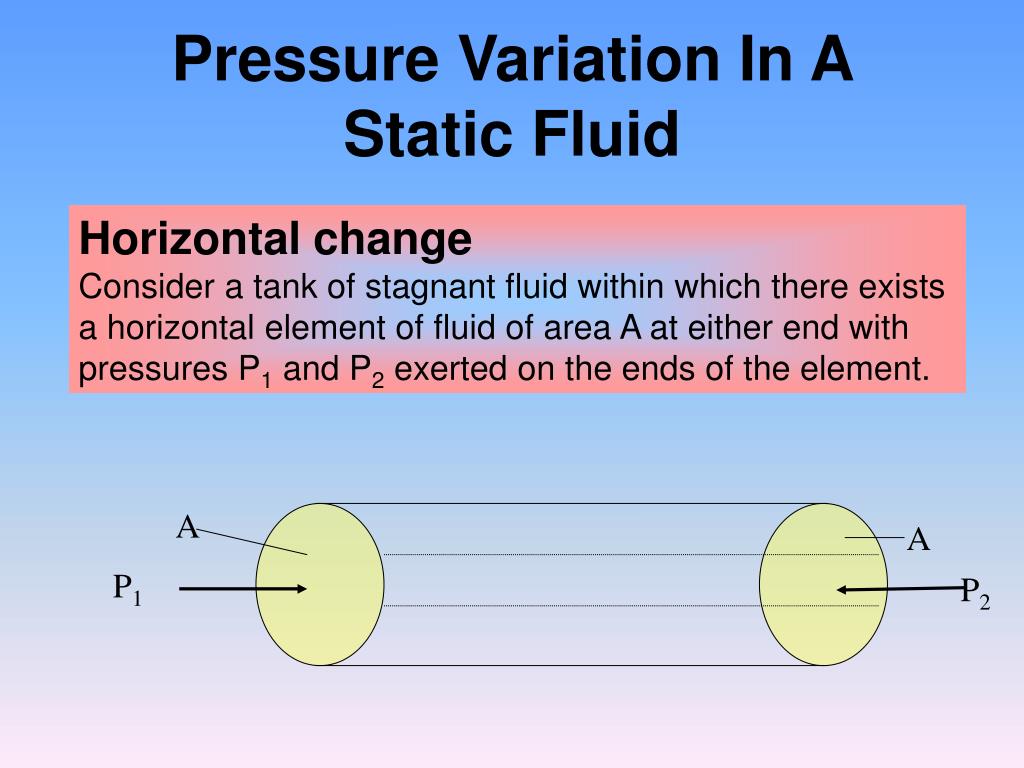

Pressure Variation In A Static Fluid

Horizontal change

Consider a tank of stagnant fluid within which there exists

a horizontal element of fluid of area A at either end with

pressures P1 and P2 exerted on the ends of the element.


Calculation of forces

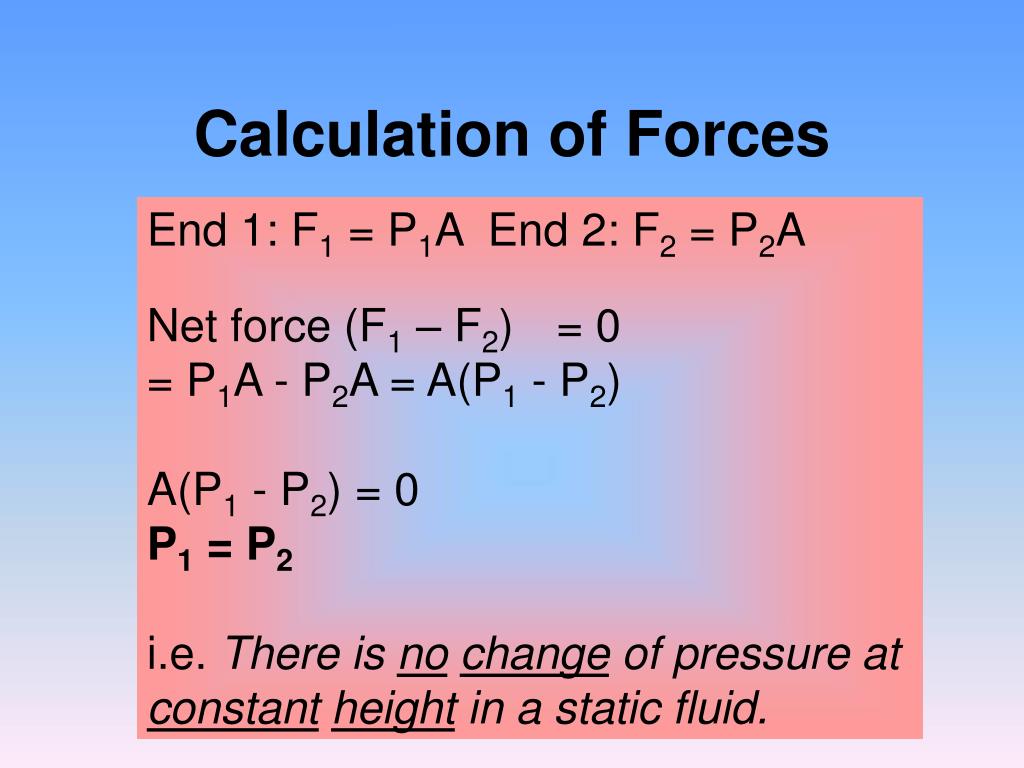

Calculation of Forces

  • End 1: F1 = P1A End 2: F2 = P2A

  • Net force (F1 – F2) = 0

  • = P1A - P2A = A(P1 - P2)

  • A(P1 - P2) = 0

  • P1 = P2

  • i.e. There is nochange of pressure at

  • constantheight in a static fluid.


Vertical change

Vertical change

P2

A

Consider a vertical cylindrical

element of fluid, area A on

each end with pressure P1

and P2 at the ends, which

are at heights z1 and z2.

Z2

Z1

A

P1


Vertical change1

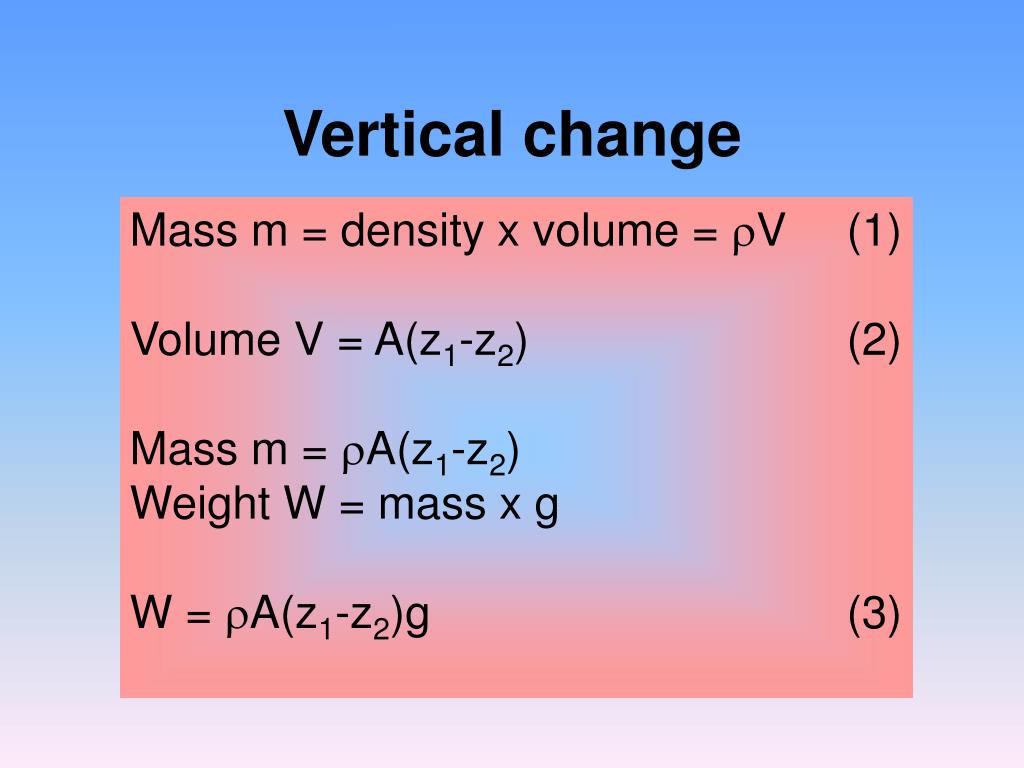

Vertical change

Mass m = density x volume = rV(1)

Volume V = A(z1-z2)(2)

Mass m = rA(z1-z2)

Weight W = mass x g

W = rA(z1-z2)g(3)


Vertical change2

Vertical change

The weight of the element will act downwards,

due to the pull of gravity. The downward force

on the upper end of the element, F2 is given by,

F2 = P2A

The upward acting force F1 at the lower end of

the element is given by,

F1 = P1A


Vertical change3

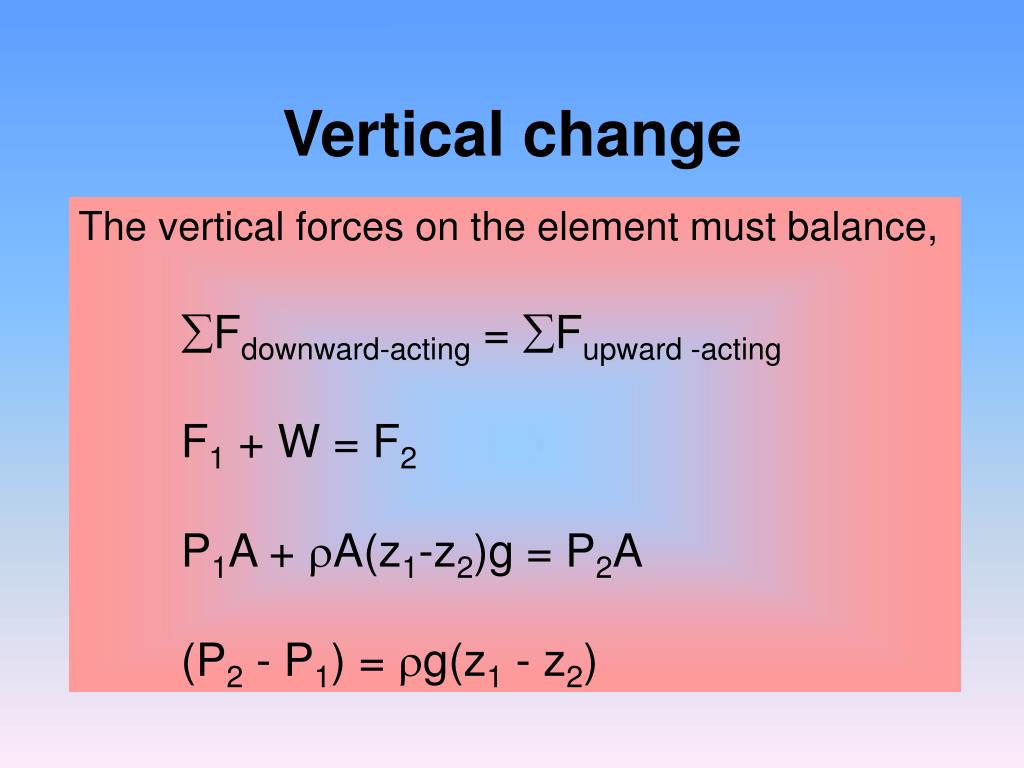

Vertical change

The vertical forces on the element must balance,

Fdownward-acting = Fupward -acting

F1 + W = F2

P1A + rA(z1-z2)g = P2A

(P2 - P1) = rg(z1 - z2)


Vertical change4

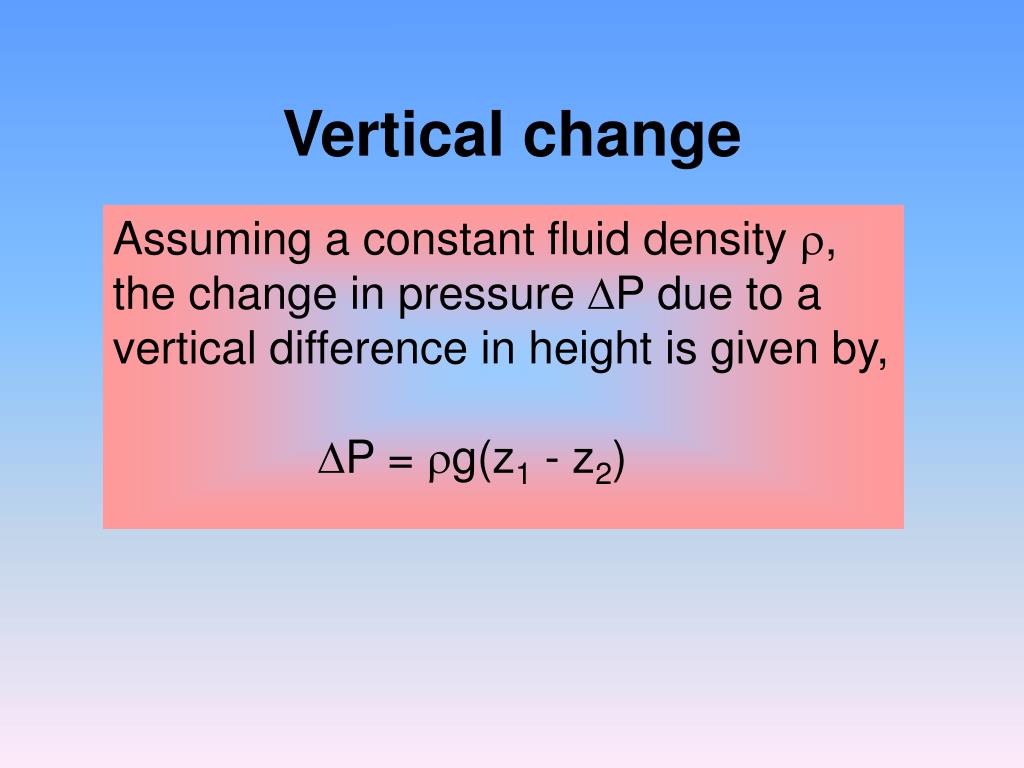

Vertical change

Assuming a constant fluid density r,

the change in pressure DP due to a

vertical difference in height is given by,

DP = rg(z1 - z2)


Pressure measurement

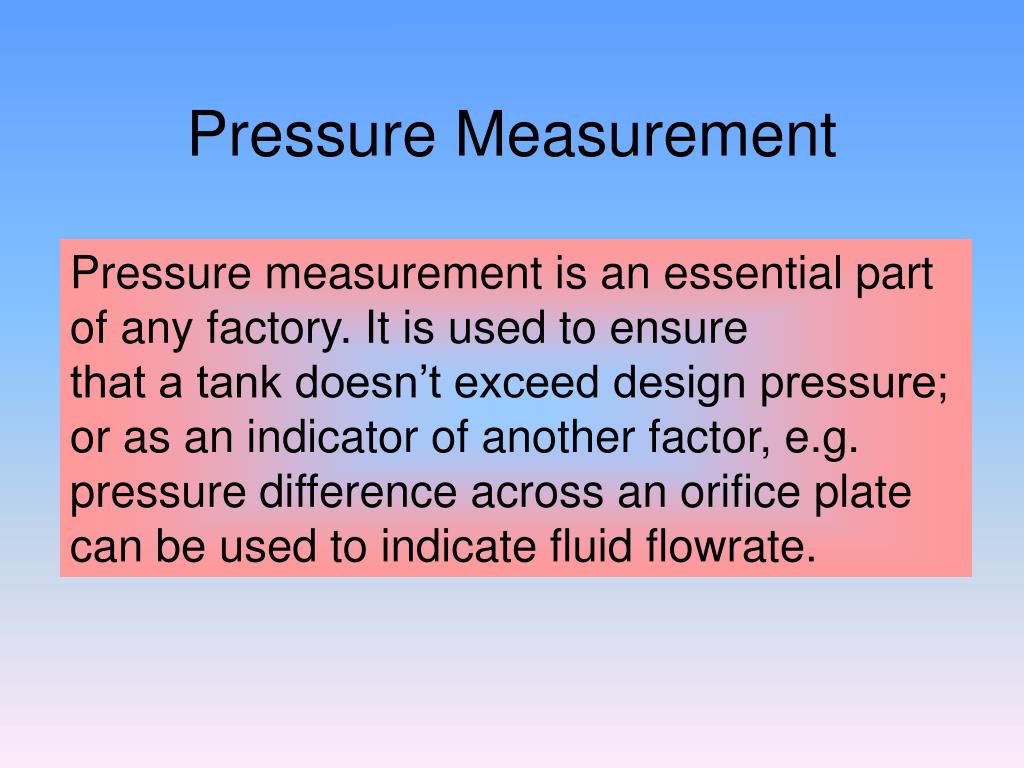

Pressure Measurement

Pressure measurement is an essential part

of any factory. It is used to ensure

that a tank doesn’t exceed design pressure;

or as an indicator of another factor, e.g.

pressure difference across an orifice plate

can be used to indicate fluid flowrate.


Piezometer tube

P

at

z

P

Piezometer tube

A piezometer is the simplest

example of a pressure gauge

or manometer. This is simply

an open-ended tube connected

to a pipe carrying liquid under

pressure.


Piezometer tube1

P

at

z

P

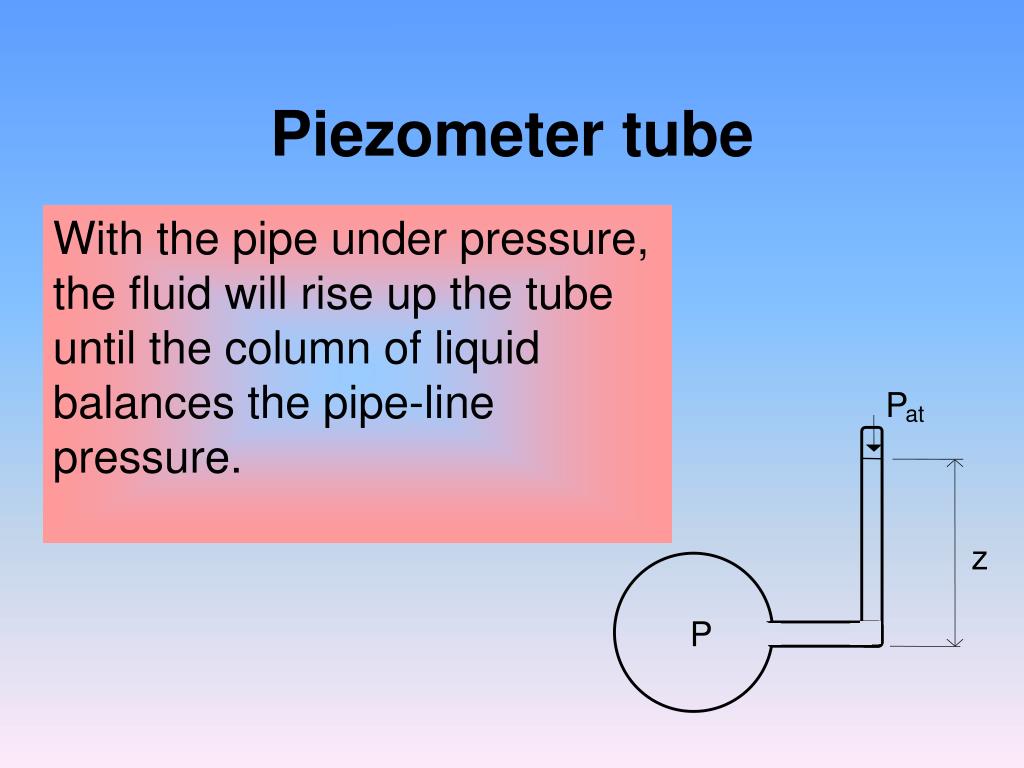

Piezometer tube

With the pipe under pressure,

the fluid will rise up the tube

until the column of liquid

balances the pipe-line

pressure.


Piezometer tube2

Piezometer tube

The pressure difference due to the column

of liquid within the piezometer is,

DP = rgz


Piezometer tube3

Piezometer tube

The pressure within the pipe-line pushing

upwards on the column of liquid within the

piezometer is P and the pressure pushing

downwards on the column is atmospheric

pressure Pat. Hence the pressure

difference DP is,

DP = P - Pat

P

at

z

P


Piezometer tube4

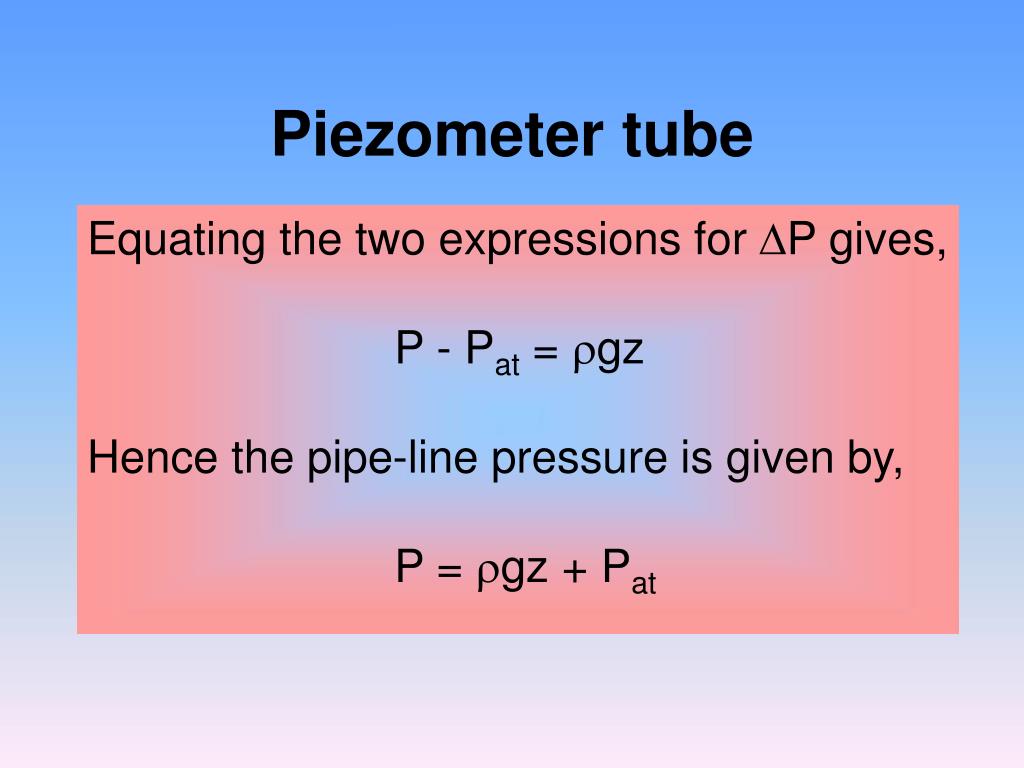

Piezometer tube

Equating the two expressions for DP gives,

P - Pat = rgz

Hence the pipe-line pressure is given by,

P = rgz + Pat

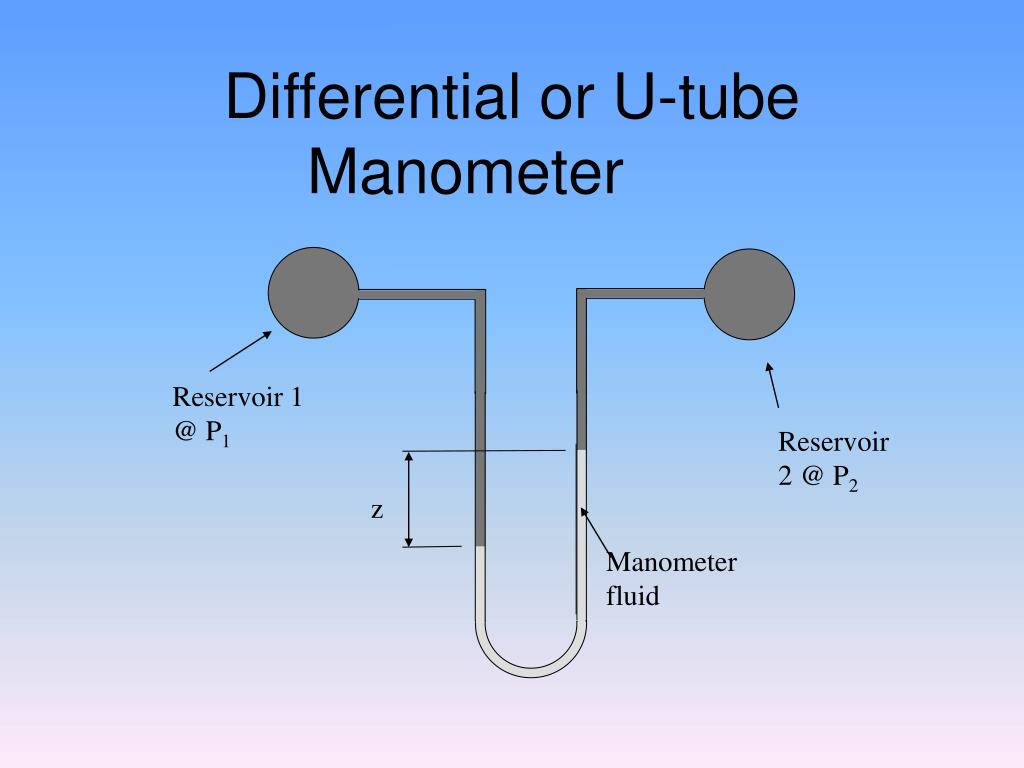

Differential or u tube manometer

Reservoir 2 @ P2

Reservoir 1

@ P1

z

Manometer fluid

Differential or U-tube Manometer


Differential or u tube manometer1

Reservoir 1

@ P1

Reservoir 2 @ P2

z

Manometer fluid

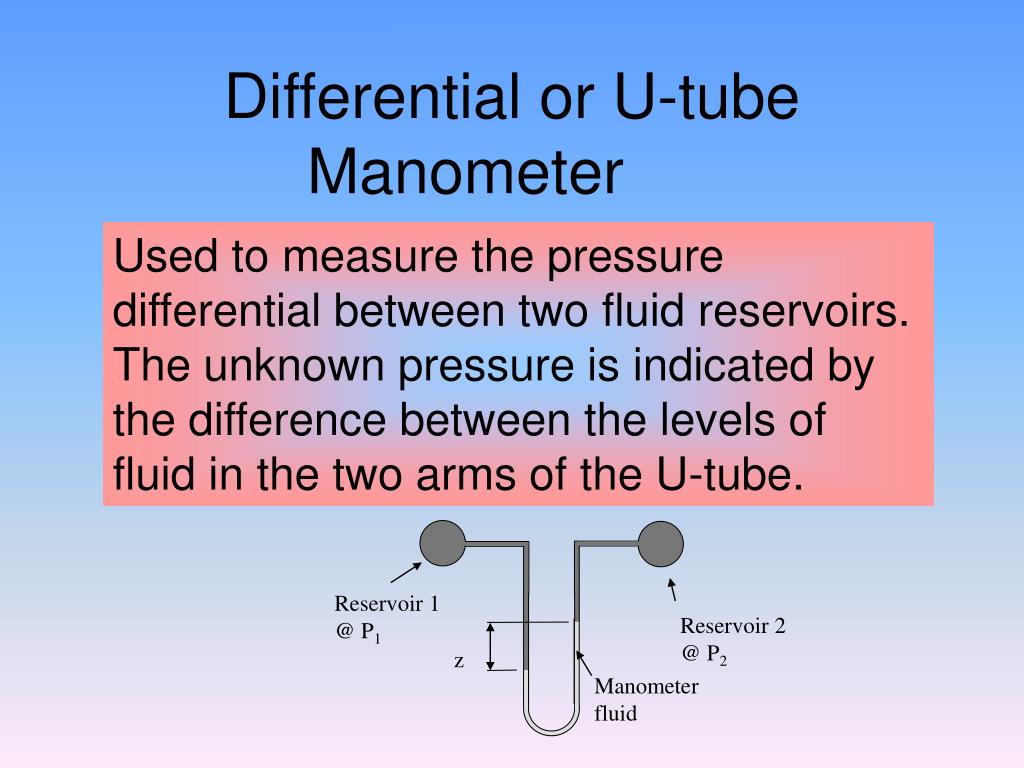

Differential or U-tube Manometer

Used to measure the pressure

differential between two fluid reservoirs.

The unknown pressure is indicated by

the difference between the levels of

fluid in the two arms of the U-tube.


Differential or u tube manometer2

y

x

Reservoir 1

@ P1

Reservoir 2

@ P2

z

B

A

Differential or U-tube Manometer


Differential or u tube manometer3

y

x

Reservoir 1

@ P1

Reservoir 2

@ P2

z

A

B

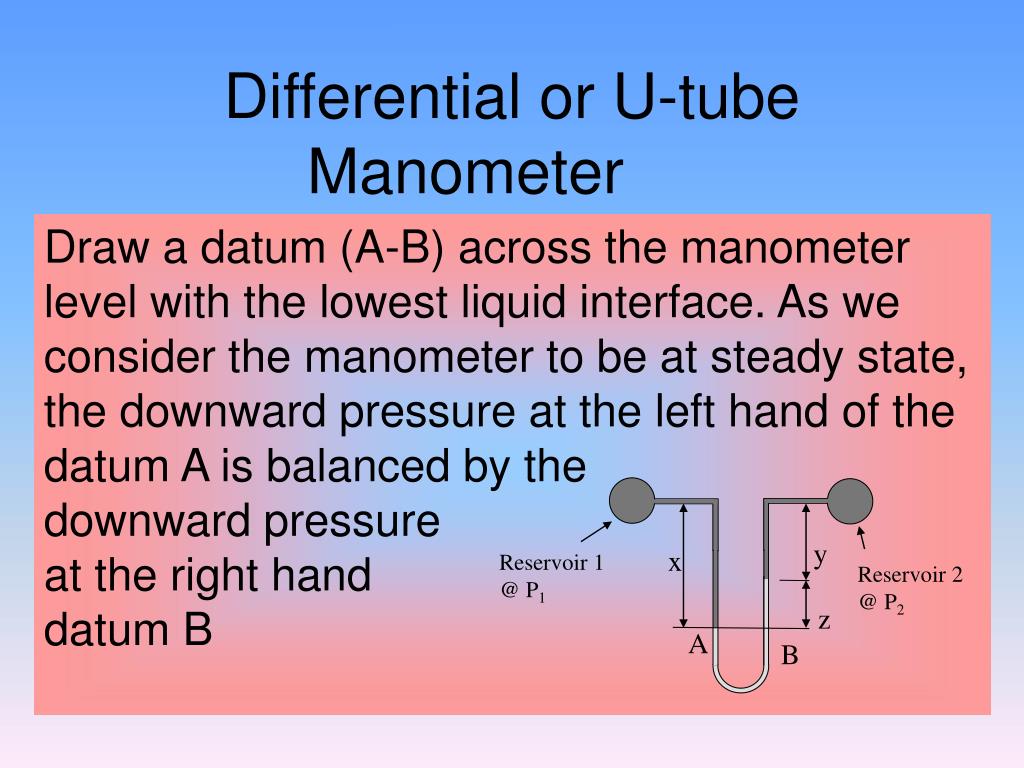

Differential or U-tube Manometer

Draw a datum (A-B) across the manometer

level with the lowest liquid interface. As we

consider the manometer to be at steady state,

the downward pressure at the left hand of the

datum A is balanced by the

downward pressure

at the right hand

datum B


Differential or u tube manometer4

y

x

Reservoir 1

@ P1

Reservoir 2

@ P2

z

A

B

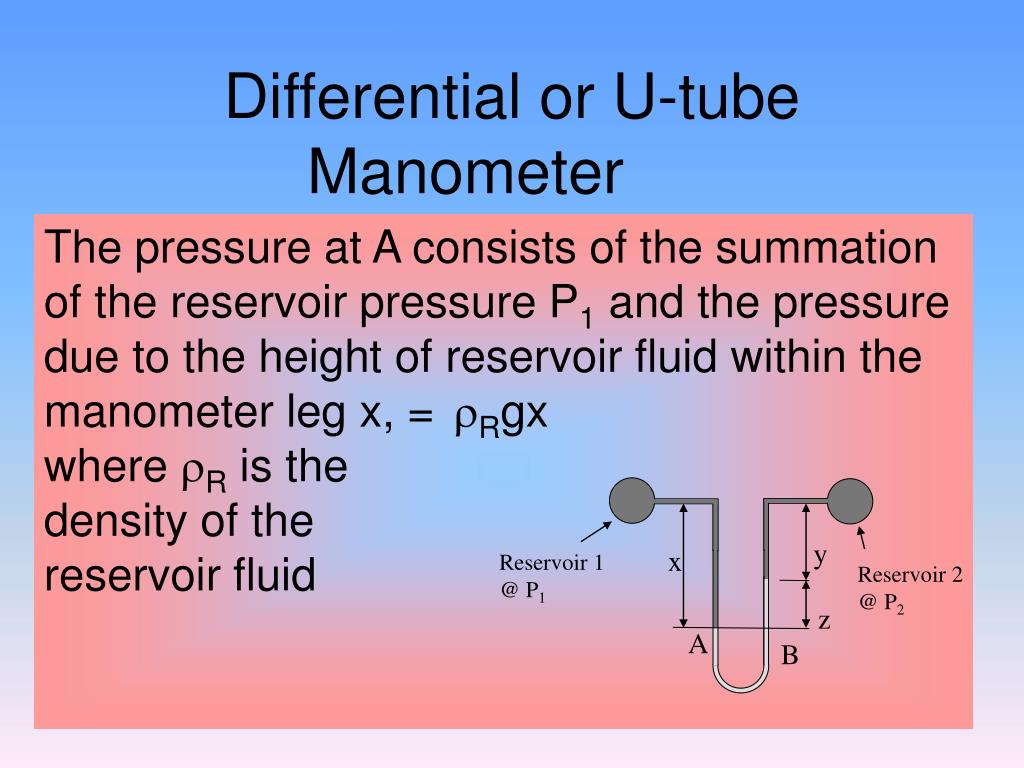

Differential or U-tube Manometer

The pressure at A consists of the summation

of the reservoir pressure P1 and the pressure

due to the height of reservoir fluid within the

manometer leg x, =rRgx

where rR is the

density of the

reservoir fluid


Differential or u tube manometer5

y

x

Reservoir 1

@ P1

Reservoir 2

@ P2

z

A

B

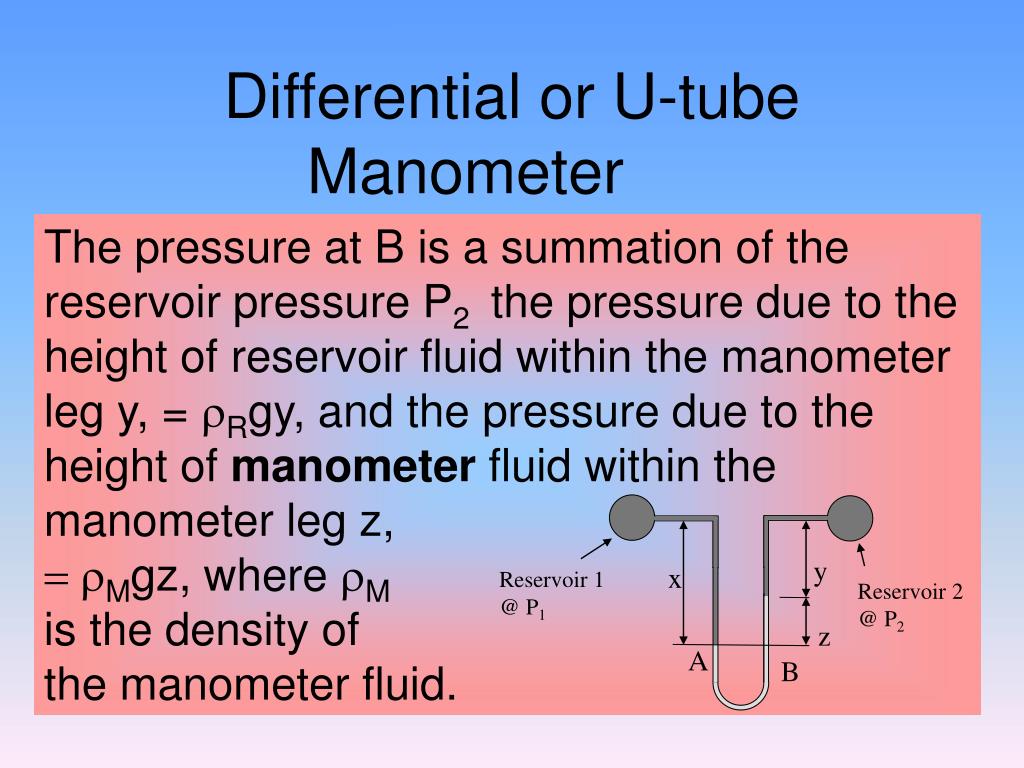

Differential or U-tube Manometer

The pressure at B is a summation of the

reservoir pressure P2 the pressure due to the

height of reservoir fluid within the manometer

leg y, = rRgy, and the pressure due to the

height of manometer fluid within the

manometer leg z,

= rMgz, where rM

is the density of

the manometer fluid.


Differential or u tube manometer6

Differential or U-tube Manometer

PA = PB

P1 + rRgx = P2 + rRgy + rMgz


Differential or u tube manometer7

y

x

Reservoir 1

@ P1

Reservoir 2

@ P2

z

B

A

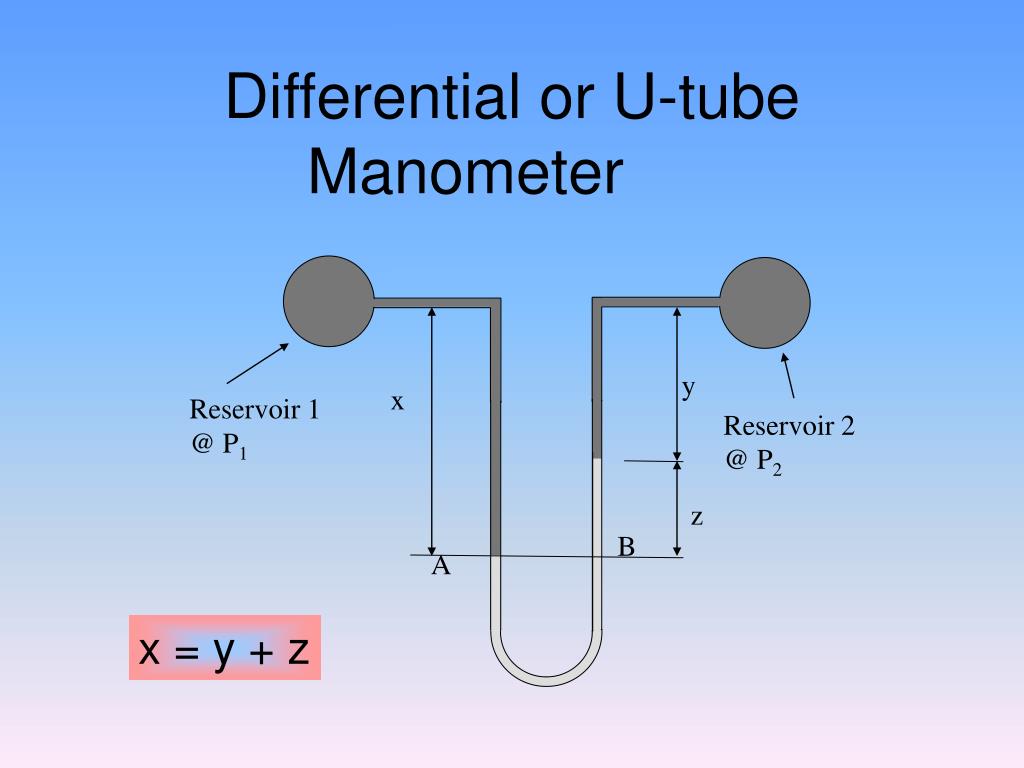

Differential or U-tube Manometer

x = y + z


Differential or u tube manometer8

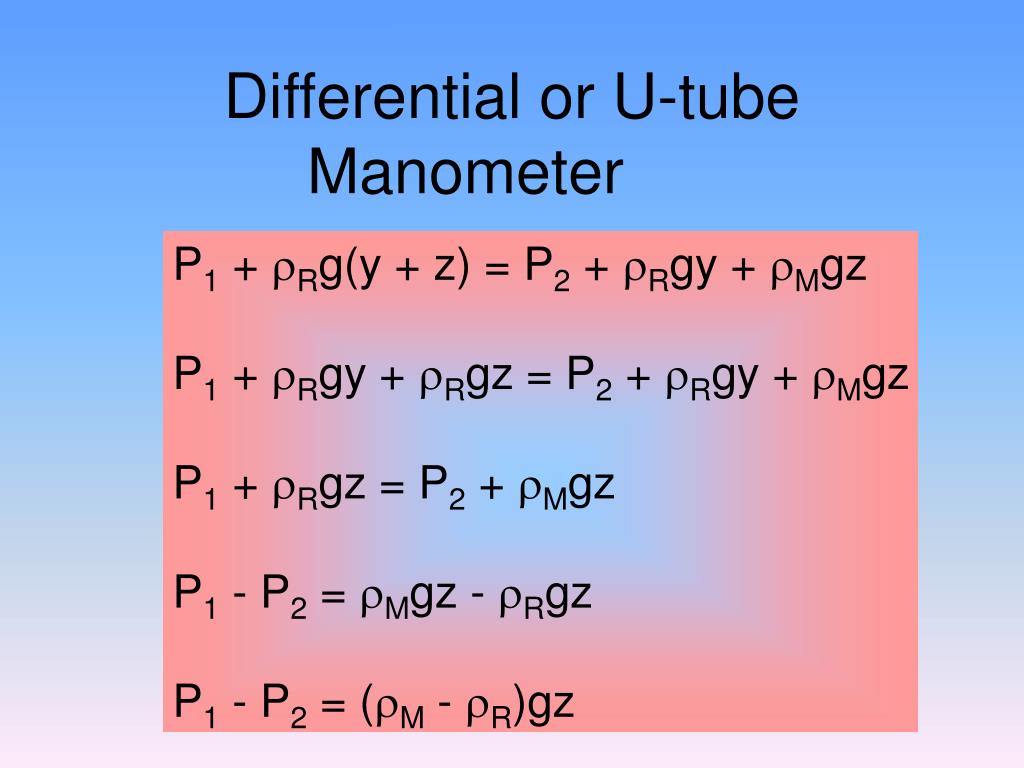

Differential or U-tube Manometer

P1 + rRg(y + z) = P2 + rRgy + rMgz

P1 + rRgy + rRgz = P2 + rRgy + rMgz

P1 + rRgz = P2 + rMgz

P1 - P2 = rMgz - rRgz

P1 - P2 = (rM - rR)gz


Bourdon gauge

Bourdon Gauge

Pivots

Movement

C-shaped oval cross

Rigid mount

section tube

Pressure


Pressure or head

Pressure or Head?

The terms pressure and head are often used

inter-changeably. However, the units used are

completely different i.e metres of fluid for head

and N/m2 for pressure.


Pressure or head1

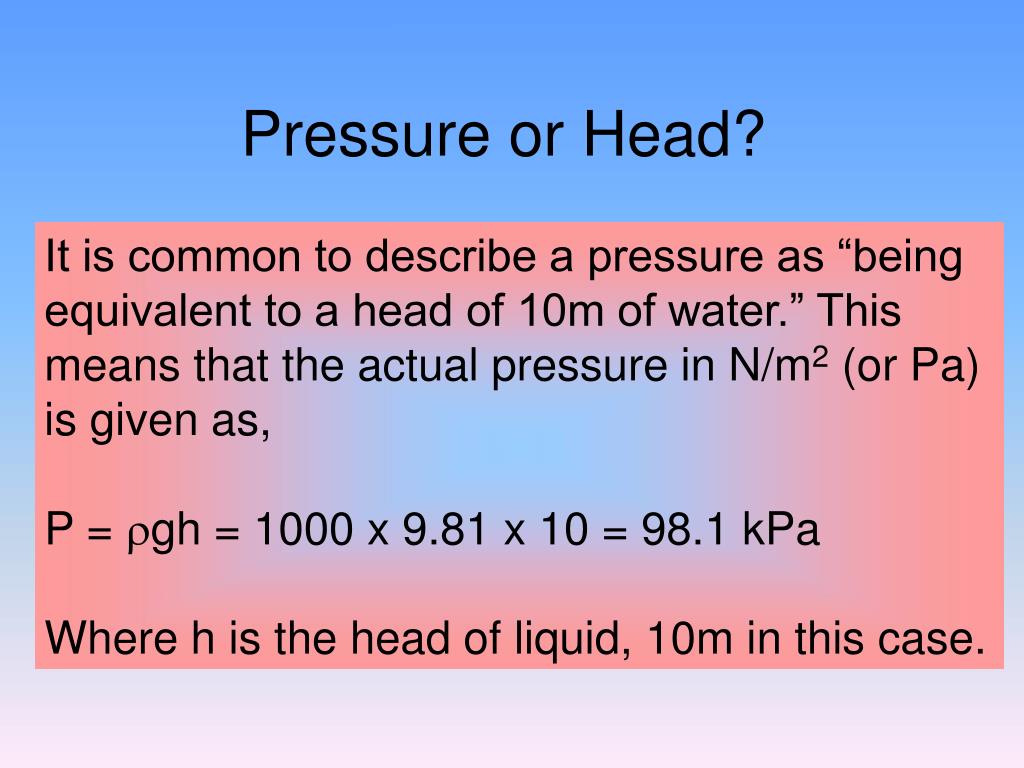

Pressure or Head?

It is common to describe a pressure as “being

equivalent to a head of 10m of water.” This

means that the actual pressure in N/m2 (or Pa)

is given as,

P = rgh = 1000 x 9.81 x 10 = 98.1 kPa

Where h is the head of liquid, 10m in this case.


Pressure or head2

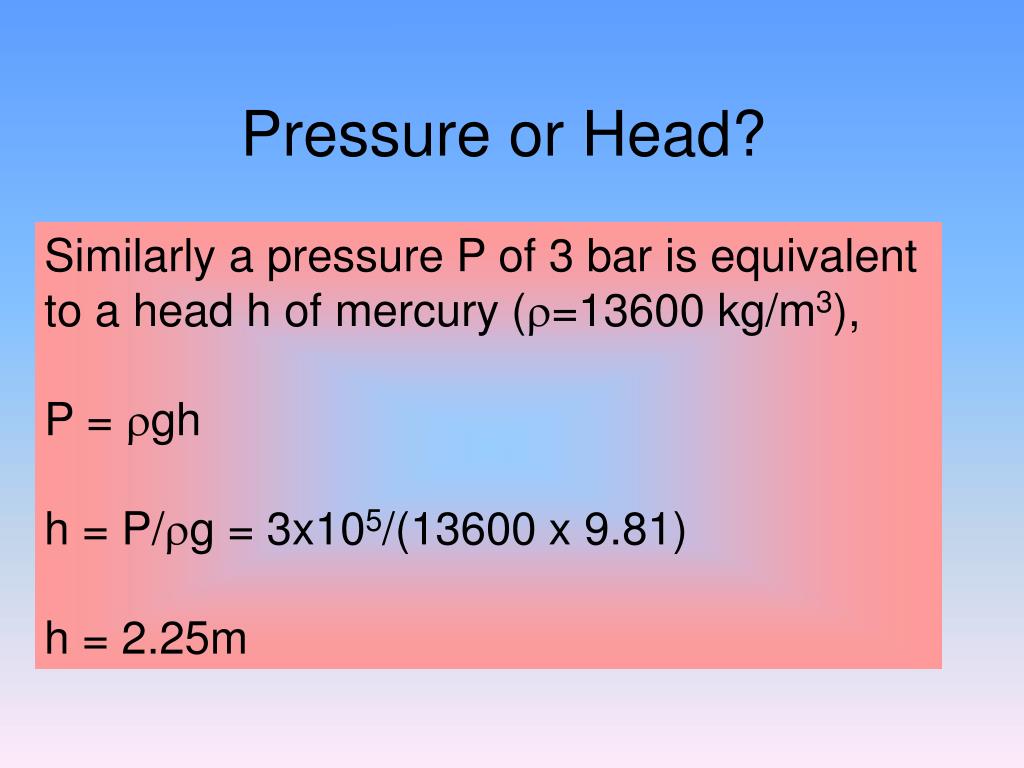

Pressure or Head?

Similarly a pressure P of 3 bar is equivalent

to a head h of mercury (r=13600 kg/m3),

P = rgh

h = P/rg = 3x105/(13600 x 9.81)

h = 2.25m
