  1. BACTERIAL SILENCING: THE DISCOVERY OF QUORUM QUENCHING SOIL MICROBES FOR THE DEVELOPMENT OF ANTIMICROBIAL COMPOUNDS Sonia Rao

  2. Quorum Quenching • Enzymes interfere with Quorum sensing, inhibiting virulence • New class of pharmaceuticals • Increase in antibiotic resistant

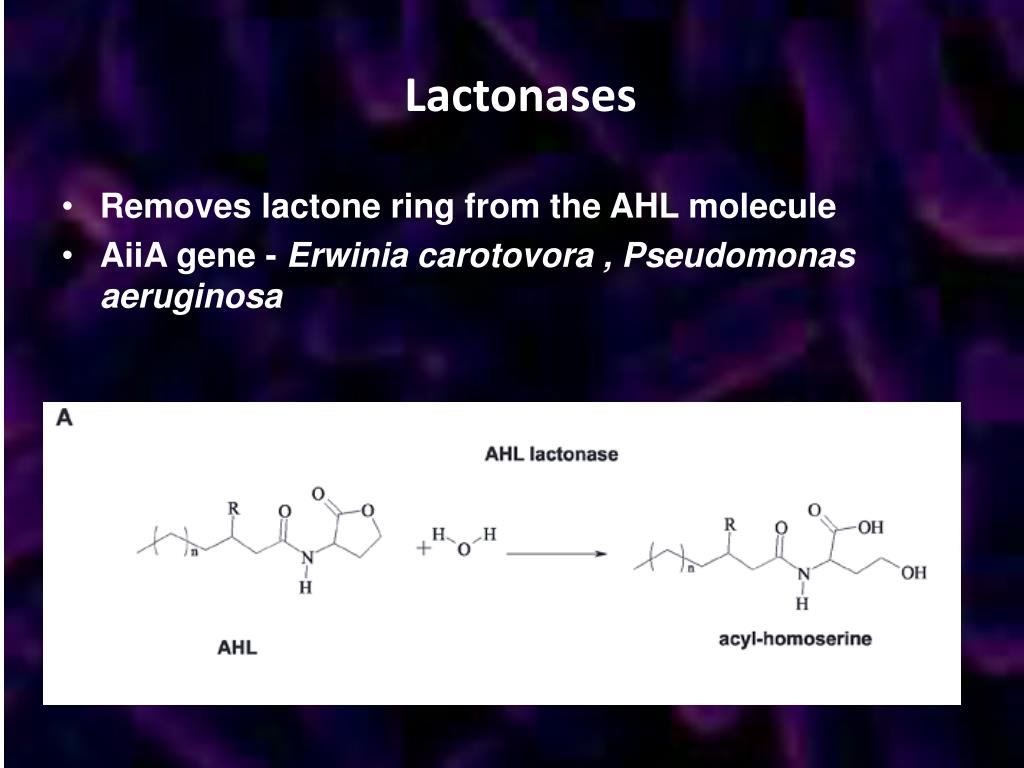

  3. Lactonases • Removes lactone ring from the AHL molecule • AiiA gene - Erwinia carotovora , Pseudomonas aeruginosa

  4. Acylases • Detach nitrogen bond to form a fatty acid chain and homoserine lactone • PvdQ and QuiP - P. aeruginosa

  5. Hypothesis • Soil communities would contain quorum quenching isolates • Late successional communities would contain greater number of quorum quenching isolates than early successional communities

  6. Variables • Independent - Successional stage - Competitive nature • Dependent -Quorum quenching isolates -Frequency of natural communities to produce quorum quenchers • Constant: - Incubation time for soil samples and isolates - Amount of x-gal

  7. Method • C.violaceum 12472, 31532, CV026 • A.tumefaciens A136, KYC6 • X-gal, antibiotics

  8. Method • 1 gram of 10 soil sample cultured -R2A broth, vortex • 0.1 ml added to R2A plate

  9. Method • C.violaceum 12472 next to isolate • A.tumefaciens A136 • TraR gene detects AHL C6-C14 • lacZ gene which expresses β-galactosidase

  10. Method • A.tumefaciens A136 bioassay • 4.5 mg/ml of tetracycline and 50 mg/ ml of spectinomycin • 50 microliters x-gal (5-bromo-4-chloro-3-indolyl-galactopyranoside) • 3 replicates • Frozen in glycerin

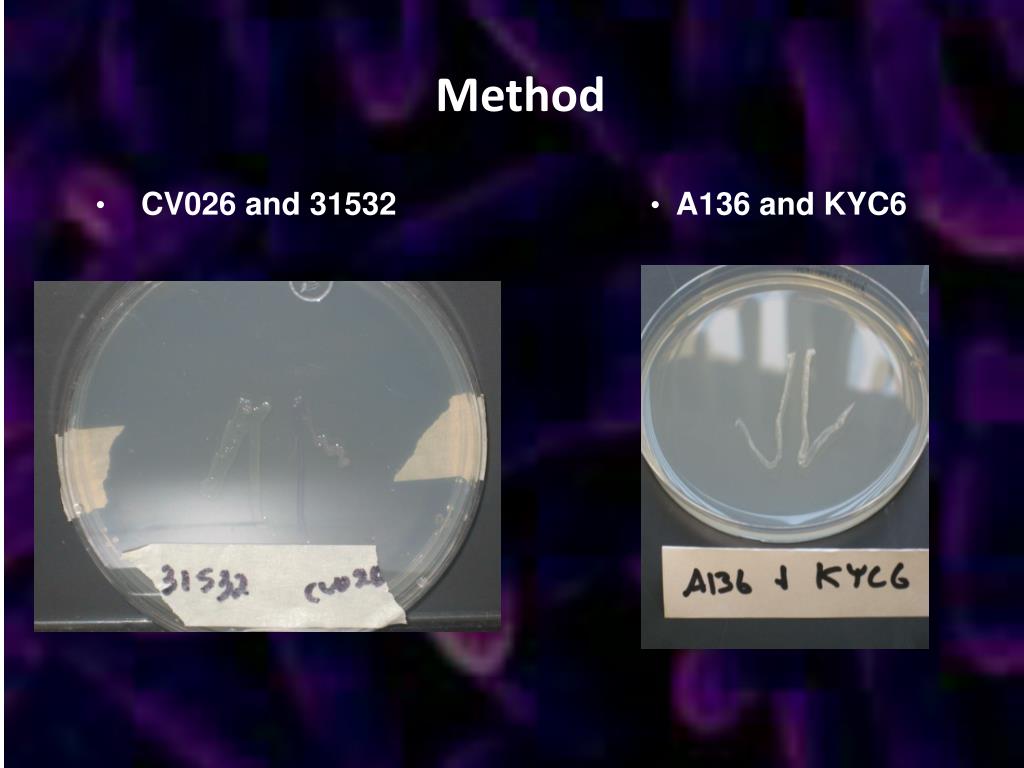

  11. Method • CV026 and 31532 • A136 and KYC6

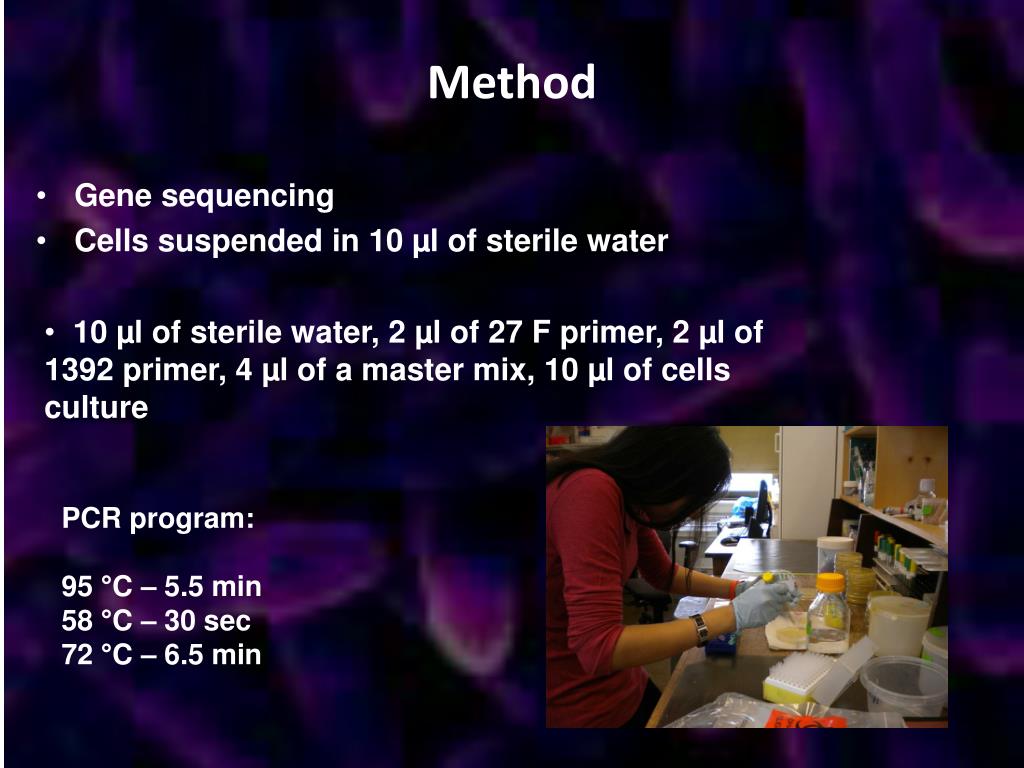

  12. Method • Gene sequencing • Cells suspended in 10 µl of sterile water • 10 µl of sterile water, 2 µl of 27 F primer, 2 µl of 1392 primer, 4 µl of a master mix, 10 µl of cells culture PCR program: 95 °C – 5.5 min 58 °C – 30 sec 72 °C – 6.5 min

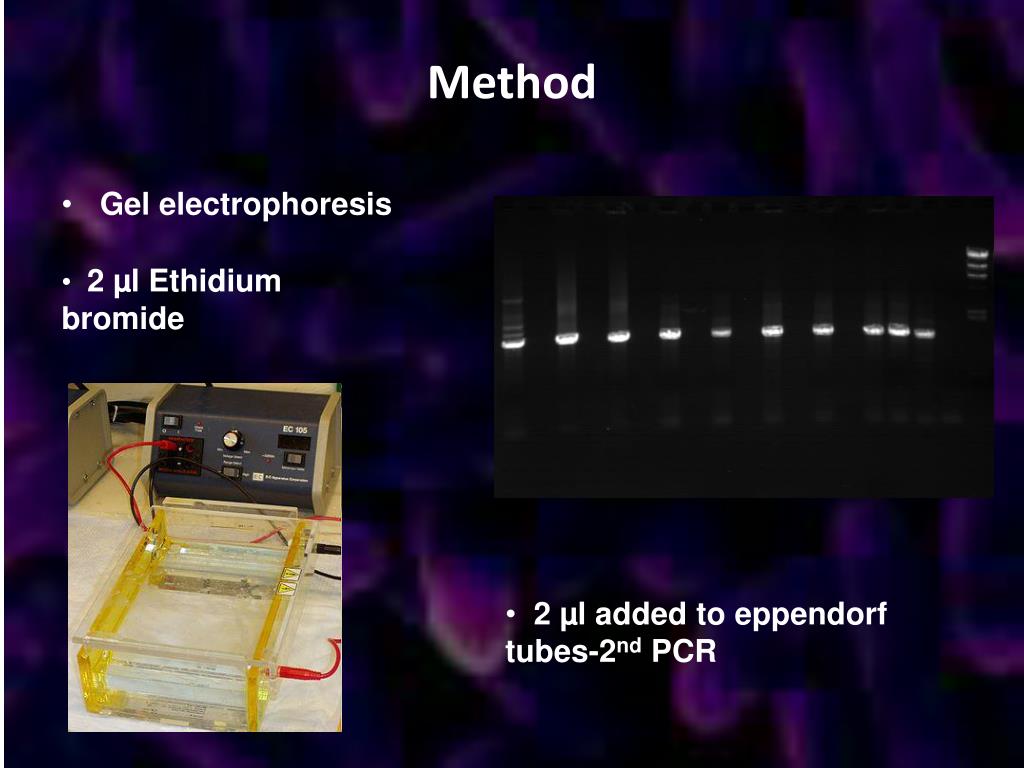

  13. Method • Gel electrophoresis • 2 µl Ethidium bromide • 2 µl added to eppendorf tubes-2nd PCR

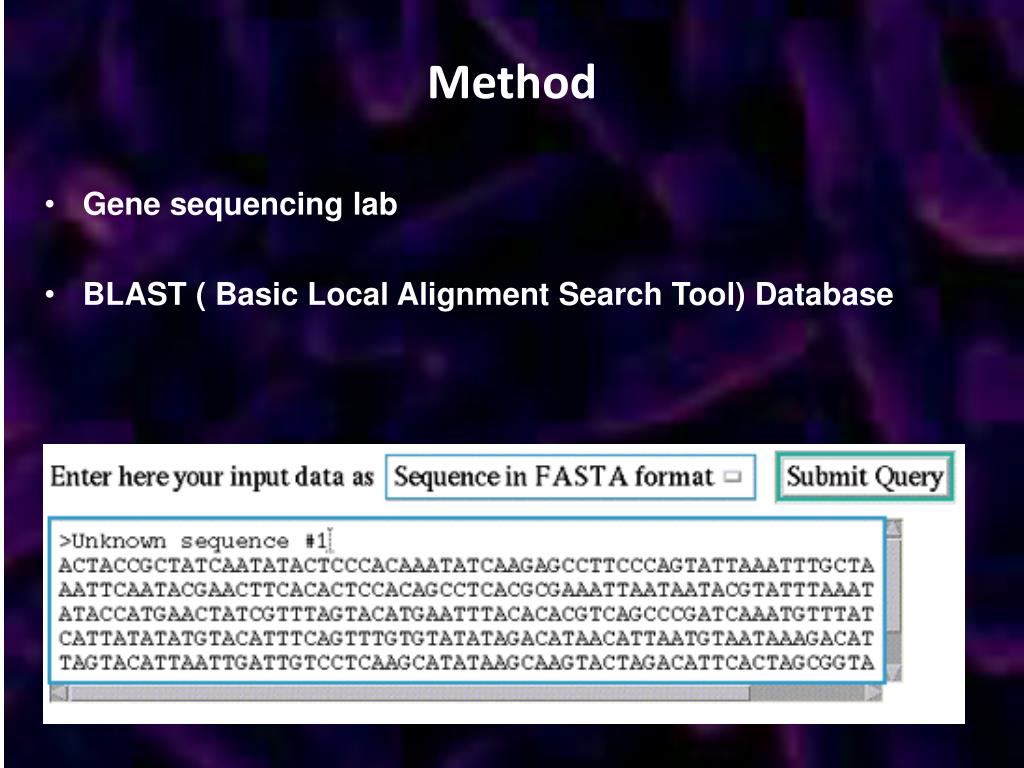

  14. Method • Gene sequencing lab • BLAST ( Basic Local Alignment Search Tool) Database

  15. Summation of Method Culturing of Soil Samples and isolates C.Violaceum 12472 bioassay A.tumefaciens A136 bioassay Gene Sequencing and BLAST

  16. Results • 10 Isolates • Late Successional communities have greater number of quorum quenching isolates than early succession communities (p = 0.03). • Gene sequencing- inconclusive

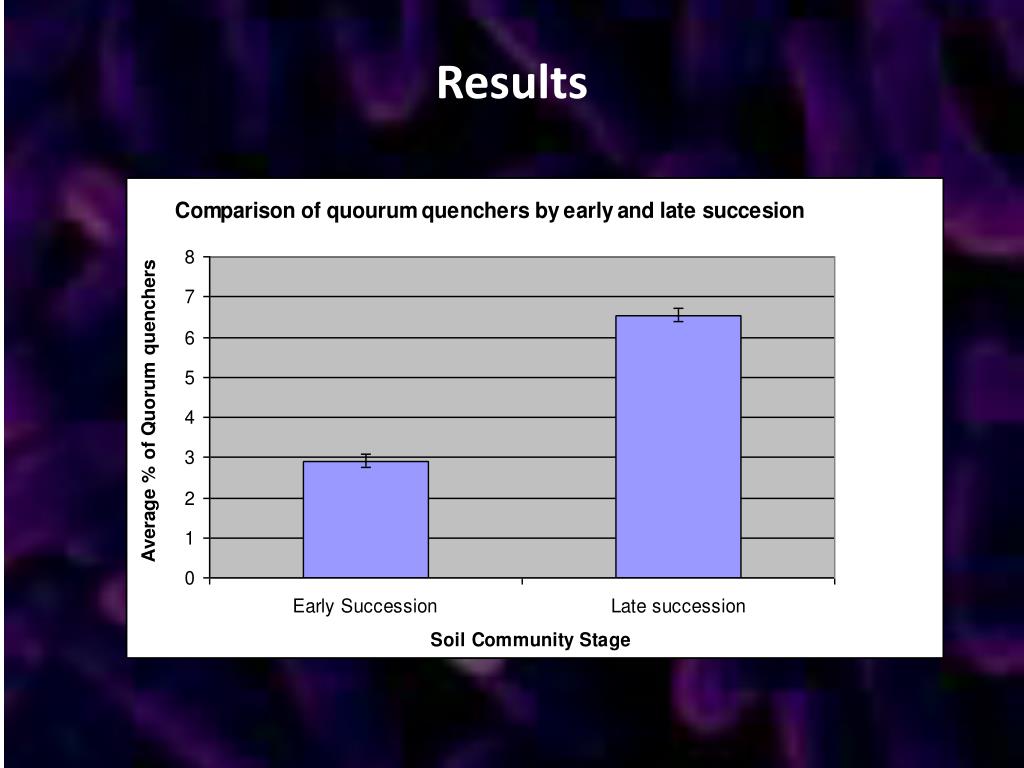

  17. Results

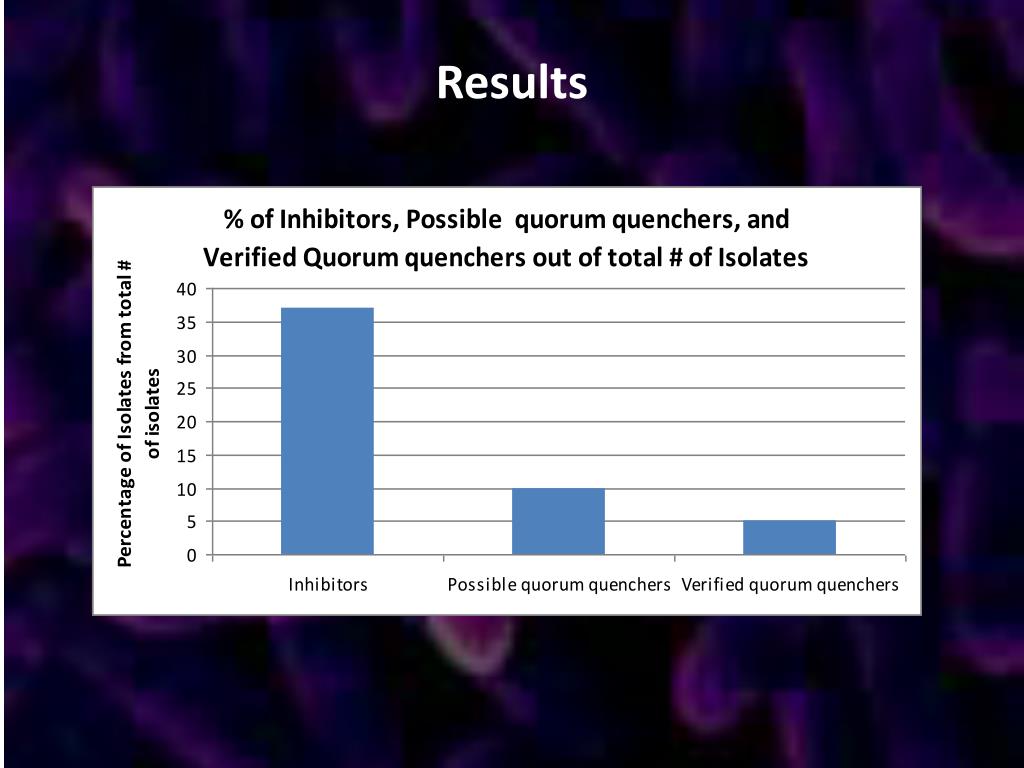

  18. Results

  19. Conclusions • Soil isolates that produce quorum quenching enzymes was supported • Late succession communities would have a greater number of isolates that quorum quench than early succession communities was supported (p = 0.03).

  20. Applications • Sources for quorum quenching microbes • Increase in antibiotics resistant bacteria

  21. Future Studies • Identifying the quorum quenching enzyme • Inducing E.coli to produce the enzyme

  22. Acknowledgments • Chris Reeves and Kim Griggs • Professor Robert McLean • Professor Dave Westenberg • Dr. Chris Waters • Diane Ayers

  23. Bibliography • Bjarnsholt T. and Givskov M. 2007. Quorum-sensing blockade as a strategy for enhancing host defences against bacterial pathogens. Philosophical Transactions of the Royal Society B. 362: 1213-1222.  • Blosser R.S. and Gray K.M. 2000. Extraction of violacein from Chromobacterium violacein provides a new quantitative bioassay for N-acyl homoserine lactone autoinducers. Journal of Microbiological Methods. 40(1): 47-55. • Cámara M. et al. 2002. Controlling infection by tuning in and turning down the volume of bacterial small-talk. Lancet Infectious Diseases. 2(11): 667-676.  • Christensen et al. 2003. Quorum-sensing-directed protein expression in Serratia proteamaculans B5a. Microbiology. 149: 471-483.  • Chu W et al. 2009. Bioassay of quorum sensing compounds using Chromobacterium violacein. Methods in Molecular Biology. Chapter two  • Clarridge J.E. 2004. Impact of 16S rRNA gene sequence analysis for identification of bacteria on Clinical microbiology and infectious disease. Clinical Microbiological Reviews. 17(4):840- 862.  • Czajkowski and Jafra. 2008. Quenching of acyl-homoserine lactone-dependent quorum sensing by enzymatic disruption of signal molecules. Acta Biochimica Polonica Journal. 56(1):1-16.  de Kievit T.R. and Iglewski B. 2000. Bacterial Quorum Sensing in pathogenic Relationships. Infection and Immunity. 68(9): 4839-4849  • de Nys et al. 1993. New halogenated furanones from the marine alga Delisea pulchra. Tetrahedron. 49: 11213-11220.   • Defoirdt T. et al. 2008. Quorum sensing and quorum quenching in Vibrio harveyi: lessons learned in vivo work. International Society for Microbial Ecology Journal. 2:19-26.

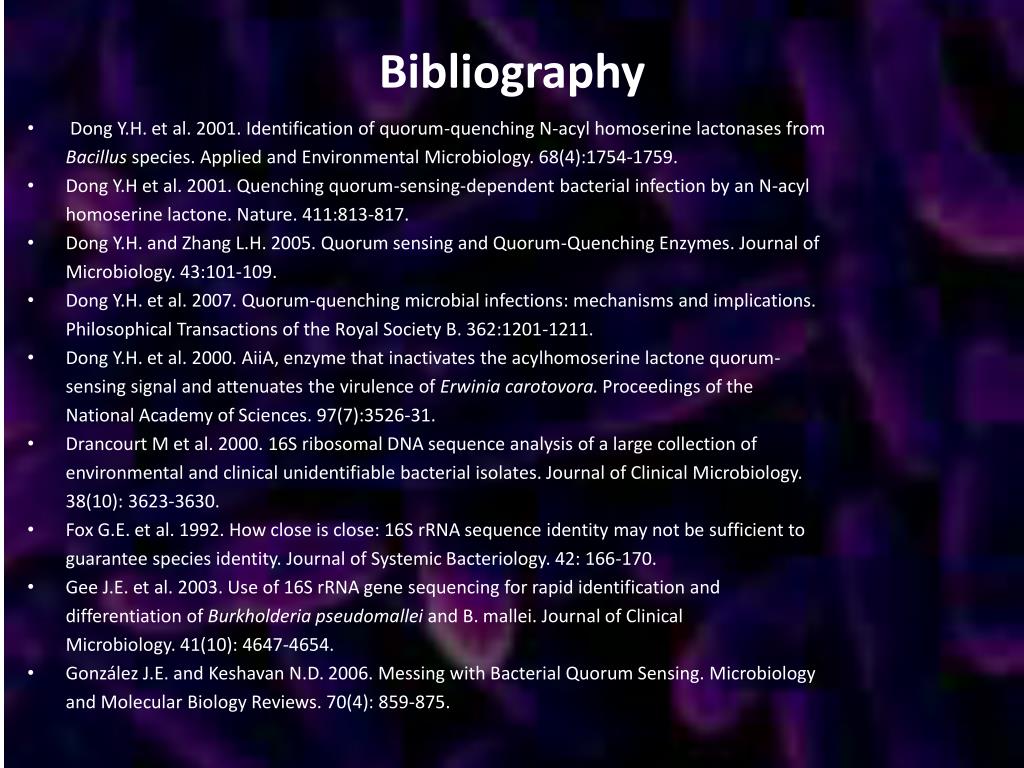

  24. Bibliography • Dong Y.H. et al. 2001. Identification of quorum-quenching N-acyl homoserine lactonases from Bacillus species. Applied and Environmental Microbiology. 68(4):1754-1759.  • Dong Y.H et al. 2001. Quenching quorum-sensing-dependent bacterial infection by an N-acyl homoserine lactone. Nature. 411:813-817.  • Dong Y.H. and Zhang L.H. 2005. Quorum sensing and Quorum-Quenching Enzymes. Journal of Microbiology. 43:101-109. • Dong Y.H. et al. 2007. Quorum-quenching microbial infections: mechanisms and implications. Philosophical Transactions of the Royal Society B. 362:1201-1211.  • Dong Y.H. et al. 2000. AiiA, enzyme that inactivates the acylhomoserine lactone quorum- sensing signal and attenuates the virulence of Erwinia carotovora. Proceedings of the National Academy of Sciences. 97(7):3526-31. • Drancourt M et al. 2000. 16S ribosomal DNA sequence analysis of a large collection of environmental and clinical unidentifiable bacterial isolates. Journal of Clinical Microbiology. 38(10): 3623-3630.   • Fox G.E. et al. 1992. How close is close: 16S rRNA sequence identity may not be sufficient to guarantee species identity. Journal of Systemic Bacteriology. 42: 166-170.  • Gee J.E. et al. 2003. Use of 16S rRNA gene sequencing for rapid identification and differentiation of Burkholderia pseudomallei and B. mallei. Journal of Clinical Microbiology. 41(10): 4647-4654. • González J.E. and Keshavan N.D. 2006. Messing with Bacterial Quorum Sensing.Microbiology and Molecular Biology Reviews. 70(4): 859-875.

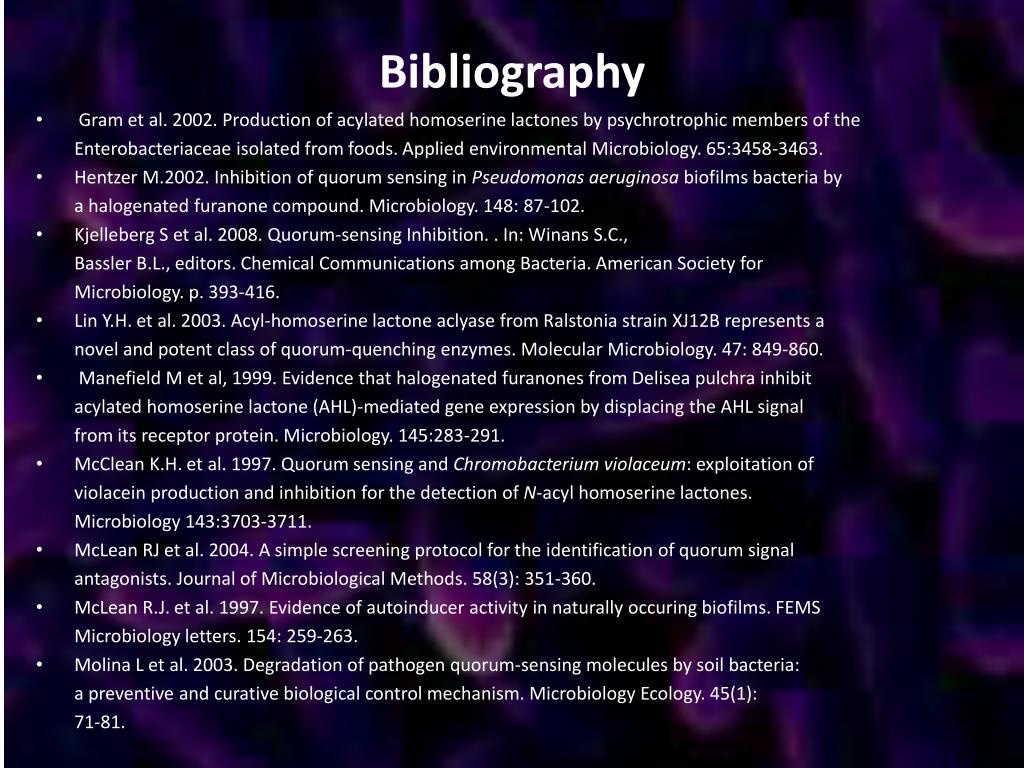

  25. Bibliography • Gram et al. 2002. Production of acylated homoserine lactones by psychrotrophic members of the Enterobacteriaceae isolated from foods. Applied environmental Microbiology. 65:3458-3463.  • Hentzer M.2002. Inhibition of quorum sensing in Pseudomonas aeruginosa biofilms bacteria by a halogenated furanone compound. Microbiology. 148: 87-102.  • Kjelleberg S et al. 2008. Quorum-sensing Inhibition. . In: Winans S.C., Bassler B.L., editors. Chemical Communications among Bacteria. American Society for Microbiology. p. 393-416.  • Lin Y.H. et al. 2003. Acyl-homoserine lactone aclyase from Ralstonia strain XJ12B represents a novel and potent class of quorum-quenching enzymes. Molecular Microbiology. 47: 849-860. •  Manefield M et al, 1999. Evidence that halogenated furanones from Delisea pulchra inhibit acylated homoserine lactone (AHL)-mediated gene expression by displacing the AHL signal from its receptor protein. Microbiology. 145:283-291.   • McClean K.H. et al. 1997. Quorum sensing and Chromobacterium violaceum: exploitation of violacein production and inhibition for the detection of N-acyl homoserine lactones. Microbiology 143:3703-3711.   • McLean RJ et al. 2004. A simple screening protocol for the identification of quorum signal antagonists. Journal of Microbiological Methods. 58(3): 351-360. • McLean R.J. et al. 1997. Evidence of autoinducer activity in naturally occuring biofilms. FEMS Microbiology letters. 154: 259-263.   • Molina L et al. 2003. Degradation of pathogen quorum-sensing molecules by soil bacteria: a preventive and curative biological control mechanism. Microbiology Ecology. 45(1): 71-81.

  26. Bibliography • Park S.Y. et al. 2003. AhlD, an N-acylhomoserine lactone in Arthrobacter sp., and predicted homologues in other bacteria. Microbiology. 149: 1541-1550. • Rao. S. 2009. The Effect of Elevated Temperature on Quorum Sensing and Biofilm Formation in Pseudomonas aeruginosa. • Rasmussen T.B. et al. 2005. Screening for Quorum-Sensing Inhibitors (QSI) by Use of a Novel Genetic System, the QSI Selector. Journal of Bacteriology. 187(5): 1799-1814. • Ravn L et al. 2001. Methods for detecting acylated homoserine lactones produced by gram- negative bacteria and their application in studies of AHL-production kinetics. Journal of Microbiological Methods. 44(3): 239-251.   • Ren D. et al. 2008. Quorum sensing inhibitory compounds. In: Balaban N, editor. Control of Biofilm infections by Signal Manipulations. Springer publishing co. p. 51-79.  • Roche D.M. et al. 2004. Communications blackout? Do N-acylhomoserine-lactone-degrading enzymes have any role in quorum sensing? Micobiology. 150: 2023-2028.  • Shaw P.D. et al. 1997. Detecting and characterizing N-acyl homoserine lactone signal molecules by thin-layer chromatography. Proceedings of the National Academy of Sciences. 94(12): 6036-6041.   • Sio C.F. et al. 2006. Quorum quenching by an N-acyl-homoserine lactone acylase from Pseudomonas aeruginosa PAO1. Journal of Infection and Immunity. 74(3): 1673-82.  • Smith et al. 2003. Induction and inhibition of Pseudomonas aeruginosa quorum sensing by synthetic autoinducer analogs. Chemistry and Biology. 10(1): 81-89.  • Stickler D.J. et al. 1998. Biofilm on Indwelling Urethral Catheters produce Quorum-sensing signal molecules In Situ and In Vitro. Applied and Environmental Microbiology. 64(9):3486- 3490.

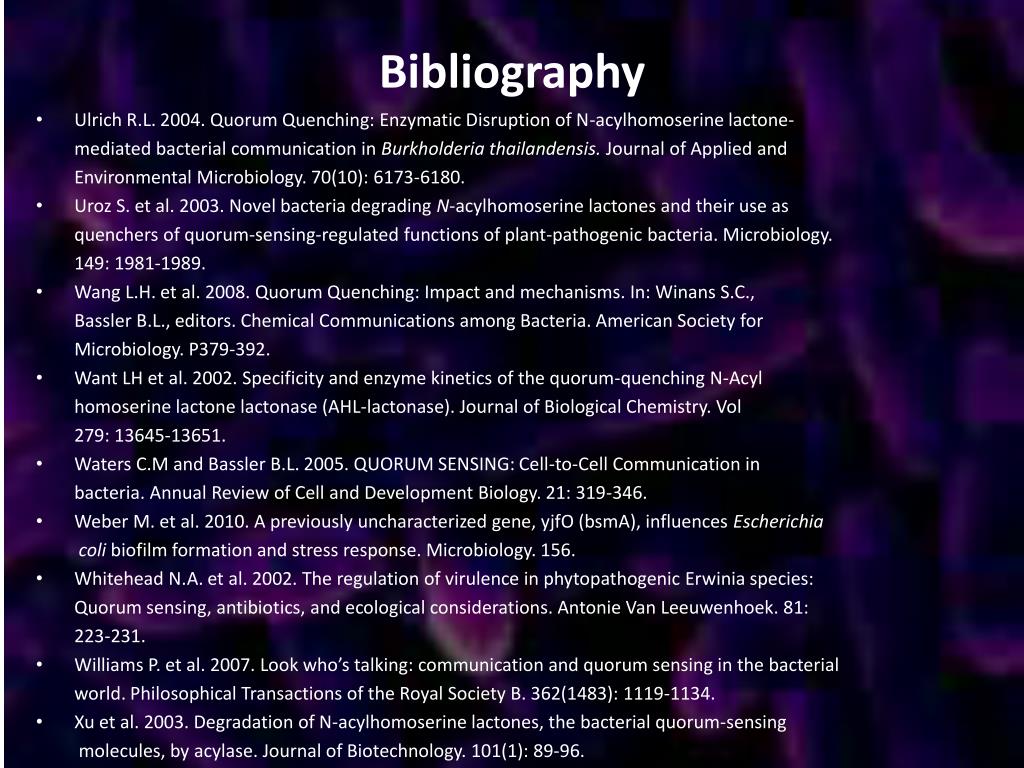

  27. Bibliography • Ulrich R.L. 2004. Quorum Quenching: Enzymatic Disruption of N-acylhomoserine lactone- mediated bacterial communication in Burkholderia thailandensis. Journal of Applied and Environmental Microbiology. 70(10): 6173-6180. • Uroz S. et al. 2003. Novel bacteria degrading N-acylhomoserine lactones and their use as quenchers of quorum-sensing-regulated functions of plant-pathogenic bacteria. Microbiology. 149: 1981-1989.  • Wang L.H. et al. 2008. Quorum Quenching: Impact and mechanisms. In: Winans S.C., Bassler B.L., editors. Chemical Communications among Bacteria. American Society for Microbiology. P379-392.   • Want LH et al. 2002. Specificity and enzyme kinetics of the quorum-quenching N-Acyl homoserine lactone lactonase (AHL-lactonase). Journal of Biological Chemistry. Vol 279: 13645-13651.  • Waters C.M and Bassler B.L. 2005. QUORUM SENSING: Cell-to-Cell Communication in bacteria. Annual Review of Cell and Development Biology. 21: 319-346.  • Weber M. et al. 2010. A previously uncharacterized gene, yjfO (bsmA), influences Escherichia coli biofilm formation and stress response. Microbiology. 156.   • Whitehead N.A. et al. 2002. The regulation of virulence in phytopathogenic Erwinia species: Quorum sensing, antibiotics, and ecological considerations. Antonie Van Leeuwenhoek. 81: 223-231.  • Williams P. et al. 2007. Look who’s talking: communication and quorum sensing in the bacterial world. Philosophical Transactions of the Royal Society B. 362(1483): 1119-1134.   • Xu et al. 2003. Degradation of N-acylhomoserine lactones, the bacterial quorum-sensing molecules, by acylase. Journal of Biotechnology. 101(1): 89-96.

  28. Bibliography • Zhang H.B. et al. 2007. Detection and analysis of quorum-quenching enzymes against acyl homoserine lactone quorum-sensing signals. Current Protocols in Microbiology. Chapter 1:Unit 1C.3.   • Zhang H.B. et al. 2002. Genetic control of quorum-sensing signal turnover in Agrobacterium tumefaciens. Proceedings of the National Academy of Sciences. 99:4638-4643.  • Zhang L.H. and Dong Y.H. 2004. Quorum sensing and signal interference: diverse implications. Molecular Microbiology. 53(6):1563-1571.  • Zhang L.H. 2003. Quorum quenching and proactive host defense. Trends in Plant Science. 8(5):238-244.
