1 / 25

The Go-Go Gantry

The Go-Go Gantry. Jeff Wilson Lee Strobridge Allison Bodis David Carlson Mark Jarrett Jeremy Paradee. Problem Statement:. To engineer an automated system that plots text on various sizes of poster board Input is ASCII file (.txt) 100 bytes max Must complete in 8 weeks. Solution:.

Download Presentation

The Go-Go Gantry

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. The Go-Go Gantry Jeff Wilson Lee Strobridge Allison Bodis David Carlson Mark Jarrett Jeremy Paradee Jeff Wilson

  2. Problem Statement: • To engineer an automated system that plots text on various sizes of poster board • Input is ASCII file (.txt) 100 bytes max • Must complete in 8 weeks Mark Jarrett, Jeremy Paradee, and Jeff Wilson

  3. Solution: • Movable Vehicle • Computer sends signal to Go-Go Gantry • Go-Go Gantry drives in X direction • Gantry with pen moves in Y direction • Combination of X-Y motion plots text • Vehicle plots text Mark Jarrett, Jeremy Paradee, and Jeff Wilson

  4. System Overview: Motor Marker Controller Solenoid 12V Motor Motor Lee Strobridge, Jeremy Paradee, Mark Jarrett, and Jeff Wilson

  5. Mechanical Overview: Gantry Stepper Motor Marker Solenoid Stepper Motor Stepper Motor Strobridge, Bodis, Jarrett, Wilson

  6. 3-D Model: Lee Strobridge

  7. Mechanical Detail:Gantry Dave Carlson

  8. Mechanical Detail:Marker Fixture Dave Carlson, Allison Bodis, Mark Jarrett

  9. Solenoid: Test 12 V Solenoid: F = 19 Newtons Mark Jarrett and Jeff Wilson

  10. Casters: Design Decision Wilson, Bodis, Strobridge, Paradee, Jarrett, Carlson

  11. Ball Vs. Wheel Casters: Test Mark Jarrett and Jeff Wilson

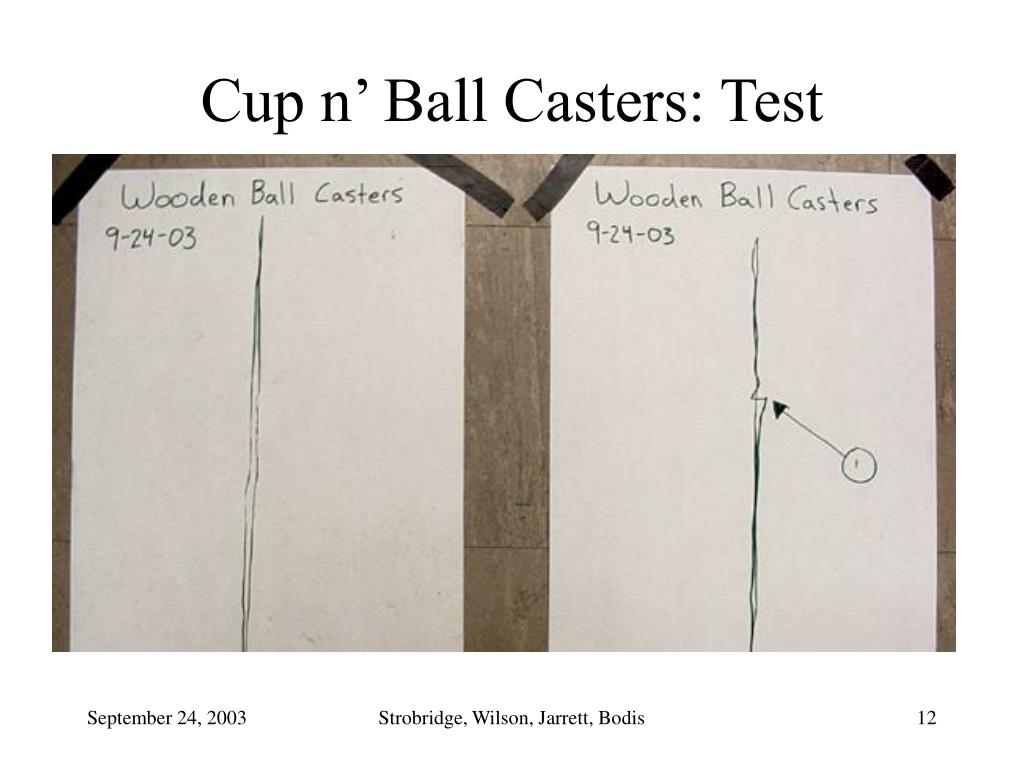

  12. Cup n’ Ball Casters: Test Strobridge, Wilson, Jarrett, Bodis

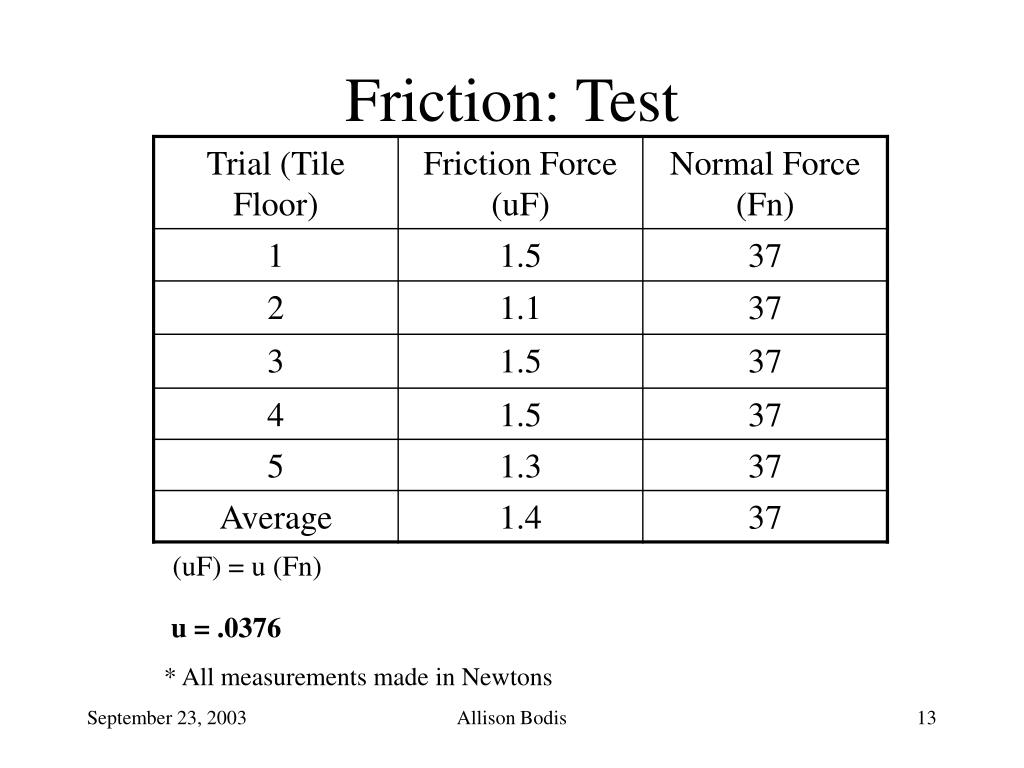

  13. Friction: Test (uF) = u (Fn) u = .0376 * All measurements made in Newtons Allison Bodis

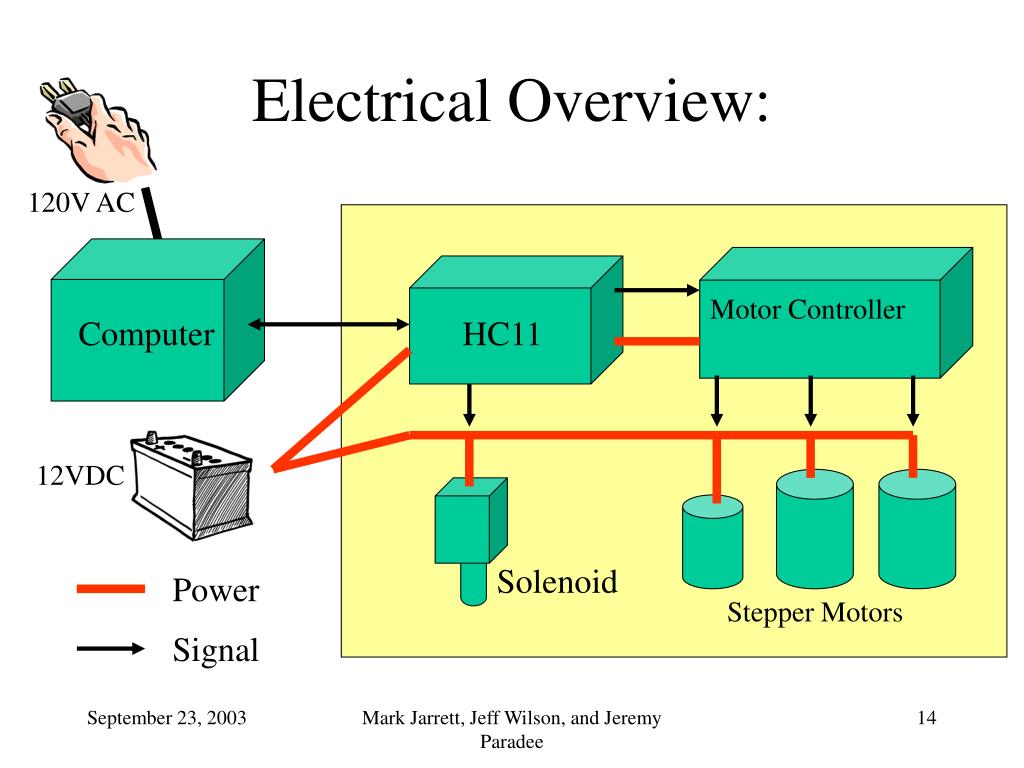

  14. Electrical Overview: 120V AC Motor Controller Computer HC11 12VDC Solenoid Power Stepper Motors Signal Mark Jarrett, Jeff Wilson, and Jeremy Paradee

  15. 68HC11 Microcontroller: Dave Carlson, Jeff Wilson

  16. Computer System Overview: Computer: Go Go Gantry: ASCII File In PC: Micro-Controller HC-11 “Yard Sale” Serial Cable Memory C Code yardsale Letters Printing Assembly Code Paradee, Strobridge, Carlson, Jarrett, Wilson, Bodis

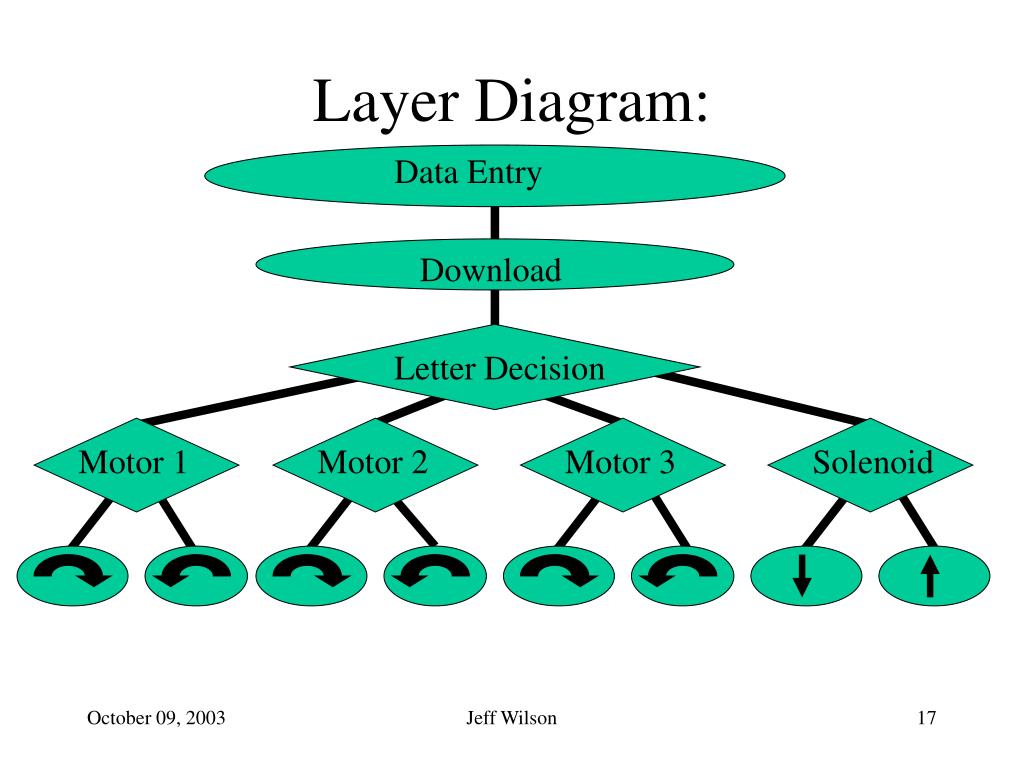

  17. Layer Diagram: Data Entry Download Letter Decision Motor 1 Motor 2 Motor 3 Solenoid Jeff Wilson

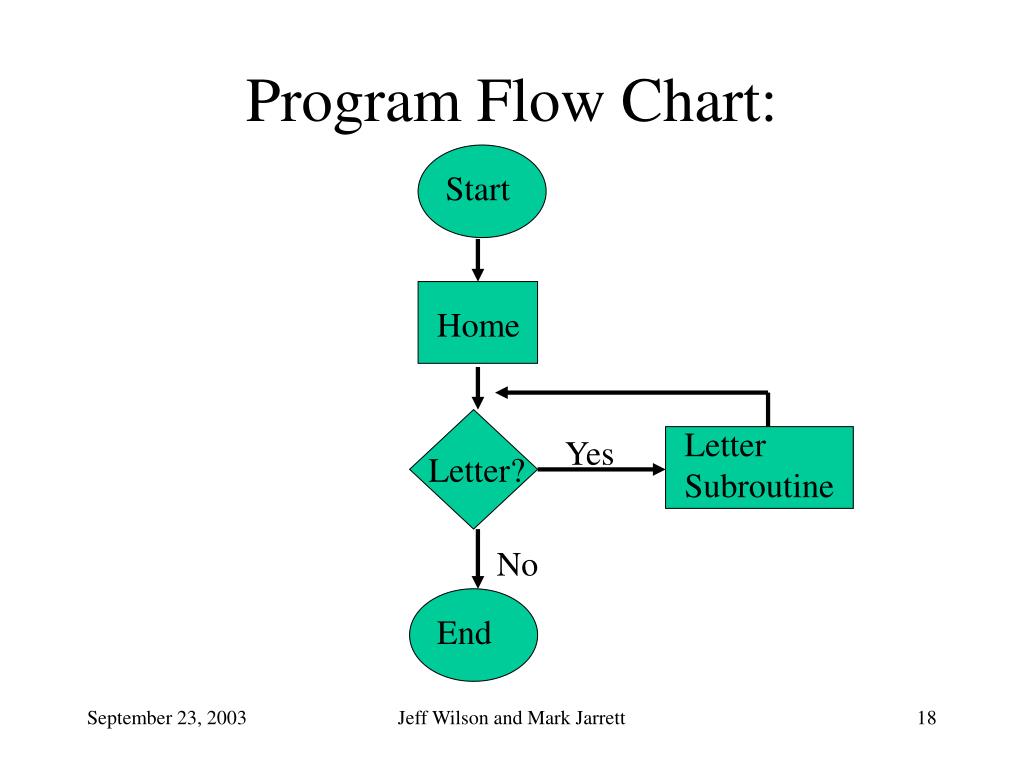

  18. Program Flow Chart: Start Home Letter Subroutine Yes Letter? No End Jeff Wilson and Mark Jarrett

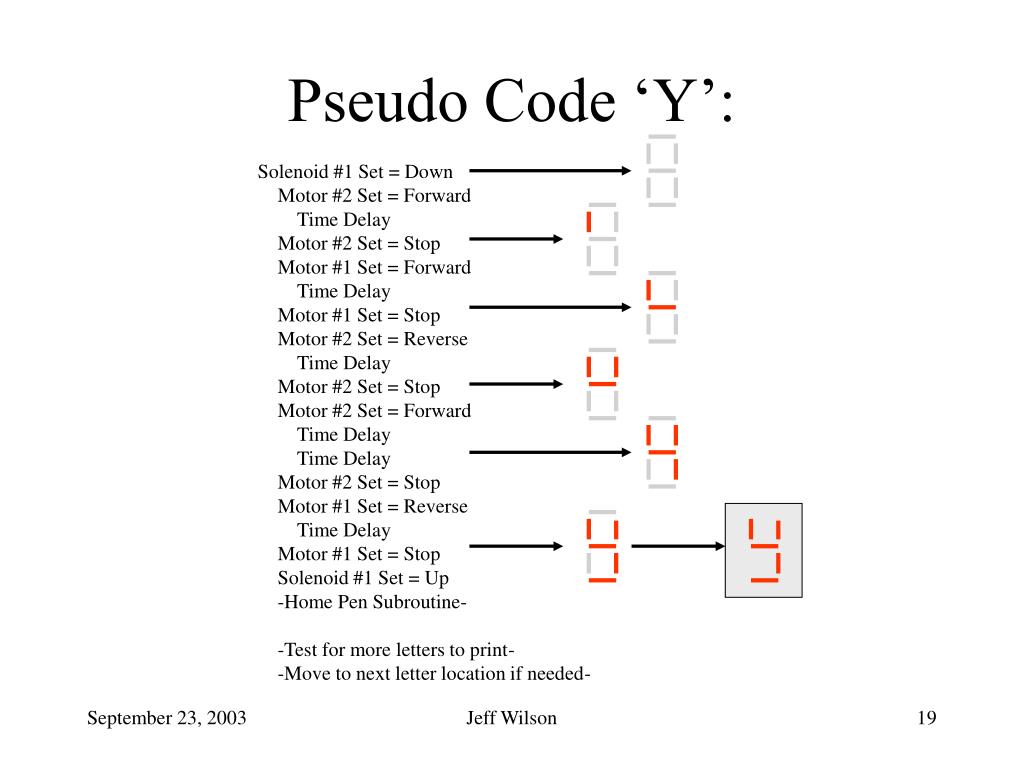

  19. Solenoid #1 Set = Down     Motor #2 Set = Forward         Time Delay     Motor #2 Set = Stop     Motor #1 Set = Forward         Time Delay     Motor #1 Set = Stop     Motor #2 Set = Reverse         Time Delay     Motor #2 Set = Stop     Motor #2 Set = Forward         Time Delay         Time Delay     Motor #2 Set = Stop     Motor #1 Set = Reverse         Time Delay     Motor #1 Set = Stop     Solenoid #1 Set = Up     -Home Pen Subroutine-     -Test for more letters to print-     -Move to next letter location if needed- Pseudo Code ‘Y’: Jeff Wilson

  20. User Interface Code: // // entertext.c - a terminal program to enter text and send it to the // Go Go Gantry. A list of options is given to the user, who can enter // text of up to 100 standard ascii letters. #include <stdio.h> int main( void ) { char text[100], choice = 'a'; int numberOfChars = 0, i = 0; // Title screen and prompt for letters printf("****************************************************************\n"); printf("* *\n"); printf("* --- Go Go Gantry: Text Terminal --- *\n"); printf("* *\n"); printf("* Enter up to 100 letters to be printed by the Go Go Gantry *\n"); printf("* Press RETURN to continue *\n"); …….. Dave Carlson

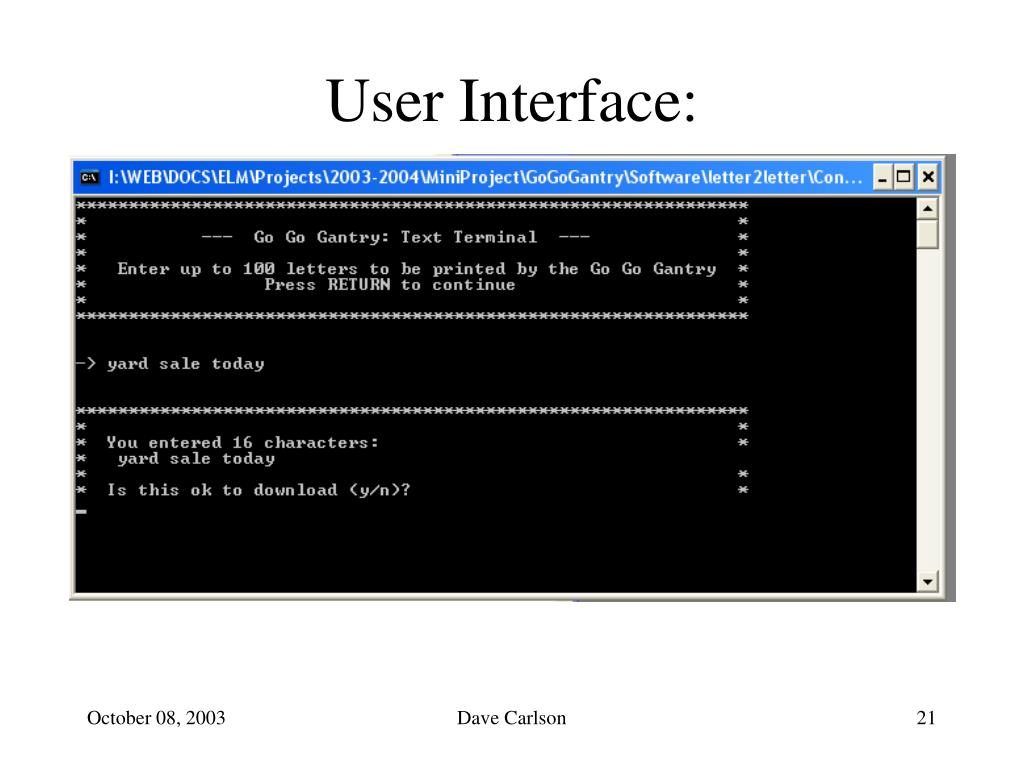

  21. User Interface: Dave Carlson

  22. Design Vs. Prototype: Lee Strobridge

  23. Rover II Platform: Prototype • Pre-Assembled, available • Large front prototyping area • HC 11, Stepper motors, wheels, controllers, serial communication and interrupt drivers • More pins give options for sensors Carlson, Jarrett, Wilson, Bodis, Strobrige, Paradee

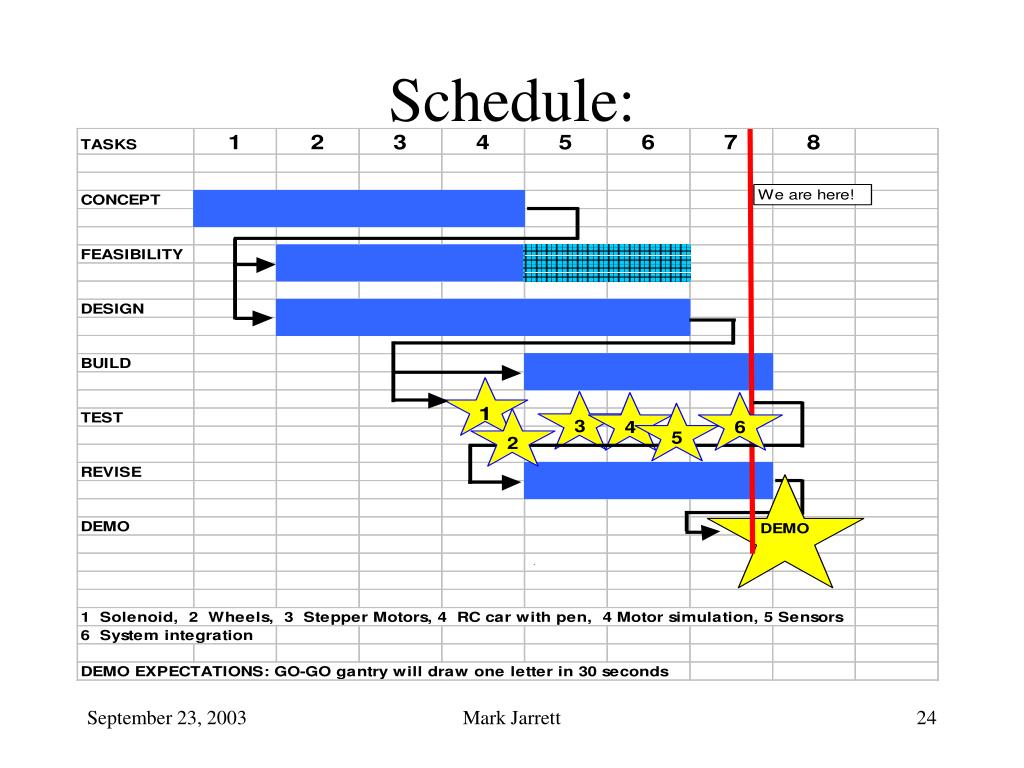

  24. Schedule: Mark Jarrett

  25. Thank You, Any Questions? Go-Go Gantry Webpage: I:\WEB\DOCS\ELM\Projects\2003-2004\MiniProject\GoGoGantry\index.html

More Related
