  1. Keith Henson (L5 Society Founder) Laser Propulsion and Space Based Solar Power

  2. Power down to Earth via lasers.

  3. What does this have to do with Transhumanism? Running out . . . . Carbon problems

  4. The Basic Idea • Build one power satellite the hard way. • Equip it with propulsion lasers • Bring up material to build hundreds using the first one. • Build more propulsion lasers as well. • Undercut/displace fossil fuels.

  5. Three years agoThree weeks agoWhat changed? Google China India Power Satellites

  6. Last week in the news . . .

  7. THE SABRE ENGINE

  8. HEAT EXCHANGER

  9. First SABRE Pre-cooler Module This was manufactured in 2004

  10. SABRE Pre-cooler Demonstration

  11. Can’t be done with chemical fuel • Current $20,000/kg to GEO • SpaceX $4,000/kg  $1,000/kg • 20t/1400t, 1.4% payload • Skylon ~$1000/kg  $500/kg • 7t/300t, 2.3% payload

  12. Hydrogen combustion to 25 km, & Mach 5.5 Laser heated hydrogen above that point (laser beamed down from GEO) • 2.3 to 3.4 GW of laser • Performance analysis, 54 t to LEO • Vehicle 24 t, (20% structure) plus • 30 t second stage to LEO • 2/3rd of second stage to GEO (20 t)

  13. Growth: 100GW/year, ten percent (10 GW) used for more propulsion, triples the cargo capacity to 1.5 M t/y, 300 GW/year. Triple that and the expansion rate is almost a TW/year. It's possible that humanity could be mostly off fossil fuels in two decades. (Sandy is a factor.)

  14. End of talk http://hplusmagazine.com/2012/04/12/transhumanism-and-the-human-expansion-into-space-a-conflict-with-physics/

  15. BUT—It is too big to do without major government backing • And oil, coal and gas industries will lobby against a real solution. (Maybe not) • So why should a government consider backing it?

  16. Payload Percent Ex Exhaust Velocity km/s

  17. Cost breakdown • Vehicle amortization $10/kg • Hydrogen $6/kg • Laser $50 B (written off in 5 years) • $10 B/0.5 B kg is $20/kg • $36/kg, well under the $100/kg number • Profit more than $50/kg

  18. Completing 2.3 to 3.4 GW • $ 34 B laser/power sat parts, 17,000 tons • 60 ¼ scale vehicles, 5 tons to GEO • 20 flights per day, 170 days, 2 years total • Transport cost @ $100/kg $1.7 B • Total cost $50-100 B • Income @ $100/kg * 500,000 t $50 B/yr • Payback from profit 3-4 years.

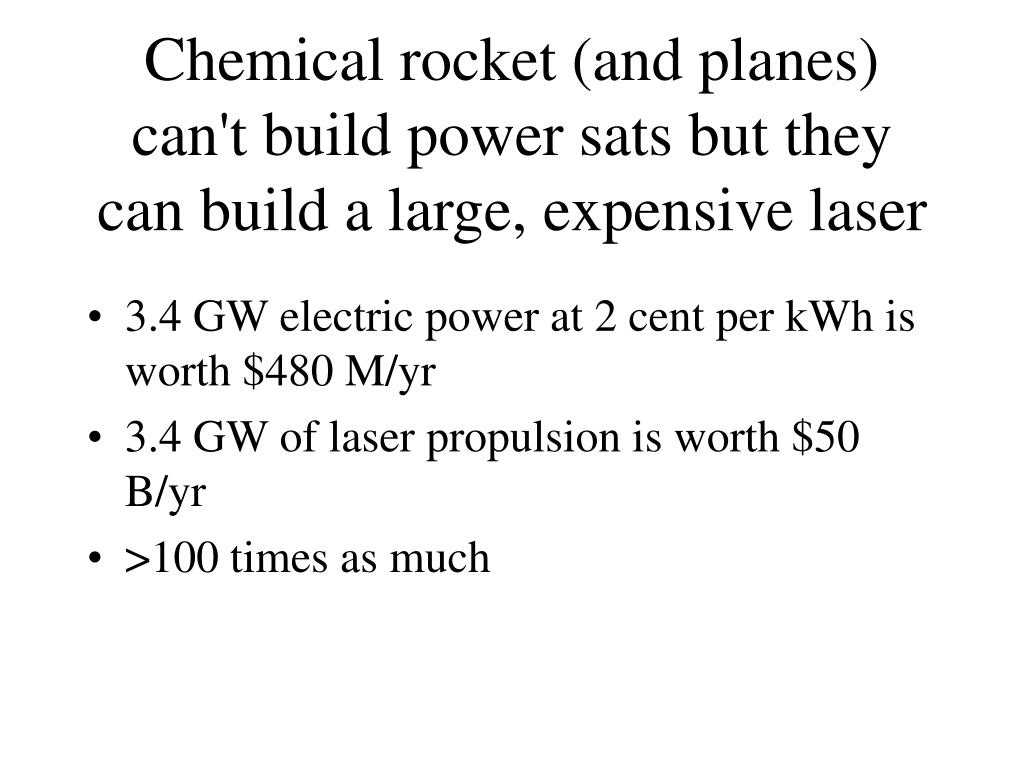

  19. Chemical rocket (and planes) can't build power sats but they can build a large, expensive laser • 3.4 GW electric power at 2 cent per kWh is worth $480 M/yr • 3.4 GW of laser propulsion is worth $50 B/yr • >100 times as much

  20. Part 4This makes a business case • It closes the business case for making 2 cent per kWh power and we know there is plenty of market at that price (TWs) • It solves energy, energy security and carbon problems (carbon neutral synthetic fuel for a dollar a gallon) • Even at two cents per kWh it makes huge profits to support growth.

  21. Simple analysis • 10 year return on capital, 80,000 hours • $1600/kW can be paid back at 2 cents per kWh (Below coal to get market share) • $200/kW rectenna, $900/kW parts and labor ($450 before transmission loss), $500/kW for transport to GEO • At 5 kg/kW requires • $100/kg or less to GEO

  22. It costs perhaps 10% of what a war with Iran would cost • SDI with the USSR or Russia was/is a losing business. • It will be decades before Iran could overwhelm a multi GW propulsion laser and by that time the commercial demand for laser propulsion should be in the tens of GW • Cheap power from space removes any legitimate reason to sort out uranium atoms

  23. Google “henson oil drum” for a slightly out of date “white paper” on this topic • Part 1 months ago • Part 2 and 3 a few weeks ago • Part 4 last week • This is unlikely to be the final evolution of the idea.

  24. Why Airdrop at 10 km • Large Landing gear reduction • Max landing is 54 tons, 120 t less 76 tons of LH2 dumped in an abort.

  25. OVERALL CONFIGURATION OF GEOSYNCHRONOUS SPS (FROM DOE STUDIES) SPACEBORNE ARRAY RECTENNA ON EARTH

  26. Percent payload (blue)GW x 10 (orange)

  27. 40 kg, but just scaling from MW to GW, move to Equator, cover mountain with gyrotrons, run 4 minutes out of 20, 11 million truck batteries, 5 years and they die, but in that time 500 GW of SBSP. Silly to send power down and back up so . . . .
