Presentation Transcript


Slide1 l.jpg

MAGNETIC LEVITATION TRAIN

TECHNOLOGY II

STUDENTS: TONY PEDERSON & TOBY MILLER

ADVISOR: DR. WINFRED ANAKWA


Slide2 l.jpg

TABLE OF CONTENTS

  • PROJECT SUMMARY

  • PROJECT DESCRIPTION

  • STANDARDS

  • PROJECT DESCRIPTION

  • SCHEDULE OF TASKS


Slide3 l.jpg

PROJECT SUMMARY

The goal of the project is to design a model size train to will be levitated and propelled by electromagnetism. A special magnet array called a Halbach array will be utilized along with a linear synchronous motor to make this train operate.


Slide4 l.jpg

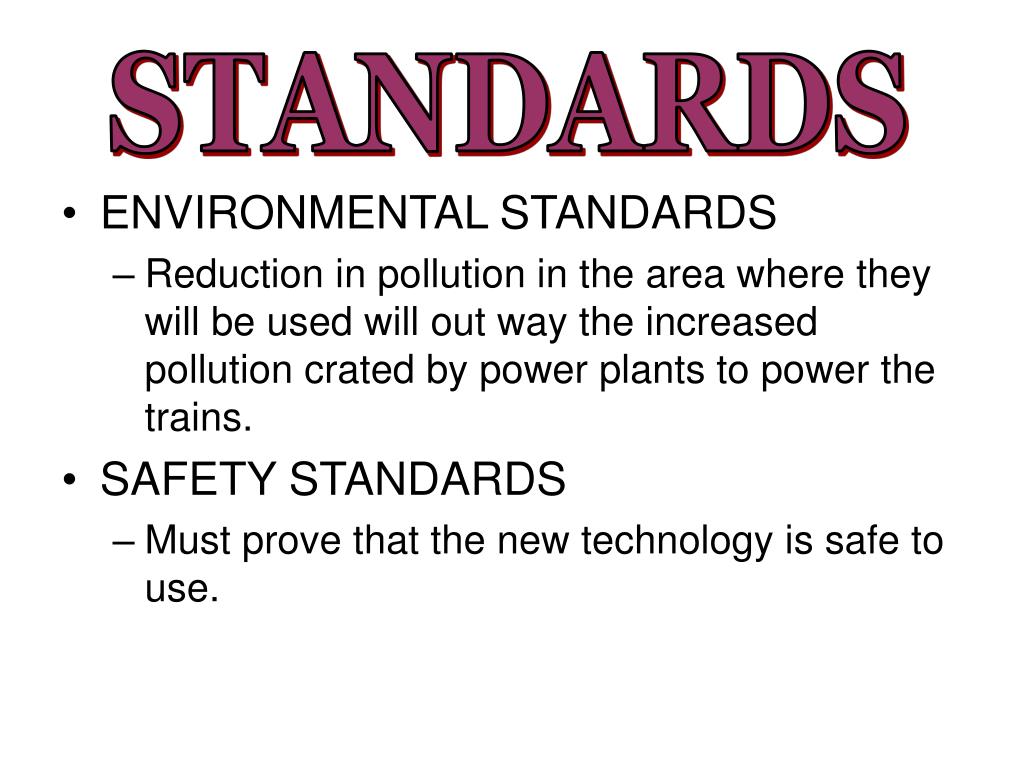

STANDARDS

  • ENVIRONMENTAL STANDARDS

    • Reduction in pollution in the area where they will be used will out way the increased pollution crated by power plants to power the trains.

  • SAFETY STANDARDS

    • Must prove that the new technology is safe to use.


Slide5 l.jpg

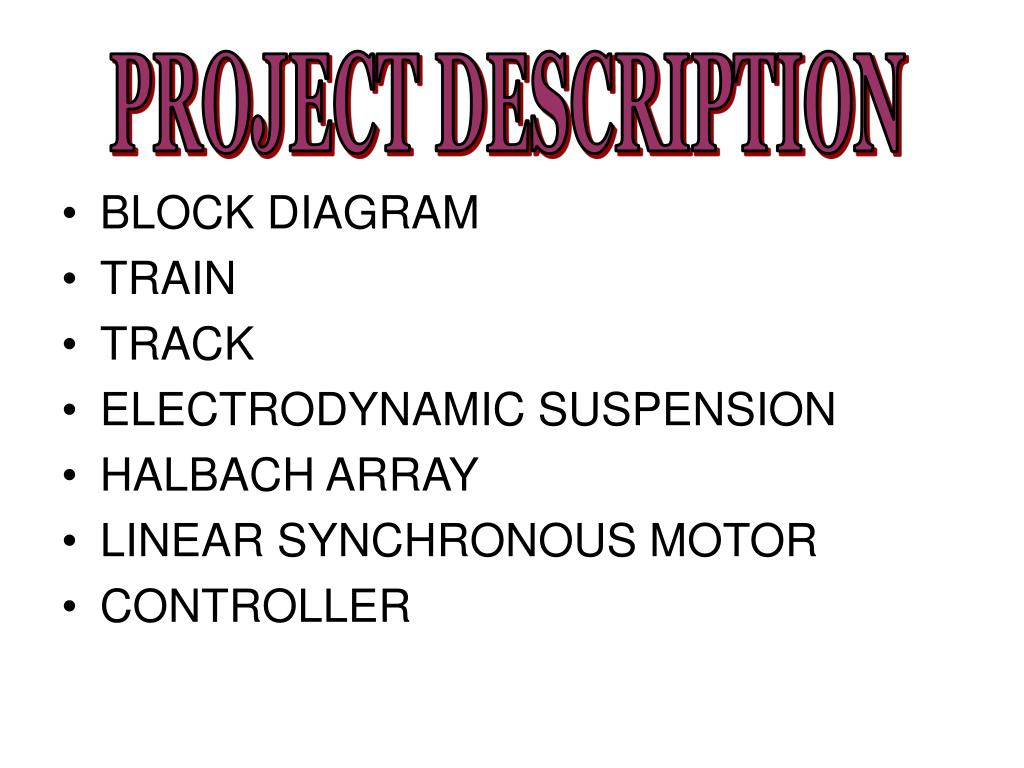

PROJECT DESCRIPTION

  • BLOCK DIAGRAM

  • TRAIN

  • TRACK

  • ELECTRODYNAMIC SUSPENSION

  • HALBACH ARRAY

  • LINEAR SYNCHRONOUS MOTOR

  • CONTROLLER


Slide6 l.jpg

BLOCK DIAGRAM

TRAIN WITH SPEED SENSOR

CONTROLLER

FREQUENCY REFERENCE SIGNAL FOR SPEED CONTROL

THREE-PHASE POWER INPUT

TRACK


Slide7 l.jpg

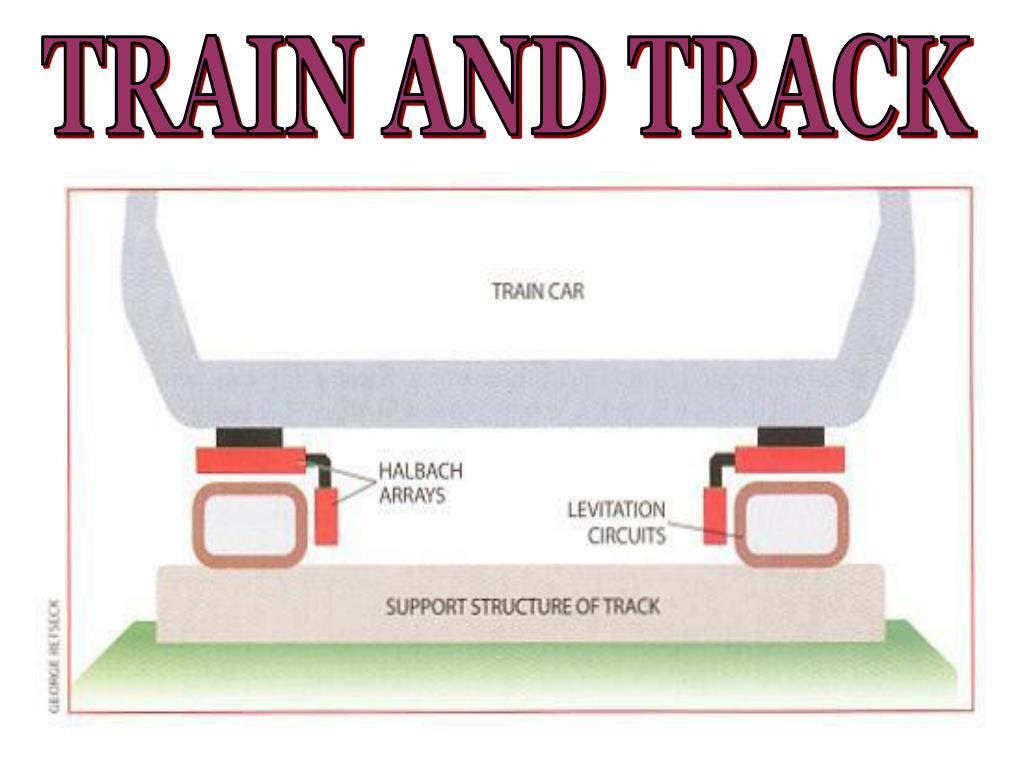

TRAIN AND TRACK


Slide8 l.jpg

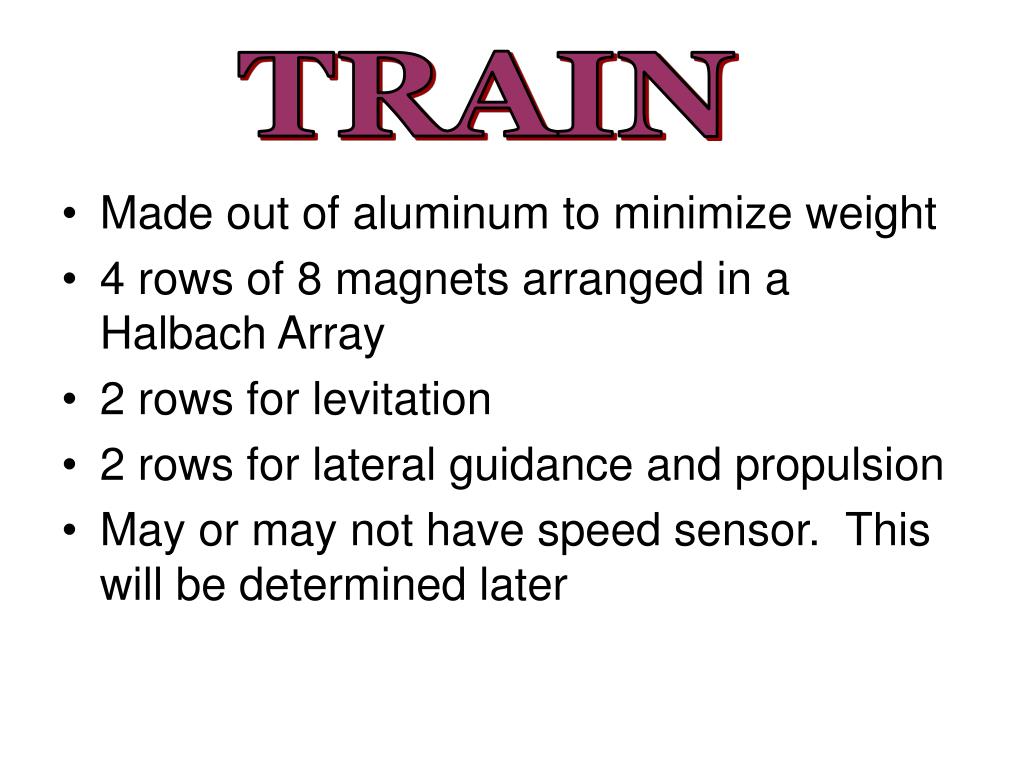

TRAIN

  • Made out of aluminum to minimize weight

  • 4 rows of 8 magnets arranged in a Halbach Array

  • 2 rows for levitation

  • 2 rows for lateral guidance and propulsion

  • May or may not have speed sensor. This will be determined later


Slide9 l.jpg

TRACK

  • 2 aluminum guide ways

  • Wires will be wrapped around guide way to provide the levitation circuits

  • A G scale model railroad track will be laid between guide ways to provide support for take off and stopping.

  • A linear synchronous motor will be attached to the track to provide propulsion


Slide10 l.jpg

ELECTRODYNAMIC SUSPENSION

  • The magnets on the train produce currents while traveling in the guide way. This uses repulsion to guide and support the train, but will need a support for “landing” and “takeoff” since EDS does not work below 25 mph on a full size train. The minimum speed for levitation will be determined later once the train is built. It has been determined to be a function of magnet size and weight.


Slide11 l.jpg

HALBACH ARRAY

Halbach Array’s are a special arrangement that cancels the magnetic field above the magnets, but still allows a field below the magnets. The permanent magnets that will be using are made out of Neodymium Iron Boron (NdFeB)


Slide12 l.jpg

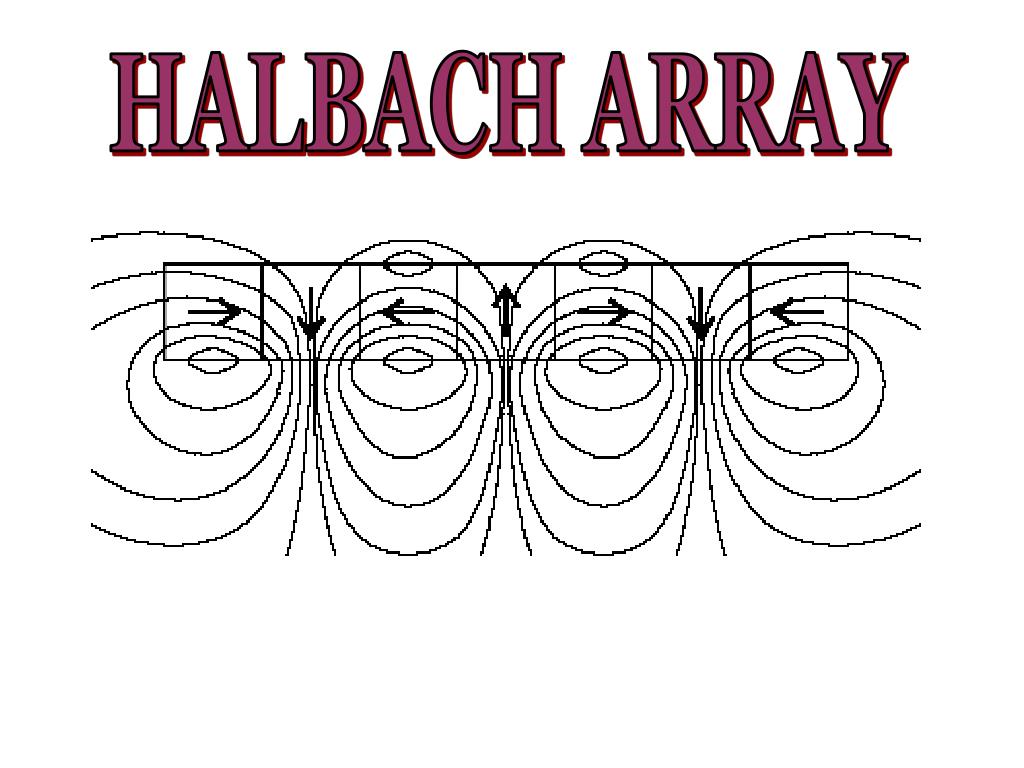

HALBACH ARRAY


Slide13 l.jpg

HALBACH ARRAY


Slide14 l.jpg

LINEAR SYNCHRONOUS MOTOR

  • Same principle as a rotary synchrounous motor

  • The rotor will be the Halbach Array

  • The stator will be coils of wire on the sides of the guide way

  • The input will be a three-phase varying frequency signal at a very low frequency (2-10 hz)


Slide15 l.jpg

PRELIMINARY WORK

  • Almost all time has been spent on research

  • IEEE Transactions have been very helpful

  • No track calculations have been made. The train has to be built first to determine weight of train.


Slide16 l.jpg

EQUATIONS USED

OPTIMUM MAGNET THICKNESS =.2*wavelength (lambda)

Optimum wavelength = 4*pi*y1 (m)

y1 = levitation height (lambda)

Br = (Tesla) remanent field of the permanent magnet


Slide17 l.jpg

PREDICTED TIMELINE

SPRING SEMESTER

  • WEEK 1 - BUILD THE TRAIN.

  • WEEKS 2-4 - FINISH DESIGNING TRACK AND BUILD IT.

  • WEEKS 5-12 - TESTING AND DESIGNING A CONTROLLER.

  • WEEKS 13-16 – PREPARING FOR FINALE PRESENTATION.
