Programming Samsung DCS/iDCS/OfficeServ

Programming Samsung DCS/iDCS/OfficeServ. Click on Connection type 1. For SERIAL CONNECTION 2. For IP CONNECTION. Exit. System Programming for IP. MMC 210 : PERI UCD SIO - OFF MMC 210 : PERI UCD REPORT - ON MMC 501 : UCD REPORT - 03 SECS MMC 725 : All YES except Page Header

pepper
Download Presentation

Programming Samsung DCS/iDCS/OfficeServ

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Programming Samsung DCS/iDCS/OfficeServ Click on Connection type 1. For SERIAL CONNECTION 2. For IP CONNECTION Exit

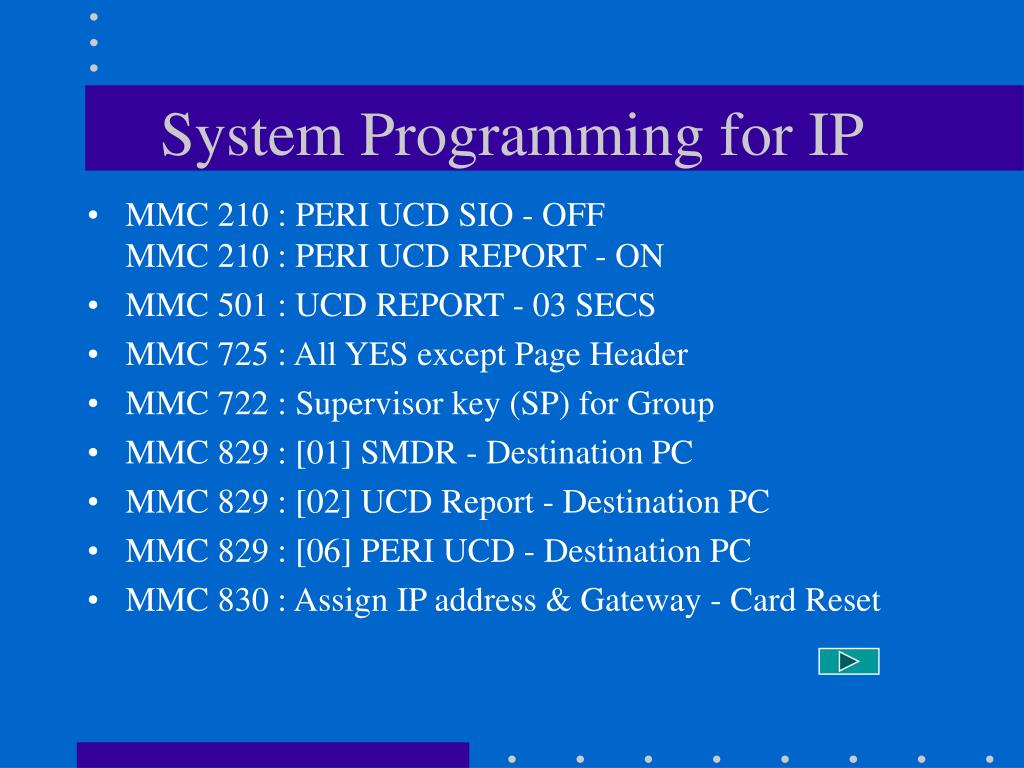

  2. System Programming for IP • MMC 210 : PERI UCD SIO - OFFMMC 210 : PERI UCD REPORT - ON • MMC 501 : UCD REPORT - 03 SECS • MMC 725 : All YES except Page Header • MMC 722 : Supervisor key (SP) for Group • MMC 829 : [01] SMDR - Destination PC • MMC 829 : [02] UCD Report - Destination PC • MMC 829 : [06] PERI UCD - Destination PC • MMC 830 : Assign IP address & Gateway - Card Reset

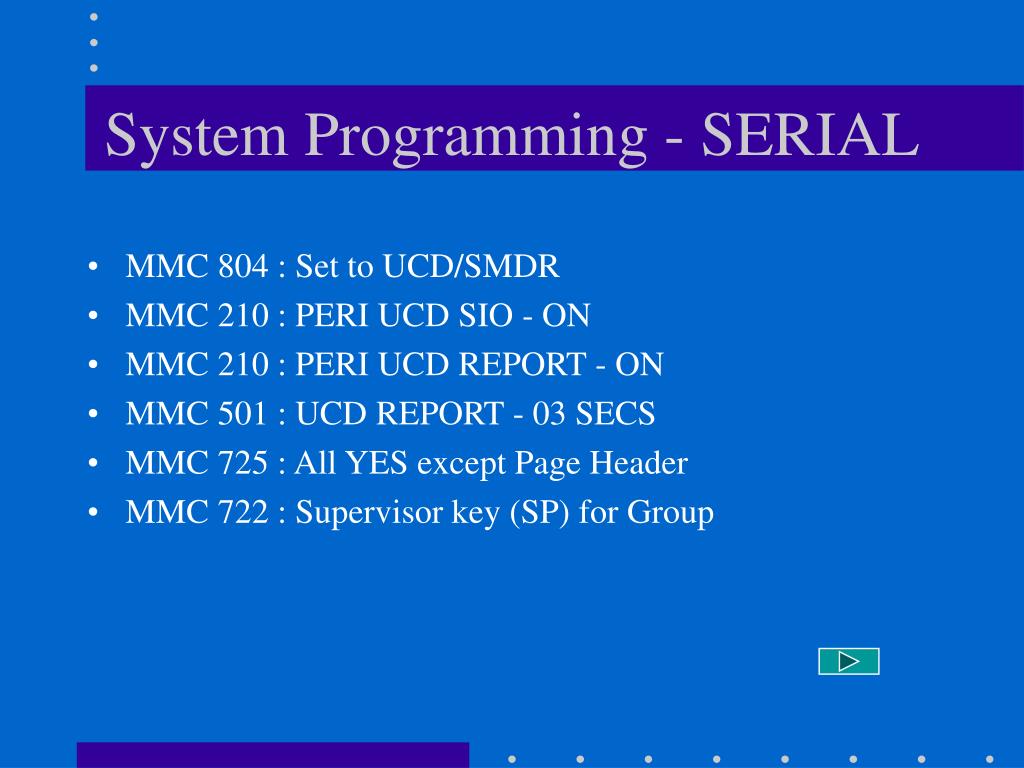

  3. System Programming - SERIAL • MMC 804 : Set to UCD/SMDR • MMC 210 : PERI UCD SIO - ON • MMC 210 : PERI UCD REPORT - ON • MMC 501 : UCD REPORT - 03 SECS • MMC 725 : All YES except Page Header • MMC 722 : Supervisor key (SP) for Group

  4. Handset Programming- PRINT • Assign Auto Print Group Supervisor key • Press SP Group Key • Admin • Print • Auto • On • Hourly • 59 (each 59 minutes past each hour)

  5. Handset Programming - CLEAR • Assign Auto Clear Group Supervisor key • Press SP Group Key • Admin • Clear • Auto • On • Daily • 23:59 (Clears data daily at 23:59pm)
