  1. OfficeServ12

  2. OfficeServ 12 Components

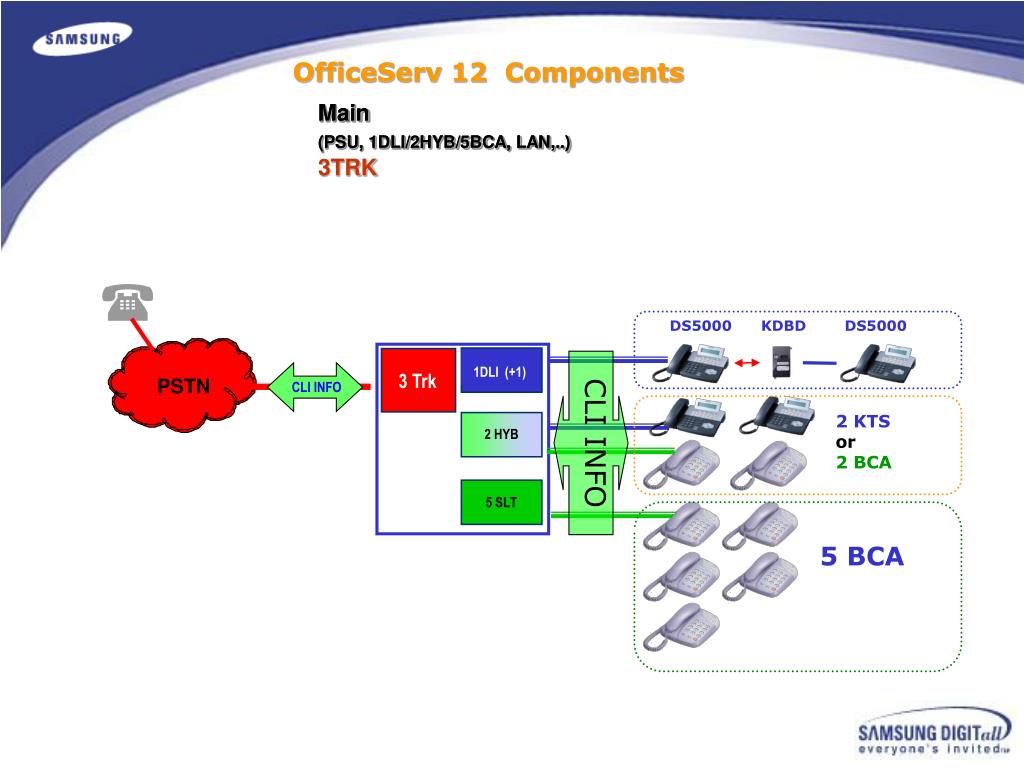

  3. Main (PSU, 1DLI/2HYB/5BCA, LAN,..) 3TRK 3 Trk PSTN DS5000 KDBD DS5000 CLI INFO 1DLI (+1) 5 SLT 2 KTS or 2 BCA 2 HYB 5 BCA OfficeServ 12 Components Main (PSU, 1DLI/2HYB/5BCA, LAN,..) CLI INFO

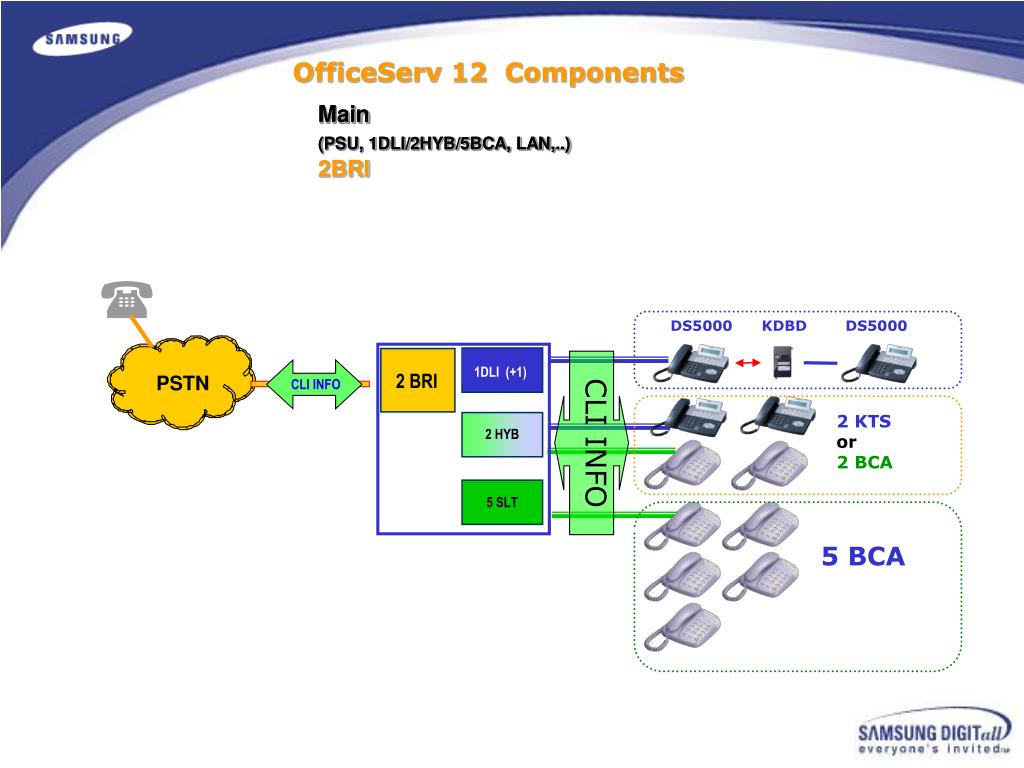

  4. Main (PSU, 1DLI/2HYB/5BCA, LAN,..) 2BRI PSTN CLI INFO 2 BRI 1DLI (+1) 5 SLT 2 HYB OfficeServ 12 Components Main (PSU, 1DLI/2HYB/5BCA, LAN,..) DS5000 KDBD DS5000 CLI INFO 2 KTS or 2 BCA 5 BCA

  5. Main (PSU, 1DLI/2HYB/5BCA, LAN,..) AP 3TRK 3 Trk PSTN PDA IEEE 802.11b Note PC LAN 10/100T base CLI INFO 1DLI (+1) 5 SLT 2 HYB OfficeServ 12 Components Main (PSU, 1DLI/2HYB/5BCA, LAN,..) DS5000 KDBD DS5000 CLI INFO 2 KTS or 2 BCA 5 BCA

  6. WLAN Handset Wireless IP Phone PSTN PDA IEEE 802.11b Note PC LAN 10/100T base DS5000 KDBD DS5000 CLI INFO 2 BRI 1DLI (+1) CLI INFO 5 SLT 2 KTS or 2 BCA 2 HYB 5 BCA OfficeServ 12 Components Main (PSU, 1DLI/2HYB/5BCA, LAN,..) AP 2 BRI

  7. WLAN Main (PSU, 1DLI/2HYB/5BCA, LAN,..) AP 3TRK MGI Handset Wireless adapter + IP Phone 3 Trk PSTN CLI INFO 1DLI (+1) 5 SLT Media GW IP I/F H.323 RJ45 2 HYB Pirelli Adsl Ethernet port 10/100 Tbase To be connected To a ADSL Router Fast Ethernet xDSL Intern@ OfficeServ 12 Components Main (PSU, 1DLI/2HYB/5BCA, LAN,..) AP 3TRK PDA IEEE 802.11b Note PC LAN 10/100T base DS5000 KDBD DS5000 CLI INFO 2 KTS or 2 BCA 5 BCA

  8. WLAN Handset Wireless adapter + IP Phone PSTN CLI INFO 1DLI (+1) 5 SLT 2 HYB Pirelli Adsl OfficeServ 12 Components Main (PSU, 1DLI/2HYB/5BCA, LAN,..) AP 2 BRI MGI PDA IEEE 802.11b Note PC LAN 10/100T base DS5000 KDBD DS5000 2 BRI CLI INFO 2 KTS or 2 BCA Media GW IP I/F H.323 RJ45 5 BCA Ethernet port 10/100 Tbase To be connected To a ADSL Router Fast Ethernet xDSL Intern@

  9. Phase I Wireless protocol : WLAN (IEEE802.11b) N. 2 Ethernet port 10/100T base Base station accommodates up to 4 voice channels at MGI Power failure transfer (with ext battery and 1 emergency SLT) Max. 8 wireless devices 3 Analogue trunk or 2 ISDN BRI T0/S0 1 DLI (DS5000 Series 2B+D) + 2 Hybrid(2SLT’s or 2KTS)+5 SLT Ports Any devices based WLAN - Note PC, PDA, wireless IP phone, wireless handset, wireless A/D Separates voice path and data path in AP. - Voice path : WLAN VoIP terminal ↔ PSTN - Data path : WLAN based products ↔ LAN (Internet) OfficeServ 12 Specifications • Phase II • VoIP : H.323 / SIP(Session Initiation Protocol) • DHCP Server on AP • E-mail notification (SMS) • Hyperway compliant in case of end to end connection • MGI functionality embedded as option to connect ITP5000 Phones + ITP remote phones • Remote working functionalities

  10. CLI Information on analogue TRK and SLT OfficeServ Easy Set, Call Windows PCMMC for Remote and local programming and sw update ISDN basic call control (TBR 3) Analogue TRK (TBR 21) ISDN supplementary services: 3rd P’ty conf. MSN AOC CLIP/R COLP/R Digit in overlap dialing (Keypad facilities # *) TP ……….. OfficeServ 12 Main features

  11. OfficeServ Easy Set OfficeServ 12 Applications • Main Features • Personal MMC • SMS(Short Message Service) • Call Accounts • Wall Board (Executive State) • Scheduling • A convenient WEB application • User can program MMCs personally • H/W Requirements • OS : Microsoft Windows 2000, XP • Web Server : IIS 5.0 • VDC Linker • Refer a Install Guide.

  12. OfficeServ Call OfficeServ 12 Applications call manager application with support for contact management, scheduling and call logging • Main Features • Station Setup Service • Call Control Service • Directory Services • Scheduler Services • Call Log Services • BLF View

  13. WBS 24 / WIP 5000M General Specification

  14. RJ-45 RJ-11 RJ-11 RJ-45 RJ-45 LINE ON OFF LAN TEL MODEM DC5V SIO WBS 24 General Specification

  15. WBS 24 / WIP 5000M General Specification Frequency Band 2.4 Ghz Data Rates Supported 1, 2, 5.5 and 11 Mbps Network Standard IEEE 802.11b Range Indoor: 50m @ 11Mbps Outdoor: 300m @ 11Mbps Encryption 64/128 bit WEP encryption & WPA (Wireless Protected Association) Network Architecture Types Infrastructure Wireless Medium Direct Sequence Spread Spectrum (DSSS) Receive Sensitivity -80dBm (11Mbps) Modulation BPSK, QPSK, CCK Transmitting Power Max. 100 mW (17dBm) Wi-fi Certification Wi-fi (Wireless Fidelity) standard Media Access Protocol CSMA/CA (DCF) Duplexing TDD/ Half Duplex Multicast Support Multicast support QoS Support Propriety Channel Bandwidth 22MHz

  16. Figure Function Design • Standard : WLAN : 802.11b VoIP : H.323 / SIP • Compatibility : WECA • RF Freq : 2.4 ~ 2.483GHz • RF Power : Max 100mW • Channel No : 13ch • Transmission Protocol : DSSS • Voice codec : G711 / G729 / G726 • Size : 125 x 45 x 24 mm • Weight : 130g • Battery : 3.6V Li-Ion / 1350mA • Talk / Standby Time up to 2.5h / up to 25h • Tx/Rx in open area 300mt. and indoor area 50 mt. Advanced Function • Menu Animation • PC data Com via Air Interface • Phone book data Download by using PC-Link • Program Download via Air • Multi phonebook (400) • Multi language (2) • Vibrator Alert • Fuzzy Dialling • General Function • 20 LNR • 30 call log & CLIP with time • Ring type selection with melody • Key Pad Lock • 3 step voice volume • LCD : Graphic LCD of 1 Icon, 4Line char • Batt and RF strength display • Rubber case (Opt.) • Color : TBF • External Charger • Antenna : Super sensitive Intenna type WIP 5000M Wireless Terminal

  17. Thank you!
