UNIFIED MEDICAL LANGUAGE SYSTEMS (UMLS)

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. UNIFIED MEDICAL LANGUAGE SYSTEMS (UMLS) • The Unified Medical Language System (UMLS) is a long term research and development project that started in 1986 by the U.S. National Library of Medicine (NLM) • The UMLS is not a gigantic and comprehensive medical vocabulary • The UMLS is a relational database connecting “by concept” over 60 vocabularies, thesauri, medical problem lists etc.

  2. Purpose • To aid the development of systems that help health professionals and researchers retrieve and integrate electronic biomedical information form a variety of sources, such as: • Computer-based Patient Records • Bibliographic databases • Factual (full text) databases • Administrative health data • Expert systems

  3. UMLS Uses • Electronic patient records • Natural language processing • Information retrieval • Thesaurus construction • Automated indexing

  4. UMLS COMPONENTS Metathesaurus Semantic Network Lexicon

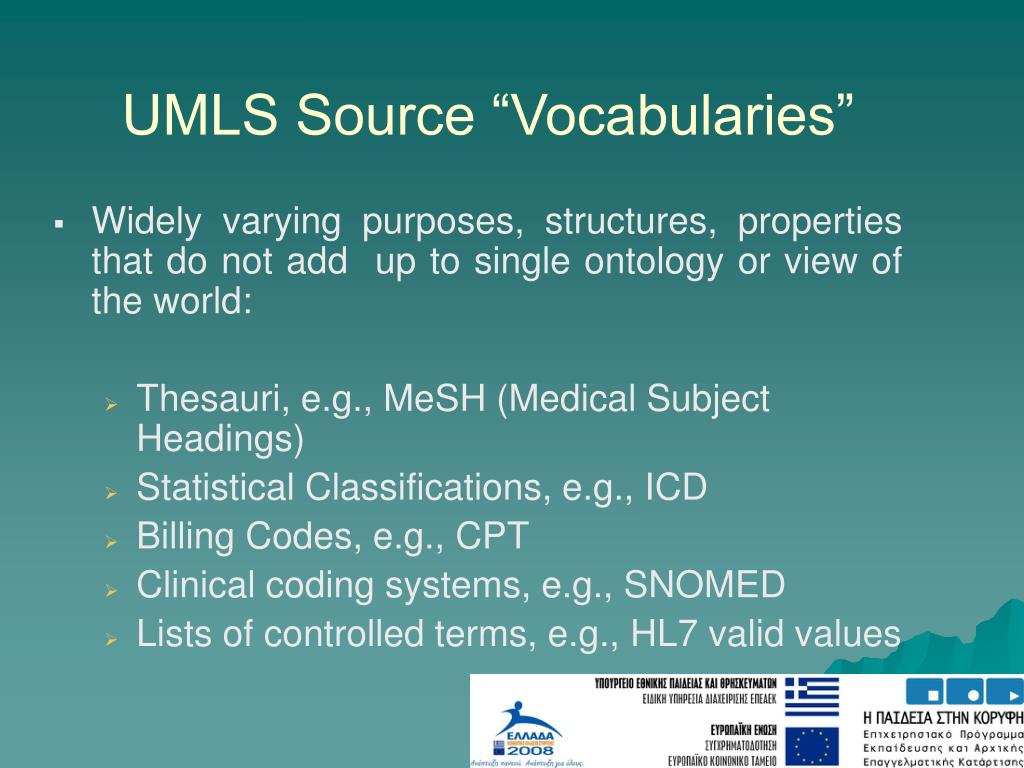

  5. UMLS Source “Vocabularies” • Widely varying purposes, structures, properties that do not add up to single ontology or view of the world: • Thesauri, e.g., MeSH (Medical Subject Headings) • Statistical Classifications, e.g., ICD • Billing Codes, e.g., CPT • Clinical coding systems, e.g., SNOMED • Lists of controlled terms, e.g., HL7 valid values

  6. How to combine them? Not reallly ...

  7. METATHESAURUS • Contains more than 60 vocabularies and classifications. • 776.940 concepts • 2,1 millions of concept names • 11 millions of relationships between concepts

  8. Metathesaurus - Relations • Preserves the structure of the original sources. • Add news relationships between the concepts

  9. Synonymous terms CUI Preferred term METATHESAURUS Organization

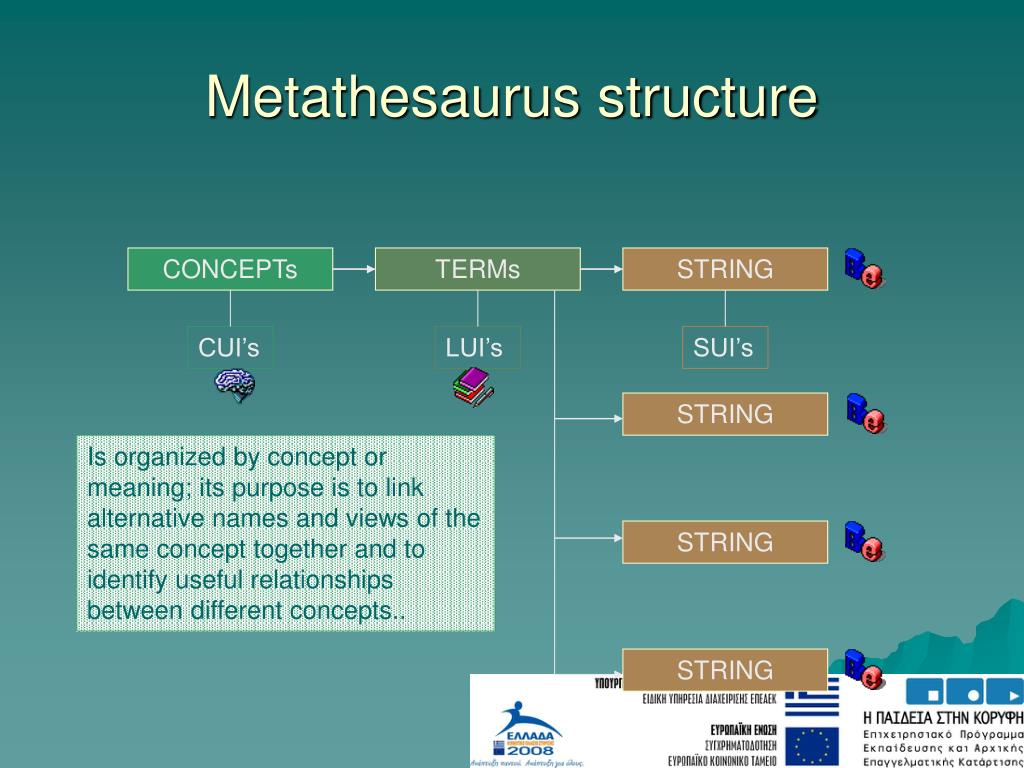

  10. Metathesaurus structure CONCEPTs TERMs STRING CUI’s LUI’s SUI’s STRING Is organized by concept or meaning; its purpose is to link alternative names and views of the same concept together and to identify useful relationships between different concepts.. STRING STRING

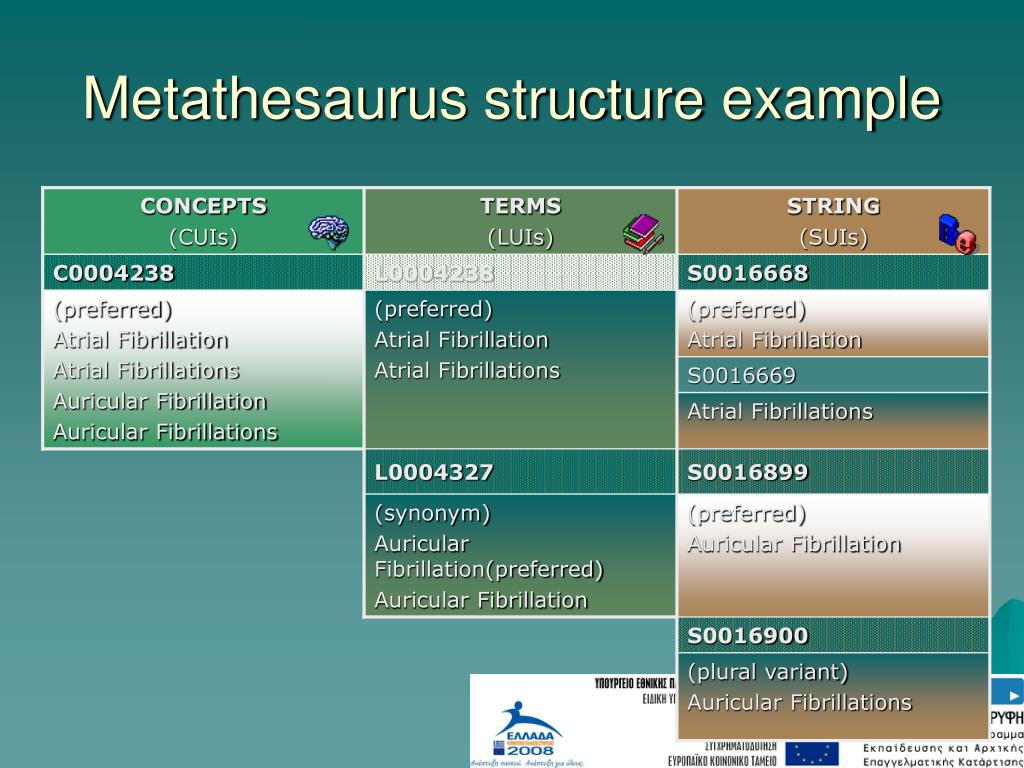

  11. Metathesaurus structure example

  12. Semantic Network • All information about specific concepts is found in the Metathesaurus • The Network provides information about the basic semantic types that are assigned to these concepts, and it defines the relationships that may hold between the semantic types • It defines these types, both with textual descriptions and by means of the information inherent in its hierarchies

  13. Semantic Network Example “BIOLOGIC FUNTION” HIERARCHY EXPERIMENTAL MODEL OF DISEASE

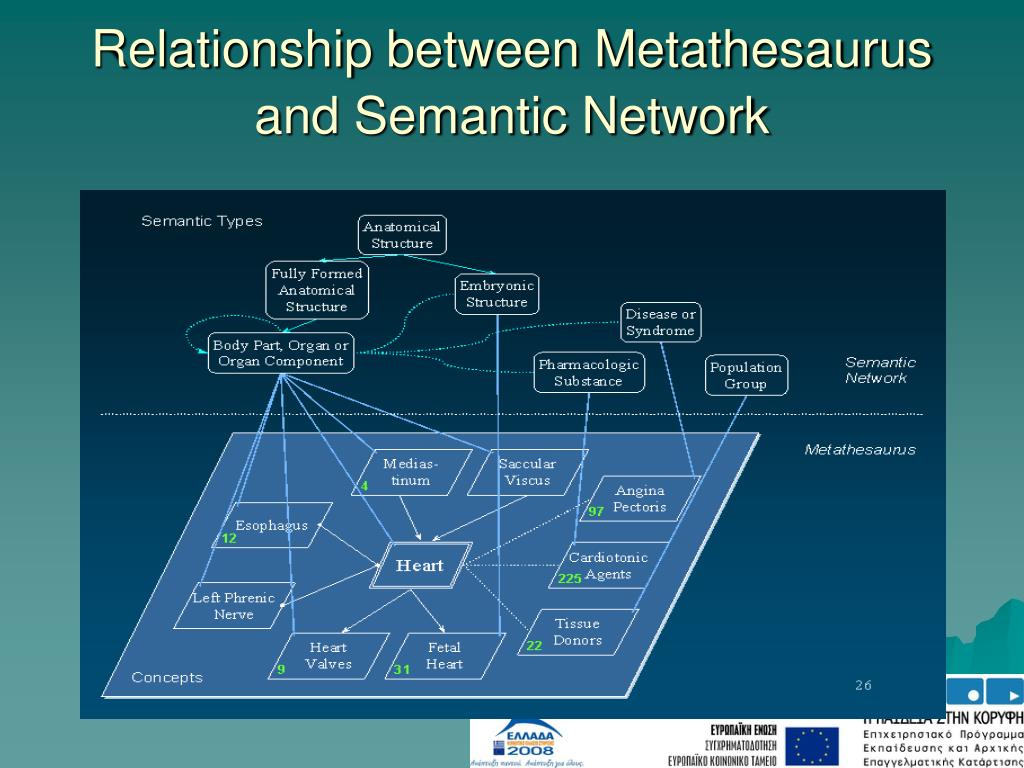

  14. Relationship between Metathesaurus and Semantic Network

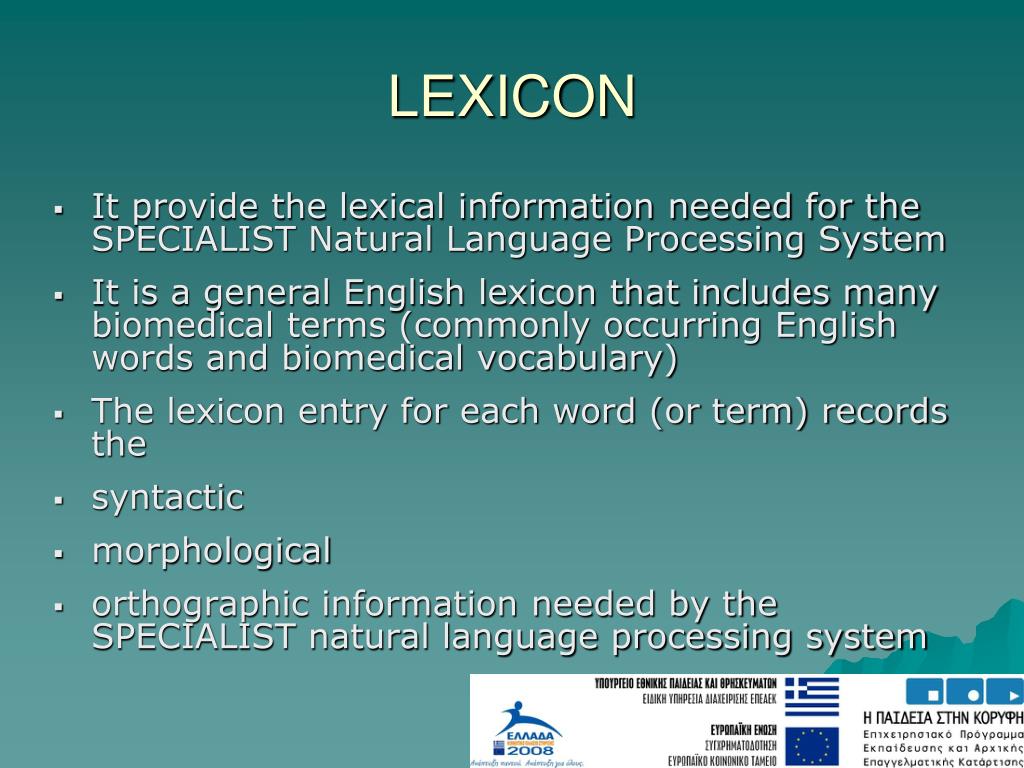

  15. LEXICON • It provide the lexical information needed for the SPECIALIST Natural Language Processing System • It is a general English lexicon that includes many biomedical terms (commonly occurring English words and biomedical vocabulary) • The lexicon entry for each word (or term) records the • syntactic • morphological • orthographic information needed by the SPECIALIST natural language processing system

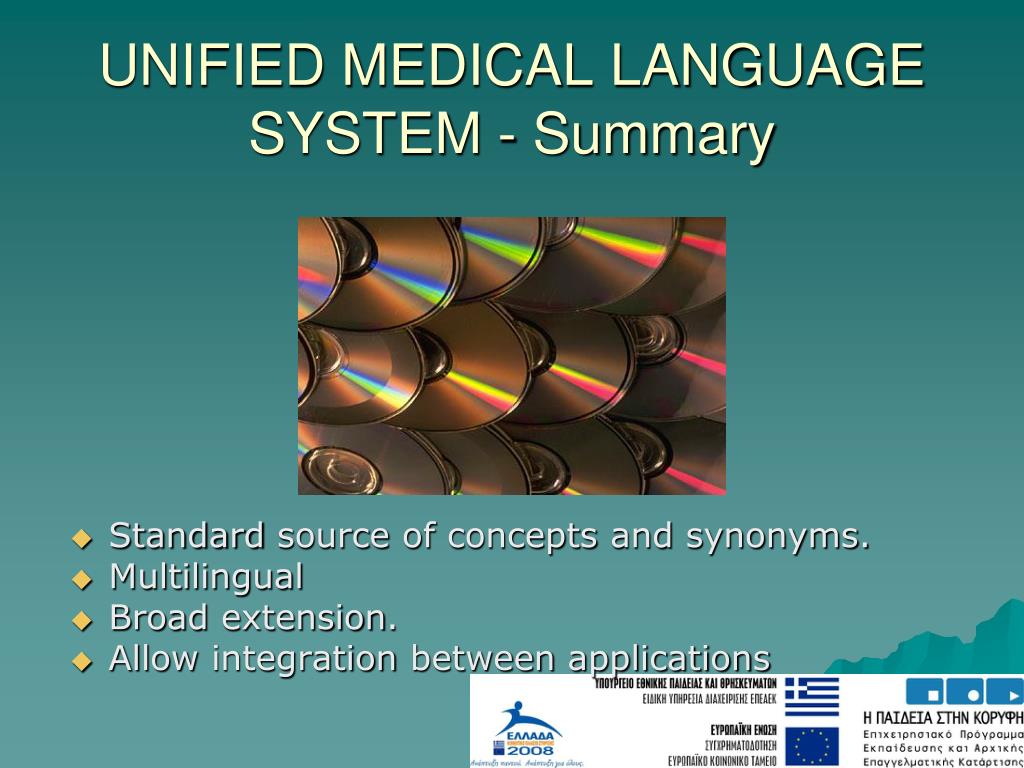

  16. UNIFIED MEDICAL LANGUAGE SYSTEM - Summary • Standard source of concepts and synonyms. • Multilingual • Broad extension. • Allow integration between applications

  17. REFERENCES • http://www.nlm.nih.gov/pubs/factsheets/umls.html • http://www.nlm.nih.gov/research/umls/META2.HTML • http://www.nlm.nih.gov/research/umls/META3.HTML • http://www.nlm.nih.gov/research/umls/META4.HTML • http://www.nlm.nih.gov/pubs/cbm/umlscbm.html#6
