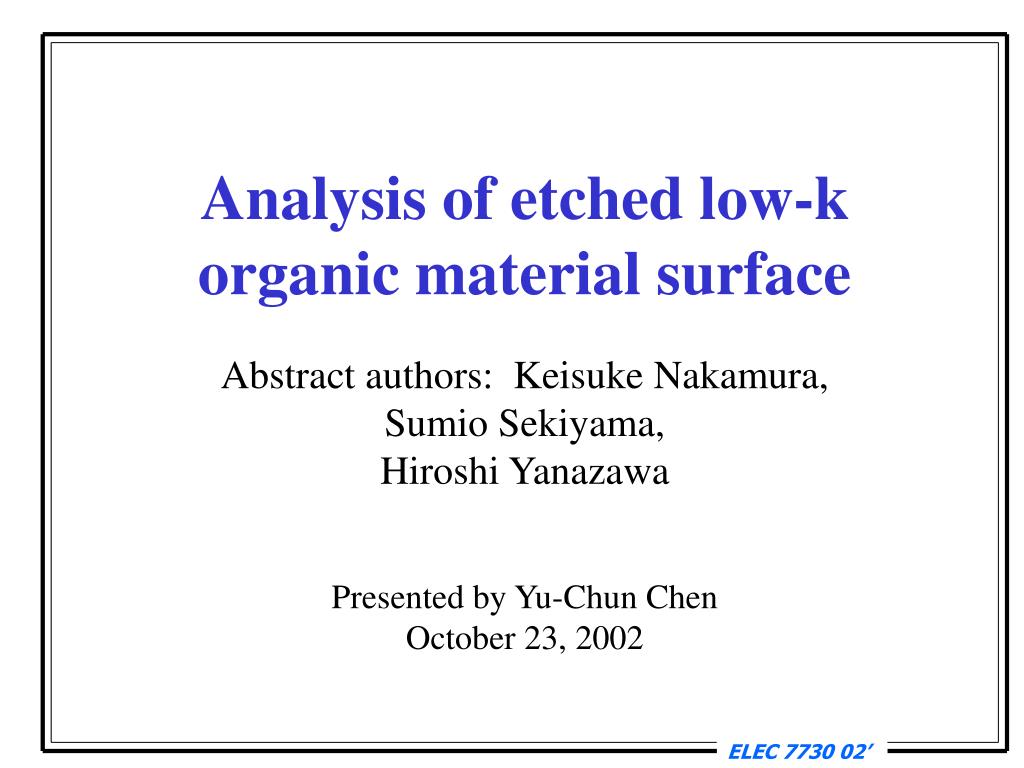

Analysis of etched low-k

organic material surface

Abstract authors: Keisuke Nakamura,

Sumio Sekiyama,

Hiroshi Yanazawa

Presented by Yu-Chun Chen

October 23, 2002

ELEC 7730 02’


Introduction
Introduction

  • Low-k material:

    Interlayer dielectrics in order to reduce RC delay (ULSI)

  • Gas mixtures of N2 and H2:

    Commonly used for etching of low-k organic material

  • This paper:

    Characterized the surface of low-k organic materials after exposure to various etching plasma

ELEC 7730 02'


Outline
Outline

  • NLD

  • Experimental process

  • XPS

  • TOF-SIMS

  • Conclusions

ELEC 7730 02'


Nld neutral loop discharge
NLD(Neutral Loop Discharge)

Set on a vacuum chamber

RF antenna

NL

Substrate

Schematic diagram of experimental apparatus

Ref.: Keisuke Nakamura, Sumio Sekiyama, and Hiroshi Yanazawa, “Analysis of etched low-k organic material surface”.

ELEC 7730 02'


Experimental process
Experimental Process

  • Reactor: Neutral-loop-discharge plasma

  • Etching sample: SiLKTM samples

  • Gas mixtures: 1. Pure N2 (150nm/min)

    2. N2 and H2 (220nm/min)

    3. Pure NH3 (280nm/min)

  • To analyze etched surface: 1. XPS

    2. TOF-SIMS

ELEC 7730 02'


Silk tm
SiLKTM

  • Dow chemical company

  • Features:

    1. Aromatic hydrocarbon (Fluorine-free)

    2. Low dielectric constant organic polymer

    3. High heat resistance

    4. Compatible with Cu dual-damascene process

    and Al gap-filling

ELEC 7730 02'


Silk tm1
SiLKTM

  • Characteristics:

Ref.: www.hitachi-chem.co.jp, Hitachi chemical comapny

ELEC 7730 02'


Xps x ray p hotoelectron s pectroscopy
XPS(X-ray Photoelectron Spectroscopy)

  • Also called ESCA, electron spectroscopy for chemical analysis

  • Not sensitive to hydrogen or helium, capable of detecting all other materials

Ref.: www.nrel.gov, National renewable

energy laboratory

ELEC 7730 02'


Xps x ray photoelectron spectroscopy
XPS(X-ray photoelectron spectroscopy)

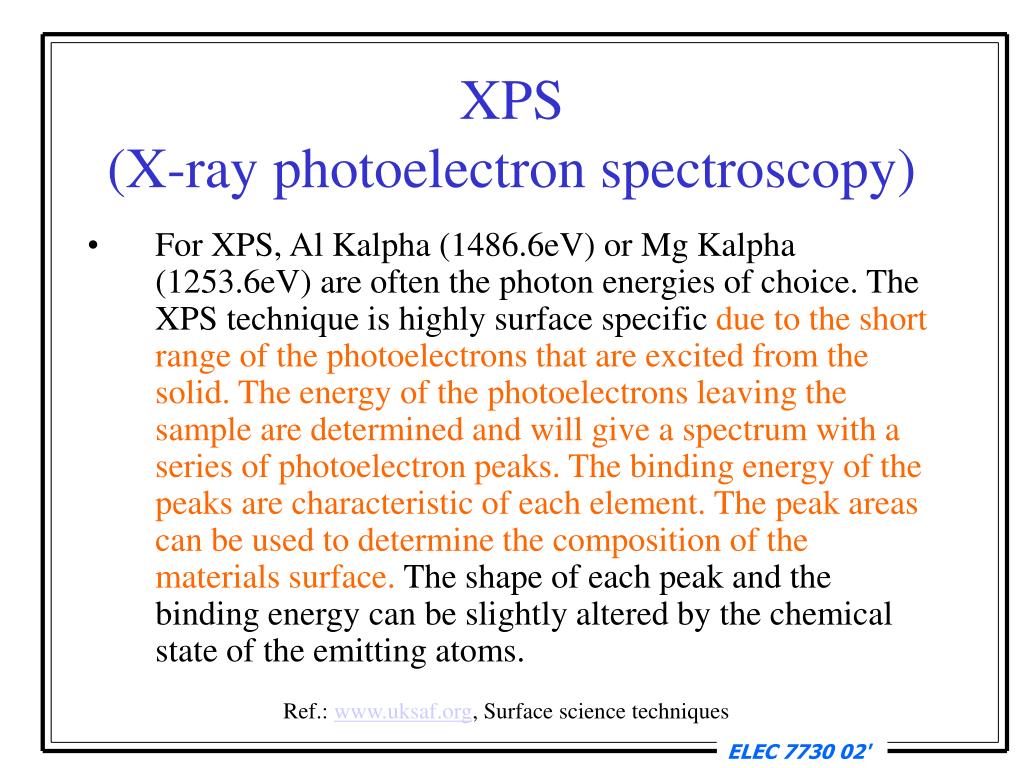

  • For XPS, Al Kalpha (1486.6eV) or Mg Kalpha (1253.6eV) are often the photon energies of choice. The XPS technique is highly surface specific due to the short range of the photoelectrons that are excited from the solid. The energy of the photoelectrons leaving the sample are determined and will give a spectrum with a series of photoelectron peaks. The binding energy of the peaks are characteristic of each element.The peak areas can be used to determine the composition of the materials surface. The shape of each peak and the binding energy can be slightly altered by the chemical state of the emitting atoms.

Ref.: www.uksaf.org, Surface science techniques

ELEC 7730 02'


XPS

Schematic diagram of a core electron ejected by X-rays to

produce a photoelectron

Ref.: Joseph Lambert, Charles McLaughlin, CatherineShawl, Liang Xue, “X-ray Photoelectron Spectroscopy and Archaeology”

ELEC 7730 02'


XPS

Survey of X-ray photoelectron spectroscopy:

fluorspar bead (mid-western United States)

Ref.: Lambert, J. B.; McLaughlin, C. D. Archaeometry 1976, 18, 169.

ELEC 7730 02'


XPS

XPS spectra of etched SiLKTM surface

Ref.: Keisuke Nakamura, Sumio Sekiyama, and Hiroshi Yanazawa, “Analysis of etched low-k organic material surface”.

ELEC 7730 02'


Xps spectra
XPS spectra

  • A strong C1s peak and an O1s peak are shown in reference spectrum.

  • By etching: 1. a N1s peak appears.

    2. an O1s peak becomes

    stronger

ELEC 7730 02'


Xps results
XPS results

Atom concentration ratios calculated from XPS results:

In the lower etch rate process, the more nitrogen atoms consist

in surface region.

Ref.: Keisuke Nakamura, Sumio Sekiyama, and Hiroshi Yanazawa, “Analysis of etched low-k organic material surface”.

ELEC 7730 02'


Tof sims
TOF-SIMS

  • Time-Of-Flight Secondary Ion Mass Spectrometry

  • TOF-SIMS is a surface analytical technique that uses an ion beam to remove small numbers of atoms from the outermost atomic layer of a surface. A short pulse of primary ions strikes the surface, and the secondary ions produced in the sputtering process are extracted from the sample surface and into a time-of-flight mass spectro-meter. These secondary ions are dispersed in time according to their velocities.

Ref.: www.uwo.ca/ssw/services, Surface science

ELEC 7730 02'


Advantages of tof sims
Advantages of TOF-SIMS

  • The technique has ultra-high sensitivity to surface layers (one atomic thickness), and detection of atomic concentrations as low as 10 ppm.

  • Molecular fragmentation patterns are characteristic of the molecular or crystalline structure of the surface and its reaction products.

  • Distribution of organics and inorganics can be measured on a surface with a sub-micron lateral distribution.

  • Surface layers of insulating materials, including minerals, polymers, organic, and biological materials, can be analyzed readily.

  • TOF-SIMS produces secondary electron (SE) images down to a 50 nm lateral resolution, and back-scattered ion (BSI) images, and SIMS images with lateral resolution down to 100 nm for elements, or 0.5 mm for big molecules.

Ref.: www.uwo.ca/ssw/services, Surface science

ELEC 7730 02'


Tof sims1
TOF-SIMS

TOF-SIMS provides spectroscopy for characterization of chemical composition,

imaging for determining the distribution of chemical species, and depth profiling

for thin film characterization.

Ref.: www.phi.com, Physical electronics

ELEC 7730 02'


Tof sims results
TOF-SIMS results

TOF-SIMS data focused on the fragments that consist of NH2-

base: In the higher etch rate process, the more fragments consist

of NH2-base are observed.

Ref.: Keisuke Nakamura, Sumio Sekiyama, and Hiroshi Yanazawa, “Analysis of etched low-k organic material surface”.

ELEC 7730 02'


Conclusion
Conclusion

  • N2: 1. Lower etch rate

    2. N2 ions/molecules: Play an important

    role in etching reaction, and produce

    byproducts that have low volatility

    3. These byproducts don’t desorb from the

    surface easily, and therefore nitrogen atom

    concentration ratio is higher in the surface

    region.

ELEC 7730 02'


Conclusion1
Conclusion

  • N2/H2 & NH3:

    1. Higher etch rate

    2. More NHX ions/molecules: Consist in

    those process plasmas

    3. These ions/molecules produce volatile

    byproducts, and these byproducts desorb

    from the surface. Therefore nitrogen atom

    concentration ratio is lower in the surface

    region.

ELEC 7730 02'
