  1. Supersonic Wind and Imaging Flow Tunnel David McNeill Charles Murphy Matthew Osborn David Springer Interim Review 1 Kendria Alt Joshua Clement Shannon Fortenberry Katelynn Greer

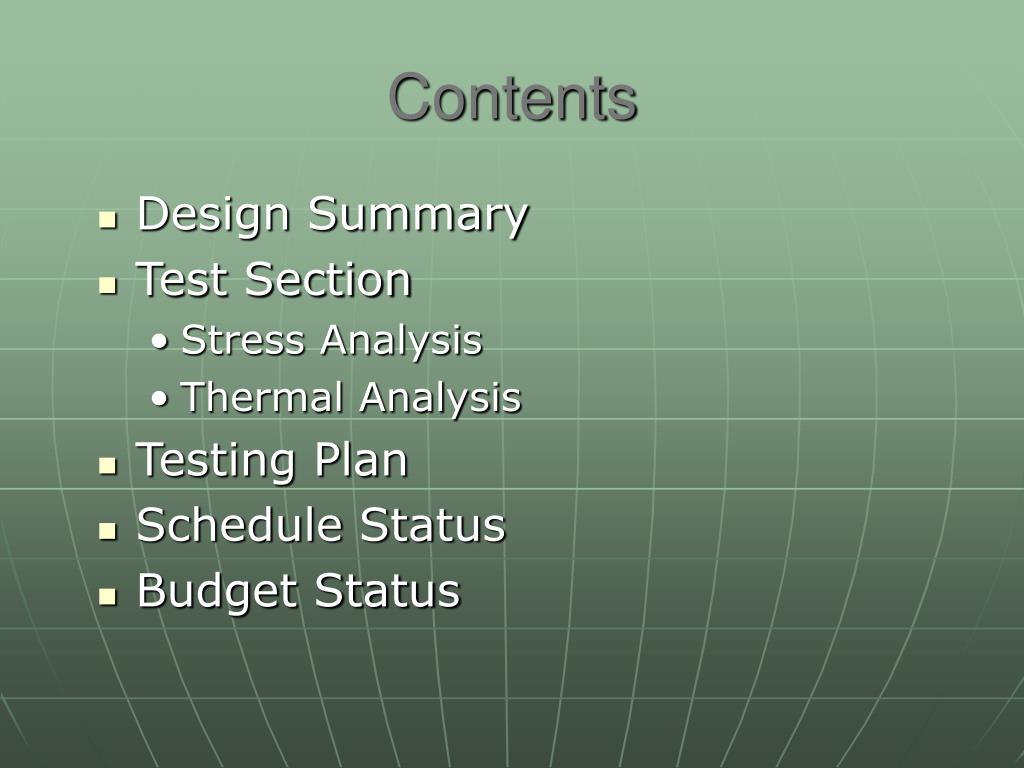

  2. Contents • Design Summary • Test Section • Stress Analysis • Thermal Analysis • Testing Plan • Schedule Status • Budget Status

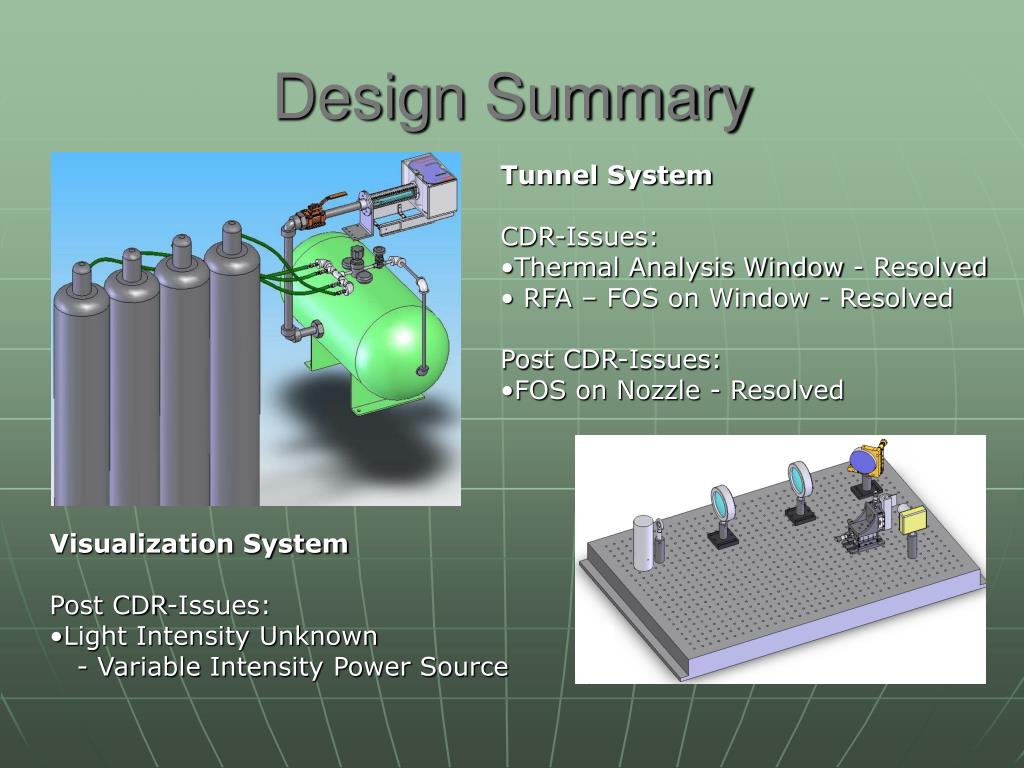

  3. Design Summary • Tunnel System • CDR-Issues: • Thermal Analysis Window - Resolved • RFA – FOS on Window - Resolved • Post CDR-Issues: • FOS on Nozzle - Resolved • Visualization System • Post CDR-Issues: • Light Intensity Unknown • - Variable Intensity Power Source

  4. Nozzle AnalysisVersion 2 Stress Displacement *note: deformation scale is 100x FOS Hydrostatic Actual FOS yield: 2.2 4.0 FOS ultimate: 3.9 7.2

  5. Window AnalysisVersion 2 Stress Displacement *note: deformation scale is 100x FOS Hydrostatic Actual FOS yield: 4.1 7.1 FOS ultimate: 4.1 7.1

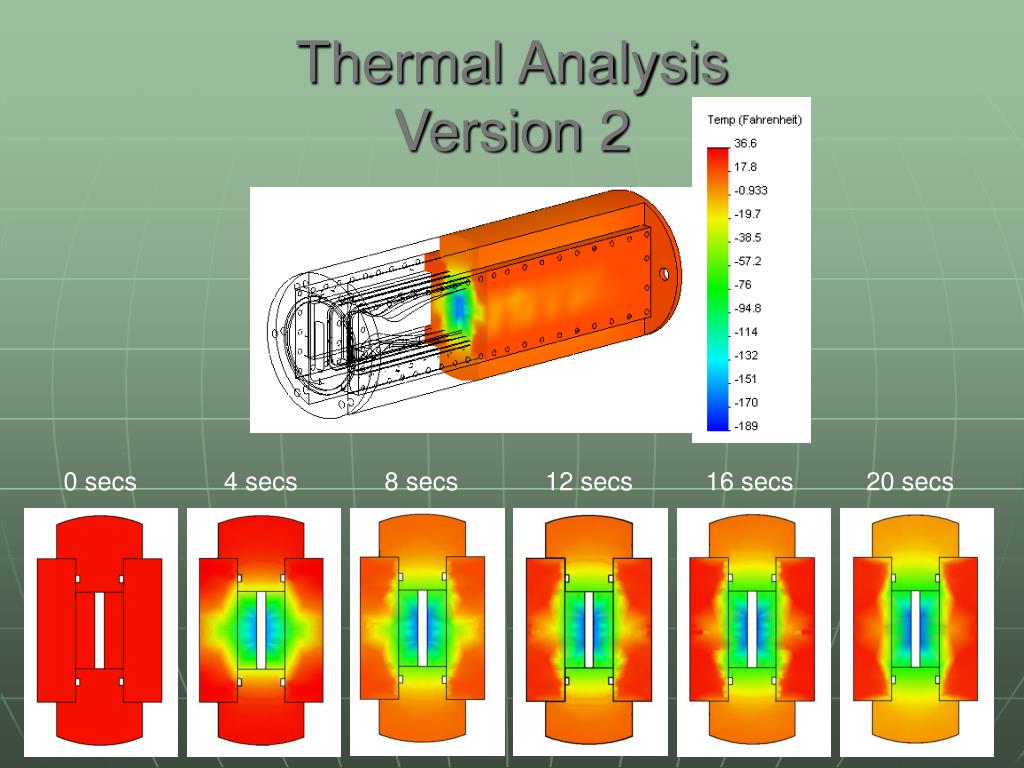

  6. 0 secs 4 secs 8 secs 12 secs 16 secs 20 secs Thermal AnalysisVersion 2

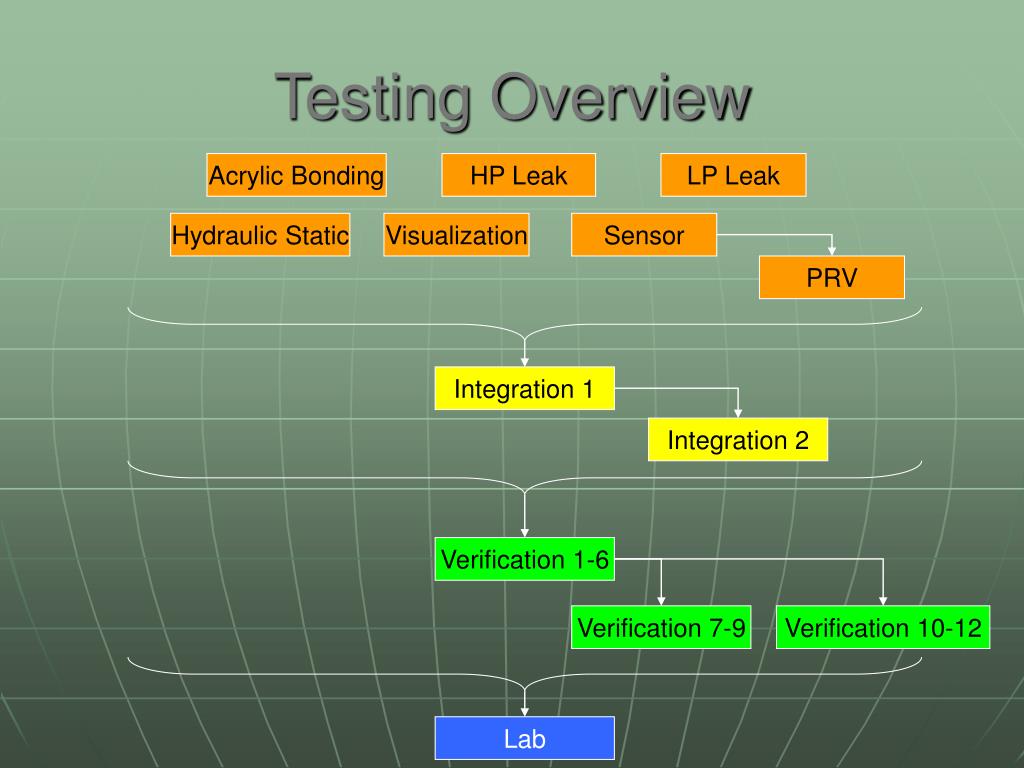

  7. Testing Overview Acrylic Bonding HP Leak LP Leak Hydraulic Static Visualization Sensor PRV Integration 1 Integration 2 Verification 1-6 Verification 7-9 Verification 10-12 Lab

  8. Hydraulic Static Test • Test Flange and Test Section • Leak Check • 1.5 x MDP (1050 psi) • Check for Plastic Deformation • Equipment • Hydraulic pump • Provided by Civil Engineering Lab • Calipers • Location • Civil Engineering Structure and Material Testing Lab • After Hours • Performed not Later than 2/10/07

  9. Visualization Test/Calibration • Test Accuracy and Resolution • Calibrate all Components • Optimize Light Source Intensity • Optimize Camera Location • Equipment • Entire Visualization System • Cold Spray • Coupon • Location • Senior Projects Room • Dark Light Conditions • Performed not Later than 2/14/07

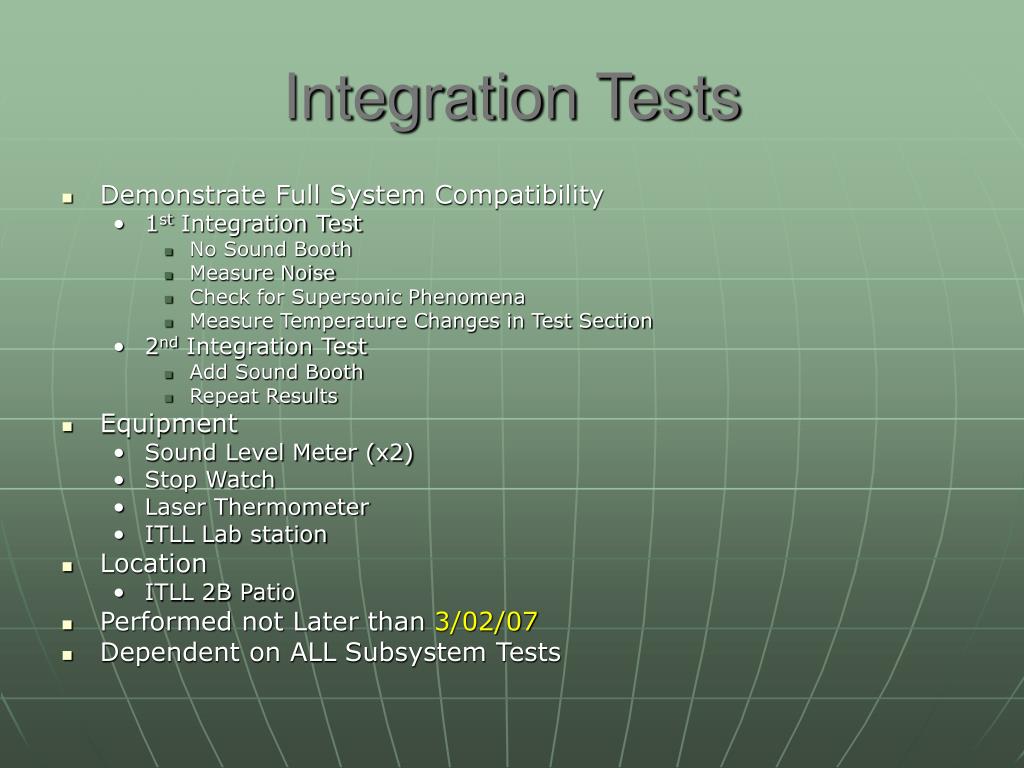

  10. Integration Tests • Demonstrate Full System Compatibility • 1st Integration Test • No Sound Booth • Measure Noise • Check for Supersonic Phenomena • Measure Temperature Changes in Test Section • 2nd Integration Test • Add Sound Booth • Repeat Results • Equipment • Sound Level Meter (x2) • Stop Watch • Laser Thermometer • ITLL Lab station • Location • ITLL 2B Patio • Performed not Later than 3/02/07 • Dependent on ALL Subsystem Tests

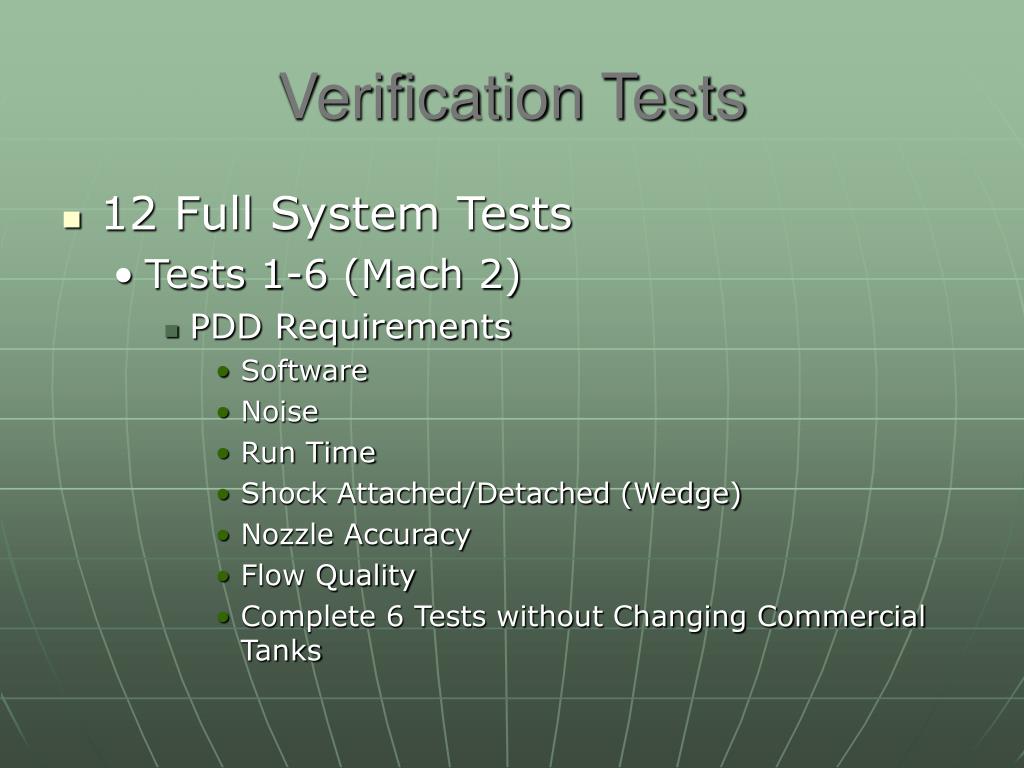

  11. Verification Tests • 12 Full System Tests • Tests 1-6 (Mach 2) • PDD Requirements • Software • Noise • Run Time • Shock Attached/Detached (Wedge) • Nozzle Accuracy • Flow Quality • Complete 6 Tests without Changing Commercial Tanks

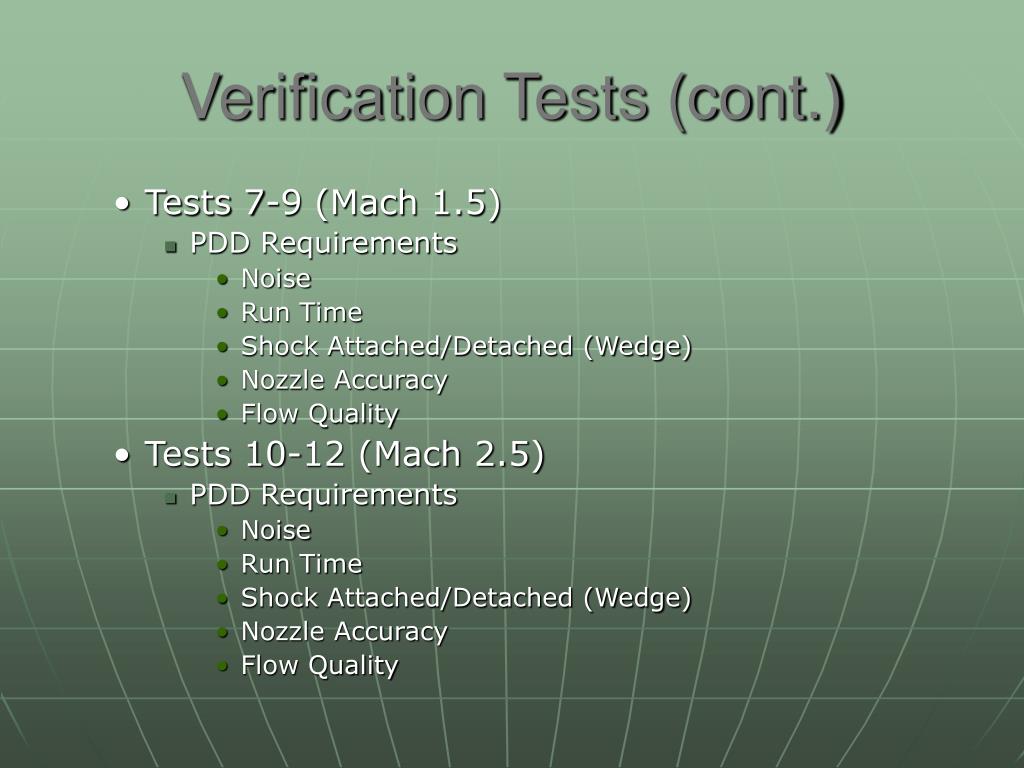

  12. Verification Tests (cont.) • Tests 7-9 (Mach 1.5) • PDD Requirements • Noise • Run Time • Shock Attached/Detached (Wedge) • Nozzle Accuracy • Flow Quality • Tests 10-12 (Mach 2.5) • PDD Requirements • Noise • Run Time • Shock Attached/Detached (Wedge) • Nozzle Accuracy • Flow Quality

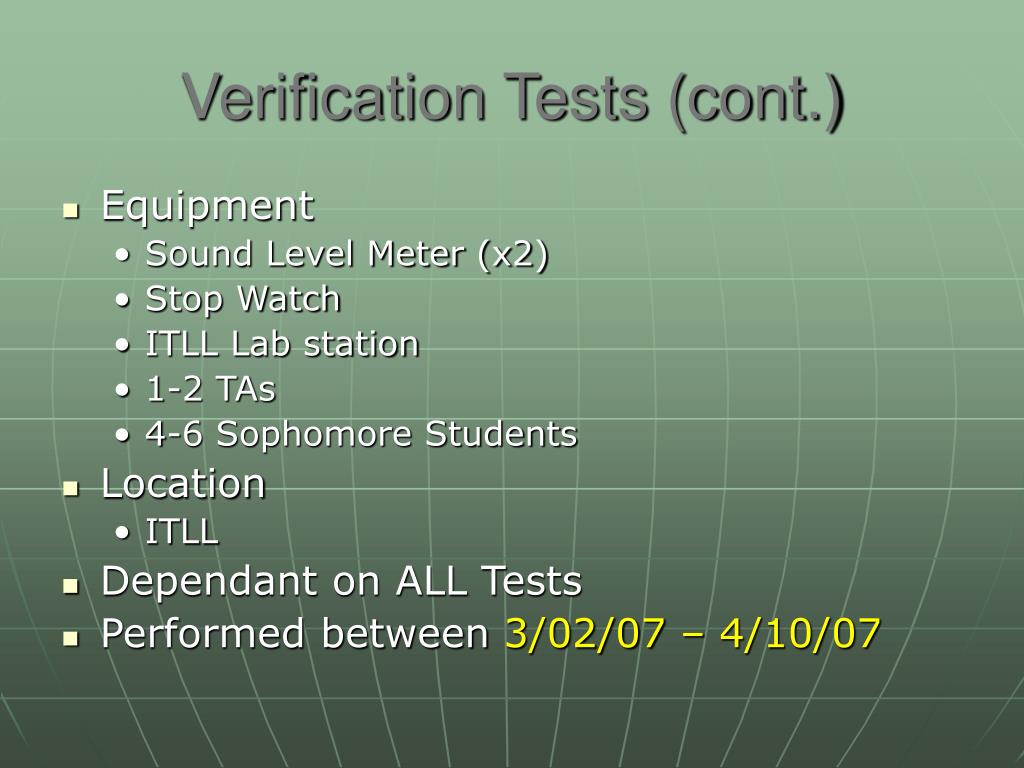

  13. Verification Tests (cont.) • Equipment • Sound Level Meter (x2) • Stop Watch • ITLL Lab station • 1-2 TAs • 4-6 Sophomore Students • Location • ITLL • Dependant on ALL Tests • Performed between 3/02/07 – 4/10/07

  14. Sample Lab Demonstration • Execute a Sample Lab for ASEN 2004 • Performed by Sophomore Volunteers • Predict Mach Number from Area Ratio • Execute Complete Test • Calculate Mach Number from Schlieren • Equipment • ITLL Lab Station • 1-2 TAs • 4-6 Sophomore Students • Location • ITLL • Performed not Later than 4/17/07

  15. Schedule Progress

  16. Schedule Progress • Completed Tasks • Cart Modifications • Tank Integration • Pipe Support • In Work / Future Tasks Expected Finish Date • 1st Test Section (Mach 2) 02/09/07 • Flange 02/06/07 • Manifold 02/15/07 • Hi and Low Pressure Piping 02/15/07 • Knife Edge Interchange 02/15/07 • Light Source Encasing 02/15/07 • Future Work • Remaining Test Sections 04/05/07 • Schlieren Assembly 02/15/07 • Sound Box 02/19/07 • Schlieren Encasing

  17. Budget • Spent: $4804.85 • We are under budget including: • Cost increases since 1st of the year • High shipping charges • Surplus due to our 25% contingency and over estimates • Applying for Spring EEF funds

  18. Appendices

  19. Boundary Conditions • Fully Fixed at Bolt Holes • Simply Supported at Flange and Washer • Pressure Applied Normal To Interior (1) (2) (3)

  20. Nozzle AnalysisVersion 1 Stress Displacement FOS Hydrostatic Actual FOS yield: 2.0 3.6 FOS ultimate: 3.7 6.7 *note: deformation scale is 100x

  21. Window AnalysisVersion 1 Stress Displacement FOS Hydrostatic Actual FOS yield: 4.0 6.9 FOS ultimate: 4.0 6.9 *note: deformation scale is 100x

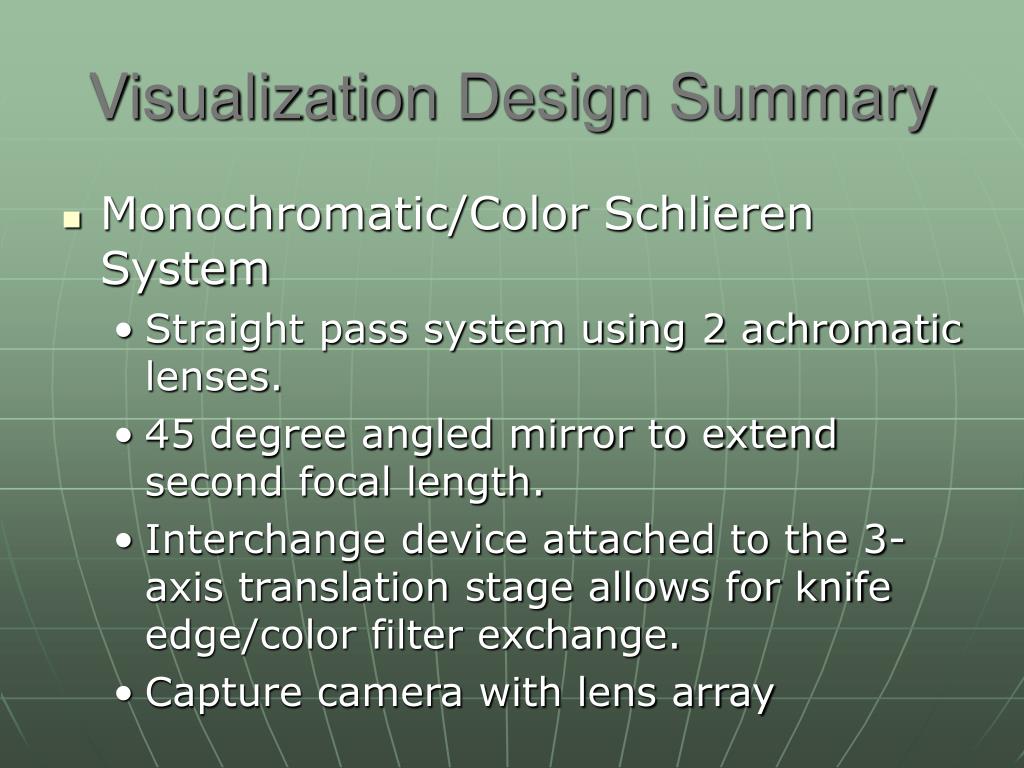

  22. Visualization Design Summary • Monochromatic/Color Schlieren System • Straight pass system using 2 achromatic lenses. • 45 degree angled mirror to extend second focal length. • Interchange device attached to the 3-axis translation stage allows for knife edge/color filter exchange. • Capture camera with lens array

  23. Testing Overview

  24. Acrylic Bonding Test • Test Acrylic Bond Shear Strength • 20 ¼ in Acrylic Test Objects • Weld-on to ½ in Acrylic Frame • Add Weight to Test Object until Failure • Equipment • Strap • Bucket • Weights • Location • Senior Projects Room • Performed not Later than 2/05/07

  25. Leak Tests • Leak Test 3 Piping Systems • Pressurize to 50 psi • Measure Pressure Drop Over 12 Hours • Increase Pressure to MOP • Check Seals with soap spray • Equipment • Air Pump/Compressed Air • Pressure Gauge • Spray Bottle with Soap and Water • Location • Aerospace Engineering Lab • After Hours • Performed not Later than 2/15/07

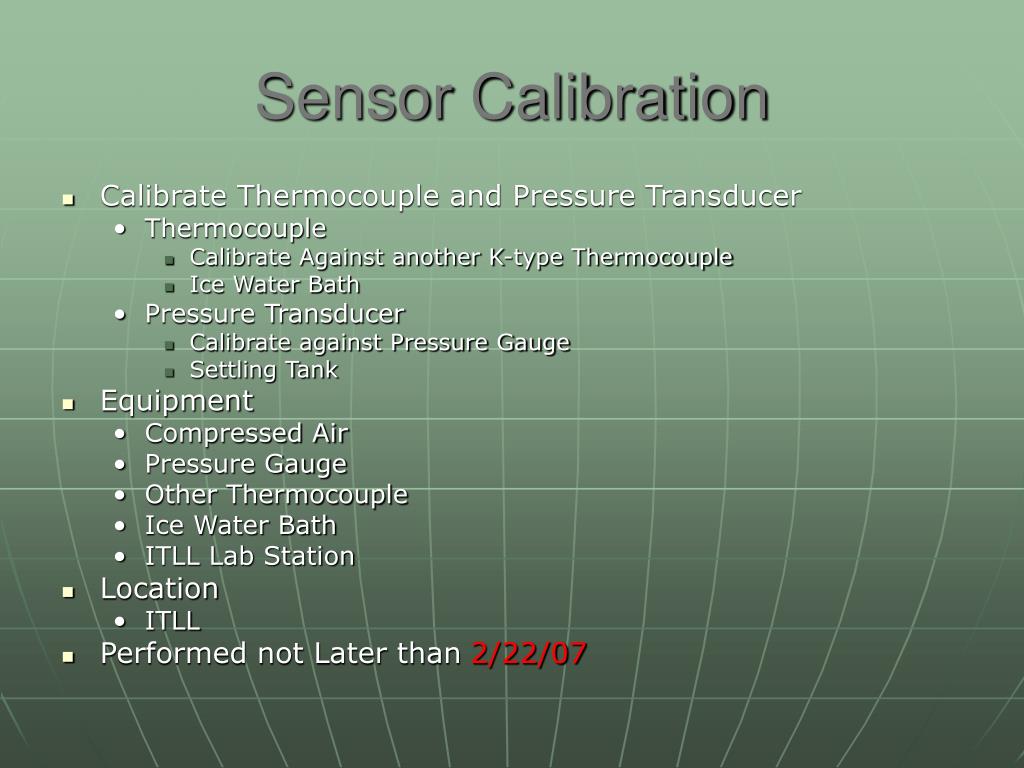

  26. Sensor Calibration • Calibrate Thermocouple and Pressure Transducer • Thermocouple • Calibrate Against another K-type Thermocouple • Ice Water Bath • Pressure Transducer • Calibrate against Pressure Gauge • Settling Tank • Equipment • Compressed Air • Pressure Gauge • Other Thermocouple • Ice Water Bath • ITLL Lab Station • Location • ITLL • Performed not Later than 2/22/07

  27. Pressure Relief Valve Calibration • Test and Calibrate the Pressure Relief Valve • Pressurize Settling Tank to 660 psi • Adjust Crack Pressure • Increase Pressure to MDP • Measure Reseat Pressure • Equipment • Air Pump/Compressed Air • Pressure Gauge • Pressure Transducer • ITLL Lab Station • Location • ITLL • Performed not Later than 2/26/07 • Dependant on Sensor Calibration Tests

  28. Part to Buy Quant Cost(ea) Total Part Purchaseed Quant Cost(ea) Total Actual Total Price Difference Swivel Casters 2 48.78 97.56 Custom O-ring kit 1 30.00 30.00 12.00 18.00 Rigid Caster 2 45.04 90.08 Thermoplastic Hose 108 0.19 20.52 192.00 -171.48 Swivel Wheel Lock 2 10.45 20.90 Quick Connect 4 53.70 214.80 120.00 94.80 Compressed Nitrogen Tanks 12 7.00 84.00 Quick Connect Stern 4 0.00 0.00 56.40 -56.40 Tank Holders 4 5/month 40.00 SS 1/4" T 4 10.59 42.36 29.30 13.06 Bolts and Nuts For Casters 16 Max 6.00 96.00 SS 1/4" Pipe 36 1.12 40.25 42.46 -2.21 6-32 socket head 1 20.00 20.00 Needle Valve 1 53.00 53.00 37.70 15.30 6-32 nuts 1 5.00 5.00 SS Nipple 5 6.65 33.25 28.76 4.49 6 washers 1 5.00 5.00 Steel 1" Elbow 2 6.62 13.24 15.63 -2.39 Camera 1  845.00  845.00 Steel 1" pipe 36 1.21 43.53 47.72 -4.19 Camera kit 1 100.00 100.00 Steel 1" nipple 2 5.32 10.64 5.00 5.64 1/8" Bolts 240 0.19 45.00 Optical Grade Plexiglass 24 3.13 75.00 35.75 39.25 1/8" Washers 480 0.08 36.00 SS elbows 5 0.00 0.00 36.16 -36.16 1/2" Bolts 4 N/A 15.00 Ball Valve 1 172.00 172.00 154.92 17.08 Black Plexiglas 1 41.00 41.00 600 psi Tank 1 1,100.00 1,100.00 1,119.35 -19.35 Clear Plexiglas 1 16.75 16.75 Pressure Relief Valve 1 254.00 254.00 274.00 -20.00 Handles 7 1.34 9.38 1/4" acrylic 1 35.00 35.00 10.00 25.00 Weather strip 6 0.68 4.05 Adhesive/sealant 1 30.00 30.00 12.95 17.05 Al Tubing 17 1.00 17.00 Light Mount 1 1.69 1.69 1.69 0.00 L brackets 29 0.15 4.35 Iris mounted 1 49.00 49.00 51.05 -2.05 Rubber Sq Chord Stock 7 0.53 3.71 Attachment 1 5.50 5.50 7.55 -2.05 1/4 20 Screws 80 8.96 8.96 Mirror 1 289.00 289.00 291.05 -2.05 Wing nuts 8 0.98 1.96 Actuator 1 186.00 186.00 203.21 -17.21 Noise Reduction Component 1 170.00 170.00 Post holder 5 6.56 32.80 130.14 -97.34 Printing 2nd Semester 1 150.00 150.00 Adapter 2 9.45 18.90 37.05 -18.15 Wing nut 1/4"-20, 1-3/32"x9/16" 0.50 8.00 Mount 3 21.50 64.50 179.05 -114.55 8 Connection Wires 1 100.00 100.00 Lens 2 72.45 144.90 297.90 -153.00 Knife Edge 1 10.00 10.00 Post 5 1.98 9.90 56.58 -46.68 Additional 1/4" SS nipple 2 5.32 10.64 Base plate 1 0.00 0.00 15.94 -15.94 Additional Black Acrylic 1 50.00 50.00 Filter 2 30.00 17.28 17.28 0.00 Expandable Sleeving 1 50.00 50.00 Pressure Transducers 3 30.00 205.00 305.00 -100.00 Military connector 1 75.00 75.00 Thermocouples 3 30.00 47.00 47.00 0.00 Firewire Repeater 1 35.00 35.00 Snubber 0.00 0.00 10.00 -10.00 1 Additional Tooling 4 50.00 200.00 End Mills 0.00 0.00 160.93 -160.93 12 TOTAL 2,398.34 Light bulb 1 0.00 0.00 1.59 -1.59 TOTAL with 25% 2997.925 Plexiglas for sound booth 1 0.00 0.00 10.00 -10.00 TOTAL with purchases 7,802.78 Clips 4 0.00 0.00 1.62 -1.62 Square Tube Reinforcement 2 30.00 81.95 81.95 0.00 3" T-304 Steel Rod @ 3 ft. 1 835.00 835.00 332.28 502.72 Printing 1st Semester 1 150.00 150.00 74.19 75.81 Thank you letters 0.00 0.00 11.04 -11.04 1 Pressure Reg. 1 270.00 270.00 305.00 -35.00 Pressure Gauge 2 37.64 75.28 40.00 35.28 Mount 1 778.00 778.00 798.00 -20.00 TOTAL purchased 4,804.85 -267.90 Budget
