Small and smaller new challenges and solutions for moving smallwood

Small and Smaller: New challenges and solutions for moving smallwood

Bob Rummer

US Forest Service

Auburn, AL

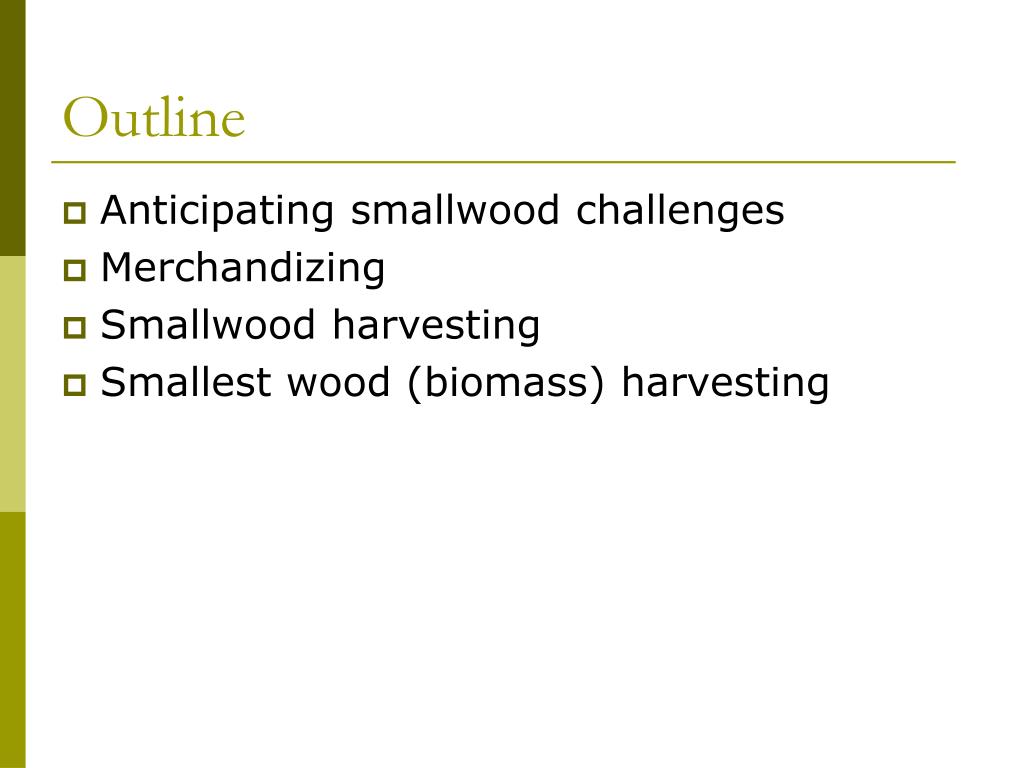

Outline
Outline smallwood

  • Anticipating smallwood challenges

  • Merchandizing

  • Smallwood harvesting

  • Smallest wood (biomass) harvesting


Smallwood
Smallwood smallwood

  • Reduction in available supply of larger trees

  • Fuel reduction

  • Adaptation

Idaho City, ID


Significant trends
Significant Trends smallwood

  • Fire

  • I&D


Significant trends1
Significant Trends smallwood

  • Security

  • Economic impacts

  • Environmental


Its all about the green
Its all about the green … smallwood

Photo: Barry Wynsma


Costs define
Costs define … smallwood

  • What trees are cut (the perceived value of the treatment)

  • What biomass has value in the market

  • What product sorting, processing, merchandizing occurs

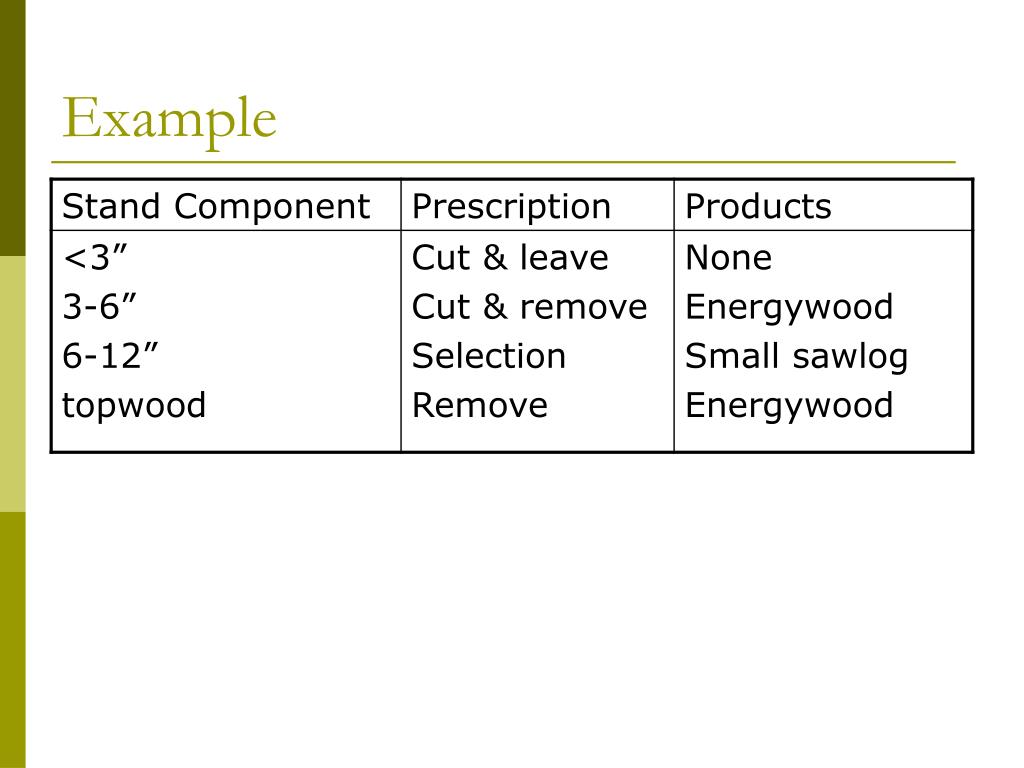

Example
Example smallwood


Assume greengas 1 75 gal

Renewable Oil Int’l Bio-oil smallwood

Assume: GreenGas $1.75/gal


Example1
Example smallwood

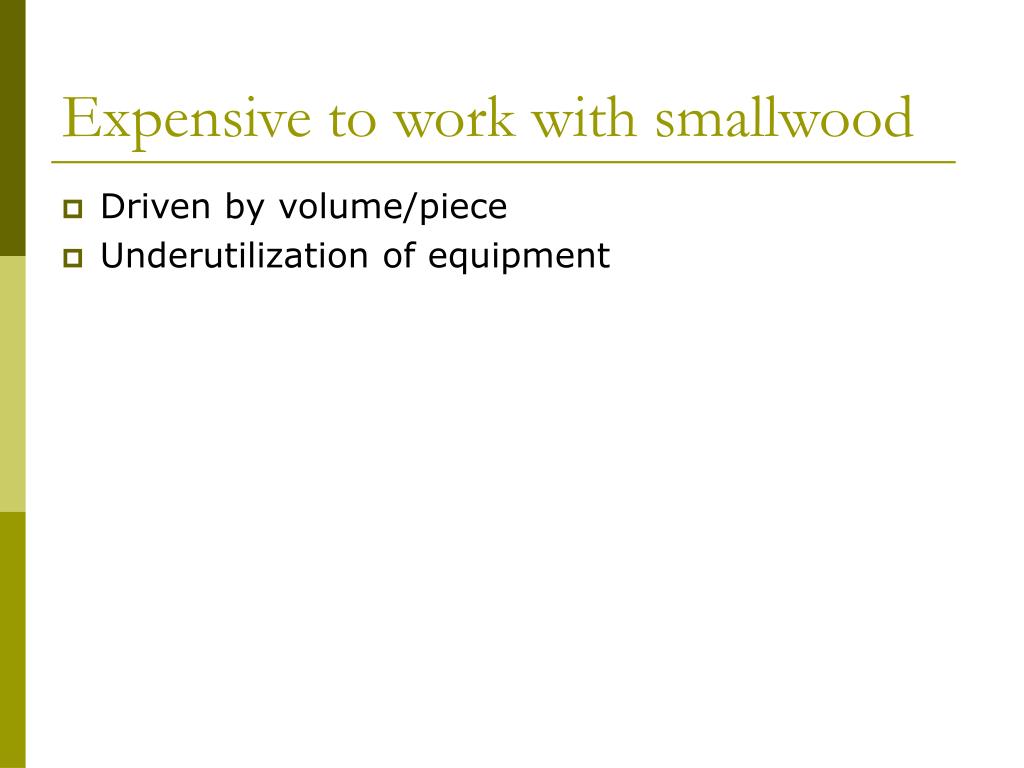

Expensive to work with smallwood
Expensive to work with smallwood smallwood

  • Driven by volume/piece

  • Underutilization of equipment

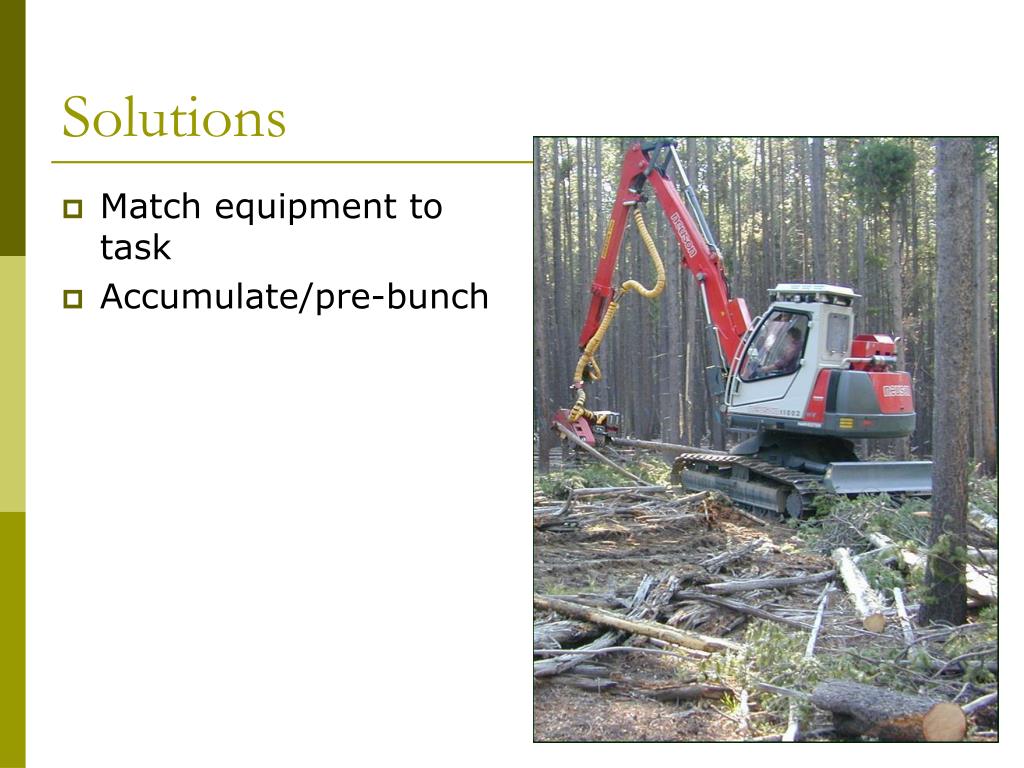

Solutions
Solutions smallwood

  • Match equipment to task

  • Accumulate/pre-bunch

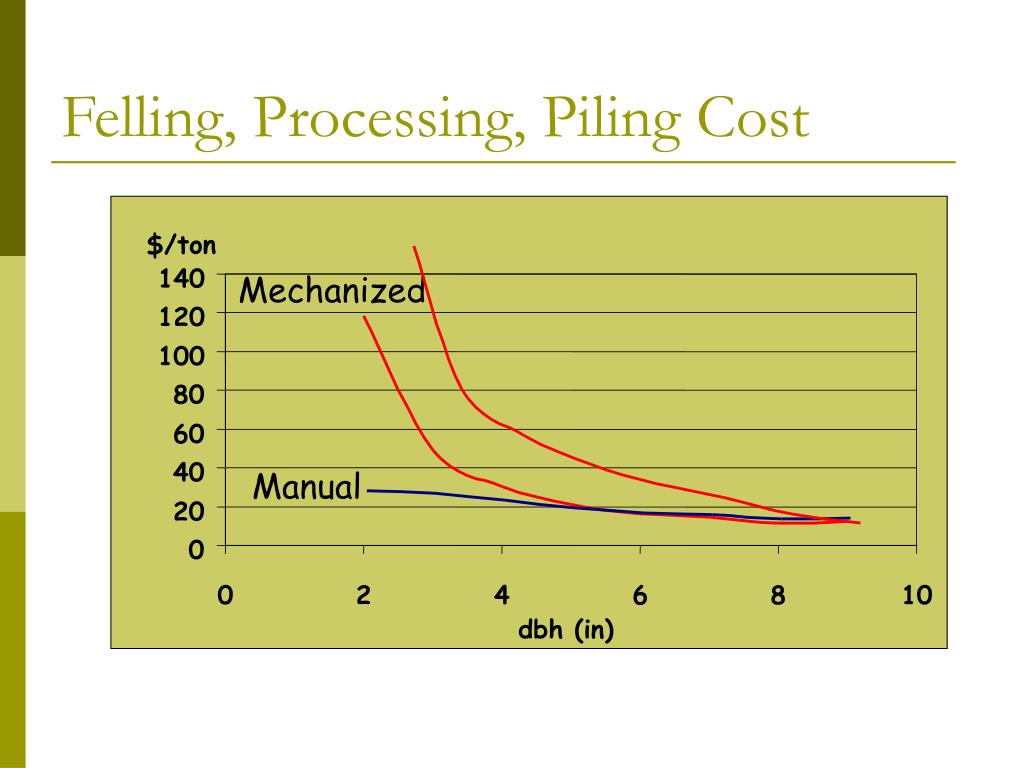

Felling processing piling cost
Felling, Processing, Piling Cost smallwood

$/ton

140

Mechanized

120

100

80

60

40

Manual

20

0

0

2

4

6

8

10

dbh (in)


Payload is key
Payload is key smallwood


Add the money
Add the money smallwood


More efficient alternatives
More efficient alternatives smallwood

  • Mulching

  • Piling

Photo: Don Peterson

Photo: Barry Wynsma

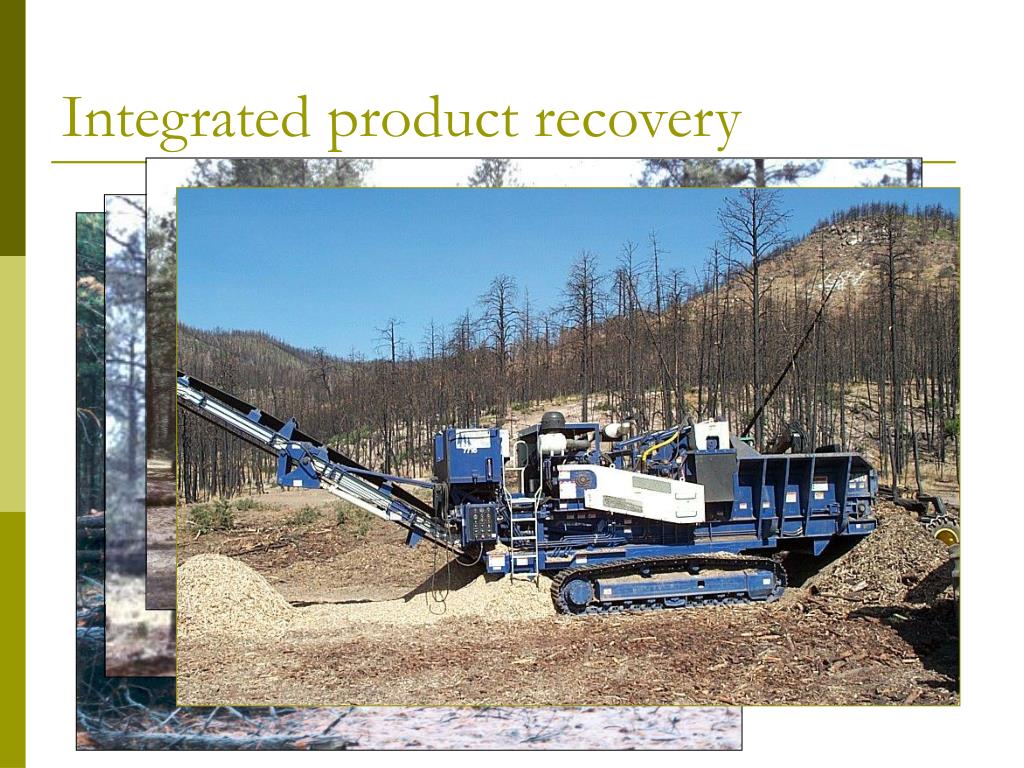

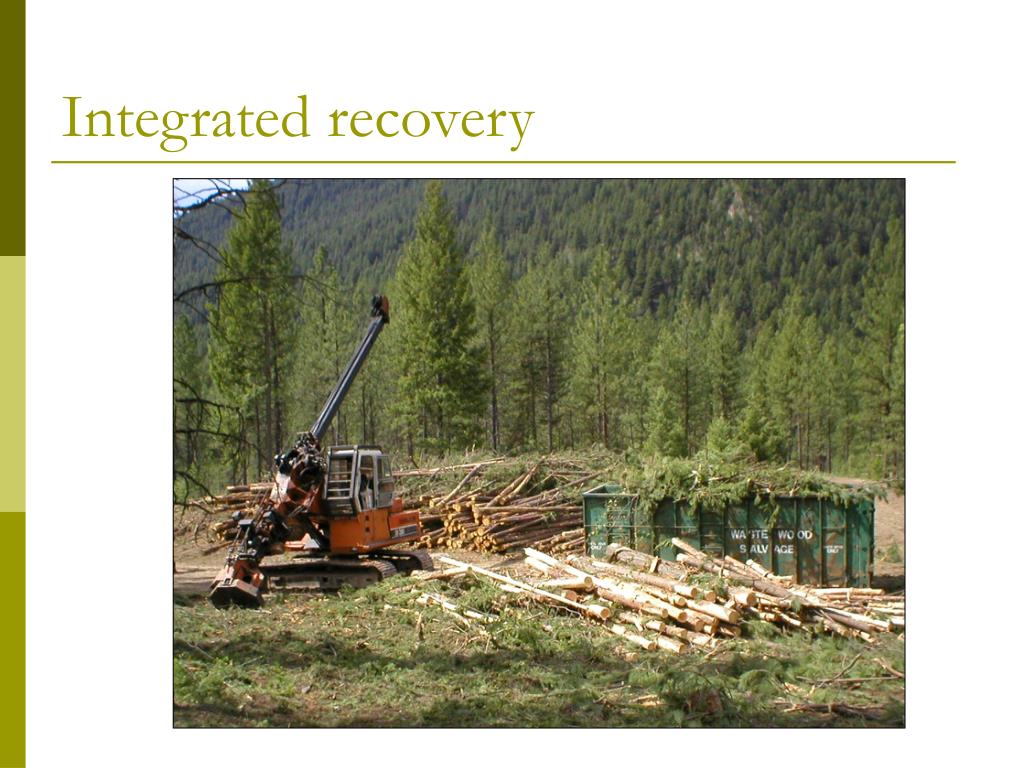

Integrated product recovery
Integrated product recovery smallwood

“The cheapest way to get the 4” stick is when it is attached to an 8” stick.” Steve Aulerich



Recovery of energy wood
Recovery of energy wood smallwood

Harvest Cost

Rec. Vol

$10/gt

$7.50/gt

$9/gt

50%

85%

84%

Conventional

One-pass energywood

Two-pass energywood

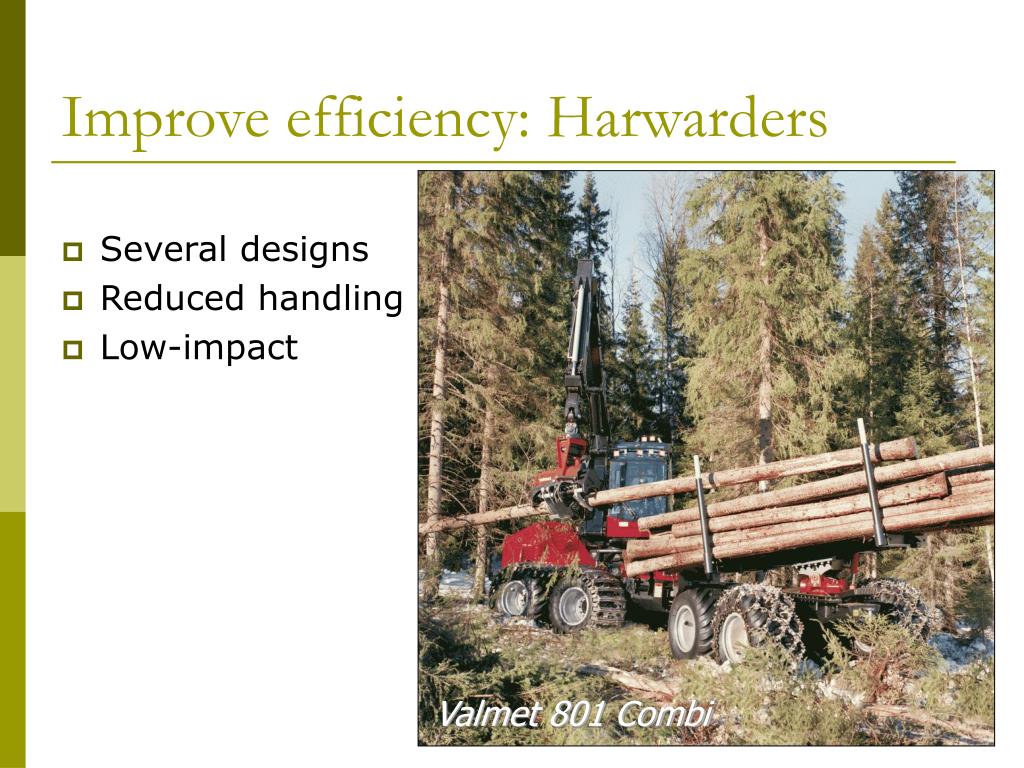

Improve efficiency harwarders
Improve efficiency: Harwarders smallwood

  • Several designs

  • Reduced handling

  • Low-impact

Valmet 801 Combi


Performance

2nd Thin smallwood

Final harvest

CTL

Dual

Combi

CTL

Dual

Combi

Performance

Min/m3

20

1st Thin

18

16

14

12

Site Move

10

Forward

8

Harvest

6

4

2

0

CTL

Dual

Combi

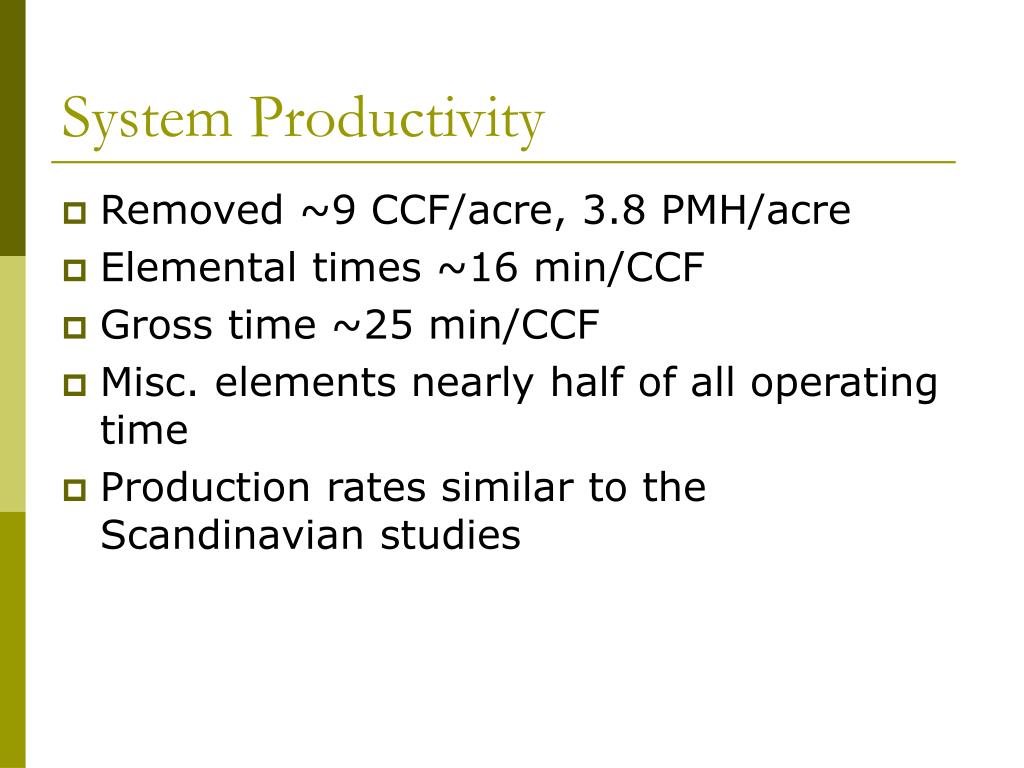

System productivity
System Productivity smallwood

  • Removed ~9 CCF/acre, 3.8 PMH/acre

  • Elemental times ~16 min/CCF

  • Gross time ~25 min/CCF

  • Misc. elements nearly half of all operating time

  • Production rates similar to the Scandinavian studies

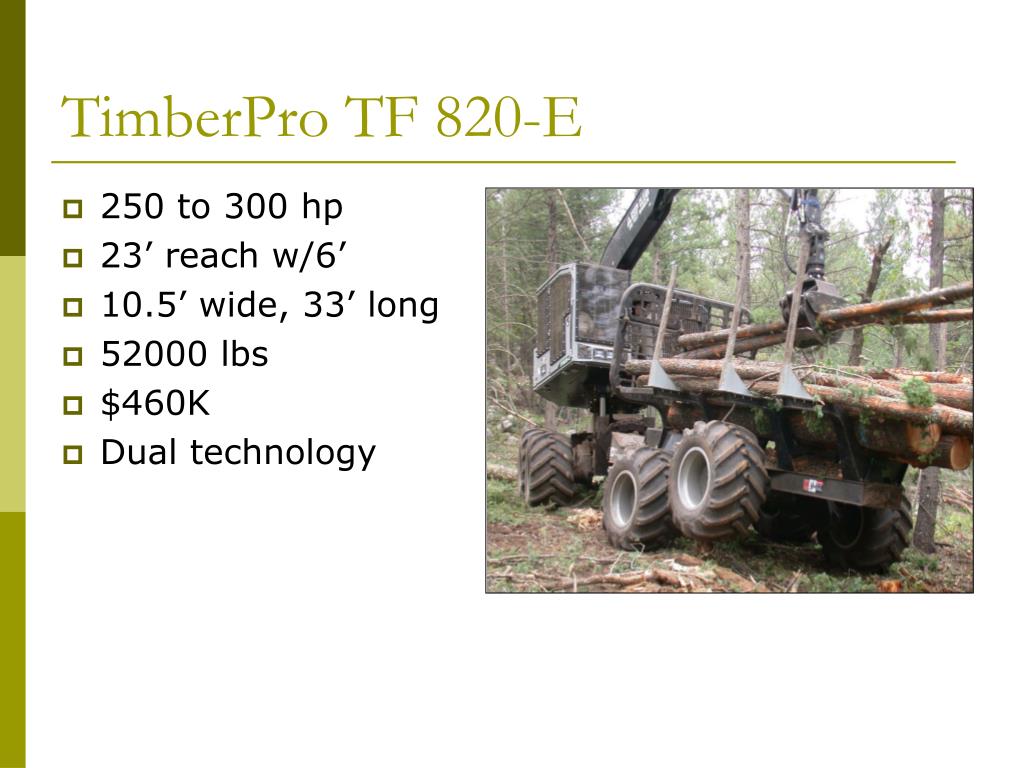

Timberpro tf 820 e
TimberPro TF 820-E smallwood

  • 250 to 300 hp

  • 23’ reach w/6’

  • 10.5’ wide, 33’ long

  • 52000 lbs

  • $460K

  • Dual technology


Improve efficiency cycle time

What if your skidder was never empty? smallwood

Improve efficiency: cycle time

Photo: MTDC



Low density

Forwarding residues, Flagstaff, AZ smallwood

Low density


Improve payload
Improve payload smallwood

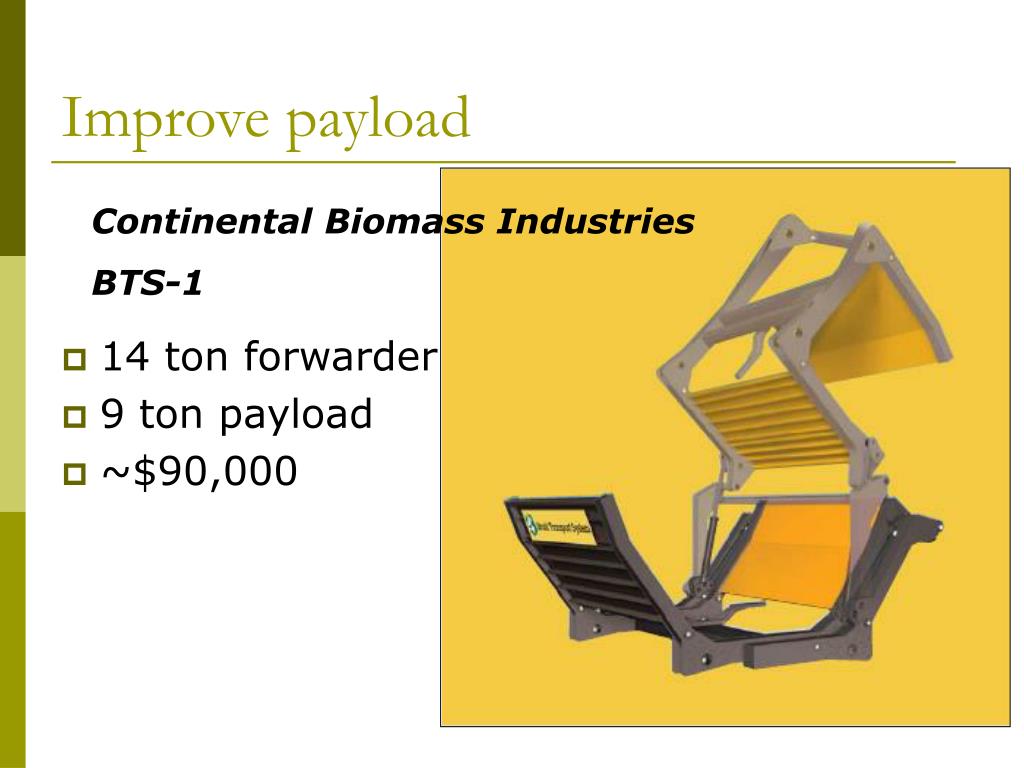

Improve payload1
Improve payload smallwood

  • 14 ton forwarder

  • 9 ton payload

  • ~$90,000

Continental Biomass Industries

BTS-1

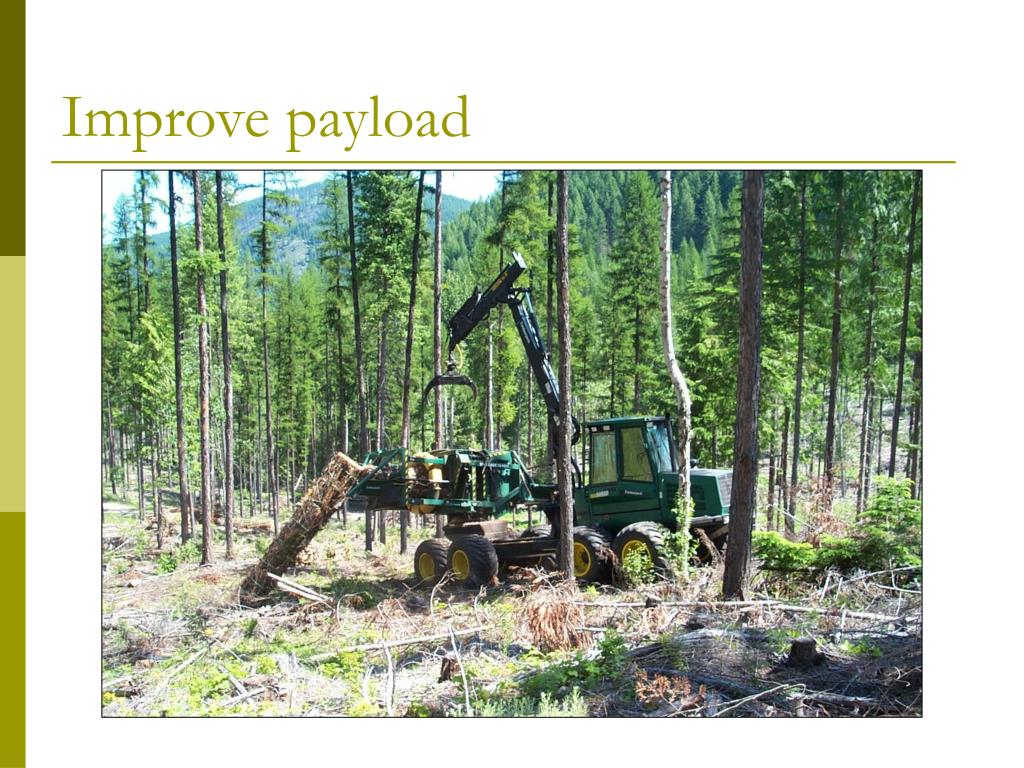

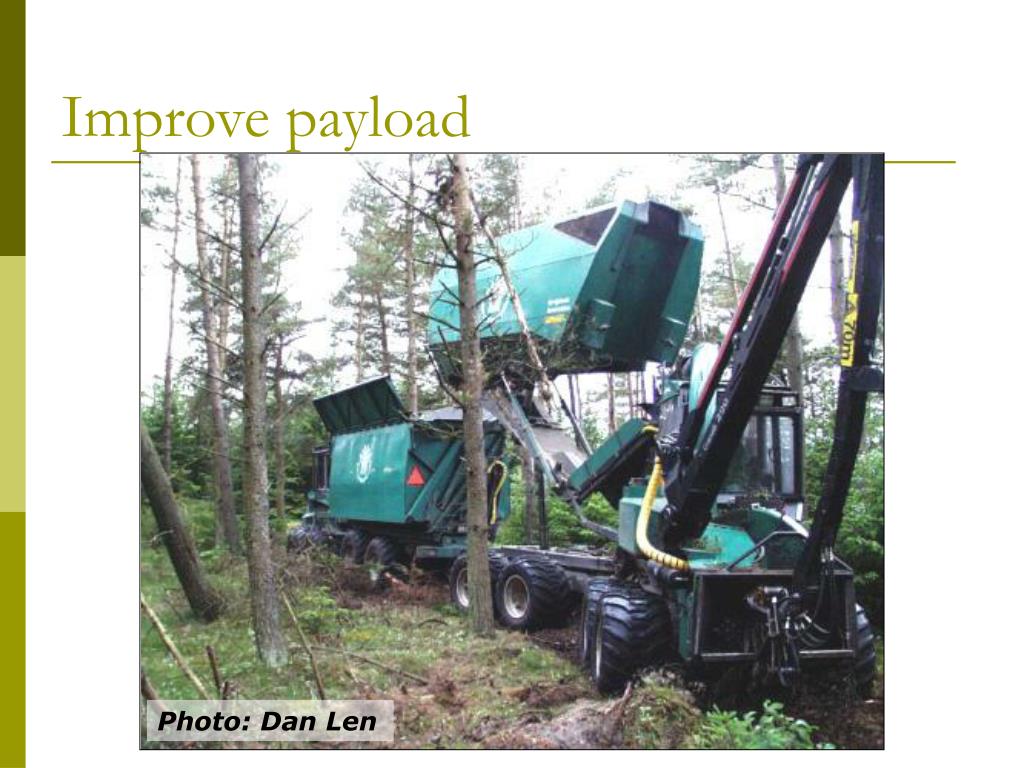

Improve payload2
Improve payload smallwood

Photo: Dan Len

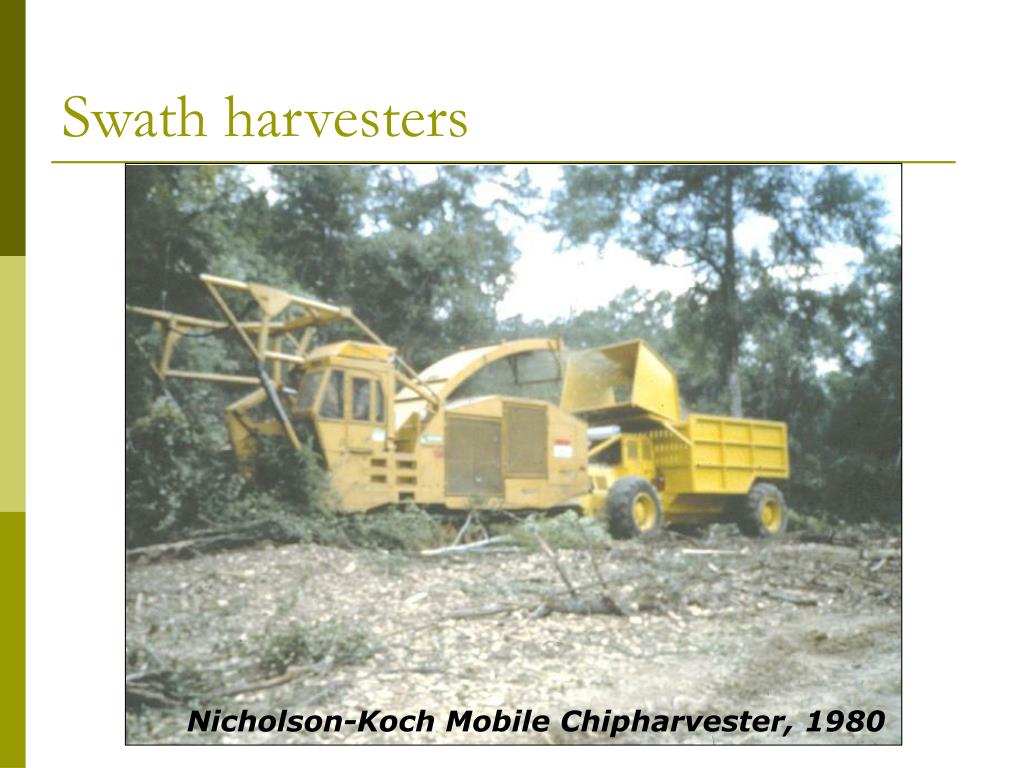

Swath harvesters
Swath harvesters smallwood

Nicholson-Koch Mobile Chipharvester, 1980

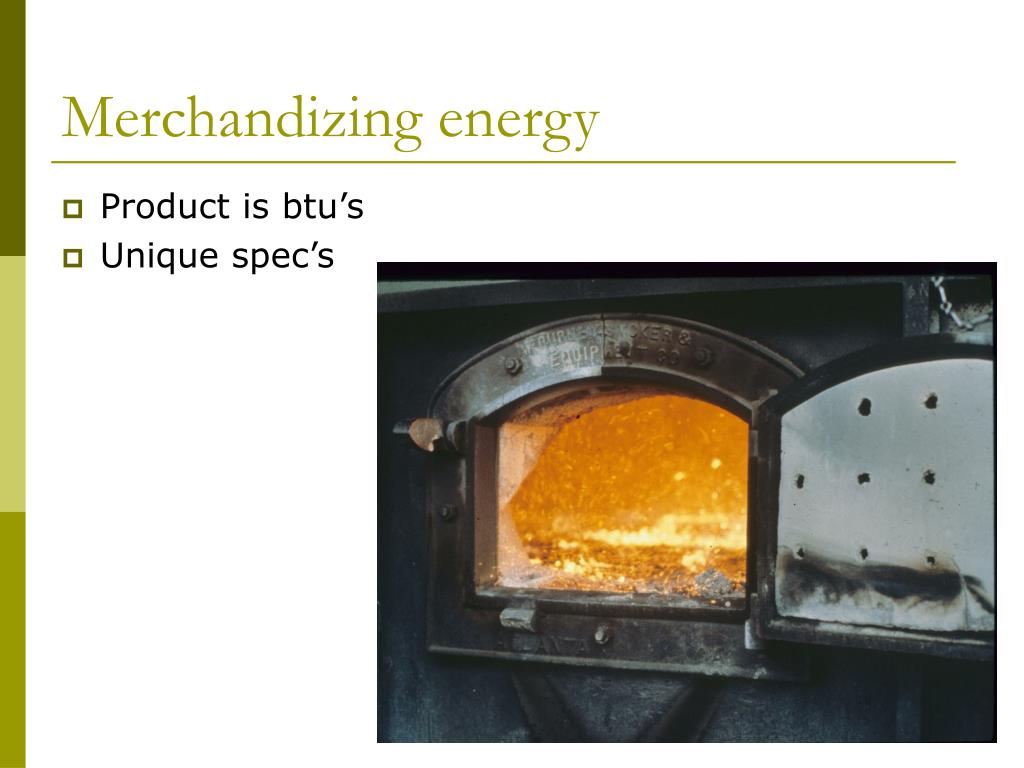

Merchandizing energy
Merchandizing energy smallwood

  • Product is btu’s

  • Unique spec’s

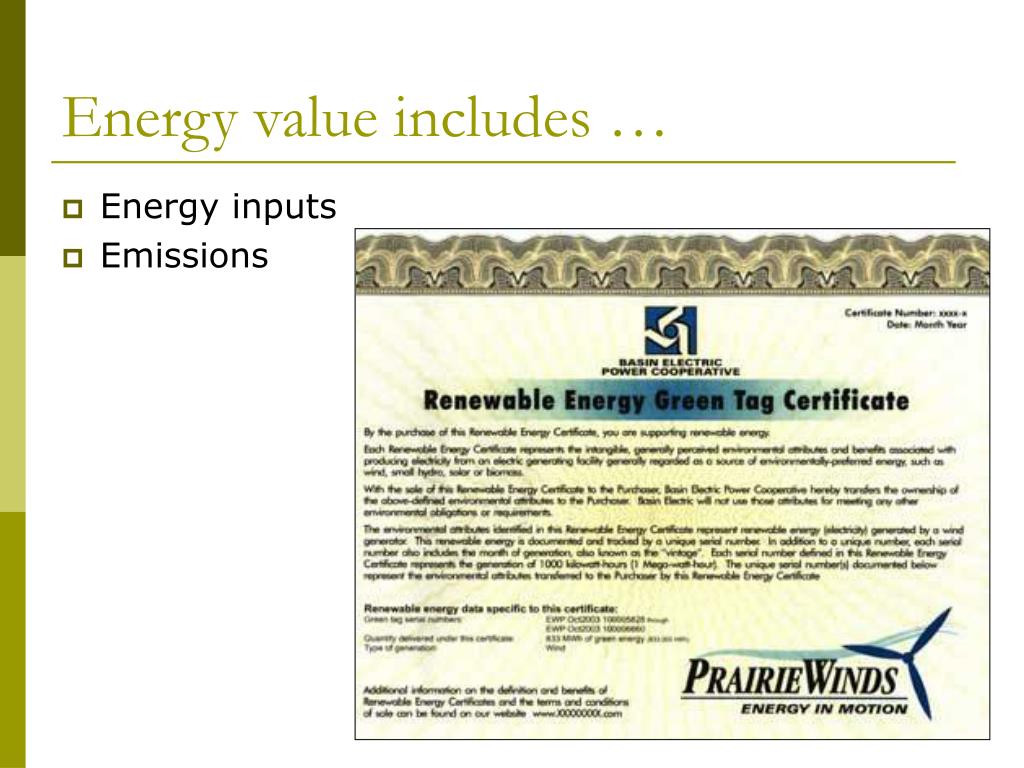

Energy value includes
Energy value includes … smallwood

  • Energy inputs

  • Emissions


Summary
Summary smallwood

  • Changing world for smallwood recovery

  • The smallest fraction will likely be merchandized for energywood

  • New technology to address barriers

    • Improved handling efficiency

    • Improved payload

    • Processing for value

  • Its an exciting time to be working in the woods


The future
The Future smallwood
