Electromagnetic induction

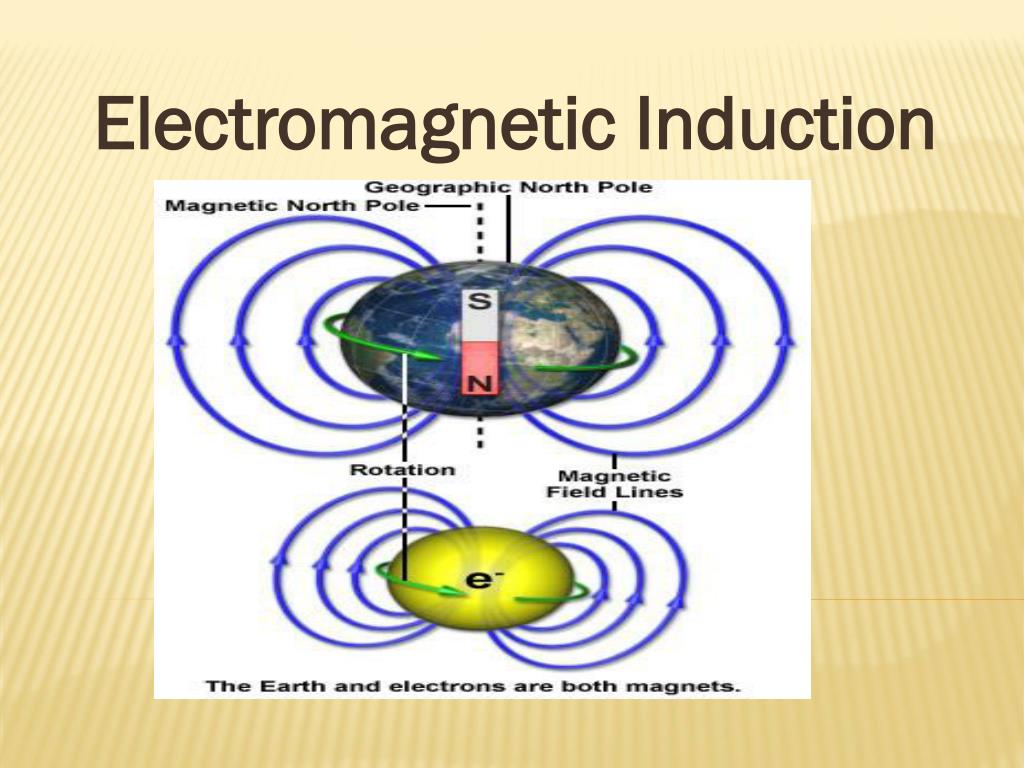

Electromagnetic Induction


The magnetic force on moving charge

THE MAGNETIC FORCE ON MOVING CHARGE

THE NORTHEN LIGHTS


Electromagnetic induction

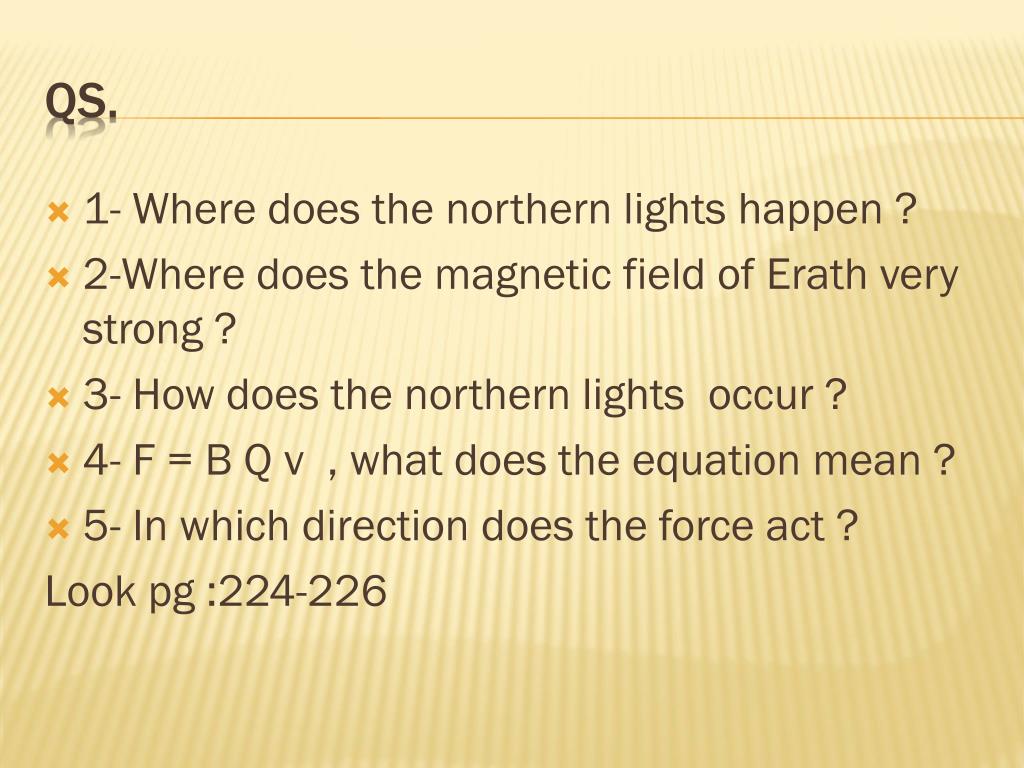

1- Where does the northern lights happen ?

2-Where does the magnetic field of Erath very strong ?

3- How does the northern lights occur ?

4- F = B Q v , what does the equation mean ?

5- In which direction does the force act ?

Look pg :224-226

Qs.


Fleming s left hand rule

Fleming’s left –hand rule


What is electromagnetic induction

What is electromagnetic induction ?

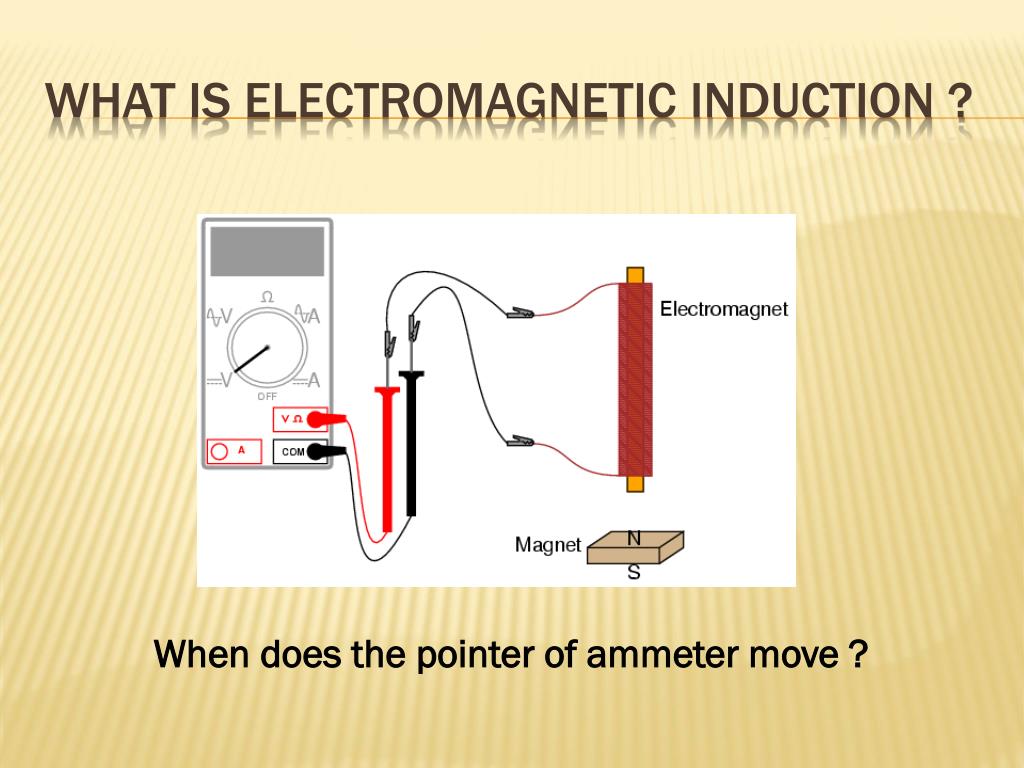

When does the pointer of ammeter move ?


Why does electromagnetic induction occur

Why does electromagnetic induction occur ?

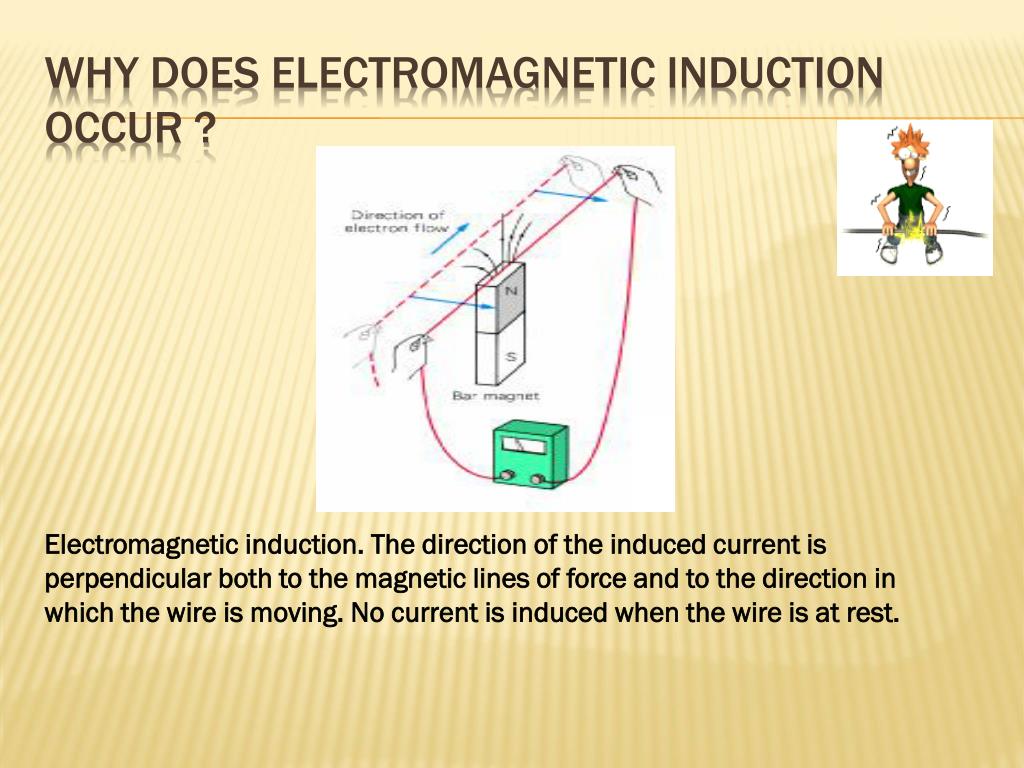

Electromagnetic induction. The direction of the induced current is perpendicular both to the magnetic lines of force and to the direction in which the wire is moving. No current is induced when the wire is at rest.


Useful website

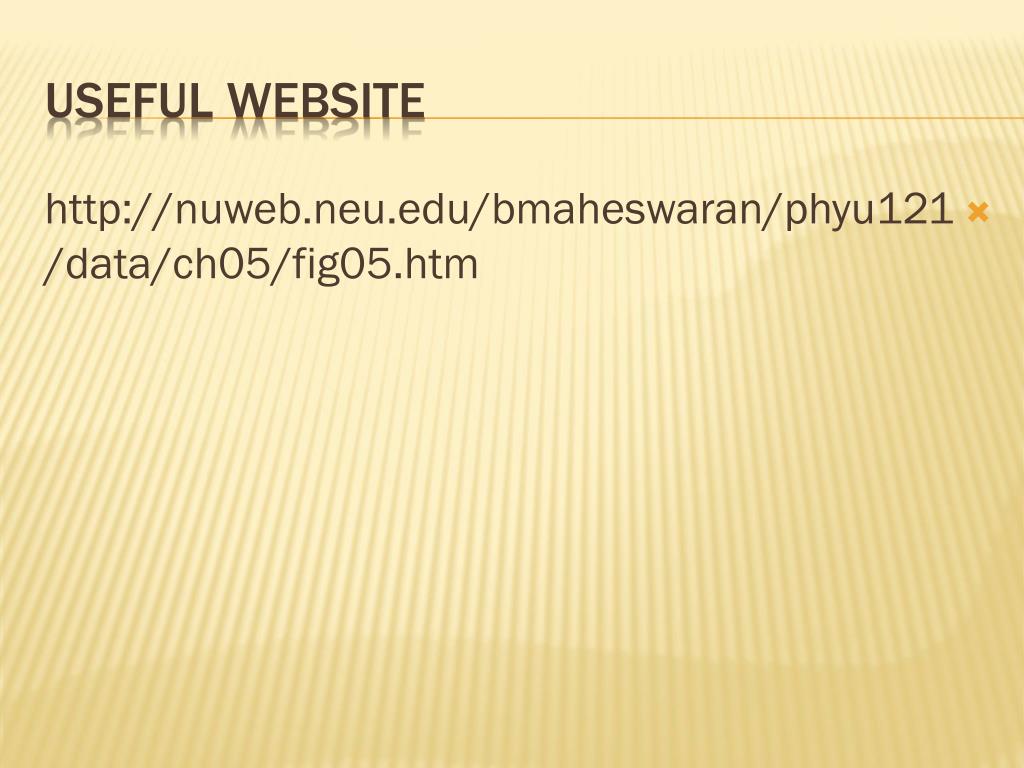

http://nuweb.neu.edu/bmaheswaran/phyu121/data/ch05/fig05.htm

Useful website

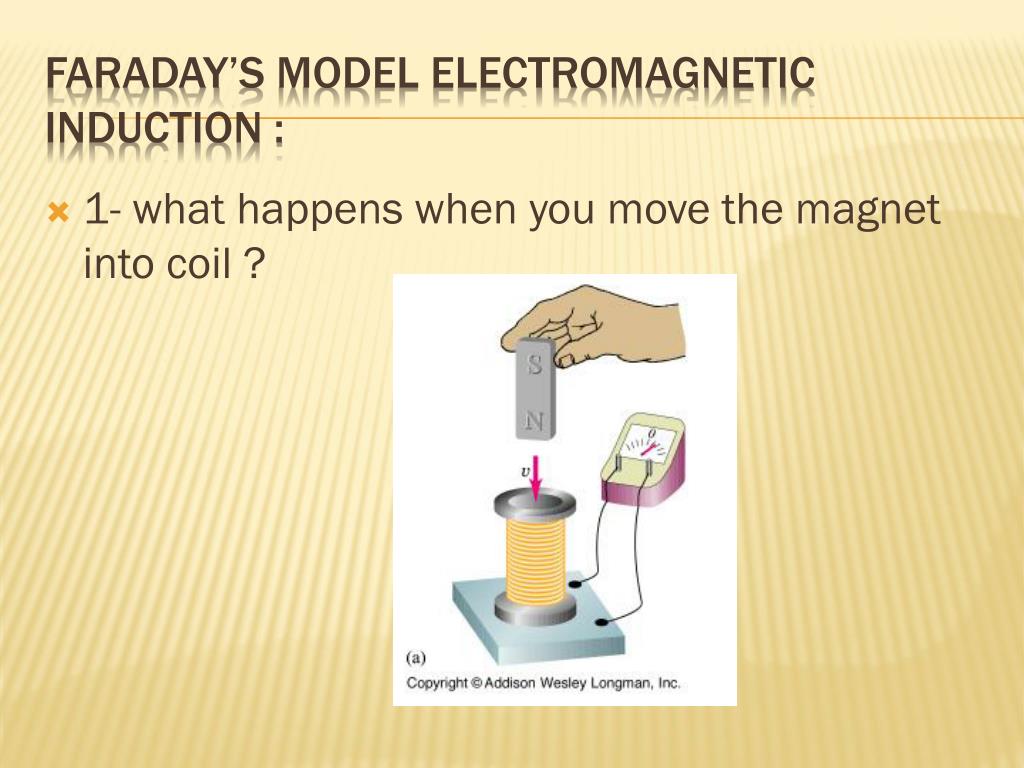

Faraday s model electromagnetic induction

1- what happens when you move the magnet into coil ?

Faraday’s model electromagnetic induction :


Electromagnetic induction

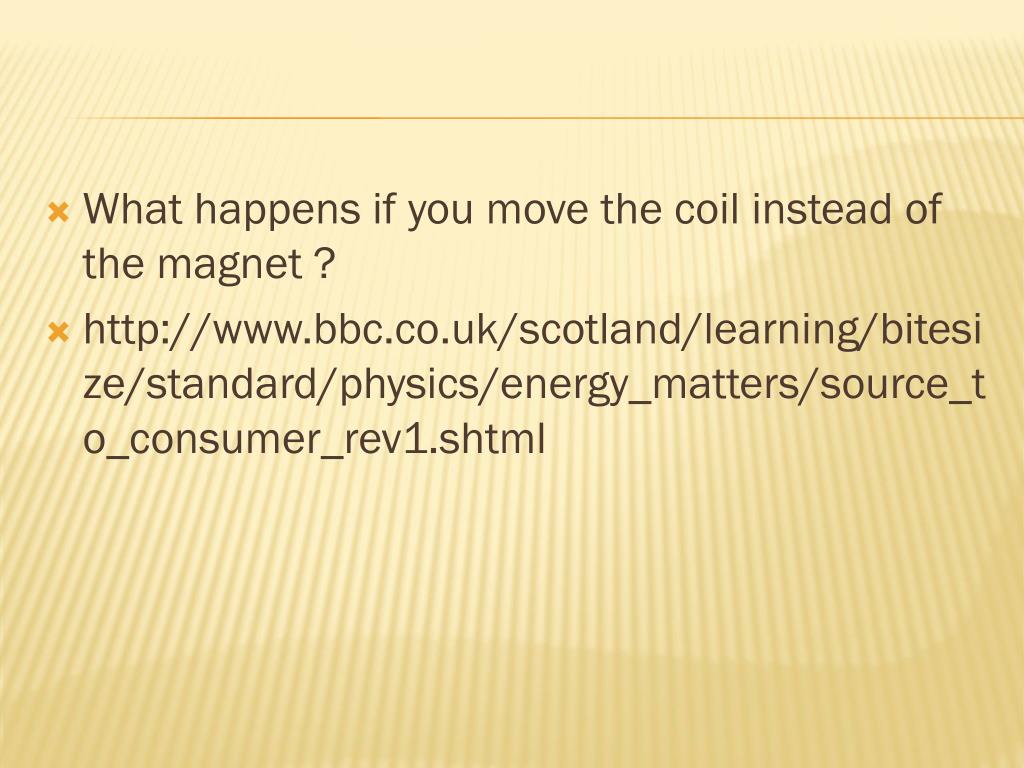

What happens if you move the coil instead of the magnet ?

http://www.bbc.co.uk/scotland/learning/bitesize/standard/physics/energy_matters/source_to_consumer_rev1.shtml


Electromagnetic induction

What is the relation between the turns of wire in coil and E.M.F.?


Electromagnetic induction

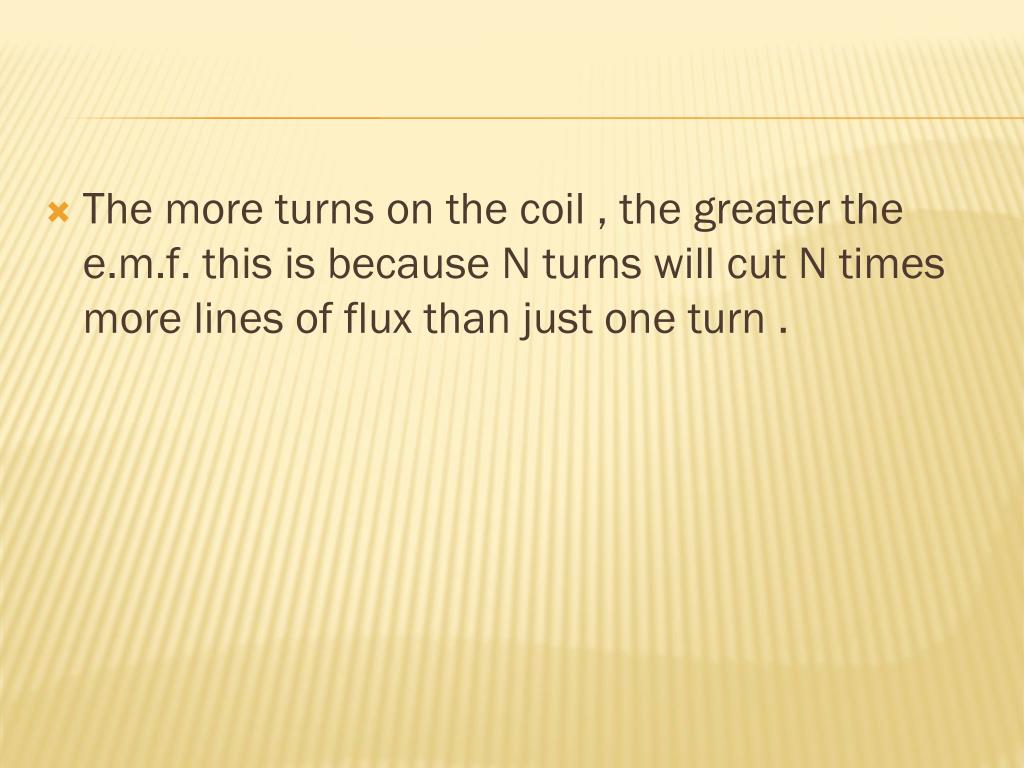

The more turns on the coil , the greater the e.m.f. this is because N turns will cut N times more lines of flux than just one turn .


Electromagnetic induction

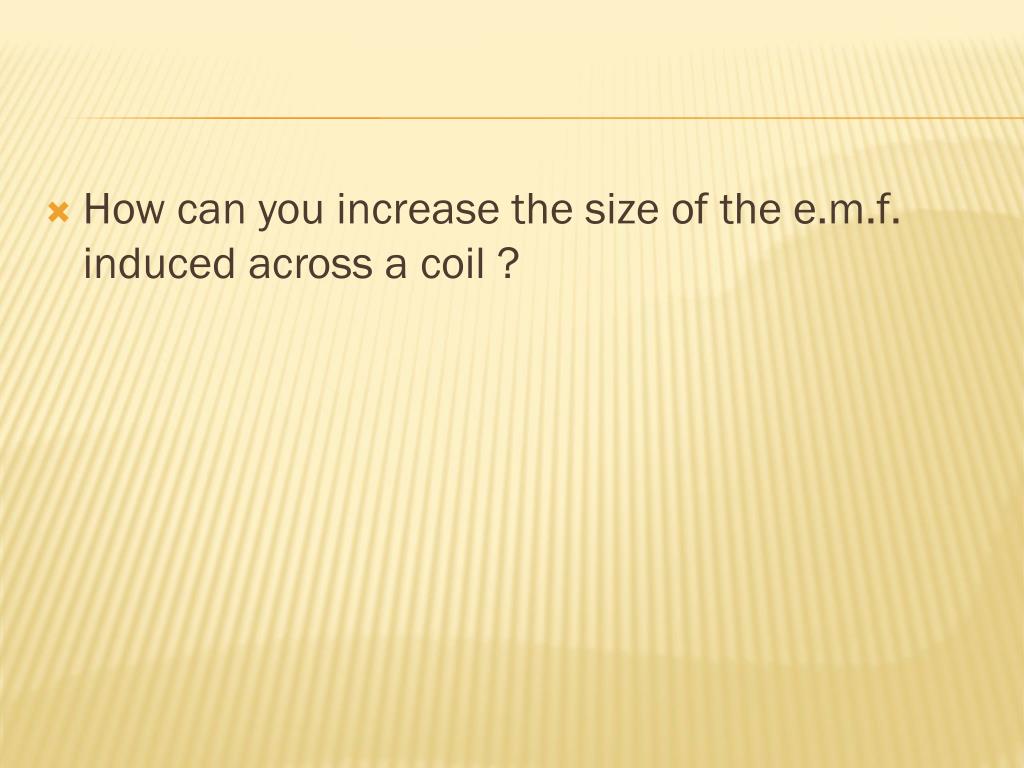

How can you increase the size of the e.m.f. induced across a coil ?


Electromagnetic induction

Magnetic flux is the amount of magnetic field threading or “flowing through” a certain area A, such as the area inside a flat coil of wire. This is represented diagrammatically by the total number of magnetic flux lines that pass through area A.

The stronger the magnetic field at a point, the higher the magnetic flux density B is at that point and the more magnetic flux lines there are cutting or threading a given area. B is a measure of magnetic flux per unit area perpendicular to the direction of the field at a point in the field.

To find the total amount of flux passing through area A, we need to multiply the magnetic flux density B by the number of square meters in area A. This can be expressed mathematically as flux = flux density × area, or

In SI units, magnetic flux is measured in Webers (Wb) and magnetic flux density is measured in Webers per square meter (Wb m-2)
