Presentation Transcript

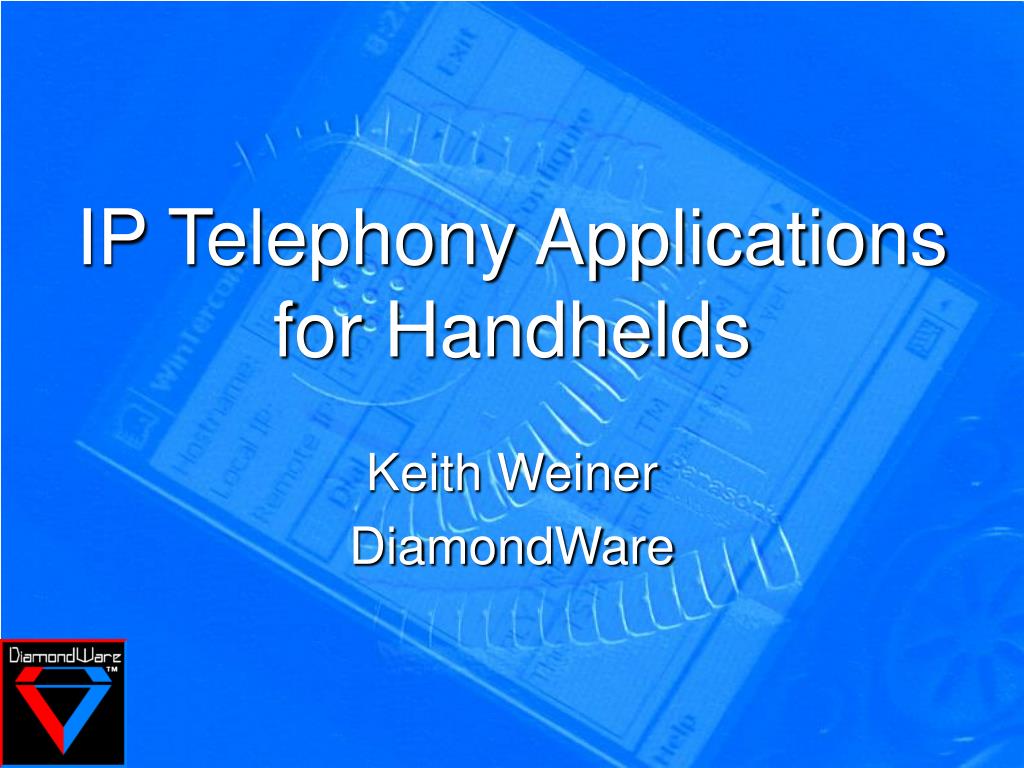

Ip telephony applications for handhelds l.jpg

IP Telephony Applications for Handhelds

Keith Weiner

DiamondWare


Presentation goals l.jpg
Presentation goals

  • Look closely at cellular, cordless phones

  • Why computer telephony, why PDA, why now?

  • PDA telephony technologies

  • Engineering and market issues

  • Projections and statistics

  • Demo


Pda telephony is not cellular l.jpg
PDA telephony is not cellular

  • Those are cool Devices!

    • Samsung I300, Nokia Communicator, Handspring Treo

  • It’s a cool Application!

    • Combine two functions into 1 device

  • …But different.


Cellular advantages l.jpg
Cellular advantages

  • Nationwide WAN coverage

  • Roaming at 90mph

  • Low capex

    • Free or near-free

  • But no advantage within enterprise space


Cellular cellularness l.jpg
Cellular cellularness

  • Monthly bills

  • High latency

    • “Hello, Over?”

  • Poor voice quality

    • Especially “transcoding” between carriers

  • Doesn’t work well in some buildings

    • Fabs, dense high-rises


But everyone uses it l.jpg
But everyone uses it

  • On the road

  • At lunch

  • In coworkers’ offices

  • Out of habit, even at their own desks!

    • Give out one number: the mobile

  • Mgmt. losing control and predictability

    • PSTN minutes negotiated in bulk


Cordless phones l.jpg
Cordless phones

  • Expensive

    • Nortel T7406 $525 MSRP

  • Trapped by system vendor

    • Or live with analog port limitations

  • Another extra device

    • Forget it when you wander down the hall

    • One more gadget on your belt


Ok why computer telephony l.jpg
Ok, why computer telephony?

  • Why IP?

  • Converged networks

    • LAN, voice, wireless

  • Why a software-based telephone?

  • More usable

    • Presence

    • Availability



Ip telephony for handhelds l.jpg
IP telephony for handhelds

  • PDA is becoming mission-critical

  • With decent CPU, audio chip, wireless NIC

  • Leverage it with a softphone

  • Inherently cheaper than dedicated phone

    • Cheaper to build and to upgrade

  • More powerful


Pda voip advantages l.jpg
PDA VoIP advantages

  • Same as for desktop and laptop

    • Features

      • Address book

      • Recording

      • Presence

      • Play tunes without worry, ring can interrupt

    • Better voice quality (wideband)

  • Plus mobility


Applications l.jpg
Applications

  • Workforce communication in factory floors, warehouses, campuses

  • Walking over to the next office

  • Desktop phone replacement

  • Take it with you to Starbucks, airports, hotels and other hotspots


Why wireless pda i l.jpg
Why wireless PDA? I

  • PDA deployment is growing

  • Wireless IP deployment is growing

  • Leverage them

  • Network convergence

    • Wired LAN

    • Telephony

    • Wireless


Why wireless pda ii l.jpg
Why wireless PDA? II

  • See list of conference attendees

  • Control your availability as seen by others

  • Whiteboard, Text (IM)

  • N-way calling

    • “Line” is never busy

    • Why limit to just 3-way?


Softphone architecture i l.jpg
Softphone architecture I

  • IP socket support

  • Call control protocol

    • SIP or H.323

  • Realtime audio transport (i.e. RTP)

  • Audio is broken into packets


Softphone architecture ii l.jpg
Softphone architecture II

  • Microphone capture

  • Process (e.g. echo, AGC)

  • Compress (e.g. G.711, G.729)

  • Wrap in an RTP header

  • Send to remote host


Softphone architecture iii l.jpg
Softphone architecture III

  • Network receive

  • Decompress

  • Process (e.g. dejitter, echo)

  • Send to audio chip


What does it take l.jpg
What does it take?

  • Real computer (PocketPC, Zaurus, Webpad), with a real audio chip

    • Sorry Palm

  • Headphones

  • Wireless network, typically 802.11b

    • 802.11a gets cheaper (under twice 802.11b)

  • For PSTN calls, IP-PBX gateway


802 11 issues i l.jpg
802.11 issues I

  • Bandwidth Constrained

    • 802.11b has only 11 Mbps

    • 802.11a has 54 Mbps

    • 802.11g has 54 Mbps also, but 2.4GHz

  • QoS

    • Cannot add segments, like w/wired LANs

    • “Sto dow..oading so I .c.. ta..k”

    • No standard yet


802 11 issues ii l.jpg
802.11 issues II

  • Airwave contention

    • NICs hidden from each other

    • RTS/CTS

  • RF Interference

    • 802.11b uses 2.4ghz, not great spectrum

    • 802.11a uses 5ghz, better spectrum


802 11 issues iii l.jpg
802.11 issues III

  • Security

    • Encryption (wired equivalent privacy) is a toy

    • “Warchalking”

    • MAC address filtering helps, somewhat

  • Access controllers

    • Built-in authentication

    • Connect to auth server (e.g. RADIUS, LDAP)

    • Painless subnet roaming


Voip issues l.jpg
VoIP issues

  • For IP calls to or from the outside

    • NAT

    • Firewall

    • Proxy

  • Some solutions

    • Server outside the gate (e.g. Ridgeway)

    • UPnP NAT


Pocketpc issues l.jpg
PocketPC issues

  • Speaker and mic coupled

    • Headphones req’d

  • Mic-less headphones

    • 50 lashes with a wet noodle

  • Compute-limited for echo cancellation

  • Battery life

    • Powered down when idle

    • But can’t receive calls!


Market issues l.jpg
Market issues

  • Inside your space, build what you want

    • Not many outside hotspots yet

  • Roaming problem

    • Dynamic routing

    • Mesh Networks

  • Mass acceptance req’d for business model

    • 200 users at airport gate—holy QoS, Batman!


Marketscape l.jpg
Marketscape

  • Existing products

    • Avaya, support for their PBX

    • VTGO, supports Cisco Call Manager

    • SoftJoy Labs, supports H.323 and SIP

  • In Development

    • DiamondWare, SIP, lowest latency

    • Telesym, connects to 3rd party PBXs

    • Others


Resistance is futile l.jpg
Resistance is futile!

  • (You will be assimilated)

  • The PDA is/will be mission-critical

  • You will carry it for many reasons

  • Why not use it for the voice function?

  • No worse off than before

  • Within wireless zones, much better


Necessary next steps l.jpg
Necessary next steps

  • Ubiquitous Wireless access points

    • Outside the enterprise

  • Answers on the business side

    • 30 free minutes with every cup at Starbucks?

    • By the hour at airports?

    • 1000 minutes/month like cellular?

    • By the day at hotels?


My projections l.jpg
My projections

  • Wideband (16khz) audio will win people

  • PDAs will be carried everywhere

  • PDAs will be net.connected when possible

  • PDAs will be used as phones when net.connected

    • SIP makes follow-me easy

  • PoE (power over ethernet) icing on cake


Statistics l.jpg
Statistics

  • 100% of communications shows I’ve attended, past 12 months

  • 5.3M NICs and 1.8M WAPs sold in 20011

  • $400/$100 avg. cost, enterprise WAP/NIC

  • 44 “hotspots” in Arizona2

1Gartner

280211hotspots.com


About me l.jpg
About me


Wideband audio l.jpg
Wideband Audio

  • “Your confirmation number is FS5BP3TD”

  • Try that on a phone

    • Worse yet, a cell
