  1. Defects in ion channels as a cause of inherited disease Editor:ZongliangYue,Xuejing Liu Science of Life CNU

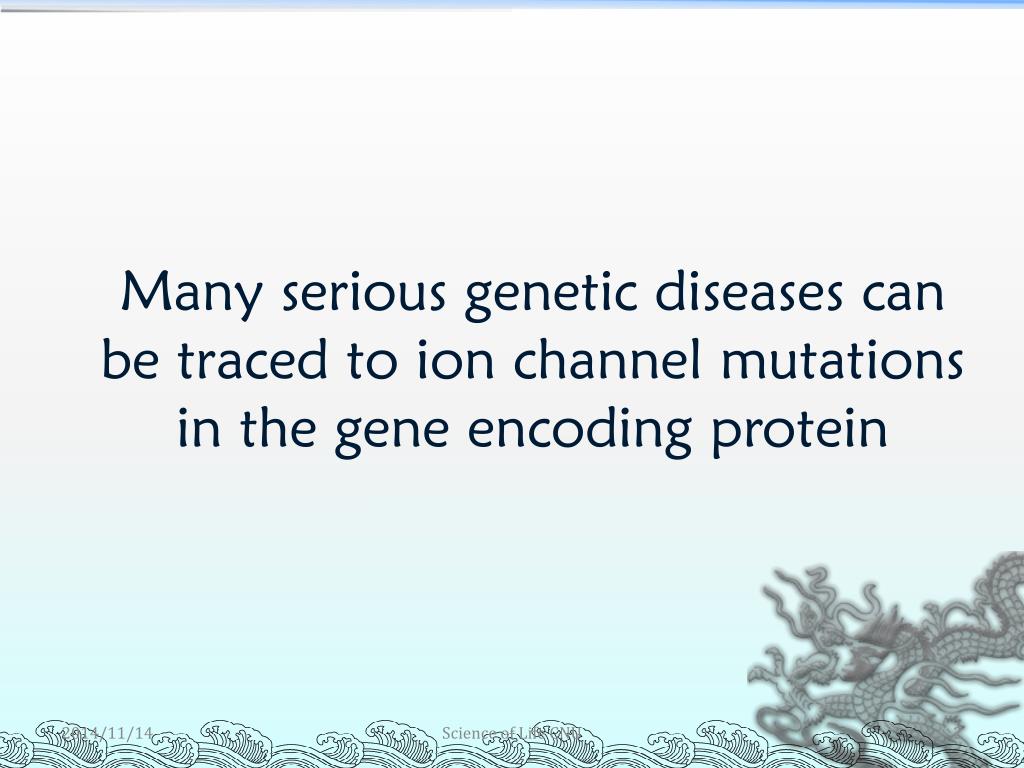

  2. Many serious genetic diseases can be traced to ion channel mutations in the gene encoding protein Science of Life CNU

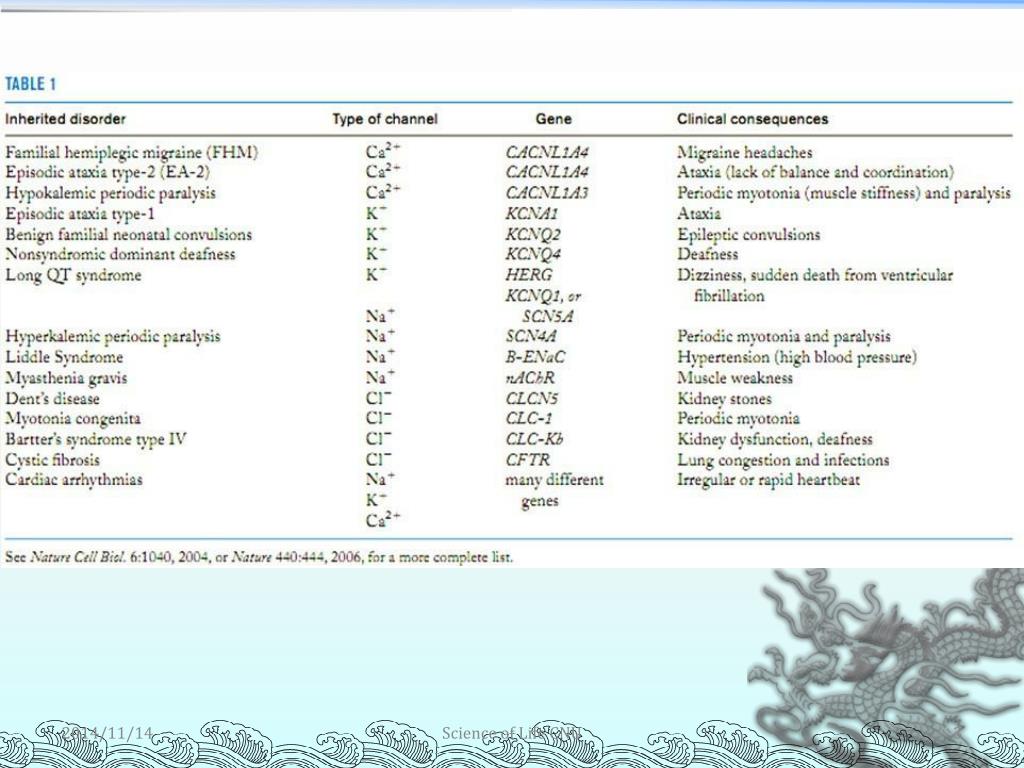

  3. Science of Life CNU

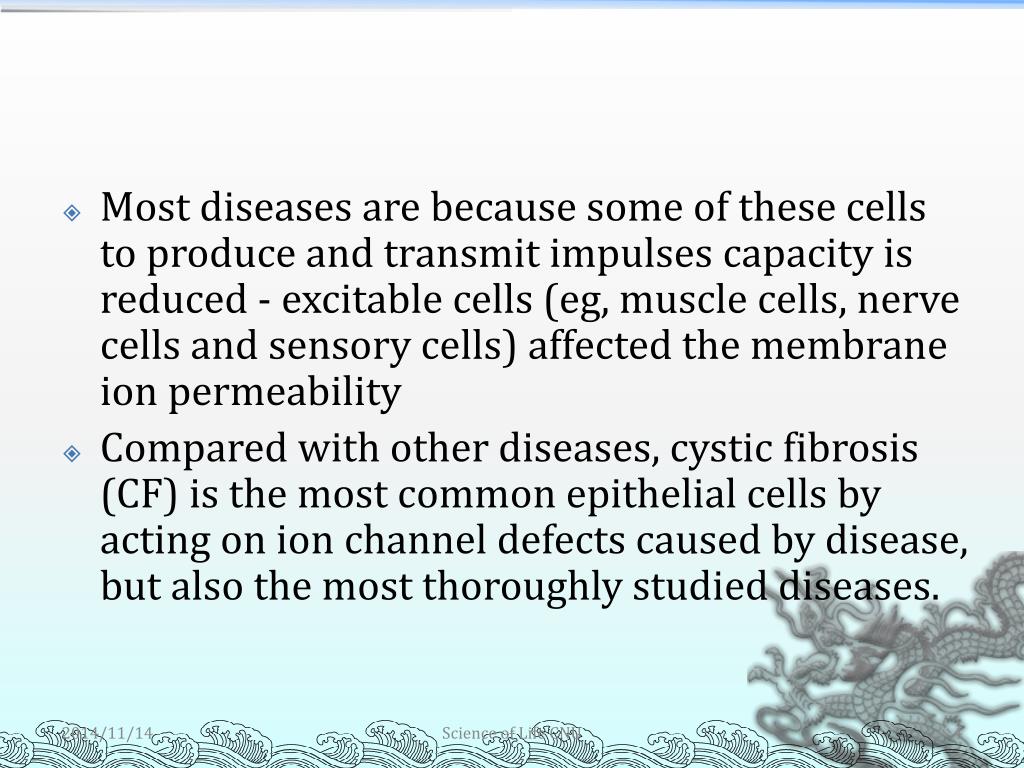

  4. Most diseases are because some of these cells to produce and transmit impulses capacity is reduced - excitable cells (eg, muscle cells, nerve cells and sensory cells) affected the membrane ion permeability • Compared with other diseases, cystic fibrosis (CF) is the most common epithelial cells by acting on ion channel defects caused by disease, but also the most thoroughly studied diseases. Science of Life CNU

  5. Cystic fibrosis is a chronic, progressive, hereditary disease, exocrine glands, is the most common Caucasian shortened life expectancy will cause the genetic disease. Science of Life CNU

  6. The disease of the defective gene will cause the body to produce excessive mucus, especially on the respiratory system and digestive tract of the impact of the drama. Science of Life CNU

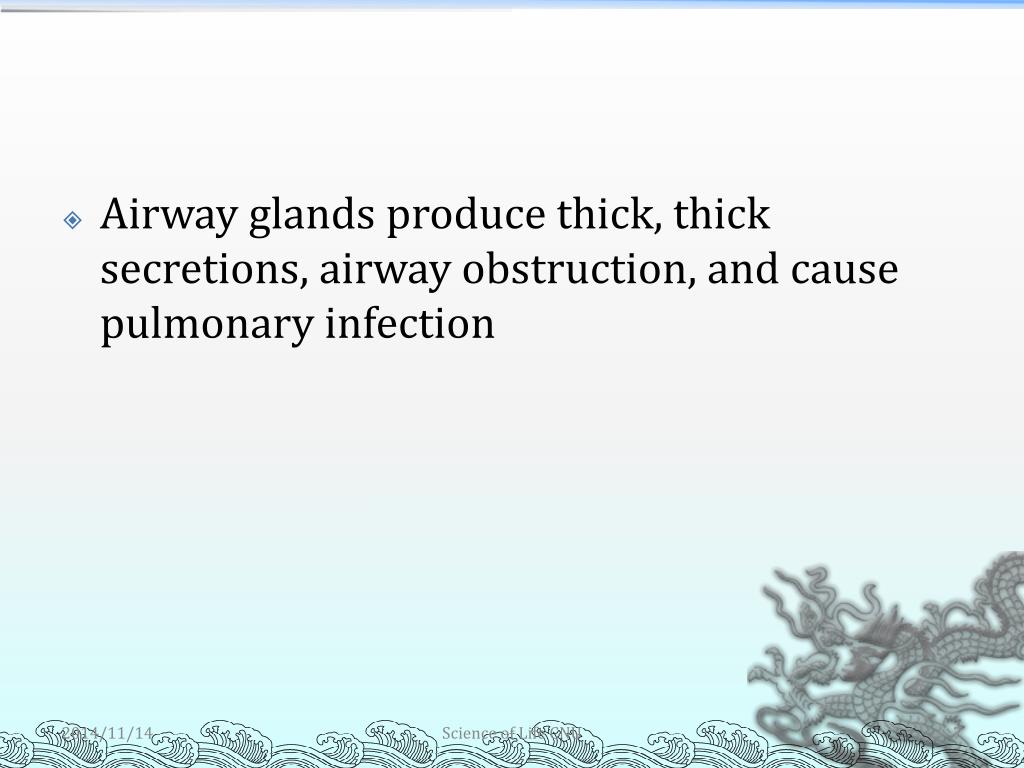

  7. Airway glands produce thick, thick secretions, airway obstruction, and cause pulmonary infection Science of Life CNU

  8. When the pulmonary alveolar collapse, the pneumonia will often follow. Pneumonia in cystic fibrosis patients is the most susceptible, and easy to recurrent infections. Science of Life CNU

  9. Science of Life CNU

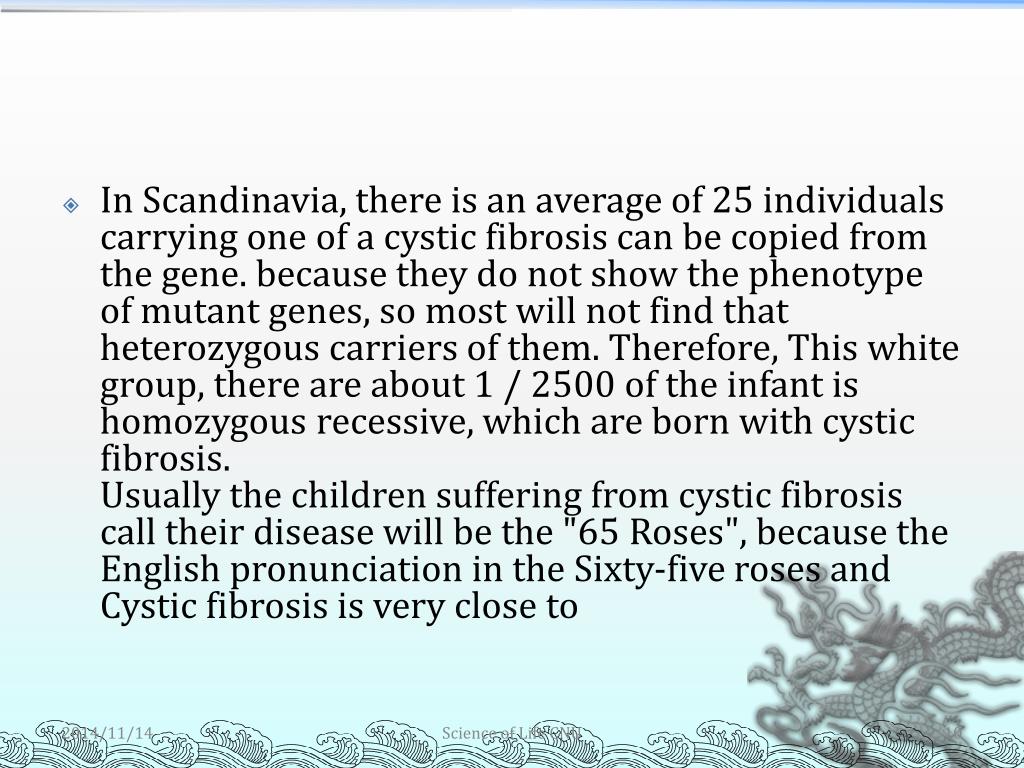

  10. In Scandinavia, there is an average of 25 individuals carrying one of a cystic fibrosis can be copied from the gene. because they do not show the phenotype of mutant genes, so most will not find that heterozygous carriers of them. Therefore, This white group, there are about 1 / 2500 of the infant is homozygous recessive, which are born with cystic fibrosis.Usually the children suffering from cystic fibrosis call their disease will be the "65 Roses", because the English pronunciation in the Sixty-five roses and Cystic fibrosis is very close to Science of Life CNU

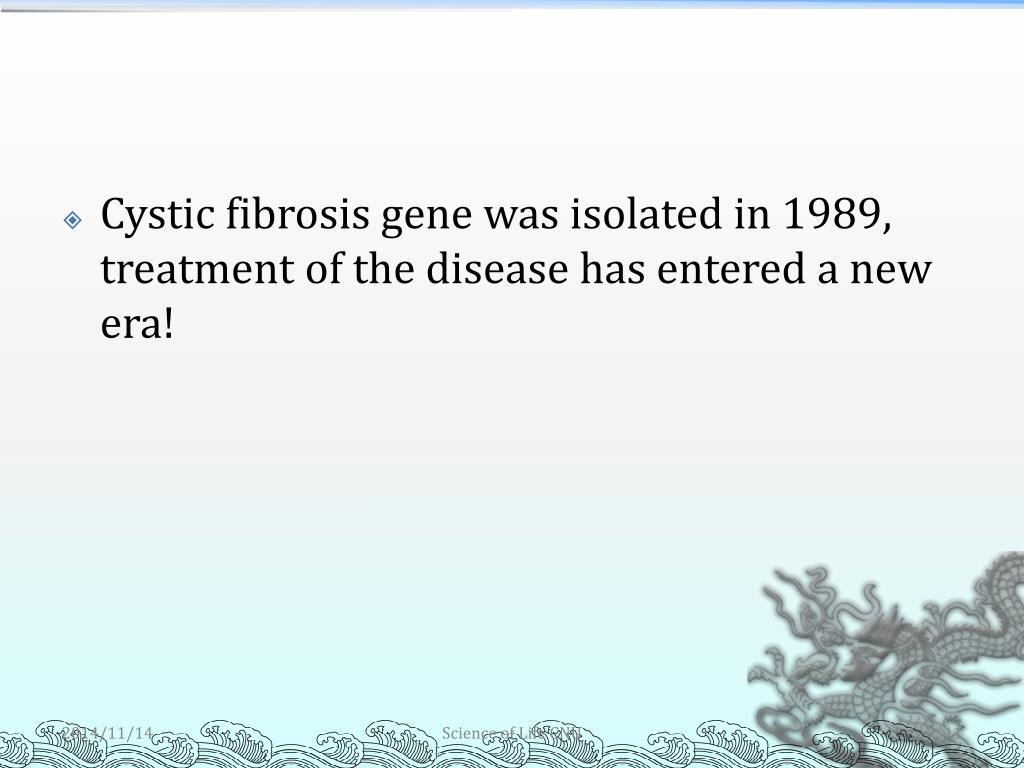

  11. Cystic fibrosis gene was isolated in 1989, treatment of the disease has entered a new era! Science of Life CNU

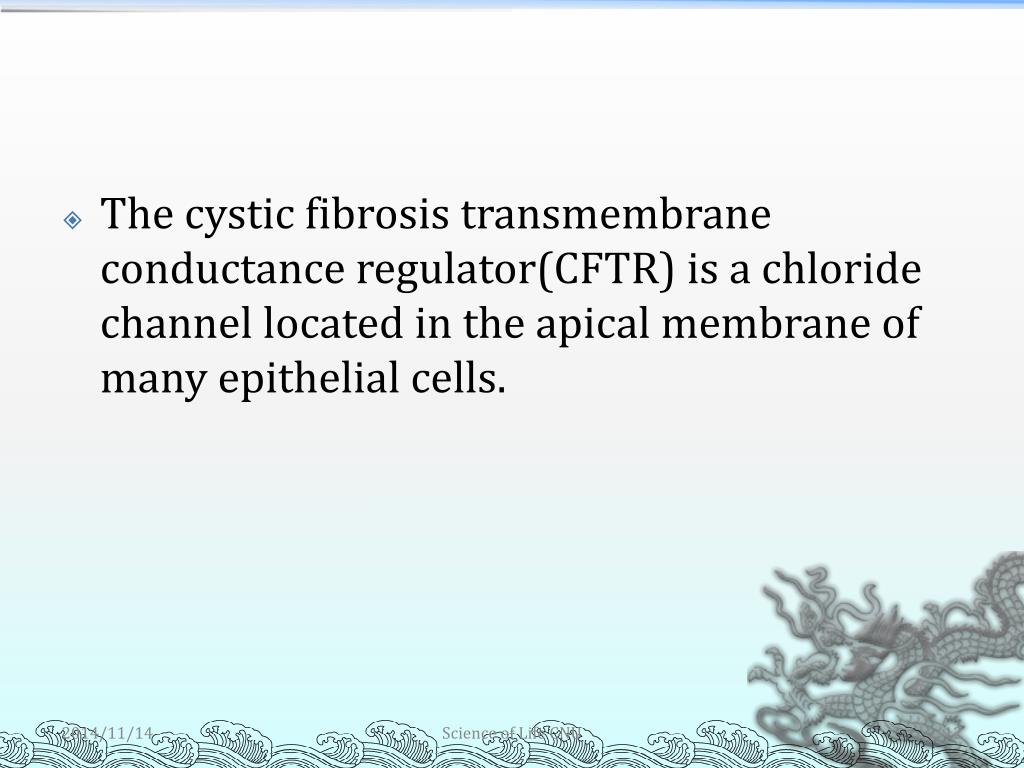

  12. The cystic fibrosis transmembrane conductance regulator(CFTR) is a chloride channel located in the apical membrane of many epithelial cells. Science of Life CNU

  13. Science of Life CNU

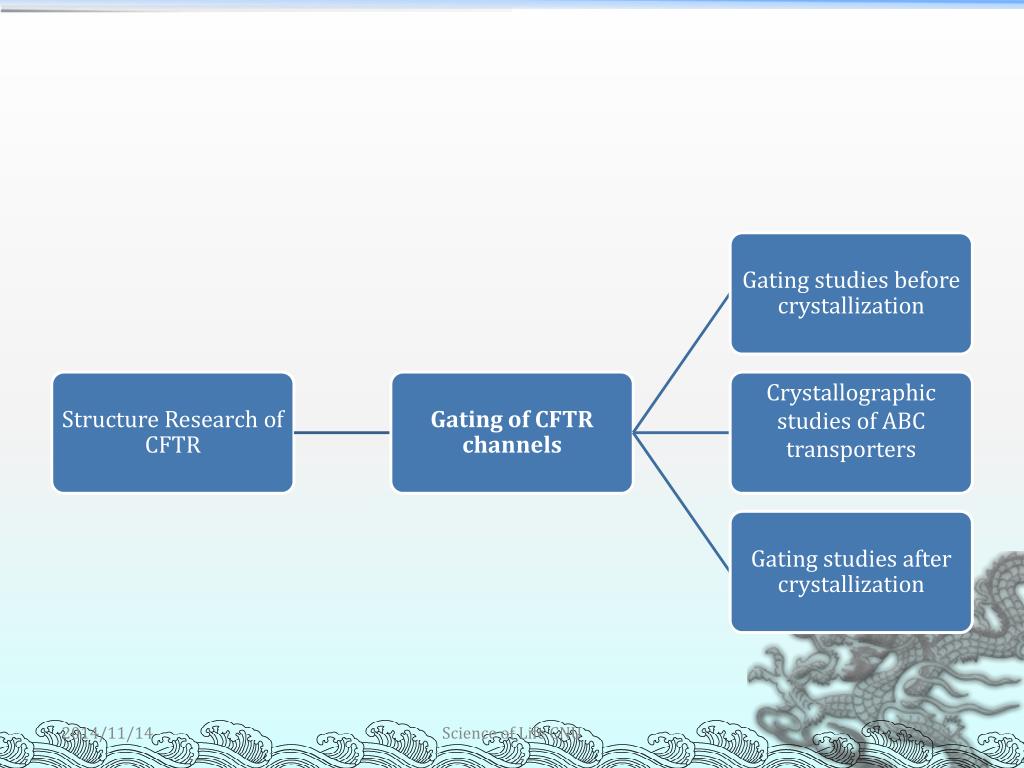

  14. Science of Life CNU

  15. Gating of CFTR channels • The first piece of evidence for CFTR being an ATP-gated ion channel comes from patch-clamp experiments by Anderson Science of Life CNU

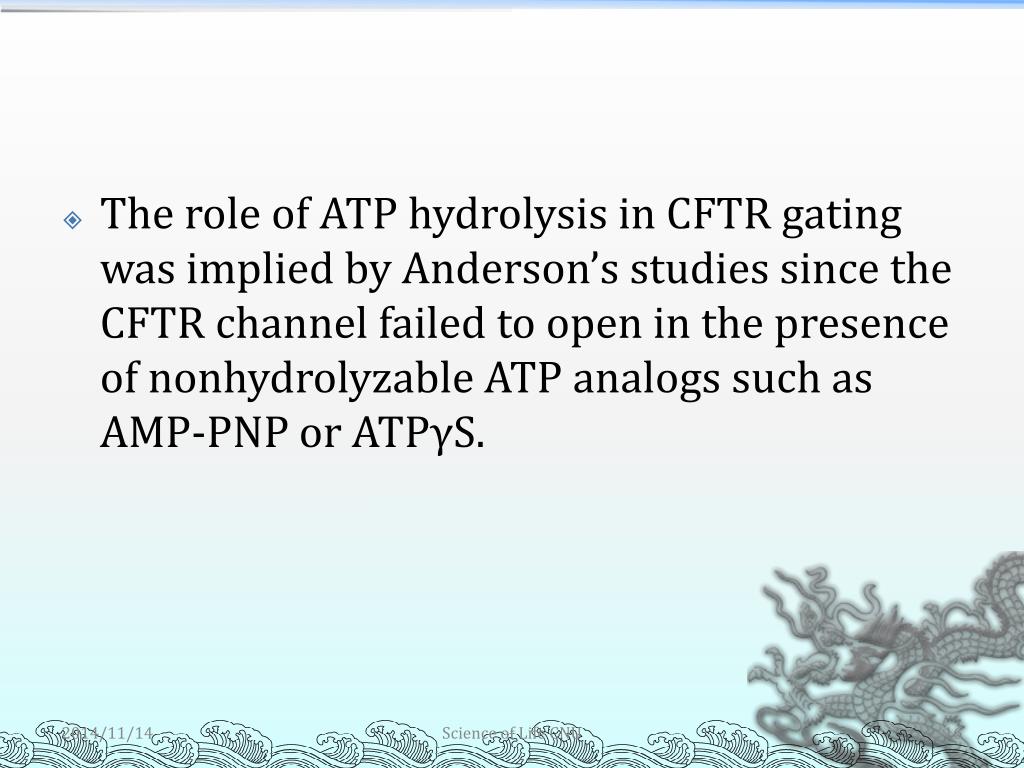

  16. The role of ATP hydrolysis in CFTR gating was implied by Anderson’s studies since the CFTR channel failed to open in the presence of nonhydrolyzable ATP analogs such as AMP-PNP or ATPγS. Science of Life CNU

  17. The first piece of evidence for CFTR being an ATP-gated ion channel comes from patch-clamp experiments by Anderson Science of Life CNU

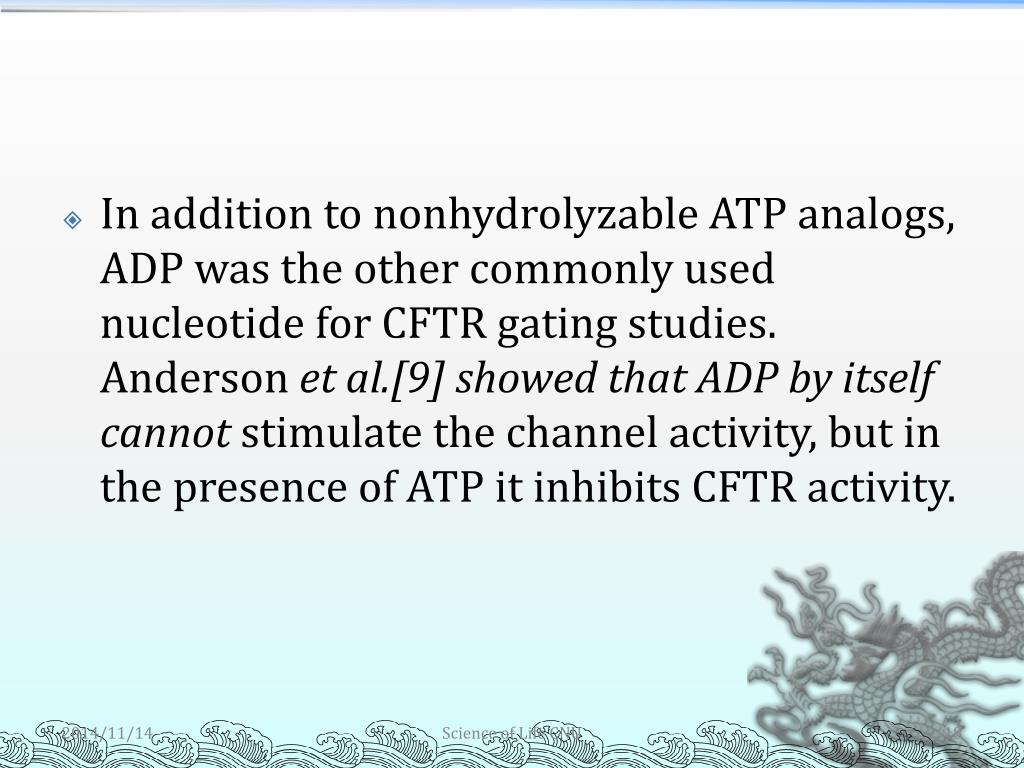

  18. In addition to nonhydrolyzable ATP analogs, ADP was the other commonly used nucleotide for CFTR gating studies. Anderson et al.[9] showed that ADP by itself cannot stimulate the channel activity, but in the presence of ATP it inhibits CFTR activity. Science of Life CNU

  19. Crystallographic studies of ABC transporters Science of Life CNU

  20. Gating studies after crystallization Science of Life CNU

  21. Science of Life CNU

  22. Science of Life CNU

  23. An explanation for the debilitating effects on lung function from the absence of the CFTR protein.

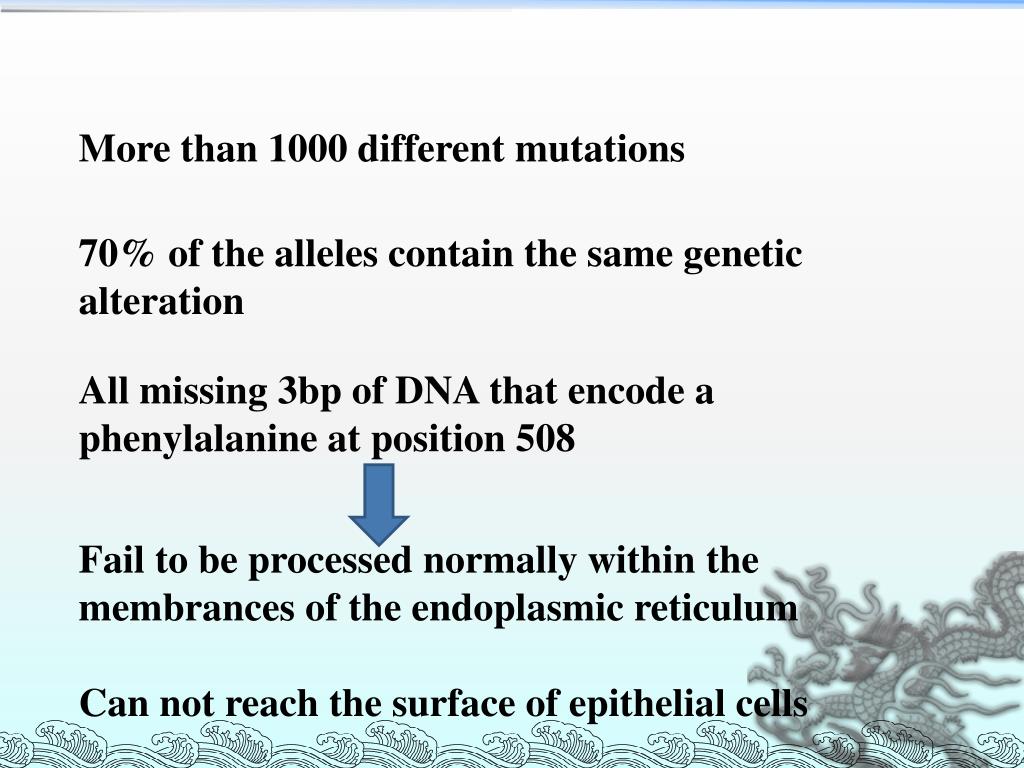

  24. More than 1000 different mutations 70% of the alleles contain the same genetic alteration All missing 3bp of DNA that encode a phenylalanine at position 508 Fail to be processed normally within the membrances of the endoplasmic reticulum Can not reach the surface of epithelial cells

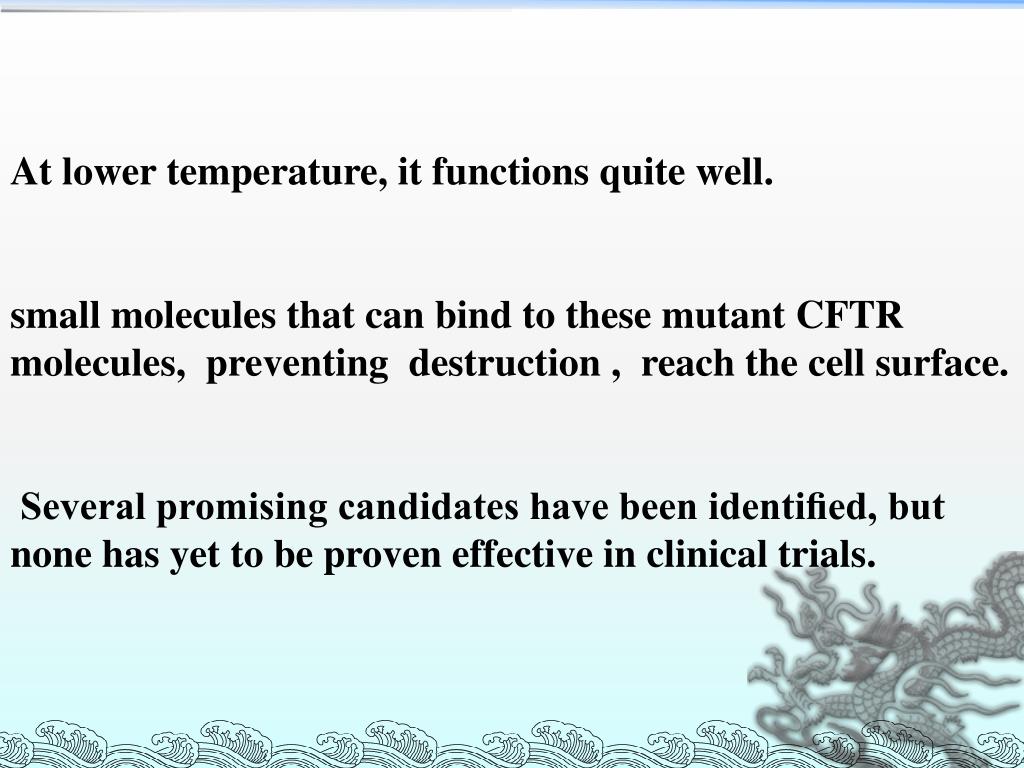

  25. At lower temperature, it functions quite well. small molecules that can bind to these mutant CFTR molecules, preventing destruction , reach the cell surface. Several promising candidates have been identified, but none has yet to be proven effective in clinical trials.

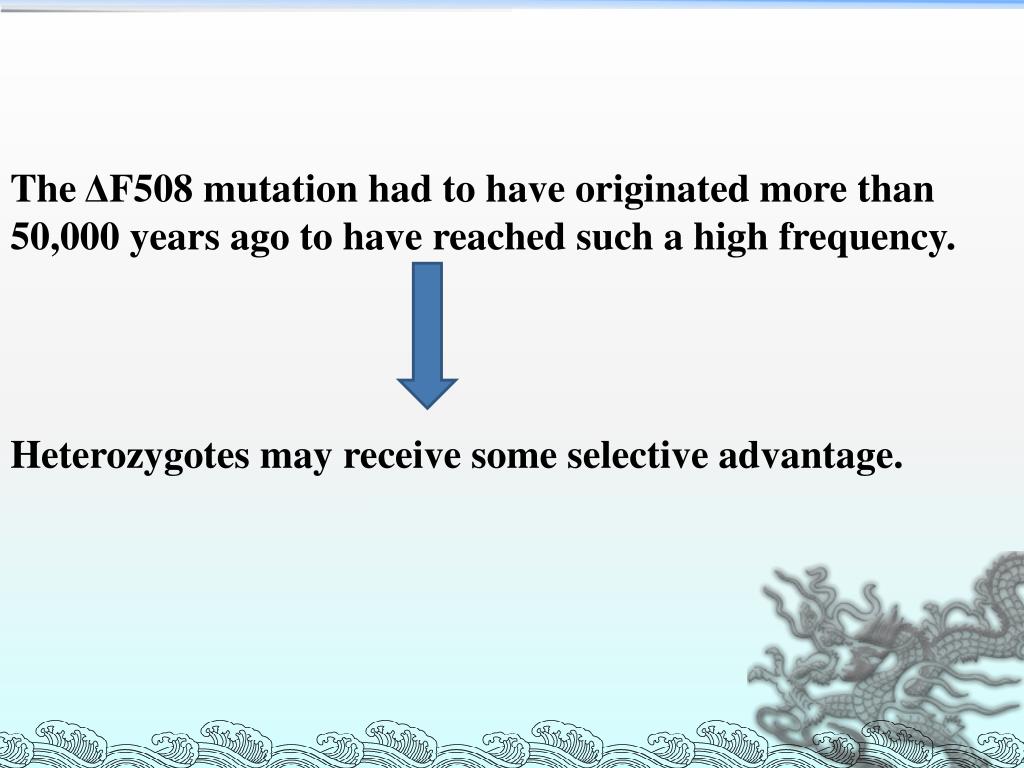

  26. The ΔF508 mutation had to have originated more than 50,000 years ago to have reached such a high frequency. Heterozygotes may receive some selective advantage.

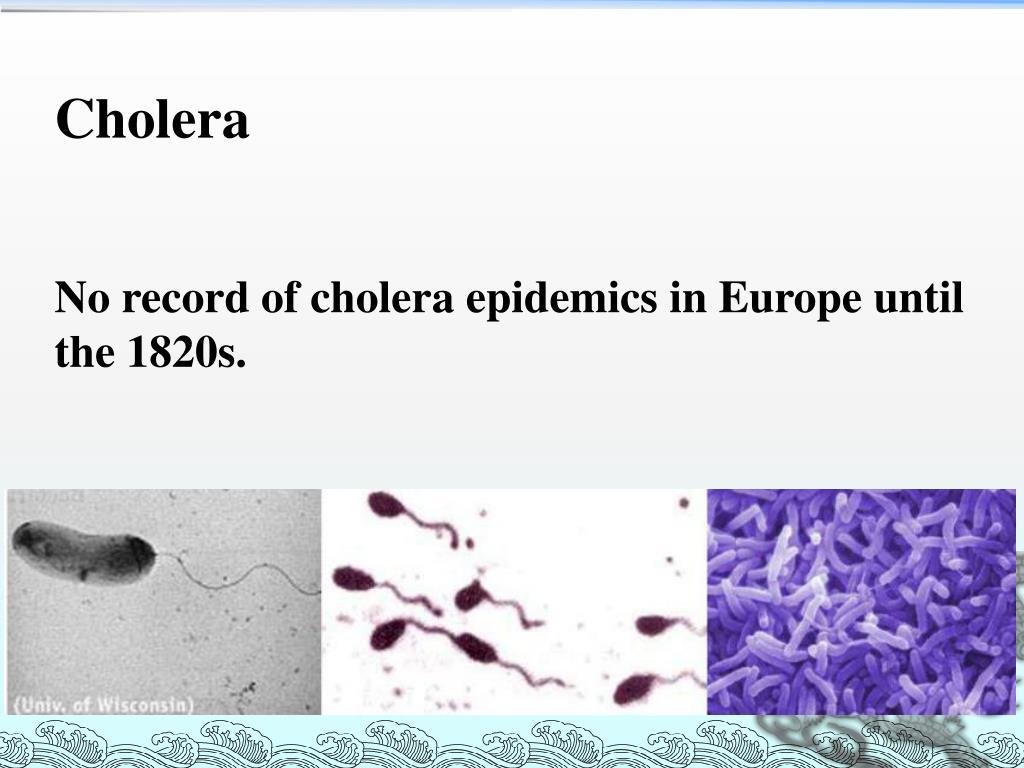

  27. Cholera No record of cholera epidemics in Europe until the 1820s.

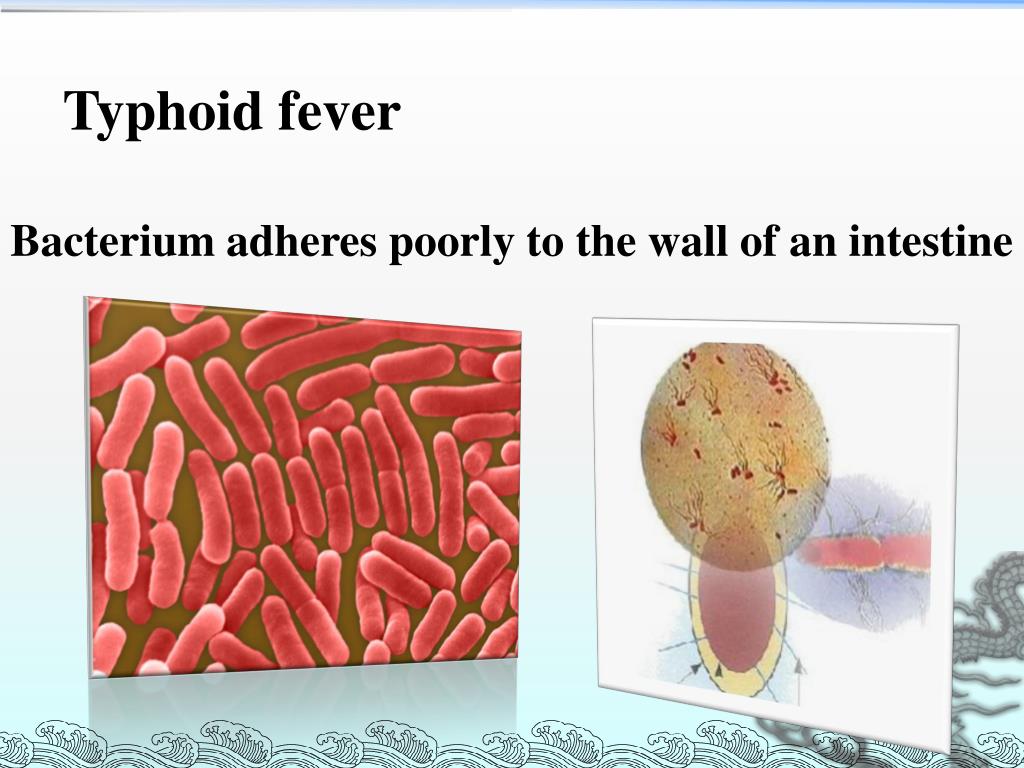

  28. Typhoid fever Bacterium adheres poorly to the wall of an intestine

  29. Antibiotics Bronchodilator Five types of drugs Mucus solvent Antioxidant Genetherapy

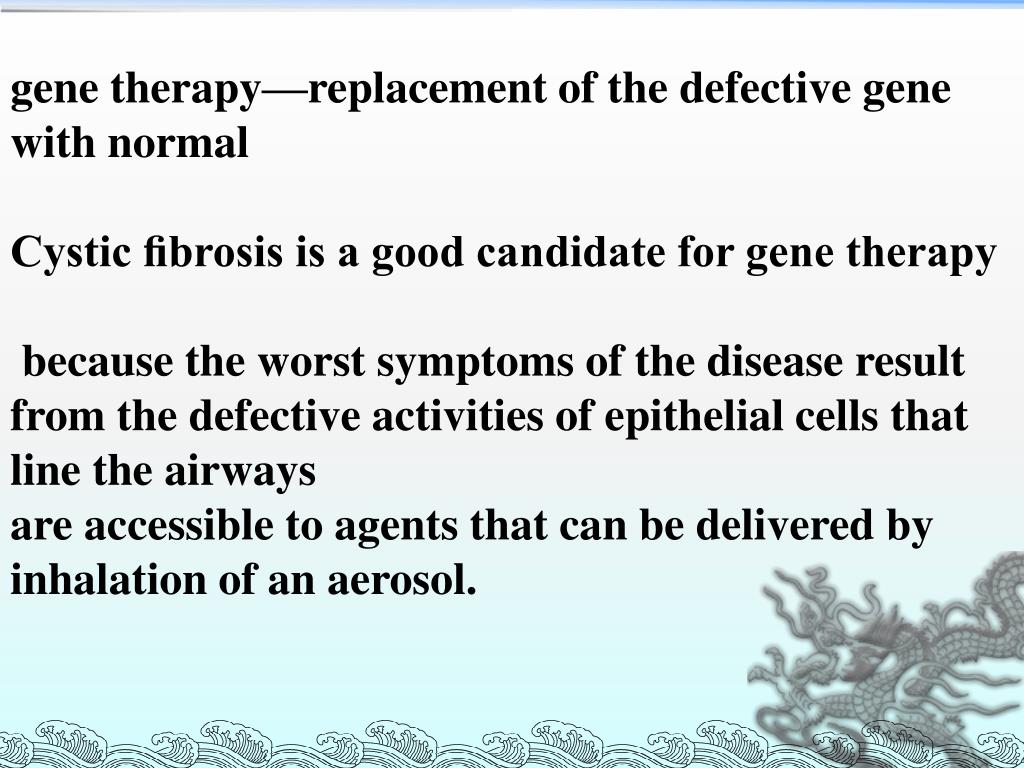

  30. gene therapy—replacement of the defective gene with normal Cystic fibrosis is a good candidate for gene therapy because the worst symptoms of the disease result from the defective activities of epithelial cells that line the airways are accessible to agents that can be delivered by inhalation of an aerosol.

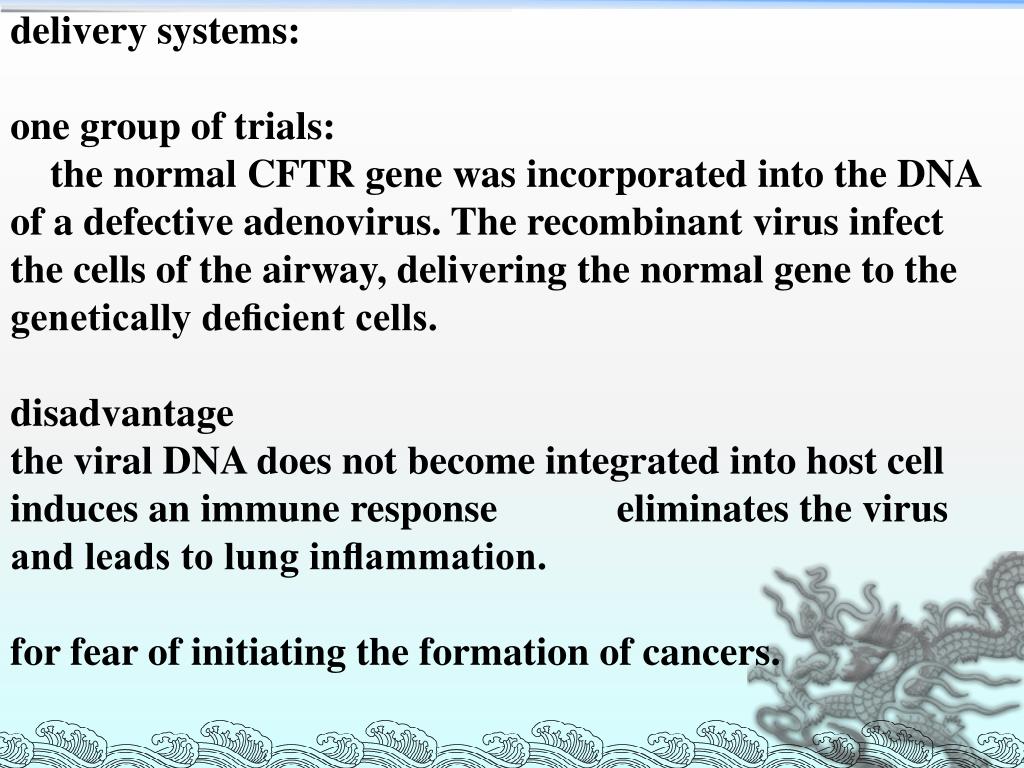

  31. delivery systems: one group of trials: the normal CFTR gene was incorporated into the DNA of a defective adenovirus. The recombinant virus infect the cells of the airway, delivering the normal gene to the genetically deficient cells. disadvantage the viral DNA does not become integrated into host cell induces an immune response eliminates the virus and leads to lung inflammation. for fear of initiating the formation of cancers.

  32. In other trials: the DNA encoding the normal CFTR gene has been linked to positively charged liposomes that can fuse with the plasma membranes of the airway cells, delivering their DNA contents into the cytoplasm. advantage less likely to stimulate a destructive immune response disadvantage less effective in modification

  33. To date, none of the clinical trials of gene therapy has resulted in significant improvement of either physiologic processes or disease symptoms.

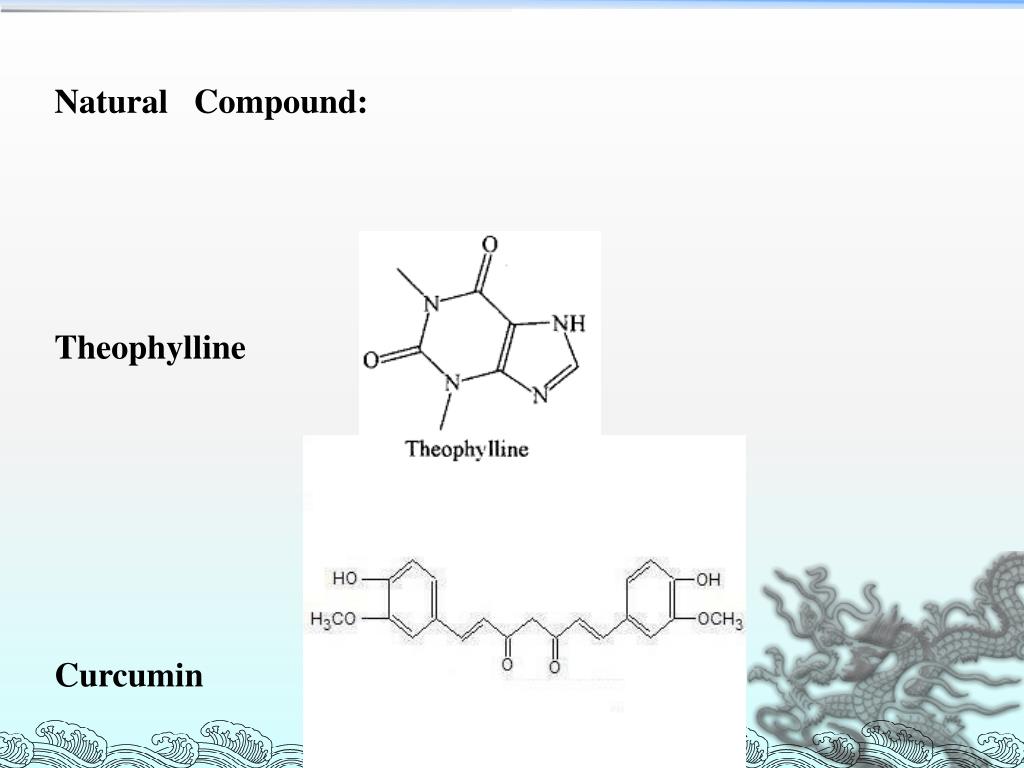

  34. Natural Compound: Theophylline Curcumin

  35. Denufosol Tetrasodium
