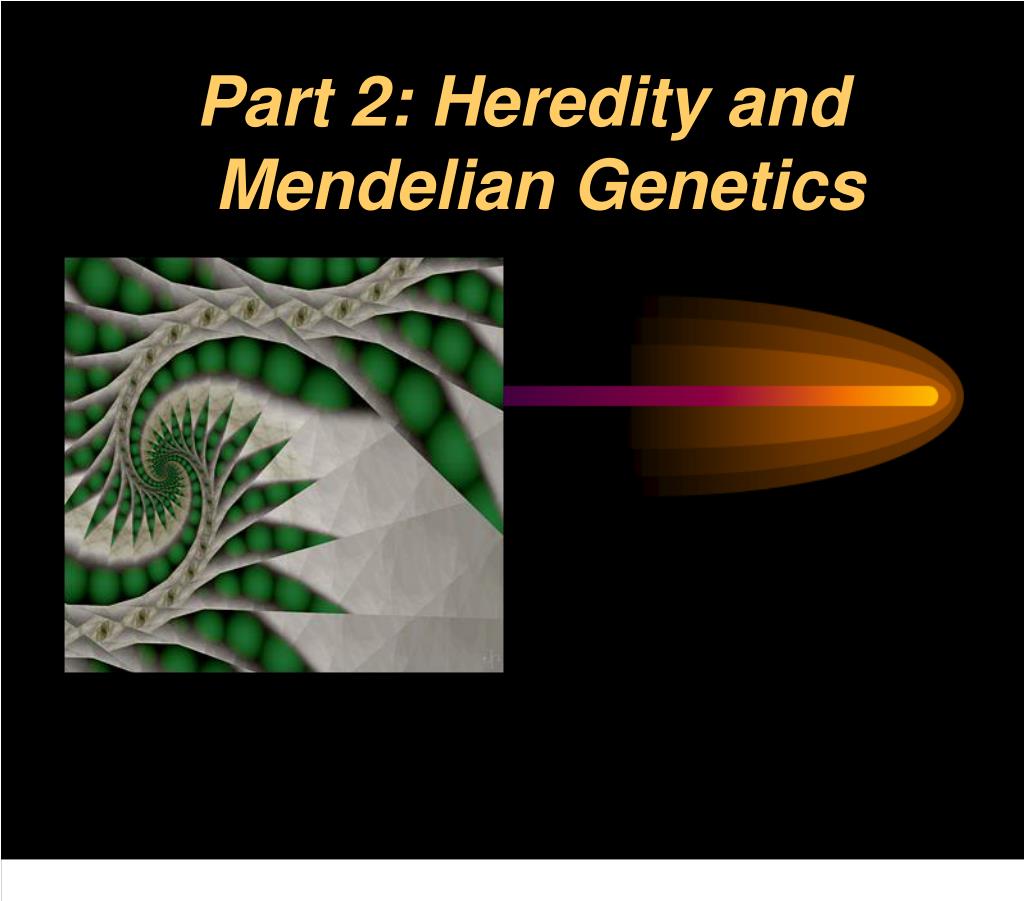

  1. Part 2: Heredity and
Mendelian Genetics

  2. The Inheritance of Two Traits Shhhh! Peas pay attention

  3. Mendel’s Second Experiment: A Dihybrid Cross Mendel’s second major
experiment involved the crossing
of two pea plants that differed in
TWO traits.

  4. Mendel wanted to discover if
the inheritance of one trait is
influenced by the inheritance of
another trait. (i.e. Did pea colourinfluence pea shape?)

  5. Once again Mendel crossed two
plants that were pure breeding. This time he
observed two different
traits.

  6. The Determination of Gametes
for a Dihybrid Cross. When generating the possible
gametes for a dihybrid cross, one must
predict the entire complement of
possible gametes. If the F1 generation
are hybrids, then each parent can each
produce four possible gametes.

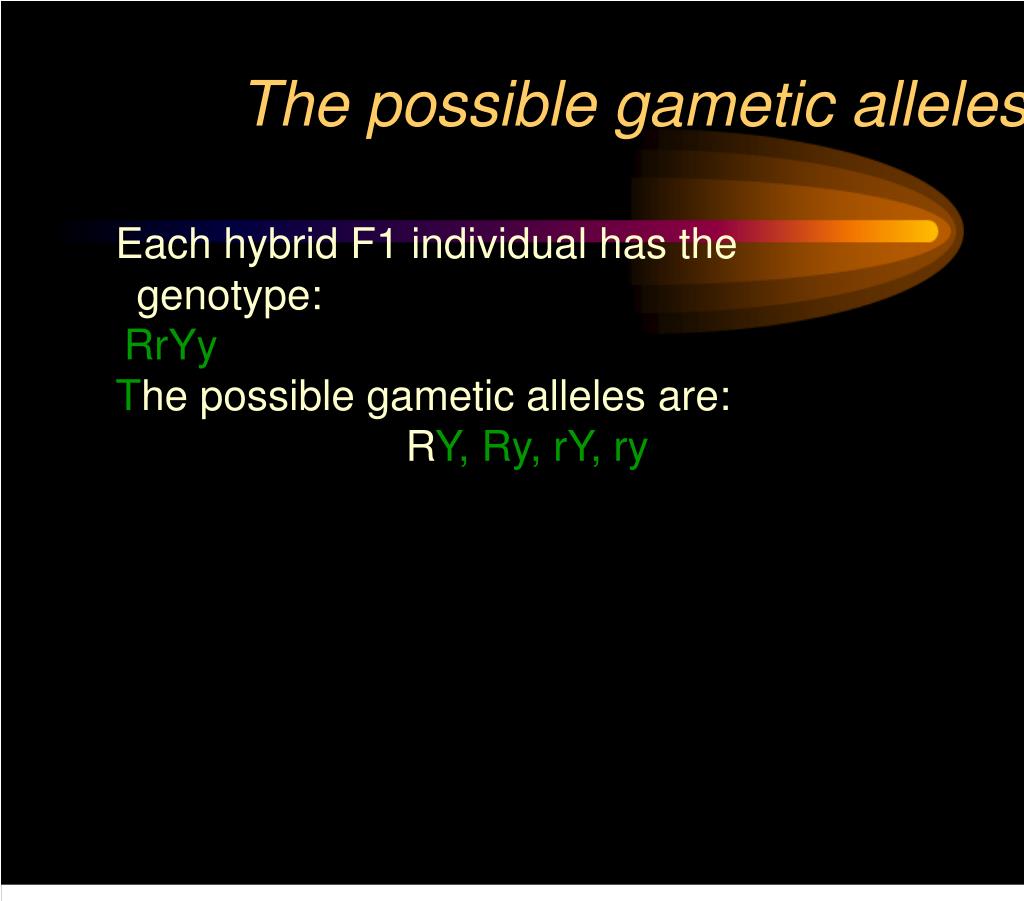

  7. The possible gametic alleles: Each hybrid F1 individual has the
genotype: RrYy The possible gametic alleles are: RY, Ry, rY, ry

  8. Nine different genotypes and four
different phenotypes result from a
dihybrid cross of F1 plants.

  9. Mendel discovered that all of the
F1 generation were hybrid for
both traits (round and yellow). Mendel then crossed the F1
generation and discovered that the F2 generation had a phenotypic ratio of 9:3:3:1. The F2 generations of other dihybrid crosses also showed this ratio.

  10. Of the 551 plants in Mendel’s F2 generation, he observed the
following traits: 320 round yellow 101 wrinkled yellow 104 round green 26 wrinkled green

  11. Mendel’s Law of Independent
Assortment The inheritance of alleles for one
trait does not influence the inheritance of alleles for another trait. This means that the combination of
alleles in the offspring may not occur
in either parent. (i.e. they sort
independently.)

  12. Probability Genotypic and phenotypic ratios are determined by the probability of inheriting a certain trait. The probability of an event is the likelihood that the event will occur. Probability can be
expressed by the following formula:

  13. In humans, free earlobes are
controlled by the dominant allele E,
and attached earlobes by the recessive
allele e. The widow’s peak hairline is
regulated by the dominant allele H,
while the straight hairline is controlled
by the recessive allele h

  14. Sample Problem 1 What are the probabilities of obtaining F1 offspring
with the following characteristics if one parents is
homozygous dominant for both traits and the other is
heterozygous dominant for both ? • widow’s peak and free earlobes • straight hairline and free earlobes • widow’s peak and attached earlobes • straight hairline and attached earlobes Check your answers by completing a Punnet Square!

  15. Sample Problem 2 What is the probability that a child from the mating of the EeHh × EeHh parents would be a male with a widow’s peak and have attached earlobes? Write your probability as a percentage!

  16. Mono and Dihybrid Cross Assignment Coming Soon!

  17. Beyond Mendel’s Laws Although his research and
examination of patterns of
inheritance in the pea plant was
revolutionary in genetics; Mendel did
not have a complete understanding of
the patterns of inheritance.

  18. There are three other mechanisms of inheritance we
will discuss in this course. Incomplete Dominance Co-dominance Multiple Alleles

  19. Incomplete Dominance Not all traits are completely
dominant or recessive as Mendel
suggested. Some traits are incompletely
dominant, that is, there can be an
intermediate expression of a
particular trait when the genotype is
heterozygous.

  20. The snapdragon flower is
incompletely dominant for flower
colour. Two red alleles are required for a
red flower i.e. RR Two white alleles are required for a
white flower i.e. R’R’ A heterozygous set of alleles is
required for a pink flower i.e. RR’ The R’ allele is called “R prime”

  21. Incomplete Dominance in the
Snapdragon Flower

  22. Sample 1. Determine the F1 phenotypic ratio of a cross
between a pink and a white snapdragon.

  23. Co-dominant Inheritance In some cases both alleles for a
trait may be dominant. Such alleles are said to be co-
dominant because both alleles are
expressed in a heterozygous
individual.

  24. Shorthorn cattle have the
mechanism of co-dominant
inheritance for their coat colour. The expression of both alleles occurs and
there is no blending of traits. The homozygous red coat alleles are:  CRCR (called “C superscript R) The homozygous white coat alleles are:  CWCW The heterozygous roan coat alleles are:  CRCW

  25. Sample 1. Find the F1 phenotypes of a cross between a red cow and a
roan bull.

  26. Multiple Allelic Inheritance For some traits more than two
alleles control the expression in a
species Although a single individual cannot
have more than two alleles for each
trait, different individuals can have
different pairs of alleles.

  27. Human blood types have
multiple allele inheritance.

  28. Sex Linkage - X and Y Some traits are inherited from genes on the sex chromosomes This is known as sex-linked (most often X-linked) inheritance. Colour blindness, hemophilia, and baldness are sex-linked traits.

  29. A male with hemophilia mates with a woman with no hemophiliac gene. What is the probability of producing sons or daughters who have hemophilia?

  30. Pedigree Charts Pedigree analysis is useful when the traits of
many generations of offspring have been
recorded. A pedigree chart can be used to trace the
passing of an allele from parents to
offspring. A pedigree chart contains a number of
symbols.

  31. 1. Indicate whether each family member is homozygous or
heterozygous for shortsightedness, or homozygous for normal
vision. 2. If couple 4 and 5 in row II had another child, what genotype might
the child have? (Hint: What genotype is possible but not shown in
the chart?) Would the child have normal vision or be shortsighted?
