Building the 5 5 hp tecumseh

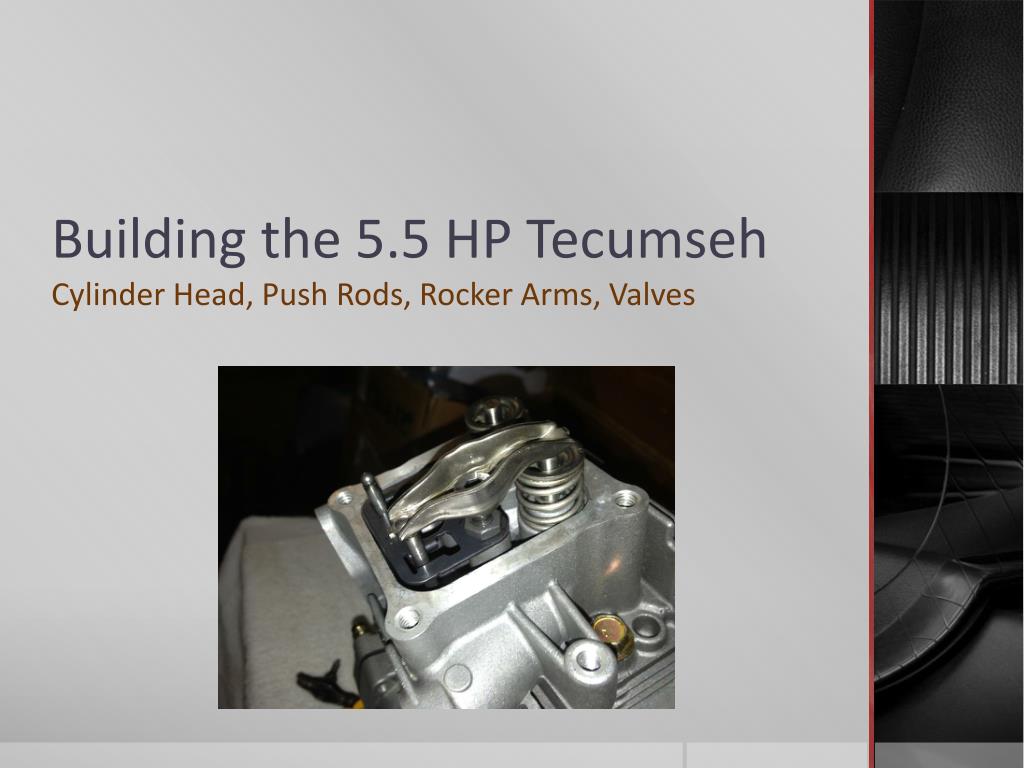

Building the 5.5 HP Tecumseh

Cylinder Head, Push Rods, Rocker Arms, Valves


What are the 4 steps of combustion

What are the 4 steps of combustion?

  • 1. INTAKE

  • 2. COMPRESSION

  • 3. SPARK

  • 4. EXHAUST


The 4 steps of combustion

The 4 Steps of Combustion


Crankshaft

Crankshaft


Add the head gasket

Add The Head Gasket

  • Make sure the holes line up correctly


Cylinder head

Cylinder Head

  • 1. Put on bolt through the cylinder head AND gasket to make sure the holes line up correctly

  • 2. Use the 5 bolts and tighten the cylinder head down until snug


Lifting rods

Lifting Rods

  • 1. Place the two lifters into the oval holes as shown.

  • 2. They should both be at the same height!

  • 3. DO NOT LET THE LEFT ONE FALL INTO THE CRANKCASE!


The rocker arms

The Rocker Arms

  • 1. Align the retaining clip over the holes in the cylinder head.

  • 2. Place the Rocker Arm over top and tighten down the Rocker Arm Stud


Valve cover

Valve Cover

  • 1. Place the valve cover over the cylinder head and align with the holes.

  • 2. Align the engine lifting bracket with the holes as well.

  • 3. Tighten down the 4 bolts till snug.


Knock sensor

Knock Sensor

  • 1. Align the Knock Sensor over the gasket and bolt into place using a torq or “star” bit.

  • 2. Feed the end of the wire through the block as shown.


The 4 steps of combustion1

The 4 Steps of Combustion


Hi five

HI FIVE!

  • YOU’VE COMPLETED THE 2ND MOST DIFFICULT PART OF THE ENGNE BUILD!!

    THE TOP END!!!
