Temperature sensors

Temperature sensors. Normal body temperature is 37°C. Varies by: Age Time of day Location. High and low temperatures are dangerous and may indicate disease . Range of only 10°C. Sleep apnea. Polysomnography – “sleep study”.

ora
Download Presentation

Temperature sensors

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Temperature sensors 414-8

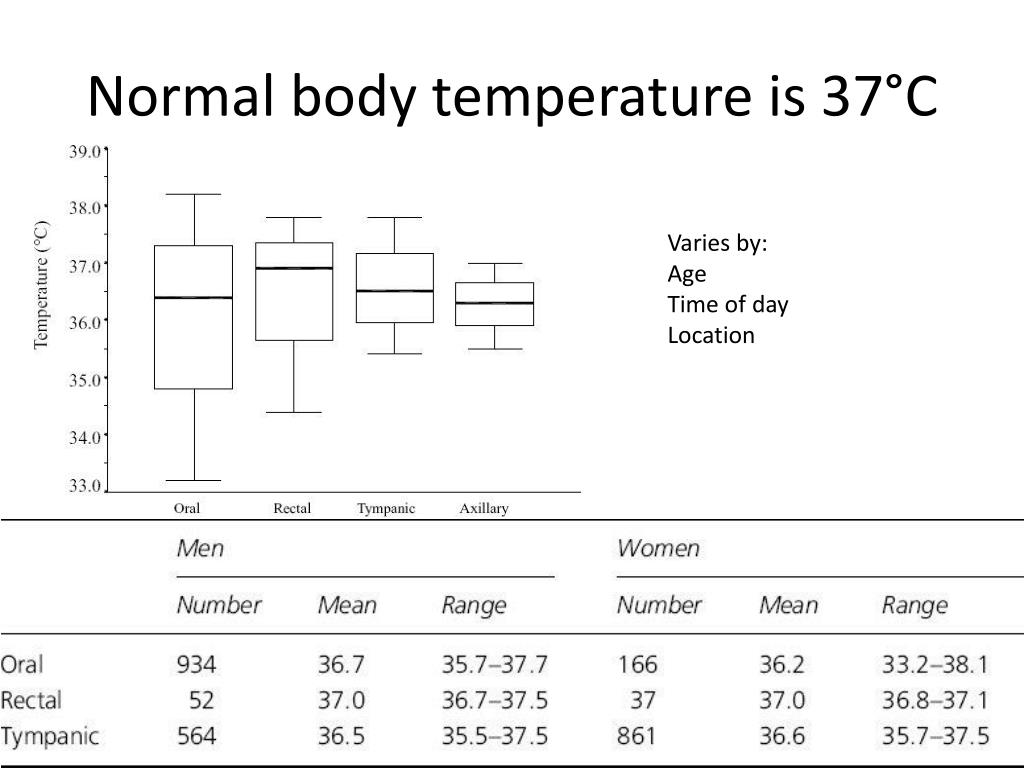

  2. Normal body temperature is 37°C Varies by: Age Time of day Location 414-8

  3. High and low temperatures are dangerous and may indicate disease. Range of only 10°C 414-8

  4. Sleep apnea 414-8

  5. Polysomnography – “sleep study” 414-8

  6. Polysomnography – “sleep study”Movement of eyes, EEG, pressure in airway, blood oxygen may also be measured Apnea event Movement of ribcage Movement of abdomen [CO2] in airway Temperature in airway Exhaled air is warmer than inhaled air 414-8 From “Comparison of Apnea Identified by Respiratory Inductance Plethysmography with the Detected by End-tidal CO2 or Thermistor,” by Weese-Mayer, et al., Am. J. Respir. Crit. Care Med., Vol. 162(2), pp 471-480.

  7. Respiratory sinus arrhythmia – Heart rate increases during inspiration and decreases during expiration From Yasuma and Hayano, “Respiratory Sinus Arrhythmia: Why Does the Heartbeat Synchronize with Respiratory Rhythm?” in Chest, vol 125(2) pp 683-690. 414-8

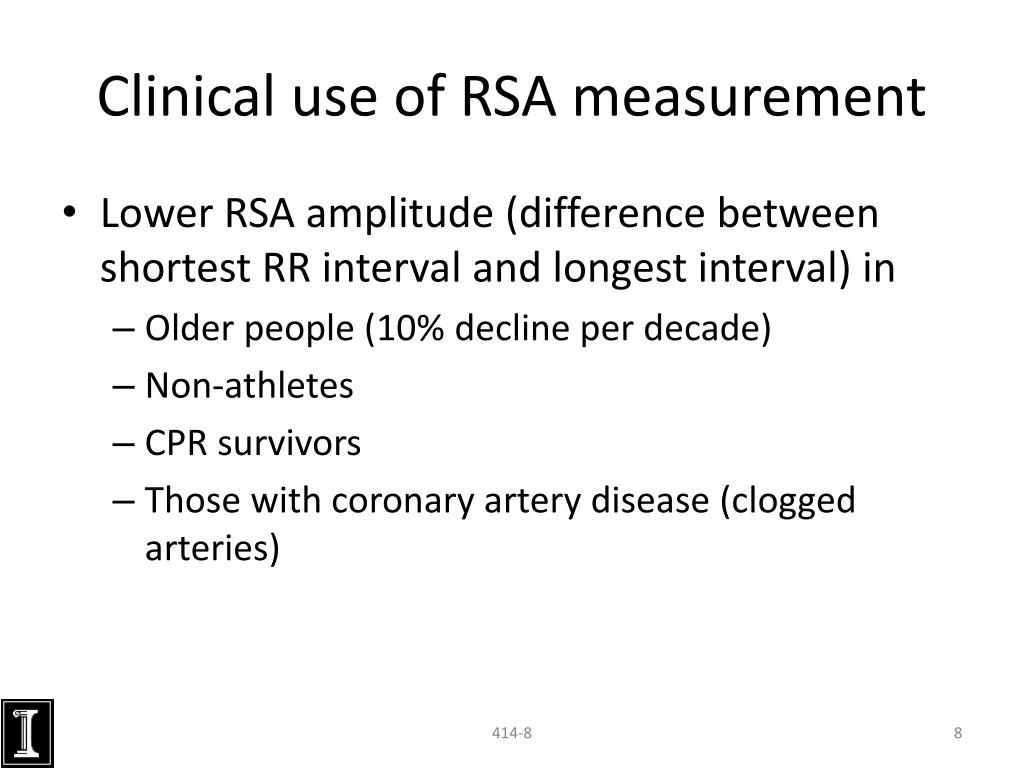

  8. Clinical use of RSA measurement • Lower RSA amplitude (difference between shortest RR interval and longest interval) in • Older people (10% decline per decade) • Non-athletes • CPR survivors • Those with coronary artery disease (clogged arteries) 414-8

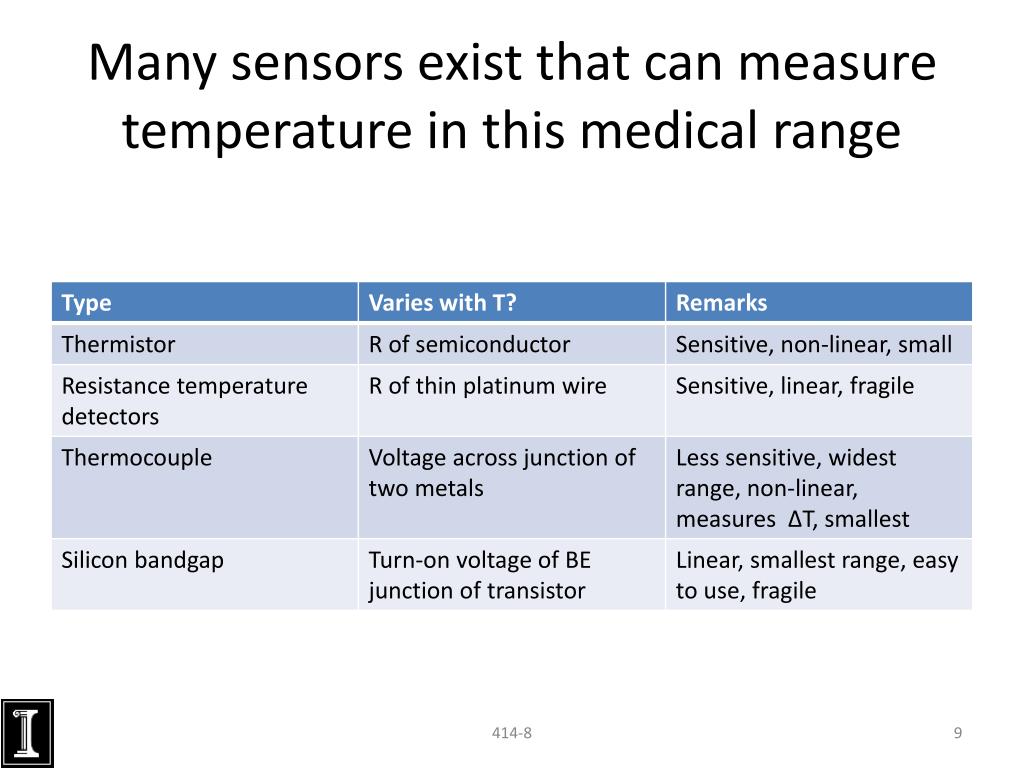

  9. Many sensors exist that can measure temperature in this medical range 414-8

  10. Silicon bandgap – Turn-on voltage of a base-emitter junction varies with temperature 414-8

  11. The difference in voltage for two BE junctions with different currents is proportional to absolute temperature. k = Boltzmann’s constant = 8.617x10-5 eV/K T = temperature in Kelvin Q = charge of electron = 1.602x10-19 C I = current in Amperes A = area of p-n junction in m2 (areas should be the same) 414-8

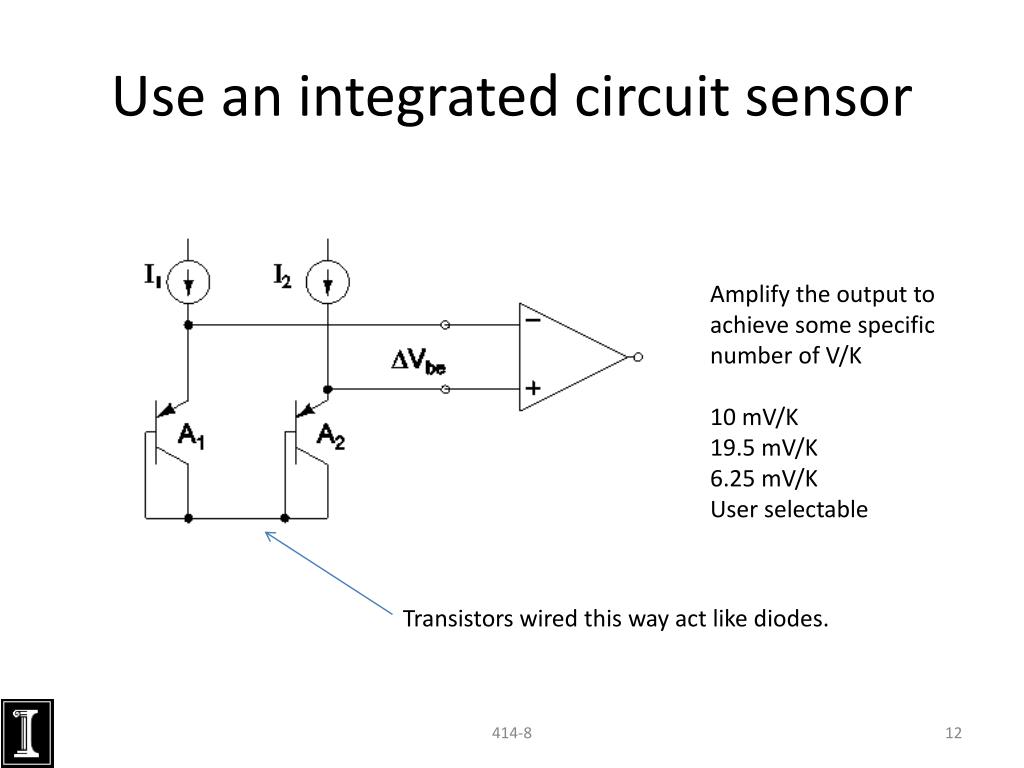

  12. Use an integrated circuit sensor Amplify the output to achieve some specific number of V/K 10 mV/K 19.5 mV/K 6.25 mV/K User selectable Transistors wired this way act like diodes. 414-8

  13. The LM335 integrated temperature sensor is modeled as a Zener diode. 414-8

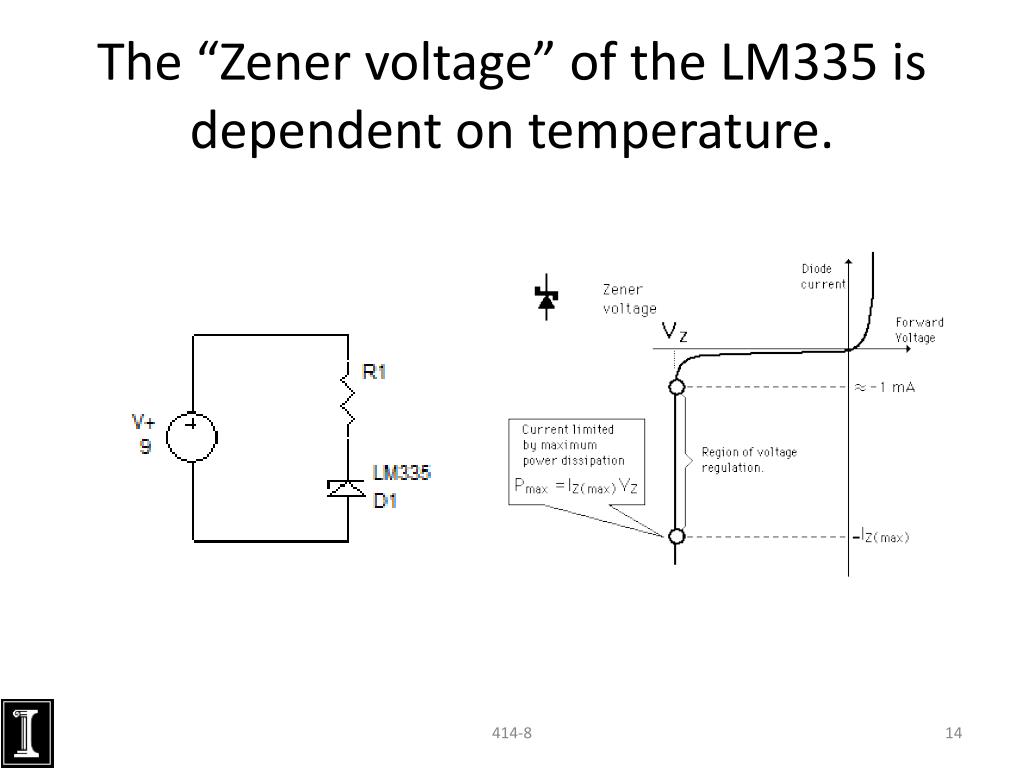

  14. The “Zener voltage” of the LM335 is dependent on temperature. 414-8

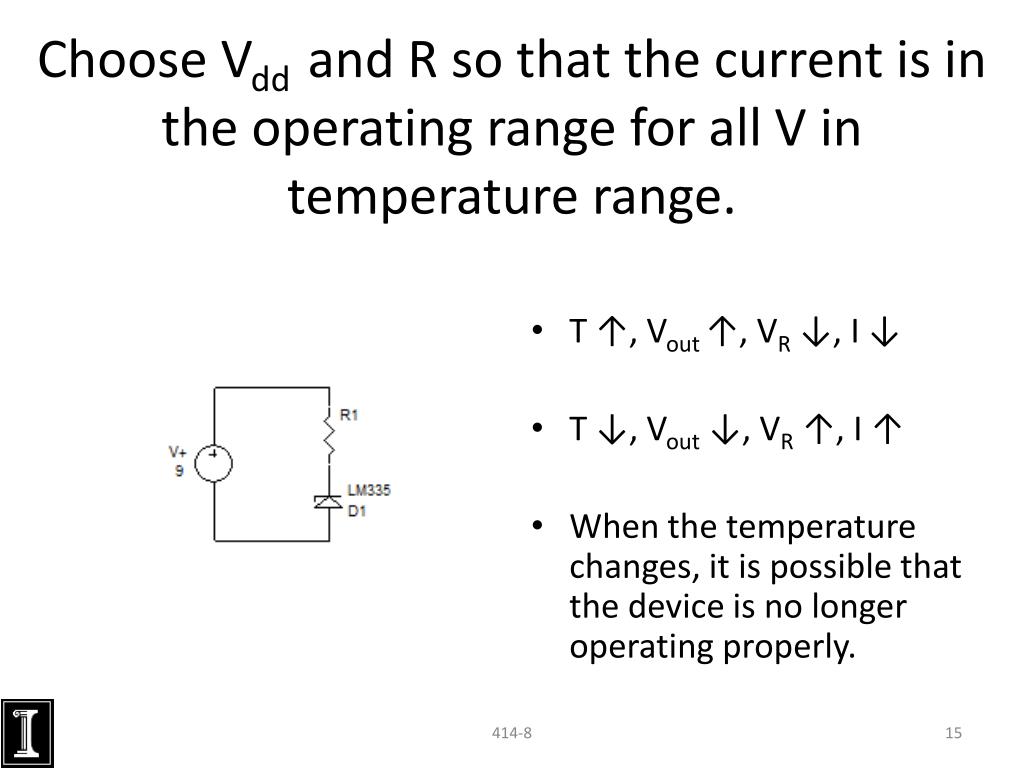

  15. Choose Vddand R so that the current is in the operating range for all V in temperature range. • T ↑, Vout↑, VR ↓, I ↓ • T ↓, Vout ↓, VR ↑, I ↑ • When the temperature changes, it is possible that the device is no longer operating properly. 414-8

  16. Thermistors – resistance of semiconductor decreases with increases temperature An equation that fits the observed relationship • Ro = resistance at temperature To = 25°C • T = temperature in K • β = property of material 414-8

  17. Thermistor circuit • Use the op amp and negative feedback to keep the current through the thermistor constant (Measure it) • Keep the power dissipated by the thermistor low • Measure the voltage across RT and use Ohm’s Law to find RT • Don’t assume v-=0V 414-8

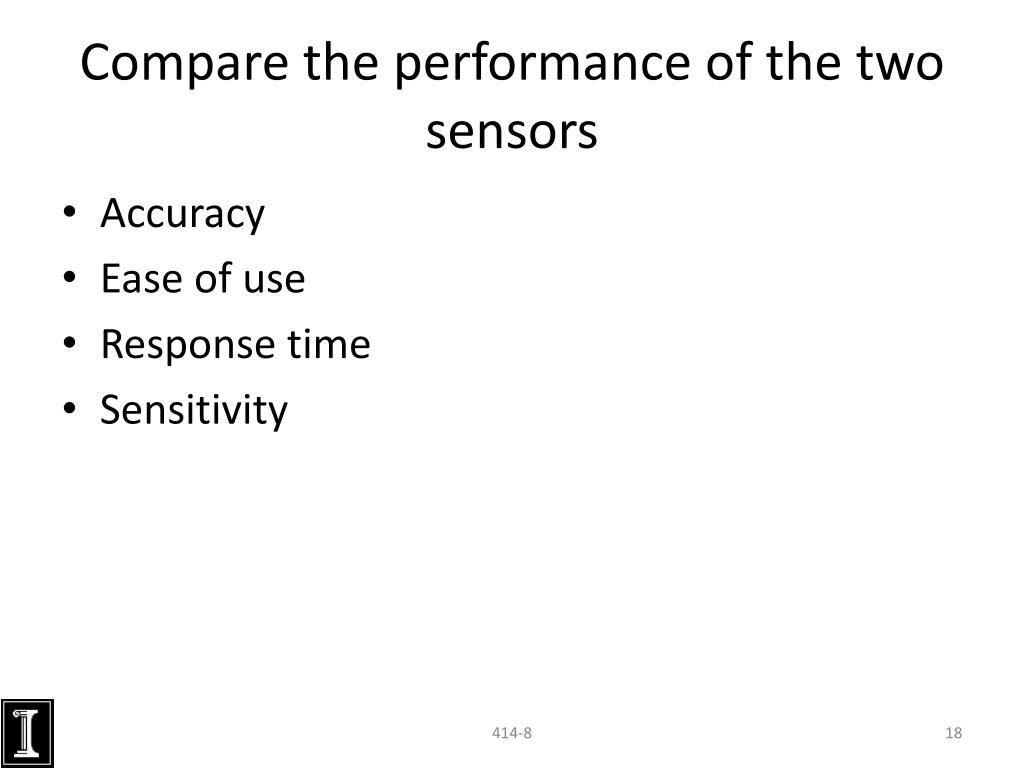

  18. Compare the performance of the two sensors • Accuracy • Ease of use • Response time • Sensitivity 414-8
