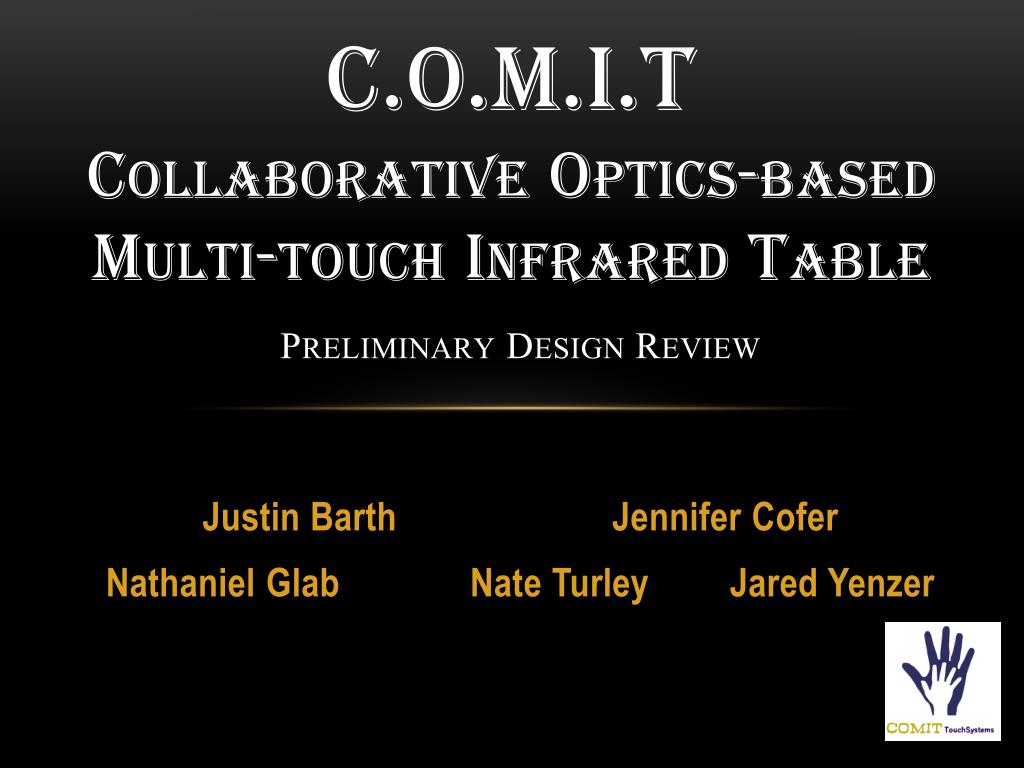

  1. C.O.M.I.TCollaborative Optics-based Multi-touch Infrared Table Preliminary Design Review Justin Barth Jennifer Cofer Nathaniel Glab Nate TurleyJared Yenzer

  2. Contents • Overview • Motivation • Goals • Team Organization • Design Overview • Functional Decomposition • System Overview • Roles & Requirements • Parts Description • Budget • Risks • Schedule Presenter: Jenny Cofer Capstone Senior Design 2012 COMIT TouchSystems 1

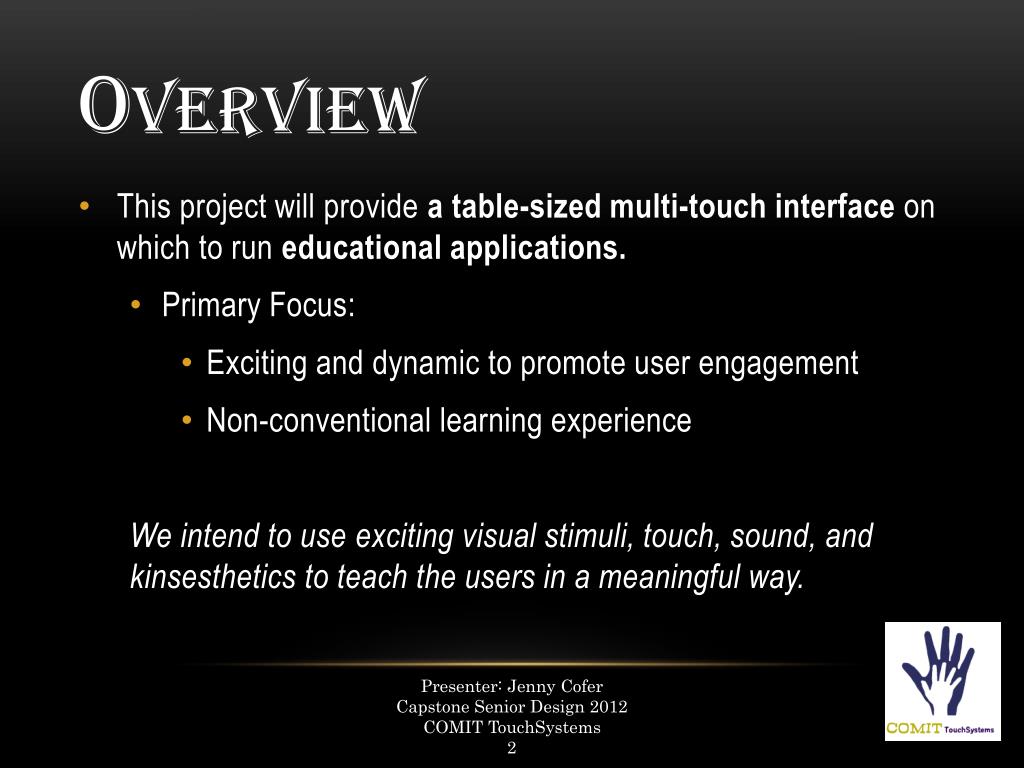

  3. Overview • This project will provide a table-sized multi-touch interface on which to run educational applications. • Primary Focus: • Exciting and dynamic to promote user engagement • Non-conventional learning experience We intend to use exciting visual stimuli, touch, sound, and kinsesthetics to teach the users in a meaningful way. Presenter: Jenny Cofer Capstone Senior Design 2012 COMIT TouchSystems 2

  4. Motivation… Presenter: Jenny Cofer Capstone Senior Design 2012 COMIT TouchSystems 3

  5. Goals • Baseline: • Multi-touch table interface to be used by multiple users • Provide educational applications that address learning in creative ways • Visual learning through the display • Auditory learning through speakers • Incorporate lessons in the fields of math, music, and science. Presenter: Jenny Cofer Capstone Senior Design 2012 COMIT TouchSystems 4

  6. Goals • Possible extension: • Implement kinesthetic learning through objects that the table recognizes • Incorporate lessons in the fields of geography, language, history, health, or other categories. Presenter: Jenny Cofer Capstone Senior Design 2012 COMIT TouchSystems 5

  7. Team Organization Presenter: Jenny Cofer Capstone Senior Design 2012 COMIT TouchSystems 6

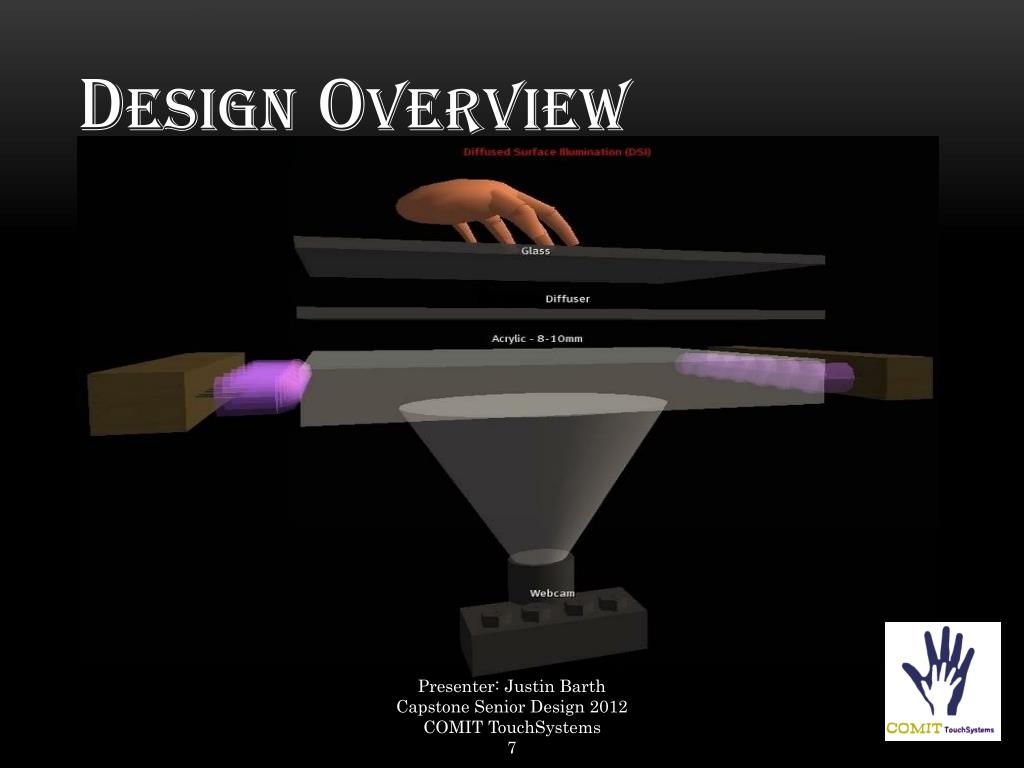

  8. Design Overview Presenter: Justin Barth Capstone Senior Design 2012 COMIT TouchSystems 7

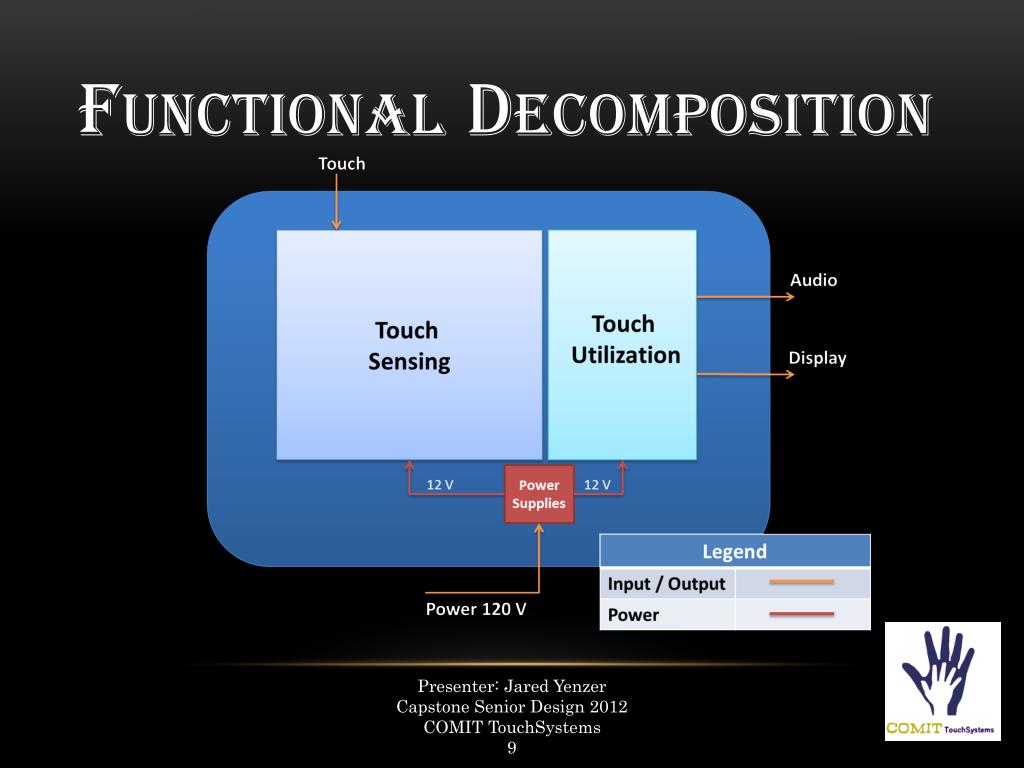

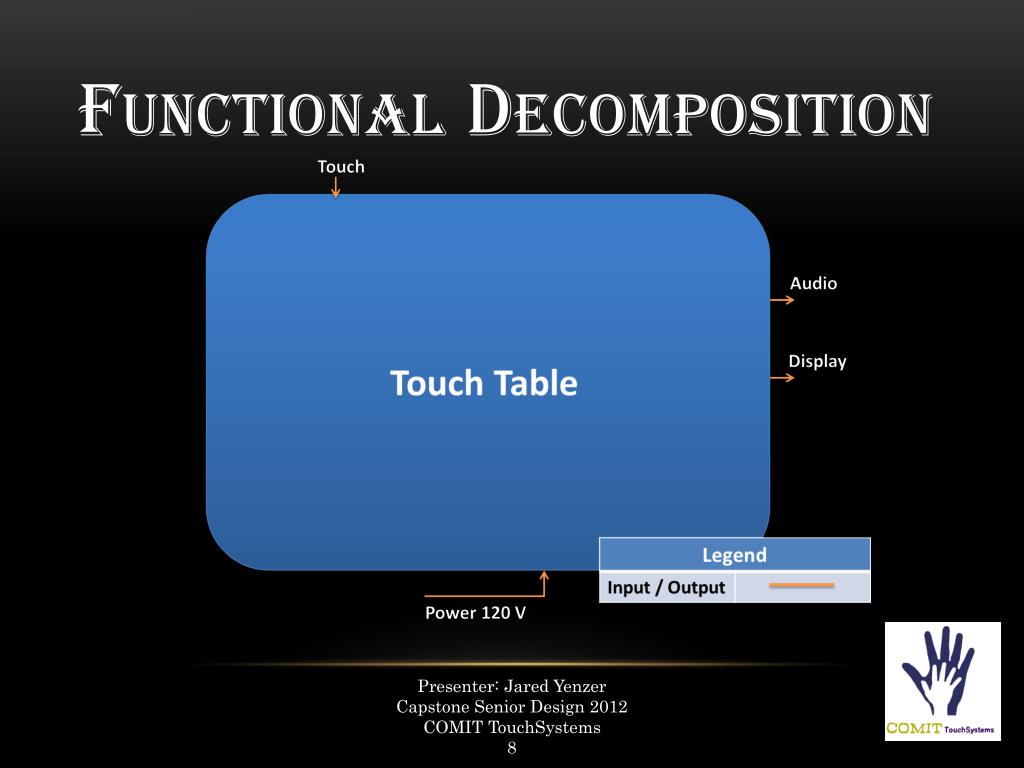

  9. Functional Decomposition Presenter: Jared Yenzer Capstone Senior Design 2012 COMIT TouchSystems 8

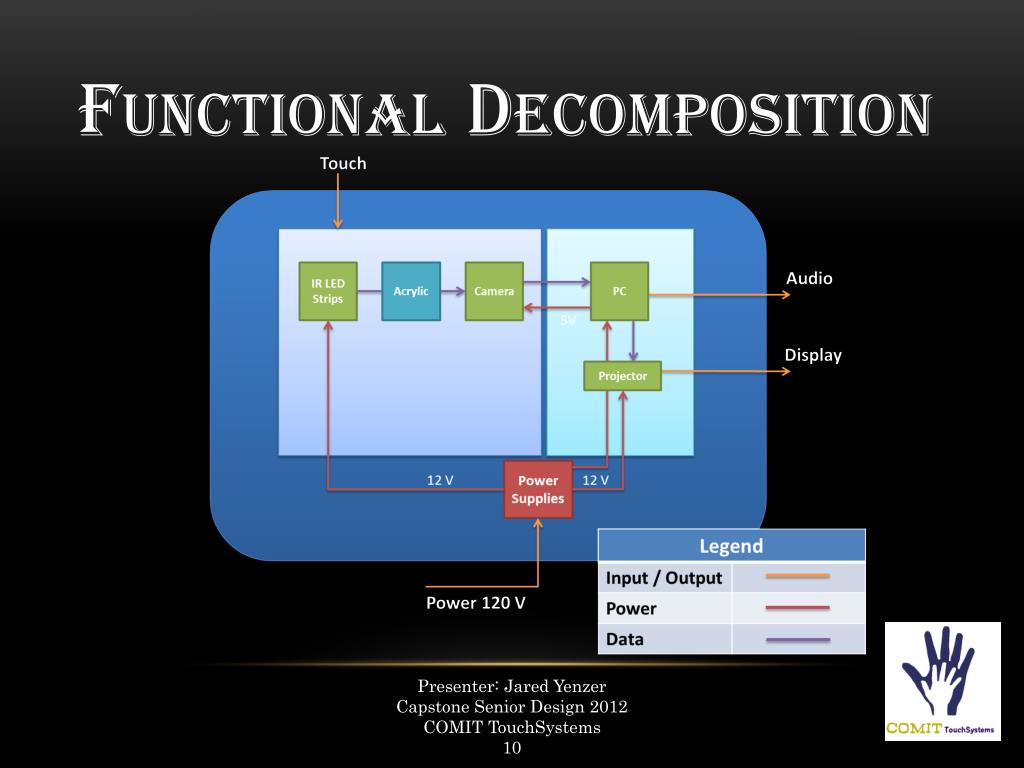

  10. Functional Decomposition Presenter: Jared Yenzer Capstone Senior Design 2012 COMIT TouchSystems 9

  11. Functional Decomposition Presenter: Jared Yenzer Capstone Senior Design 2012 COMIT TouchSystems 10

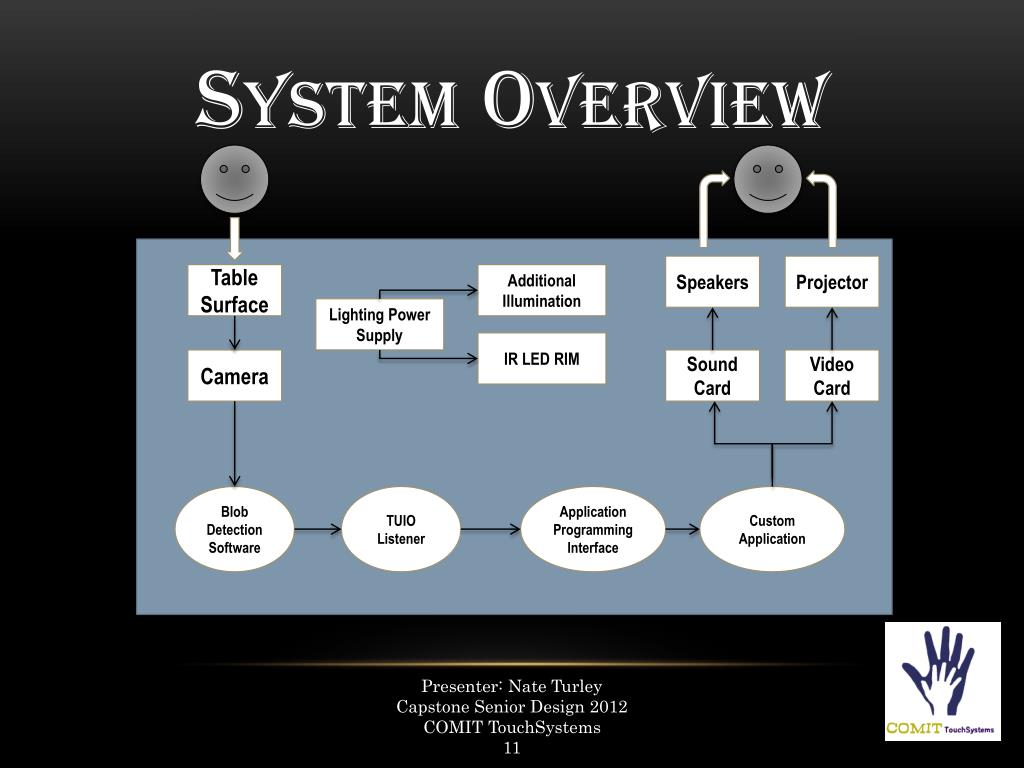

  12. System Overview Speakers Projector Table Surface Additional Illumination Lighting Power Supply IR LED RIM Camera Sound Card Video Card Blob Detection Software TUIO Listener Application Programming Interface Custom Application Presenter: Nate Turley Capstone Senior Design 2012 COMIT TouchSystems 11

  13. Roles & Responsibilities Presenter: Nate Turley Capstone Senior Design 2012 COMIT TouchSystems 12

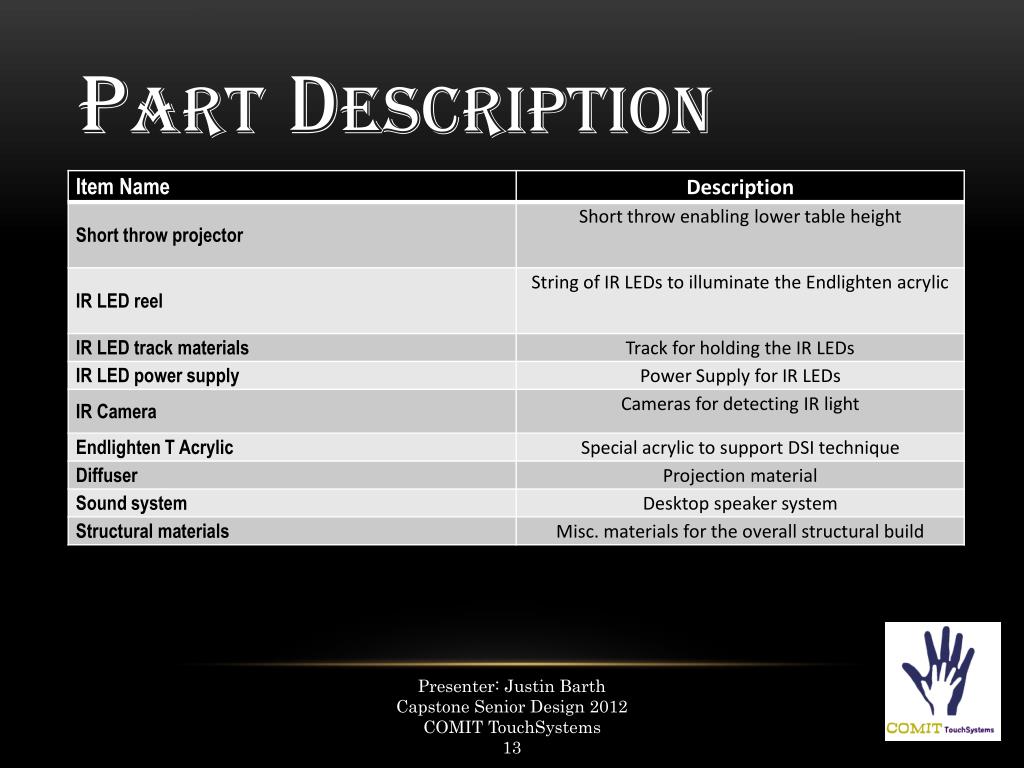

  14. Part Description Presenter: Justin Barth Capstone Senior Design 2012 COMIT TouchSystems 13

  15. Budget Presenter: Justin Barth Capstone Senior Design 2012 COMIT TouchSystems 14

  16. Budget Presenter: Justin Barth Capstone Senior Design 2012 COMIT TouchSystems 15

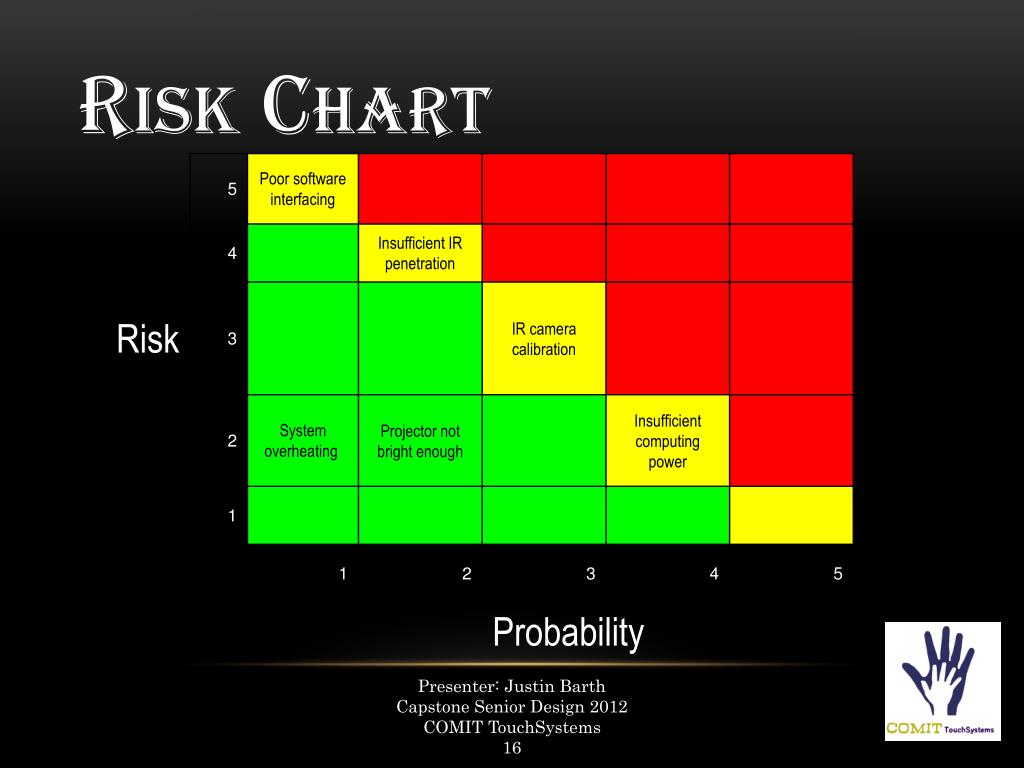

  17. Risk Chart Presenter: Justin Barth Capstone Senior Design 2012 COMIT TouchSystems 16

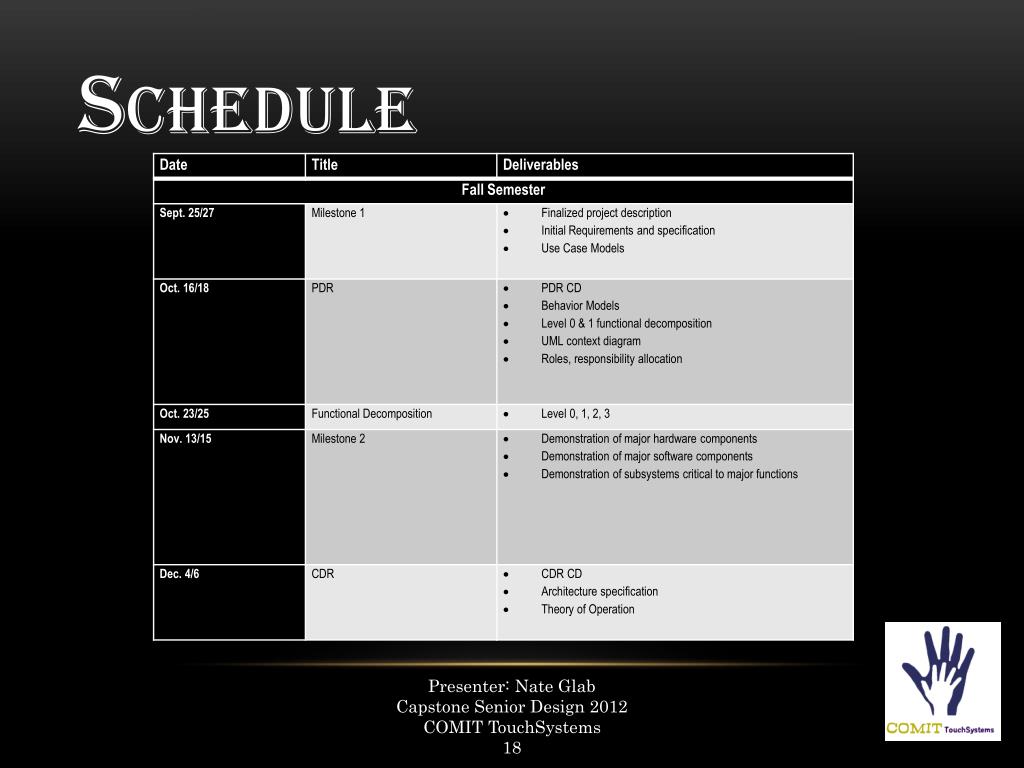

  18. Schedule Presenter: Nate Glab Capstone Senior Design 2012 COMIT TouchSystems 17

  19. Schedule Presenter: Nate Glab Capstone Senior Design 2012 COMIT TouchSystems 18

  20. Schedule Presenter: Nate Glab Capstone Senior Design 2012 COMIT TouchSystems 19

  21. Questions? Capstone Senior Design 2012 COMIT TouchSystems 20
