  1. ENUM: history and current status and futureExplanation of ENUM (RFC 2916) Patrik Fältström <paf@cisco.com> Corporate Consulting Engineer, Cisco Area Director, Applications Area, IETF

  2. How many addresses do you have on your buissness card? Patrik Fältström Consulting Engineer Office of the CTO Årstaängsvägen 31J 117 43 Stockholm Sweden Phone: +46-8-6859000 Direct: +46-8-6859131 Fax: +46-8-190424 Mobile: +46-70-6059051 Email: paf@cisco.com URL: http://www.cisco.com Patrik Fältström Founder / Owner Firma PAF Ledåsa 273 71 Lövestad Sweden Email: info@paf.se URL: http://paf.se Patrik Fältström Consulting Engineer Office of the CTO 170 W Tasman Drive San José, CA 95134 USA Direct: +1-426-525-8509 Fax: +1-408-526-8766 Mobile: +46-70-6059051 Email: paf@cisco.com URL: http://www.cisco.com Patrik Fältström Ledåsa 273 71 Lövestad Sweden Email: ledasa@paf.se URL: http://alexandria.paf.se Patrik Fältström Area Director, Applications Area IETF Email: paf@cisco.com URL: http://www.ietf.org

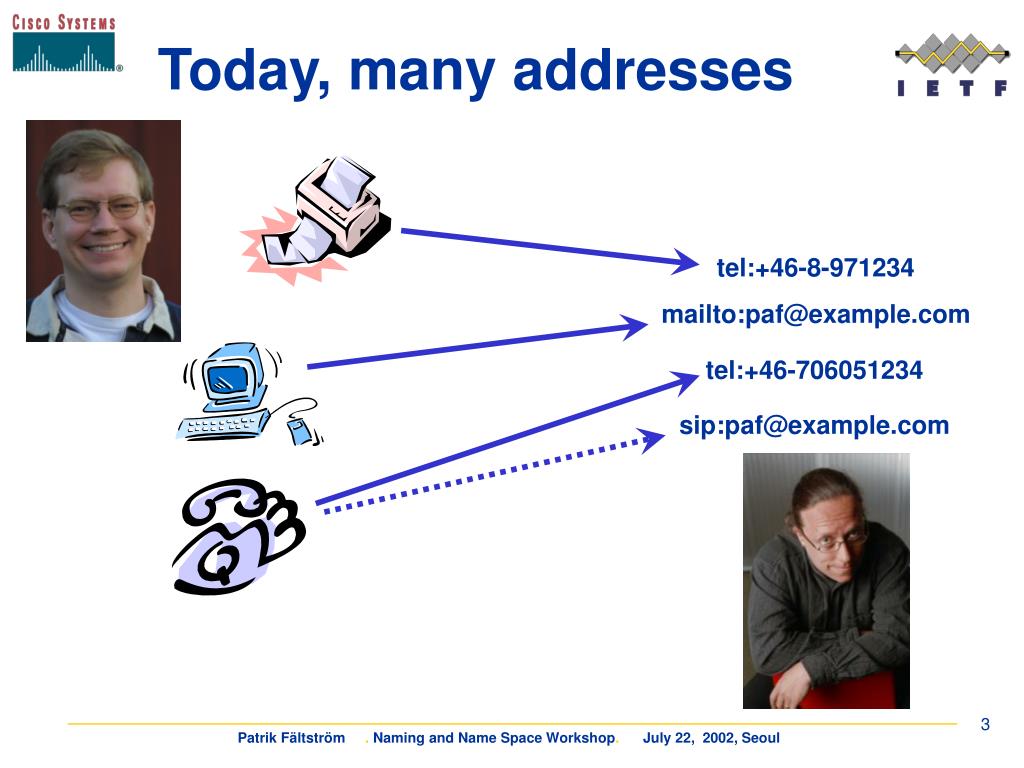

  3. Today, many addresses tel:+46-8-971234 mailto:paf@example.com tel:+46-706051234 sip:paf@example.com

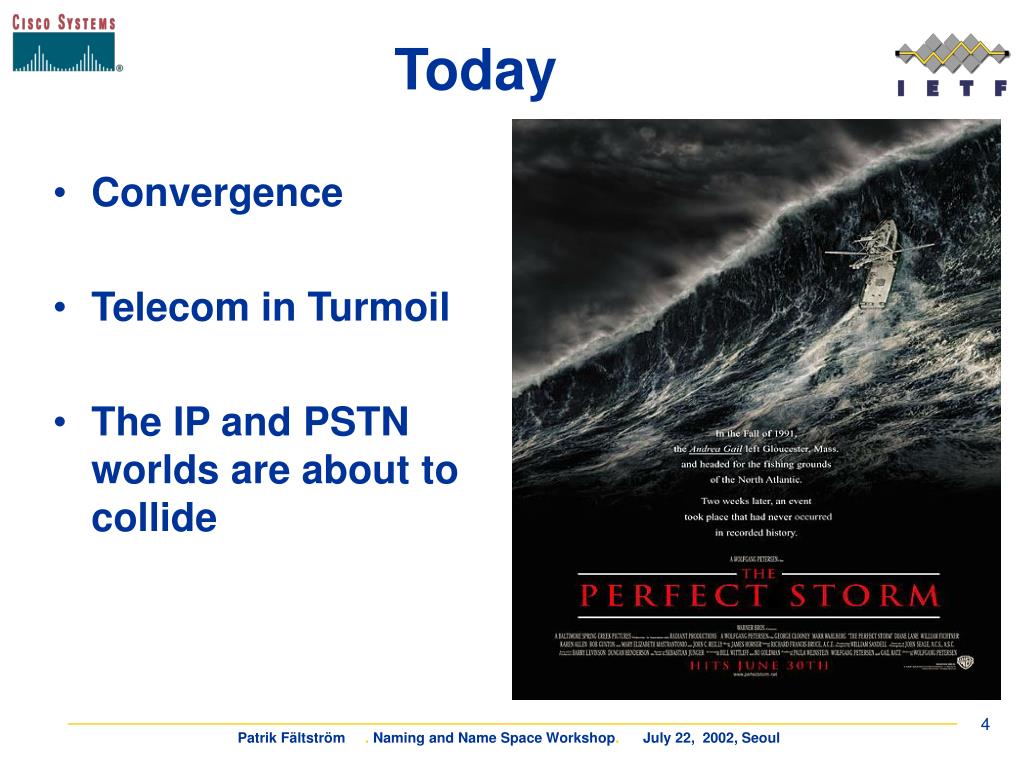

  4. Today • Convergence • Telecom in Turmoil • The IP and PSTN worlds are about to collide

  5. Where are we? • There are substantial indicators that the market for IP Telephony is turning • Enterprise driven • 40% CAGR • IP-PBX sales are gaining steam ….. • IP-Centrex has the attention of service providers

  6. Buissnes case for VoIP • Enterprise want to leverage investment in IP networks • Cost Reduction • Toll Bypass • Still the #1 argument • Toll Charges $960.00 per line per year • Simplified Add Modify and Delete of Users • Single Wiring Harness • Rapid Service Creation • Applications created at the Edge using standard tools – XML • Time to market

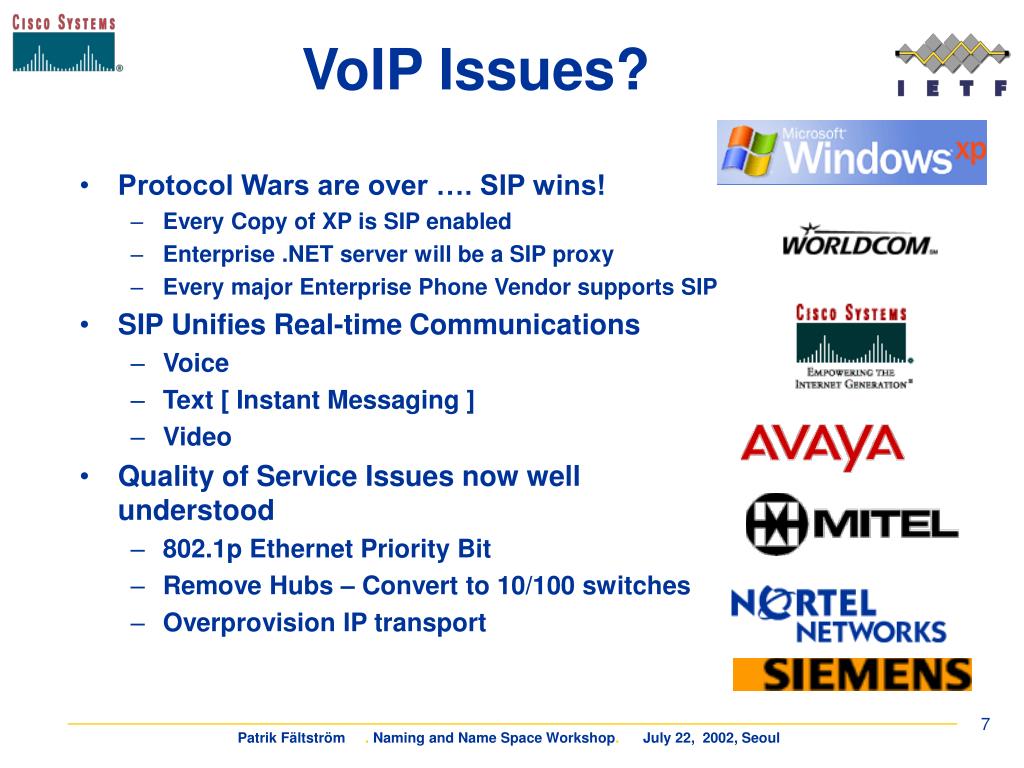

  7. VoIP Issues? • Protocol Wars are over …. SIP wins! • Every Copy of XP is SIP enabled • Enterprise .NET server will be a SIP proxy • Every major Enterprise Phone Vendor supports SIP • SIP Unifies Real-time Communications • Voice • Text [ Instant Messaging ] • Video • Quality of Service Issues now well understood • 802.1p Ethernet Priority Bit • Remove Hubs – Convert to 10/100 switches • Overprovision IP transport

  8. With ENUM, only one tel:+46-8-971234 mailto:paf@example.com ENUM tel:+46-706051234 tel:+46-706051234 sip:paf@example.com Give this number to friends: +46-8-971234

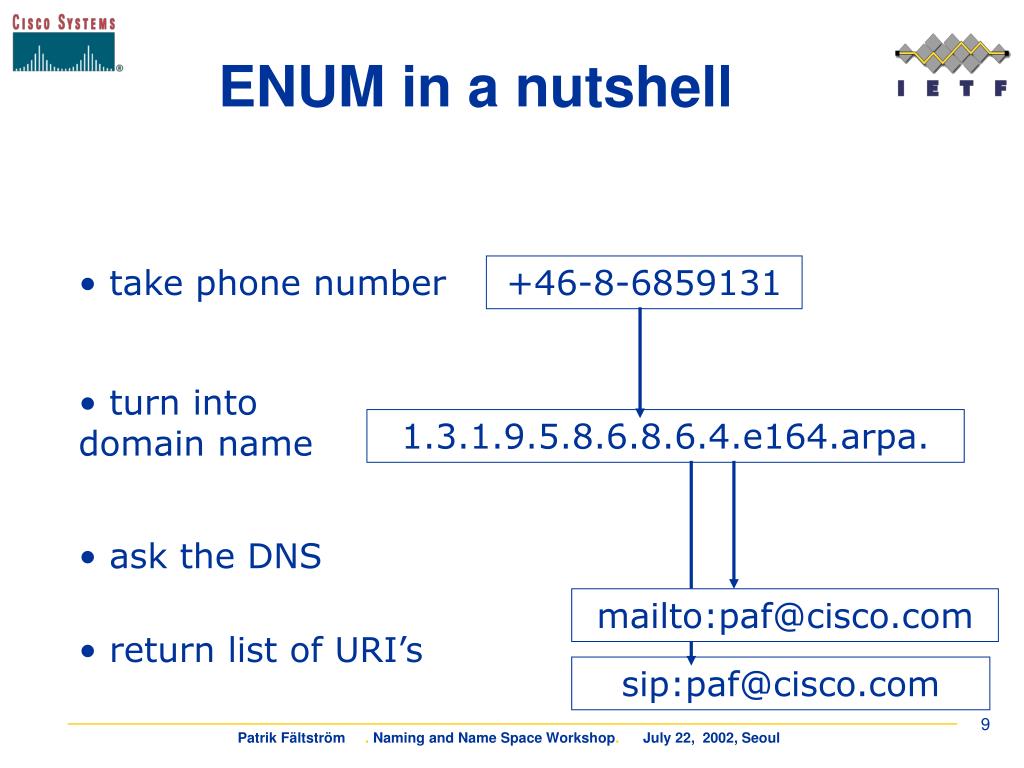

  9. ENUM in a nutshell • take phone number +46-8-6859131 • turn into domain name 1.3.1.9.5.8.6.8.6.4.e164.arpa. • ask the DNS mailto:paf@cisco.com • return list of URI’s sip:paf@cisco.com

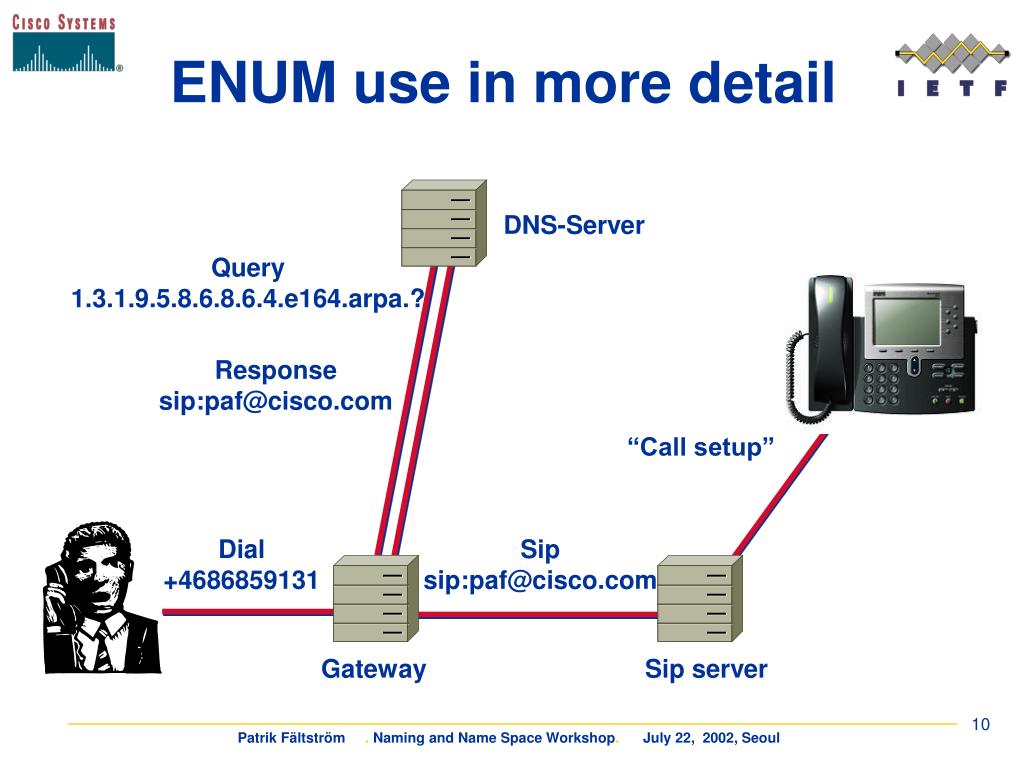

  10. DNS-Server Gateway Sip server ENUM use in more detail Query 1.3.1.9.5.8.6.8.6.4.e164.arpa.? Response sip:paf@cisco.com “Call setup” Dial +4686859131 Sip sip:paf@cisco.com

  11. DNS-Server Example Internet PSTN Calling party Called party

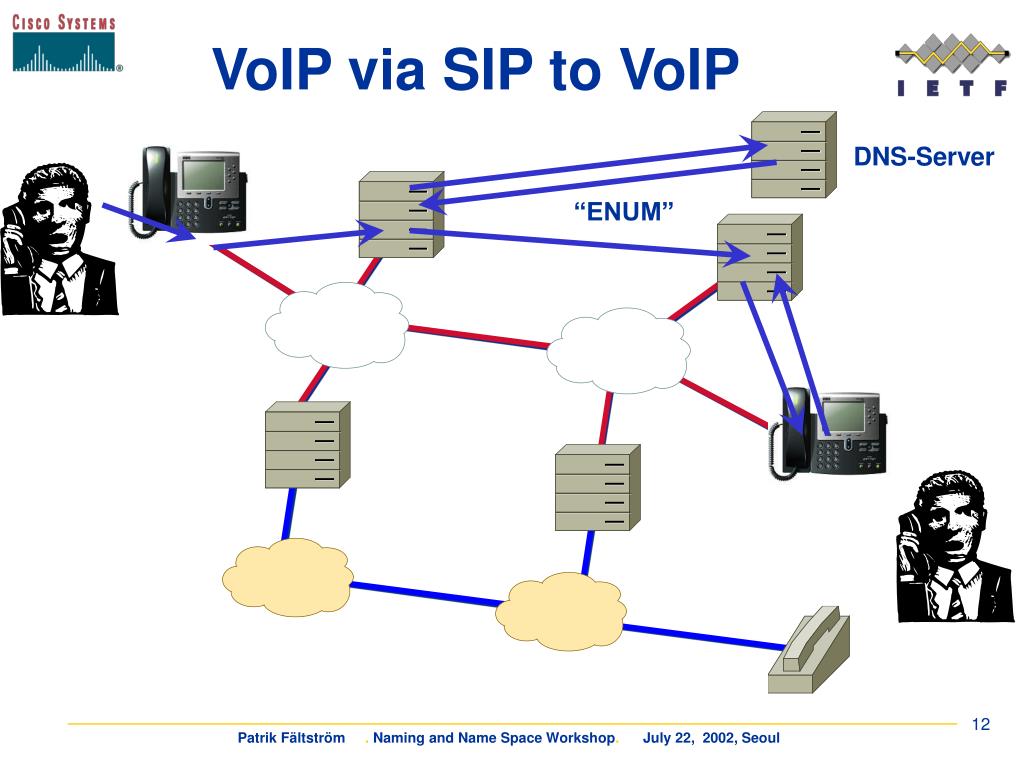

  12. DNS-Server VoIP via SIP to VoIP “ENUM”

  13. DNS-Server PSTN via SIP to VoIP “ENUM”

  14. The input to the NAPTR algorithm Step 1 • Take an E.164 number and create a fully qualified domain name in a single highly defined and structured domain • +46-8-971234 • +468971234 • 4.3.2.1.7.9.8.6.4.e164.arpa.

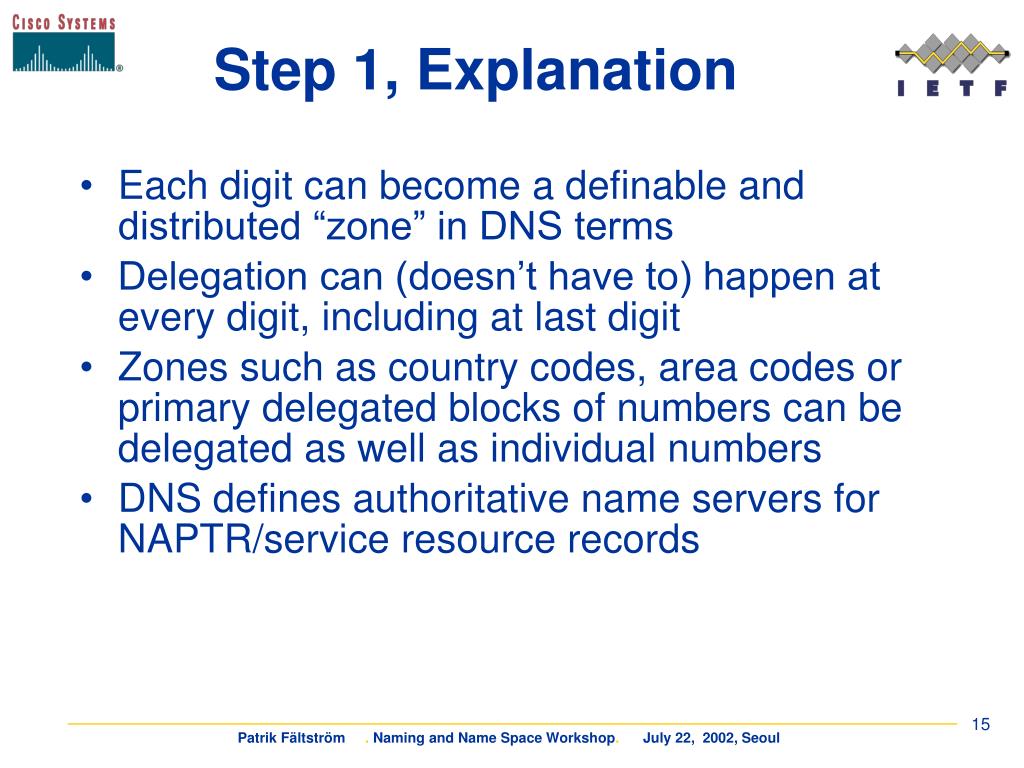

  15. Step 1, Explanation • Each digit can become a definable and distributed “zone” in DNS terms • Delegation can (doesn’t have to) happen at every digit, including at last digit • Zones such as country codes, area codes or primary delegated blocks of numbers can be delegated as well as individual numbers • DNS defines authoritative name servers for NAPTR/service resource records

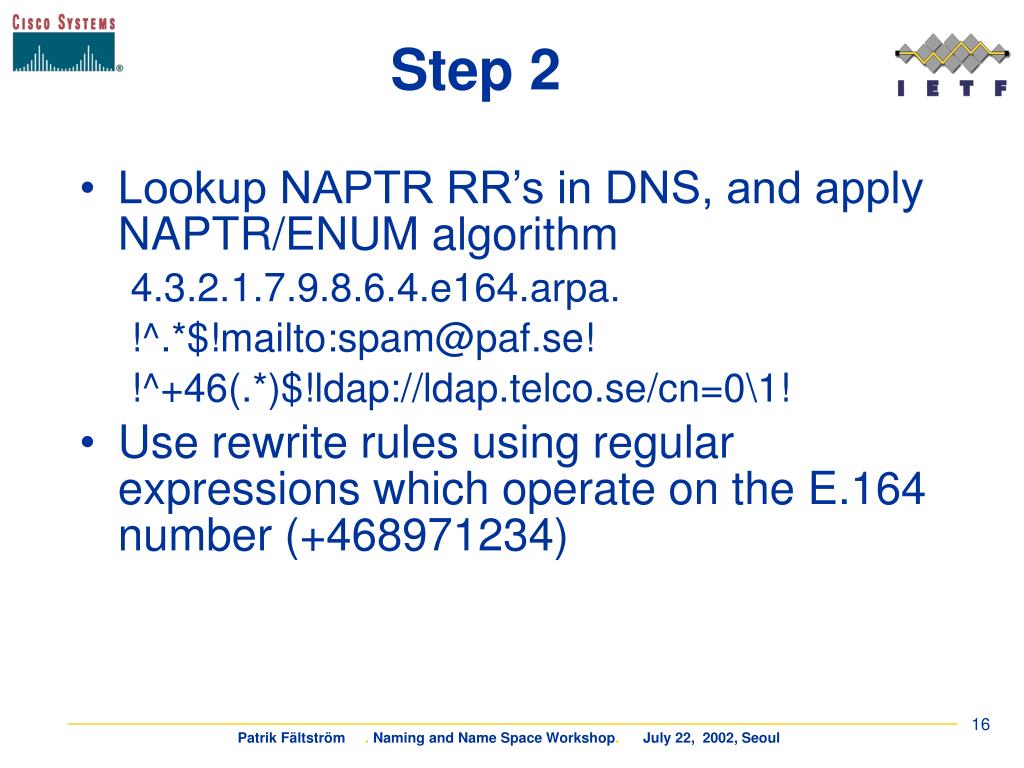

  16. Step 2 • Lookup NAPTR RR’s in DNS, and apply NAPTR/ENUM algorithm 4.3.2.1.7.9.8.6.4.e164.arpa. !^.*$!mailto:spam@paf.se! !^+46(.*)$!ldap://ldap.telco.se/cn=0\1! • Use rewrite rules using regular expressions which operate on the E.164 number (+468971234)

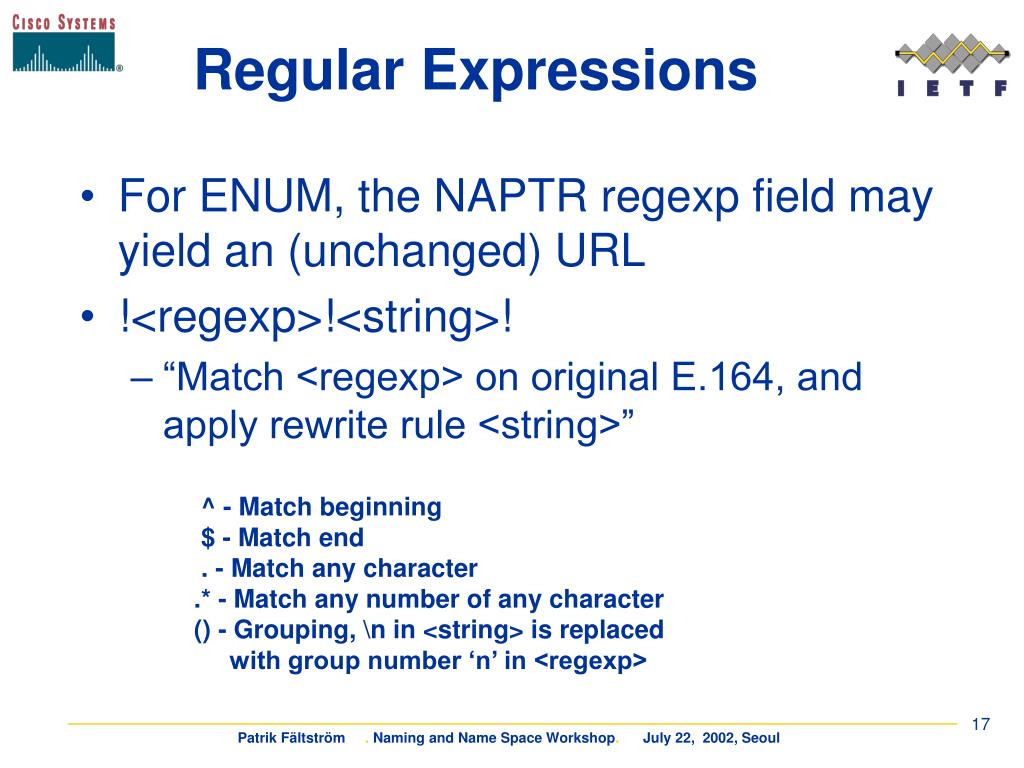

  17. Regular Expressions • For ENUM, the NAPTR regexp field may yield an (unchanged) URL • !<regexp>!<string>! • “Match <regexp> on original E.164, and apply rewrite rule <string>” ^ - Match beginning $ - Match end . - Match any character .* - Match any number of any character () - Grouping, \n in <string> is replaced with group number ‘n’ in <regexp>

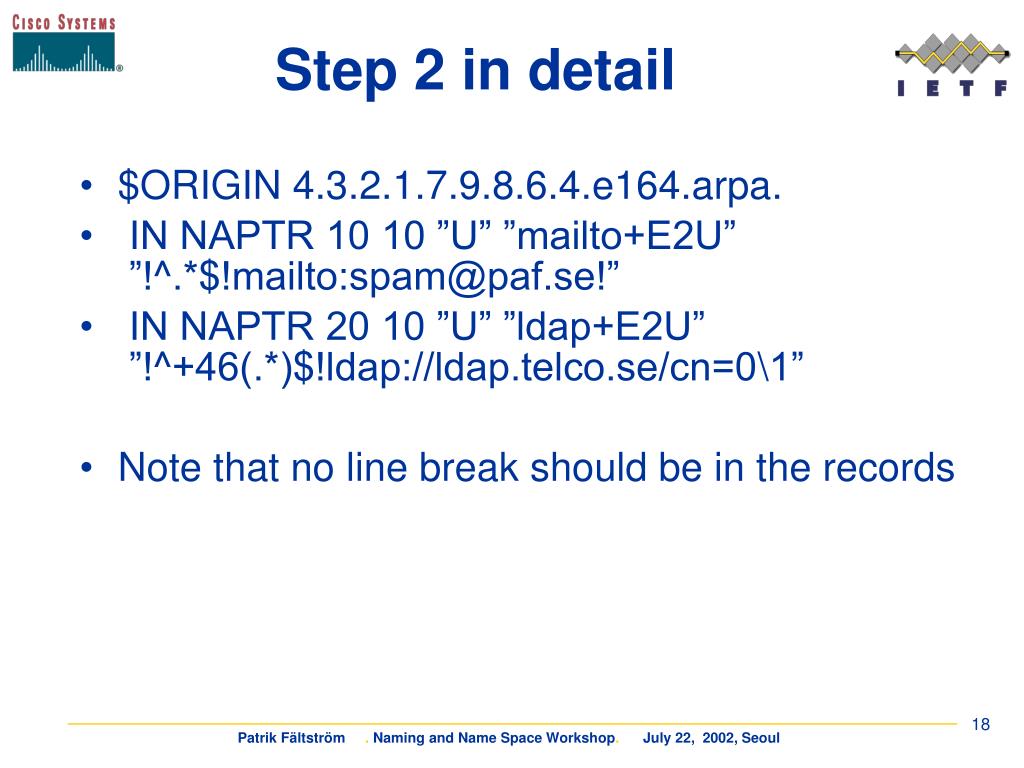

  18. Step 2 in detail • $ORIGIN 4.3.2.1.7.9.8.6.4.e164.arpa. • IN NAPTR 10 10 ”U” ”mailto+E2U” ”!^.*$!mailto:spam@paf.se!” • IN NAPTR 20 10 ”U” ”ldap+E2U” ”!^+46(.*)$!ldap://ldap.telco.se/cn=0\1” • Note that no line break should be in the records

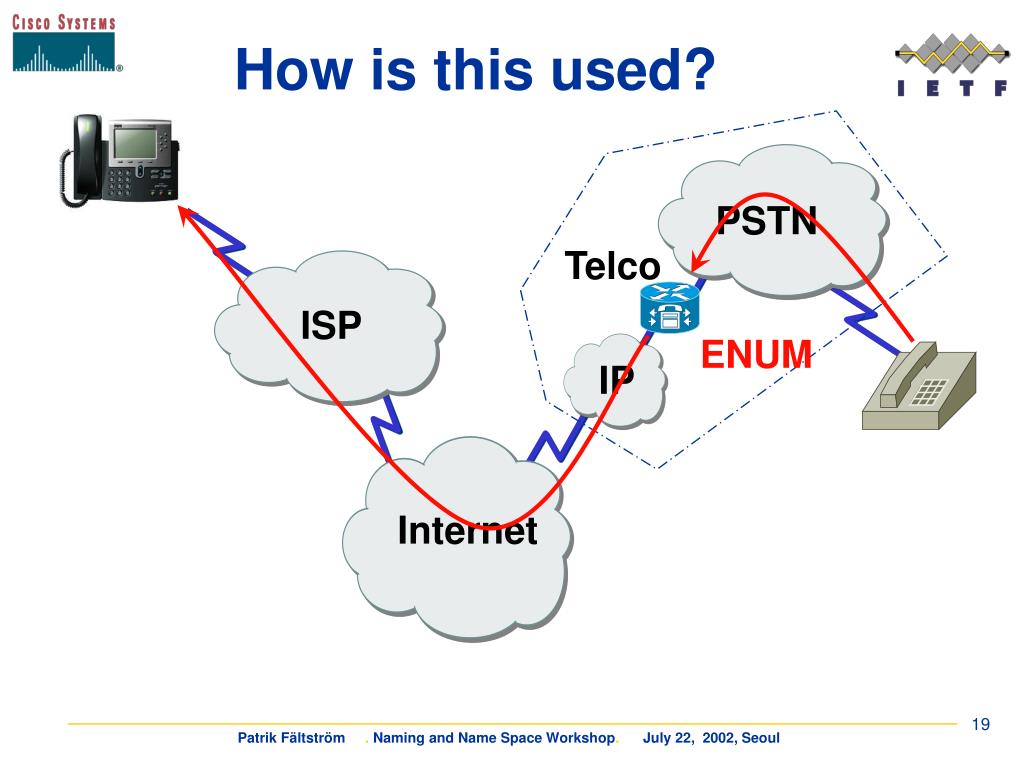

  19. How is this used? PSTN Telco ISP ENUM IP Internet

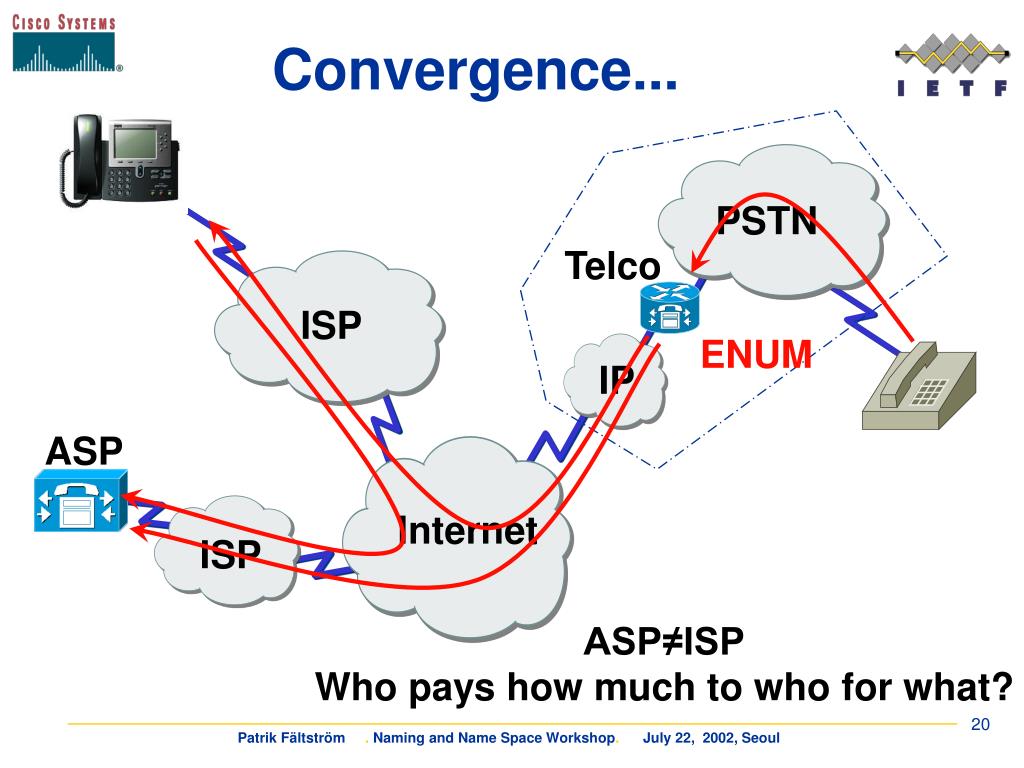

  20. Convergence... PSTN Telco ISP ENUM IP ASP Internet ISP ASP≠ISP Who pays how much to who for what?

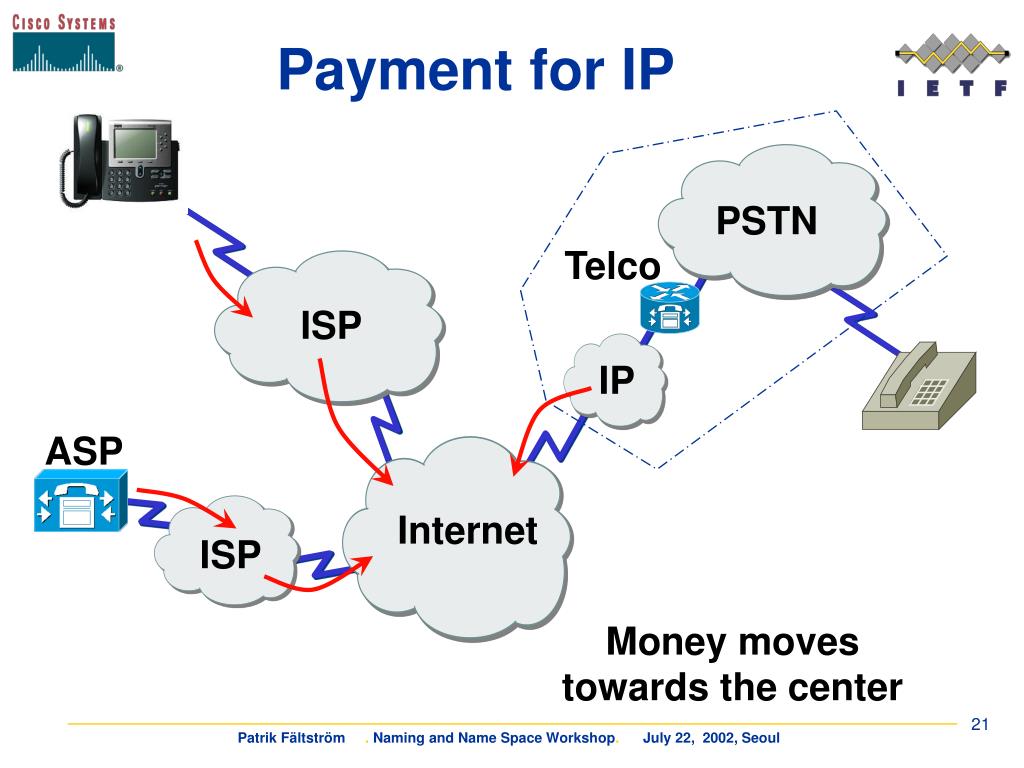

  21. Payment for IP PSTN Telco ISP IP ASP Internet ISP Money moves towards the center

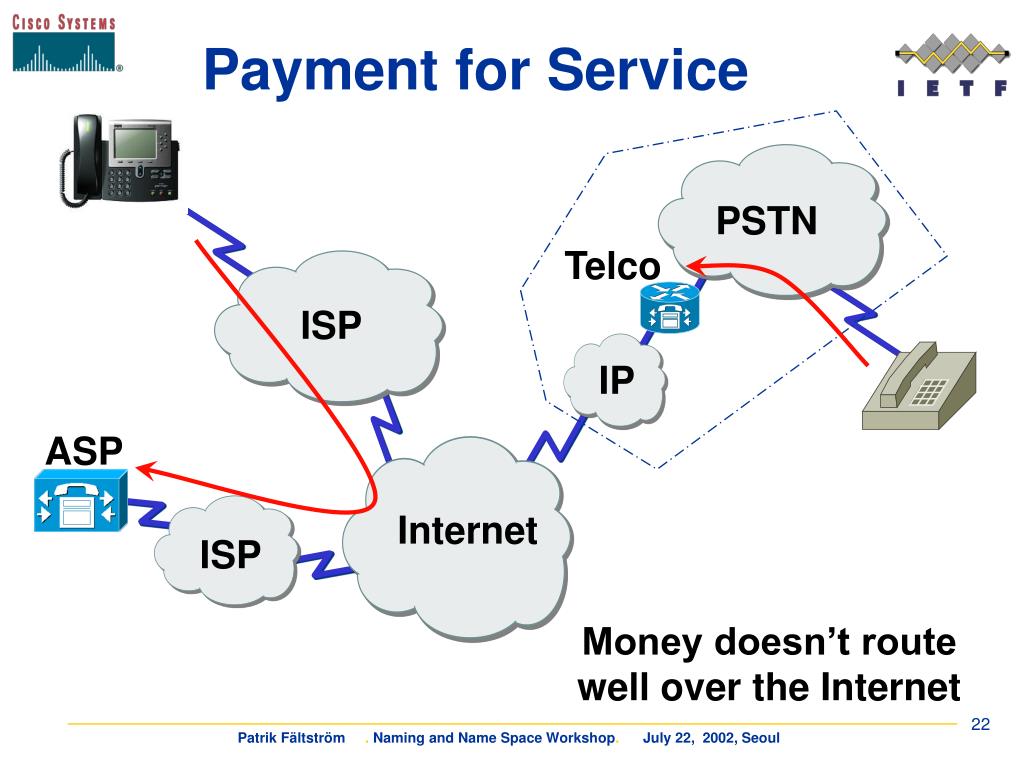

  22. Payment for Service PSTN Telco ISP IP ASP Internet ISP Money doesn’t route well over the Internet

  23. Payments • PSTN • Fixed fee • Termination fee (per minute charge) that follows the call • Email • Payment for IP • Payment for both incoming and outgoing • VoIP • Payment for IP • Payment for both incoming and outgoing • No termination fees for VoIP!

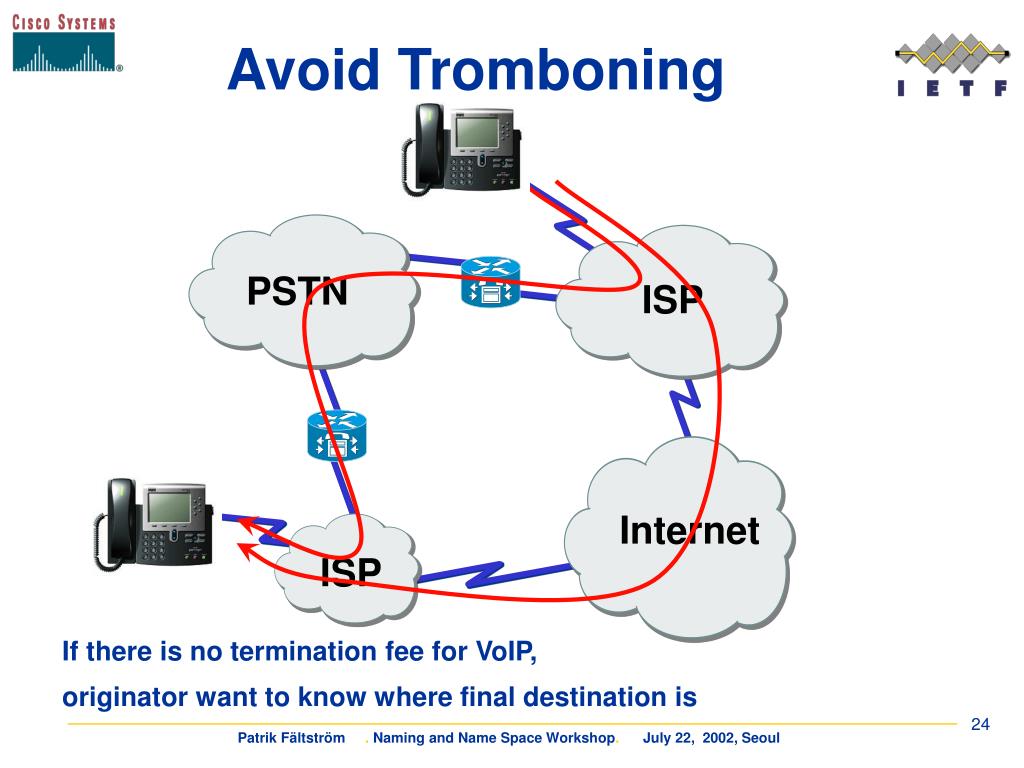

  24. Avoid Tromboning PSTN ISP Internet ISP If there is no termination fee for VoIP, originator want to know where final destination is

  25. ENUM Voice Extranet • Phone numbers only routable over PSTN network • Enterprise Dialing plans cannot be accessed by Trading Partners • Connect “Friends and Family” Customers and Suppliers to Single Dialing plan E.164

  26. ENUM Voice Intranet • Enterprises want to use unite global dialing plans across existing VPN and Intranet Links • ENUM unites them through common administration and access plan

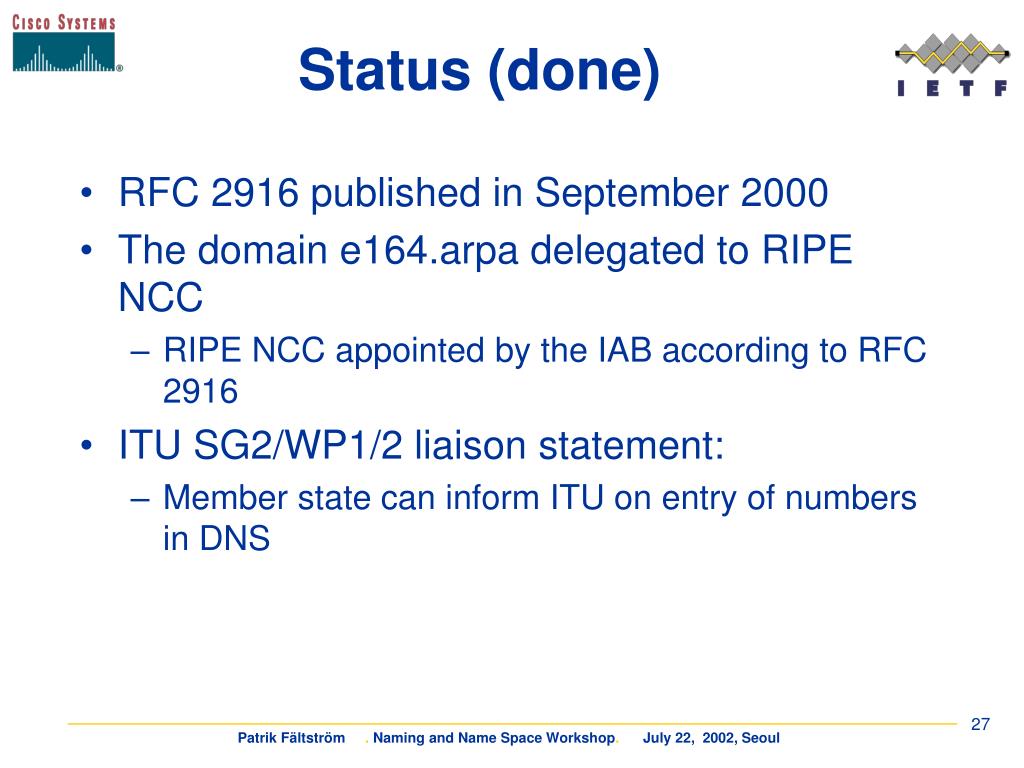

  27. Status (done) • RFC 2916 published in September 2000 • The domain e164.arpa delegated to RIPE NCC • RIPE NCC appointed by the IAB according to RFC 2916 • ITU SG2/WP1/2 liaison statement: • Member state can inform ITU on entry of numbers in DNS

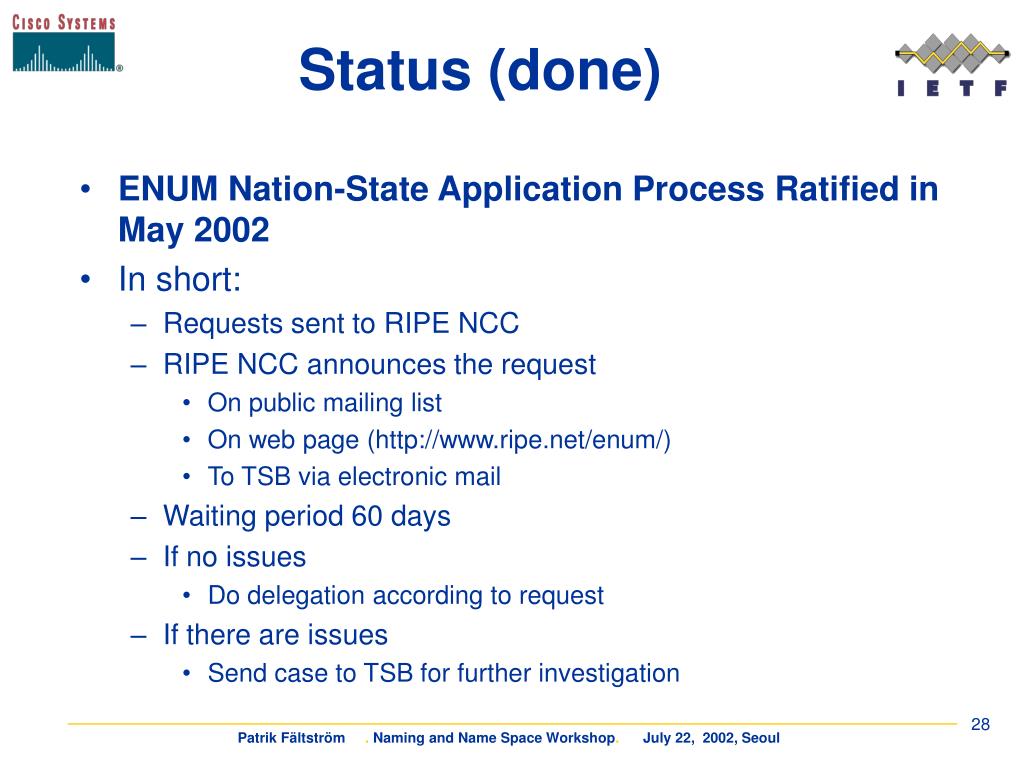

  28. Status (done) • ENUM Nation-State Application Process Ratified in May 2002 • In short: • Requests sent to RIPE NCC • RIPE NCC announces the request • On public mailing list • On web page (http://www.ripe.net/enum/) • To TSB via electronic mail • Waiting period 60 days • If no issues • Do delegation according to request • If there are issues • Send case to TSB for further investigation

  29. Status July 1, 2002 • RFC 2916 published in September 2000 • New version draft-ietf-enum-rfc2916bis • Delegations from e164.arpa • 44 (UK) • 43 (Austria) • 49 (Germany) • 87810 (Telekom Austria) • 991001 (Neustar) • Information at RIPE • http://www.ripe.net/enum/

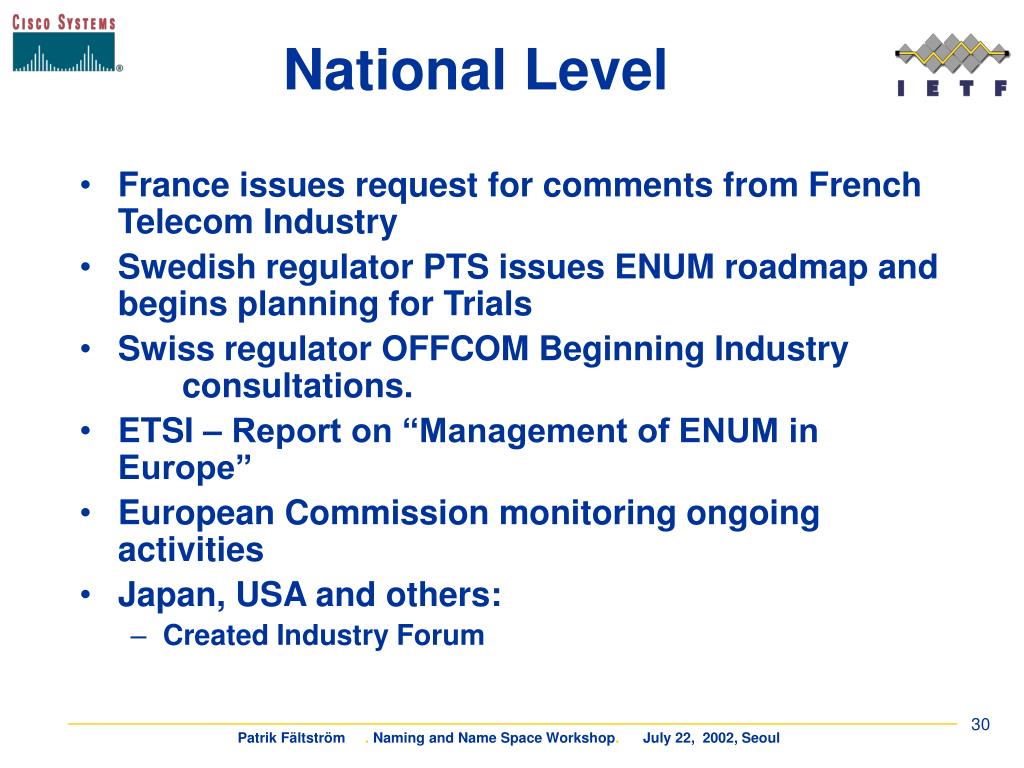

  30. National Level • France issues request for comments from French Telecom Industry • Swedish regulator PTS issues ENUM roadmap and begins planning for Trials • Swiss regulator OFFCOM Beginning Industry consultations. • ETSI – Report on “Management of ENUM in Europe” • European Commission monitoring ongoing activities • Japan, USA and others: • Created Industry Forum

  31. Conclusion • Why ENUM? • Given E.164 number, what is the SIP URI? • Given E.164 number, what is email address? • What is ENUM not? • Routing mechanism • Still within scope of each protocol, i.e. ENUM is not a competitor with SIP • Why is ENUM important? • Convergence will happen • Now is the time to talk in a country on how to handle convergence in the larger picture

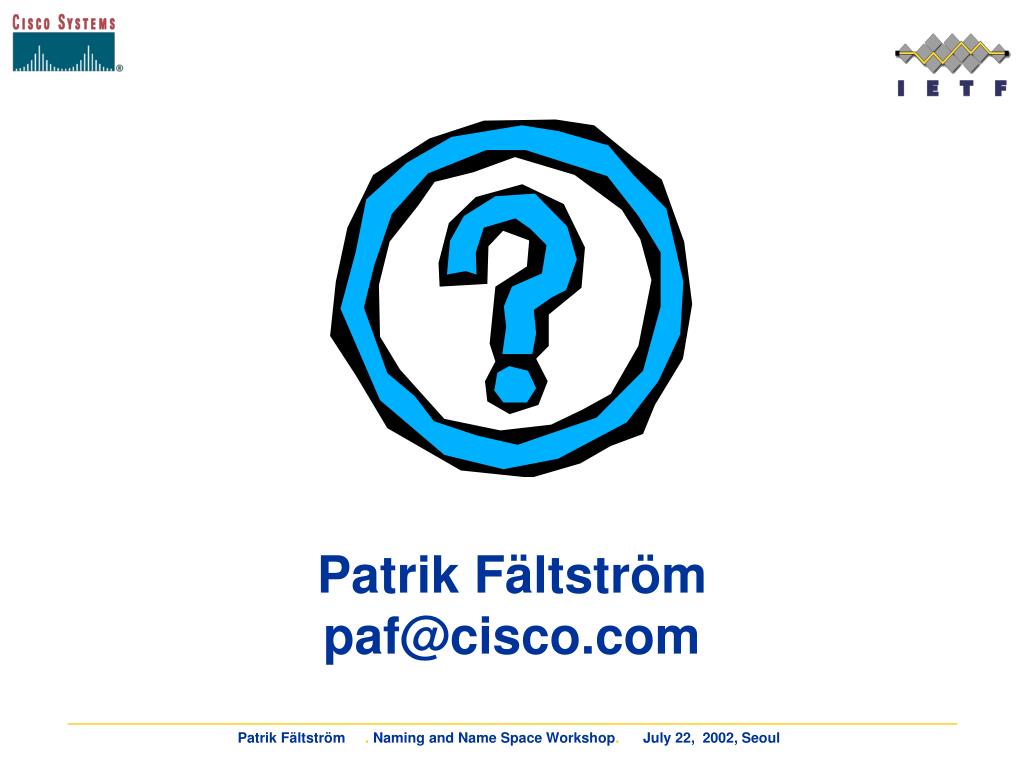

  32. Patrik Fältström paf@cisco.com
