  1. Requirements Phase Chapter 9 UHD-CMS-Chp9

  2. Requirements Phase • What must the new product be able to do? • What the client needs? UHD-CMS-Chp9

  3. Requirements • Functional Requirements: describe the interaction between the system and its environment • Environment: users, any other external system with which the system interacts • Non-Functional Requirements: quantitative constrains e.g. • response time • accuracy UHD-CMS-Chp9

  4. Requirements Contd • Pseudo-requirements: requirements imposed by the client that restrict the implementation of the system • implementation language • platform • process and documentation requirements: e.g. use of a specific formal specification language, etc. UHD-CMS-Chp9

  5. Requirement Elicitation • Identify the actors: an actor is an external entity that interacts with the system • Identify scenarios: a scenario is a concrete, focused informal description of a single feature of the system from the viewpoint of a single actor UHD-CMS-Chp9

  6. Questions to identify scenarios • What are the tasks that the actor wants the system to perform • What info does the actor access? • Who creates that data? • Can it be modified or removed? • Which external changes does the actor need to inform the system about? How often? When? • Which event does the actor need to be informed by the system about? UHD-CMS-Chp9

  7. Req. Analysis Techniques • Interviews • Structured • Unstructured • Send a questionnaire • Examine the various forms • Set up video cameras • Scenarios • Rapid Prototyping (most effective) UHD-CMS-Chp9

  8. Rapid Prototyping • Exhibit the key functionality • Reflects the functionality that the client sees • Built quickly • Built to be changed • using 4GL and interpreted languages • Using UNIX Shell or Lisp UHD-CMS-Chp9

  9. Human Factors • Human-computer interface (HCI) • User friendly • using windows, icons, menus, .. • Menu-driven system is thoughtfully designed • multiple level of sophistication • implies reduced learning times and lower error rates • e.g., Macintosh UHD-CMS-Chp9

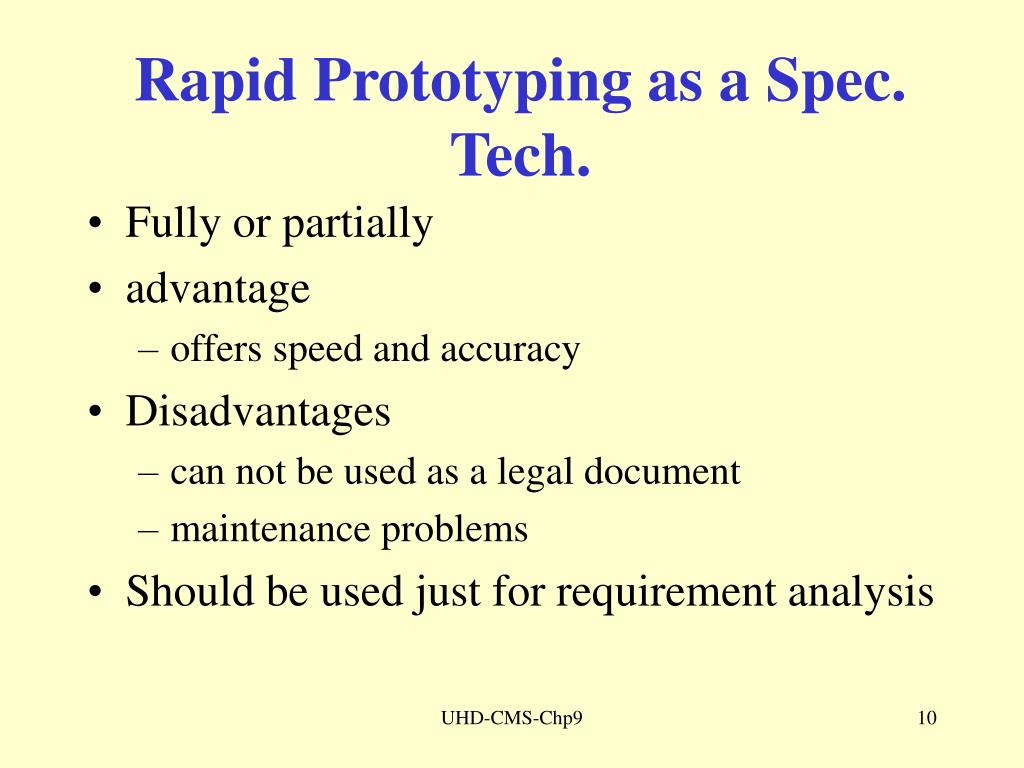

  10. Rapid Prototyping as a Spec. Tech. • Fully or partially • advantage • offers speed and accuracy • Disadvantages • can not be used as a legal document • maintenance problems • Should be used just for requirement analysis UHD-CMS-Chp9

  11. Reusing the Rapid Prototype • Refine it, until it becomes the product • In theory a fast development process • In practice much like build-and-fix • Reasons for throwing it away • cheaper in both short and long term • performance (specially in real time systems) • to enforce not being reused • build it in a different language • use limited languages (e.g., hypertext) • hybrid approach is used UHD-CMS-Chp9

  12. Other uses for Rapid Prototyping • To resolve disagreements • In many cases the only way to arrive to consensus quickly UHD-CMS-Chp9

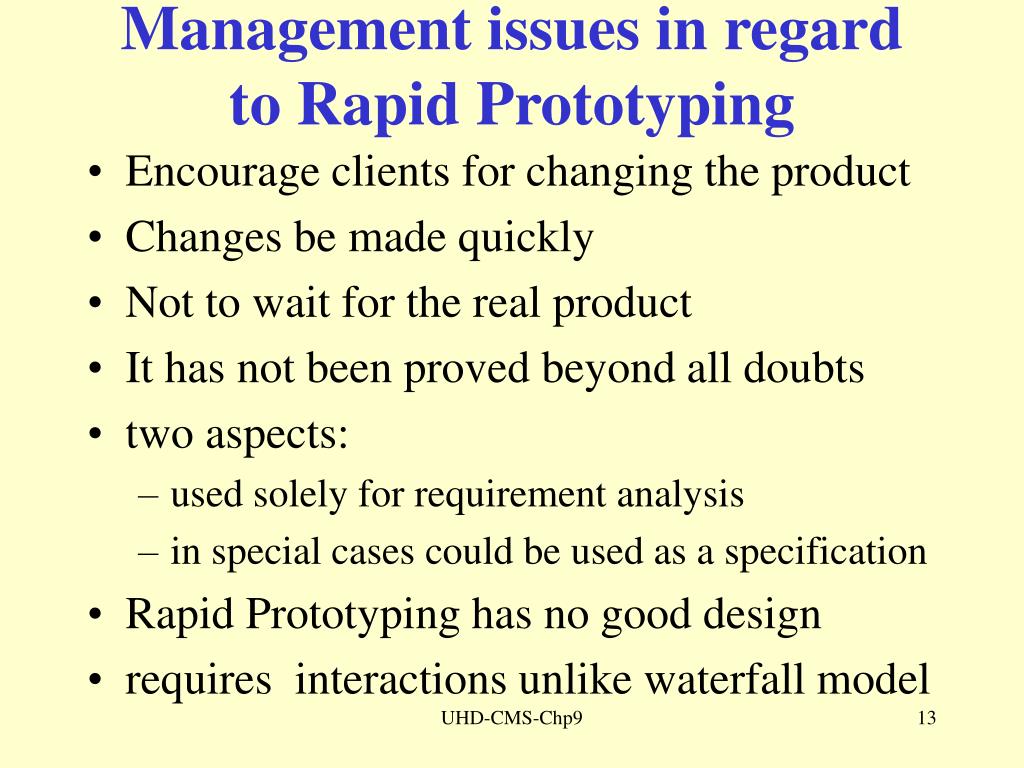

  13. Management issues in regard to Rapid Prototyping • Encourage clients for changing the product • Changes be made quickly • Not to wait for the real product • It has not been proved beyond all doubts • two aspects: • used solely for requirement analysis • in special cases could be used as a specification • Rapid Prototyping has no good design • requires interactions unlike waterfall model UHD-CMS-Chp9

  14. Experiences with Rapid Prototyping • Gordon and Bieman report • using published and unpublished case studies • 33 out 39 where successful • choice of languages is not critical • partial retaining is important (larger porj.) • fewer unnecessary features were implemented with it UHD-CMS-Chp9

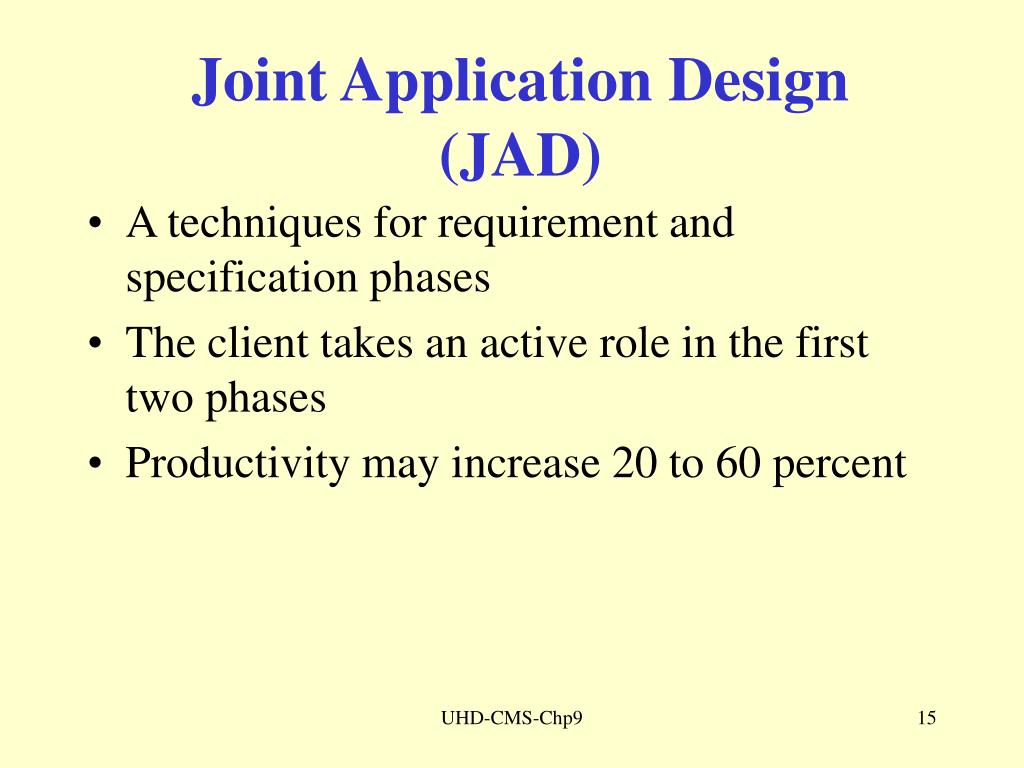

  15. Joint Application Design (JAD) • A techniques for requirement and specification phases • The client takes an active role in the first two phases • Productivity may increase 20 to 60 percent UHD-CMS-Chp9

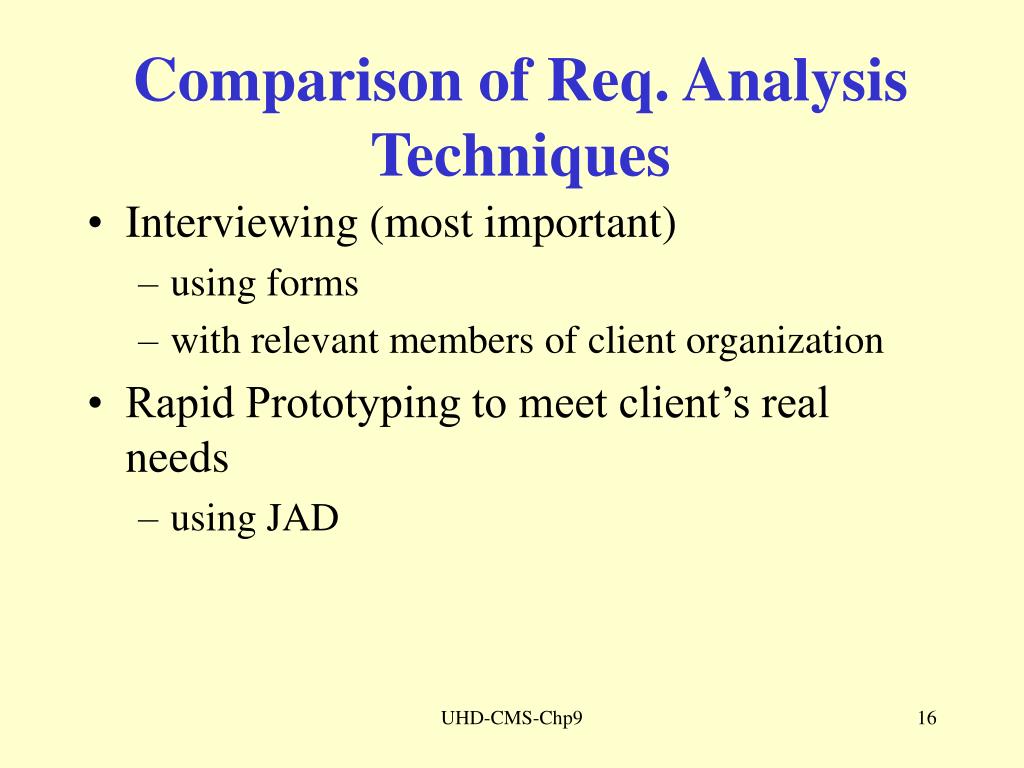

  16. Comparison of Req. Analysis Techniques • Interviewing (most important) • using forms • with relevant members of client organization • Rapid Prototyping to meet client’s real needs • using JAD UHD-CMS-Chp9

  17. Case Tools for Req. • Interpreted languages • Case tools and language environments • smalltalk, interlisp, UNIX shell • Hypertext • two popular case tools • Demo II, Guide • 4GL UHD-CMS-Chp9

  18. Metrics for the Req. Phase • Measure of requirement volatility • can be used for scenario and interview techniques • Number of requirements changes during the development process • Number of time each feature is used • useful in Rapid Prototyping UHD-CMS-Chp9
