The u marf user services interface usi

The U-MARF User Services Interface (USI)

A Java Web Start Application for On-Line Access to the U-MARF


The u marf user services interface usi

Loading the U-MARF client-side application …


The u marf user services interface usi

Click here to start


The u marf user services interface usi

Read the pop-ups and respond as appropriate. For this presentation all certificates and warnings were accepted (YES).


The u marf user services interface usi

A dynamic progress bar appears while the client-side application is launched.


The u marf user services interface usi

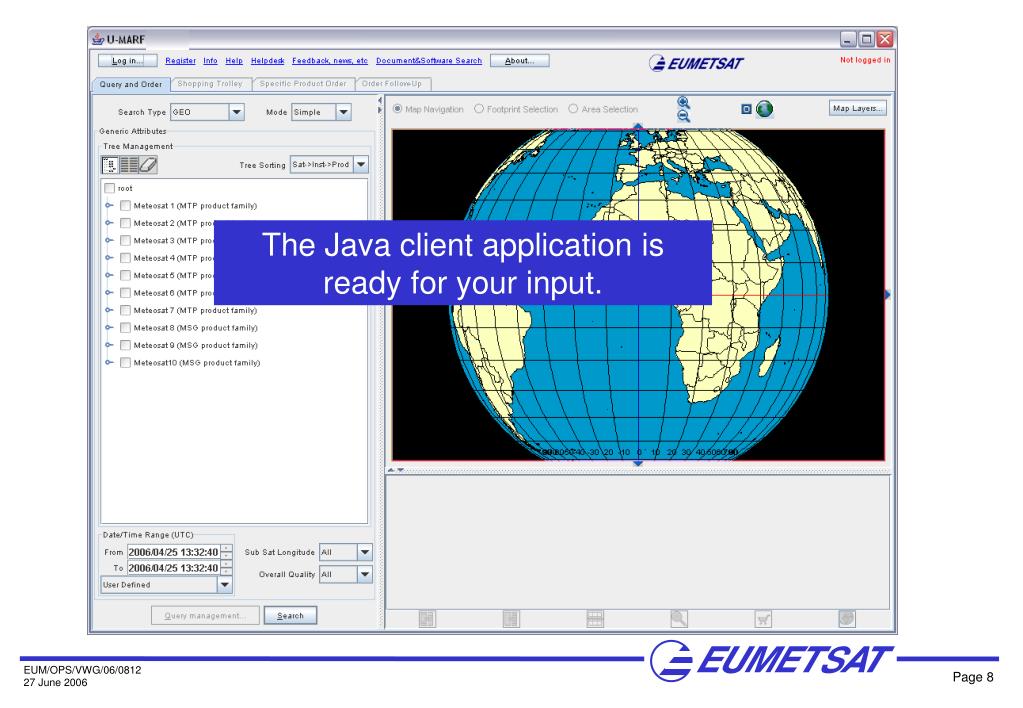

The Java client application is ready for your input.


The u marf user services interface usi

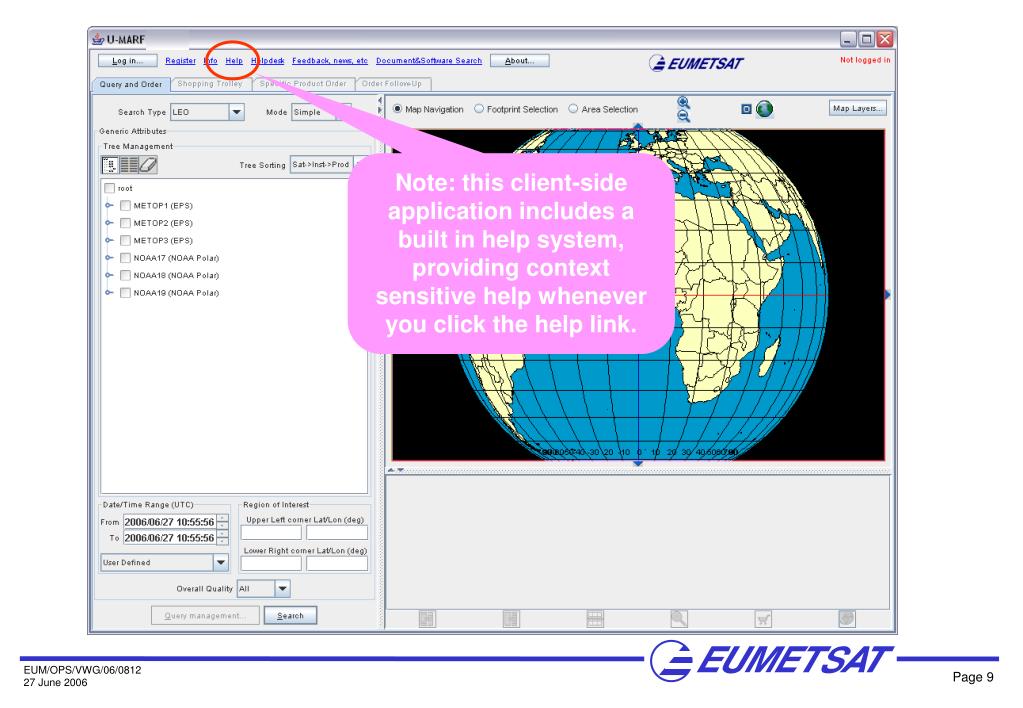

Note: this client-side application includes a built in help system, providing context sensitive help whenever you click the help link.


The u marf user services interface usi

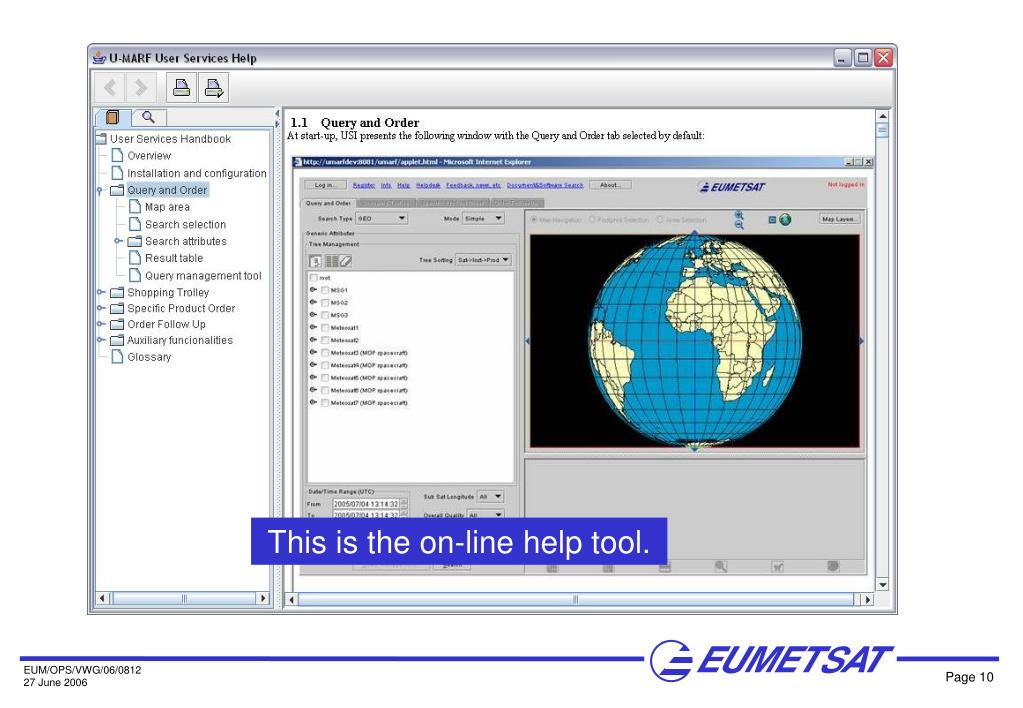

This is the on-line help tool.


The u marf user services interface usi

Possible to browse help tree and obtain help and definitions for particular features and functions


The u marf user services interface usi

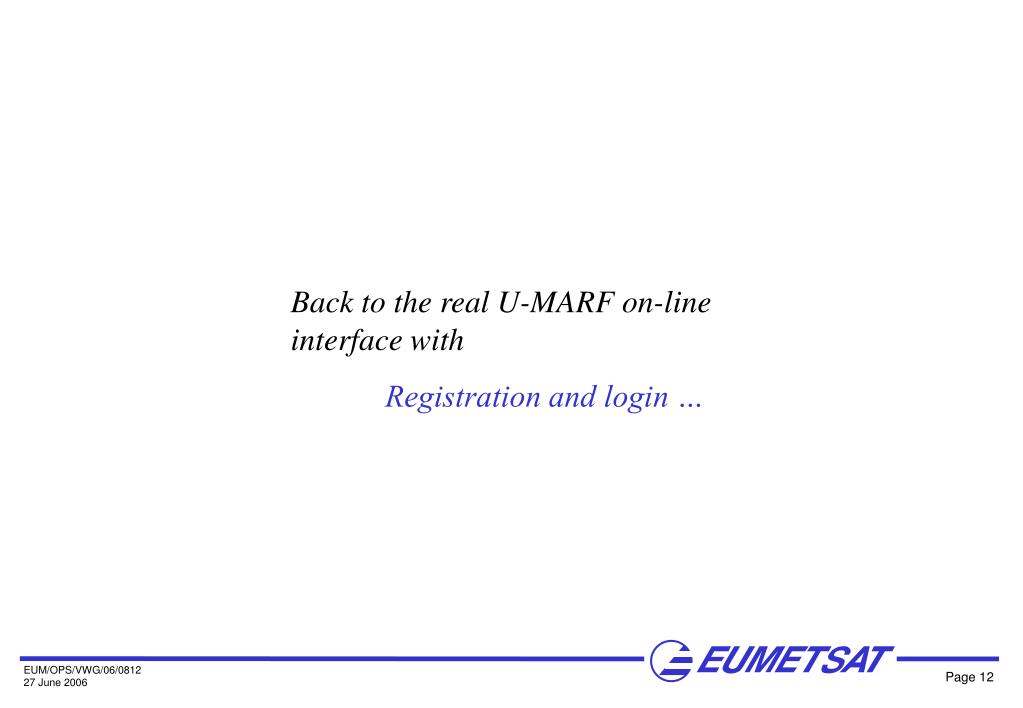

Back to the real U-MARF on-line interface with

Registration and login …


The u marf user services interface usi

Generate a personal account using the Register button


The u marf user services interface usi

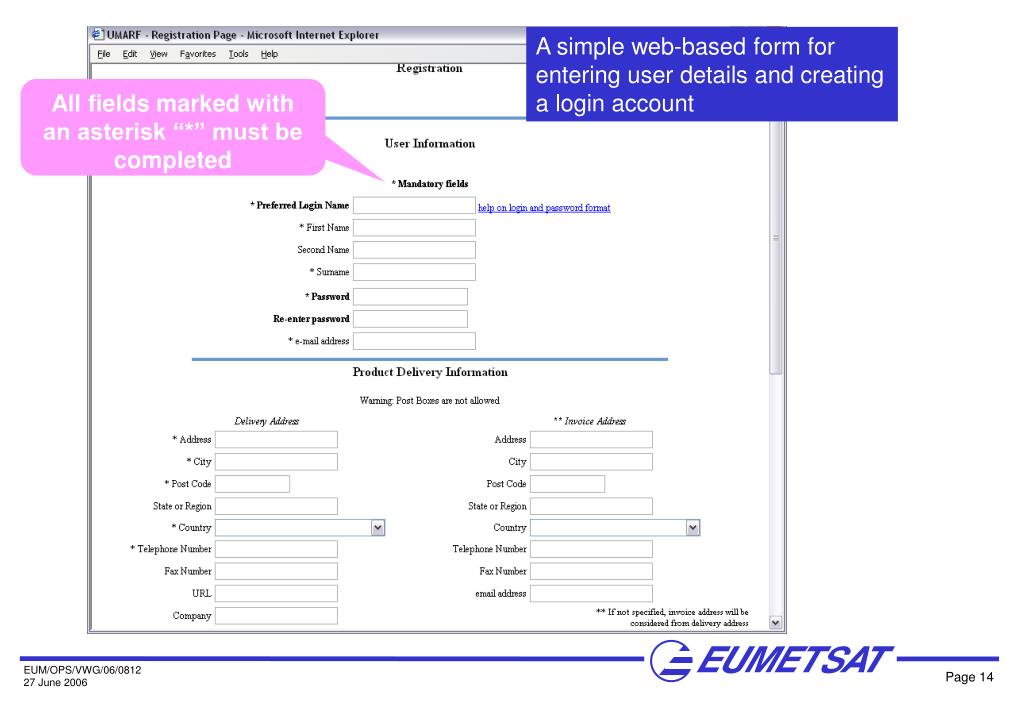

A simple web-based form for entering user details and creating a login account

All fields marked with an asterisk “*” must be completed


The u marf user services interface usi

The default preferences for requested media and geographic region of interests may be specified. These will be applied by default but can be over-ridden for specific orders.


The u marf user services interface usi

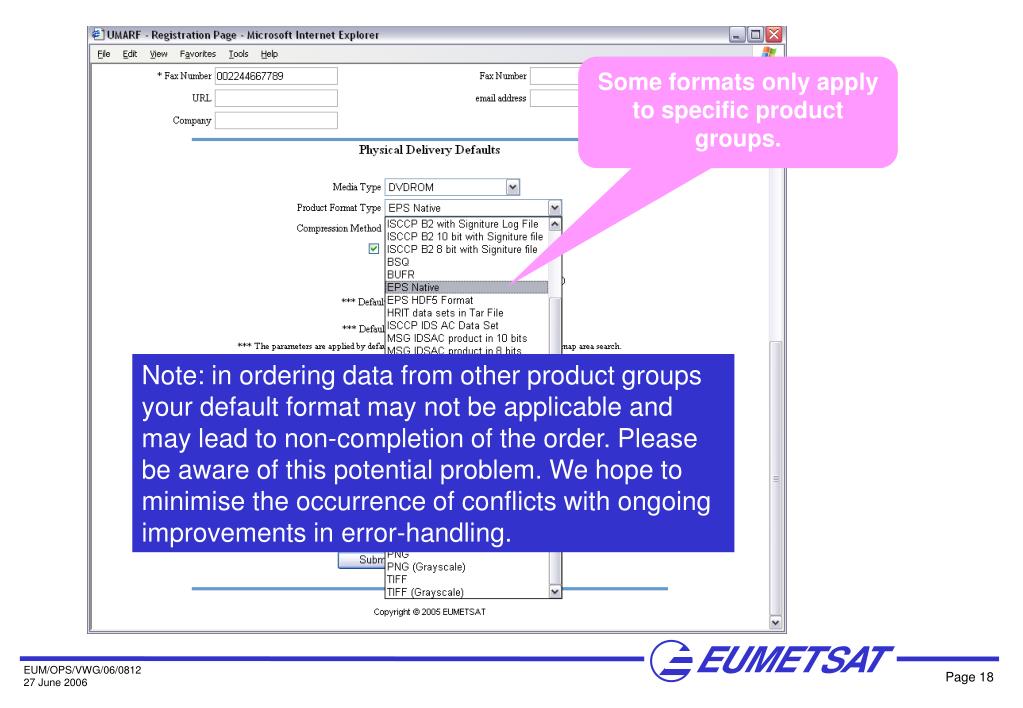

Some formats only apply to specific product groups.

Note: in ordering data from other product groups your default format may not be applicable and may lead to non-completion of the order. Please be aware of this potential problem. We hope to minimise the occurrence of conflicts with ongoing improvements in error-handling.


The u marf user services interface usi

Click ok to return to the Java application.


The u marf user services interface usi

Login Here

NB: for some actions keyboard shortcuts are available, e.g. Alt L for Log in (active characters are underlined) and “tab” keys to change focus. These features may by OS dependent.


The u marf user services interface usi

Also possible to have registered using this button


The u marf user services interface usi

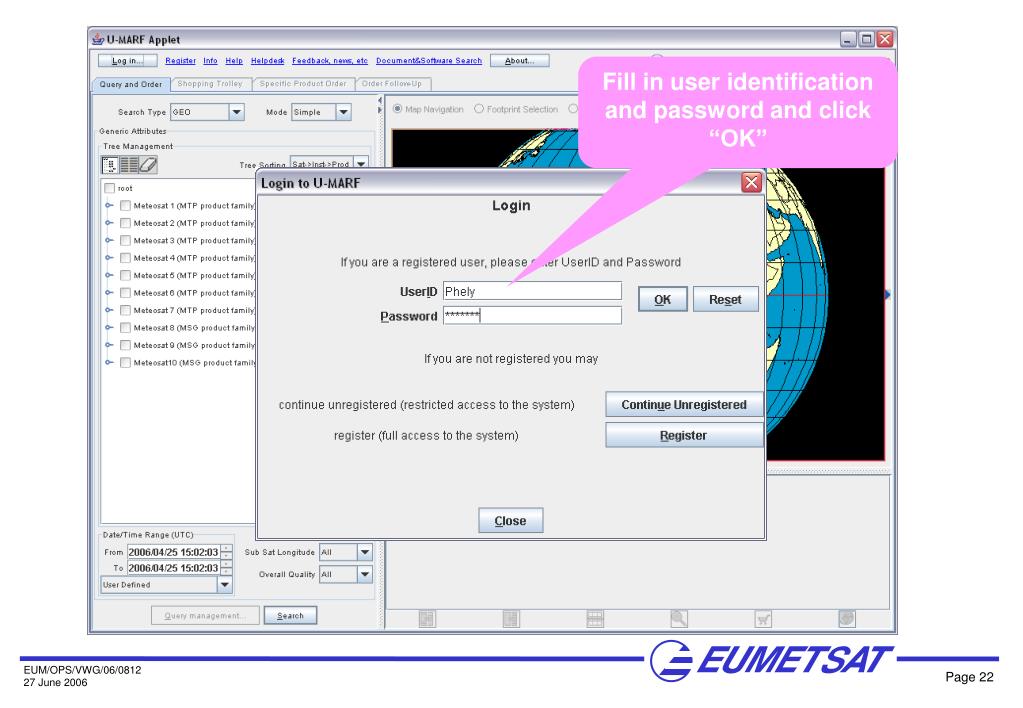

Fill in user identification and password and click “OK”


The u marf user services interface usi

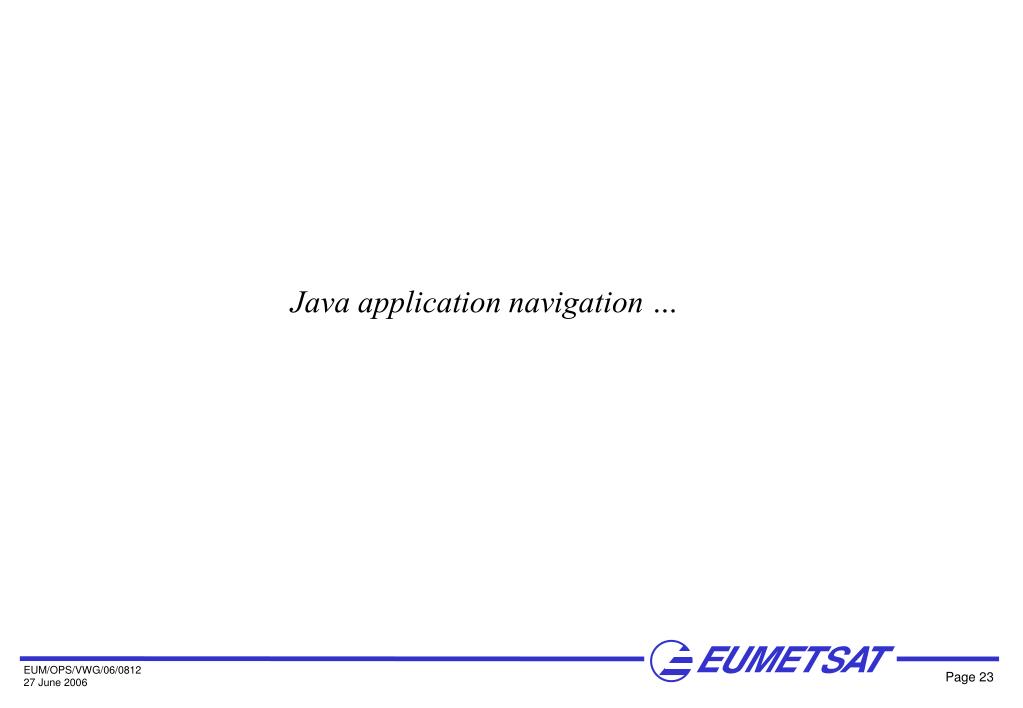

Java application navigation …


The u marf user services interface usi

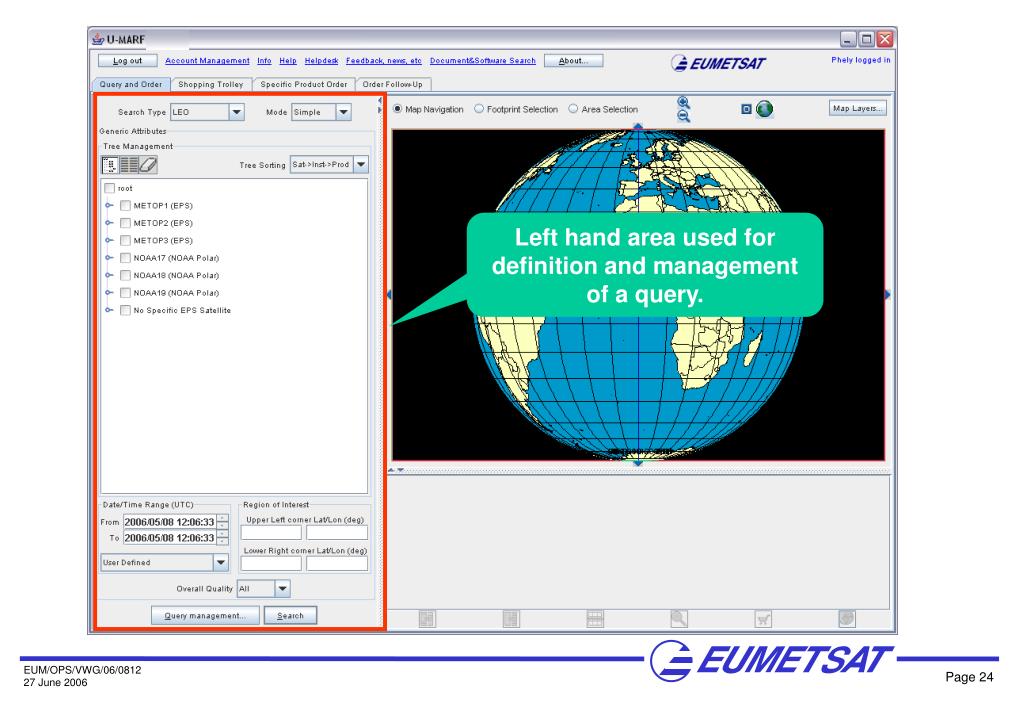

Left hand area used for definition and management of a query.


The u marf user services interface usi

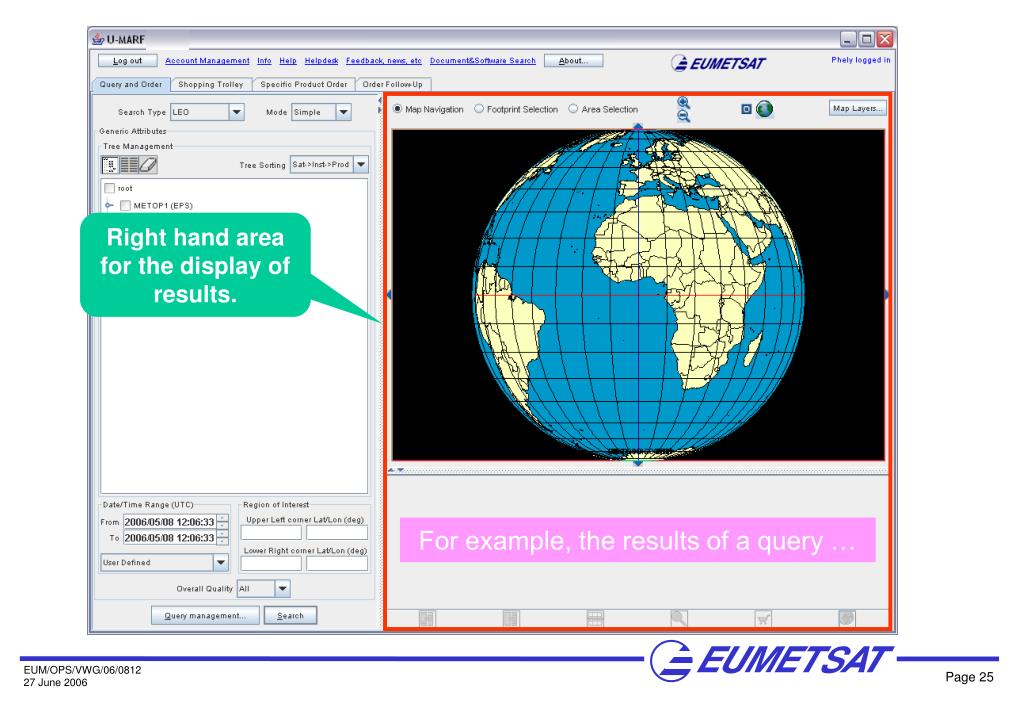

Right hand area for the display of results.

For example, the results of a query …


The u marf user services interface usi

Product location displayed on a map.

Results table of products matching query.


The u marf user services interface usi

Additional map functions also used for searches (more later …)


The u marf user services interface usi

Tabs for the selection of different services associated with product query and ordering


The u marf user services interface usi

Login/logout, account management, information and other ancillary functions


The u marf user services interface usi

Tab for searching for products (Query) and selecting items for an Order


The u marf user services interface usi

Selection of product group

GEO:Geostationary Satellite Data (e.g. METEOSAT)

LEO:Low Earth Orbit Satellite Data (e.g. METOP)SAF:Satellite Application Facility (High Level Products based on GEO and/or LEO data from the SAFs)

Multimission:All products (i.e. queries across the GEO, LEO and SAF groups)

Auxiliary Data:This is additional data used in the processing of LEO products (e.g. calibration and ephemeris data) …


The u marf user services interface usi

Query Mode

Simple Mode: provides a basic set of search parameters.

Product

Time

Space

Quality


The u marf user services interface usi

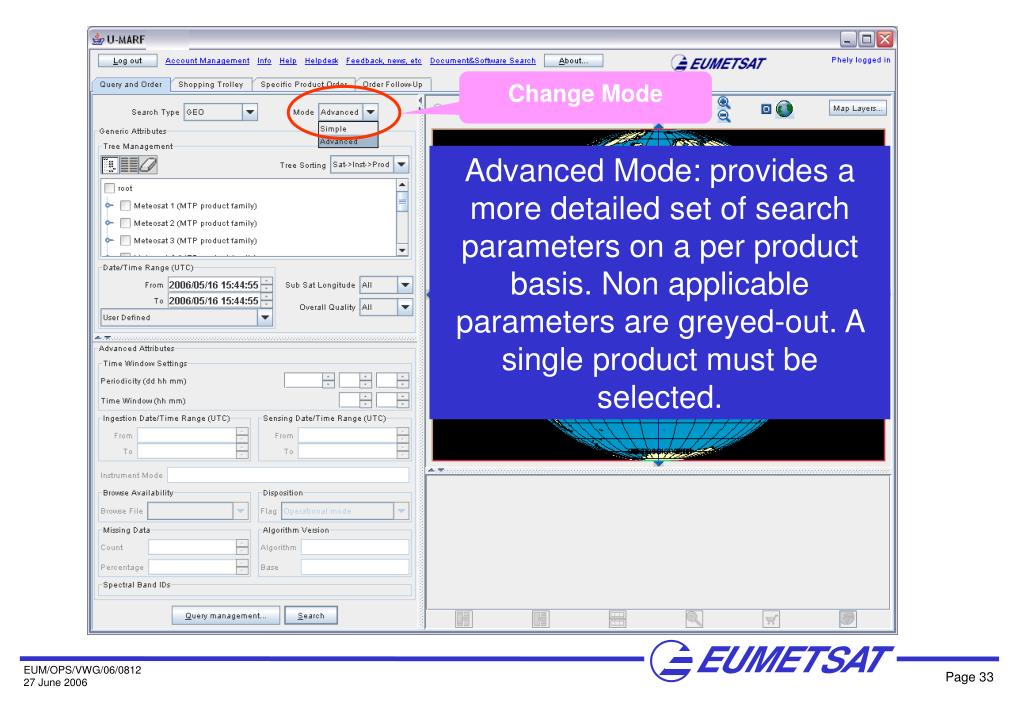

Change Mode

Advanced Mode: provides a more detailed set of search parameters on a per product basis. Non applicable parameters are greyed-out. A single product must be selected.


The u marf user services interface usi

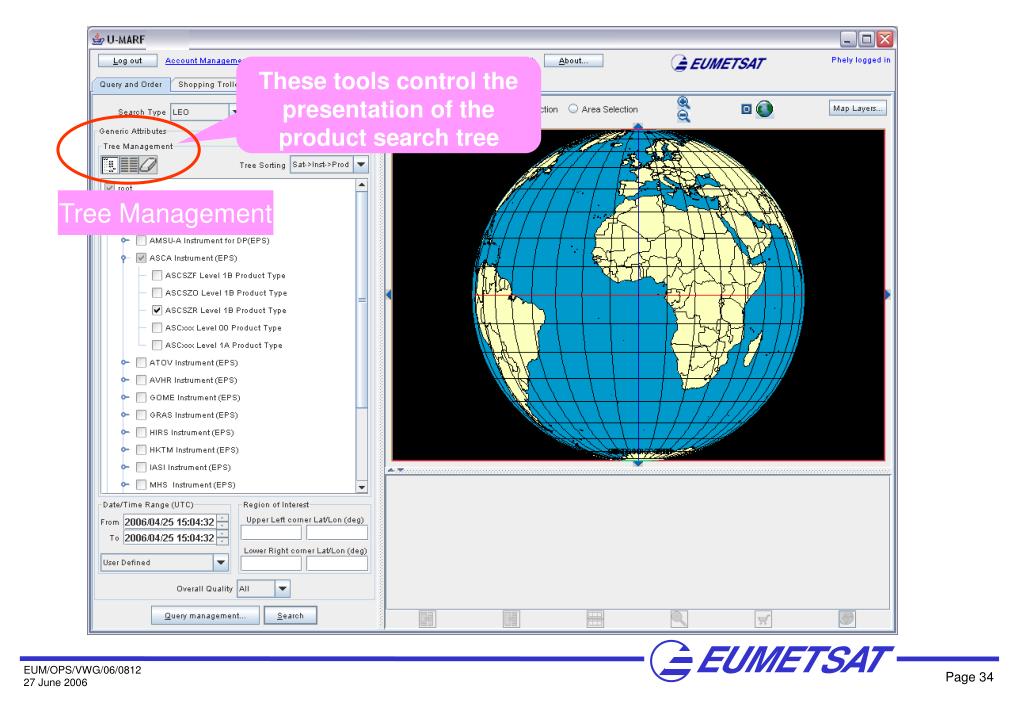

These tools control the presentation of the product search tree

Tree Management


The u marf user services interface usi

Three options:

1. Expand/Collapse tree nodes

Tree Management


The u marf user services interface usi

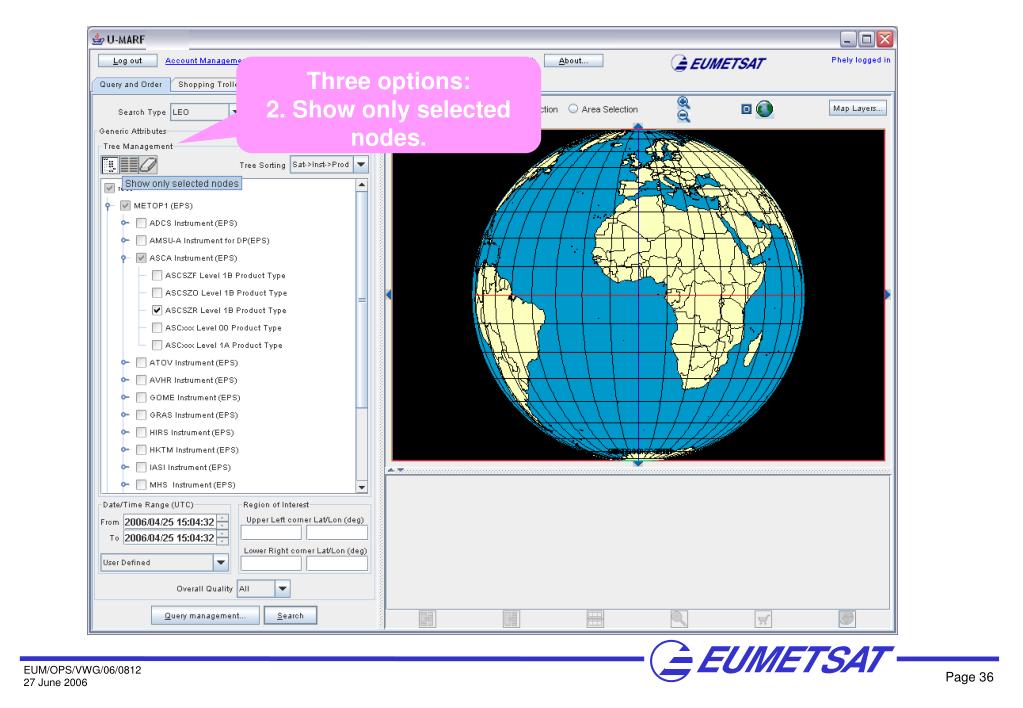

Three options:

2. Show only selected nodes.


The u marf user services interface usi

Three options:

3. Clear selected nodes.


The u marf user services interface usi

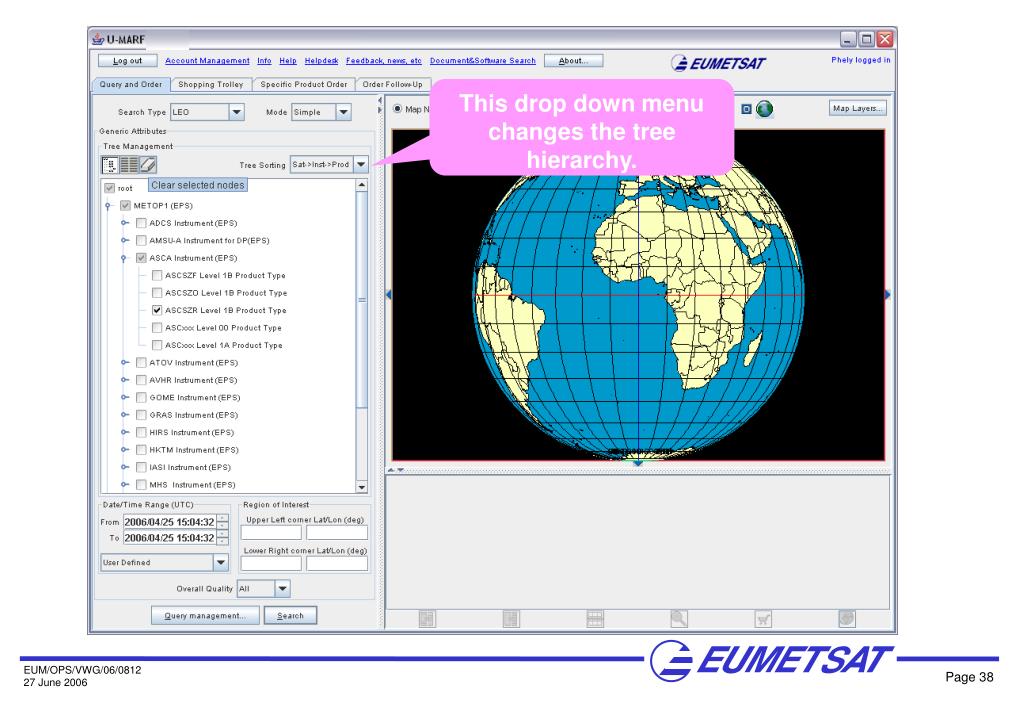

This drop down menu changes the tree hierarchy.


The u marf user services interface usi

This drop down menu changes the tree hierarchy.

Here the leaves are product types


The u marf user services interface usi

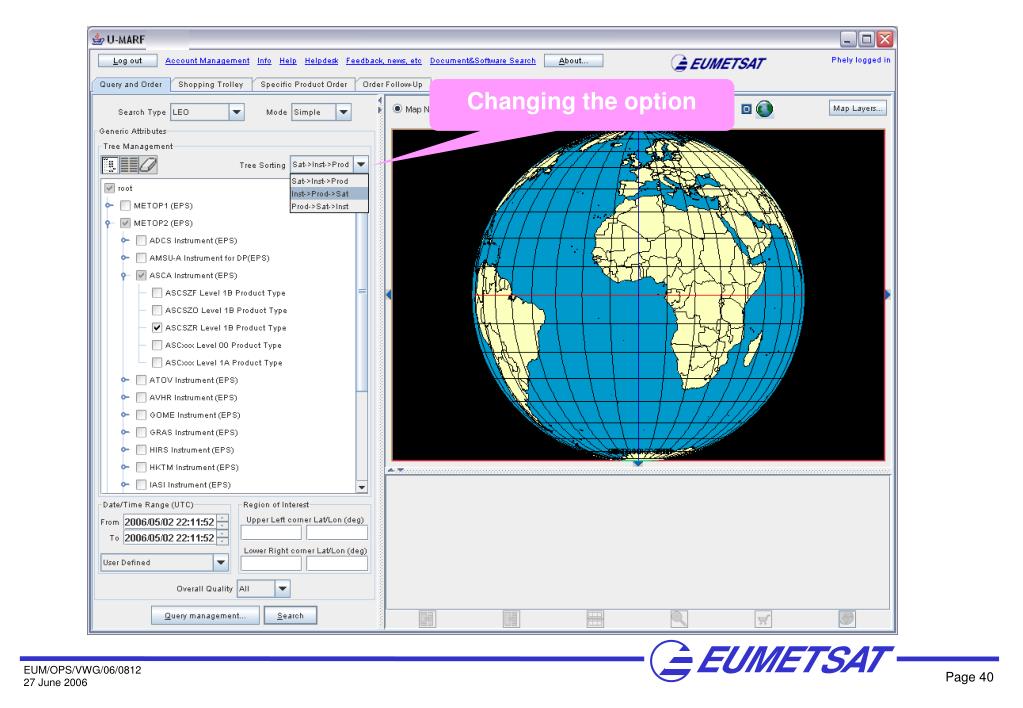

Changing the option


The u marf user services interface usi

In this hierarchy the satellites are at the leaves.


The u marf user services interface usi

Time to make a query …


The u marf user services interface usi

Select a group of products

… or only a specific product

Specify a Time range Of Interest (TOI)

Specify a Region Of Interest (ROI)

Click on Search (or hit return on the keyboard)


The u marf user services interface usi

For this case a warning occurs indicating that no Region Of Interest (ROI) was selected. Either acknowledge “Yes” or click “No” if you want to specify a ROI.

In general a query has to include a product selection and a Time Range Of Interest. Specifying no ROI will search without geographic restriction. Time range will automatically reset to valid values if inconsistent data is entered.


The u marf user services interface usi

The number of results matching the query are returned. Click “Yes” to display the results.


The u marf user services interface usi

Warning: possible to define a query with too many results (e.g. > 500). A request is printed to refine the search (e.g. make the time window smaller).


The u marf user services interface usi

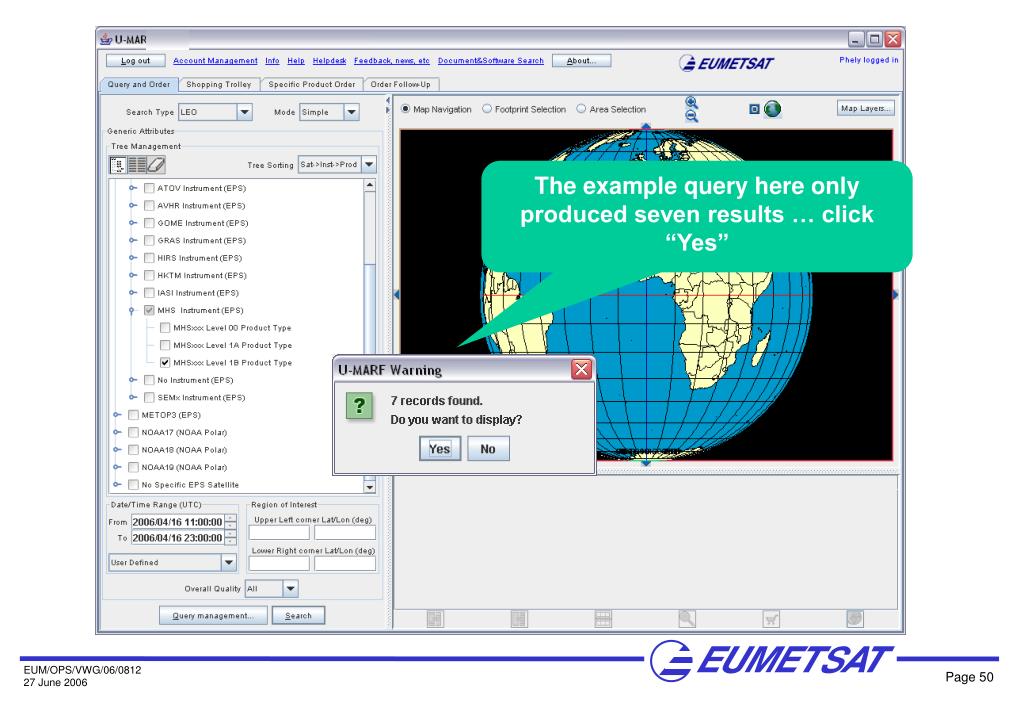

The example query here only produced seven results … click “Yes”


The u marf user services interface usi

Product footprints automatically displayed on the map

List of products found printed in the Results Table


The u marf user services interface usi

The corresponding footprint is highlighted on the map.

Click on a row to highlight a product.


The u marf user services interface usi

Select all table rows.

Results Table manipulation buttons.


The u marf user services interface usi

Shift & Mouse Click will select a block of results-


The u marf user services interface usi

Control & Mouse Click will select or deselect individual items


The u marf user services interface usi

This button inverts the current selection.


The u marf user services interface usi

Selecting an individual item and clicking the magnifying glass button will open the product details page.


The u marf user services interface usi

Browse image of the product where available (note for AVHRR this is projected on a map)


The u marf user services interface usi

Detailed listing of the product metadata


The u marf user services interface usi

This button will turn on a thumbnail image for each selected product.


The u marf user services interface usi

The shopping trolley button will place all products in a virtual shopping trolley.


The u marf user services interface usi

Note: One must be logged in to place items in the trolley.

Red-highlighted icons indicate a product is in the shopping trolley.


The u marf user services interface usi

Products can still be removed from the shopping trolley with this button.


The u marf user services interface usi

Before we proceed with this order, some details on the map functions …


The u marf user services interface usi

Area selection allows one to draw a region of interest as part of a query directly on the map.


The u marf user services interface usi

Change view of the map with zoom functions.


The u marf user services interface usi

Map style (colours, grids, features) may be changed with the Map layers toolbox.


The u marf user services interface usi

Click here to turn on place names.


The u marf user services interface usi

Re-centre and re-size view of the world.


The u marf user services interface usi

Shopping Trolley tab …


The u marf user services interface usi

Click on the Shopping Trolley Tab


The u marf user services interface usi

Open ordered product tree by clicking on the folder


The u marf user services interface usi

Select an item with a mouse click.


The u marf user services interface usi

Product List


The u marf user services interface usi

Product Details


The u marf user services interface usi

Delivery Method


The u marf user services interface usi

Order Options


The u marf user services interface usi

Specific Browse if available.

Note: If product has no browse any available AVHRR browse from the same time interval is displayed.

The browse image can be used to make graphical selection of data to subset.


The u marf user services interface usi

List name here includes the sensing start time instrument and system. The U-MARF archives data from all missions and avoids any specific mission conventions.

The EPS native format is self-describing and the original product name can be found in the product header and also in the metadata here.


The u marf user services interface usi

Select Media Type

Order here is On Media


The u marf user services interface usi

Select Compression


The u marf user services interface usi

Select Format


The u marf user services interface usi

For some products possible to select only specific bands.


The u marf user services interface usi

This button will load any available associated auxiliary data.


The u marf user services interface usi

Click here to turn on spatial sub-setting options.


The u marf user services interface usi

Subset by time, browse line number or time from ascending node.


The u marf user services interface usi

Possible to hold down the mouse and pick up a graphical sub-setter at either end of the image.


The u marf user services interface usi

This is the region you will receive

Click Check Out to proceed.


The u marf user services interface usi

Summary of order. If you are happy confirm here.


The u marf user services interface usi

End User Licence Agreement. Clicking OK will agree to the terms.


The u marf user services interface usi

Take note of the order number.


The u marf user services interface usi

Click here to see the status of the order


The u marf user services interface usi

Open the tree and select your item of interest


The u marf user services interface usi

Here is the order number

This name is the internal generic archive name of the product.


The u marf user services interface usi

A query including a Region Of Interest (ROI) and the following behaviour in the shopping trolley …


The u marf user services interface usi

A query for a specific MHS 1B product is first performed to aid this demonstration., by making a strict constraint on the time window.

Hit search


The u marf user services interface usi

Single product returned with footprint on the map.


The u marf user services interface usi

Click this option and then use the mouse to interactively draw a ROI on the map.


The u marf user services interface usi

Region of interest indicated by green area.

Corresponding coordinates featured here.

Also possible to enter the co-ordinates directly in the query Region of Interest Text Fields.

Hit Search


The u marf user services interface usi

The ROI did not match the location of the product … try again.


The u marf user services interface usi

New ROI

Hit Search


The u marf user services interface usi

The product is found.


The u marf user services interface usi

Next select product and place in the shopping trolley.


The u marf user services interface usi

NOTE: This demo is using test data prior to satellite launch .. The browse image is a generic image and does not correspond to the footprint (it will for real data)

In the shopping trolley tab, the product is selected and the browse is displayed.


The u marf user services interface usi

Selecting this button will automatically subset the product according to the ROI used in the search


The u marf user services interface usi

The sub-setting is applied


The u marf user services interface usi

When an order is ready …


The u marf user services interface usi

On a subsequent login a notification of reported orders may appear.

Click “OK” to go direct to the Order Follow Up tab.


The u marf user services interface usi

Open the tree to see which orders have been completed.


The u marf user services interface usi

This order on DVDROM has been processed and is in the post.


The u marf user services interface usi

This is an on-line order.

Click here to download the results.


The u marf user services interface usi

An on-line shipping note


The u marf user services interface usi

Follow this link (or right click) to start download by standard http protocol


The u marf user services interface usi

Specific Product Orders …


The u marf user services interface usi

Select the specific order tab


The u marf user services interface usi

Options are Direct Bulk and Standing orders.


The u marf user services interface usi

Direct Order

Product Type and Satellite ID

Enter exact product time, wildcards may be used.

Submit will make the query and place the order. The tab selection switches directly to the order follow up page.


The u marf user services interface usi

All Meteosat 9 Products for 2006/06/25

11:* loaded.


The u marf user services interface usi

Direct Order : LEO Example

The query will match the sensing start time.

Internal U-MARF Setting

Set by the Producing Ground Segment

Submit


The u marf user services interface usi

The corresponding product is returned.


The u marf user services interface usi

Bulk Order …


The u marf user services interface usi

Bulk Order: intended for very large data volumes

Specify the properties of the order in the left hand fields. On submission the order will go to a submitted status and an entry appear in the order follow up pages.

Bulk order is a mechanism whereby the user can submit an order which exceeds the normal user quota. The order is processed only after a manual authorisation at EUMETSAT, only then will the status change in the order follow-up.

Tip: first check the parameters of your bulk request are viable by submitting a small volume normal order via “Query and Order”.


The u marf user services interface usi

Standing Order …


The u marf user services interface usi

Standing Order: for times in the futures allows one to set up an automatic job to provide a sequence of orders.

Define Specific Query Options …

… and related formatting parameters


The u marf user services interface usi

One must specify a name/description for the standing order.


The u marf user services interface usi

4 days

6 Hours

3 Hours

Query Interval

How do the timings work?


The u marf user services interface usi

Special branch exists in the Order Follow Up to track standing orders.


The u marf user services interface usi

That is all for now, please visit the following URL and try out the system:

http://varchive.eumetsat.org/umarf/


  • Login
