Rain

Gardens

Laurie J. Fox

Virginia Tech Hampton Roads AREC


By any other name l.jpg

By Any Other Name…

  • rain garden

  • rainscaping

  • catchwater garden

  • bioretention basin

  • infiltration trench or swale

  • BMP – best management practice

  • aesthetic opportunity


What exactly l.jpg

What Exactly?

conservation & preservation tool

water


Water quantity l.jpg

Water Quantity

  • Most abundant resource

  • 97% saltwater

  • Most of 3% in glaciers

  • Very small % in surface and groundwater for humans


Water quantity5 l.jpg

Water Quantity

  • Surface - water on or near the earth’s surface (rivers, lakes, springs, storm water)

  • Ground - water in the saturated zone below the water table (aquifer)


Water cycle l.jpg

Water Cycle


Water quality l.jpg

Water Quality

The degree of excellence relative to:

color

odor

suspended solids

nutrients

dissolved oxygen

pathogens (bacteria)


Water quantity quality l.jpg

Water Quantity & Quality

Threatened by:

point and non-point source pollution

through

leaching and runoff

of

sediments, nutrients, toxics


Slide9 l.jpg

  • Sediments - organic & inorganic solid particles

  • Nutrients - N & P

  • Toxics- pesticides,gas, oil, heavy metals, weeds, & pathogens


Rain gardens l.jpg

Rain Gardens

  • Conserve water quantity

  • Preserve water quality


Slide11 l.jpg

Why?

  • remove pollutants

  • prevent erosion

  • recharge groundwater

  • prevent flooding

  • provide wildlife habitat

  • less $ alternative to ponds


Slide12 l.jpg

  • Pioneered in Prince George County, MD

  • $2-5K per lot savings

  • additional lots in lieu of storm water ponds

  • no BMP maintenance fees + added value

    landscape features


Slide13 l.jpg

How?

  • catch rain and runoff water (6” deep)

  • temporarily hold it (< 4 days)

  • soil & plants filter sediments, nutrients, pollutants

  • water percolates down to recharge aquifers

  • water moves into atmosphere through transpiration and evaporation


Slide14 l.jpg

How?

  • existing or created depression

  • > 10’ house, 25’ septic field

  • high organic sandy loam soil

  • flood & drought tolerant plants

  • mulch, mulch, mulch

  • Voila! Instant Rain Garden!


Slide15 l.jpg

Low

Middle

High

Adams County SWCD

Quincy, IL

  • 3 planting zones

  • 4 days or less

  • 5% of drainage area

  • 6” water


Slide16 l.jpg

NCSU


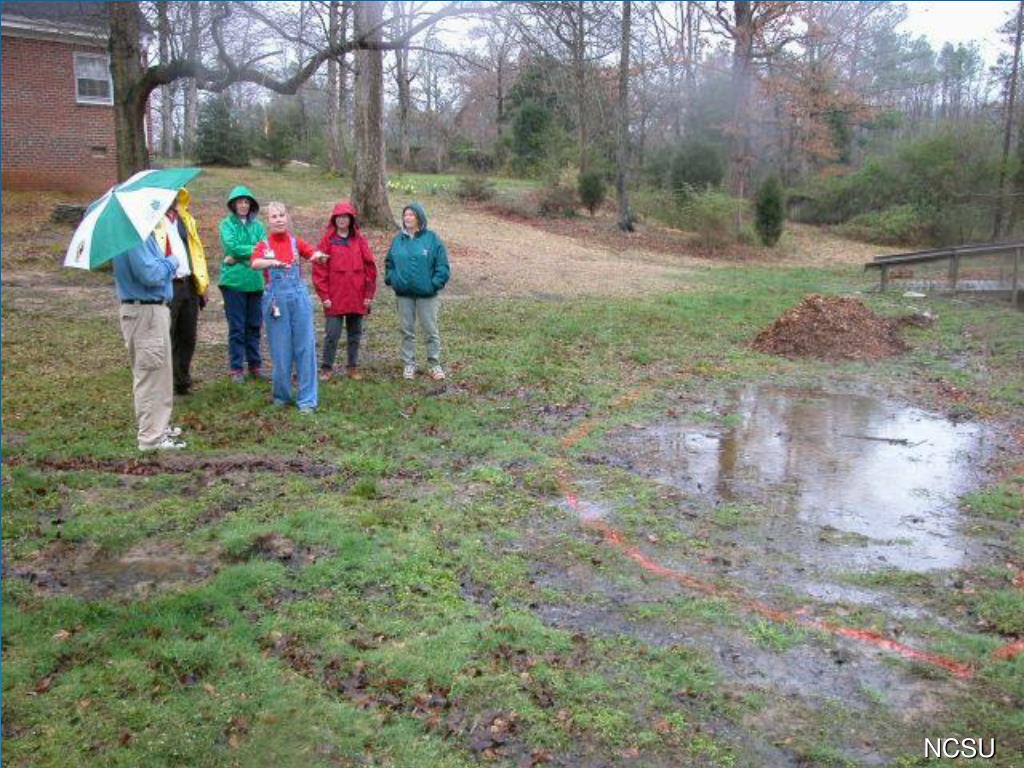

Slide17 l.jpg

NCSU


Slide18 l.jpg

NCSU


Slide19 l.jpg

  • Flow direction

    • splash block

    • extension pipe


Slide20 l.jpg

rate per hour


Slide21 l.jpg

Sizing the rain garden

  • Depth  Dimensions

    • Ponding depth 6” – Divide Impermeable area by 20

    • Ponding Depth 3” – Divide impermeable area by 10

NCSU


Sizing example l.jpg

Sizing Example

  • Roof area: 60 X 60 = 3600 sq. ft.

  • ¼ of the flow to

    downspouts: (3600 sq.ft) X 25% = 900 sq.ft

  • Roof area plus driveway: 900 + 500 = 1400 sq. ft

  • Divide square footage by 20: 1400/20 = 70 sq. ft.

    ANSWER: The water garden should be at least

    70 square feet.

    A 5 x 14 or 7 x 10 foot garden design

    would be sufficient

NCSU


Slide24 l.jpg

Marly-Holmes Neighborhood Assoc.

Minneapolis, MN


Slide25 l.jpg

Rain Garden Workshop

Blacksburg, VA


Slide26 l.jpg

NCSU


Slide30 l.jpg

NCSU


Slide31 l.jpg

Stoney Brook-Millestone Watershed Assoc.

Pennington, NJ


Slide32 l.jpg

VersiTank


Slide34 l.jpg

Old Dominion University

Norfolk, VA


Slide35 l.jpg

NCSU


Slide36 l.jpg

NCSU


Filtera l.jpg

Filtera


Virginia tech rain garden l.jpg

Virginia Tech Rain Garden

  • Virginia Tech

  • City of Virginia Beach HEC

  • Virginia Cooperative Extension

  • VB MG Water Stewards

  • Local Nurseries & SPSA

  • Local Media


Slide46 l.jpg

2007


Slide47 l.jpg

2.5” rain in 1 hour

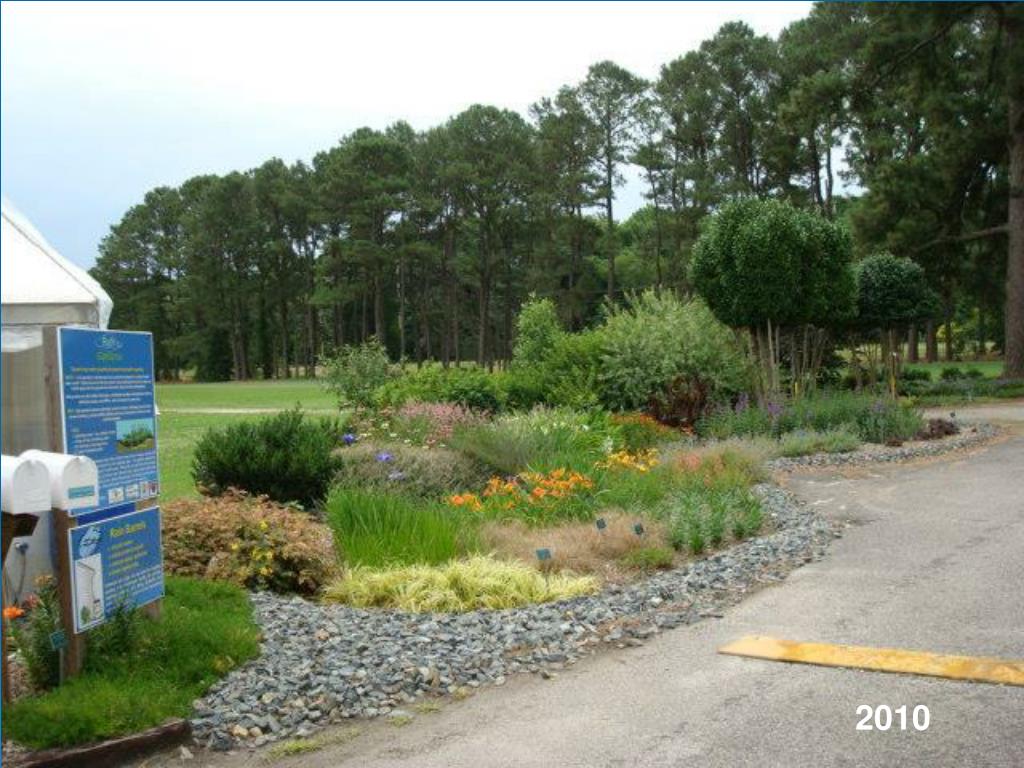

Slide50 l.jpg

2010


Slide51 l.jpg

Rain Garden Plants
