Presentation Transcript
Rain gardens l.jpg

Rain Gardens

Landscaping for water quality

Presented by the Soil and Water Conservation District of Lake County


What is a rain garden l.jpg
What is a rain garden?

  • A rain garden is a shallow depression in your yard that is planted with native flowers and grasses

  • It is positioned in the yard to receive runoff from your roof, sidewalks, driveway and lawns allowing water to slowly soak into the ground

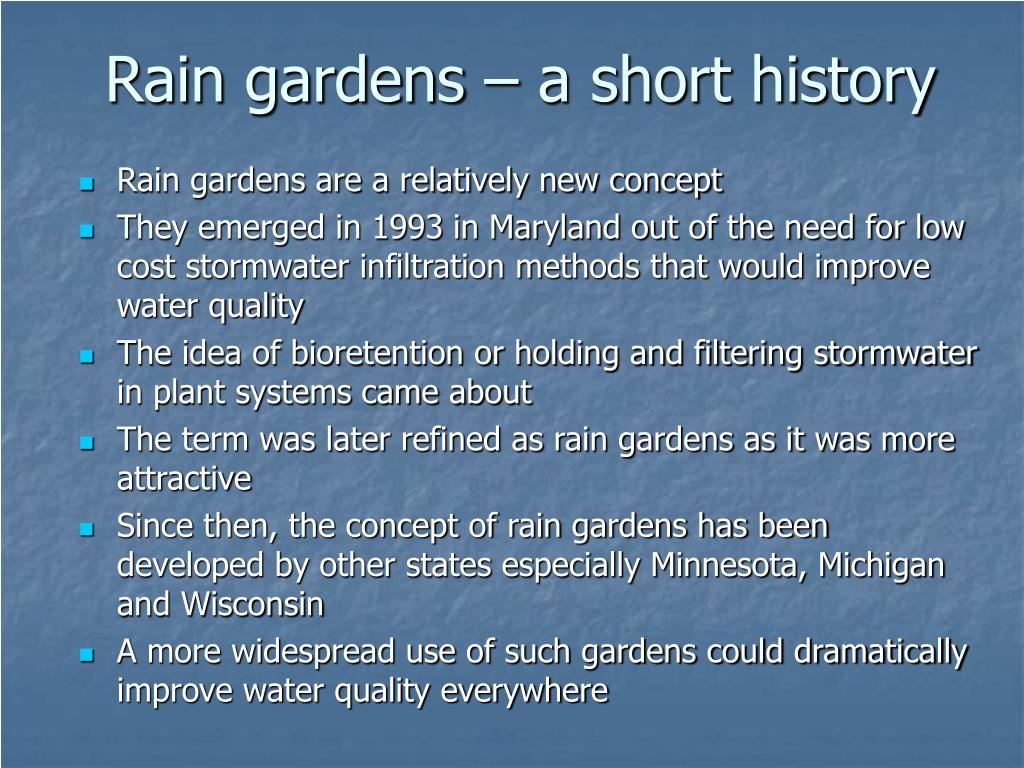

Rain gardens a short history l.jpg
Rain gardens – a short history

  • Rain gardens are a relatively new concept

  • They emerged in 1993 in Maryland out of the need for low cost stormwater infiltration methods that would improve water quality

  • The idea of bioretention or holding and filtering stormwater in plant systems came about

  • The term was later refined as rain gardens as it was more attractive

  • Since then, the concept of rain gardens has been developed by other states especially Minnesota, Michigan and Wisconsin

  • A more widespread use of such gardens could dramatically improve water quality everywhere


Why are they important l.jpg
Why are they important?

  • The conversion of land from forests, grassland and agricultural land to urban and suburban lots has reduced the natural ability rain water to infiltrate into the ground because of increased impervious surfaces

  • This results in stormwater runoff that carries pollutants from streets, parking lots and lawns into our local lakes and streams, degrading their water quality


Why are they important6 l.jpg

Green Infrastructure: A Strategic Approach to Natural Resource Planning and Conservation

Why are they important?

Urban areas are spreading rapidly...

  • Chicago (1970-1990)…

  • 288,000 acres converted

  • 35% increase in developed land

  • 4 % increase in population


Why are they important7 l.jpg
Why are they important? Resource Planning and Conservation

  • One way we can improve water quality right on our own properties, is by planting rain gardens, that can filter and re-direct rain water

  • Even though they are small in size, collectively they can make a big difference


Rain garden basics l.jpg
Rain Garden Basics Resource Planning and Conservation

  • Location

    • Your rain garden should be at least 10 feet away from your house

    • It can be placed close to your downspout so it only receives water from the roof

    • Or further away so it catches water from your roof and your lawn

    • Don’t put it where water already ponds – the idea is to encourage infiltration

    • Plants will grow easier in full sun than in shade or under a tree

    • A flat area of the yard will be easier to dig than on a slope


Location l.jpg
Location Resource Planning and Conservation

Picture courtesy of Wisconsin DNR

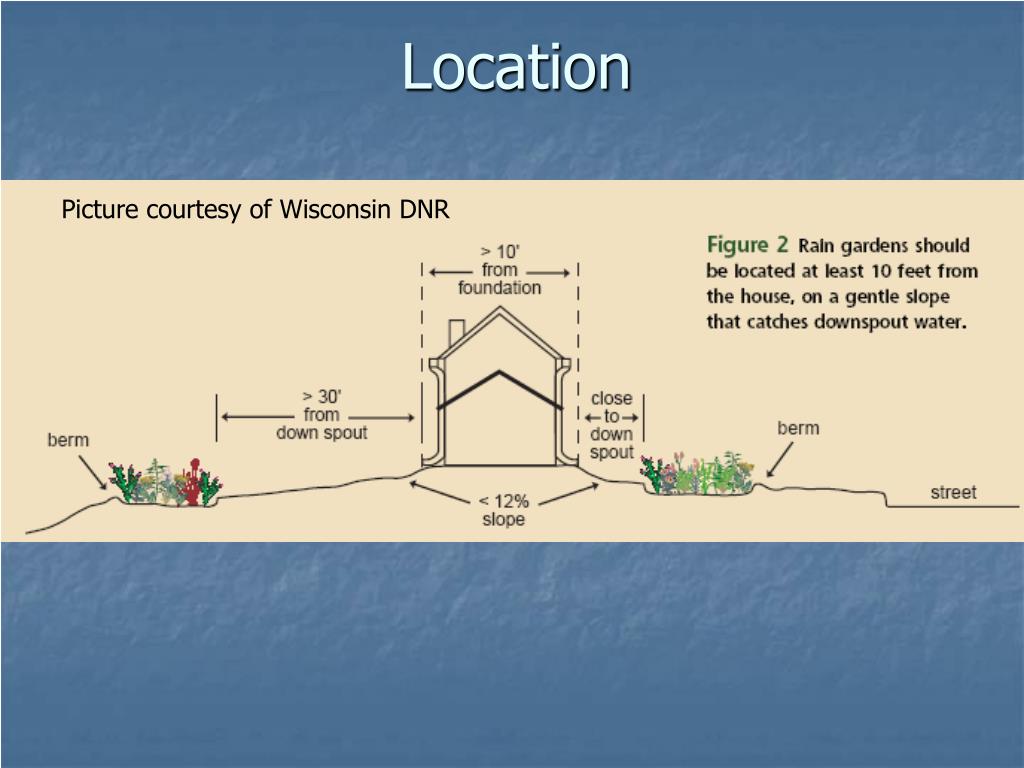

Slide10 l.jpg

Location Resource Planning and Conservation

Picture courtesy of Wisconsin DNR


Rain garden basics11 l.jpg
Rain Garden Basics Resource Planning and Conservation

  • Size

    • You should choose a garden size that you can manage; typical sizes are between 100 and 300 sq.ft.

    • The depth can vary between 4 and 8 inches

    • A garden that is too small and too shallow will not have enough plant variety and will not provide appropriate infiltration

    • Similarly a garden that is too large and too deep will be hard to maintain, expensive and will resemble a hole in the ground filled with water


Rain garden basics12 l.jpg
Rain Garden Basics Resource Planning and Conservation

  • Size

    • To find the perfect size for your garden take into considerations a few things:

      • Soil types

      • Drainage area that will feed into the garden

      • Depth of garden

  • Clayey soils drain slower that sandy and silty

  • The bigger the drain area, the bigger the garden should be

  • Depth of garden should be determined by the slope of the lawn


Rain garden basics13 l.jpg
Rain Garden Basics Resource Planning and Conservation

  • Determine soil type

    • The soaking test

    • The ribbon test

  • Determine the drainage area of your property

    • For gardens less than 30 feet from downspout

    • For gardens more than 30 feet from downspout

  • Determine the depth of the rain garden by determining the slope of the lawn


  • Determining slope l.jpg
    Determining slope Resource Planning and Conservation

    Picture courtesy of Wisconsin DNR


    Rain garden size l.jpg
    Rain Garden Size Resource Planning and Conservation

    • Having determined soil types, drainage area and depth, you can now calculate the surface area of your garden

    • Use the table below to do that

    • Find the size factor for the soil type and rain garden depth.

    • Multiply the size factor by the drainage area. This number is the recommended rain garden area.

    • If the recommended rain garden area is much more than 300 square feet, divide it into smaller rain gardens.

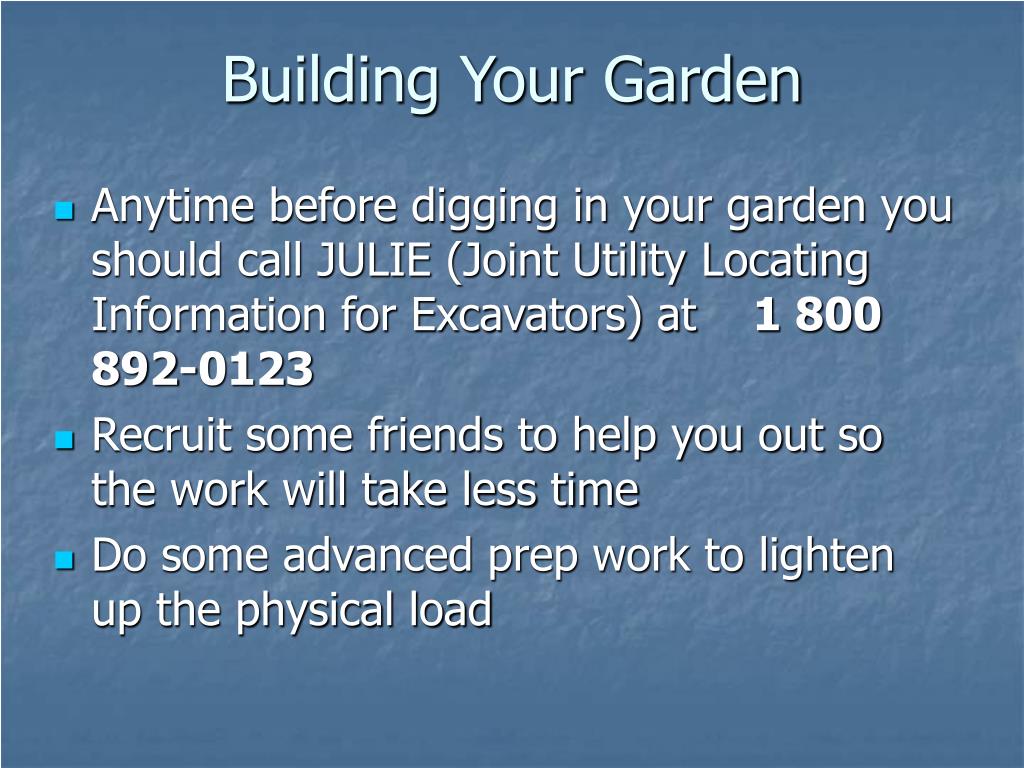

    Building your garden l.jpg
    Building Your Garden Resource Planning and Conservation

    • Anytime before digging in your garden you should call JULIE (Joint Utility Locating Information for Excavators) at 1 800 892-0123

    • Recruit some friends to help you out so the work will take less time

    • Do some advanced prep work to lighten up the physical load

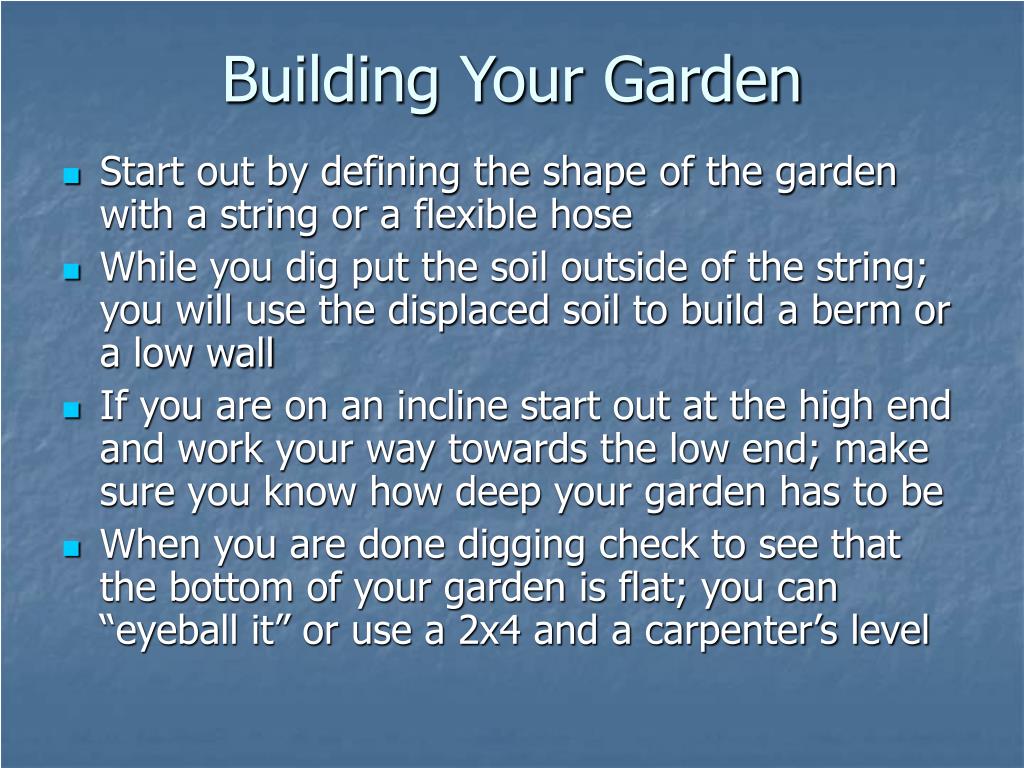

    Building your garden17 l.jpg
    Building Your Garden Resource Planning and Conservation

    • Start out by defining the shape of the garden with a string or a flexible hose

    • While you dig put the soil outside of the string; you will use the displaced soil to build a berm or a low wall

    • If you are on an incline start out at the high end and work your way towards the low end; make sure you know how deep your garden has to be

    • When you are done digging check to see that the bottom of your garden is flat; you can “eyeball it” or use a 2x4 and a carpenter’s level


    Slide18 l.jpg

    Building Your Garden Resource Planning and Conservation

    Picture courtesy of Wisconsin DNR


    Building your garden19 l.jpg
    Building Your Garden Resource Planning and Conservation

    Picture courtesy of Wisconsin DNR


    Building your garden20 l.jpg
    Building Your Garden Resource Planning and Conservation

    • If your lawn has a slope greater then 8% you will need to use some of the soil you dig to level the garden

    • The rest of the soil will be used to build the berm

    • When you are done digging, rake the soil smooth and prepare for planting

    • For better plant establishment compost can be used; you can mix it with your soil


    Building your garden21 l.jpg
    Building Your Garden Resource Planning and Conservation

    Picture courtesy of Wisconsin DNR


    Choosing plants l.jpg
    Choosing plants Resource Planning and Conservation

    • You should choose plants based on the sun/shade pattern and soil type to ensure proper growth

    • Native plants is they way to go due to their resilience and low maintenance needs

    • They come in different varieties and colors, they are drought resistant and they don’t require fertilizer and pesticides


    Root system of the prairie grasses l.jpg
    Root system of the prairie grasses Resource Planning and Conservation

    Picture Courtesy of Chicago Wilderness


    Plants for full sun l.jpg
    Plants for full sun Resource Planning and Conservation


    Plants for full sun25 l.jpg
    Plants for full sun Resource Planning and Conservation


    Plants for partial shade l.jpg
    Plants for partial shade Resource Planning and Conservation


    Plants for shady areas l.jpg
    Plants for shady areas Resource Planning and Conservation


    Planting l.jpg
    Planting Resource Planning and Conservation

    • You should come up with a pleasing design keeping in mind the height of the plants and color variation

    • Clump plants together for a visually enjoying display

    • Do not exclude the rest of your property – plan the rain garden as part of a whole

    • Native plants should be planted about 1 foot apart to allow roots to grow well

    • As soon as you finish mulch and water


    Maintenance l.jpg
    Maintenance Resource Planning and Conservation

    • The first year after planting your rain garden is very important in terms of maintenance

    • It will determine how well your garden will do in the future

    • Two key components are watering and weeding

    • Second component cannot be emphasized enough since the plants and weeds are in powerful competition for resources

    • Once the garden is established (typically it takes 2-3 years for complete establishment) the amount of maintenance will reduce considerably


    Alternative to rain gardens l.jpg
    Alternative to Rain Gardens Resource Planning and Conservation

    • If you feel that installing a rain garden is too much work, you can take advantage of rain barrels

    • They collect rain water from your roofs, which can be used for irrigation later

    • It is a cheap, easy alternative and requires no maintenance


    Rain barrels l.jpg
    Rain Barrels Resource Planning and Conservation

    • Residential irrigation can account for 40% of domestic water consumption in a given municipality

    • Rain barrels not only store water, they help decrease demand during the times when precipitation is scarce

    • Only 1/4 inch of rainfall runoff from the average roof will completely fill the typical barrel


    Rain barrels33 l.jpg
    Rain Barrels Resource Planning and Conservation

    • Rain water is ideal for watering your gardens because it tends to have fewer sediments and dissolved salts than municipal water

    • Saving water in this manner will reduce your demand for treated tap water, and save money by lowering your monthly bill


    Rain barrels34 l.jpg
    Rain Barrels Resource Planning and Conservation

    Picture Courtesy of www.rainbarrelguide.com


    Resources l.jpg
    Resources Resource Planning and Conservation

    • One of the best resources is the booklet I used for this presentation “Rain Gardens – A How To Manual For Homeowners

    • The Soil and Water Conservation District of Lake County can help answering any questions about native plants

    • Also Applied Ecological Services can help with designs and planting ideas

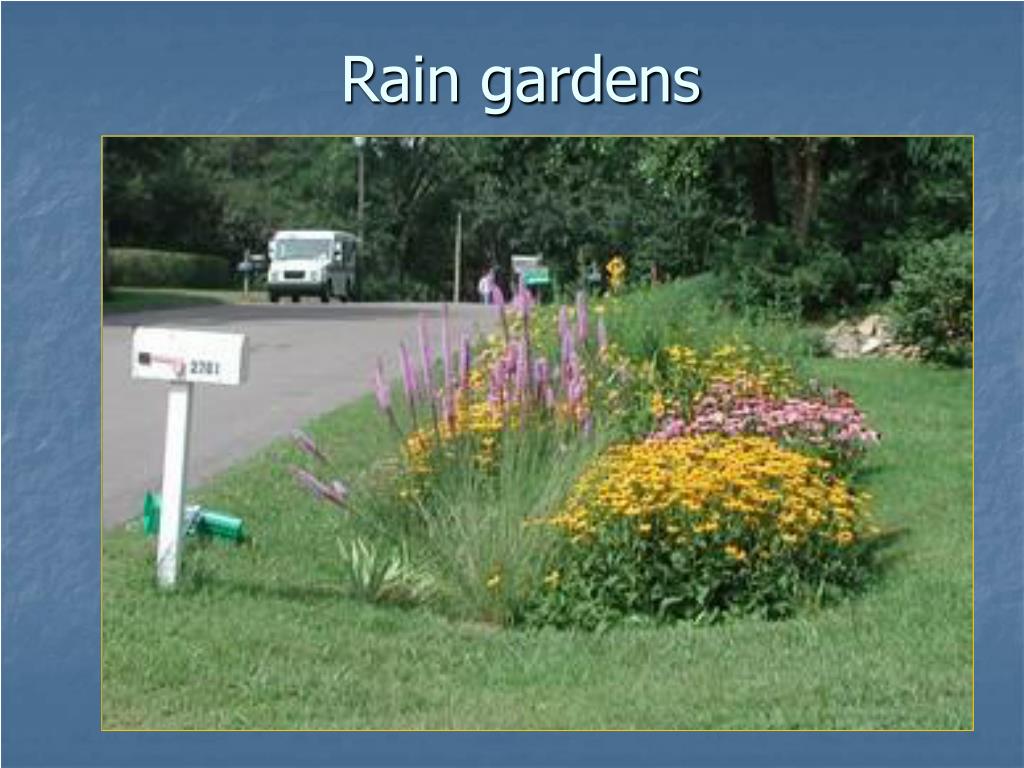

    Rain gardens36 l.jpg
    Rain gardens Resource Planning and Conservation


    Rain gardens37 l.jpg
    Rain gardens Resource Planning and Conservation


    Questions l.jpg
    Questions ??? Resource Planning and Conservation
