Presentation Transcript
Pennsylvania banner users group 2008 fall conference l.jpg

Pennsylvania Banner Users Group 2008 Fall Conference

When the moment is right will you be ready for Banner 8

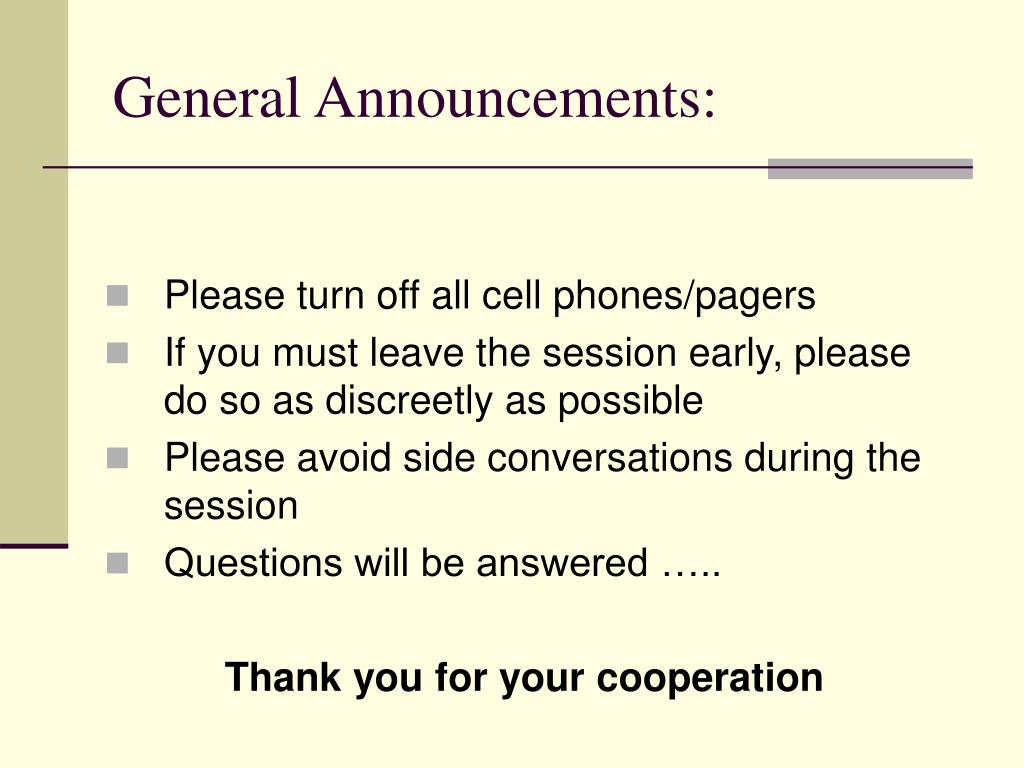

General announcements l.jpg
General Announcements:

  • Please turn off all cell phones/pagers

  • If you must leave the session early, please do so as discreetly as possible

  • Please avoid side conversations during the session

  • Questions will be answered …..

    Thank you for your cooperation


Lehigh carbon community college l c c c l.jpg
Lehigh Carbon Community College L C C C

  • Banner users since 2000

  • General/Finance/Finance SS/FinAid/HR/Student/Student SS/FacAdv SS/AR/General

  • WebTailor/WebGeneral/PosControl/Empl SS/Advancement/Document Management

  • Application Support Services

  • Director of Application Support Services Jane Gilbert

  • Banner Technical Supervisor/unix/oracle admin Don Thaler

  • Banner Technical Analyst Wayne Youngblood

  • Banner Support Analyst David Slater

  • Banner Support Analyst TBA

  • Hardware

  • Dual HP RX 6600’s

  • Apollo Production Unix 11.23 (Database and Banner)

  • Zeus Backup HP Virtual Machine

  • Artemis…backup server for banner

  • Venus …backup server for AppServer(Banforms)

  • LCC-STOR ..windows 2003 64bit file server

  • Windows 2 Windows 2003 Available

  • Windows 3 Windows 2003 Available

  • HP San Array 32 72gb drives

  • 7 300gb drive

  • Banforms INB server Windows 2003

  • Bannerweb SSB server Windows 2000


Slide4 l.jpg
WHY

  • Why Are We Changing Our Character Set?

  • You have to, required for Banner 8 to support the globalization of Banner

  • Oracle is moving away from single byte charactersets like WE8ISO8859P1 to unicode charactersets AL32UTF8.

  • You have to …


Converting to al32utf8 l.jpg
Converting to AL32UTF8

  • CSMINST .. creates tables required by csscan

  • CSSCAN .. Analyzes your current database and

  • identifies 4 types of data

  • Lossy…cannot be translated to AL32UTF8

  • must convert to WE8MSWIN1252 first

  • Truncation … data that won’t fit in the specified column length when expanding from your current characterset to AL32UTF8.. fixed by setting nls_length_semantics=CHAR in the banner 8 database

  • Convertible.. Data that can be converted to AL32UTF8 by using

  • CSALTER or DATAPUMP export/import

  • Changeless... Data remains the same


International components for unicode installation l.jpg
International Components for Unicode Installation

  • RE: Banner General 8.0 Pre-Installation Guide

  • Things you were dying to know:

  • What is ICU…is a mature, widely used set of C/C++ and Java libraries providing Unicode and Globalization support for software applications.. http://icu-project.org/download/

  • Download and untar in /usr/local/include

  • What is GNU (Gee Not Unix) .. Unix-like operating system which is free softwareftp://ftp.gnu.org/gnu/make/ for HP users http://hpux.connect.org.uk/hppd/hpux/Gnu/make-3.8 install using swinstall creates gmake in /usr/local/bin/

  • Download msgfmt.h from sghe website (faq 1-3GODR4) and place in /usr/local/include/unicode

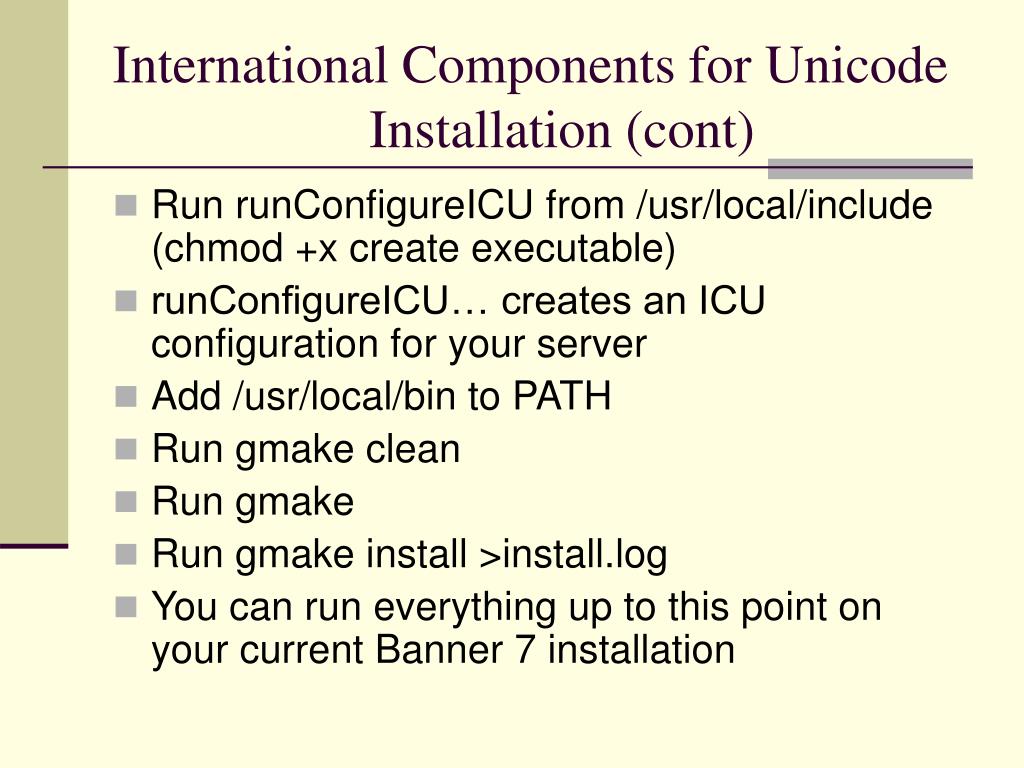

International components for unicode installation cont l.jpg
International Components for Unicode Installation (cont)

  • Run runConfigureICU from /usr/local/include (chmod +x create executable)

  • runConfigureICU… creates an ICU configuration for your server

  • Add /usr/local/bin to PATH

  • Run gmake clean

  • Run gmake

  • Run gmake install >install.log

  • You can run everything up to this point on your current Banner 7 installation


New compile environment l.jpg
New Compile Environment

  • *** the following files were downloaded from the SGHE customer support center

  • (1) sctproc8_hp_ux.mk

  • (2) beta tmclib_hp_ux.cpp (this becomes tmcilib.cpp ) in banner_home/general/c

  • (3) beta tmcilib_hp_ux.h (this becomes tmcilib.h ) in banner_home /general/c

  • (4) copy the 3 files to your general 8 install directory because the genmigr script will overlay them


Creating the al32utf8 database l.jpg
Creating the AL32UTF8 Database

  • DataPump export (expdp)/import(impdp)

  • Using sql/toad: create directory export_dir1 as ‘/u04/export’ on your banner 7 database when youre banner 8 database is created do the same: create directory pdump_dir1 as ‘/u04/export’

  • Export your banner 7 database

  • Create a banner8 instance specifing nls_characterset = AL32UTF8 and nls_length_semantics=CHAR

  • Apply oracle patches 5874989 and 5875568

  • Import the banner7 database into banner8


Additional requirements l.jpg
Additional Requirements

  • Banenv file should contain reference to ICU_HOME

  • Faq 1-kpf81..how to maintain banner 7 function keys

  • Your .env file on your inb server should have an entry:nls_lang=AMERICAN_AMERICA.AL32UTF8

  • When creating the dad for banner8 on your inb server make sure the character set is set to AMERICAN_AMERICA.AL32UTF8

  • The forms compile shells must contain an entry: nls_length_semantics=char export nls_length_semantics


Additional requirements11 l.jpg
Additional Requirements

  • If banner8 and banner7 coexist on same server you can’t use the global etc/profile for storing the new locale variables. I Modified oraenv: if [ "${ORACLE_SID}" = "BAN80" ] then#ICU additions

  • LANG=en.US.UTF-8 etc….

  • If you use evisions you need a new eviadm file and banner 8 compatible programs i.e. phpchkl,fabchkp



Top 10 signs you know when you ve been thru a banner 8 upgrade l.jpg
Top 10 signs you know when you’ve been thru a banner 8 upgrade

  • You count gnu’s instead of sheep

  • You see dancing unicodes

  • AL 32 UTF 8 is not a football score

  • Your’re on a first name basis with Scott Hardin/Colin Abbot/ Charles Shultz (University Of Illinois Banner 8 Character Set presenters)

  • You’ve got a forest of paper from downloading the oracle notes on character conversion.

  • When someone tells you you have a ‘lousy’ attititude your response is ‘up your csscan’

  • CSS no longer reminds you of a TV show

  • You think ICU is a recursive acronym for ‘ I see you ‘

  • When you hear the Cialis commercial ‘when the time is right will you be ready’ you think of Banner 8

  • You get email with a return url of WAL*MART =?UTF8?Q?=24?=500 Gift Card is Inside



Lccc banner 8 upgrade l.jpg
LCCC Banner 8 Upgrade upgrade

  • A. CSSCAN...Character Set Scan Utility (command line utility)

  • 1. Make sure LD_LIBRARY_PATH = $OH/lib:/usr/dt/lib:/usr/lib

  • SHLIB_PATH = $OH/lib:/usr/dt/lib:/usr/lib

  • 2. chmod 755 /$OH/lib/libclntsh.so.10.1

  • 3. cd /$OH/rdbms/admin

  • 4. sqlplus /nolog

  • connect /as sysdba

  • @csminst.sql... (creates user 'csmig' owner of tables and procedures for the CSSCAN)

  • exit;

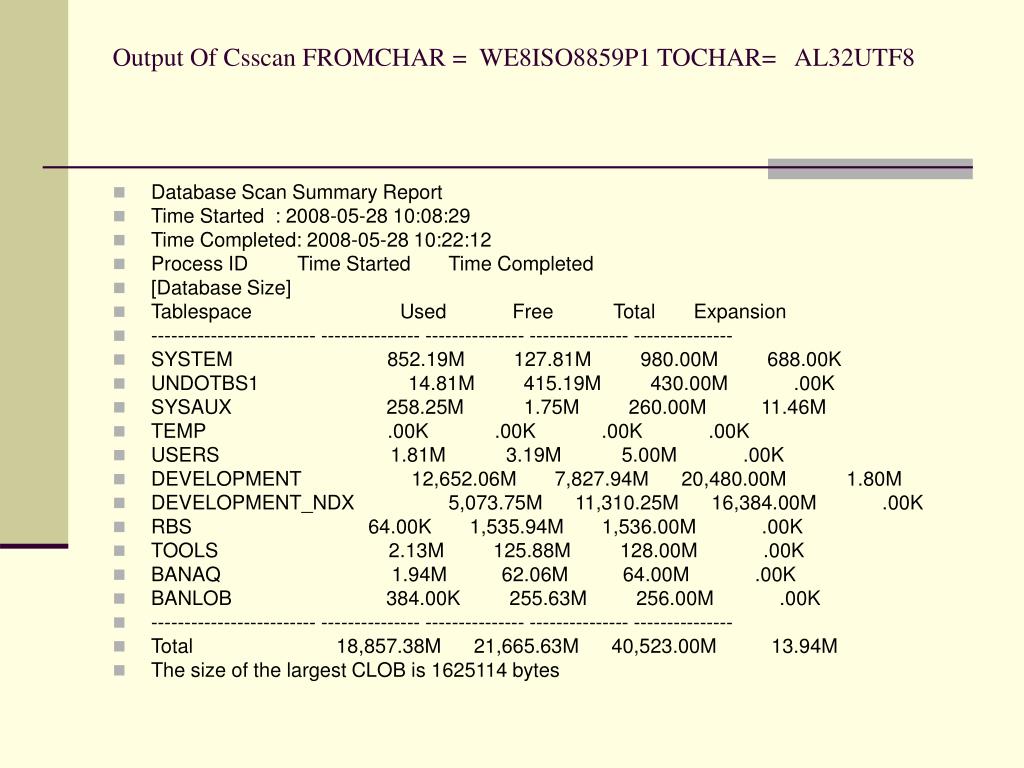

  • 5. csscan fromchar=WE8ISO8859P1 tochar=WE8ISO8859P1 log=WE8check capture=y array=1000000 process=2 ( run as sys )

  • 6. check output files WE8check.out (log file) WE8check.txt (look at the data under the columns changeless,convertible,truncation, lousy) If all data is not reported as 'CHANGELESS' see oracle note:260192.1 WE8check.err (exceptions)

  • 7. for additional information on CSSCAN see http://articles.techrepublic.com.com/5100-22_11-5219084.html


Lccc banner 8 upgrade16 l.jpg
LCCC Banner 8 Upgrade upgrade

  • B. ICU installation: (see Banner General 8.0 Pre_Installation Guide April 2008) Install International Components for Unicode (ICU)

  • (these are peculiar to HP UNIX, most of the faq's have sections on solaris/linux)

  • (1)downloaded GNU (make-3.81-ia64-11.23.depot), which i got from the HP website (http://hpux.connect.org.uk/hppd/hpux/Gnu/make-3.81) and installed using swinstall

  • (2) downloaded the ICU (icu4c-3_6-src.tar), from http://icu-project.org/download/3.6html, identified in the Banner General Pre_Installation Guide

  • (3) tar'd the icu4c-3_6-src.tar into /usr/local/include , this will become $ICU_HOME, the installation process(gmake) places the ICU files in /usr/local/lib

  • (5) download msgfmt.h from sungard website (see faq 1-3GODR4) place in /usr/local/include/unicode and /usr/local/include/icu/source/i18n/Unicode

  • note: sghe recommends files be copied as zipped files and unzipped on the server

  • (6) cd /usr/local/include

  • chmod (755) or +x /usr/local/include/runConfigureICU and then run runConfigureICu HP-UX/ACC (see faq1-3GODR4)

  • runConfigureICU --help lists the options for each of the platforms supported

  • (the default install is 64bit, for 32bit .runConfigureICU –disable-64-bit-libs)

  • (7) cd /usr/local/include/icu/source...

  • Add the home for gmake (whereis gmake) to your path statement ( e.g PATH=$PATH:/usr/local/bin )

  • Run gmake clean

  • Run gmake

  • Run gmake install > install.log (hope murphy isn't around)

  • NOTE: everything prior can be run on your production system without affecting the current Banner 7 installation


Slide17 l.jpg

  • C. upgradeNew compile script data

  • *** the following files were downloaded from the SGHE customer support center

  • (1) sctproc8_hp_ux.mk (from sungard customer support )... save as sctproc.mk and make

  • any changes using your existing sctproc.mk file (save in gen80000u directory because the genmigr process will overlay the current one with this one

  • (1a) as a result of getting this from sungard there was no need to run the buildmk process so they said

  • see defect 1-3qO4RX for info on the following files

  • (2) download beta tmclib_hp_ux.cpp (this becomes tmcilib.cpp ) in banner_home/general/c

  • (3) download beta tmcilib_hp_ux.h (this becomes tmcilib.h ) in banner_home /general/c

  • (4) see faq 1-3GODR4 ..."edit the global /etc/profile...." the variables referenced can be placed in the /etc/profile if the

  • server that is running banner8 doesn't also have a banner 7 instance, otherwise you need to make the changes to the oracle and banner users profile when they're accessing the banner 8 system.. i changed the oraenv file and added the following so that the variables are set when the oracle user or banner user selects the banner 8 sid BAN80:

  • if [ "${ORACLE_SID}" = "BAN80" ] then#ICU additions#---------------------------------------------------------------------------------LANG=en_US.UTF-8LC_ALL=en_US.UTF-8LC_COLLATE=en_US.UTF-8LC_CTYPE=en_US.UTF-8LC_MESSAGES=en_US.UTF-8LC_MONETARY=en_US.UTF-8LC_NUMERIC=en_US.UTF-8LC_TIME=en_US.UTF-8export LANG LC_ALL LC_COLLATE LC_CTYPE LC_MESSAGES LC_MONETARY LC_NUMERIC LC_TIME

  • (5) The new banenv file contains references for LD_LIBRARY_PATH and ICU_HOME

  • (6) faq's referenced: 1-3GODR4,1-3QO4RX

  • (7) if you are using evisions you will need to contact them for a new eviadm file, when compiling eviadm make sure there is no eviadm.c file present

  • (9) check faq #1-kpf8l which describes how to maintain the banner 7 function keys

  • (10) there must be an entry in your .env file on your application server for NLS_LANG=AMERICAN_AMERICA.AL32UTF8

  • (11) when creating the dad for banner 8 make sure the character set is set to AMERICAN_AMERICA.AL32UTF8

  • (12) the forms compile shell must contain an entry for NLS_LENGTH_SEMANTICS=CHAR export NLS_LENGTH_SEMANTICS

  • (most of the ones delivered by sghe do have above settings)

  • (13) while testing some of the processes that run thru jobsubmission, like 'farinvs' , we found the $ in the output file was being replaced by some weird character, we had to set the locale (LC) variables to a null value i.e. LANG=; LC_ALL=; etc. (defect 1-3VXNAY )


Lccc banner 8 upgrade18 l.jpg
LCCC Banner 8 Upgrade upgrade

  • D. Database export/import information for data pump

  • (1) create directory on your banner 7 and banner 8 databases:

  • banner7 : using sql create directory export_dir1 as '/u04/export'

  • banner8 : using sql create directory dpump_dir1 as '/u04/export'

  • (2) export using datapump: expdp system/password parfile=/u04/export/expdp.par logfile=LCCC_export.log (attachment 1)

  • (3) import using datapump: impdp system/password parfile=/u04/export/full_import.par logfile=BAN80_import.log (attachment 2)

  • E. DB Creation

  • (1) create banner8 database with NLS_CHARACTERSET = AL32UTF8 (this is the database character set)

  • (2) before importing the banner 7 db into the banner 8 db set nls_length_semantics=char

  • ALTER SYSTEM SET NLS_LENGTH_SEMANTICS=CHAR SCOPE=BOTH

  • (3) apply patches 5874989 and 5875568

  • (4) see attachement 4 for the scripts I used to create my banner 8 database, created by running dbua and saving scripts.


Lccc banner 8 upgrade19 l.jpg
LCCC Banner 8 Upgrade upgrade

  • F. Creating your production banner 8 instance from your banner 8 test instance.

  • See (http://www.uaex.edu/srea/RMAN_Scripts_and_Tips.htm) Steve Rea (Univ Of Arkansas)

  • (1) Run rmanbackup.shl to create a backup of your banner 8 test instance.

  • (2) Run rmanclone.shl to copy your banner 8 test instance over to your banner production instance. (this step drops the production db and recreates it)

  • (3) Copy your banner 8 test directories to your banner 8 production directories (this assumes your banner 8 test directories were created from you banner 7 directories)

  • a. change the directory to /u01/app/sghe/banLCCC (banner prouduction) and execute the command rm -rf /u01/app/sghe/banLCCC (this removes all the directories and sub directories)

  • b.change directory to /u01/app/sghe/banTEST (home for banner 8 test) and execute: find . -print|cpio -pudmv /u01/app/sghe/banLCCC

  • (this copies all the directories and sub directories from banTEST to banLCCC(production banner 8).

  • c.change the banenv file thats located in

  • /u01/app/sghe/banLCCC/admin because its entries point to the banner TEST home.

  • (4) If your Test directories are not on the same mount point as your production directories e.g TEST = /u04/app/sghe/banTEST and production is /u02/app/sghe/banLCCC then you will need to delete the $BANNER_LINKS directory and rebuild it using banlink.shl or banlnks.shl found in the $BANNER_HOME directory

  • (5) Run the Banner 8 upgrade scripts skipping the c /cobol compiles, gurutlrp

  • and migration Steps.

  • (6) Copy the .fmb and .fmx files from your banner 8 test environment to your production environment (no need to recompile as long as they both use the same seed nrs)


Lccc banner 8 upgrade20 l.jpg
LCCC Banner 8 Upgrade upgrade

  • G. Interesting facts

  • (1) The database character set is the character set of CHAR, VARCHAR2, LONG, and CLOB data stored in the database columns, and of SQL and PL/SQL text stored in the Data Dictionary.

  • The national character set is the character set of NCHAR, NVARCHAR2, and NCLOB data types. Banner does not use these datatypes.

  • (2) (from metalink) If you do *not* use N-types then there is NO problem at all with NLS_NCHAR_CHARACTERSET=AL16UTF16 and we strongly advice you to keep NLS_NCHAR_CHARACTERSET = AL16UTF16

  • (3) to determine if you have N-type columns?

  • select distinct OWNER, TABLE_NAME from DBA_TAB_COLUMNS where DATA_TYPE in ('NCHAR','NVARCHAR2', 'NCLOB');

  • (4) If you have only the SYS / SYSTEM tables listed in point ( 3) then you don't have USER data using N-type columns.

  • Your database will just have the -default- AL16UTF16 NLS_NCHAR_CHARACTERSET declaration after the upgrade and the standard sys/system tables.

  • See Metalink note Note:276914.1 The National Character Set in Oracle 9i and 10g

  • A select from v$parameters or nls_instance_parameters shows the value of nls_length_semantics at the moment the d.b was started.

  • A select form nls_database_parameters shows the value when the d.b was created

  • (5) The name “GNU” is a recursive acronym for “GNU's Not Unix”; it is pronounced g-noo, as one syllable with no vowel sound between the g and the n.

  • (6) A recursive acronym (or occasionally recursive initialism, and sometimes recursive backronym) is an abbreviation that refers to itself in the expression for which it stands. (one nation under god)

  • (7) A backronym (or bacronym) is a phrase that is constructed "after the fact" from a previously existing word or abbreviation, the abbreviation being an initialism or an acronym. Backronyms may be invented with humorous intent, or may be a type of false or folk etymology.

  • (8) The word is a portmanteau term combining back and acronym, coined in 1983[1] and documented from 1994:


Lccc banner 8 upgrade21 l.jpg
LCCC Banner 8 Upgrade upgrade

  • Top 10 signs you know when you’ve been thru a banner 8 upgrade;

  • You count gnu’s instead of sheep

  • You see dancing unicodes

  • AL 32 UTF 8 is not a football score

  • Your’re on a first name basis with Scott Hardin/Colin Abbot/ Charles Shultz (University Of Illinois Banner 8 Character Set presenters)

  • You’ve got a forest of paper from downloading the oracle notes on character conversion.

  • When someone tells you you have a ‘lousy’ attititude your response is ‘up your csscan’

  • CSS no longer reminds you of a TV show

  • You think ICU is an acronym for ‘ I see you ‘

  • When you hear the Cialis commercial ‘when the time is right will you be ready’ you think of Banner 8

  • You get email with a return url of WAL*MART =?UTF8?Q?=24?=500 Gift Card is Inside


Lccc banner 8 upgrade22 l.jpg
LCCC Banner 8 Upgrade upgrade

  • Additional references:

  • http://aprilcsims.wordpress.com/2008/07/10/migrating-to-al32utf8-on-10gr2-for-banner/

  • http://www.mcgill.ca/isr-dba/presentations/ under Sungard Summit


Lccc banner 8 upgrade23 l.jpg
LCCC Banner 8 Upgrade upgrade

  • Expdp.par

  • directory=export_dir1

  • dumpfile=expdp_full_lccc.dmp

  • full=Y

  • Impdp systen/xxxxx full=y parfile=/u04/export/full_import.par logfile=ban80_import.log

  • Full_import.par

  • directory=dpump_dir1

  • dumpfile=expdp_full_lccc.dmp

  • REMAP_DATAFILE=/u02/oradata/LCCC/banaq_LCCC_01.dbf:/u02/oradata/JANE/banaq_JANE_01.dbf

  • REMAP_DATAFILE=/u02/oradata/LCCC/banlob_LCCC_01.dbf:/u02/oradata/JANE/banlob_JANE_01.dbf

  • REMAP_DATAFILE=/u02/oradata/LCCC/cntrl_LCCC_01.ctl:/u02/oradata/JANE/cntrl_JANE_01.ctl

  • REMAP_DATAFILE=/u02/oradata/LCCC/cntrl_LCCC_02.ctl:/u02/oradata/JANE/cntrl_JANE_01.ctl

  • REMAP_DATAFILE=/u02/oradata/LCCC/cntrl_LCCC_03.ctl:/u02/oradata/JANE/cntrl_JANE_01.ctl

  • REMAP_DATAFILE=/u02/oradata/LCCC/devl_LCCC_01.dbf://u02/oradata/JANE/devl_JANE_01.dbf

  • REMAP_DATAFILE=/u02/oradata/LCCC/devl_LCCC_02.dbf:/u02/oradata/JANE/devl_JANE_02.dbf

  • REMAP_DATAFILE=/u02/oradata/LCCC/devl_LCCC_03.dbf:/u02/oradata/JANE/devl_JANE_03.dbf

  • REMAP_DATAFILE=/u02/oradata/LCCC/devl_LCCC_04.dbf:/u02/oradata/JANE/devl_JANE_04.dbf

  • REMAP_DATAFILE=/u02/oradata/LCCC/devl_LCCC_05.dbf:/u02/oradata/JANE/devl_JANE_05.dbf

  • REMAP_DATAFILE=/u02/oradata/LCCC/devlindx_LCCC_01.dbf:/u02/oradata/JANE/devlindx_JANE_01.dbf

  • REMAP_DATAFILE=/u02/oradata/LCCC/devlindx_LCCC_02.dbf:/u02/oradata/JANE/devlindx_JANE_02.dbf

  • REMAP_DATAFILE=/u02/oradata/LCCC/devlindx_LCCC_03.dbf:/u02/oradata/JANE/devlindx_JANE_03.dbf

  • REMAP_DATAFILE=/u02/oradata/LCCC/devlindx_LCCC_04.dbf:/u02/oradata/JANE/devlindx_JANE_04.dbf

  • REMAP_DATAFILE=/u02/oradata/LCCC/rbs_LCCC_01.dbf:/u02/oradata/JANE/rbs_JANE_01.dbf


Lccc banner 8 upgrade24 l.jpg
LCCC Banner 8 Upgrade upgrade

  • REMAP_DATAFILE=/u02/oradata/LCCC/redo_LCCC_01a.log:/u02/oradata/JANE/redo_JANE_01a.log

  • REMAP_DATAFILE=/u02/oradata/LCCC/redo_LCCC_01b.log:/u02/oradata/JANE/redo_JANE_01b.log

  • REMAP_DATAFILE=/u02/oradata/LCCC/redo_LCCC_02a.log:/u02/oradata/JANE/redo_JANE_02a.log

  • REMAP_DATAFILE=/u02/oradata/LCCC/redo_LCCC_02b.log:/u02/oradata/JANE/redo_JANE_02b.log

  • REMAP_DATAFILE=/u02/oradata/LCCC/redo_LCCC_03a.log:/u02/oradata/JANE/redo_JANE_03a.log

  • REMAP_DATAFILE=/u02/oradata/LCCC/redo_LCCC_03b.log:/u02/oradata/JANE/redo_JANE_03b.log

  • REMAP_DATAFILE=/u02/oradata/LCCC/sysaux_LCCC_01.dbf:/u02/oradata/JANE/sysaux_JANE_01.dbf

  • REMAP_DATAFILE=/u02/oradata/LCCC/system_LCCC_01.dbf:/u02/oradata/JANE/system_JANE_01.dbf

  • REMAP_DATAFILE=/u02/oradata/LCCC/temp_LCCC_01.dbf:/u02/oradata/JANE/temp_JANE_01.dbf

  • REMAP_DATAFILE=/u02/oradata/LCCC/tools_LCCC_01.dbf:/u02/oradata/JANE/tools_JANE_01.dbf

  • REMAP_DATAFILE=/u02/oradata/LCCC/undotbs_LCCC_01.dbf:/u02/oradata/JANE/undotbs_JANE_01.dbf

  • REMAP_DATAFILE=/u02/oradata/LCCC/users_LCCC_01.dbf:/u02/oradata/JANE/users_JANE_01.dbf


Lccc banner 8 upgrade25 l.jpg
LCCC Banner 8 Upgrade upgrade

  • BAN80.sh

  • #!/bin/sh

  • #mkdir -p /u01/app/oracle/admin/BAN80/adump

  • #mkdir -p /u01/app/oracle/admin/BAN80/bdump

  • #mkdir -p /u01/app/oracle/admin/BAN80/cdump

  • #mkdir -p /u01/app/oracle/admin/BAN80/dpdump

  • #mkdir -p /u01/app/oracle/admin/BAN80/pfile

  • #mkdir -p /u01/app/oracle/admin/BAN80/udump

  • #mkdir -p /u01/app/oracle/product/10.2/cfgtoollogs/dbca/BAN80

  • #mkdir -p /u01/app/oracle/product/10.2/dbs

  • #mkdir -p /u02/oradata/BAN80

  • ORACLE_SID=BAN80; export ORACLE_SID

  • echo You should Add this entry in the /etc/oratab: BAN80:/u01/app/oracle/product/10.2.0:Y

  • /u01/app/oracle/product/10.2/bin/sqlplus /nolog @/u01/app/oracle/admin/BAN80/scripts/BAN80_CREATE_DB.sql


Lccc banner 8 upgrade26 l.jpg
LCCC Banner 8 Upgrade upgrade

  • BAN80_CREATE_DB.sql

  • set verify off

  • PROMPT specify a password for sys as parameter 1;

  • DEFINE sysPassword = &1

  • PROMPT specify a password for system as parameter 2;

  • DEFINE systemPassword = &2

  • PROMPT specify a password for sysman as parameter 3;

  • DEFINE sysmanPassword = &3

  • PROMPT specify a password for dbsnmp as parameter 4;

  • DEFINE dbsnmpPassword = &4

  • host /u01/app/oracle/product/10.2/bin/orapwd file=/u01/app/oracle/product/10.2/dbs/orapwBAN80 password=&&sysPassword force=y

  • @/u01/app/oracle/admin/BAN80/scripts/CloneRmanRestore.sql

  • @/u01/app/oracle/admin/BAN80/scripts/cloneDBCreation.sql

  • @/u01/app/oracle/admin/BAN80/scripts/postScripts.sql

  • @/u01/app/oracle/admin/BAN80/scripts/postDBCreation.sql


Lccc banner 8 upgrade27 l.jpg
LCCC Banner 8 Upgrade upgrade

  • CloneRmanRestore.sql

  • connect "SYS"/"&&sysPassword" as SYSDBA

  • set echo on

  • spool /u01/app/oracle/admin/BAN80/scripts/CloneRmanRestore.log

  • startup nomount pfile="/u01/app/oracle/admin/BAN80/scripts/init.ora";

  • @/u01/app/oracle/admin/BAN80/scripts/rmanRestoreDatafiles.sql;


Lccc banner 8 upgrade28 l.jpg
LCCC Banner 8 Upgrade upgrade

  • Init.ora

  • ##############################################################################

  • # Copyright (c) 1991, 2001, 2002 by Oracle Corporation

  • ##############################################################################

  • ###########################################

  • # Cache and I/O

  • ###########################################

  • db_block_size=8192

  • db_file_multiblock_read_count=16

  • ###########################################

  • # Cursors and Library Cache

  • ###########################################

  • open_cursors=300

  • ###########################################

  • # Database Identification

  • ###########################################

  • db_domain=artemis.lccc.edu

  • db_name=BAN80

  • ###########################################

  • # Diagnostics and Statistics

  • ###########################################

  • background_dump_dest=/u01/app/oracle/admin/BAN80/bdump

  • core_dump_dest=/u01/app/oracle/admin/BAN880/cdump

  • user_dump_dest=/u01/app/oracle/admin/BAN80/udump

  • ###########################################

  • # File Configuration

  • ###########################################

  • control_files=("/u02/oradata/BAN80/cntrl_BAN80_01.ctl", "/u02/oradata/BAN80/cntrl_BAN80_02.ctl", "/u02/oradata/BAN80/cntrl_BAN80_03.ctl")


Lccc banner 8 upgrade29 l.jpg
LCCC Banner 8 Upgrade upgrade

  • ###########################################

  • # Job Queues

  • ###########################################

  • job_queue_processes=10

  • ###########################################

  • # Miscellaneous

  • ###########################################

  • compatible=10.2.0.3.0

  • ###########################################

  • # Processes and Sessions

  • ###########################################

  • processes=150

  • ###########################################

  • # SGA Memory

  • ###########################################

  • sga_target=1073741824

  • ###########################################

  • # Security and Auditing

  • ###########################################

  • audit_file_dest=/u01/app/oracle/admin/BAN80/adump

  • remote_login_passwordfile=EXCLUSIVE

  • ###########################################

  • # Shared Server

  • ###########################################

  • dispatchers="(PROTOCOL=TCP) (SERVICE=BAN80XDB)"

  • ###########################################

  • # Sort, Hash Joins, Bitmap Indexes

  • ###########################################

  • pga_aggregate_target=268435456

  • ###########################################

  • # System Managed Undo and Rollback Segments

  • ###########################################

  • undo_management=AUTO

  • undo_tablespace=UNDOTBS1


Lccc banner 8 upgrade30 l.jpg
LCCC Banner 8 Upgrade upgrade

  • RmanRestoreDatafiles.sql

  • set echo off;

  • set serveroutput on;

  • select TO_CHAR(systimestamp,'YYYYMMDD HH:MI:SS') from dual;

  • variable devicename varchar2(255);

  • declare

  • omfname varchar2(512) := NULL;

  • done boolean;

  • begin

  • dbms_output.put_line(' ');

  • dbms_output.put_line(' Allocating device.... ');

  • dbms_output.put_line(' Specifying datafiles... ');

  • :devicename := dbms_backup_restore.deviceAllocate;

  • dbms_output.put_line(' Specifing datafiles... ');

  • dbms_backup_restore.restoreSetDataFile;

  • dbms_backup_restore.restoreDataFileTo(1, '/u02/oradata/BAN80/system_BAN80_01.dbf', 0, 'SYSTEM');

  • dbms_backup_restore.restoreDataFileTo(2, '/u02/oradata/BAN80/undotbs_BAN80_01.dbf', 0, 'UNDOTBS1');

  • dbms_backup_restore.restoreDataFileTo(3, '/u02/oradata/BAN80/sysaux_BAN80_01.dbf', 0, 'SYSAUX');

  • dbms_backup_restore.restoreDataFileTo(4, '/u02/oradata/BAN80/users_BAN80_01.dbf', 0, 'USERS');

  • dbms_output.put_line(' Restoring ... ');

  • dbms_backup_restore.restoreBackupPiece('/u01/app/oracle/product/10.2/assistants/dbca/templates/Seed_Database.dfb', done);

  • if done then

  • dbms_output.put_line(' Restore done.');

  • else

  • dbms_output.put_line(' ORA-XXXX: Restore failed ');

  • end if;

  • dbms_backup_restore.deviceDeallocate;

  • end;

  • /

  • select TO_CHAR(systimestamp,'YYYYMMDD HH:MI:SS') from dual;


Lccc banner 8 upgrade31 l.jpg
LCCC Banner 8 Upgrade upgrade

  • CloneDBCreation.sql

  • connect "SYS"/"&&sysPassword" as SYSDBA

  • set echo on

  • spool /u01/app/oracle/admin/BAN80/scripts/cloneDBCreation.log

  • Create controlfile reuse set database "BAN80"

  • MAXINSTANCES 8

  • MAXLOGHISTORY 1

  • MAXLOGFILES 16

  • MAXLOGMEMBERS 3

  • MAXDATAFILES 100

  • Datafile

  • '/u02/oradata/BAN80/system_BAN80_01.dbf',

  • '/u02/oradata/BAN80/undotbs_BAN80_01.dbf',

  • '/u02/oradata/BAN80/sysaux_BAN80_01.dbf',

  • '/u02/oradata/BAN80/users_BAN80_01.dbf'

  • LOGFILE GROUP 1 ('/u02/oradata/BAN80/redo_BAN80_01a.log','/u02/oradata/BAN80/redo_BAN80_01b.log') SIZE 6M,

  • GROUP 2 ('/u02/oradata/BAN80/redo_BAN80_02a.log','/u02/oradata/BAN80/redo_BAN80_02b') SIZE 6M,

  • GROUP 3 ('/u02/oradata/BAN80/redo_BAN80_03a.log','/u02/oradata/BAN80/redo_BAN80_03b.log') SIZE 6M RESETLOGS;

  • exec dbms_backup_restore.zerodbid(0);

  • shutdown immediate;

  • startup nomount pfile="/u01/app/oracle/admin/BAN80/scripts/initBAN80Temp.ora";

  • Create controlfile reuse set database "BAN80"

  • MAXINSTANCES 8

  • MAXLOGHISTORY 1

  • MAXLOGFILES 16

  • MAXLOGMEMBERS 3

  • MAXDATAFILES 100


Lccc banner 8 upgrade32 l.jpg
LCCC Banner 8 Upgrade upgrade

  • Datafile

  • '/u02/oradata/BAN80/system_BAN80_01.dbf',

  • '/u02/oradata/BAN80/undotbs_BAN80_01.dbf',

  • '/u02/oradata/BAN80/sysaux_BAN80_01.dbf',

  • '/u02/oradata/BAN80/users_BAN80_01.dbf'

  • LOGFILE GROUP 1 ('/u02/oradata/BAN80/redo_BAN80_01a.log','/u02/oradata/BAN80/redo_BAN80_01b.log') SIZE 6M,

  • GROUP 2 ('/u02/oradata/BAN80/redo_BAN80_02a.log','/u02/oradata/BAN80/redo_BAN80_02b.log') SIZE 6M,

  • GROUP 3 ('/u02/oradata/BAN80/redo_BAN80_03a.log','/u02/oradata/BAN80/redo_BAN80_03b.log') SIZE 6M RESETLOGS;

  • alter system enable restricted session;

  • alter database "BAN80" open resetlogs;

  • alter database rename global_name to "BAN80.artemis.lccc.edu";

  • ALTER TABLESPACE TEMP ADD TEMPFILE '/u02/oradata/BAN80/temp_BAN80_01.dbf' SIZE 20480K REUSE AUTOEXTEND ON NEXT 640K MAXSIZE UNLIMITED;

  • select tablespace_name from dba_tablespaces where tablespace_name='USERS';

  • select sid, program, serial#, username from v$session;

  • alter database character set INTERNAL_CONVERT AL32UTF8;

  • alter database national character set INTERNAL_CONVERT AL16UTF16;

  • alter user sys identified by "&&sysPassword";

  • alter user system identified by "&&systemPassword";

  • alter system disable restricted session;


Lccc banner 8 upgrade33 l.jpg
LCCC Banner 8 Upgrade upgrade

  • InitBan80Temp.ora

  • ##############################################################################

  • # Copyright (c) 1991, 2001, 2002 by Oracle Corporation

  • ##############################################################################

  • ###########################################

  • # Cache and I/O

  • ###########################################

  • db_block_size=8192

  • db_file_multiblock_read_count=16

  • ###########################################

  • # Cursors and Library Cache

  • ###########################################

  • open_cursors=300

  • ###########################################

  • # Database Identification

  • ###########################################

  • db_domain=artemis.lccc.edu

  • db_name=BAN80

  • ###########################################

  • # Diagnostics and Statistics

  • ###########################################

  • background_dump_dest=/u01/app/oracle/admin/BAN80/bdump

  • core_dump_dest=/u01/app/oracle/admin/BAN80/cdump

  • user_dump_dest=/u01/app/oracle/admin/BAN80/udump

  • ###########################################

  • # File Configuration

  • ###########################################

  • control_files=("/u02/oradata/BAN80/cntrl_BAN80_01.ctl", "/u02/oradata/BAN80/cntrl_BAN80_02.ctl", "/u02/oradata/BAN80/cntrl_BAN80_03.ctl")

  • ###########################################

  • # Job Queues

  • ###########################################


Lccc banner 8 upgrade34 l.jpg
LCCC Banner 8 Upgrade upgrade

  • ###########################################

  • # Miscellaneous

  • ###########################################

  • compatible=10.2.0.3.0

  • ###########################################

  • # Processes and Sessions

  • ###########################################

  • processes=150

  • ###########################################

  • # SGA Memory

  • ###########################################

  • sga_target=1073741824

  • ###########################################

  • # Security and Auditing

  • ###########################################

  • audit_file_dest=/u01/app/oracle/admin/BAN80/adump

  • remote_login_passwordfile=EXCLUSIVE

  • ###########################################

  • # Shared Server

  • ###########################################

  • dispatchers="(PROTOCOL=TCP) (SERVICE=BAN80XDB)"

  • ###########################################

  • # Sort, Hash Joins, Bitmap Indexes

  • ###########################################

  • pga_aggregate_target=268435456

  • ###########################################

  • # System Managed Undo and Rollback Segments

  • ###########################################

  • undo_management=AUTO

  • undo_tablespace=UNDOTBS1

  • _no_recovery_through_resetlogs=true


Lccc banner 8 upgrade35 l.jpg
LCCC Banner 8 Upgrade upgrade

  • postScripts.sql

  • connect "SYS"/"&&sysPassword" as SYSDBA

  • set echo on

  • spool /u01/app/oracle/admin/BAN80/scripts/postScripts.log

  • @/u01/app/oracle/product/10.2/rdbms/admin/dbmssml.sql;

  • execute dbms_datapump_utl.replace_default_dir;

  • commit;

  • connect "SYS"/"&&sysPassword" as SYSDBA

  • alter session set current_schema=ORDSYS;

  • @/u01/app/oracle/product/10.2/ord/im/admin/ordlib.sql;

  • alter session set current_schema=SYS;

  • connect "SYS"/"&&sysPassword" as SYSDBA

  • connect "SYS"/"&&sysPassword" as SYSDBA

  • execute dbms_swrf_internal.cleanup_database(cleanup_local => FALSE);

  • commit;

  • spool off


Lccc banner 8 upgrade36 l.jpg
LCCC Banner 8 Upgrade upgrade

  • postDBcreation.sql

  • connect "SYS"/"&&sysPassword" as SYSDBA

  • set echo on

  • spool /u01/app/oracle/admin/BAN80/scripts/postDBCreation.log

  • connect "SYS"/"&&sysPassword" as SYSDBA

  • set echo on

  • create spfile='/u01/app/oracle/product/10.2/dbs/spfileBAN80.ora' FROM pfile='/u01/app/oracle/admin/BAN80/scripts/init.ora';

  • shutdown immediate;

  • connect "SYS"/"&&sysPassword" as SYSDBA

  • startup ;

  • alter user SYSMAN identified by "&&sysmanPassword" account unlock;

  • alter user DBSNMP identified by "&&dbsnmpPassword" account unlock;

  • select 'utl_recomp_begin: ' || to_char(sysdate, 'HH:MI:SS') from dual;

  • execute utl_recomp.recomp_serial();

  • select 'utl_recomp_end: ' || to_char(sysdate, 'HH:MI:SS') from dual;

  • host /u01/app/oracle/product/10.2/bin/emca -config dbcontrol db -silent -DB_UNIQUE_NAME BAN80 -PORT 1521 -EM_HOME /u01/app/oracle/product/10.2 -LISTENER LISTENER -SERVICE_NAME BAN80.artemis.lccc.edu -SYS_PWD &&sysPassword -SID BAN80 -ORACLE_HOME /u01/app/oracle/product/10.2 -DBSNMP_PWD &&dbsnmpPassword -HOST artemis.lccc.edu -LISTENER_OH /u01/app/oracle/product/10.2 -LOG_FILE /u01/app/oracle/admin/BAN80/scripts/emConfig.log -SYSMAN_PWD &&sysmanPassword;

  • spool /u01/app/oracle/admin/BAN80/scripts/postDBCreation.log

  • exit;


Lccc banner 8 upgrade37 l.jpg
LCCC Banner 8 Upgrade upgrade

  • :

  • #!/bin/sh

  • # Name: banlink.shl

  • # Desc: Link all files under $BANNER_HOME

  • # To execute, change directory to $BANNER_HOME and type banlink.shl

  • #

  • # For symbolic links.

  • # LN='ln -sf'

  • # For hard links.

  • LN='ln -f'

  • #

  • # Add any new products under Banner Home to this list

  • # or DELETE any products which you do not want to link.

  • #

  • products='\

  • admin \

  • arsys \

  • common \

  • finance \

  • genweb \

  • posnctl \

  • stuweb \

  • alumni \

  • baninas \

  • facweb \

  • finweb \

  • install \

  • payroll \


Lccc banner 8 upgrade38 l.jpg
LCCC Banner 8 Upgrade upgrade

  • scomweb \

  • wtlweb \

  • aluweb \

  • bansso \

  • finaid \

  • general \

  • intcomp \

  • payweb \

  • student \

  • '

  • #product_list_end

  • #

  • #

  • # Verify environmental variables are set

  • #

  • if [ "$BANNER_LINKS" = "" ]; then

  • echo "The BANNER_LINKS variable must be set"; exit 3

  • fi

  • if [ "$BANNER_HOME" = "" ]; then

  • echo "The BANNER_HOME variable must be set"; exit 3

  • fi

  • #

  • echo BANNER_HOME is set to $BANNER_HOME

  • echo BANNER_LINKS is set to $BANNER_LINKS

  • echo "continue ? (y/N) \c "

  • read ynprompt

  • case $ynprompt in

  • y|Y)

  • ;;

  • *)

  • echo aborting...

  • exit 2 ;;

  • esac


Lccc banner 8 upgrade39 l.jpg
LCCC Banner 8 Upgrade upgrade

  • #

  • #

  • # do special linking of copybooks from lower to upper case.

  • #

  • cd ${BANNER_HOME}/general/cob/lib

  • for file in *.cob ; do

  • base=`basename $file .cob`

  • upbase=`echo $base | tr "[a-z]" "[A-Z]"`

  • echo +++++++++ linking copybook $upbase

  • ${LN} $file ../$upbase

  • ${LN} $file ${BANNER_LINKS}/$upbase

  • done

  • #

  • # Link all files except executables and copybooks

  • #

  • for prod in $products ; do

  • if [ -d ${BANNER_HOME}/$prod ] ; then

  • echo ++++++++ linking $prod

  • cd ${BANNER_HOME}/${prod}

  • find . \( -name 'lib' -o -name 'exe' \) -prune -o -type f -print

  • -exec ${LN} {} ${BANNER_LINKS} \;

  • fi

  • done


Output of csscan fromchar we8iso8859p1 tochar al32utf8 l.jpg
Output Of Csscan FROMCHAR = WE8ISO8859P1 TOCHAR= AL32UTF8 upgrade

  • Database Scan Summary Report

  • Time Started : 2008-05-28 10:08:29

  • Time Completed: 2008-05-28 10:22:12

  • Process ID Time Started Time Completed

  • [Database Size]

  • Tablespace Used Free Total Expansion

  • ------------------------- --------------- --------------- --------------- ---------------

  • SYSTEM 852.19M 127.81M 980.00M 688.00K

  • UNDOTBS1 14.81M 415.19M 430.00M .00K

  • SYSAUX 258.25M 1.75M 260.00M 11.46M

  • TEMP .00K .00K .00K .00K

  • USERS 1.81M 3.19M 5.00M .00K

  • DEVELOPMENT 12,652.06M 7,827.94M 20,480.00M 1.80M

  • DEVELOPMENT_NDX 5,073.75M 11,310.25M 16,384.00M .00K

  • RBS 64.00K 1,535.94M 1,536.00M .00K

  • TOOLS 2.13M 125.88M 128.00M .00K

  • BANAQ 1.94M 62.06M 64.00M .00K

  • BANLOB 384.00K 255.63M 256.00M .00K

  • ------------------------- --------------- --------------- --------------- ---------------

  • Total 18,857.38M 21,665.63M 40,523.00M 13.94M

  • The size of the largest CLOB is 1625114 bytes


Output of csscan fromchar we8iso8859p1 tochar al32utf842 l.jpg
Output Of Csscan FROMCHAR = WE8ISO8859P1 TOCHAR= AL32UTF8 upgrade

  • [Scan Summary]

  • All character type data in the data dictionary are convertible to the new character set

  • All character type application data are convertible to the new character set

  • [Data Dictionary Conversion Summary]

  • Datatype Changeless Convertible Truncation Lossy

  • --------------------- ---------------- ---------------- ---------------- ----------------

  • VARCHAR2 6,110,339 7 0 0

  • CHAR 3,221 0 0 0

  • LONG 405,454 0 0 0

  • CLOB 25,598 1,443 0 0

  • VARRAY 23,466 0 0 0

  • --------------------- ---------------- ---------------- ---------------- ----------------

  • Total 6,568,078 1,450 0 0

  • Total in percentage 99.978% 0.022% 0.000% 0.000%

  • The data dictionary can not be safely migrated using the CSALTER script


Output of csscan fromchar we8iso8859p1 tochar al32utf843 l.jpg
Output Of Csscan FROMCHAR = WE8ISO8859P1 TOCHAR= AL32UTF8 upgrade

  • [Application Data Conversion Summary]

  • Datatype Changeless Convertible Truncation Lossy

  • --------------------- ---------------- ---------------- ---------------- ----------------

  • VARCHAR2 1,290,376,888 25 0 0

  • CHAR 2,300,672 0 0 0

  • LONG 121,375 0 0 0

  • CLOB 432,200 6,507 0 0

  • VARRAY 1,519 0 0 0

  • --------------------- ---------------- ---------------- ---------------- ----------------

  • Total 1,293,232,654 6,532 0 0

  • Total in percentage 99.999% 0.001% 0.000% 0.000%

  • [Distribution of Convertible, Truncated and Lossy Data by Table]


Open to the floor l.jpg
Open to the Floor upgrade

  • Questions

  • Comments


ad
