Warm up 11 1

Warm Up 11/1

  • Which of the following is NOT a characteristic of S waves?

    a. They cannot be transmitted through water or air.

    b. They shake particles at right angles to the direction the waves travel.

    c. They travel more slowly than P waves.

    d. They temporarily change the volume of material by compression and expansion.

  • The trace that records an earthquake from seismic instruments is called a ____.

    a. richtergramc. seismogram

    b. seismographd. magnitude

  • The distance between a seismic station and the earthquake epicenter is determined from the ____.

    a. measurement of the amplitude of the surface wave

    b. calculation of the earthquake magnitude

    c. arrival times of P and S waves

    d. intensity of the earthquake

    Answers: 1) d. 2) c. 3) c.

Destruction from earthquakes

Destruction from Earthquakes

Chapter 8, Section 3

Seismic vibrations

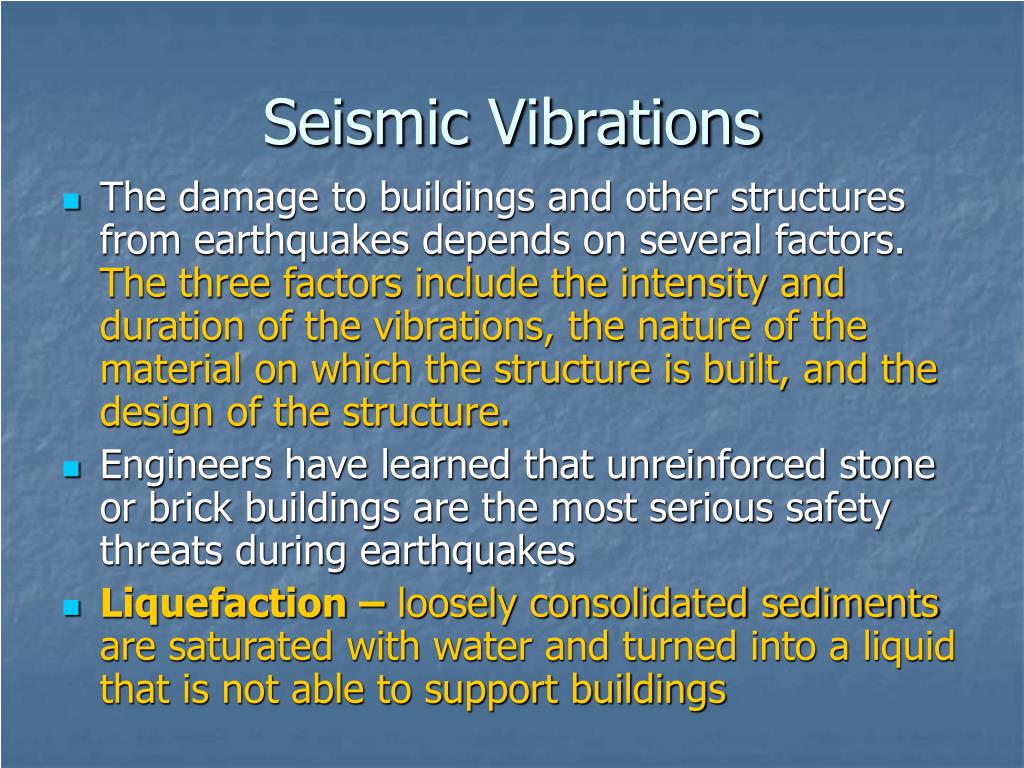

Seismic Vibrations

  • The damage to buildings and other structures from earthquakes depends on several factors. The three factors include the intensity and duration of the vibrations, the nature of the material on which the structure is built, and the design of the structure.

  • Engineers have learned that unreinforced stone or brick buildings are the most serious safety threats during earthquakes

  • Liquefaction – loosely consolidated sediments are saturated with water and turned into a liquid that is not able to support buildings

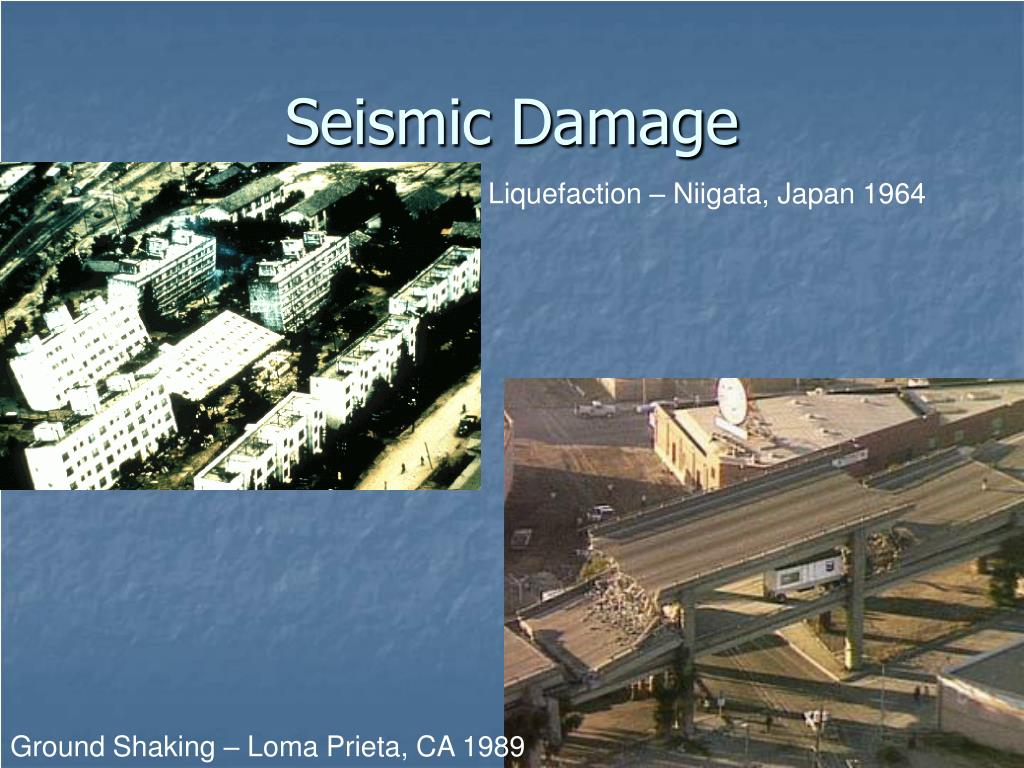

Seismic damage

Seismic Damage

Liquefaction – Niigata, Japan 1964

Ground Shaking – Loma Prieta, CA 1989

Concept check

Concept Check

  • When does liquefaction occur?

  • When loosely consolidated soils saturated with water are shaken by earthquake waves

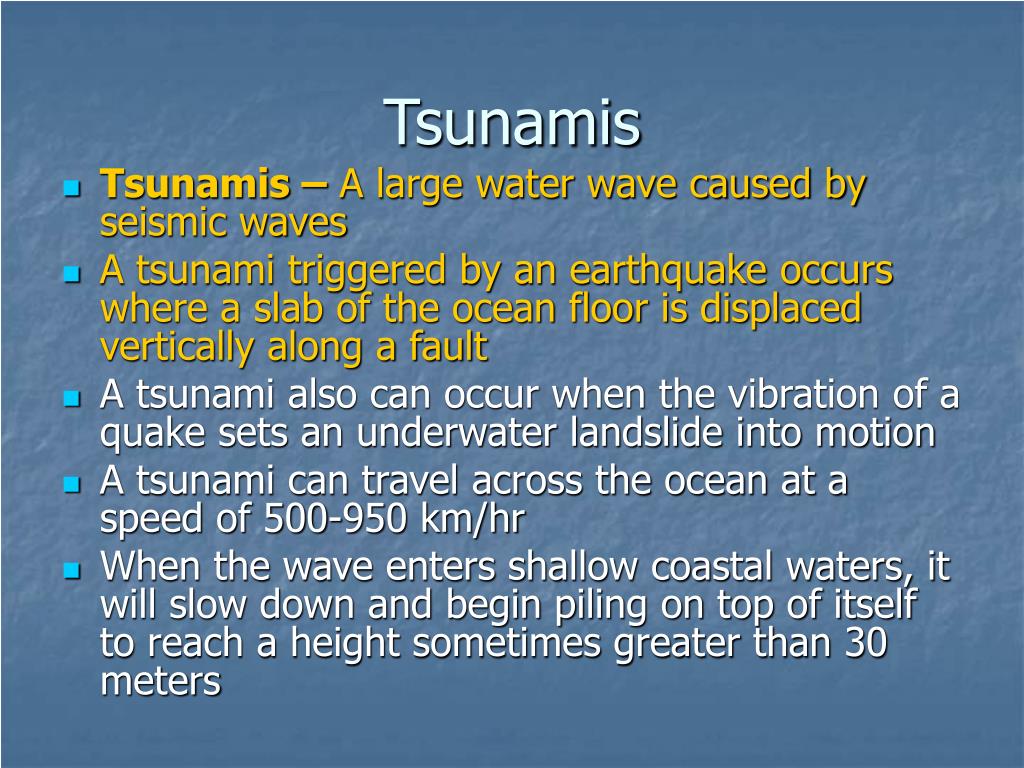

  • Tsunamis – A large water wave caused by seismic waves

  • A tsunami triggered by an earthquake occurs where a slab of the ocean floor is displaced vertically along a fault

  • A tsunami also can occur when the vibration of a quake sets an underwater landslide into motion

  • A tsunami can travel across the ocean at a speed of 500-950 km/hr

  • When the wave enters shallow coastal waters, it will slow down and begin piling on top of itself to reach a height sometimes greater than 30 meters



Tsunami travel time to honolulu

Tsunami Travel Time to Honolulu

Indonesia tsunami 2004

Indonesia Tsunami – 2004

Indonesia tsunami 20041

Indonesia Tsunami – 2004

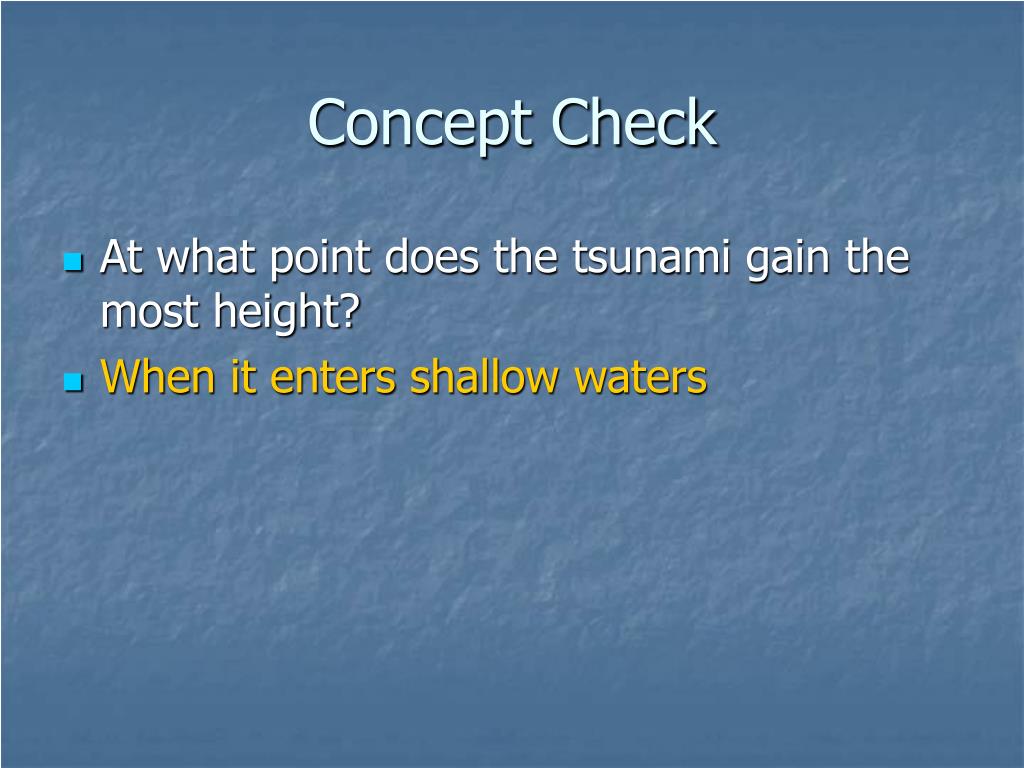

Concept check1

Concept Check

  • At what point does the tsunami gain the most height?

  • When it enters shallow waters

Other dangers

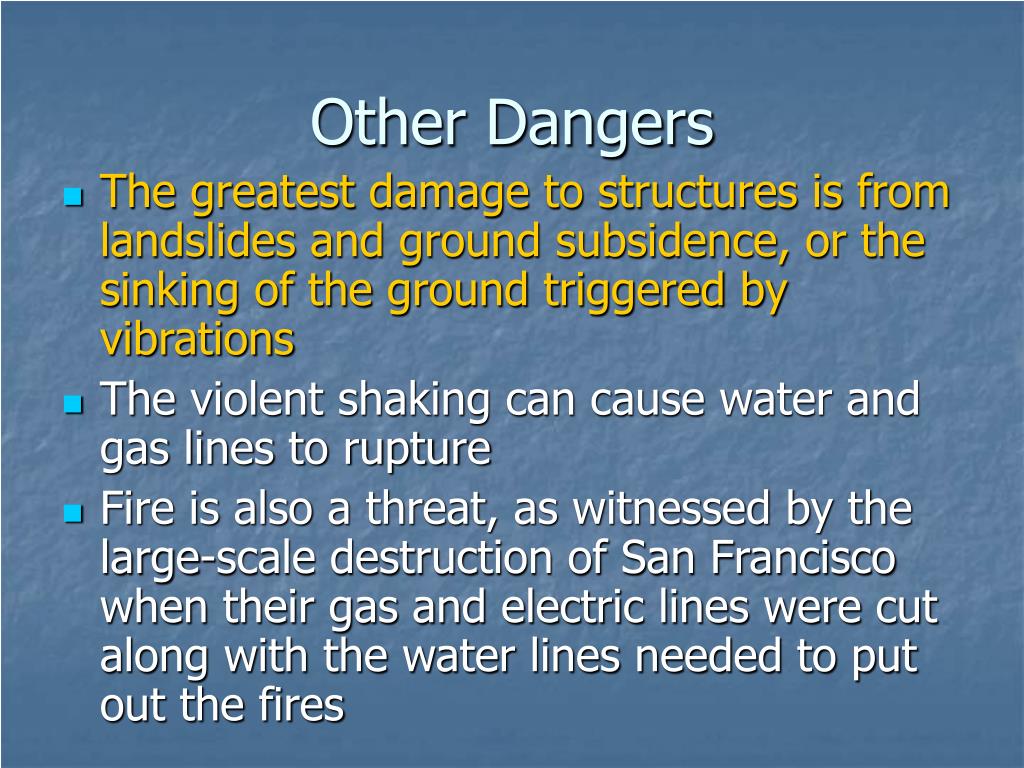

Other Dangers

  • The greatest damage to structures is from landslides and ground subsidence, or the sinking of the ground triggered by vibrations

  • The violent shaking can cause water and gas lines to rupture

  • Fire is also a threat, as witnessed by the large-scale destruction of San Francisco when their gas and electric lines were cut along with the water lines needed to put out the fires

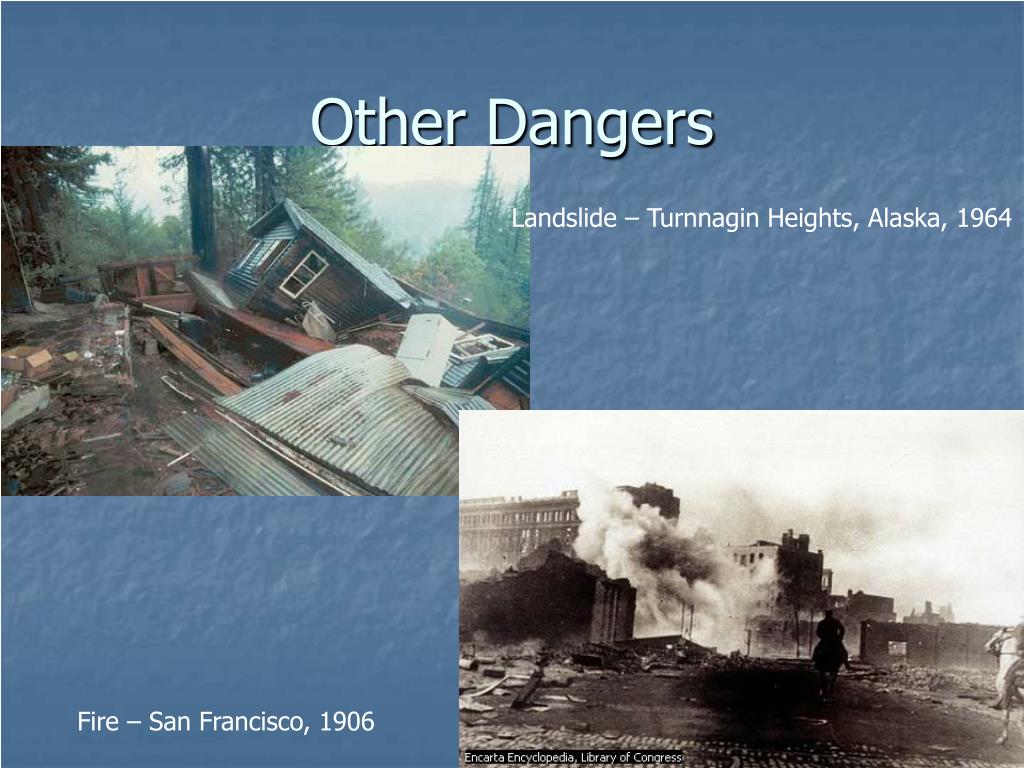

Other dangers1

Other Dangers

Landslide – Turnnagin Heights, Alaska, 1964

Fire – San Francisco, 1906

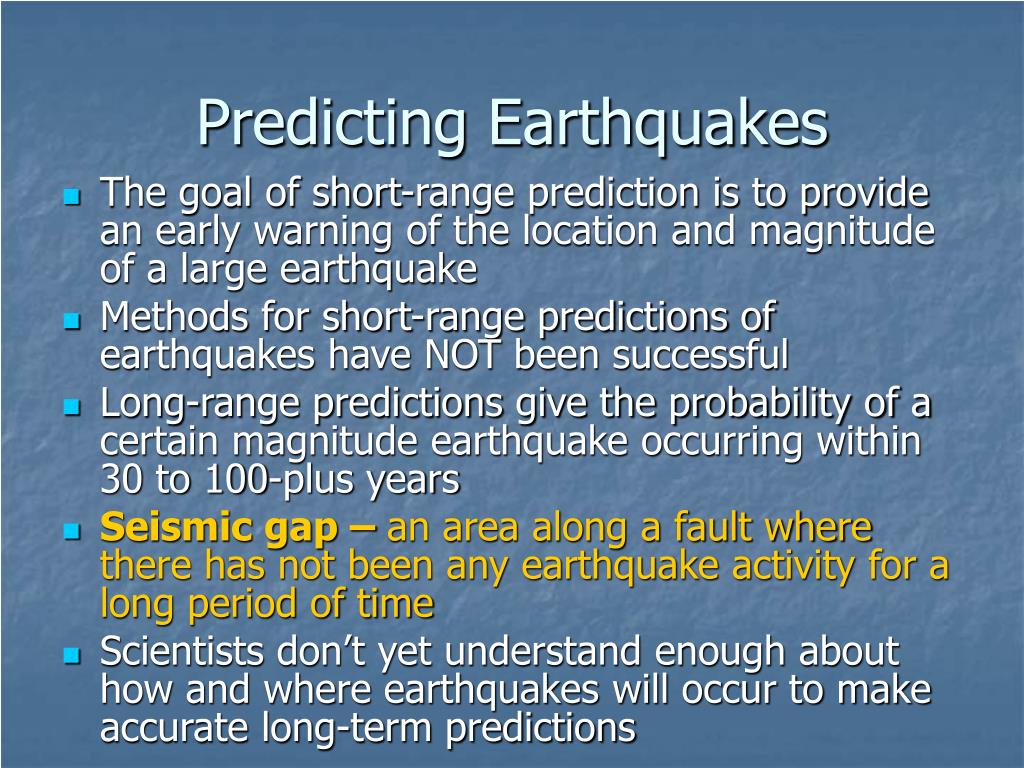

Predicting earthquakes

Predicting Earthquakes

  • The goal of short-range prediction is to provide an early warning of the location and magnitude of a large earthquake

  • Methods for short-range predictions of earthquakes have NOT been successful

  • Long-range predictions give the probability of a certain magnitude earthquake occurring within 30 to 100-plus years

  • Seismic gap – an area along a fault where there has not been any earthquake activity for a long period of time

  • Scientists don’t yet understand enough about how and where earthquakes will occur to make accurate long-term predictions

Probability of earthquakes along the san andreas fault

Probability of Earthquakes Along the San Andreas Fault

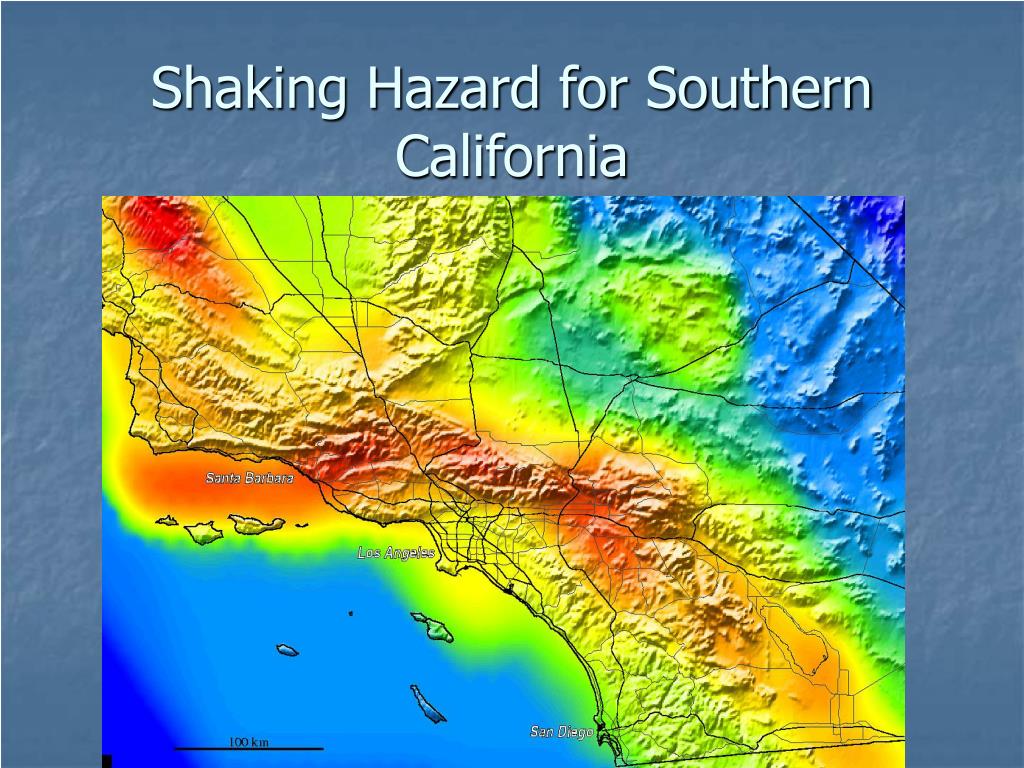

Shaking hazard for southern california

Shaking Hazard for Southern California

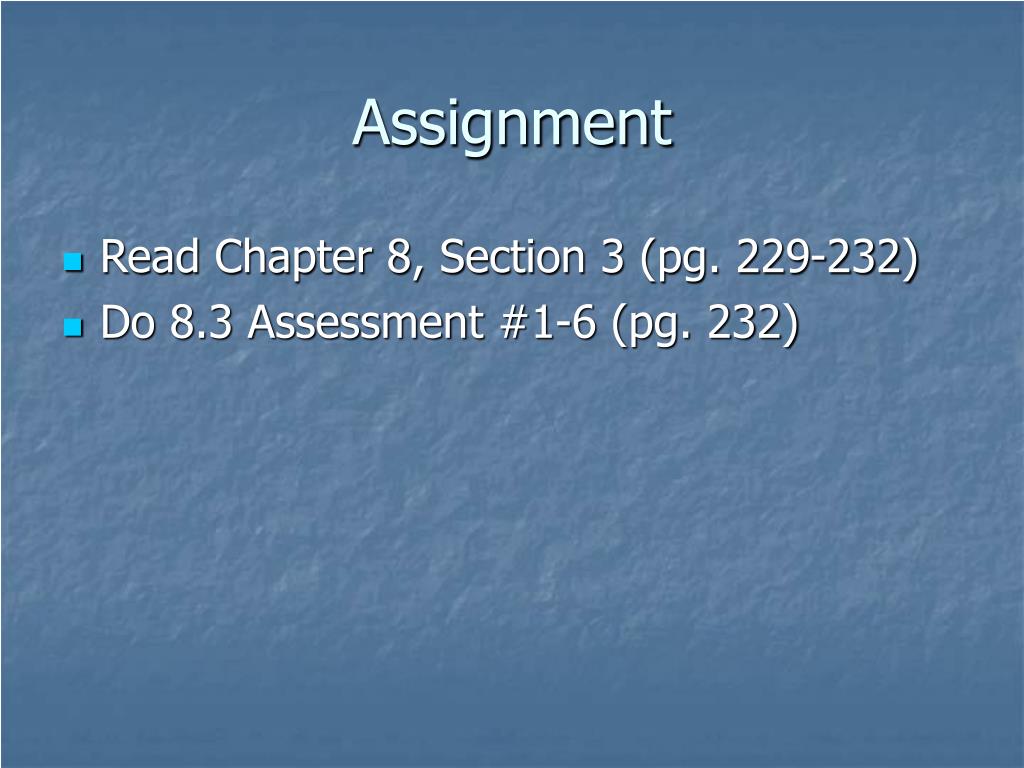

  • Read Chapter 8, Section 3 (pg. 229-232)

  • Do 8.3 Assessment #1-6 (pg. 232)
