  1. GIS in practical use as apipe network information system Digitale Dokumentation Kommunaler Infrastruktur Dipl.- Ing. Hugo Fuchs www.ddki.euGörzerAllee 37 9020 Klagenfurt Austria Tel: +43 (0) 664 3556843 hugo.fuchs@ddki.eu

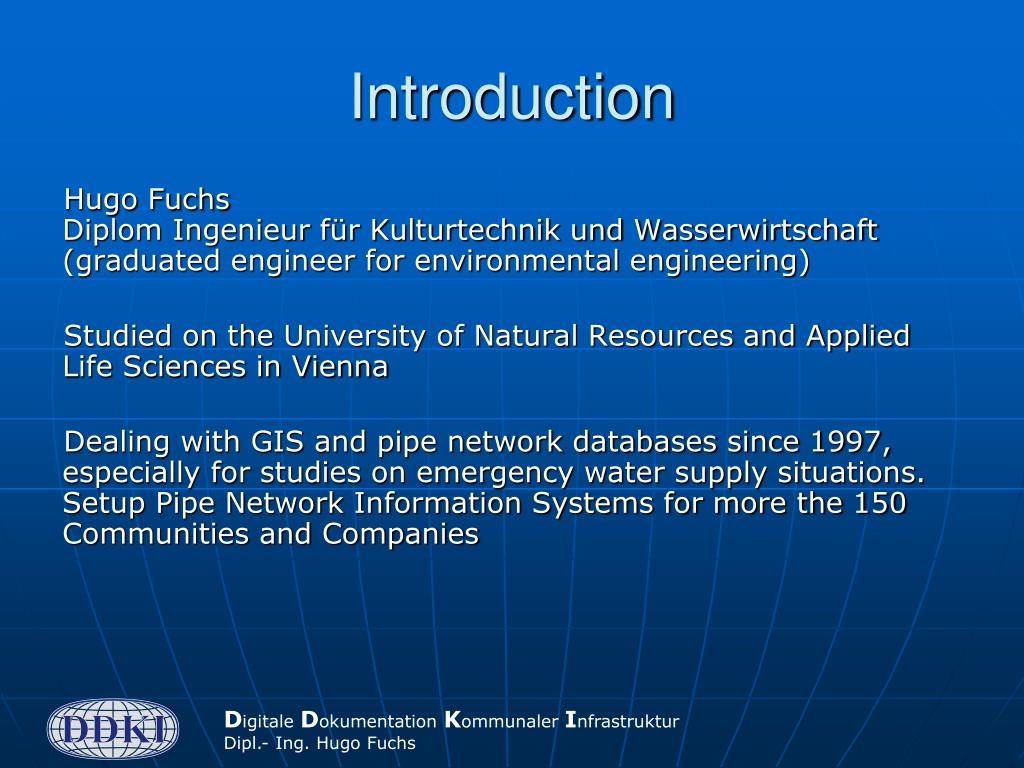

  2. Introduction Hugo FuchsDiplom Ingenieur für Kulturtechnik und Wasserwirtschaft(graduated engineer for environmental engineering) Studied on the University of Natural Resources and Applied Life Sciences in Vienna Dealing with GIS and pipe network databases since 1997, especially for studies on emergency water supply situations. Setup Pipe Network Information Systems for more the 150 Communities and Companies

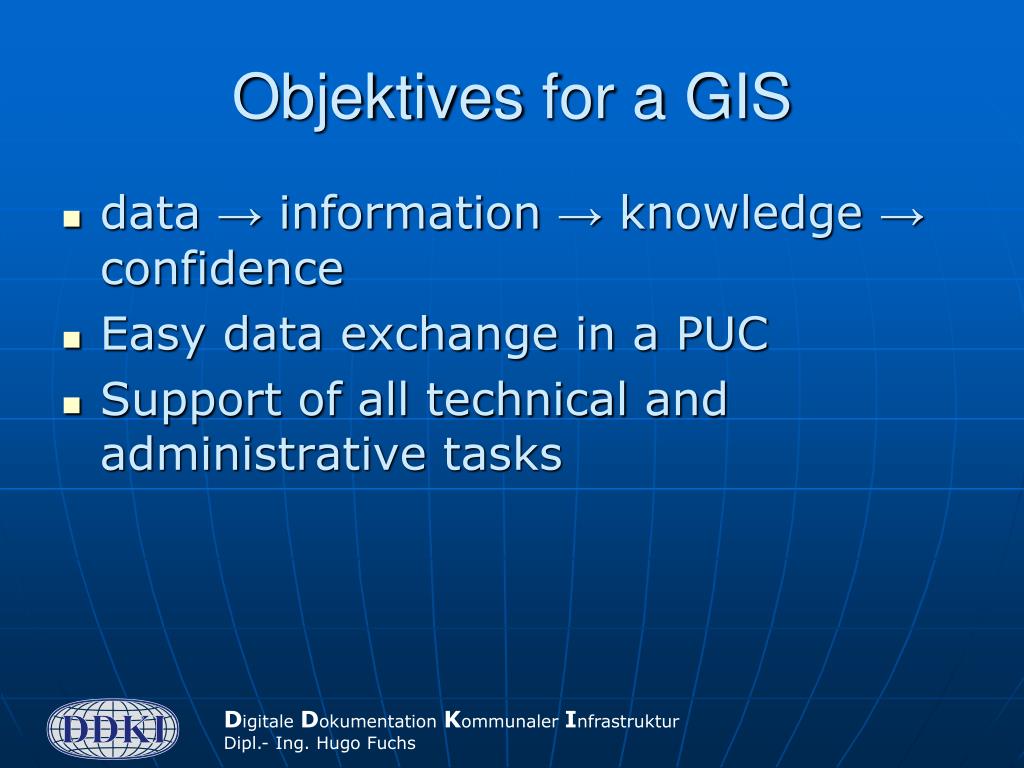

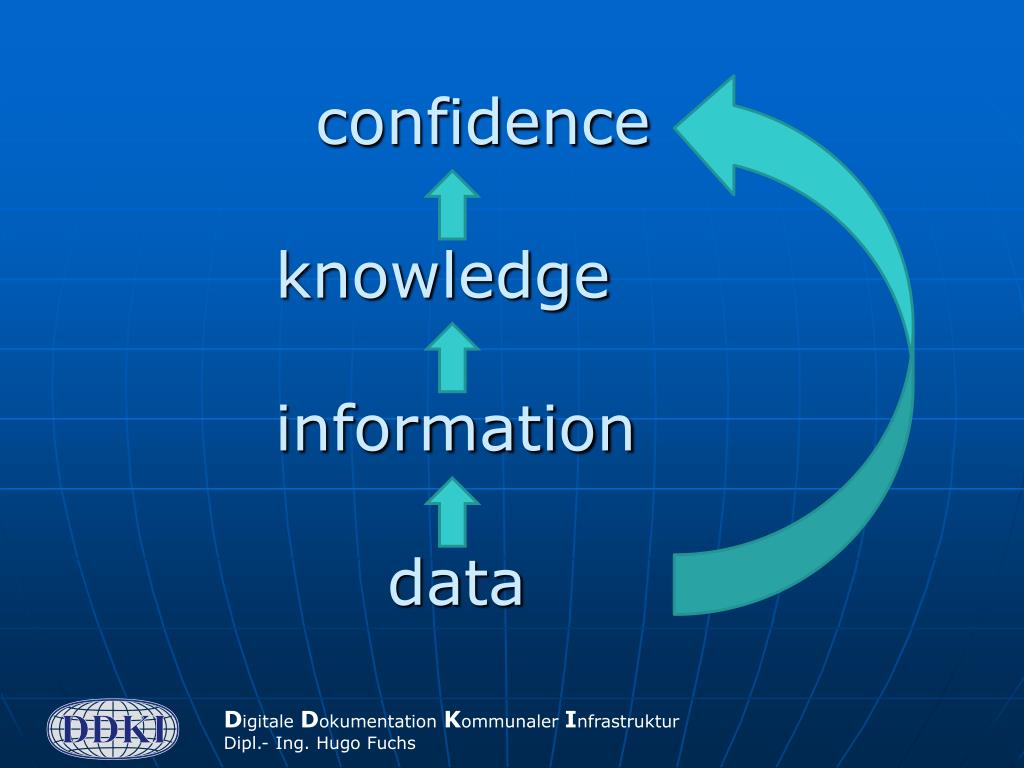

  3. Objektives for a GIS data → information → knowledge → confidence Easy data exchange in a PUC Support of all technical and administrative tasks

  4. confidence knowledge information data

  5. data → information → knowledge →confidence data: all original data should be integrated!!!scans, photos, videos etc. (nowadays the capacity of storage will not be the limit) information: it is useless to convert all data to information if it is not necessary at the moment!!! (e.g.: the digitalization of house connections) knowledge: is created by analyzing the information(e.g.: the condition of certain parts of the network) certainty: is needed when decisions have to be made(e.g. replacement or repair of network parts)To be sure that a decision is based on facts it must be possible to look at a control sample of the original data at any time. (e.g.: photo of damages, sewer inspection video)

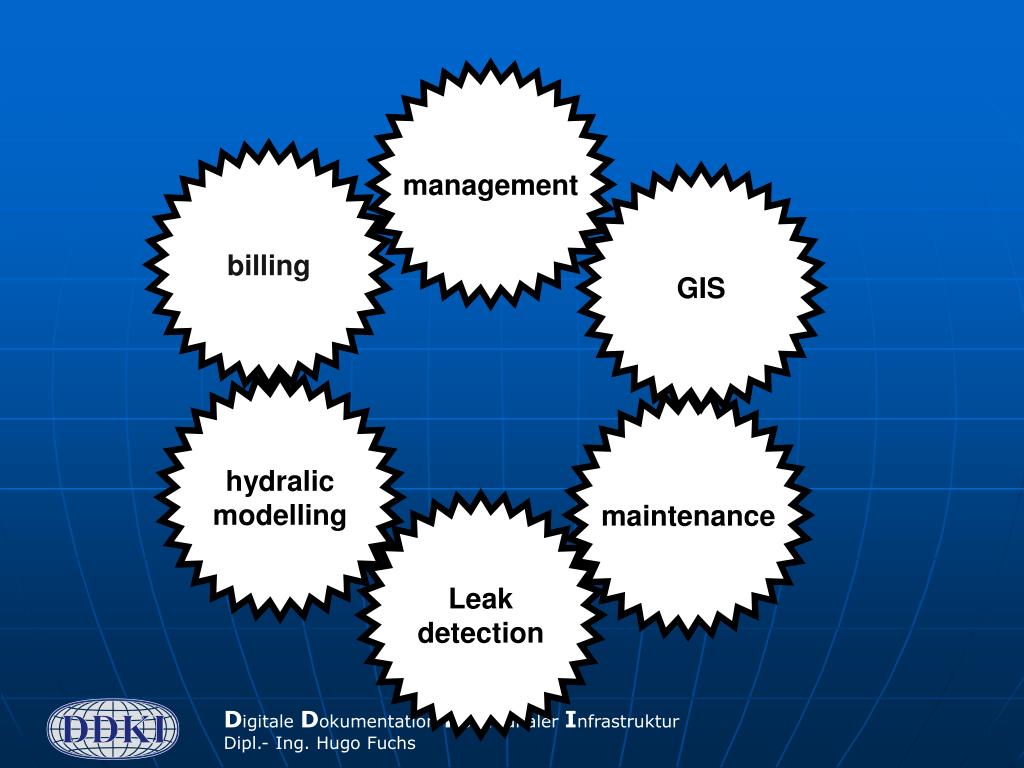

  6. management billing GIS hydralicmodelling maintenance Leakdetection

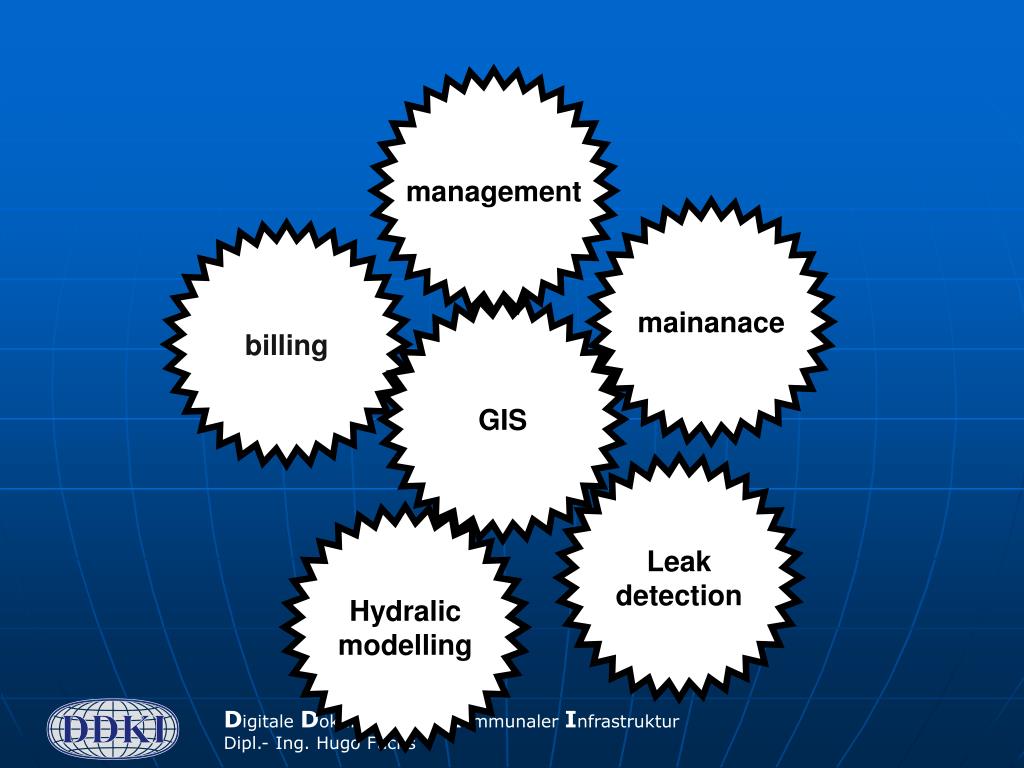

  7. management mainanace billing GIS Leakdetection Hydralicmodelling

  8. Pipe network Information System Responsible officers need a Complete image of the infrastructure for planning and maintenance • Setup • Integration of all basic data!(land register, surveying, orthophotos, etc…) • Integration of all pipe network data !!!(all sources: sketches, photos, maps, drawings, etc…) • Update • Basic data: Update cycle (online, offline) • PUC data: Adapted to the situation • Usage • Support of maintenance and repair • Basic for planning

  9. setup software data

  10. update • problem • Documentation as end in itselfstaff has poor access to the GIS data • Poor administration of the collected dataImages, sketches, materialists, work orders are stored in different systems and can normally not be combined • Undefined data exchange in the PUCno central storage system or exchange format

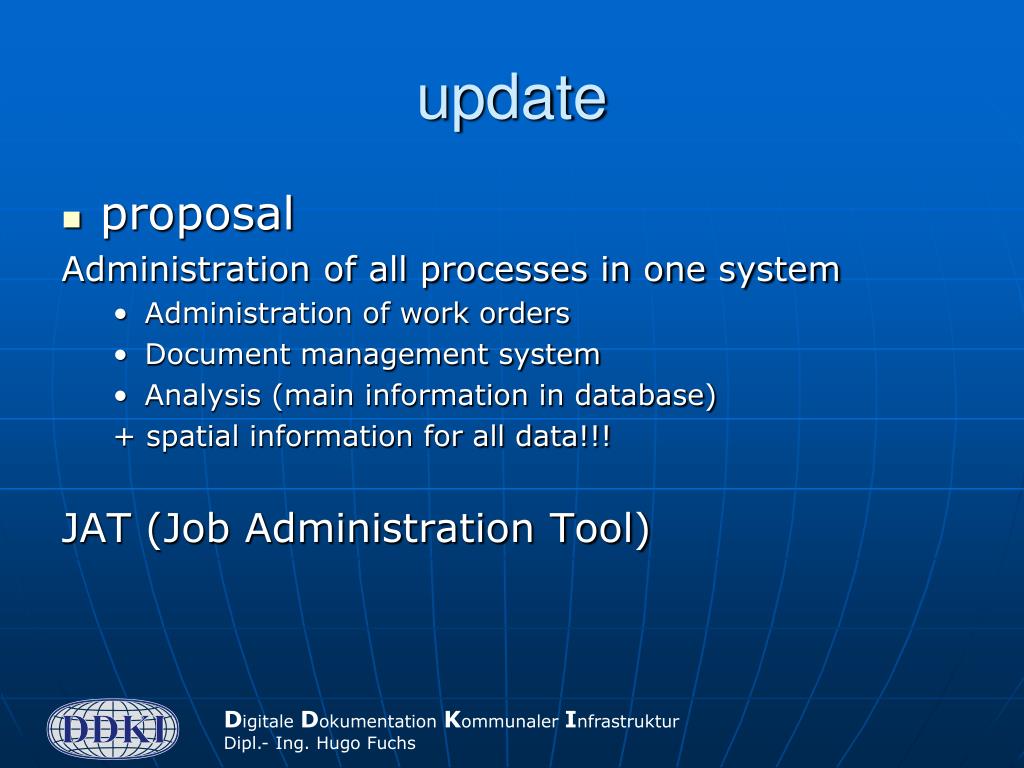

  11. update • proposal Administration of all processes in one system • Administration of work orders • Document management system • Analysis (main information in database) + spatial information for all data!!! JAT (Job Administration Tool)

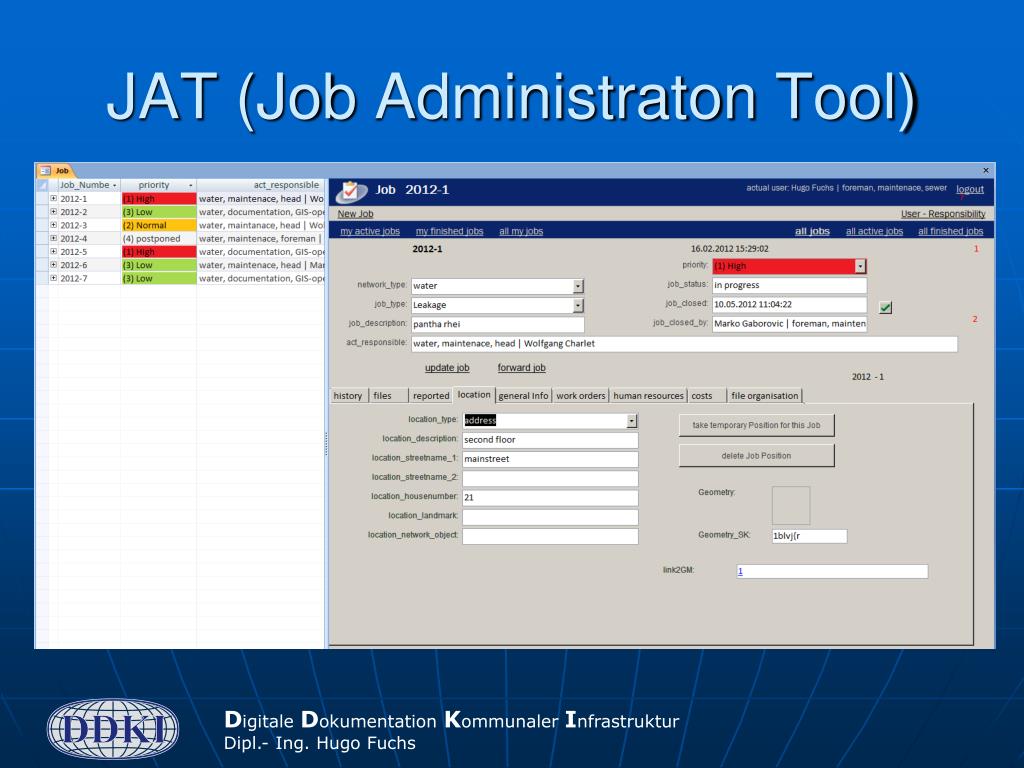

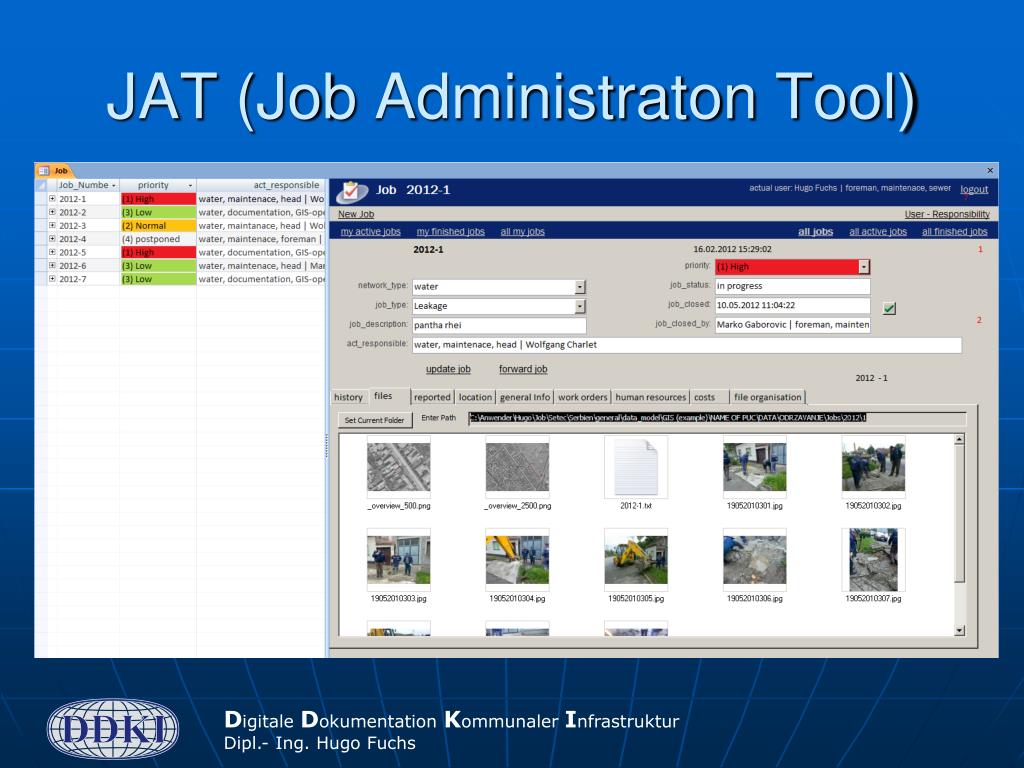

  12. JAT (Job Administraton Tool)

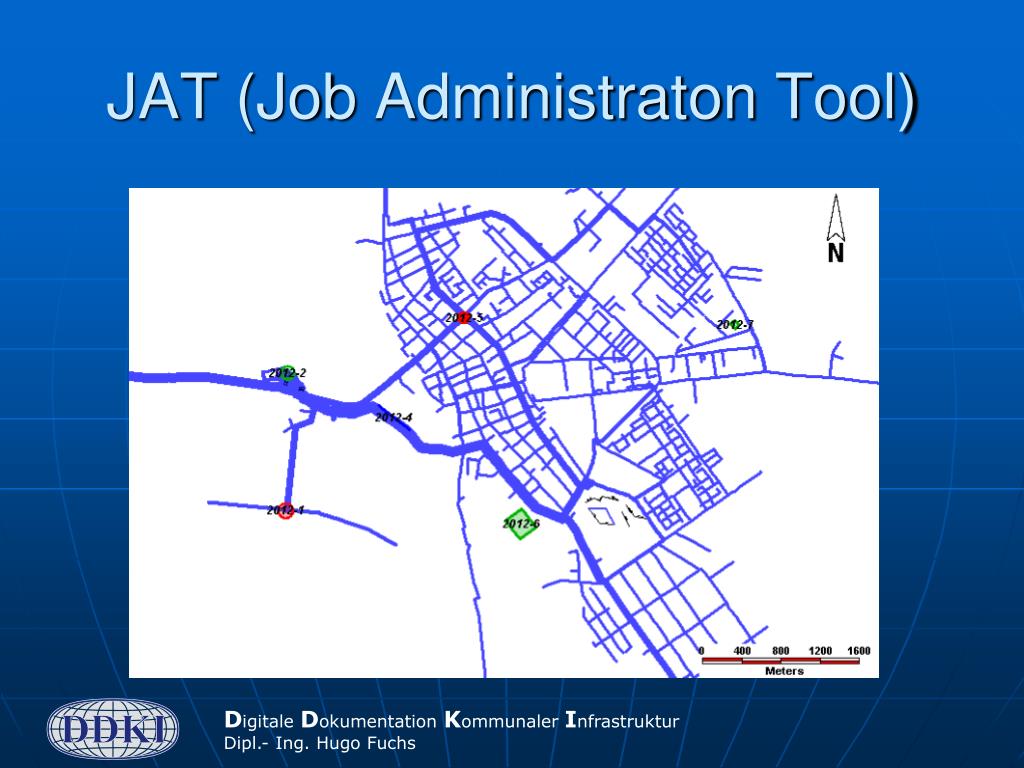

  13. JAT (Job Administraton Tool)

  14. JAT (Job Administraton Tool)

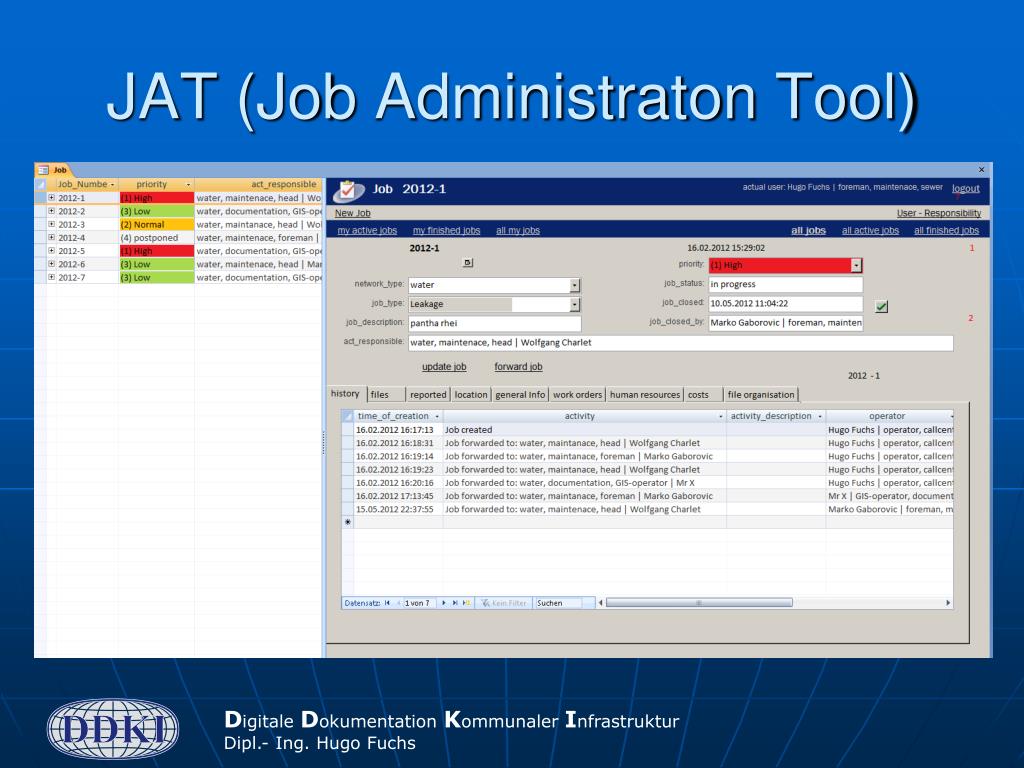

  15. JAT (Job Administraton Tool)

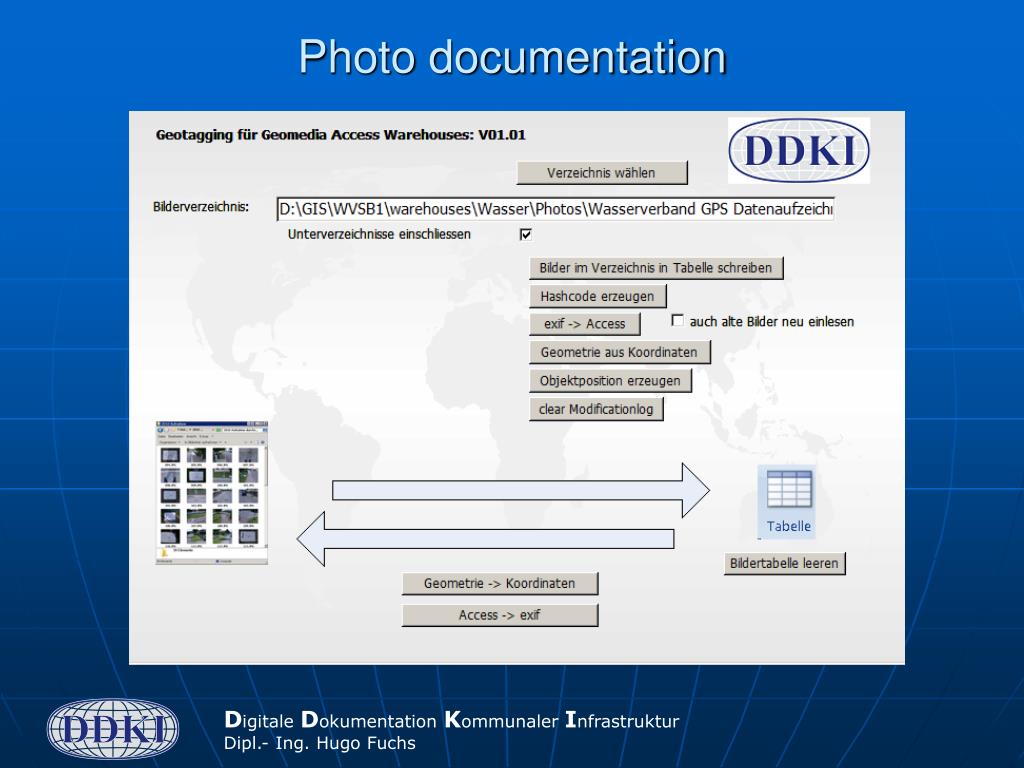

  16. Photo documentation

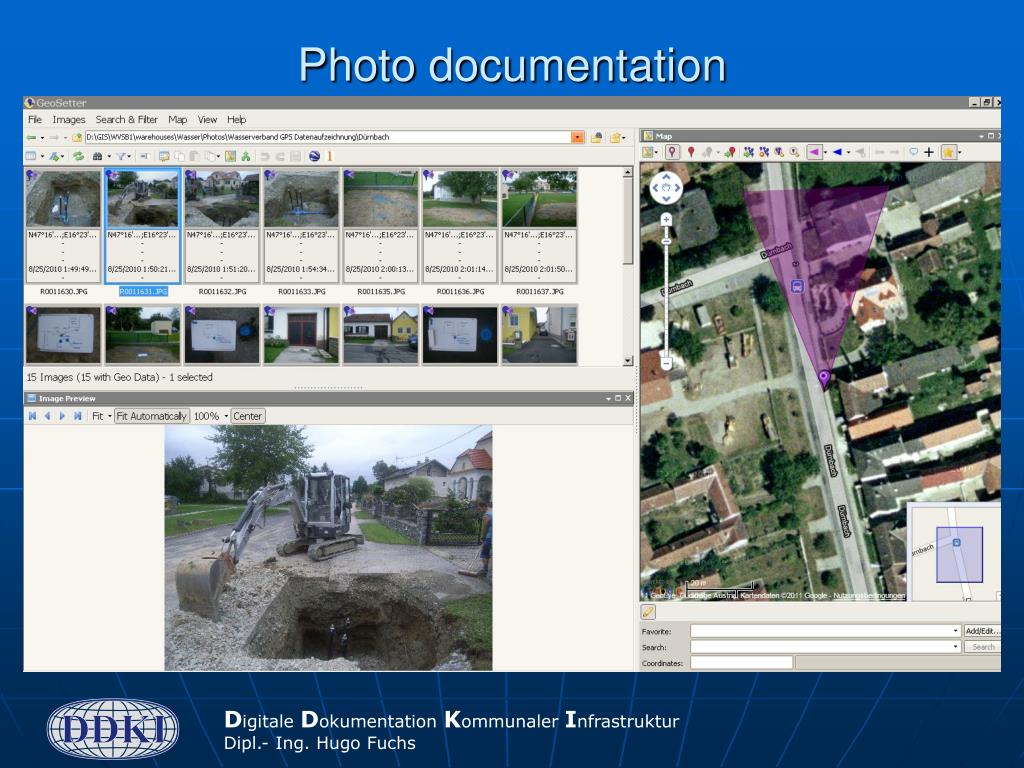

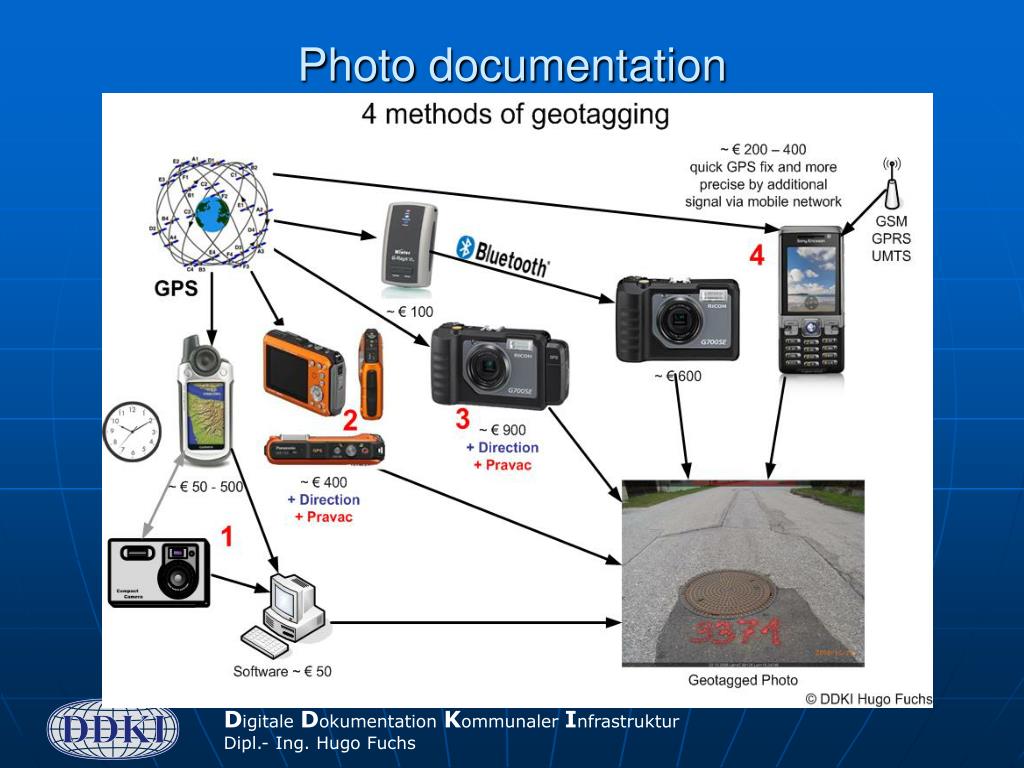

  17. Photo documentation

  18. Photo documentation

  19. Photo documentation

  20. Photo documentation

  21. Photo documentation

  22. Photo documentation

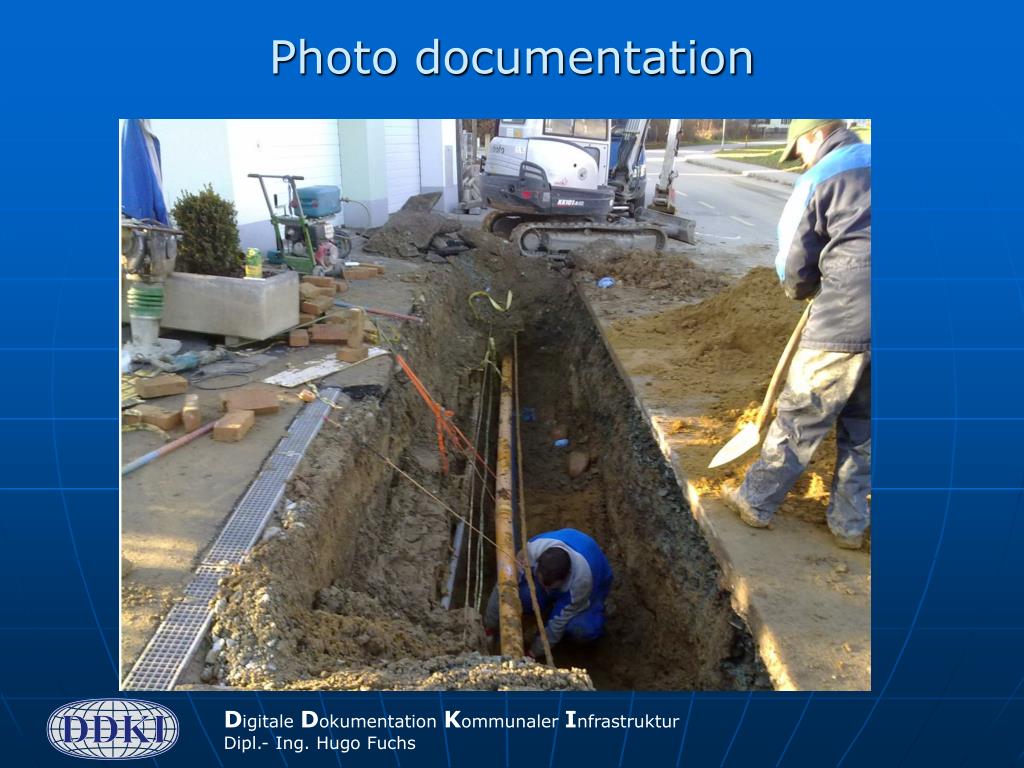

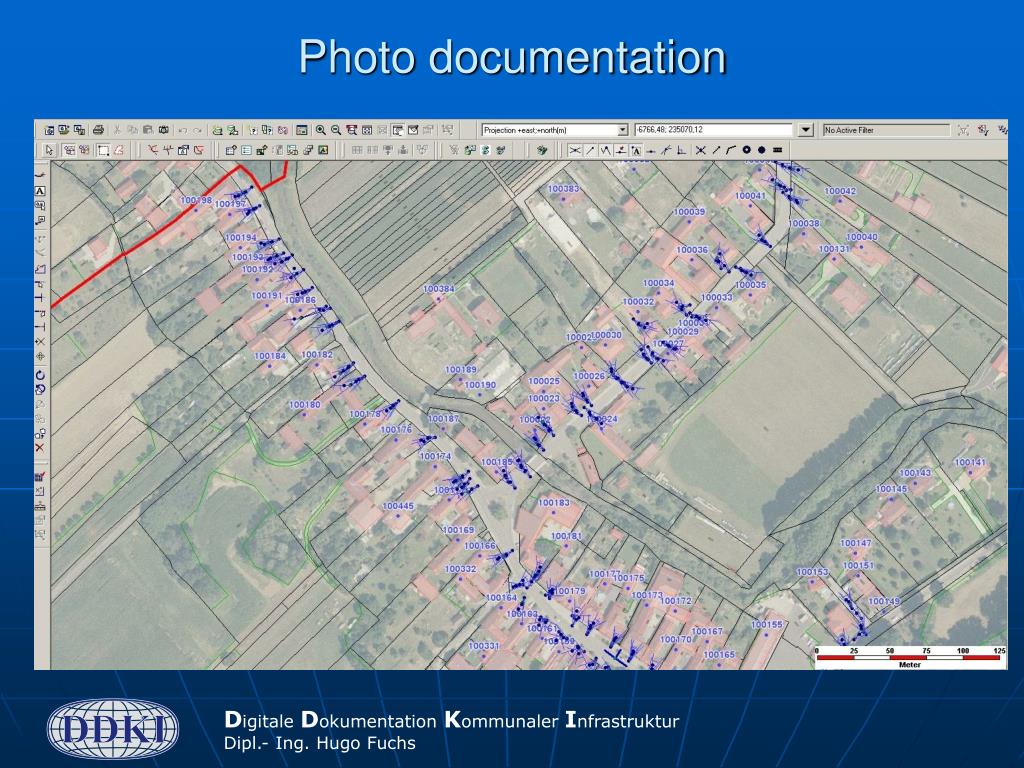

  23. Photo documentation

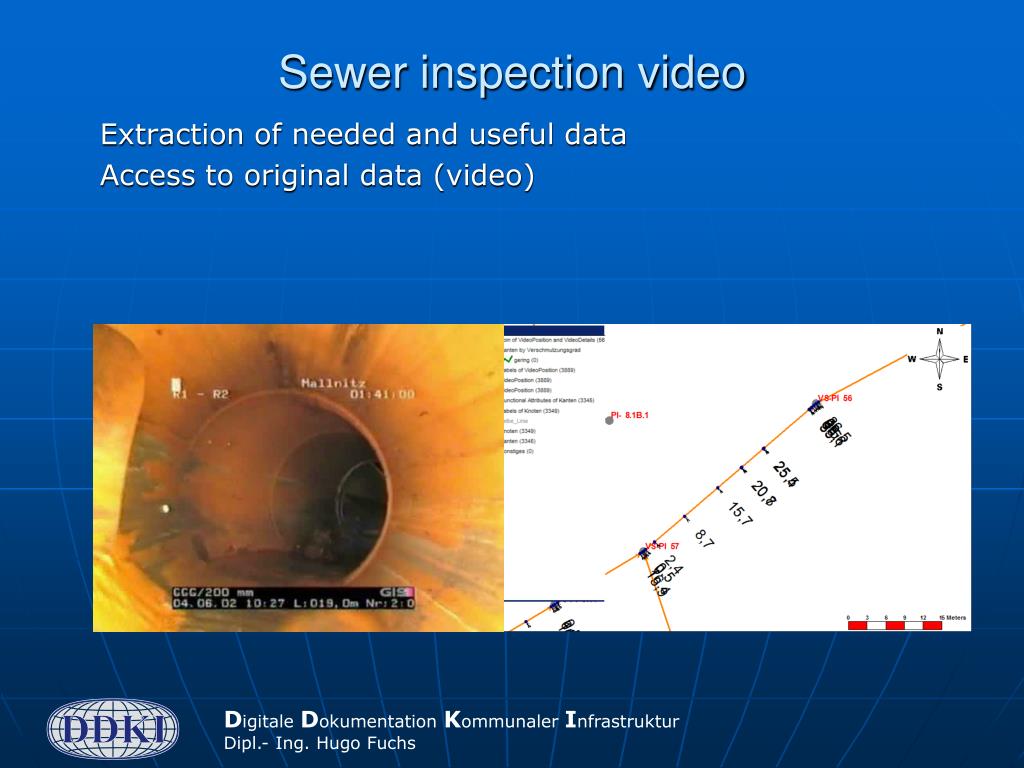

  24. Sewer inspection video Extraction of needed and useful data Access to original data (video)

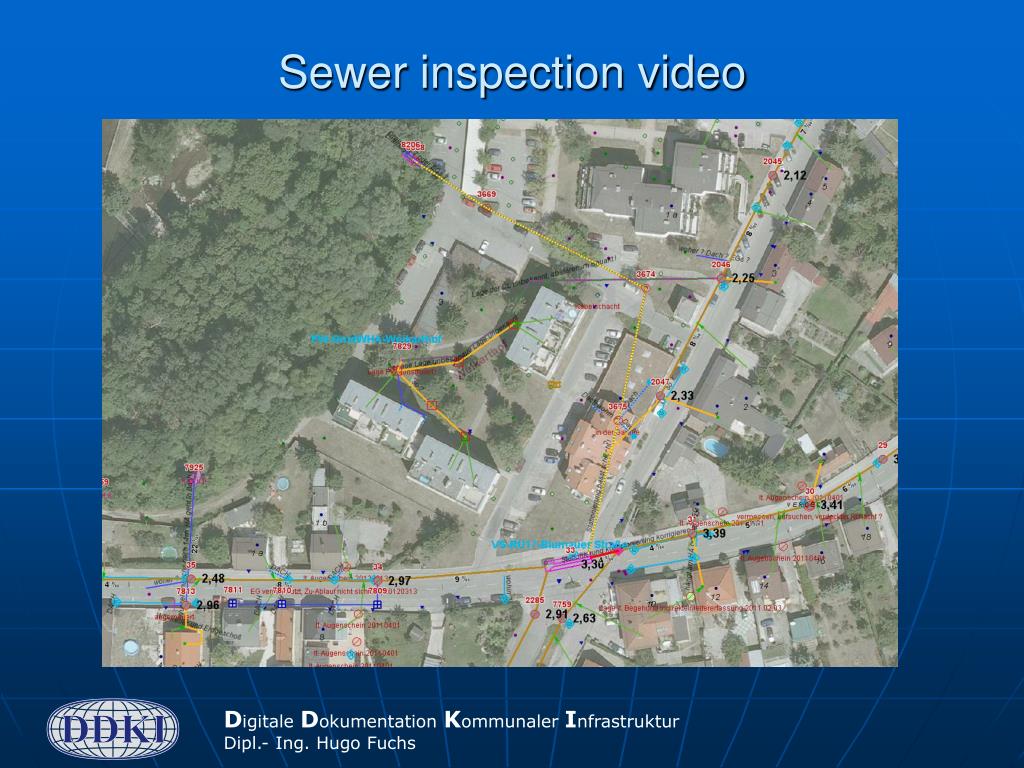

  25. Sewer inspection video

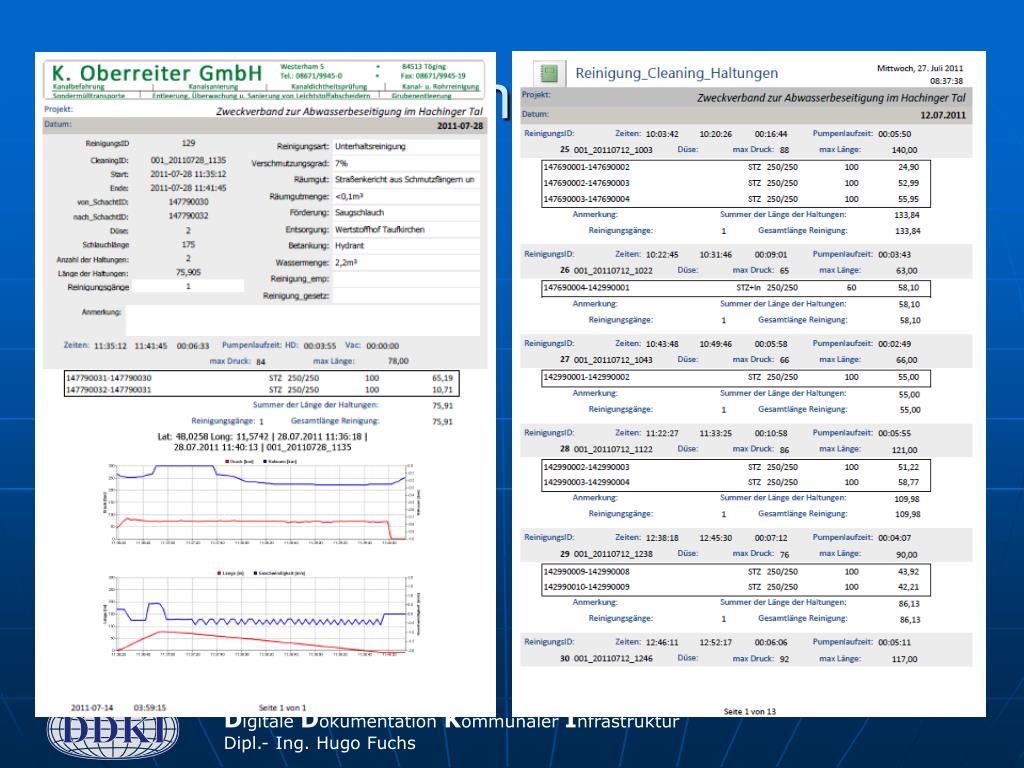

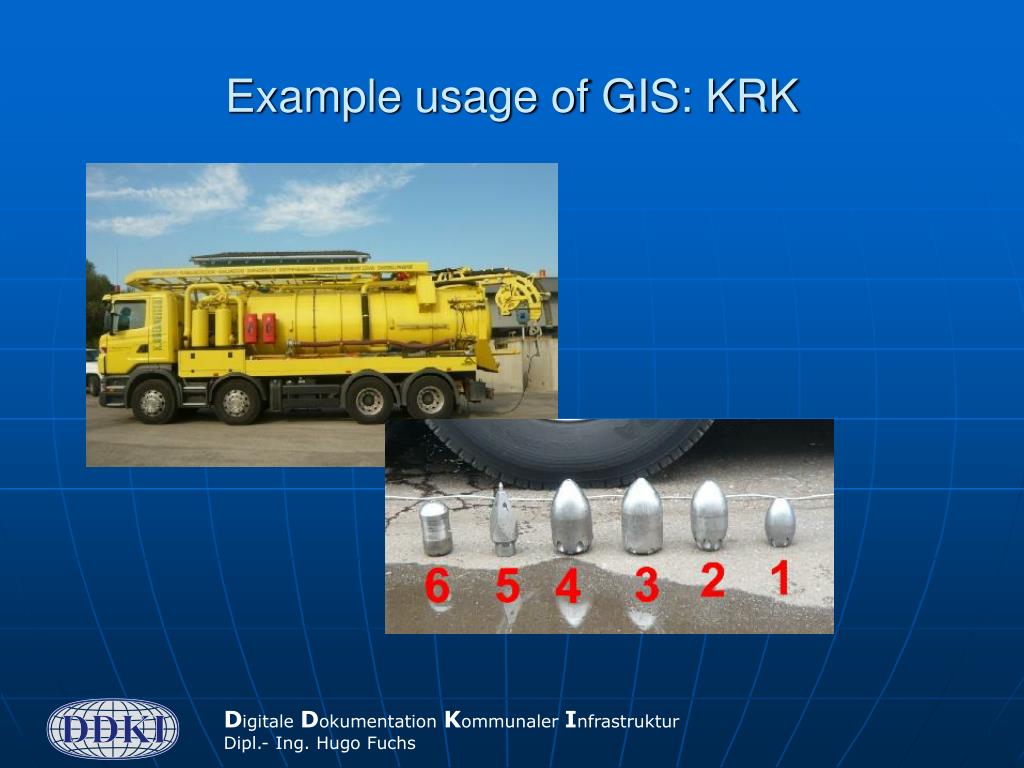

  26. Example usage of GIS: KRK

  27. KRK

  28. Nutzung: KRK
