  1. Image Quality in Different Modalities of Medical Imaging with Focus on Mammography Dr. Nabil Maalej Physics Dept., KFUPM 14-12-2004

  2. Outline • Imaging Modalities (Brief) • Image Formation in Mammography • Image Quality • Contrast • Resolution • Image Quality Assurance • Image Enhancement and Computer Aided Diagnosis (Examples)

  3. X-ray Production X-rays are produced in a vacuum tube that accelerates electrons across a high voltage in the order of 100,000 volts. The accelerated electrons strike a target made of tungsten and produce X-rays.

  4. X-ray Pictures Chest X-ray Head X-ray

  5. Digital Angiography It is a diagnostic procedure that produces X-ray pictures of blood vessels. A catheter is inserted in the vessel to inject contrast fluid into the lumen of the blood vessel, which then becomes visible on X-ray images.

  6. Digital Angiography Images Digital Subtraction Angiography (Mistretta, 1980s)

  7. Computerized Tomography (CT) The technique of CT scanning was developed in 1973 by Hounsfield. A thin fan beam of X-rays generated by a conventional X-ray tube passes through a single 'slice' of a patient through to a bank of X-ray detectors.

  8. CT 2-D Images CT Scan of the Abdomen 3-D CT Image of the Head

  9. Diagnostic Ultrasound Ultrasound is a technique for visualizing internal structures in the body using sound waves.

  10. Ultrasound Images Image of the Heart Image of a Fetal Heart

  11. Magnetic Resonance Imaging The technique involves placing the patient in a strong magnetic field. The magnetic field aligns the nuclear spin of atoms in the patient. When the spins relax to the original orientation, they emit radio-waves which are picked up by receiver coils.

  12. Magnetic Resonance Imaging 2-D MRI scan of the brain Functional MRI of The Brain

  13. Image Formation In Mammography

  14. Mammography Machine

  15. Breast Cancer (Highest)

  16. Breast Cancer (Highest) • For the total Saudi population, the most common ten cancers are (1994-1996 Cancer Registry): • Female breast cancer (8.8%), • Liver cancer (7.5%), • Leukemia (7.5%), • Non-Hodgkin's lymphoma (7.3%) • Colo-rectum cancer (5.5%). • Thyroid cancer (5.2%), • Lung cancer (4.7%) • Nervous system cancer (3.9%) • Stomach cancer (3.8%) and • Urinary bladder cancer (3.5%)

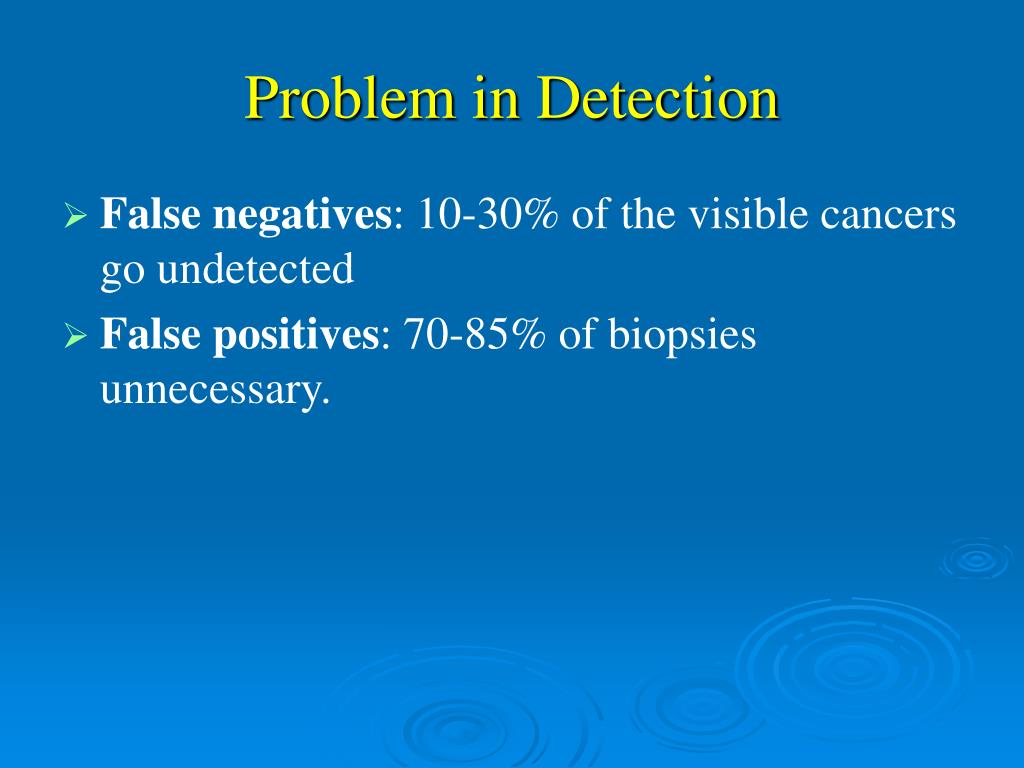

  17. Problem in Detection • False negatives: 10-30% of the visible cancers go undetected • False positives: 70-85% of biopsies unnecessary.

  18. What Can We do to Get Best Image? X-ray Source X-ray Beam Compression Paddle Compressed Breast Table Chest Wall Grid Image Detector

  19. IMAGE QUALITY

  20. Imaging Quality Parameters CONTRAST RESOLUTION NOISE

  21. Contrast • Image Contrast is a measure of difference between regions in an image • Image contrast in mammography is due to the difference in linear attenuation coefficient and thickness of different types of tissue

  22. Attenuation Coefficient Contrast decreases toward higher energies  the recommended optimum for mammography is in the region 18 - 33 keV depending on tissue thickness and composition.

  23. Mammography Spectrum

  24. Scattered Radiation and Contrast

  25. I I Ib Ib It It S Contrast Degradation with Scatter

  26. Anti-scatter grid breast leadsepta detector

  27. Resolution • Spatial resolution of an imaging system can be defined in terms of the smallest spacing between two objects that can be imaged clearly • Example for Radiography spatial resolution is about 0.01 mm, for CT it is about 1 mm • Good resolution is essential to see micro-calcifications in a mammogram

  28. Resolution

  29. Measurement of Resolution

  30. Modulation Transfer Function

  31. IMAGE QUALITY ASSURANCE

  32. Contrast Detail Analysis • Contrast detail analysis: an observer reports the size of the smallest object he or she can perceive at a certain contrast level and with a given noise level in the image.

  33. Measuring Contrast Detail Curve

  34. Measuring Contrast Detail Curve

  35. RMI 156 Phantom

  36. RMI 156 Phantom ACR minimum score is 4 visible fibers, 3 speck groups and 3 masses

  37. Importance of Image Quality

  38. Image Enhancement

  39. Digital Mammography Systems • The Fischer Imaging System: 54 m/pixel, a matrix size of 3,072 x 4,800 pixels, 12 bits/pixel • The GE Medical Systems: 100 m/pixel and a matrix size of 1,800 x 2,304 pixels, 14 bits/pixel • The Trex Medical 41  m/pixel and a matrix size of 4,800 x 6,400 pixels, 14 bits/pixel

  40. Anomalies Suggesting Breast Cancer

  41. Image Enhancement • Single Point Processing • Pixel Group Processing • Frequency Domain Processing • Deconvolution • Geometric Transformation • Other Transformations (FT, Wavelet, …

  42. Manual Intensity Windowing (MIW) • A small portion of the full intensity range of an image is selected and then remapped to the full intensity range of the display device • allow exaggeration of small differences in intensity values between the two objects • It is operator dependent

  43. Manual Intensity Windowing (MIW) MIW

  44. Histogram-Based Intensity Windowing (HIW) • Intensity windowing allows a selected subrange of the image intensity values to receive the full contrast of the display device • statistically analyzing the histogram of each image, locating the modes that represent the different breast tissue types (fatty, dense, muscle) or other parts (background). • intensity window range is automatically selected on the basis of the percentile position within the composite breast tissue class

  45. Histogram-Based Intensity Windowing (HIW)

  46. Histogram-Based Intensity Windowing (HIW) HIW

  47. Mixture-Model Intensity Windowing (MMIW) • MMIW provides region-specific intensity window settings for mammograms • It automatically identifies the five major regions in a mammogram: background, uncompressed fat, compressed fat, dense tissue, and muscle • A specific region histogram can be selectively analyzed to determine region-specific intensity window settings • The mean and standard deviation of the intensities in the region are used to parameterize a sigmoidal intensity window function

  48. Mixture-Model Intensity Windowing (MMIW),

  49. Mixture-Model Intensity Windowing (MMIW) MMIW (Dense Tissue)

  50. Unsharp masking • low-pass filtered version of the original image is created and the image values that result are subsequently multiplied by a weighting factor and subtracted from the original image
