  1. Chapter 7: Fourier Analysis Fourier analysis = Series + Transform ◎ Fourier Series -- A periodic (T) function f(x) can be written as the sum of sines and cosines of varying amplitudes and frequencies

  2. ○ Some function is formed by a finite number of sinuous functions

  3. Some function requires an infinite number of sinuous functions to compose

  4. Spectrum The spectrum of a periodic function is discrete, consisting of components at dc, 1/T, and its multiples, e.g., For non-periodic functions, i.e., The spectrum of the function is continuous

  5. ○ In complex form: Compare with

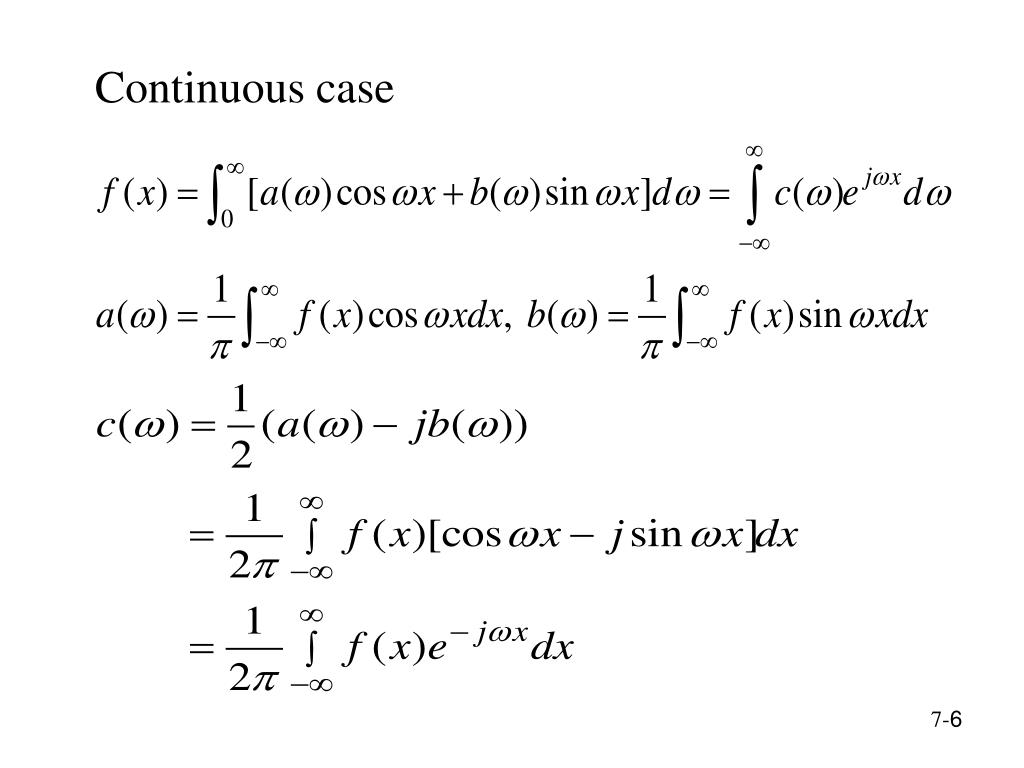

  6. Continuous case

  7. Discrete case: ◎ Fourier Transform

  8. Matrix form Let

  9. 。Example: f = {1,2,3,4}. Then, N = 4,

  10. Let ○ Inverse DFT

  11. 。Example:

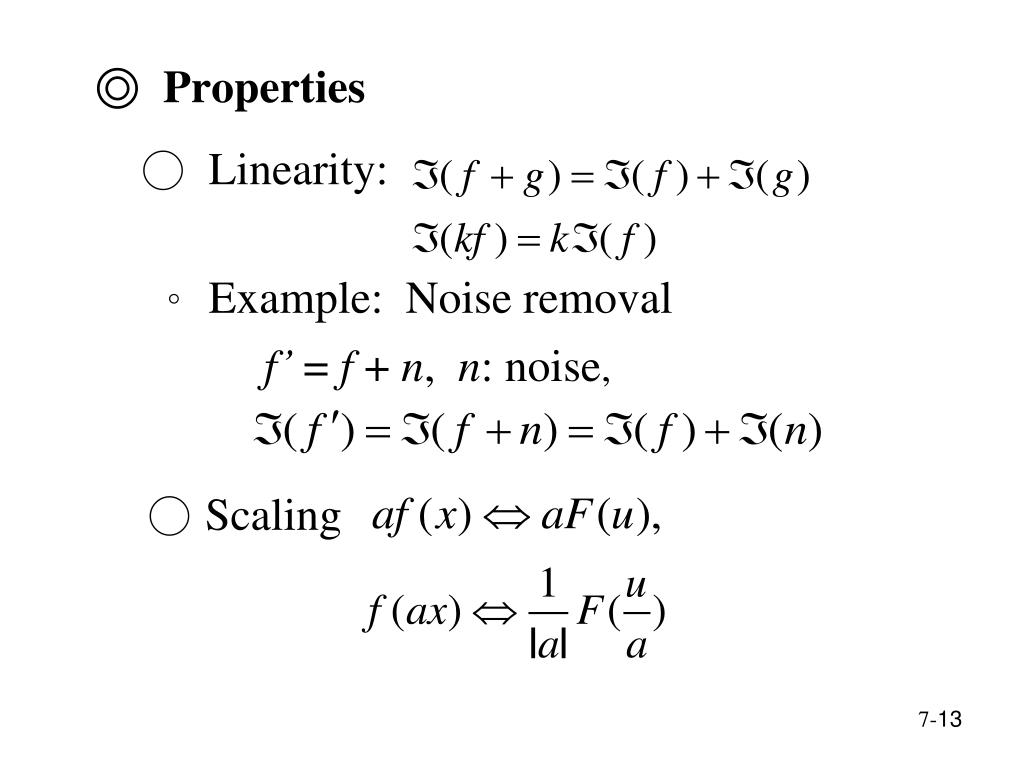

  12. ◎ Properties ○ Linearity: 。 Example: Noise removal f’ = f + n, n: noise, ○ Scaling

  13. ○ Periodicity:

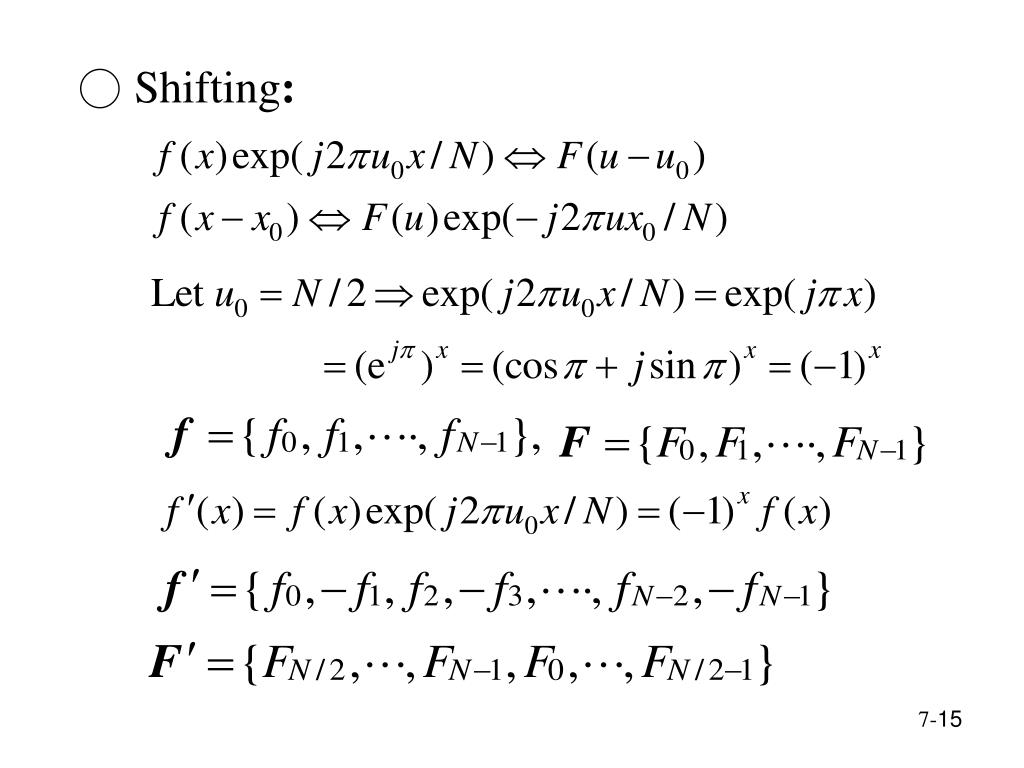

  14. ○ Shifting:

  15. 。 Example:

  16. ◎ Convolution: Convolution theorem:

  17. ◎ Correlation Correlation theorem

  18. 。Discrete Case: e.g., A = 4, B = 5, A + B – 1 = 8,

  19. * Convolution can be defined in terms of polynomial product Extend f, g to if f, g have different numbers of sample points Let Compute The coefficients of to form the result of convolution

  20. 。Example: Let The coefficients of form the convolution

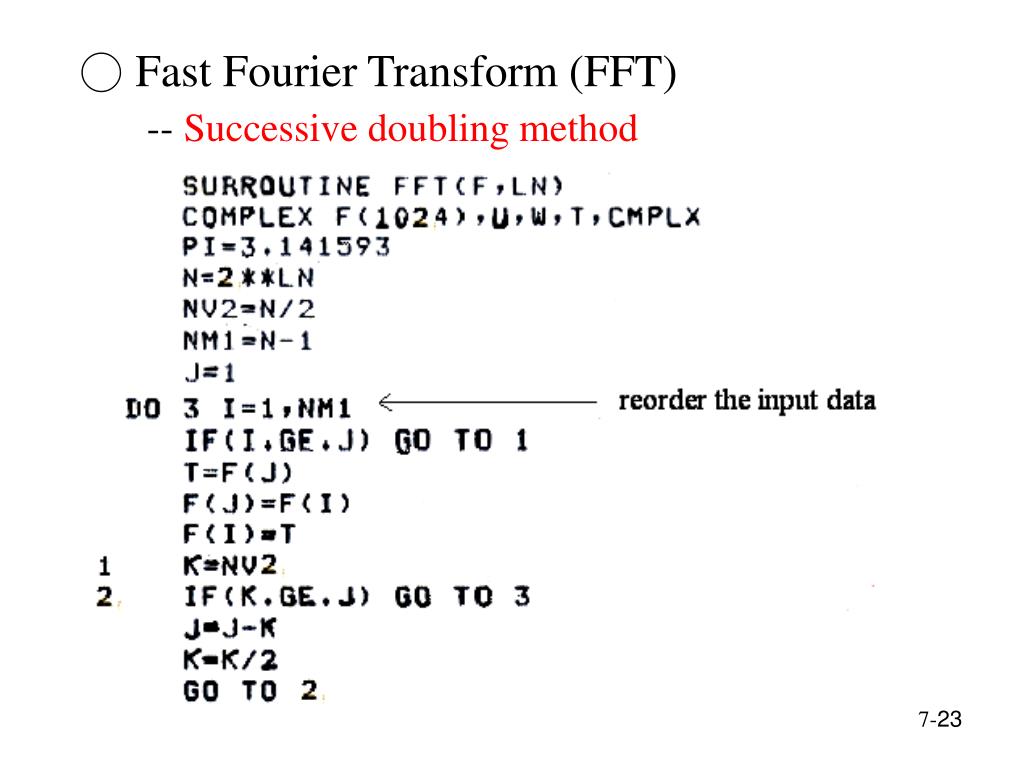

  21. ○ Fast Fourier Transform (FFT) -- Successive doubling method

  22. 7-24

  23. 。 Time complexity : the length of the input sequence FT: FFT: Times of speed increasing: N FT FFT Ratio 4 16 8 2.0 8 84 24 2.67 16 256 64 4.0 32 1024 160 6.4 64 4096 384 10.67 128 16384 896 18.3 256 65536 2048 32.0 512 262144 4608 56.9 1024 1048576 10240 102.4

  24. ○ Inverse FFT ← Given ← compute i. Input into FFT. The output is ii. Taking the complex conjugate and multiplying by N , yields the f(x)

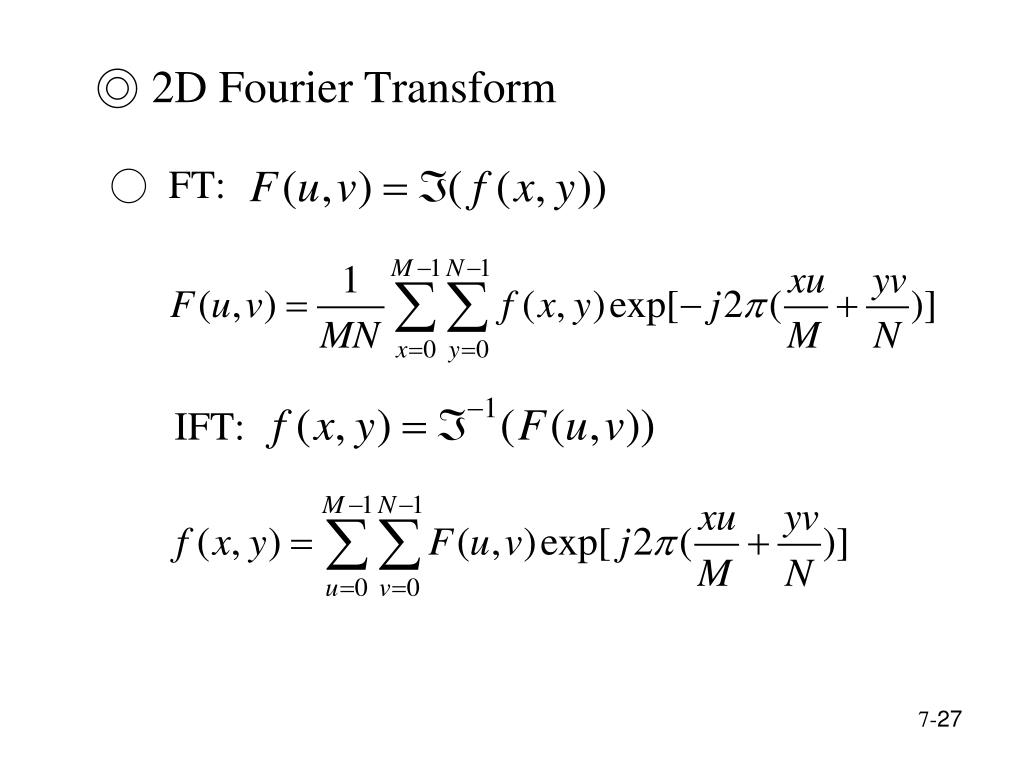

  25. ◎ 2D Fourier Transform ○ FT: IFT:

  26. ◎ Properties ○ Filtering: every F(u,v) is obtained by multiplying every f(x,y) by a fixed value and adding up the results. DFT can be considered as a linear filtering ○ DC coefficient:

  27. ○ Separability:

  28. F(u,v) = F*(-u,-v) ○ Conjugate Symmetry:

  29. ○ Shifting

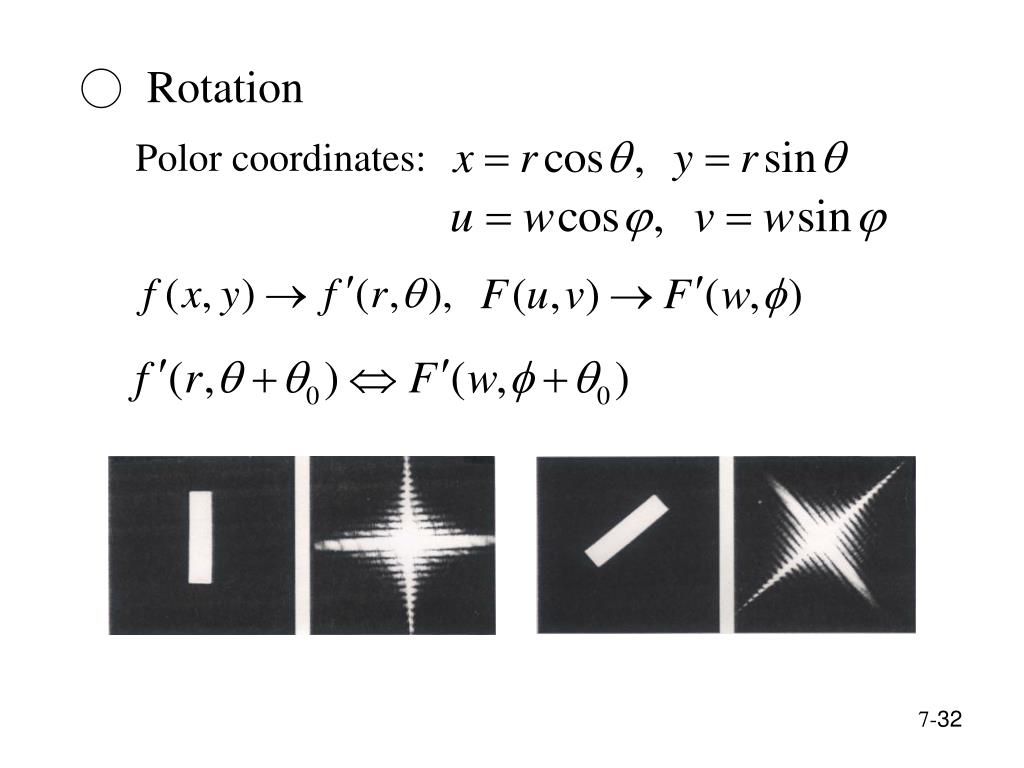

  30. ○ Rotation Polor coordinates:

  31. ○ Display: effect of log operation

  32. ◎ Image Transform

  33. ◎ Filtering in Frequency Domain ○ Low pass filtering I FT m IFT

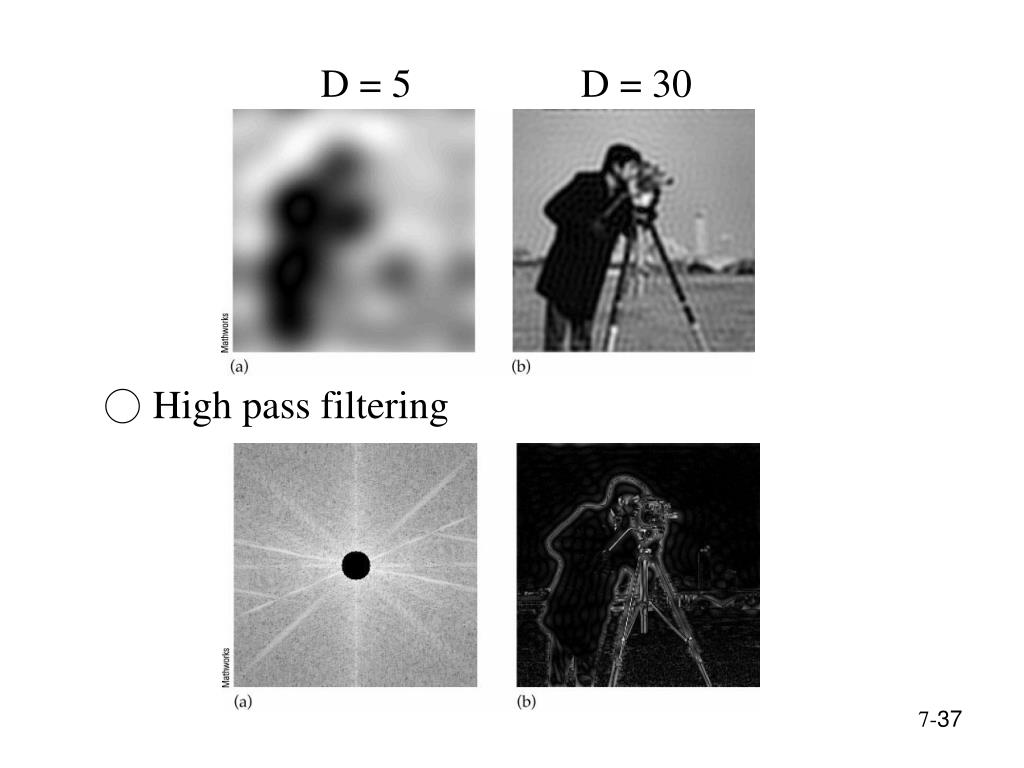

  34. D = 5 D = 30 ○ High pass filtering

  35. Different Ds

  36. ◎ Butterworth Filtering ○ Low pass filter ○ High pass filter

  37. ○ Low pass filter ○ High pass filter

  38. ◎ Homomorphic Filtering -- Deals with images with large variation of illumination, e.g., sunshine + shadows -- Both reduces intensity range and increases local contrast ○ Idea: I = LR, L: illumination, R: Reflectance logI = logL + logR

  39. low frequency high frequency

  40. Euler’s formula: 7-44

  41. 7-45

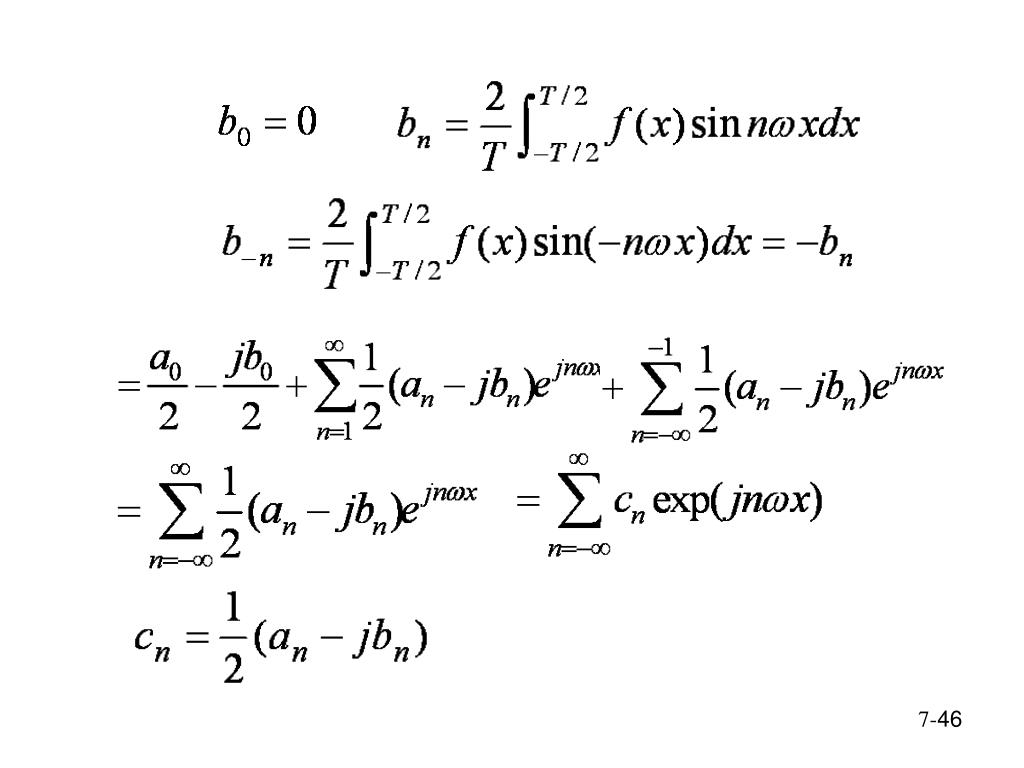

  42. 7-46

  43. ○ Fast Fourier Transform (FFT) -- Successive doubling method Let Assume Let N = 2M. 7-47

  44. ] = ] ∵ = 7-48

  45. Let --------- (B) Consider 7-49

  46. 7-50
