  1. Chapter 37 The Lymphatic System and Immune Response

  2. Lymphatic System • Lymphatic vessels • Lymphatic tissues • Tonsils • Primary lymphatic organs • Thymus and Bone marrow • Secondary lymphatic organs • Lymph nodes, spleen

  3. Lymphatic System

  4. Lymphatic System • Lymph • Fluid lost from the capillaries • Edema • Functions of the lymphatic system: • Transport lymph to the blood vessels • Protects the body

  5. Lymphatic vessels • Lymphatic capillaries • Lymphatic collecting vessels • Lymphatic trunk • Right lymphatic duct - drains lymph from: • Head right upper extremity • Right thorax • Drains into right subclavian vein

  6. Lymphatic vessels • Thoracic duct – drains lymph from: • Rest of the body • Drains into left subclavian vein • Cisterna chyli • Characteristic of the lymphatic vessels • Walls with 3 tunics • Presence of valves • Presence of abundant anastomoses

  7. Lymphatic vessels

  8. Primary lymphoid organs • Bone marrow • Contain the stem cell that will give rise to all lymphocytes • Site of B cell differentiation or immunocompetency • Thymus • Site of T cell differentiation or immunocompetency

  9. Thymus

  10. Secondary lymphatic organs • Lymph nodes • Bean-shaped • Numerous • Regional lymph nodes: • Cervical • Axillary • Inguinal, etc • Hilus • Afferent and efferent vessels

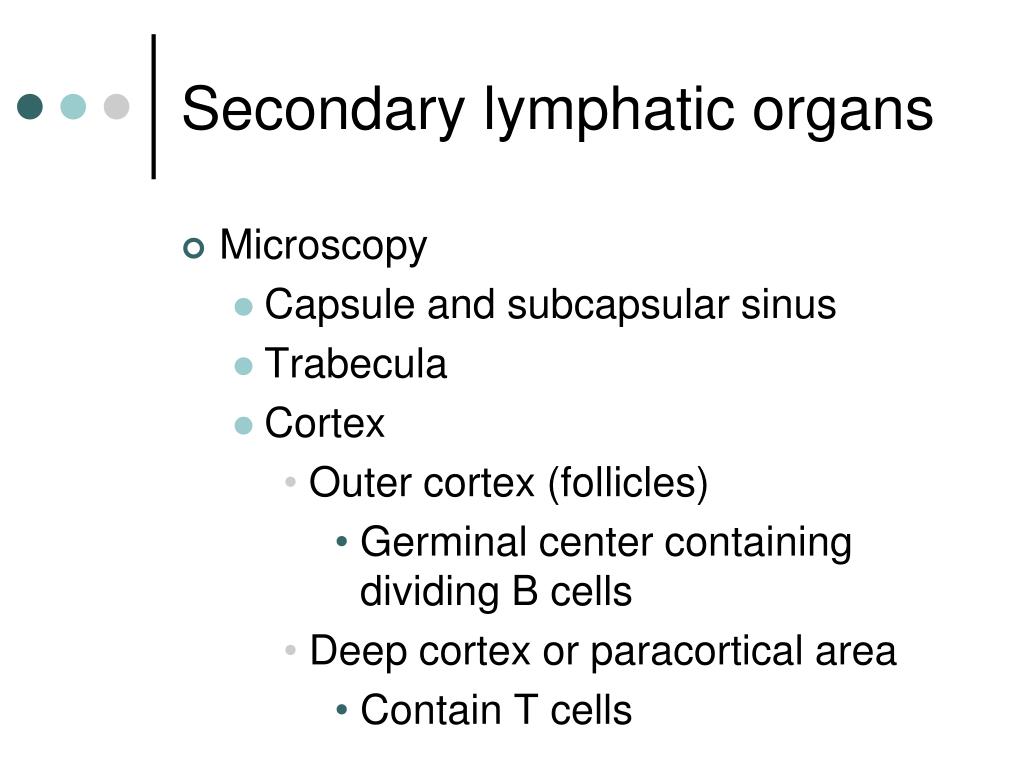

  11. Secondary lymphatic organs • Microscopy • Capsule and subcapsular sinus • Trabecula • Cortex • Outer cortex (follicles) • Germinal center containing dividing B cells • Deep cortex or paracortical area • Contain T cells

  12. Secondary lymphatic organs • Medulla • Medullary cords • Medullary sinuses • Contain macrophages and plasma cells

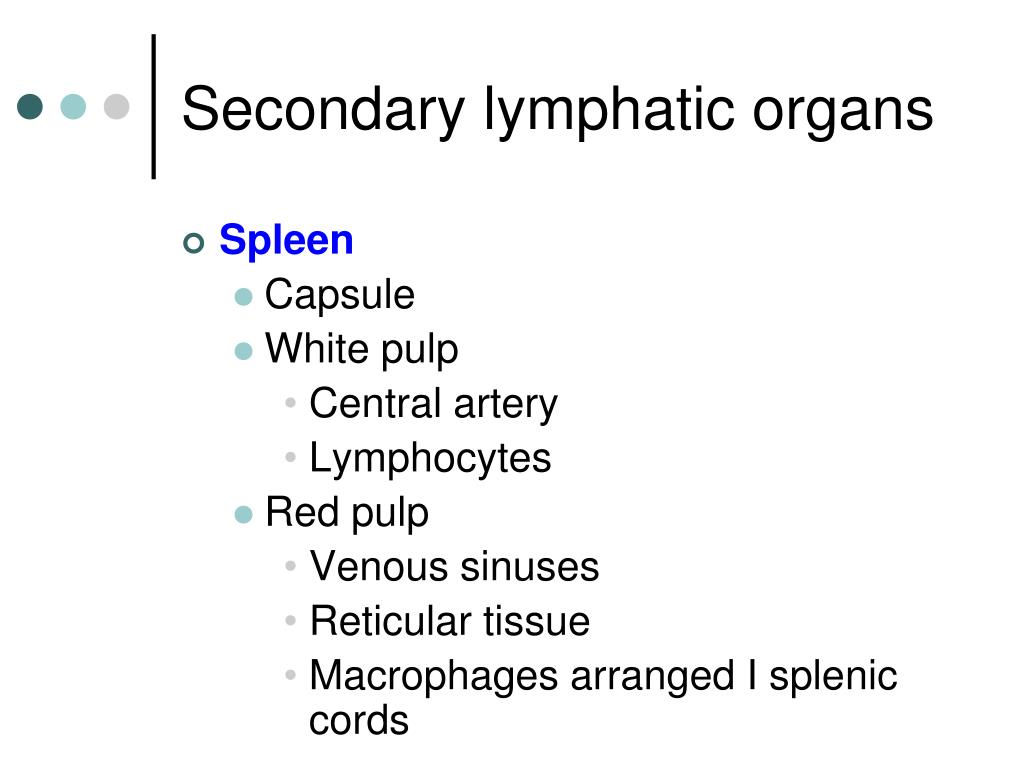

  13. Secondary lymphatic organs • Spleen • Capsule • White pulp • Central artery • Lymphocytes • Red pulp • Venous sinuses • Reticular tissue • Macrophages arranged I splenic cords

  14. Spleen

  15. Lymphoid tissues • Tonsils • One pharingeal • Two palatines • Two linguals • Presence of germinal center • Presence of crypts

  16. Tonsils

  17. The immune response • It is a systemic response • Destroys or neutralizes foreign substances • Characteristics of immune responses • Memory • Immunocompetent lymphocytes are monospecific • Specificity • Ability to differentiate self from nonself

  18. The immune response • Antigens • Foreign proteins • Polysaccharides • Haptens • Lymphocytes • Responsible for the immune response • Autoimmunity

  19. Organ, cells and cell interaction of the immune response • Stem cells that give rise to the immune system arise in the bone marrow • These cells will differentiate into B or T cells • B cells will stay in the bone marrow for maturation • T cells will migrate to thymus for maturation

  20. Organ, cells and cell interaction of the immune response • B and T cells will then become immunocompetent • Specific cell-surface proteins that enable lymphocytes to bind to a particular antigen • B and T cell will then leave bone marrow and thymus, enter the blood stream and travel to secondary lymphatic organs • Site for clonal selection

  21. Organ, cells and cell interaction of the immune response • B and T cell will bind to specific antigens and then undergo to clonal multiplication • B cell may become • Memory • Plasma cell • Humoral immunity

  22. Organ, cells and cell interaction of the immune response • T cell may become • Memory • Cytotoxic • Helper • Supressor • Cellular immunity

  23. Antibodies and tests for their presence • Characteristics of antibodies or Immunoglobulins (Igs) • Produced by plasma cells • They are plasma proteins (gamaglobulins) • Found in all body secretions

  24. Antibodies and tests for their presence • Classes of antibodies • IgM, IgG, IgA, IgD, IgE • Structure of the immunoglobulins • 4 monomers • Linked together by disulfide bridges • 2 heavy chains • 2 light chains

  25. Antibody

  26. Antibodies and tests for their presence • Heavy chains • Constant region (C) • Same amino acid sequence • Two of them • Variable region (V) • Different in all Igs • Formed in response to the antigens • Site for binding specific antigens

  27. Antibodies and tests for their presence • Light chain • Constant region • Variable region • Immunoglobulins have a Y shape • Tests using antigen-antibody • Blood typing, pregnancy, Elisa (detects antigen or antibodies)
