  1. Distributed File Systems CS 519: Operating System Theory Computer Science, Rutgers University Instructor: Thu D. Nguyen TA: Xiaoyan Li Spring 2002

  2. File Service • Implemented by a user/kernel process called file server • A system may have one or several file servers running at the same time • Two models for file services • upload/download: files move between server and clients, few operations (read file & write file), simple, requires storage at client, good if whole file is accessed • remote memory access: files stay at server, reach interface for many operations, less space at client, efficient for small accesses CS 519: Operating System Theory

  3. Directory Service • Provides naming usually within a hierarchical file system • Clients can have the same view (global root directory) or different views of the file system (remote mounting) • Location transparent: location of the file doesn’t appear in the name of the file • ex: /server1/dir1/file specifies the server but not where the server is located -> server can move the file in the network without changing the path • Location independence: a single name space that looks the same on all machines, files can be moved between servers without changing their names -> difficult CS 519: Operating System Theory

  4. Two-Level Naming • Symbolic name (external), e.g. prog.c; binary name (internal), e.g. local i-node number as in Unix • Directories provide the translation from symbolic to binary names • Binary name format • i-node: no cross references among servers • (server, i-node): a directory in one server can refer to a file on a different server • Capability specifying address of server, number of file, access permissions, etc • {binary_name+}: binary names refer to the original file and all of its backups CS 519: Operating System Theory

  5. File Sharing Semantics • UNIX semantics: total ordering of R/W events • easy to achieve in a non-distributed system • in a distributed system with one server and multiple clients with no caching at client, total ordering is also easily achieved since R and W are immediately performed at server • Session semantics: writes are guaranteed to become visible only when the file is closed • allow caching at client with lazy updating -> better performance • if two or more clients simultaneously write: one file (last one or non-deterministically) replaces the other CS 519: Operating System Theory

  6. File Sharing Semantics (cont’d) • Immutable files: create and read file operations (no write) • writing a file means to create a new one and enter it into the directory replacing the previous one with the same name: atomic operations • collision in writing: last copy or nondeterministically • what happens if the old copy is being read • Transaction semantics: mutual exclusion on file accesses; either all file operations are completed or none is. Good for banking systems CS 519: Operating System Theory

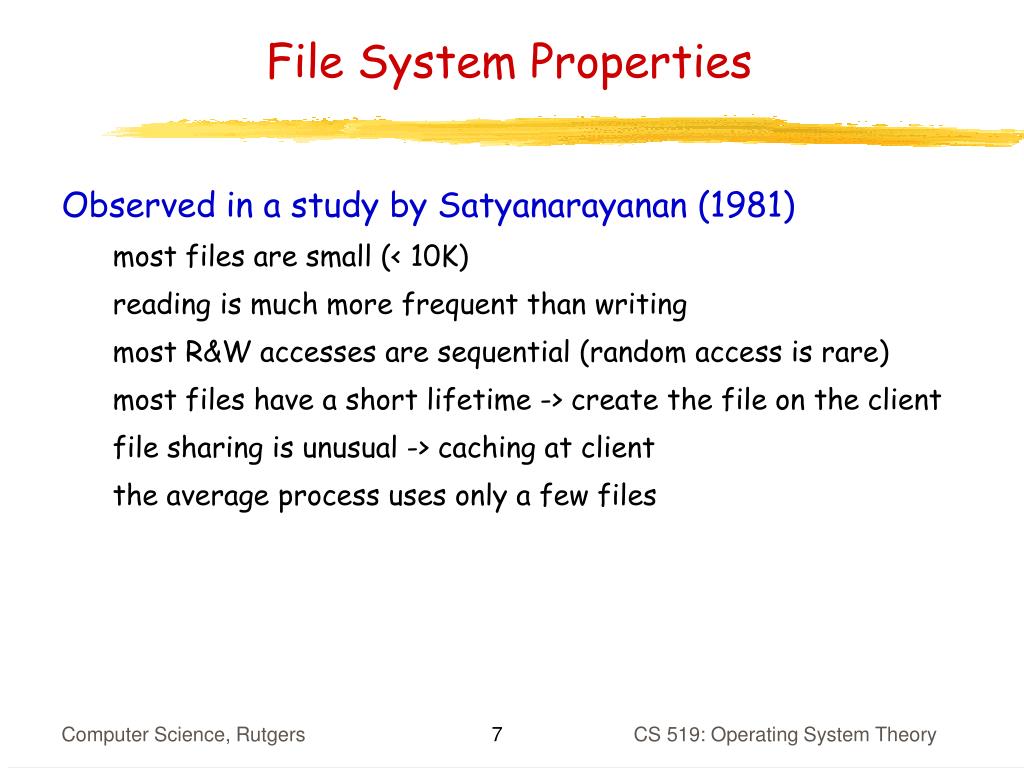

  7. File System Properties • Observed in a study by Satyanarayanan (1981) • most files are small (< 10K) • reading is much more frequent than writing • most R&W accesses are sequential (random access is rare) • most files have a short lifetime -> create the file on the client • file sharing is unusual -> caching at client • the average process uses only a few files CS 519: Operating System Theory

  8. Server System Structure • File + directory service: combined or not • Cache directory hints at client to accelerate the path name look up – directory and hints must be kept coherent • State information about clients at the server • stateless server: no client information is kept between requests • stateful server: servers maintain state information about clients between requests CS 519: Operating System Theory

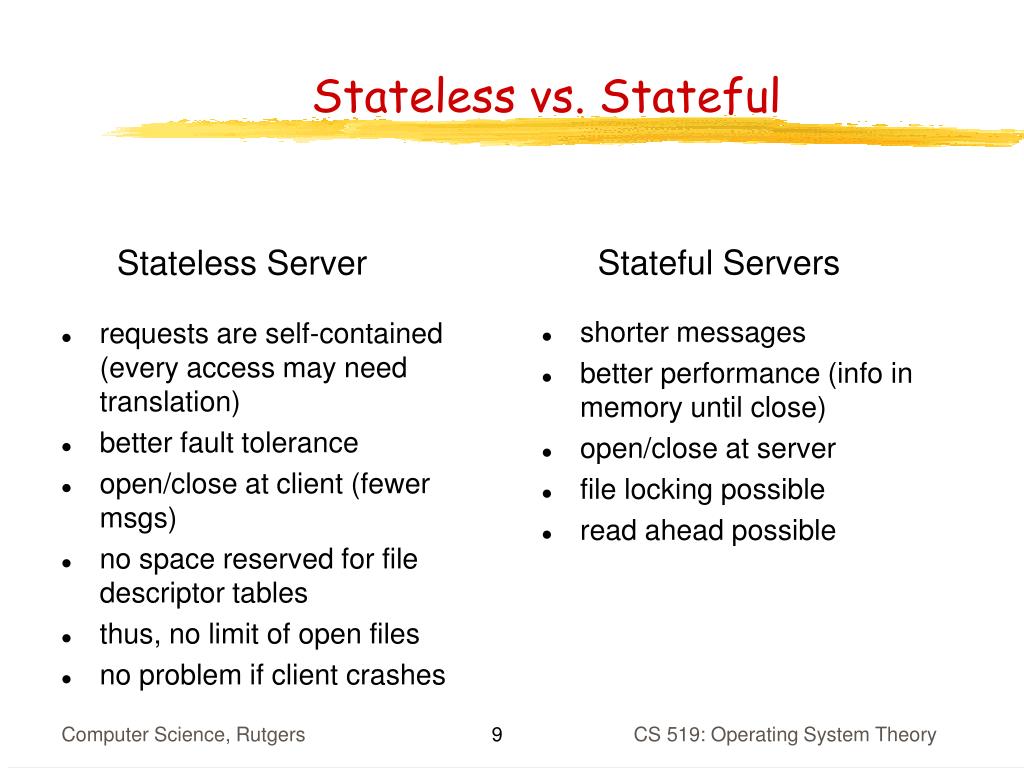

  9. Stateful Servers Stateless Server • shorter messages • better performance (info in memory until close) • open/close at server • file locking possible • read ahead possible • requests are self-contained (every access may need translation) • better fault tolerance • open/close at client (fewer msgs) • no space reserved for file descriptor tables • thus, no limit of open files • no problem if client crashes Stateless vs. Stateful CS 519: Operating System Theory

  10. Caching • Three possible places: server’s memory, client’s disk, client’s memory • Caching in server’s memory: avoids disk access but still network access • Caching at client’s disk (if available): tradeoff between disk access and remote memory access • Caching at client usually in main memory • inside each process address space: no sharing at client • in the kernel: kernel involvement on hits • in a separate user-level cache manager: flexible and efficient if paging can be controlled from user-level • Server-side caching eliminates coherence problem. Client-side cache coherence? Next… CS 519: Operating System Theory

  11. Client Cache Coherence in DFS • How to maintain coherence (according to a model, e.g. UNIX semantics or session semantics) of copies of the same file at various clients • Write-through: writes sent to the server as soon as they are performed at the client -> high traffic, requires cache managers to check (modification time) with server before can provide cached content to any client • Delayed write: coalesces multiple writes; better performance but ambiguous semantics • Write-on-close: implements session semantics • Central control: file server keeps a directory of open/cached files at clients -> Unix semantics, but problems with robustness and scalability; problem also with invalidation messages because clients did not solicit them CS 519: Operating System Theory

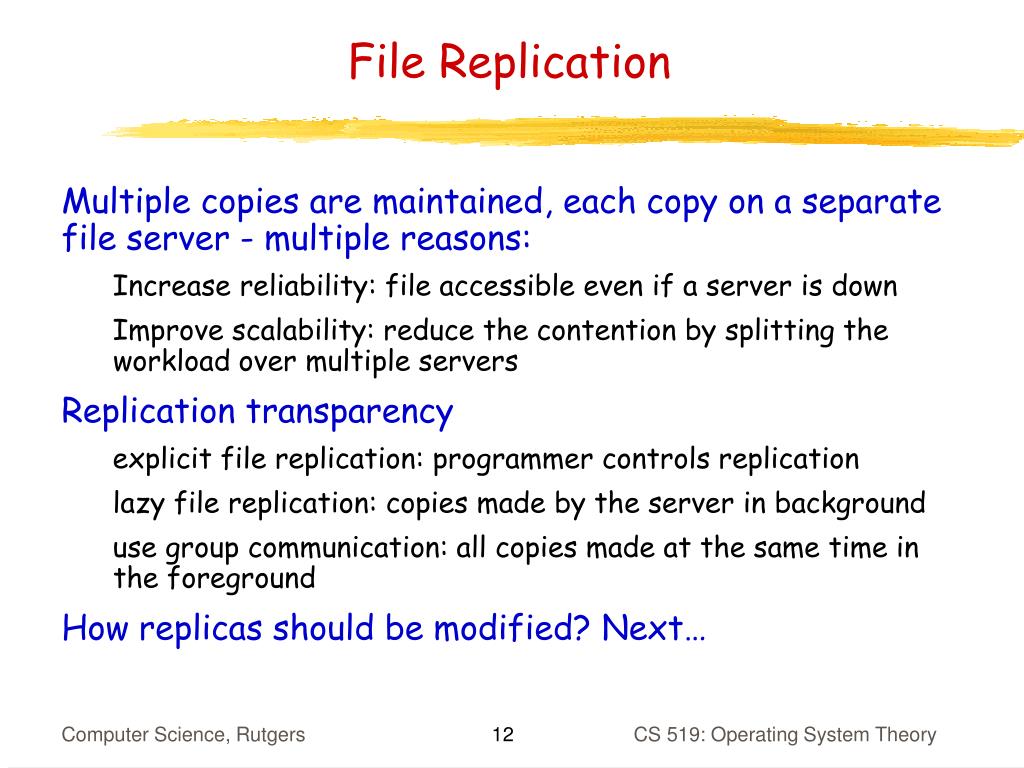

  12. File Replication • Multiple copies are maintained, each copy on a separate file server - multiple reasons: • Increase reliability: file accessible even if a server is down • Improve scalability: reduce the contention by splitting the workload over multiple servers • Replication transparency • explicit file replication: programmer controls replication • lazy file replication: copies made by the server in background • use group communication: all copies made at the same time in the foreground • How replicas should be modified? Next… CS 519: Operating System Theory

  13. Modifying Replicas: Voting Protocol • Updating all replicas using a coordinator works but is not robust (if coordinator is down, no updates can be performed) => Voting: updates (and reads) can be performed if some specified # of servers agree. • Voting Protocol: • A version # (incremented at write) is associated with each file • To perform a read, a client has to assemble a read quorum of Nr servers; similarly, a write quorum of Nw servers for a write • If Nr + Nw > N, then any read quorum will contain at least one most recently updated file version • For reading, client contacts Nr active servers and chooses the file with largest version # • For writing, client contacts Nw active servers asking them to write. Succeeds if they all say yes. CS 519: Operating System Theory

  14. Modifying Replicas: Voting Protocol • Nr is usually small (reads are frequent), but Nw is usually close to N (want to make sure all replicas are updated). Problem with achieving a write quorum in the presence of server failures • Voting with ghosts: allows to establish a write quorum when several servers are down by temporarily creating dummy (ghost) servers (at least one must be real) • Ghost servers are not permitted in a read quorum (they don’t have any files) • When server comes back it must restore its copy first by obtaining a read quorum CS 519: Operating System Theory

  15. Network File System (NFS) • A stateless DFS implemented at Sun • An NFS server exports directories • Clients access exported directories by mounting them • Because NFS is stateless, OPEN and CLOSE operations are not needed in the server (implemented at the client) • NFS provides file locking but UNIX file semantics is not achieved because of client caching • Write through protocol, but delay is possible: dirty cache blocks are sent back by clients in chunks, every 30 sec or at close • a timer is associated with each cache block at the client (3 sec for data blocks, 30 sec for directory blocks). When the timer expires, the entry is discarded (if clean, of course) • when a file is opened, the last modification time at the server is checked CS 519: Operating System Theory

  16. Recent Research in DFS • Petal & Frangipani (DEC SRC): 2-layer DFS system CS 519: Operating System Theory

  17. Petal: Distributed Virtual Disks • A distributed storage system that provides a virtual disk abstraction separate from the physical resource • The virtual disk is globally accessible to all Petal clients on the network • Virtual disks are implemented on a cluster of servers that cooperate to manage a pool of physical disks • Advantages • recover from any single failure • transparent reconfiguration and expandability • load and capacity balancing • low-level service (lower than a DFS) that handles distribution problems CS 519: Operating System Theory

  18. Petal CS 519: Operating System Theory

  19. Virtual to Physical Translation • <virtual disk, virtual offset> -> <server, physical disk, physical offset> • Three data structures: virtual disk directory, global map, and physical map • The virtual disk directory and global map are globally replicated and kept consistent • Physical map is local to each server • One level of indirection (virtual disk to global map) is necessary to allow transparent reconfiguration. We’ll discuss reconfiguration soon CS 519: Operating System Theory

  20. Virtual to Physical Translation (cont’d) The virtual disk directory translates the virtual disk identifier (like volume id) into a global map identifier The global map determines the server responsible for translating the given offset (a virtual disk may be spread over multiple physical disks). The global map also specifies the redundancy scheme for the virtual disk The physical map at specific server translates global map identifier and the offset to a physical disk and an offset within that disk. Physical map is similar to a page table CS 519: Operating System Theory

  21. Support for Backup • Petal simplifies a client’s backup procedure by providing a snapshot mechanism • Petal generates snapshots of virtual disks using copy-on-write (backup files are pointing to old blocks with write protection). Creating a snapshot requires pausing the client’s application to guarantee consistency • A snapshot is a virtual disk that cannot be modified • Snapshots require a modification to the translation scheme. The virtual disk directory translates a virtual disk id into a pair <global map id, epoch #> where epoch # is incremented at each snapshot • At each snapshot a new tuple with a new epoch is created in the virtual disk directory. The snapshot takes the old epoch # • All accesses to the virtual disk are made using the new epoch #, so that any write to the original disk create new entries in the new epoch rather than overwrite the blocks in the snapshot CS 519: Operating System Theory

  22. Virtual Disk Reconfiguration • Needed when a new server is added or the redundancy scheme is changed • Steps to perform it at once (not incrementally) and in the absence of any other activity: • create a new global map with desired redundancy scheme and server mapping • change all virtual disk directories to point to the new global map • redistribute data to the severs according to the translation specified in the new global map • The challenge is to perform it incrementally and concurrently with normal client requests CS 519: Operating System Theory

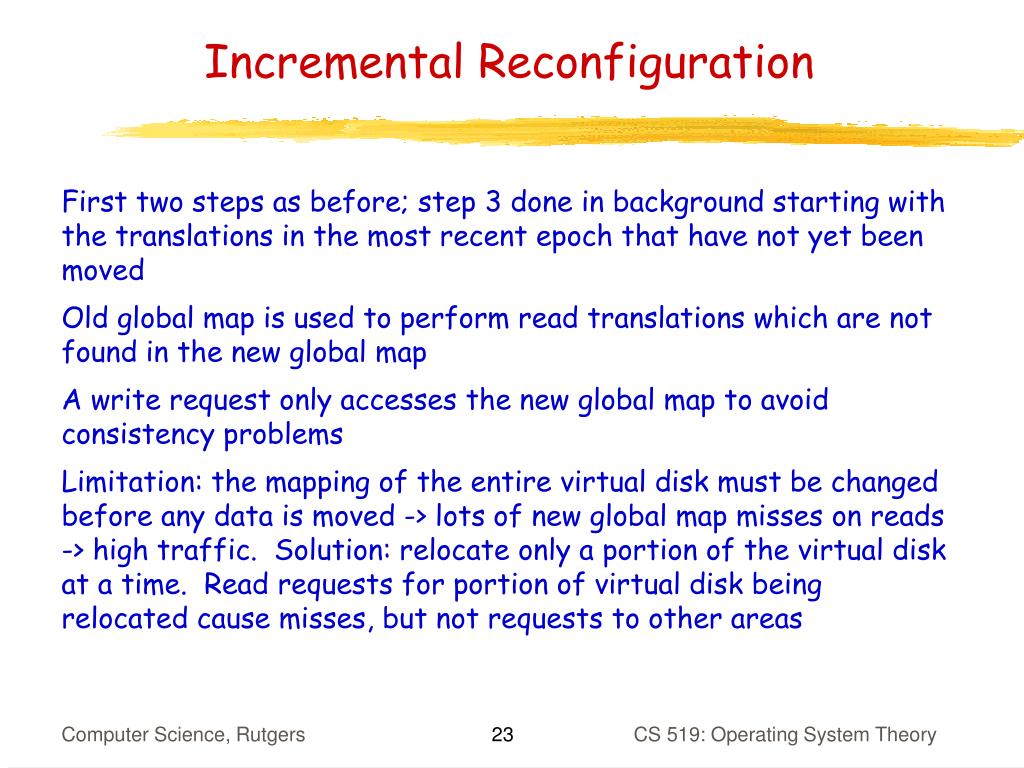

  23. Incremental Reconfiguration • First two steps as before; step 3 done in background starting with the translations in the most recent epoch that have not yet been moved • Old global map is used to perform read translations which are not found in the new global map • A write request only accesses the new global map to avoid consistency problems • Limitation: the mapping of the entire virtual disk must be changed before any data is moved -> lots of new global map misses on reads -> high traffic. Solution: relocate only a portion of the virtual disk at a time. Read requests for portion of virtual disk being relocated cause misses, but not requests to other areas CS 519: Operating System Theory

  24. Redundancy with Chained Data Placement • Petal uses chained-declustering data placement • two copies of each data block are stored on neighboring servers • every pair of neighboring servers has data blocks in common • if server 1 fails, servers 0 and 2 will share server’s read load (not server 3) server 0 server 1 server 2 server 3 d0 d1 d2 d3 d3 d0 d1 d2 d4 d5 d6 d7 d7 d4 d5 d6 CS 519: Operating System Theory

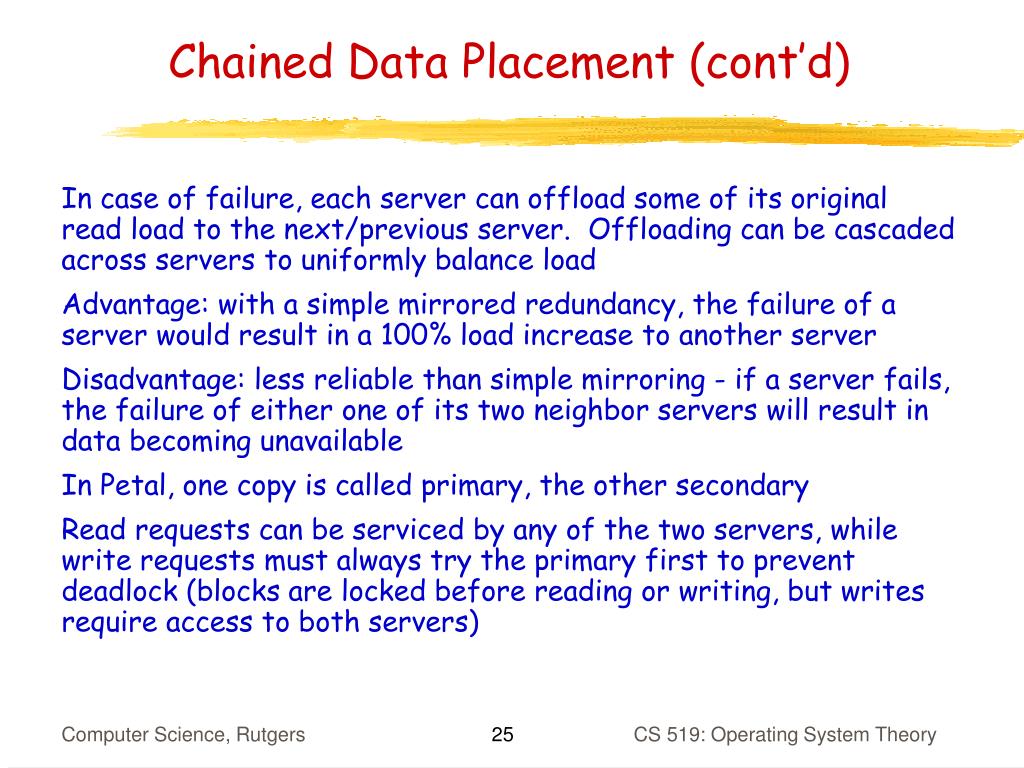

  25. Chained Data Placement (cont’d) • In case of failure, each server can offload some of its original read load to the next/previous server. Offloading can be cascaded across servers to uniformly balance load • Advantage: with a simple mirrored redundancy, the failure of a server would result in a 100% load increase to another server • Disadvantage: less reliable than simple mirroring - if a server fails, the failure of either one of its two neighbor servers will result in data becoming unavailable • In Petal, one copy is called primary, the other secondary • Read requests can be serviced by any of the two servers, while write requests must always try the primary first to prevent deadlock (blocks are locked before reading or writing, but writes require access to both servers) CS 519: Operating System Theory

  26. Read Request • The Petal client tries primary or secondary server depending on which one has the shorter queue length. (Each client maintains a small amount of high-level mapping information that is used to route requests to the “most appropriate” servers. If a request is sent to an inappropriate server, the server returns an error code, causing the client to update its hints and retry the request) • The server that receives the request attempts to read the requested data • If not successful, the client tries the other server CS 519: Operating System Theory

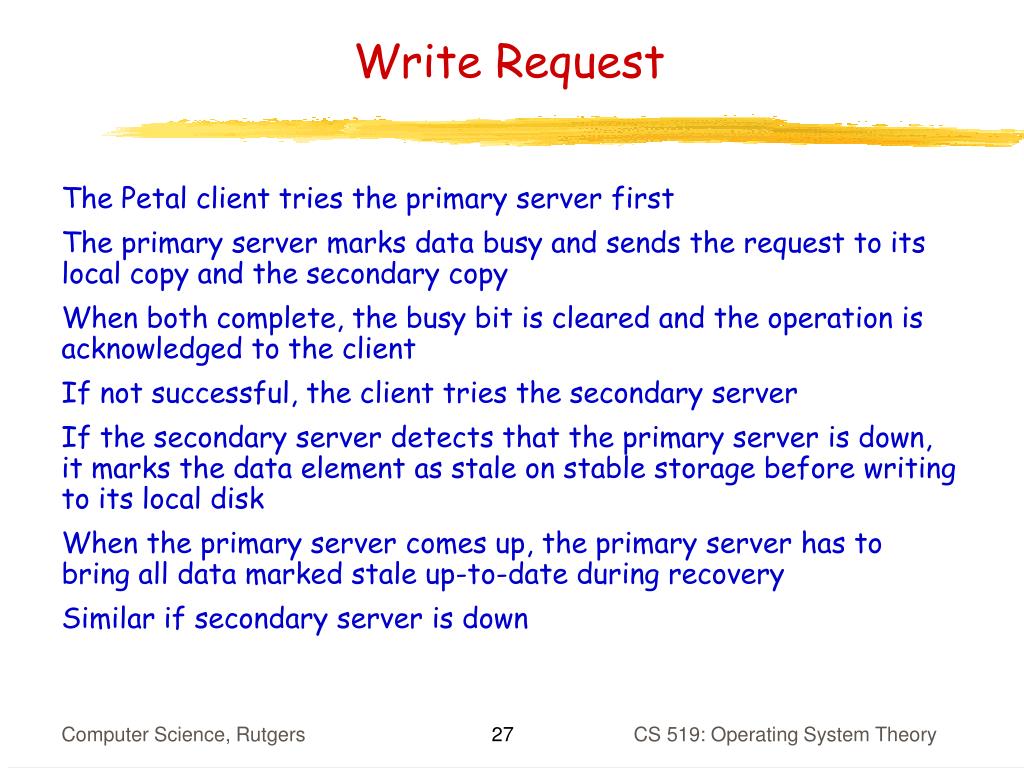

  27. Write Request • The Petal client tries the primary server first • The primary server marks data busy and sends the request to its local copy and the secondary copy • When both complete, the busy bit is cleared and the operation is acknowledged to the client • If not successful, the client tries the secondary server • If the secondary server detects that the primary server is down, it marks the data element as stale on stable storage before writing to its local disk • When the primary server comes up, the primary server has to bring all data marked stale up-to-date during recovery • Similar if secondary server is down CS 519: Operating System Theory

  28. Petal Prototype CS 519: Operating System Theory

  29. Petal Performance - Latency Single client generates requests to random disk offsets CS 519: Operating System Theory

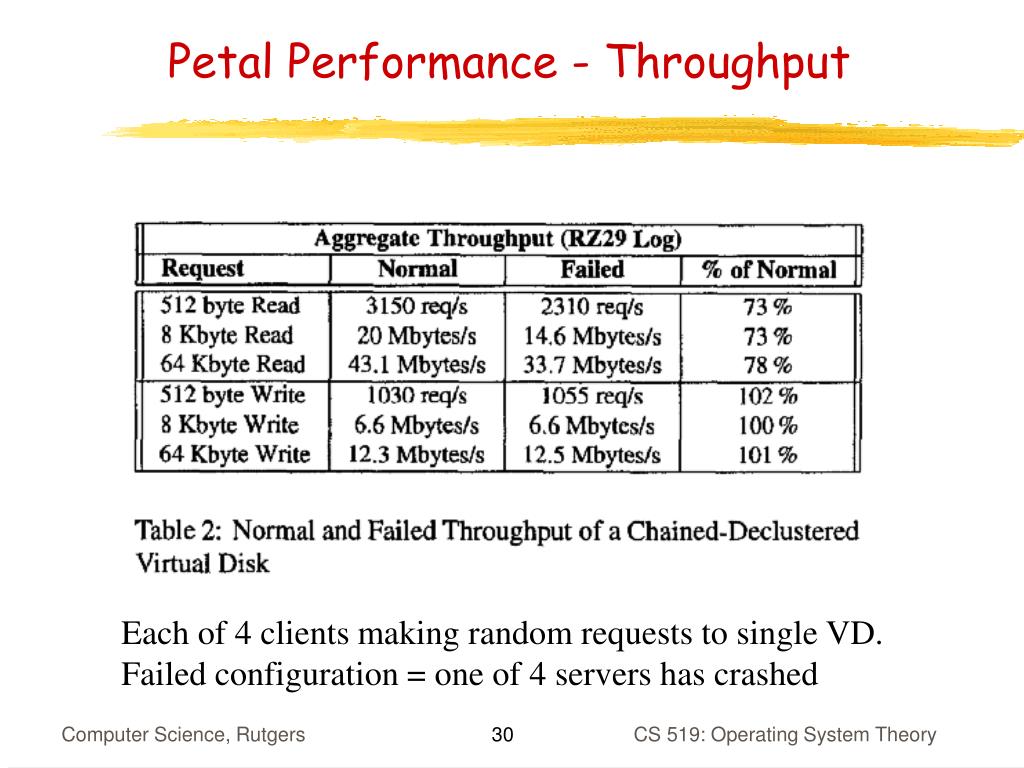

  30. Petal Performance - Throughput Each of 4 clients making random requests to single VD. Failed configuration = one of 4 servers has crashed CS 519: Operating System Theory

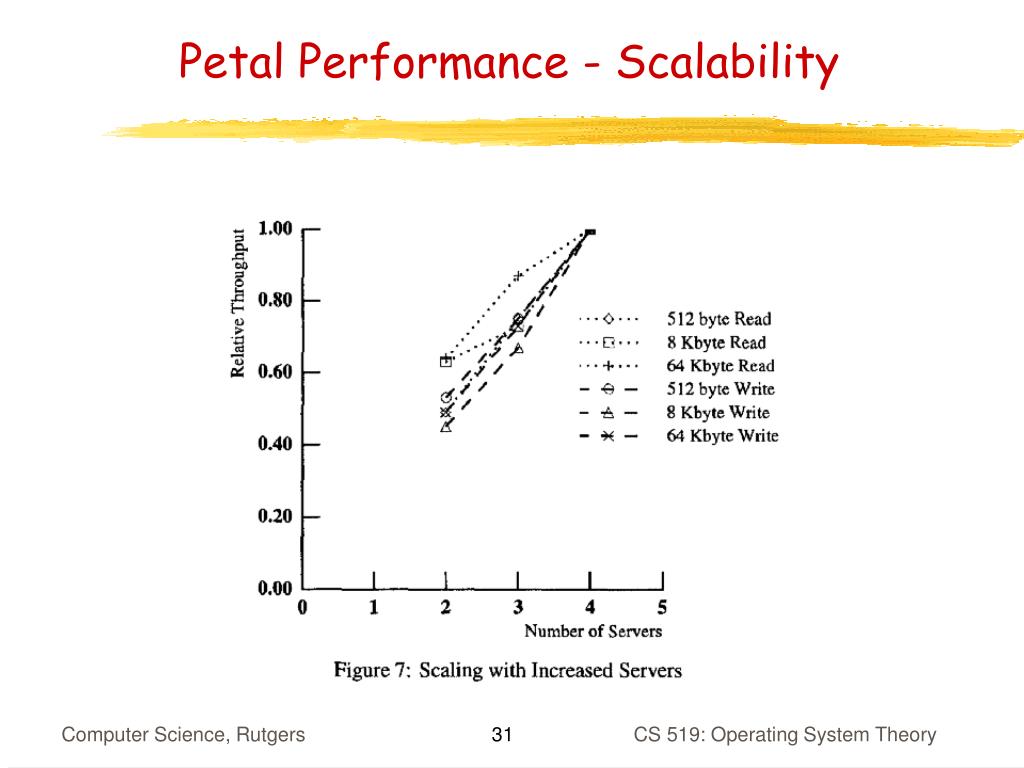

  31. Petal Performance - Scalability CS 519: Operating System Theory

  32. Frangipani • Petal provides disk interface -> need a file system • Frangipani is a file system designed to take full advantage of Petal • Frangipani’s main characteristics: • All users are given a consistent view of the same set of files • Servers can be added without changing configuration of existing servers or interrupting their operation • Tolerates and recovers from machine, network, and disk failures • Very simple internally: a set of cooperating machines that use a common store and synchronize access to that store with locks CS 519: Operating System Theory

  33. Frangipani • Petal takes much of the complexity out of Frangipani • Petal provides highly available storage that can scale in throughput and capacity • However, Frangipani improves on Petal, since: • Petal has no provision for sharing the storage among multiple clients • Applications use a file-based interface rather than the disk-like interface provided by Petal • Problems with Frangipani on top of Petal: • Some logging occurs twice (once in Frangipani and once in Petal) • Cannot use disk location in placing data, because Petal virtualizes disks • Frangipani locks entire files and directories as opposed to individual blocks CS 519: Operating System Theory

  34. Frangipani Structure CS 519: Operating System Theory

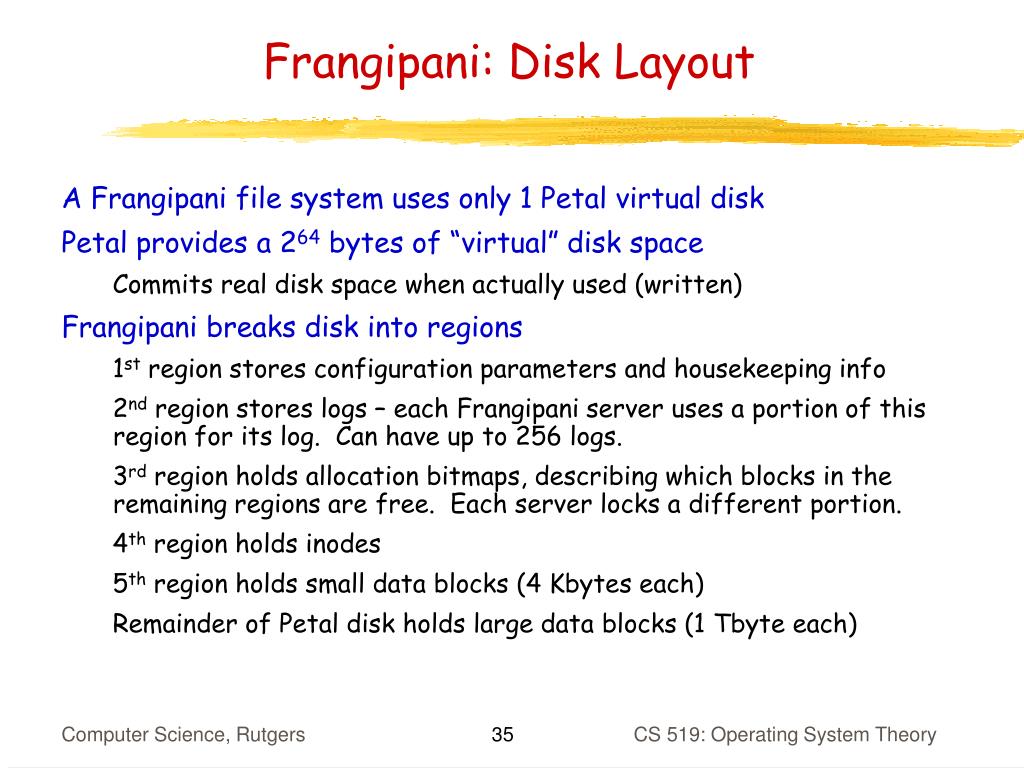

  35. Frangipani: Disk Layout • A Frangipani file system uses only 1 Petal virtual disk • Petal provides a 264 bytes of “virtual” disk space • Commits real disk space when actually used (written) • Frangipani breaks disk into regions • 1st region stores configuration parameters and housekeeping info • 2nd region stores logs – each Frangipani server uses a portion of this region for its log. Can have up to 256 logs. • 3rd region holds allocation bitmaps, describing which blocks in the remaining regions are free. Each server locks a different portion. • 4th region holds inodes • 5th region holds small data blocks (4 Kbytes each) • Remainder of Petal disk holds large data blocks (1 Tbyte each) CS 519: Operating System Theory

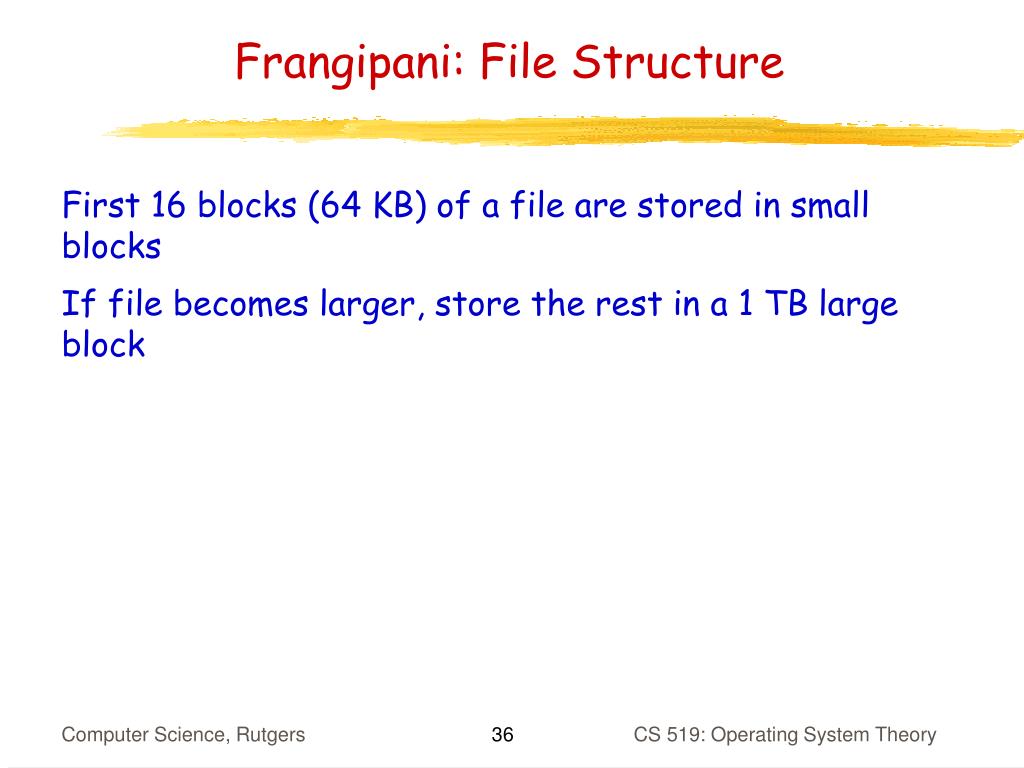

  36. Frangipani: File Structure • First 16 blocks (64 KB) of a file are stored in small blocks • If file becomes larger, store the rest in a 1 TB large block CS 519: Operating System Theory

  37. Frangipani: Dealing with Failures • Write-ahead redo logging of metadata; user data is not logged (but Petal takes care of that). • Each Frangipani server has its own private log • Only after a log record is written to Petal does the server modify the actual metadata in its permanent locations • If a server crashes, the system detects the failure and another server uses the log to recover • Because the log is on Petal, any server can get to it. CS 519: Operating System Theory

  38. Frangipani: Synchronization & Coherence • Frangipani has a lock for each log segment, allocation bitmap segment, and each file • Multiple-reader/single-writer locks. In case of conflicting requests, the owner of the lock is asked to release or downgrade it to remove the conflict • A read lock allows a server to read data from disk and cache it. If server is asked to release its read lock, it must invalidate the cache entry before complying • A write lock allows a server to read or write data and cache it. If a server is asked to release its write lock, it must write dirty data to disk and invalidate the cache entry before complying. If a server is asked to downgrade the lock, it must write dirty data to disk before complying CS 519: Operating System Theory

  39. Frangipani: Lock Service • Fully distributed lock service for fault tolerance and scalability • How to release locks owned by a failed Frangipani server? • The failure of a server is discovered when its “lease” expires. A lease is obtained by the server when it first contacts the lock service. All locks acquired are associated with the lease. Each lease has an expiration time (30 seconds) after its creation or last renewal. A server must renew its lease before it expires • When a server fails, the locks that it owns cannot be released until its log is processed and any pending updates are written to Petal CS 519: Operating System Theory

  40. Frangipani: Performance CS 519: Operating System Theory

  41. Frangipani: Performance CS 519: Operating System Theory

  42. Frangipani: Scalability CS 519: Operating System Theory

  43. Frangipani: Scalability CS 519: Operating System Theory

  44. Frangipani: Scalability CS 519: Operating System Theory
