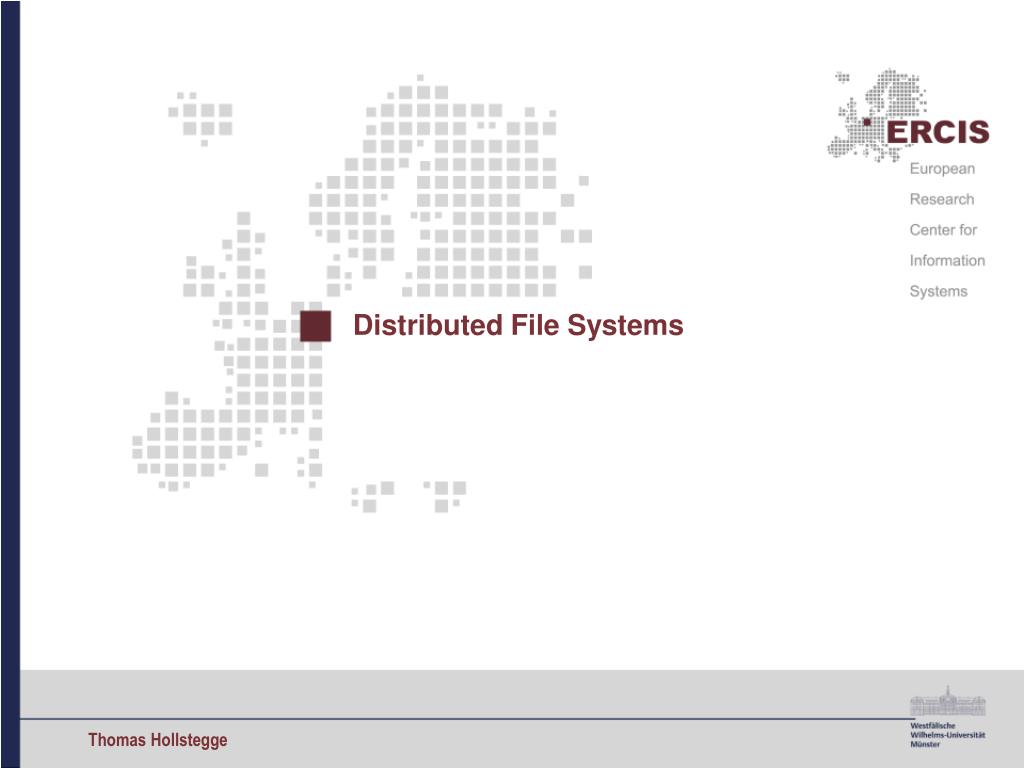

  1. Distributed File Systems

  2. Agenda • Motivation • Distributed file system basics • Case studies • Summary and outlook

  3. Agenda • Motivation • Distributed file system basics • Case studies • Summary and outlook

  4. Motivation • ICT allows for distributed work • Users work timely and spatially separated • They need access to common data collections  Provided by distributed file systems (DFS) • Distributed work leads to new business models • 24/7 customer service • Analysis of worldwide financial information (stock prices etc.)  Economic relevance! • Different DFSs were developed in the past  Structured discussion necessary

  5. Agenda • Motivation • Distributed file system basics • Case studies • Summary and outlook

  6. Basics – Storage fundamentals • „Storage“: Fundamendalabstraction in computing • Data encapsulated in objects • Explicit creationanddeletion • Unaffectedbysystemfailures • „File system“: Refinementofabstraction • Three different usagedimensions • Single user vs. multiple users • Single-thread vs. multi-thread OS • Single site vs. multiple sites

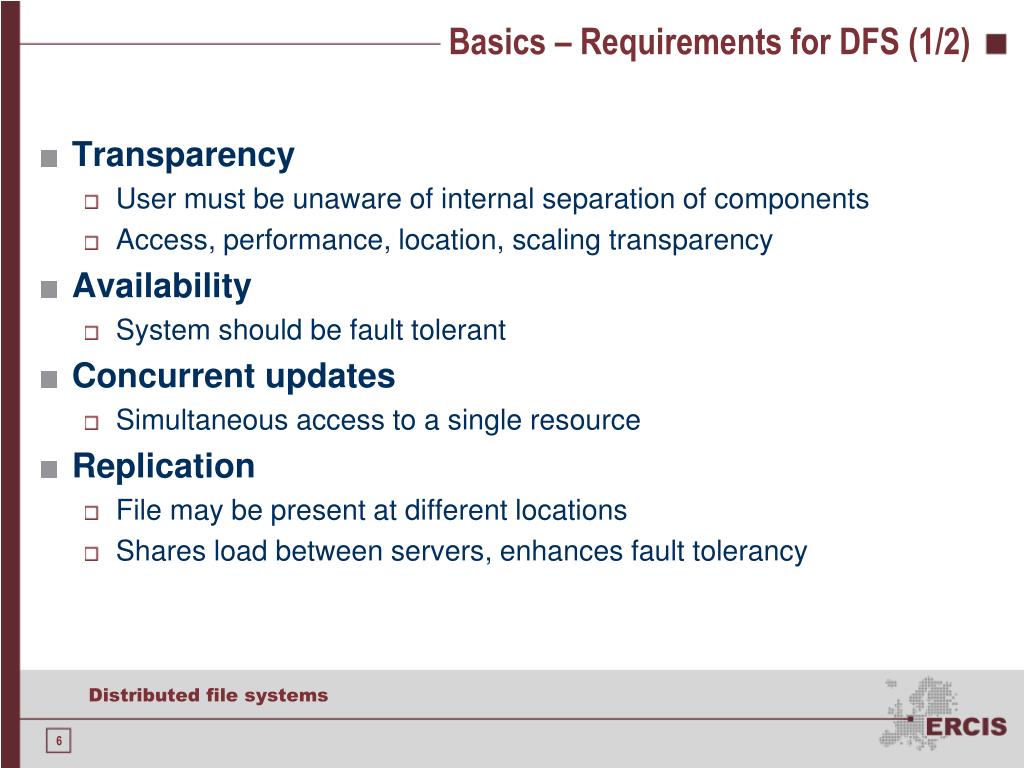

  7. Basics – Requirementsfor DFS (1/2) • Transparency • User must beunawareofinternalseparationofcomponents • Access, performance, location, scalingtransparency • Availability • System shouldbe fault tolerant • Concurrentupdates • Simultaneousaccessto a singleresource • Replication • File maybepresentat different locations • Shares loadbetweenservers, enhances fault tolerancy

  8. Basics – Requirements for DFS (2/2) • Hardware and software heterogeneity • Support for various platforms • Consistency • Data integrity has to be maintained • Security • Access control, user authentication, confidentiality • Efficiency • Performance should be comparable to local file systems

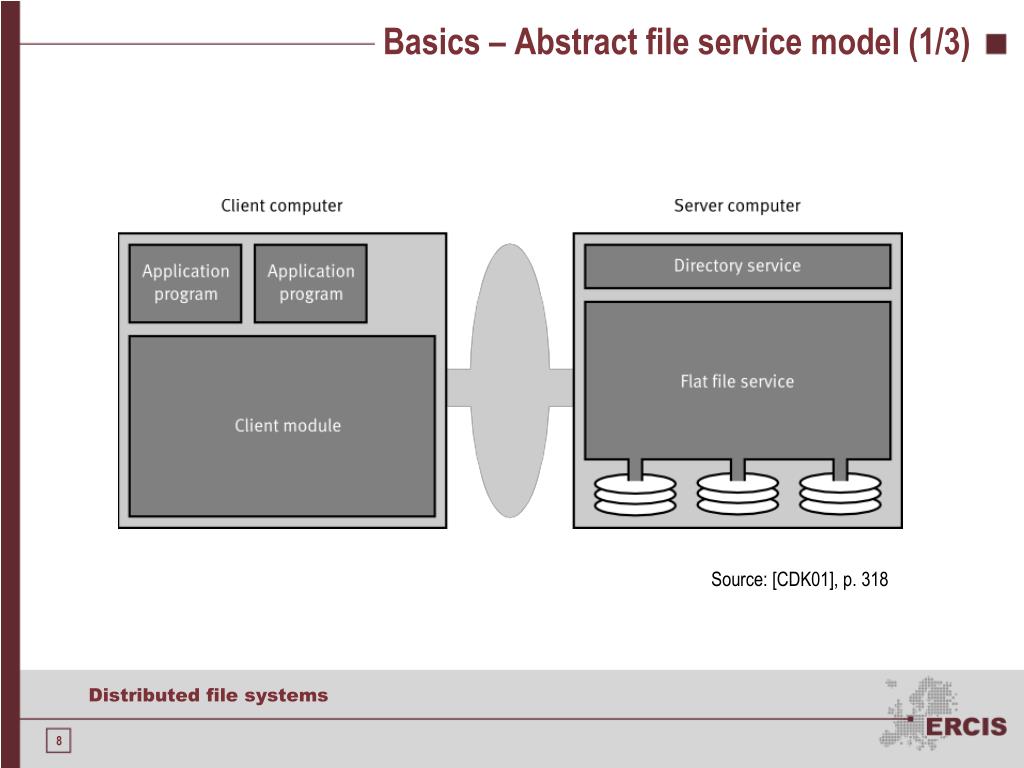

  9. Basics – Abstract file service model (1/3) Source: [CDK01], p. 318

  10. Basics – Abstract file service model (2/3) Source: [CDK01], p. 319-322

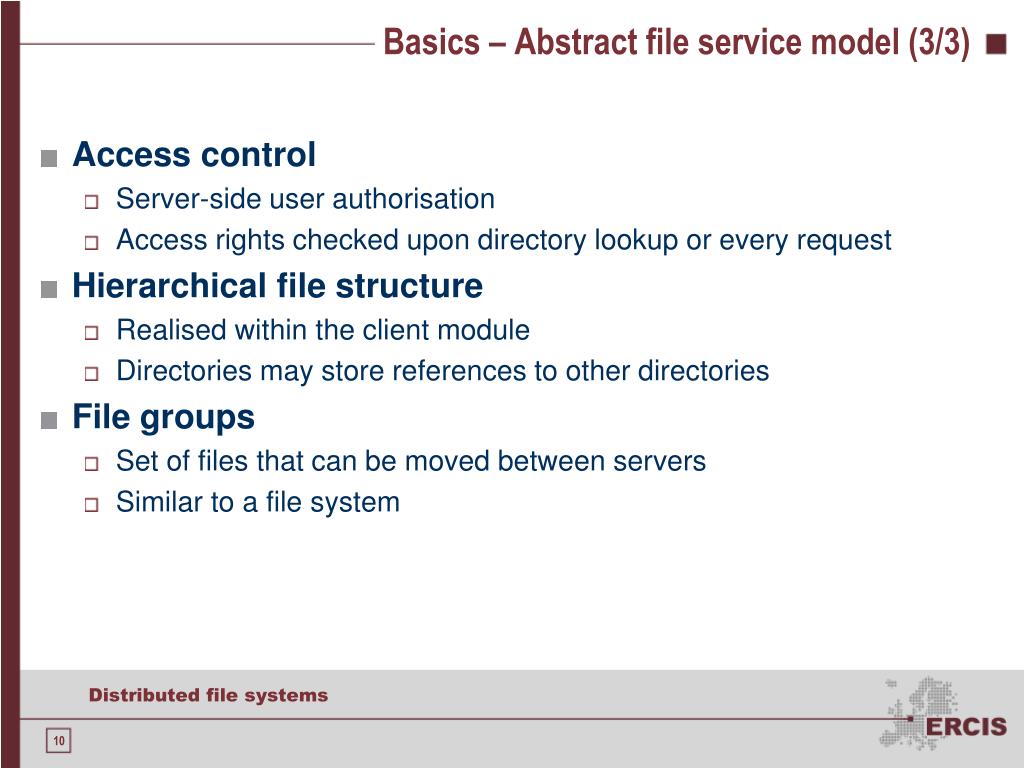

  11. Basics – Abstract file service model (3/3) • Access control • Server-sideuserauthorisation • Access rightschecked upon directorylookuporeveryrequest • Hierarchicalfilestructure • Realisedwithintheclientmodule • Directoriesmaystorereferencestootherdirectories • File groups • Set offilesthatcanbemovedbetweenservers • Similarto a filesystem

  12. Agenda Motivation Distributed file system basics Case studies Network File System (NFS) Andrew File System (AFS) Lustre Summary and outlook

  13. NFS – History • 198?: NFSv1 • Developed at Sun Microsystems, unreleased • 1984: NFSv2 • Developed at Sun Microsystems • First released version, widely accepted • Supports files < 4GB, synchronous writes • 1992: NFSv3 • Developed by a group of researchers • Overcomes drawbacks (file size, asynchronous writes) • 2002: NFSv4 • Enhanced security, user authentication • Better Windows support

  14. NFS – General description (1/2) Source: [CDK01], p. 324

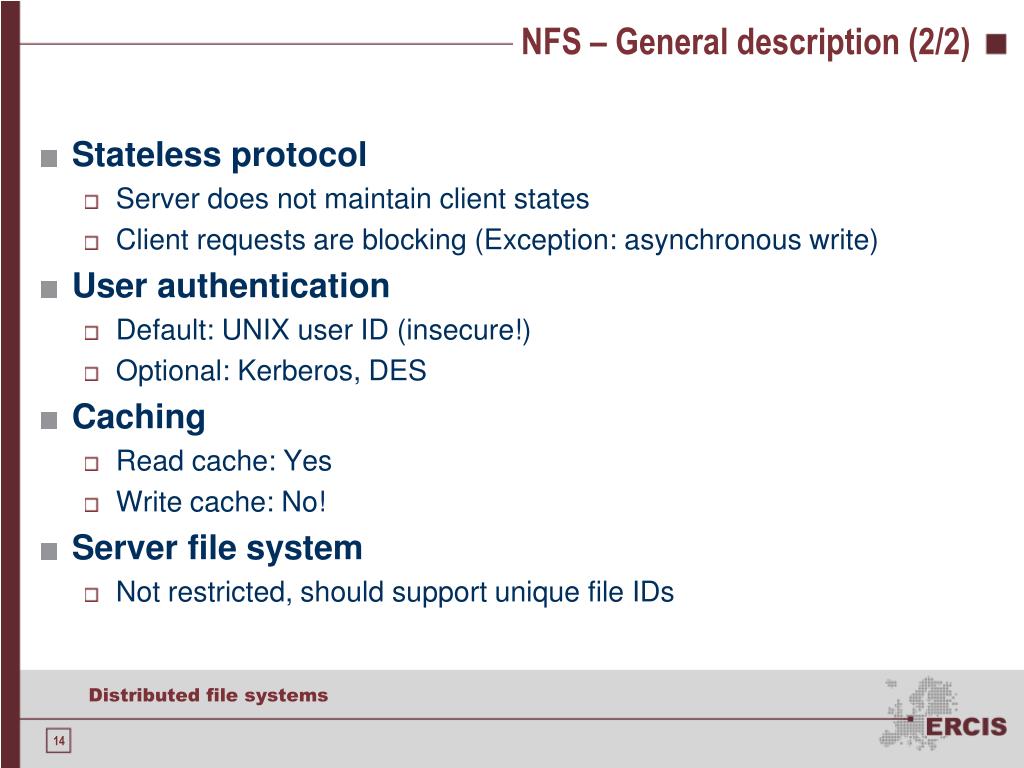

  15. NFS – General description (2/2) • Stateless protocol • Server does not maintain client states • Client requests are blocking (Exception: asynchronous write) • User authentication • Default: UNIX user ID (insecure!) • Optional: Kerberos, DES • Caching • Read cache: Yes • Write cache: No! • Server file system • Not restricted, should support unique file IDs

  16. NFS – Abstract model (1/2) vs.

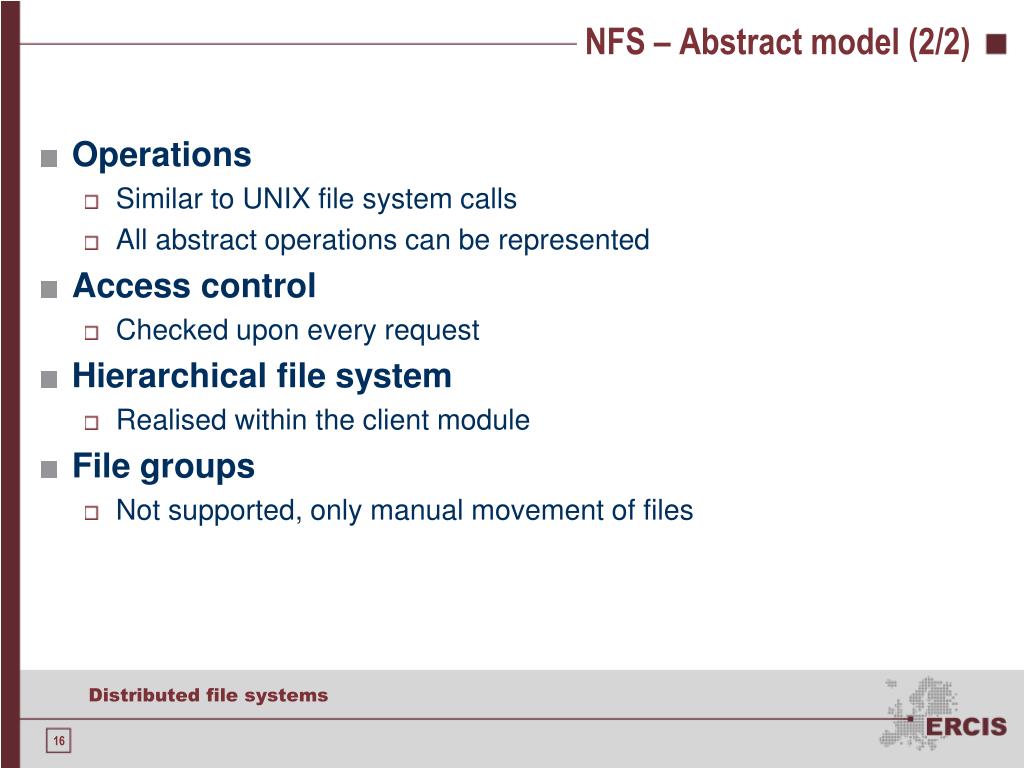

  17. NFS – Abstract model (2/2) • Operations • Similarto UNIX filesystemcalls • All abstractoperationscanberepresented • Access control • Checked upon everyrequest • Hierarchicalfilesystem • Realisedwithintheclientmodule • File groups • Not supported, onlymanualmovementoffiles

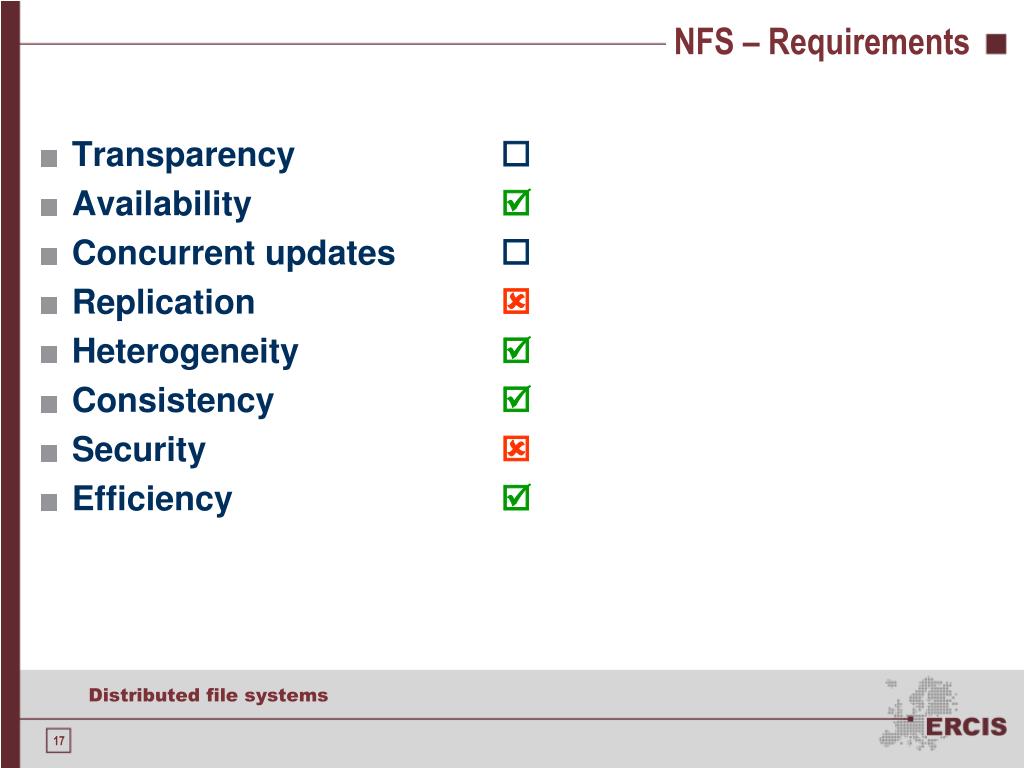

  18. NFS – Requirements • Transparency • Availability • Concurrent updates • Replication • Heterogeneity • Consistency • Security • Efficiency •  •  •  •  •  •  •  • 

  19. Agenda Motivation Distributed file system basics Case studies Network File System (NFS) Andrew File System (AFS) Lustre Summary and outlook

  20. AFS – History • 1982: Initial version • Developed at Carnegie Mellon University (CMU), Pittsburgh • Part of the Andrew distributed computing environment • Provides support for teaching and research • 1989: Spin-off • Development outsourced to Transarc Inc. • 1994: Transarc acquired by IBM • All rights owned by IBM • 2000: Open-source • Code was released under an open source license • Since then: continuous development

  21. AFS – General description (1/3)

  22. AFS – Name spaces

  23. AFS – General description (2/3) Cached? No!

  24. AFS – General description (3/3) • Caching • „Callback promises“ • Workstations arenotifiedwhencachedfileschange • Statefulprotocol • Server maintainsclientstates • Problematicwhenclientfails • User authentication • Kerberos • Server filesystem • Not restricted, shouldsupportuniquefile IDs

  25. AFS – Abstract model (1/2) vs.

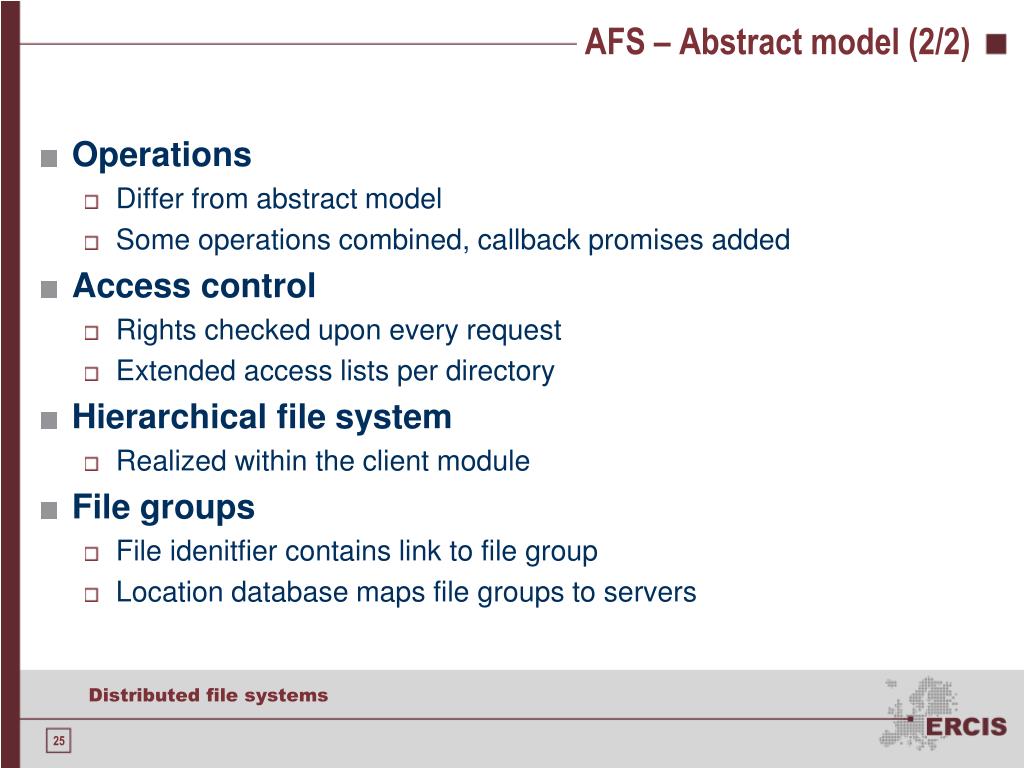

  26. AFS – Abstract model (2/2) • Operations • Differ from abstract model • Some operations combined, callback promises added • Access control • Rights checked upon every request • Extended access lists per directory • Hierarchical file system • Realized within the client module • File groups • File idenitfier contains link to file group • Location database maps file groups to servers

  27. AFS – Requirements • Transparency • Availability • Concurrentupdates • Replication • Heterogeneity • Consistency • Security • Efficiency •  •  •  •  •  •  •  • 

  28. Agenda Motivation Distributed file system basics Case studies Network File System (NFS) Andrew File System (AFS) Lustre Summary and outlook

  29. Lustre (1/3) • „Lustre“: Linux Cluster • File system especially suited for clusters • Easily handles thousands of clients and servers • Uses object-based storage • Objects offer methods for data access, attributes, policies • High-level abstraction • Lower performance than block-based storage • Three system roles • Object Storage Targets (OST) • Metadata Servers (MDS) • Clients

  30. Lustre (2/3) Metadata Servers (MDS) File operations, locking Clients Directory metadata Object Storage Targets (OST) Recovery, file status Source: [BS02], p. 51

  31. Lustre (3/3) • Lustre partly follows abstract model • Separation of directory and flat file service • File attributes managed by OSTs • Hierarchical file systems • Realised within the client module • High availability • Heavy use of redundancy • Caching of metadata

  32. Agenda Motivation Distributed file system basics Case studies Summary and outlook

  33. Summary and outlook • Abstract file service model • Developed to meet many requirements for DFSs • Different implementations • NFS: Stateless, concurrency control • AFS: Stateful, heavy use of caching, better performance • Other approach: Lustre • Modularised approach, especially suited for clusters • Future developments • Large-scale environments • Cloud computing • Issues: Data security, privacy

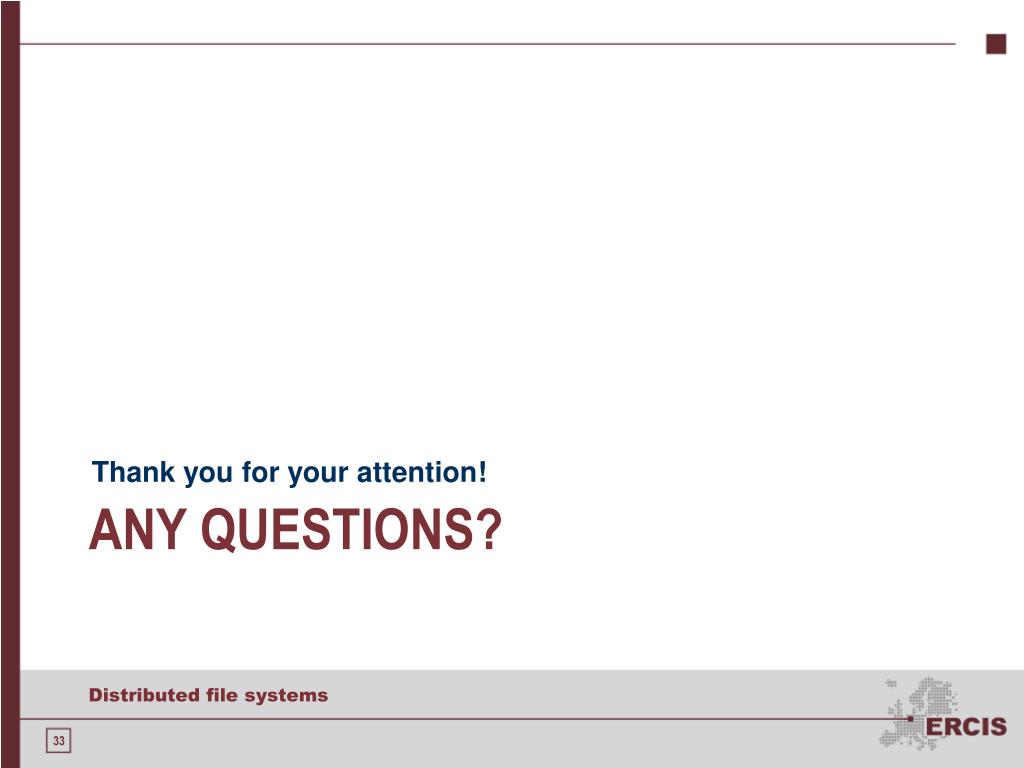

  34. Thank you for your attention! Anyquestions?

  35. Literature • [BS02] Peter J. Braam, Philip Schwan: Lustre: The intergalactic file system, Proceedings of the 2003 Ottawa Linux Symposium, pp. 50–54, 2002. • [CDK01] George Coulouris, Jean Dollimore, Tim Kindberg: Distributed Systems, Concepts and Design, 3rd. ed., Addison-Wesley, 2001. • [Kir06] Olaf Kirch: Why NFS Sucks, Proceedings of the Linux Symposium, 2nd. ed., pp. 51–63, 2006. • [MSC+ 86] James H. Morris, Mahadev Satyanarayanan, Michael H. Conner, John H. Howard, David S. H. Rosenthal, F. Donelson Smith: Andrew: A distributed personal computing environment, Commununications of the ACM, 29(3), pp. 184–201, Association for Computing Machinery, 1986. • [PJS+ 94] Brian Pawlowski, Chet Juszczak, Peter Staubach, Carl Smith, Diane Lebel, David Hitz: NFS Version 3: Design and Implementation, Proceedings of the Summer 1994 USENIX Technical Conference, pp. 137–151, 1994. • [Sat89] Mahadev Satyanarayanan: Distributed file systems, Distributed systems, S. Mullender (ed.), pp. 149–188, ACM Press, 1989. • [Sch03] Philip Schwan: Lustre: Building a file system for 1000-node clusters, Proceedings of the 2003 Ottawa Linux Symposium, pp. 380–386, 2003. • [Tan03] Andrew S. Tanenbaum: Moderne Betriebssysteme, 2nd. ed., Prentice Hall, 2003. • [Tv07] Andrew S. Tanenbaum, Marten van Steen: Distributed Systems: Principles and Paradigmsva, 2nd. ed., Prentice Hall, 2007.
