  1. Integrated planning on hydrogeophysical data on a national scale:From processing, interpretation and storage to visualisation Ingelise Møller, Flemming Jørgensen, Verner H. Søndergaard Geological Survey of Denmark and Greenland, Denmark Esben Auken Department of Earth Sciences, University of Aarhus, Denmark

  2. Outline • Motivation • Integrated system for management of data • The system • The geophysical database GERDA • The borehole database Jupiter • The program package Aarhus Workbench • The 3D visualisation program Geoscene3D • Summary

  3. Motivation Groundwater mapping on a national scale • Areas with special drinking water interests are mapped with respect to resources and protection • These areas cover 40 % (17.500 km2) of Denmark

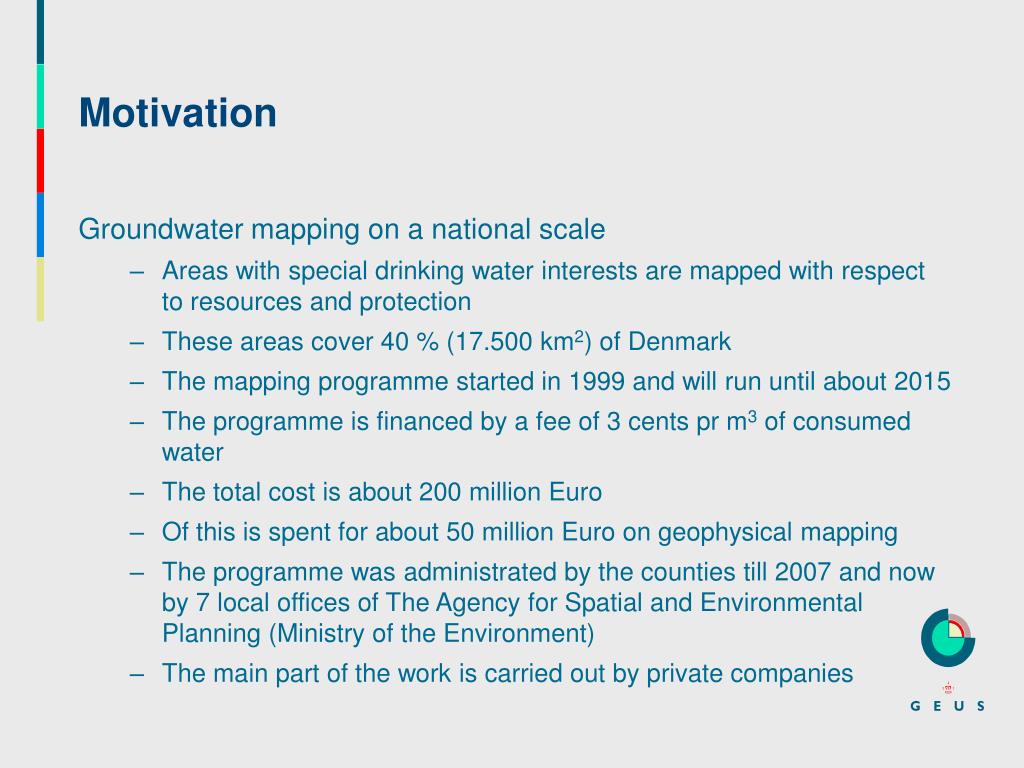

  4. Motivation Groundwater mapping on a national scale • Areas with special drinking water interests are mapped with respect to resources and protection • These areas cover 40 % (17.500 km2) of Denmark • The mapping programme started in 1999 and will run until about 2015 • The programme is financed by a fee of 3 cents pr m3 of consumed water • The total cost is about 200 million Euro • Of this is spent for about 50 million Euro on geophysical mapping • The programme was administrated by the counties till 2007 and now by 7 local offices of The Agency for Spatial and Environmental Planning (Ministry of the Environment) • The main part of the work is carried out by private companies

  5. Motivation TEM data Data are collected by ground based systems since 1993 Data are collected by the airborn SKYTEM system since 2003 TEM data cover 10,585 km2

  6. Motivation PACES data Data are collected by a mobile resistivity system 1200 km PACEP data are collected until 1998 8700 km PACES data are collected since 1998 The data cover about 2500 km2

  7. Motivation CVES data Data are typical collected with 5 m electrode spacing 3600 km CVES data are collected

  8. Motivation Seismic data Data are collected with high resolution seismic systems About 1300 km of seismic data are collected

  9. Motivation All data TEM PACES MEP Seismics

  10. Integrated system for management of data

  11. Integrated system for management of data GERDA database Danish national database for shallow geophysical data hosted by GEUS GERDA is established in 1998-2000 GERDA is under continuous development

  12. Integrated system for management of data GERDA database Danish national database for shallow geophysical data hosted by GEUS GERDA is established in 1998-2000 GERDA is under continuous development GERDA has a web page: http://gerda.geus.dk with information and documentation, upload of data,

  13. Integrated system for management of data GERDA database Danish national database for shallow geophysical data hosted by GEUS GERDA is established in 1998-2000 GERDA is under continuous development GERDA has a web page: http://gerda.geus.dk with information and documentation, upload of data, search and download of data. There is open access to data

  14. Integrated system for management of data Jupiter database In 1926 a well data archive for water supply-related wells was founded at the Geological survey. Later other types of shallow wells are also reported to the archive. The wells are now registered in the national database, Jupiter, hosted by GEUS The database contains information about more than 300.000 boreholes Jupiter has a web page: http://www.geus.dk/jupiter for search and download of data There is open access to the data

  15. Integrated system for management of data Raw electrical and electromagnetic data Aarhus Workbench Program package for • Data processing and inversion of resistivity and electromagnetic data • Preparation of database for upload to GERDA • Visualization of data and models in themes on maps in themes on profiles • Data quality control • Advanced data analysis • Advanced data interpretation e.g. with mutual inversion of different data types and borehole a priori information

  16. Integrated system for management of data Aarhus Workbench Program package for • Data processing and inversion of resistivity and electromagnetic data • Preparation of database for upload to GERDA • Visualization of data and models in themes on maps in themes on profiles • Data quality control • Advanced data analysis • Advanced data interpretation with mutual inversion of different data types and borehole a priori information Aarhus Workbench illustrates a theme of TEM data: The depth of a good conductor (12 ohmm) Aarhus

  17. Integrated system for management of data Aarhus Workbench Program package for • Data processing and inversion of resistivity and electromagnetic data • Preparation of database for upload to GERDA • Visualization of data and models in themes on maps in themes on profiles • Data quality control • Advanced data analysis • Advanced data interpretation with mutual inversion of different data types and borehole a priori information Aarhus Workbench illustrates a theme of TEM data: The depth of a good conductor (12 ohmm) The theme consists of ~ 83,000 soundings

  18. Integrated system for management of data Aarhus Workbench Program package for • Data processing and inversion of resistivity and electromagnetic data • Preparation of database for upload to GERDA • Visualization of data and models in themes on maps in themes on profiles • Data quality control • Advanced data analysis • Advanced data interpretation with mutual inversion of different data types and borehole a priori information The theme consists of ~ 83,000 soundings The theme consists of data from 94 projects (mapping campaigns)

  19. Integrated system for management of data Aarhus Workbench Program package for • Data processing and inversion of resistivity and electromagnetic data • Preparation of database for upload to GERDA • Visualization of data and models in themes on maps in themes on profiles • Data quality control • Advanced data analysis • Advanced data interpretation with mutual inversion of different data types and borehole a priori information The theme consists of ~ 83,000 soundings The theme consists of data from 94 projects (mapping campaigns) The theme consists of data from 5 different TEM measuring methods

  20. Integrated system for management of data Aarhus Workbench Program package for • Data processing and inversion of resistivity and electromagnetic data • Preparation of database for upload to GERDA • Visualization of data and models in themes on maps in themes on profiles • Data quality control • Advanced data analysis • Advanced data interpretation with mutual inversion of different data types and borehole a priori information Aarhus Workbench illustrates a theme of TEM data: The depth of a good conductor (12 ohmm) Aarhus

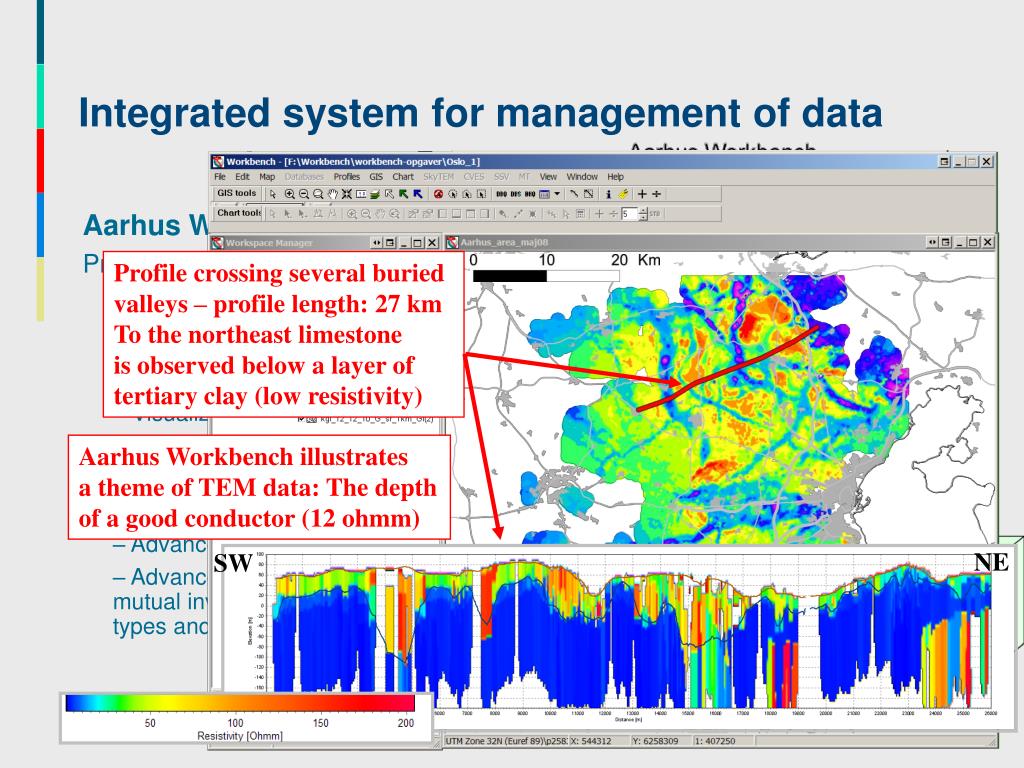

  21. Integrated system for management of data Aarhus Workbench Program package for • Data processing and inversion of resistivity and electromagnetic data • Preparation of database for upload to GERDA • Visualization of data and models in themes on maps in themes on profiles • Data quality control • Advanced data analysis • Advanced data interpretation with mutual inversion of different data types and borehole a priori information Profile crossing several buried valleys – profile length: 27 km To the northeast limestone is observed below a layer of tertiary clay (low resistivity) Aarhus Workbench illustrates a theme of TEM data: The depth of a good conductor (12 ohmm) NE SW

  22. Integrated system for management of data Geoscene3D Program for 3D visualisation and interpretation of data, models and borehole information

  23. Integrated system for management of data Geoscene3D Program for 3D visualisation and interpretation of data, models and borehole information

  24. Integrated system for management of data Geoscene3D Program for 3D visualisation and interpretation of data, models and borehole information

  25. Summary We have illustrated an integrated system for management of hydrogeophysical data consisting of • a high quality database for geophysical data • a database for borehole information • a program package for processing, inversion, interpretation and visualisation • a 3D visualisation and modelling program The integrated system enables us to handle large amounts of data collected over several years, in different mapping campaigns and with different geophysical methods.
