  1. PHYS16 – Lecture 34 Waves December 3, 2010 “Interference is much clearer in HD”

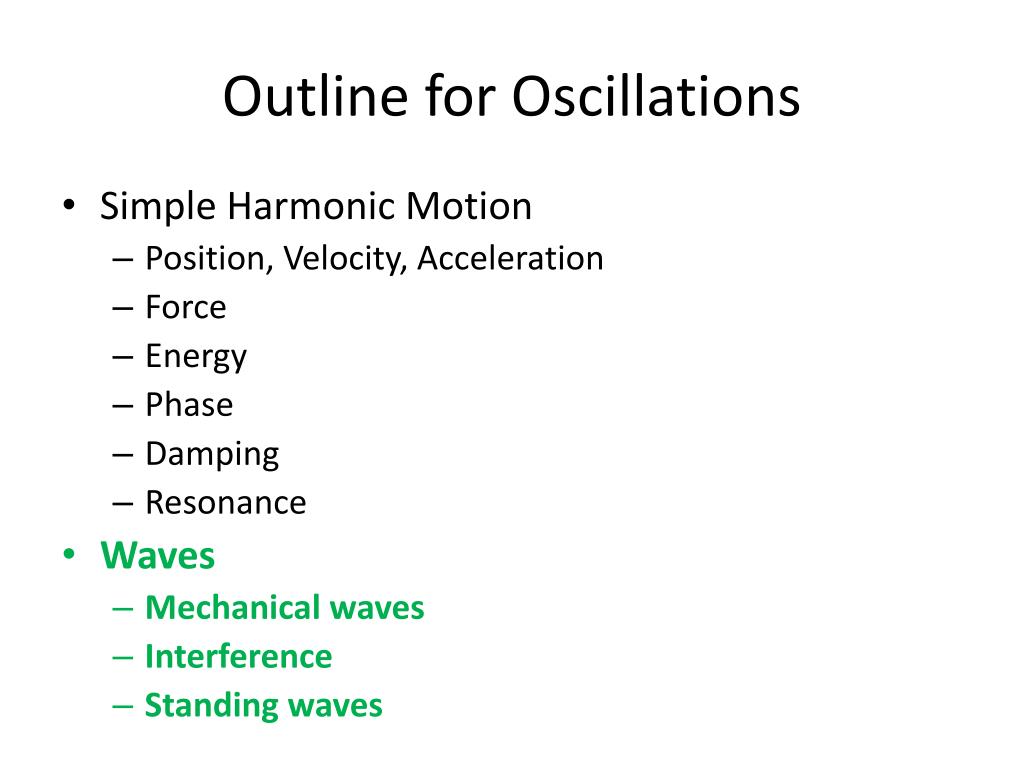

  2. Outline for Oscillations • Simple Harmonic Motion • Position, Velocity, Acceleration • Force • Energy • Phase • Damping • Resonance • Waves • Mechanical waves • Interference • Standing waves

  3. Mechanical Waves

  4. Mechanical Waves • A propagating oscillation that moves through a medium Transverse – water waves Longitudinal – sound waves

  5. Mechanical Waves • Waves use at least 1-3 space dimensions and time… • Ex. – Water waves propagate in x, move “up and down” in y, and change position with time • Ex. – Sound waves propagate in x, move “up and down” in x, and change position with time

  6. Wave Properties • Period – high period medium period low period T

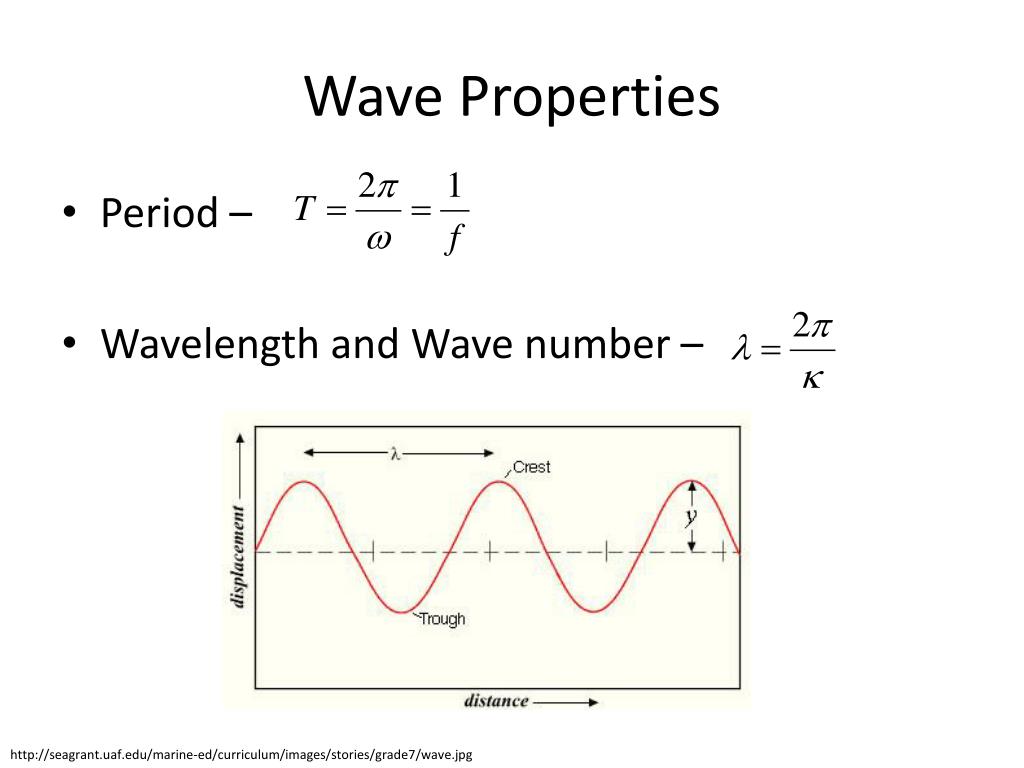

  7. Wave Properties • Period – • Wavelength and Wave number – http://seagrant.uaf.edu/marine-ed/curriculum/images/stories/grade7/wave.jpg

  8. Wave Properties • Period – • Wavelength and Wave number – http://eqseis.geosc.psu.edu/~cammon/HTML/Classes/IntroQuakes/Notes/Images_specific/wave_def.gif

  9. Wave Properties • Period – • Wavelength and Wave number – • Wave speed – http://eqseis.geosc.psu.edu/~cammon/HTML/Classes/IntroQuakes/Notes/Images_specific/wave_def.gif

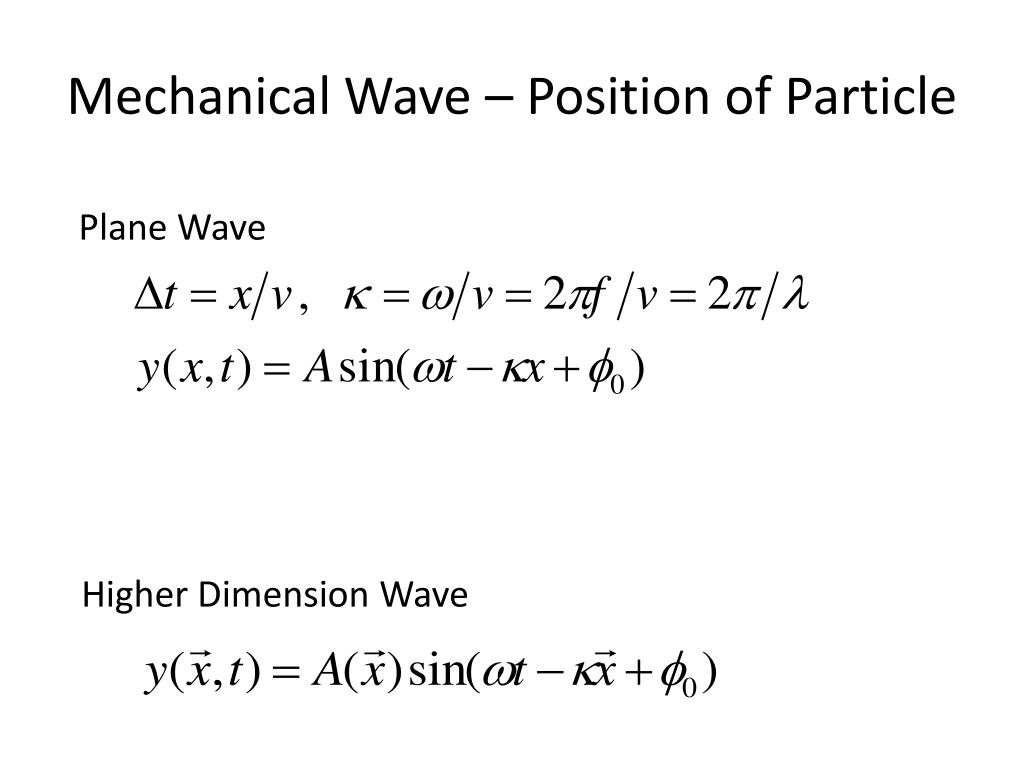

  10. Mechanical Wave – Position of Particle Plane Wave Higher Dimension Wave

  11. Ripple Tank Simulation

  12. Example Question 1 PhET website

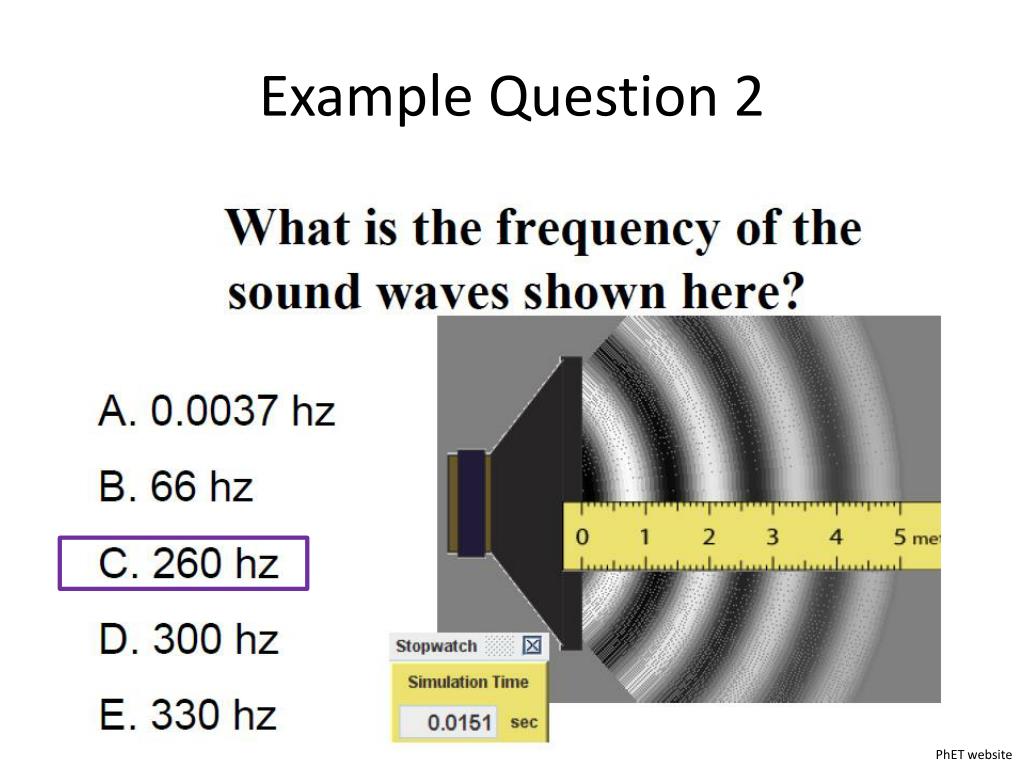

  13. Example Question 2 PhET website

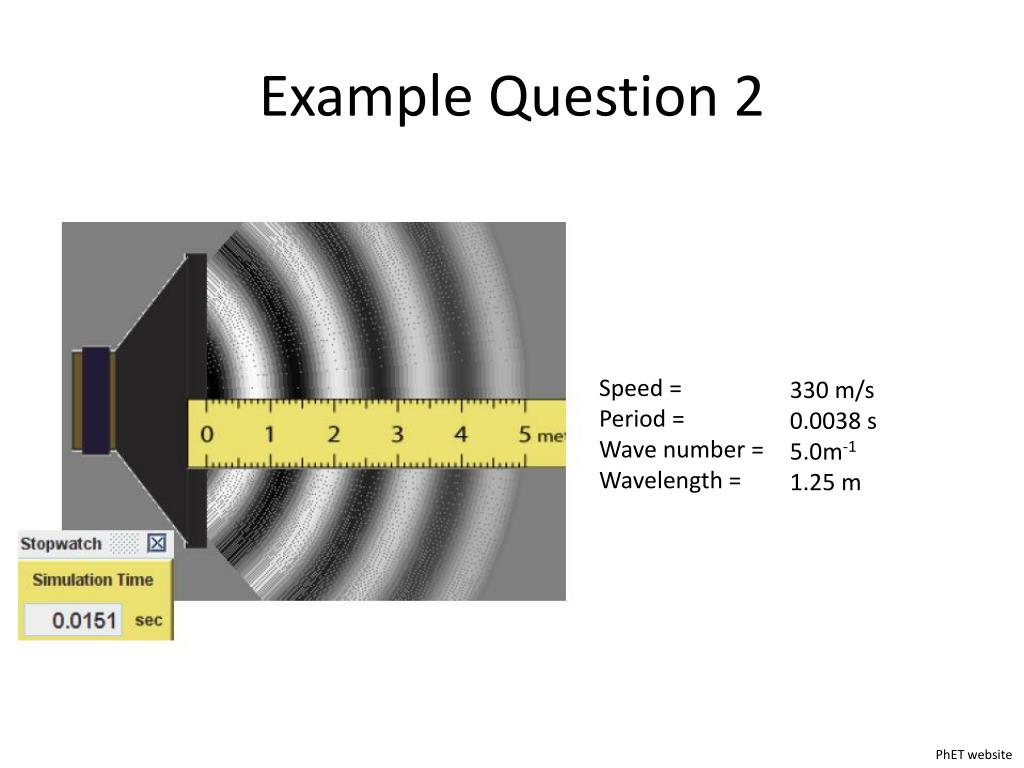

  14. Example Question 2 Speed = Period = Wave number = Wavelength = 330 m/s 0.0038 s 5.0m-1 1.25 m PhET website

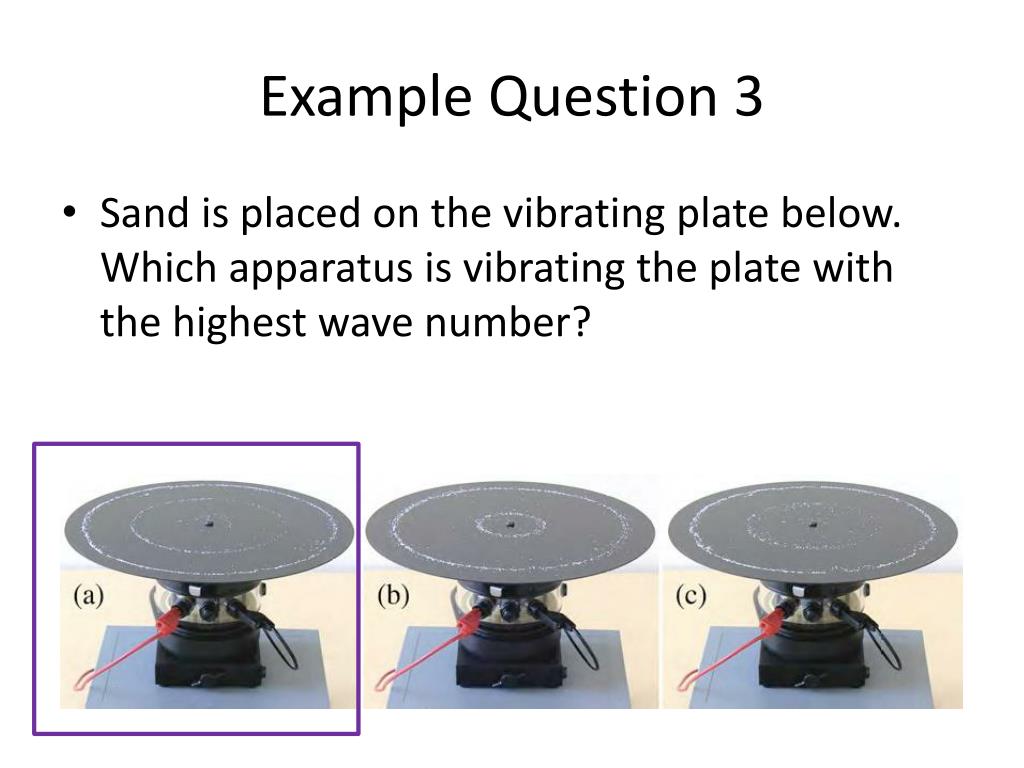

  15. Example Question 3 • Sand is placed on the vibrating plate below. Which apparatus is vibrating the plate with the highest wave number?

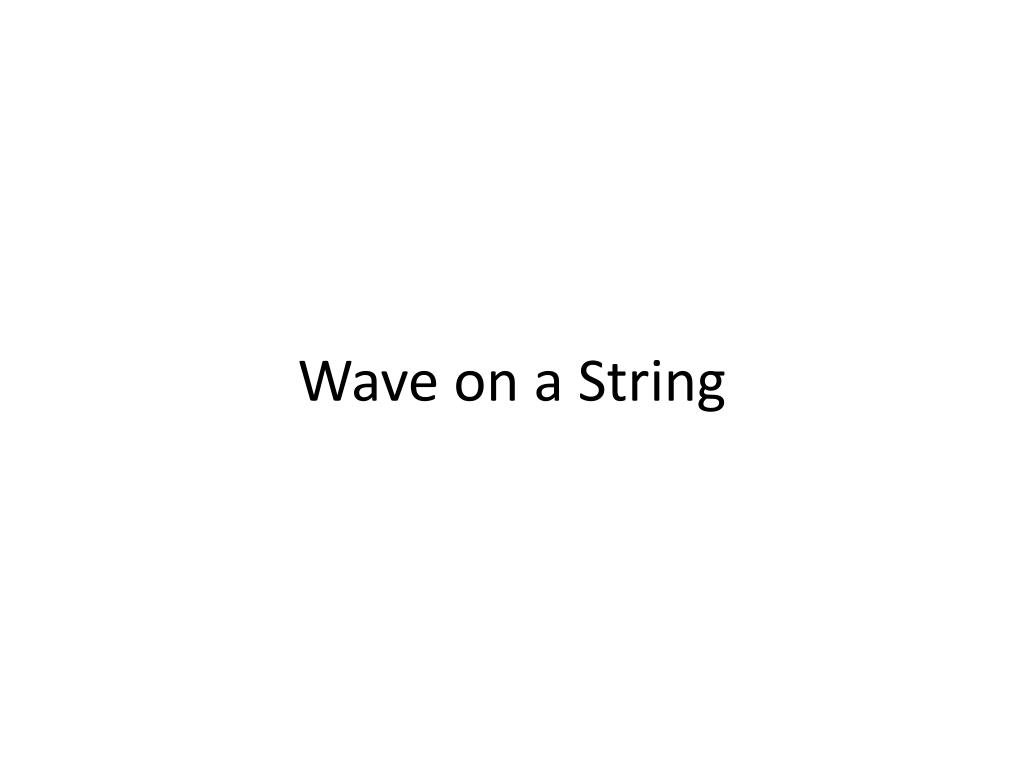

  16. Wave on a String

  17. Wave on a String • You can generate a wave on a string by pulsing sting with your hand • Speed of pulse/wave is related to tension in string and mass density of string PhET website

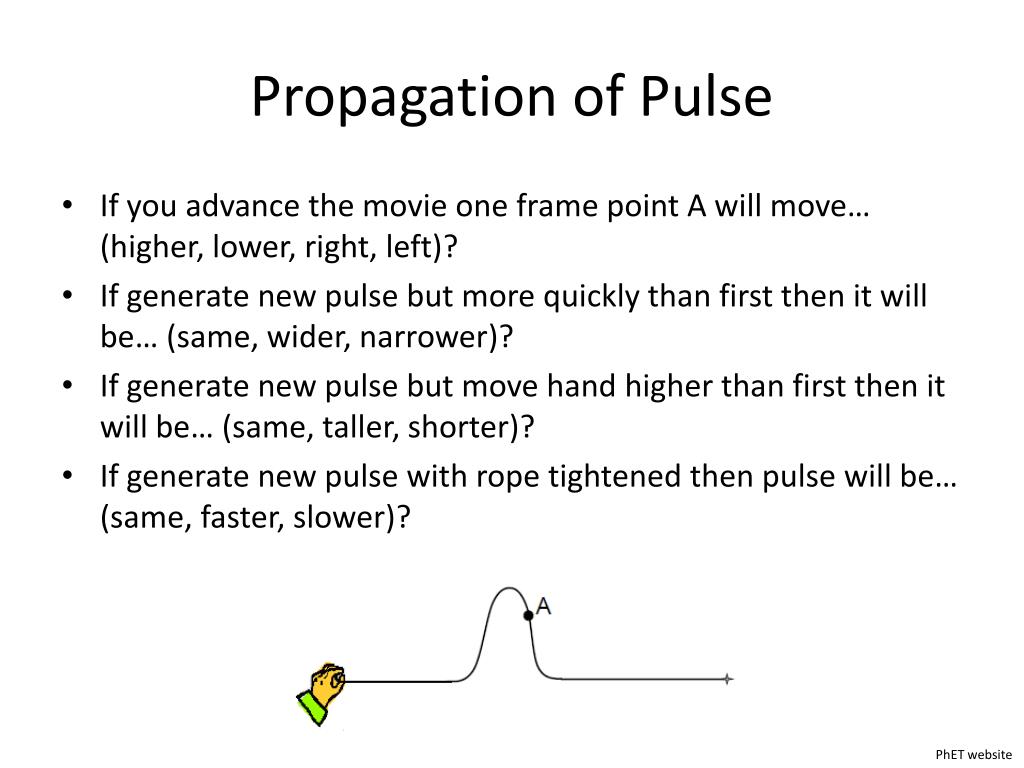

  18. Propagation of Pulse • If you advance the movie one frame point A will move… (higher, lower, right, left)? • If generate new pulse but more quickly than first then it will be… (same, wider, narrower)? • If generate new pulse but move hand higher than first then it will be… (same, taller, shorter)? • If generate new pulse with rope tightened then pulse will be… (same, faster, slower)? PhET website

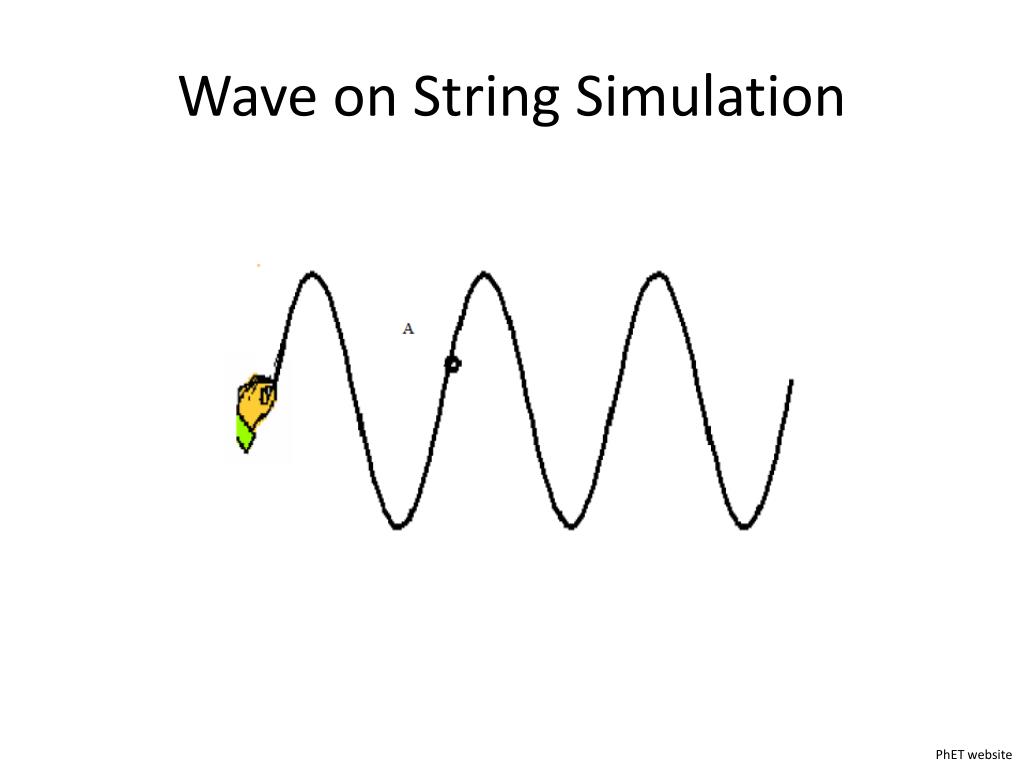

  19. Wave on String Simulation PhET website

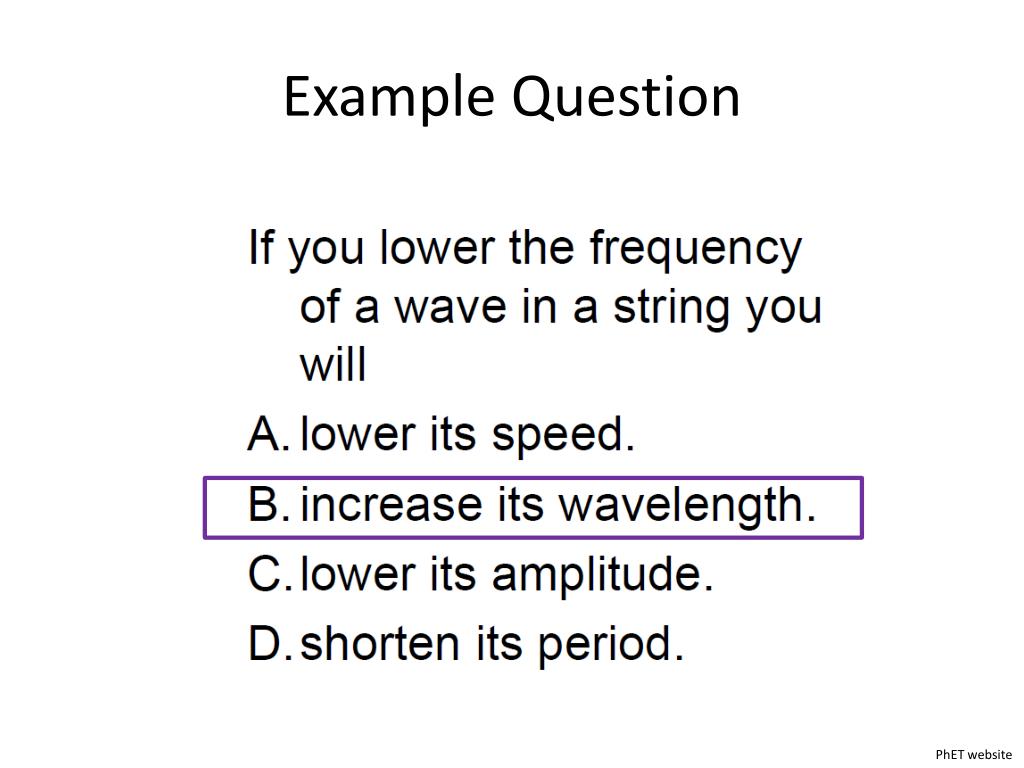

  20. Example Question PhET website

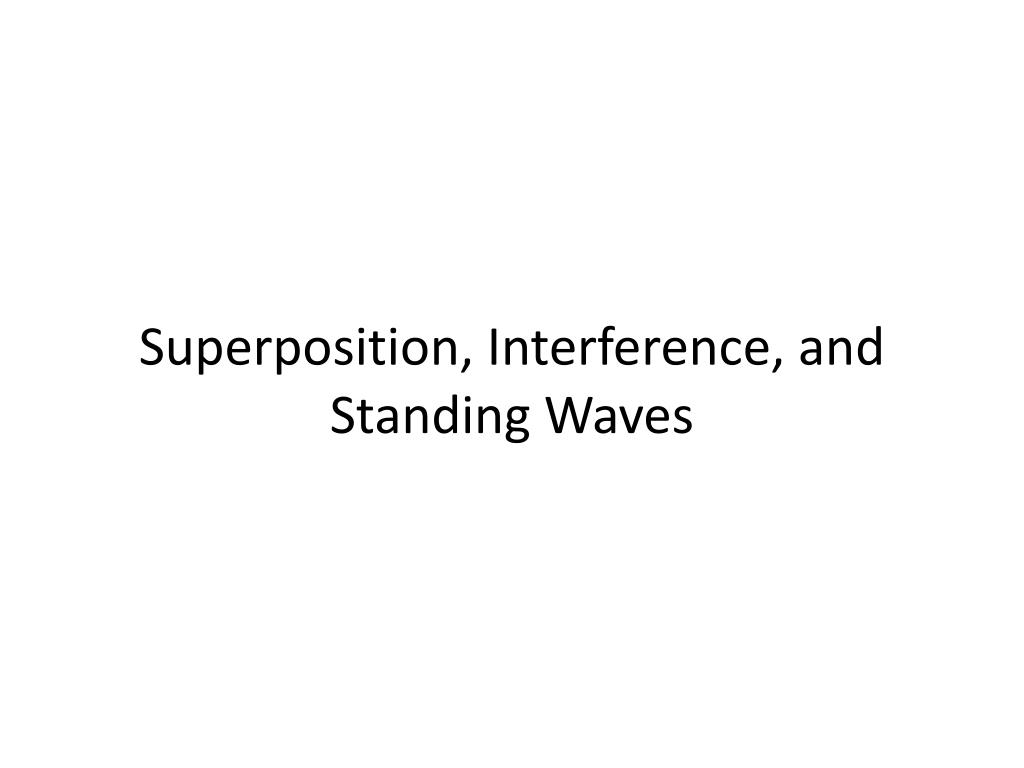

  21. Superposition, Interference, and Standing Waves

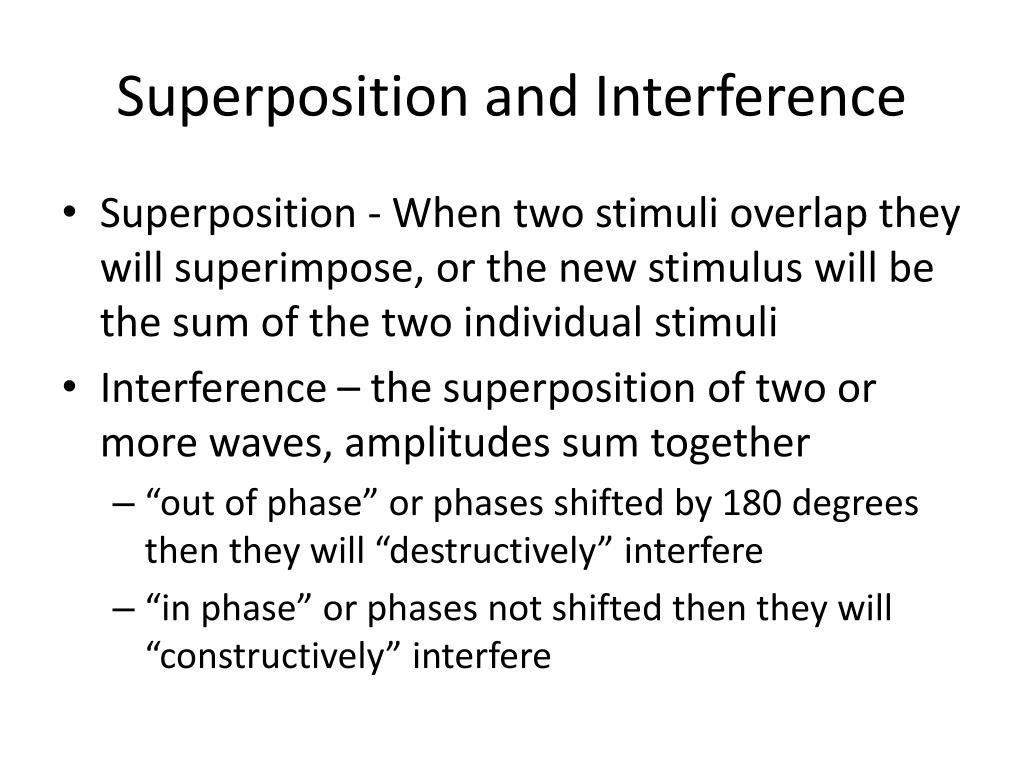

  22. Superposition and Interference • Superposition - When two stimuli overlap they will superimpose, or the new stimulus will be the sum of the two individual stimuli • Interference – the superposition of two or more waves, amplitudes sum together • “out of phase” or phases shifted by 180 degrees then they will “destructively” interfere • “in phase” or phases not shifted then they will “constructively” interfere

  23. Interference Constructive Destructive PhET website

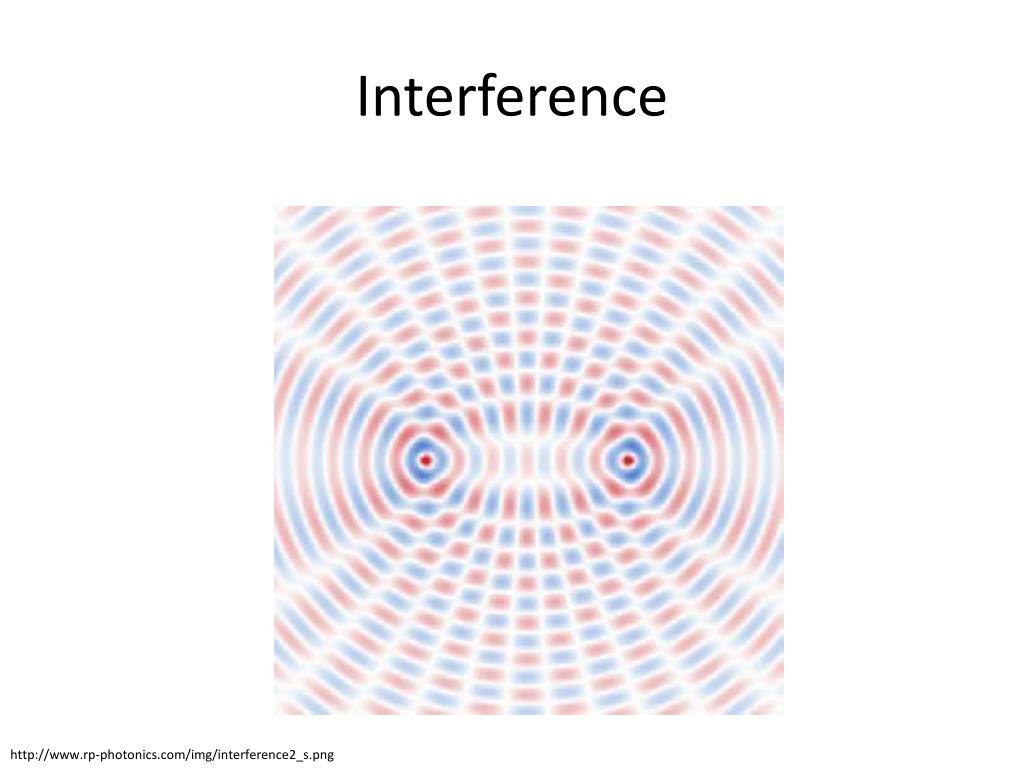

  24. Interference http://www.rp-photonics.com/img/interference2_s.png

  25. Standing Waves • Standing waves – waves that constructively interfere in cavity and “stand” in one spot Node Antinode http://kottan-labs.bgsu.edu/teaching/workshop2001/chapter7_files/image023.gif

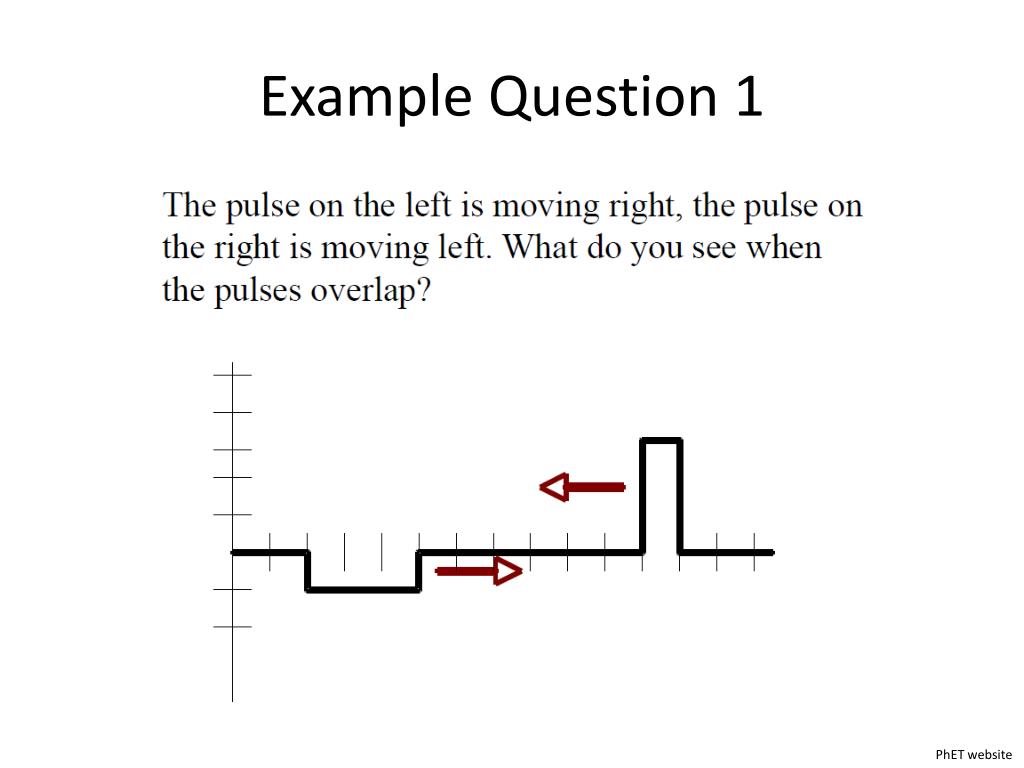

  26. Example Question 1 PhET website

  27. PhET website

  28. PhET website

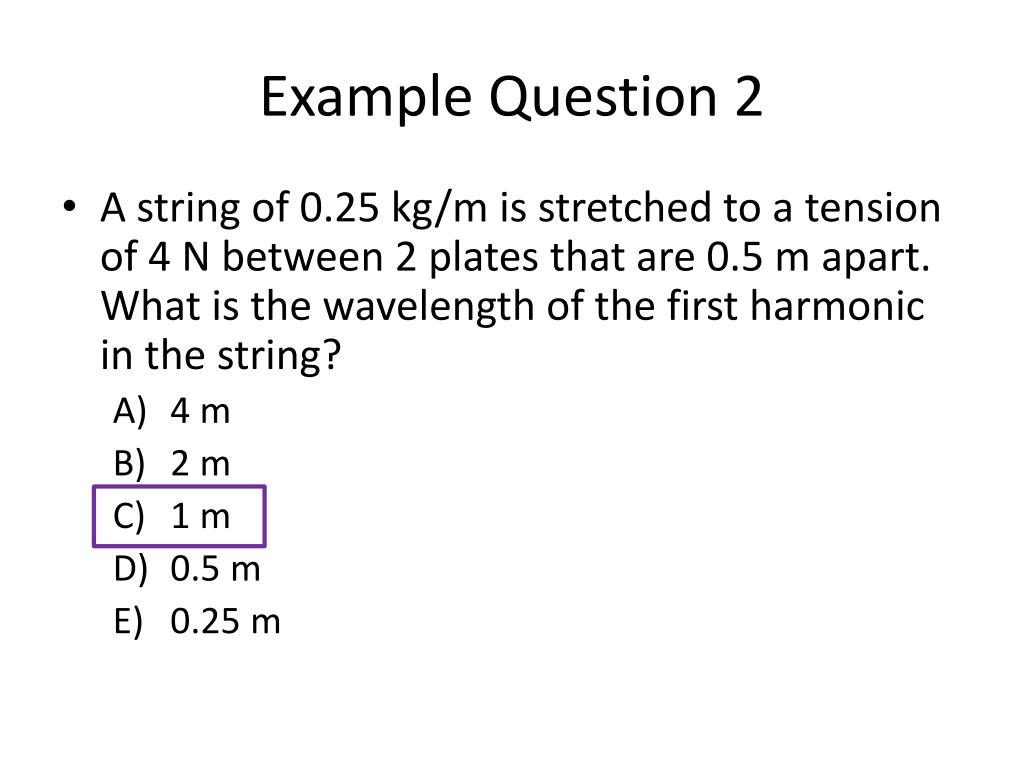

  29. Example Question 2 • A string of 0.25 kg/m is stretched to a tension of 4 N between 2 plates that are 0.5 m apart. What is the wavelength of the first harmonic in the string? • 4 m • 2 m • 1 m • 0.5 m • 0.25 m

  30. Main Points - Waves • Mechanical Wave – a propagating oscillation that moves through a medium • Superposition – wave amplitudes add together • Interference – when two or more waves superimpose (destructive -> less A and constructive -> bigger A) • Standing waves – waves that constructively interfere within a cavity and appear to “stand” in one spot
