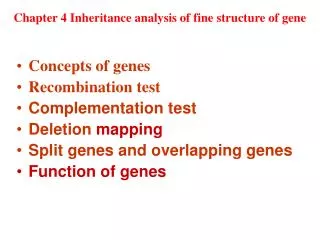

  1. Chapter 4 Inheritance analysis of fine structure of gene • Concepts of genes • Recombination test • Complementation test • Deletionmapping • Split genes and overlappinggenes • Function of genes

  2. 第四章 基因精细结构的遗传分析 • 一、基因的概念 • 二、重组测验 • 三、互补测验 • 四、缺失作图 • 五、断裂基因与重叠基因 • 六、基因的功能

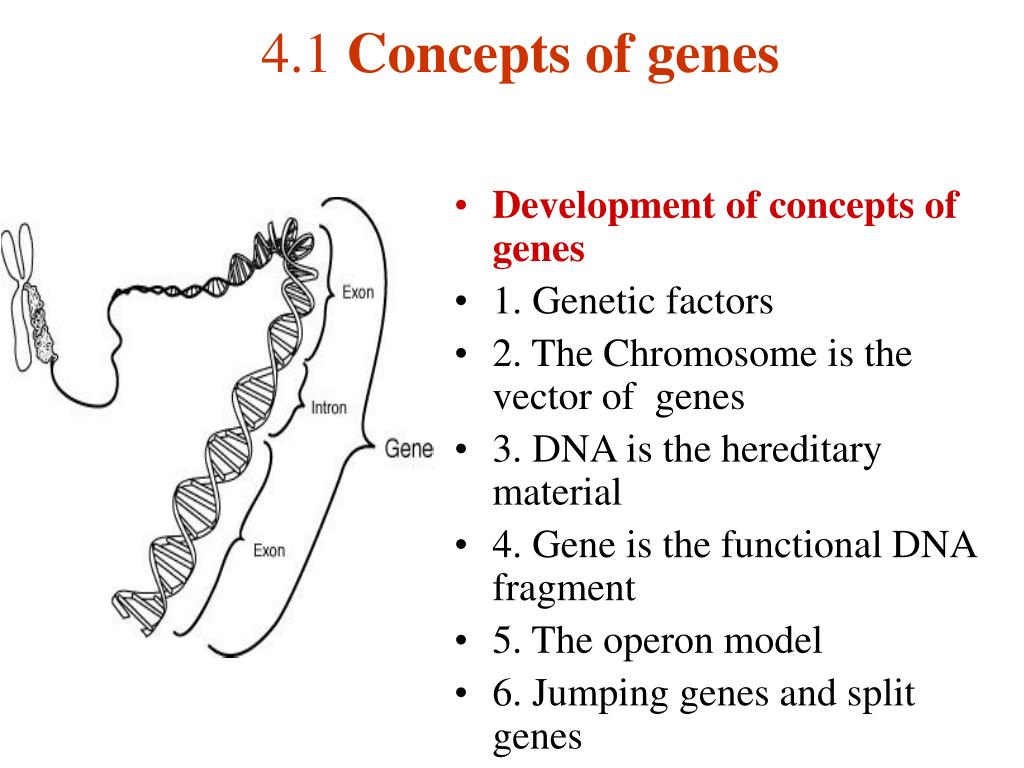

  3. 4.1Concepts of genes • Development of concepts of genes • 1. Genetic factors • 2. The Chromosome is the vector of genes • 3. DNA is the hereditary material • 4. Gene is the functional DNA fragment • 5. The operon model • 6. Jumping genes and split genes

  4. 第一节 基因的概念 • 基因概念的发展 • 1、遗传因子 • 2、染色体是基因的载体 • 3、 DNA是遗传物质 • 4、基因是有功能的DNA片段 • 5、操纵子模型 • 6、跳跃基因和断裂基 因

  5. Gene types and their relationship)(基因的类别及其相互关系)

  6. 4.2 Recombinant testPseudoalleles The functional alleles located at the same locus, belonging to the different sites, can exchange each other and are closely linked

  7. 第二节重组测验-- 拟等位基因 • 拟等位基因： • 位于同一基因座，属于不同基因位点，它们之间可发生交换这种紧密连锁的功能性等位基因

  8. Recombinant test—Phage mutant重组测验—噬菌体突变型

  9. Benzer’ recombinant testBenzer的重组测验

  10. 4.3 Complementation test 互补测验

  11. 4.4DeletionMapping-The tenet and method of deletion mapping • The tenetofdeletionmapping • The point mutation occurs a single site and the deletion mutation does a lot of sites. The former is reversible while the latter is irreversible. There existed the recombination between point mutations. However, it is impossible for between the deletion and point mutation which locates the deletion region to recombine.Therefore, the mutation site must be in the deletion region if it can not be recombined. Contrarily, the site must be not in the deletion region if it can be recombined

  12. 第四节缺失作图---缺失作图原理和方法 • 缺失作图原理 • 点突变是单个位点的突变，缺失突变是多个位点的突变；点突变可以发生回复突变，而缺失突变则是不可逆的；点突变与其他点突变之间可以发生重组而缺失突变同另一个（染色体同一）基因组内缺失区的点突变之间不可能重组。据此，凡是不能重组的，它的位置一定在缺失范围内，凡能和某一缺失突变体进行重组的，它的位置一定不在缺失范围内

  13. DeletionMapping-The tenet and method of deletion mapping • Method ofdeletionmapping • Deletion phage mutant + rⅡ(cultivated in the strain B, E coli ) →take a drop to infect the strain K(A), E coli. If plaque is produced in the strain K(A), wild plaque is produced by recombining between the two phages→ rⅡ mutant is not in deletion phage

  14. 二 缺失作图方法： • 缺失型噬菌体+rⅡ突变型噬菌体（大肠杆菌B菌株中培养）→取一滴感染大肠杆菌K(A)菌株，若在K(A)菌株中形成噬菌斑，则说明它们之间发生了重组产生野生型噬菌斑→rⅡ突变型不在缺失型噬菌体范围内

  15. Deletionmapping缺失作图

  16. 4.4 Split Gene断裂基因 exon and intron (外显子与内含子)

  17. Overlapping genes • Sanger found ： ФХ174 including 5386 bp→9 genes→2000 amino acid→6000 bp →overlapping genes • Overlapping mode: • Small genes within the big gene • overlapping between two genes • Triple overlapping between three genes • Anti- overlapping • Overlaping operon

  18. 重叠基因 • Sanger ：发现ФХ174有5386 bp→9个基因→2000氨基酸→6000 bp →重叠基因 • 重叠方式： • 大基因内包含小基因 • 前后两基因首尾重叠 • 3个基因间三重重叠 • 反向重叠 • 重叠操纵子

  19. 4.6 Gene Function • DNA (gene) →mRNA →Polypeptide(amino acids and their linear arrangement)→ Structure protein or enzyme → Chemical materials in the cell →Phenotype of tissues and organs→ Morphological characters of the organism

  20. 第六节 基因的功能 • DNA（基因）→mRNA→多肽（氨基酸种类和线性排列）→结构蛋白或酶→细胞内化学物质→细胞表型→组织器官表型（各部分表型）→生物的形态特征

  21. One gene-one enzyme hypothesis Phenylketonuria：Phenylalanine Hydroxylase Traits in the organism result from a serial of biochemistry reactions catalyzed by enzymes, which are controlled by genes; that is, the function of genes. It showed that the traits are controlled by a lot of genes not one gene. The hypothesis of one gene-one enzyme shouled be modified with that of one gene-one protein, accutately, one gene-one polypeptide

  22. 一个基因一种酶假说 • 苯丙酮尿症（PKU）：苯丙氨酸羟化酶 • 基因的功能是通过酶控制生化反应从而控制生物性状的，从而也说明生物的性状往往是受一系列基因所控制的绝不是“一个基因一个性状”，至于Beadle和Tatum的“一个基因一个酶”的假说也须修改，而说成“一个基因一个蛋白质”，进而又提出“一个基因一条多肽链“

  23. Evidence of one polypeptide- one gene Sickle cell anemia in humans Hemoglobin consisted of 4 polypeptides (ａ2β2 ), glutamic acid in βchain is changed into valine Normal genetype: HbA HbA （ HbA hemoglobin) The sick genetype: HbS HbS （ HbS hemoglobin)

  24. 一个结构基因一条多肽链的证据 人的镰刀细胞贫血症 构成血红蛋白的4条多肽链（ａ2β2 ）中的β链第六位氨基酸由正常的谷氨酸变成了缬氨酸 正常：HbA HbA基因型（HbA血红蛋白） 患者：HbS HbS基因型（HbS血红蛋白）
