  1. Scaffolds OSHA Office of Training & Education

  2. What Is A Scaffold? An elevated, temporary work platform Three basic types: • Supported scaffolds -- platforms supported by rigid, load bearing members, such as poles, legs, frames, & outriggers • Suspended scaffolds -- platforms suspended by ropes or other non-rigid, overhead support • Aerial Lifts -- such as “cherry pickers” or “boom trucks” OSHA Office of Training & Education

  3. Hazards Employees working on scaffolds are exposed to these hazards: • Falls from elevation – caused by slipping, unsafe access, and the lack of fall protection • Struck by falling tools / debris • Electrocution – from overhead power lines • Scaffold collapse - caused by instability or overloading • Bad planking giving way OSHA Office of Training & Education

  4. Fall Hazards Falls may occur: • While climbing on or off the scaffold • Working on unguarded scaffold platforms • When scaffold platforms or planks fail OSHA Office of Training & Education

  5. Protecting Workers from Falls If a worker on a scaffold can fall more than 10 feet, protect them by: • Guardrails, and/or • Personal Fall Arrest Systems (PFAS) OSHA Office of Training & Education

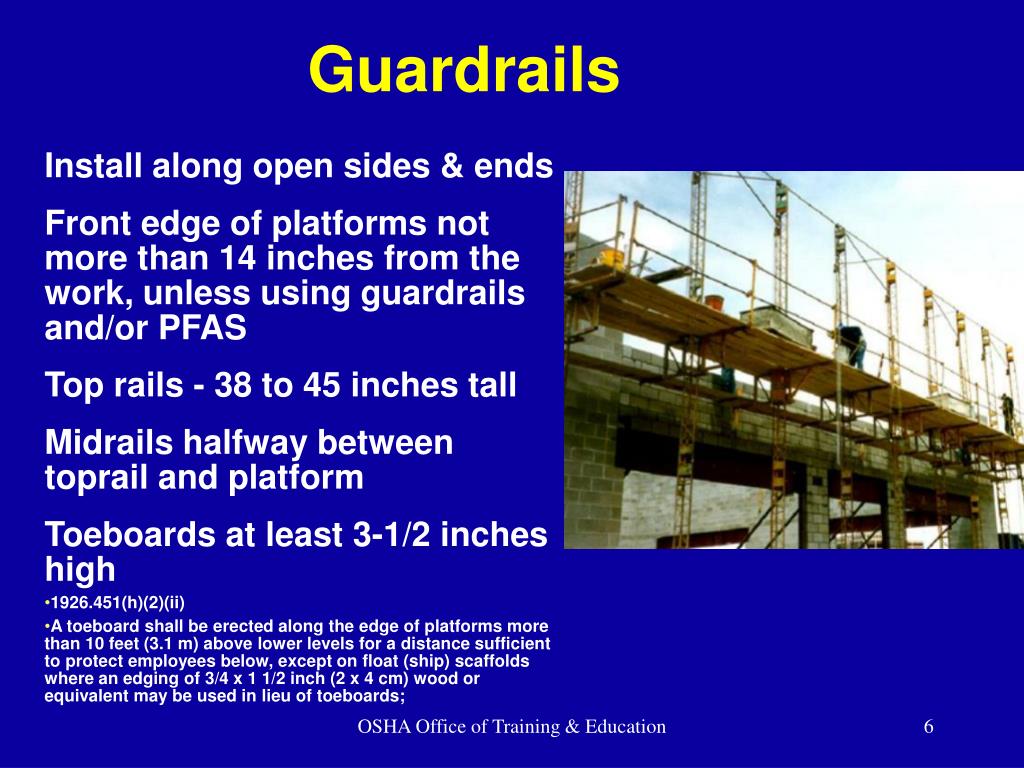

  6. Guardrails Install along open sides & ends Front edge of platforms not more than 14 inches from the work, unless using guardrails and/or PFAS Top rails - 38 to 45 inches tall Midrails halfway between toprail and platform Toeboards at least 3-1/2 inches high • 1926.451(h)(2)(ii) • A toeboard shall be erected along the edge of platforms more than 10 feet (3.1 m) above lower levels for a distance sufficient to protect employees below, except on float (ship) scaffolds where an edging of 3/4 x 1 1/2 inch (2 x 4 cm) wood or equivalent may be used in lieu of toeboards; OSHA Office of Training & Education

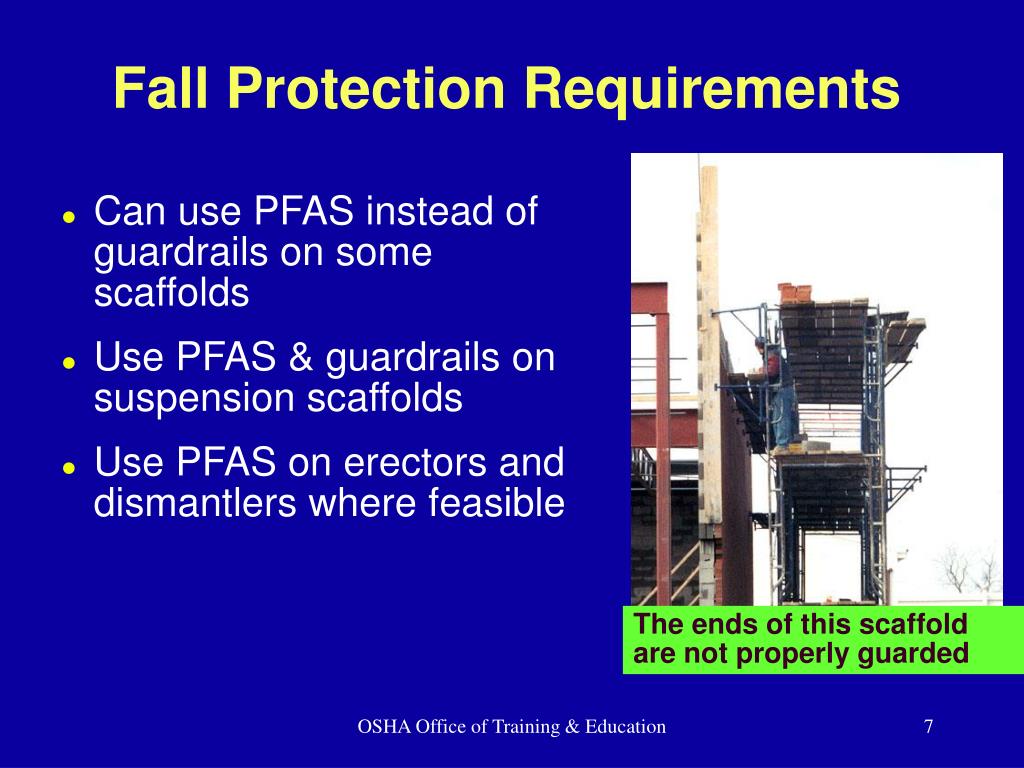

  7. Fall Protection Requirements • Can use PFAS instead of guardrails on some scaffolds • Use PFAS & guardrails on suspension scaffolds • Use PFAS on erectors and dismantlers where feasible The ends of this scaffold are not properly guarded OSHA Office of Training & Education

  8. Falling Object Protection • Wear hardhats • Barricade area below scaffold to forbid entry into that area • Use panels or screens if material is stacked higher than the toeboard • Build a canopy or erect a net below the scaffold that will contain or deflect falling objects OSHA Office of Training & Education

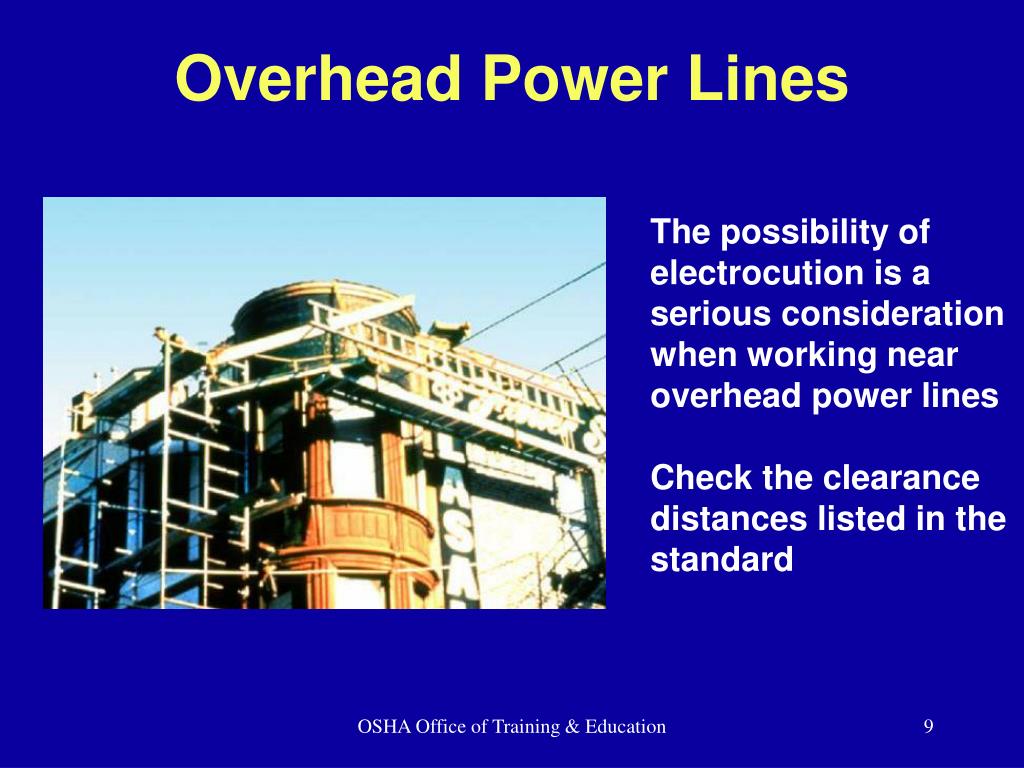

  9. Overhead Power Lines The possibility of electrocution is a serious consideration when working near overhead power lines Check the clearance distances listed in the standard OSHA Office of Training & Education

  10. Scaffold Support Examples Base plate Good support Inadequate support – in danger of collapse? Mud sills OSHA Office of Training & Education

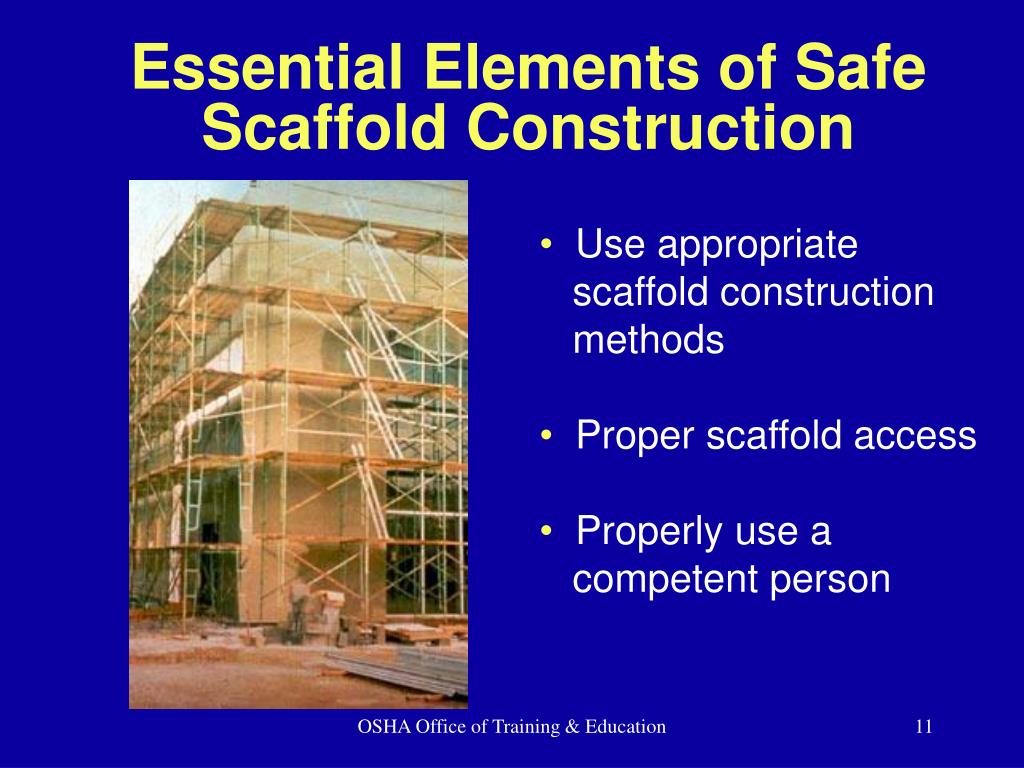

  11. Essential Elements of Safe Scaffold Construction • Use appropriate • scaffold construction • methods • Proper scaffold access • Properly use a • competent person OSHA Office of Training & Education

  12. Scaffold Platform Construction Platforms must: • be fully planked or decked with no more than 1 inch gaps • be able to support its weight & 4 times maximum load • be at least 18 inches wide This is not a properly constructed scaffold OSHA Office of Training & Education

  13. Scaffold Platform Construction • No large gaps in front edge of platforms • Each abutted end of plank must rest on a separate support surface • Overlap platforms at least 12 inches over supports, unless restrained to prevent movement Planks not properly overlapped OSHA Office of Training & Education

  14. Scaffold Platform Construction • No paint on wood platforms • Use scaffold grade wood • Fully planked between front upright and guardrail support • Component pieces used must match and be of the same type • Erect on stable and level ground • Lock wheels and braces OSHA Office of Training & Education

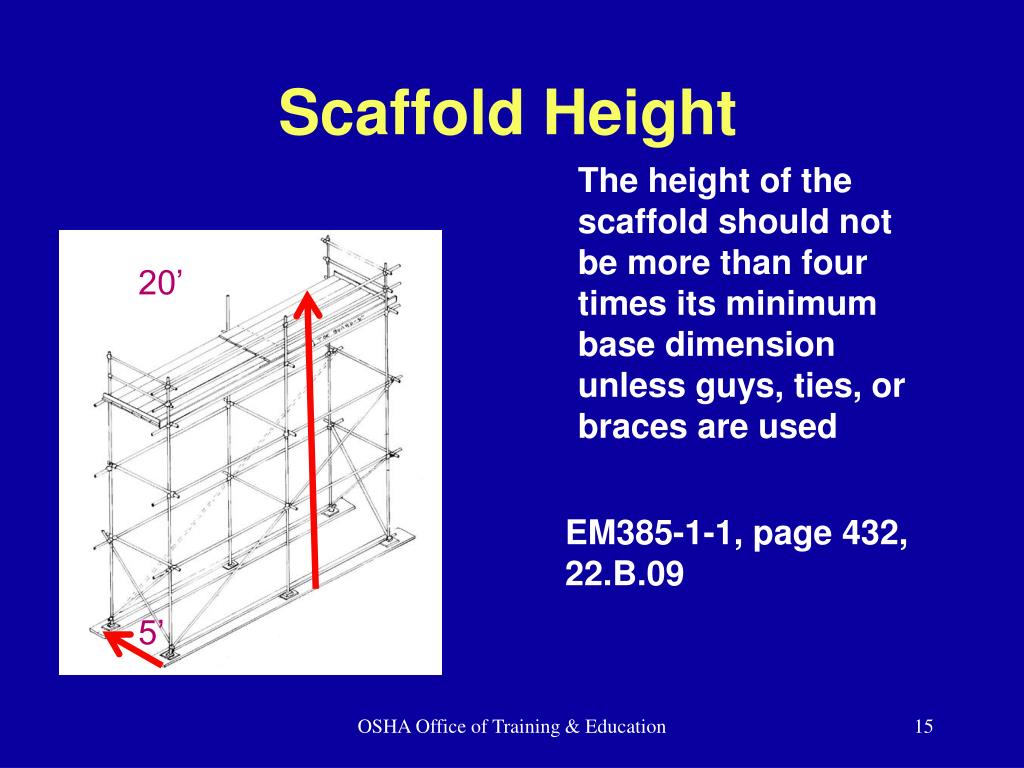

  15. Scaffold Height The height of the scaffold should not be more than four times its minimum base dimension unless guys, ties, or braces are used EM385-1-1, page 432, 22.B.09 20’ 5’ OSHA Office of Training & Education

  16. Platform Ends Each end of a platform, unless cleated or otherwise restrained by hooks, must extend over its support by at least 6 inches No Cleats OSHA Office of Training & Education

  17. Supported Scaffolds Platforms supported by legs, outrigger beams, brackets, poles, uprights, posts, & frames Restrain from tipping by guys, ties, or braces Scaffold poles, legs, posts, frames, and uprights must be on base plates and mud sills or other firm foundation This support is not adequate! OSHA Office of Training & Education

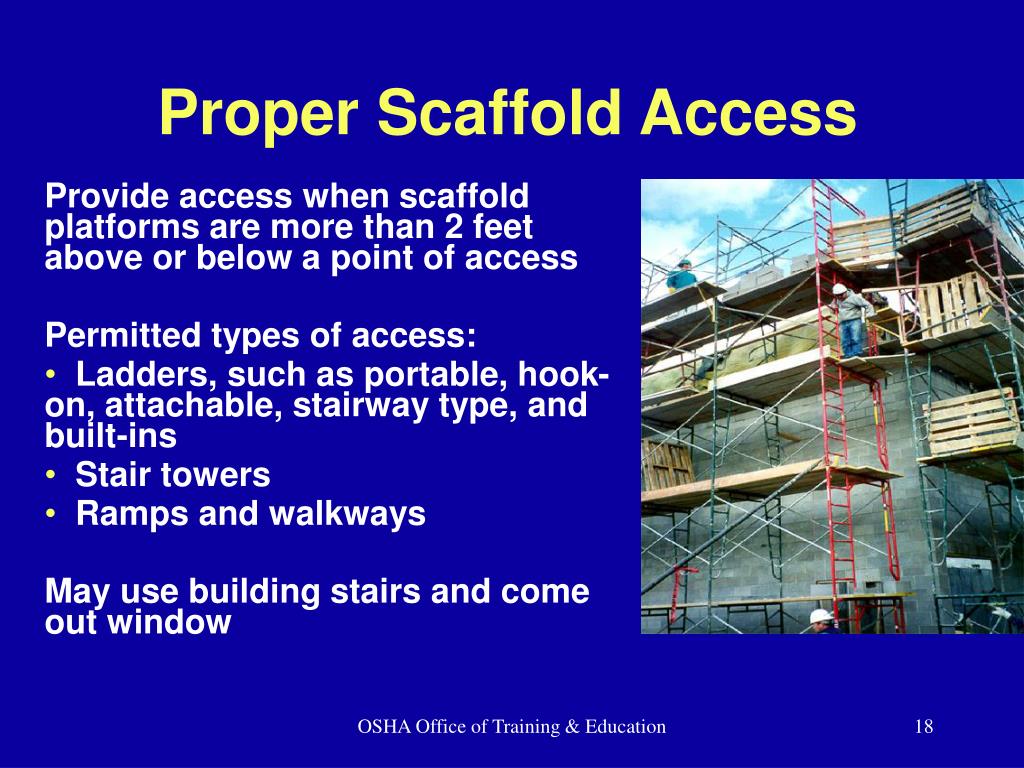

  18. Proper Scaffold Access Provide access when scaffold platforms are more than 2 feet above or below a point of access Permitted types of access: • Ladders, such as portable, hook-on, attachable, stairway type, and built-ins • Stair towers • Ramps and walkways May use building stairs and come out window OSHA Office of Training & Education

  19. Scaffold Access • No access by crossbraces • When using ladders, bottom rung no more than 24 inches high • Can use some end frames • Can access from another scaffold, structure or hoist Do not access by crossbraces End Frame OSHA Office of Training & Education

  20. Moving Scaffolds • Employees can’t be on a moving scaffold unless: • Surface is level • Height to base ratio is 2 to 1 • Outriggers are installed on both sides of scaffolds • Employees can’t be on scaffold part beyond the wheels • Competent person must be on site to supervise OSHA Office of Training & Education

  21. Fatal Fact – Moving a Lift Employee was operating an aerial lift, with an extendable boom rotating work platform The boom was fully extended and the machine apparently ran over some bricks, causing the boom to flex or spring, throwing the employee from the basket The employee fell 37 feet to a concrete surface OSHA Office of Training & Education

  22. Don’t use Shore or Lean-to Scaffolds Lean-to scaffold supported scaffold which is kept erect by tilting it toward and resting it against a building or structure Shore scaffold supported scaffold which is placed against a building or structure and held in place with props OSHA Office of Training & Education

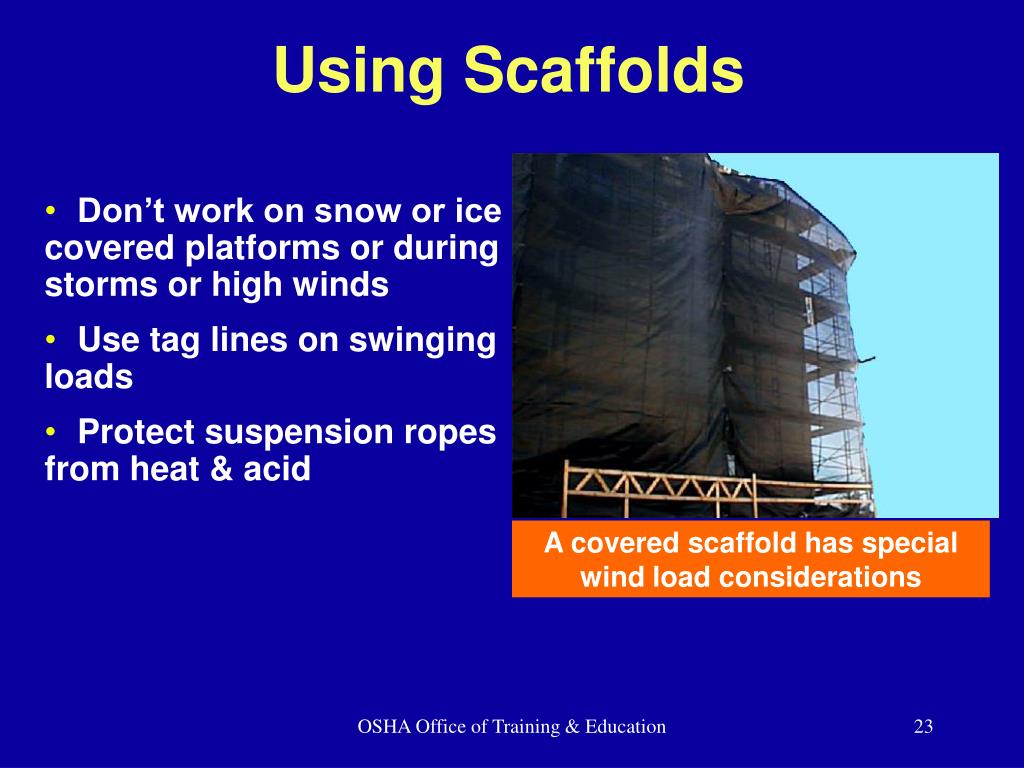

  23. Don’t work on snow or ice covered platforms or during storms or high winds Use tag lines on swinging loads Protect suspension ropes from heat & acid Using Scaffolds A covered scaffold has special wind load considerations OSHA Office of Training & Education

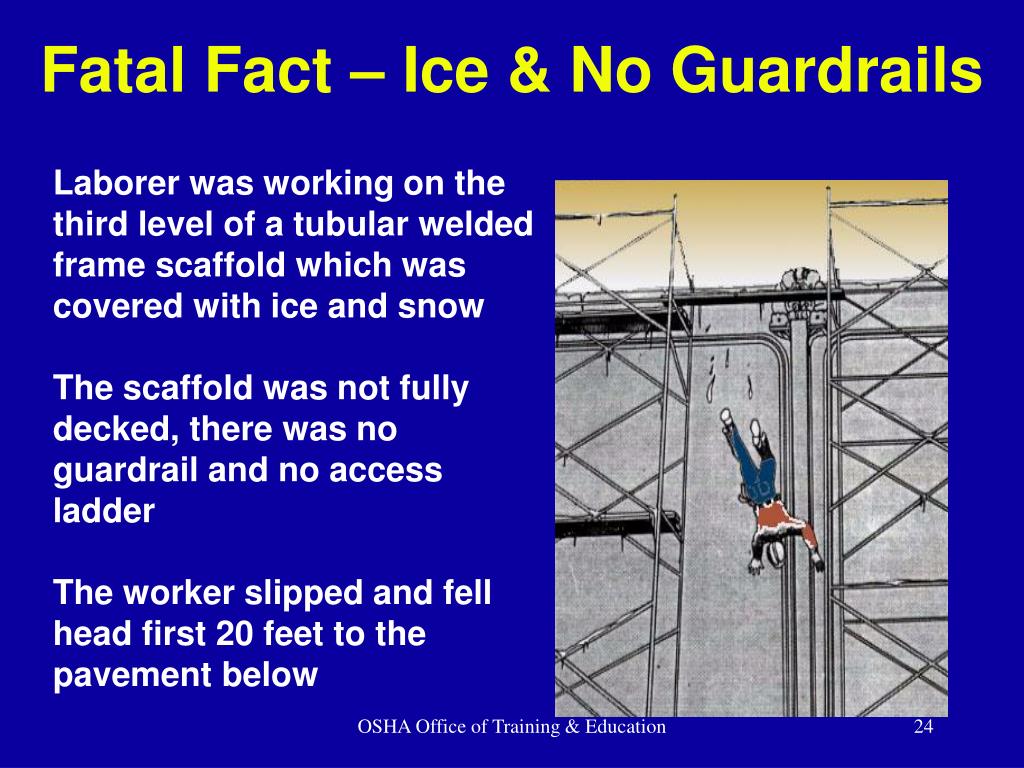

  24. Fatal Fact – Ice & No Guardrails Laborer was working on the third level of a tubular welded frame scaffold which was covered with ice and snow The scaffold was not fully decked, there was no guardrail and no access ladder The worker slipped and fell head first 20 feet to the pavement below OSHA Office of Training & Education

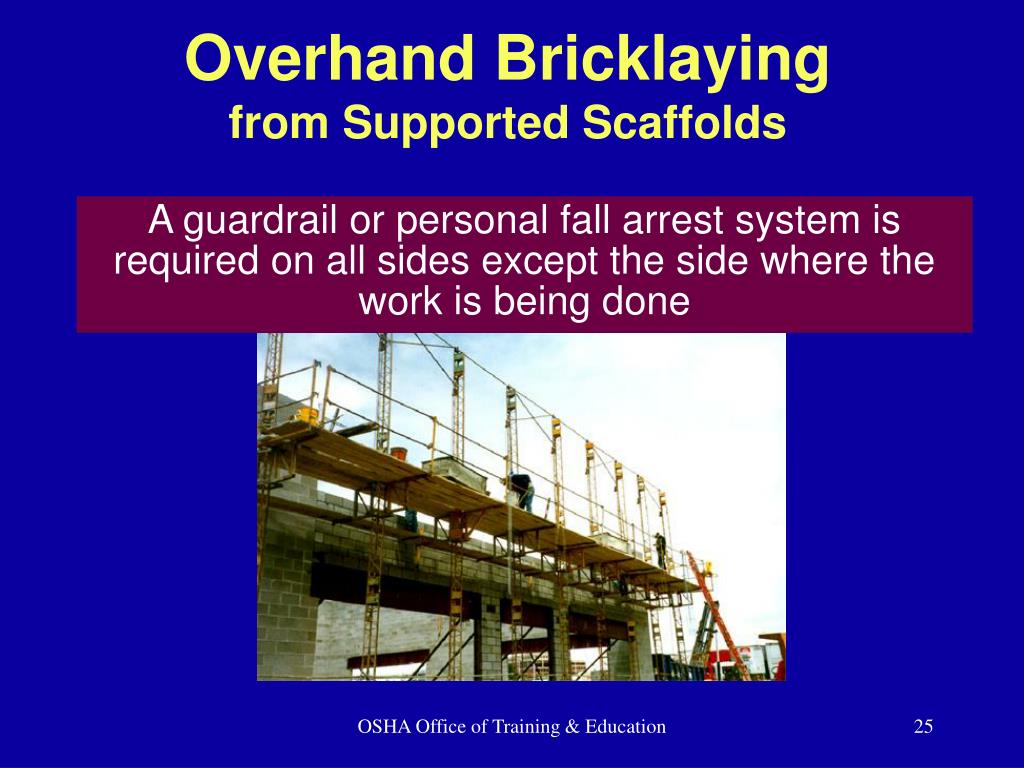

  25. Overhand Bricklayingfrom Supported Scaffolds A guardrail or personal fall arrest system is required on all sides except the side where the work is being done OSHA Office of Training & Education

  26. Competent Person Person capable of identifying and promptly correcting hazards Determines if it’s safe to work on a scaffold during storms or high winds Trains workers to recognize hazards Selects qualified workers to conduct work OSHA Office of Training & Education

  27. Scaffold Inspection Competent person inspects scaffolds for visible defects before each shift and after any alterations Defective parts must be immediately repaired Deformed bearer OSHA Office of Training & Education

  28. Scaffold Erection Scaffolds can only be erected, moved, dismantled or altered under the supervision of a competent person Competent person selects & directs these workers and determines the feasibility of fall protection OSHA Office of Training & Education

  29. Training Requirements Train employees on scaffold hazards and procedures to control the hazards The training must include: • Nature of electrical, fall, and falling object hazards • How to deal with electrical hazards and fall protection systems • Proper use of the scaffold • Scaffold load capacities Retrain as necessary OSHA Office of Training & Education

  30. Training Erectors Train employees involved in erecting, disassembling, moving, operating, repairing, maintaining, or inspecting a scaffold to recognize its hazards and the correct procedures to use OSHA Office of Training & Education

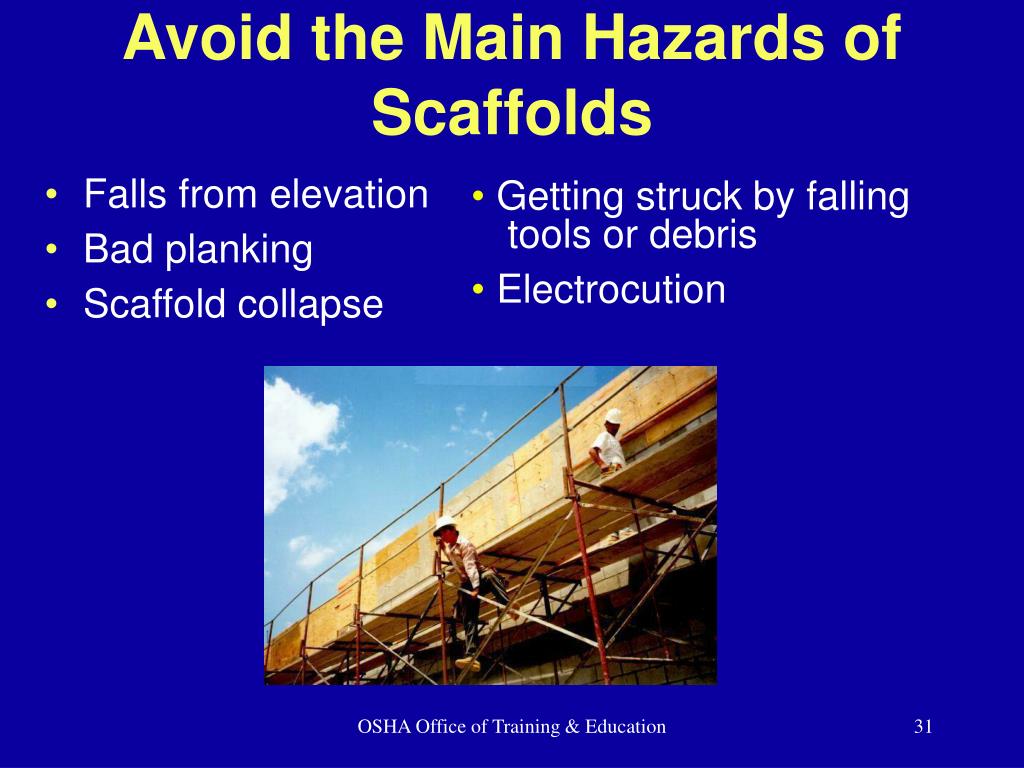

  31. Falls from elevation Bad planking Scaffold collapse Getting struck by falling tools or debris Electrocution Avoid the Main Hazards of Scaffolds OSHA Office of Training & Education

  32. Summary Remember to: • Use appropriate scaffold construction methods • Erect, move, or alter scaffold properly • Protect from falling objects or tools • Ensure stable access • Use a competent person • Train on scaffold construction and the hazards involved with scaffolds • Inspect scaffold before each shift and after alterations • Determine fall protection requirements OSHA Office of Training & Education
