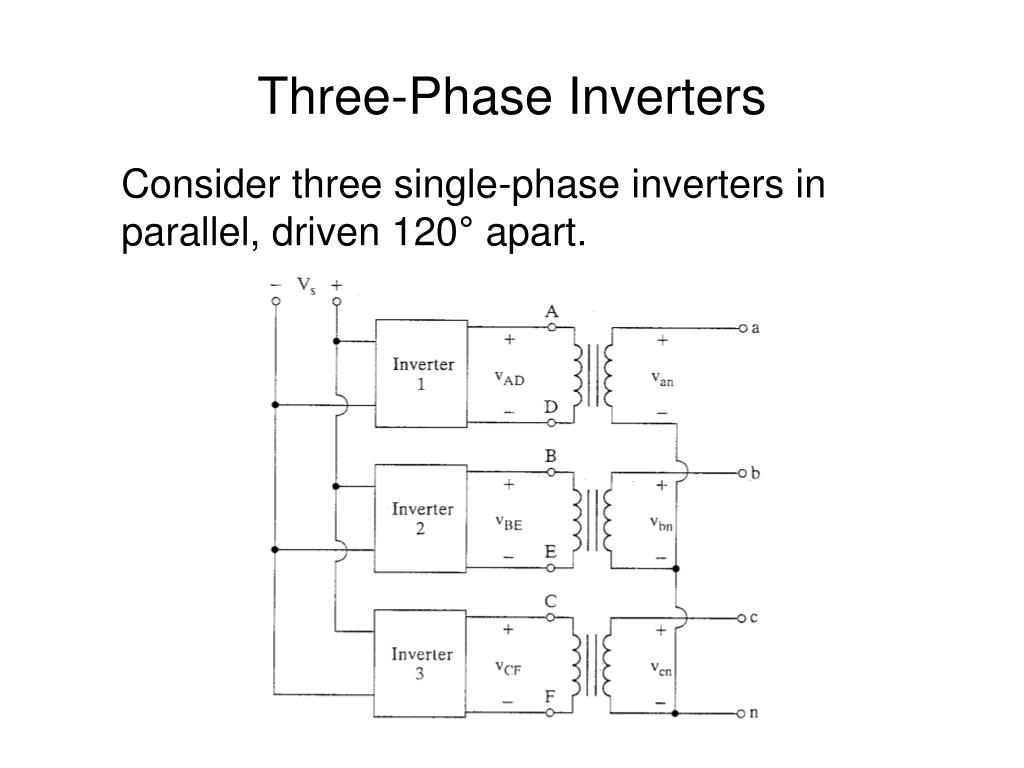

  1. Three-Phase Inverters Consider three single-phase inverters in parallel, driven 120° apart.

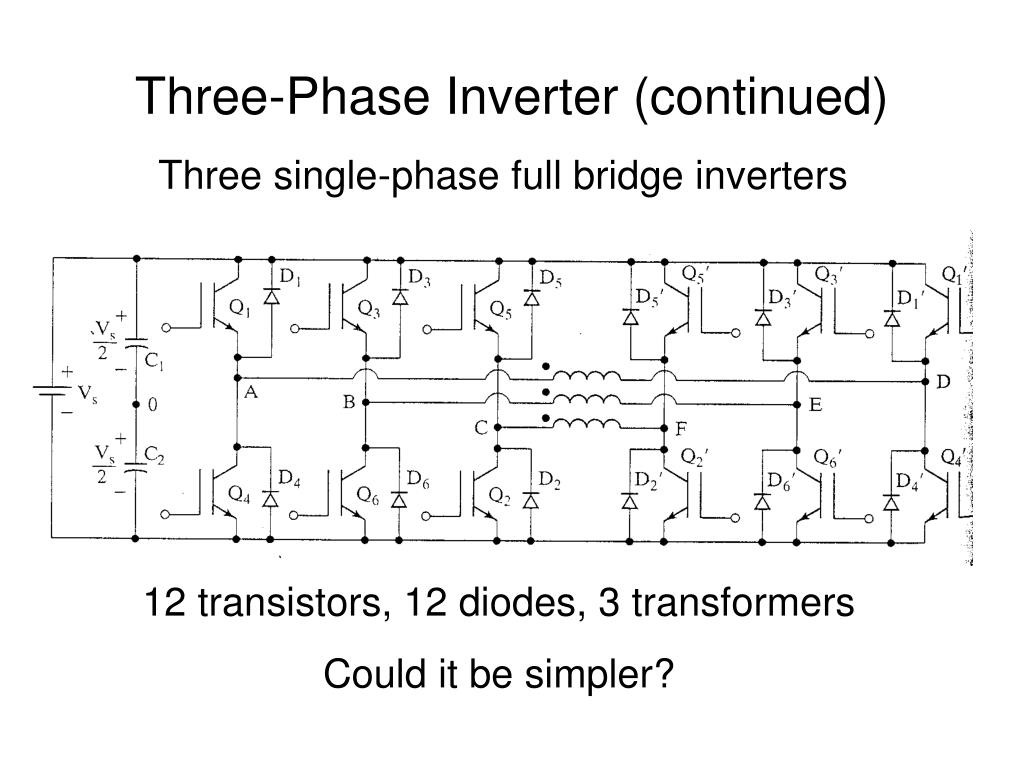

  2. Three-Phase Inverter (continued) Three single-phase full bridge inverters 12 transistors, 12 diodes, 3 transformers Could it be simpler?

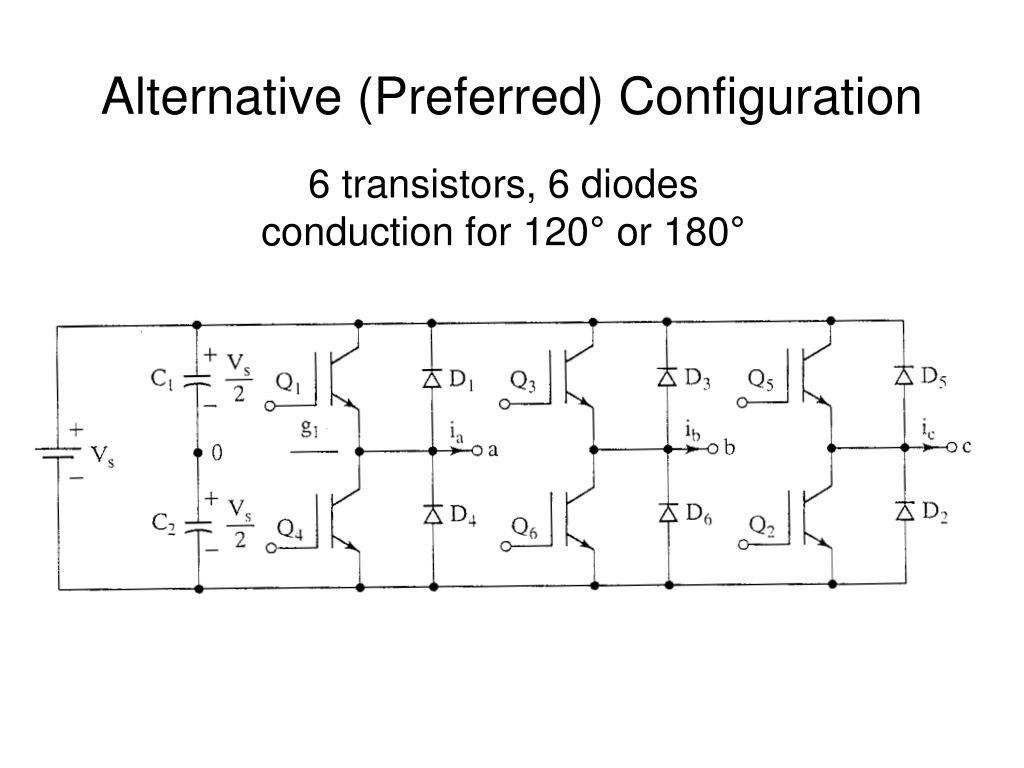

  3. Alternative (Preferred) Configuration 6 transistors, 6 diodes conduction for 120° or 180°

  4. 180° Conduction • Three transistors ON at a time

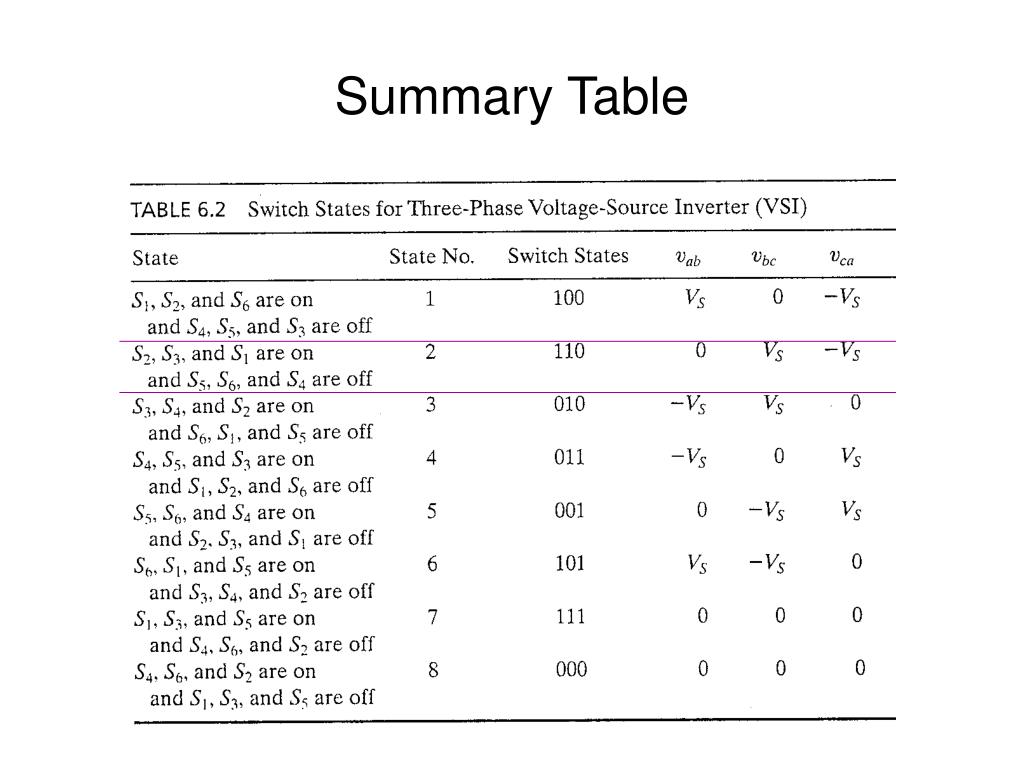

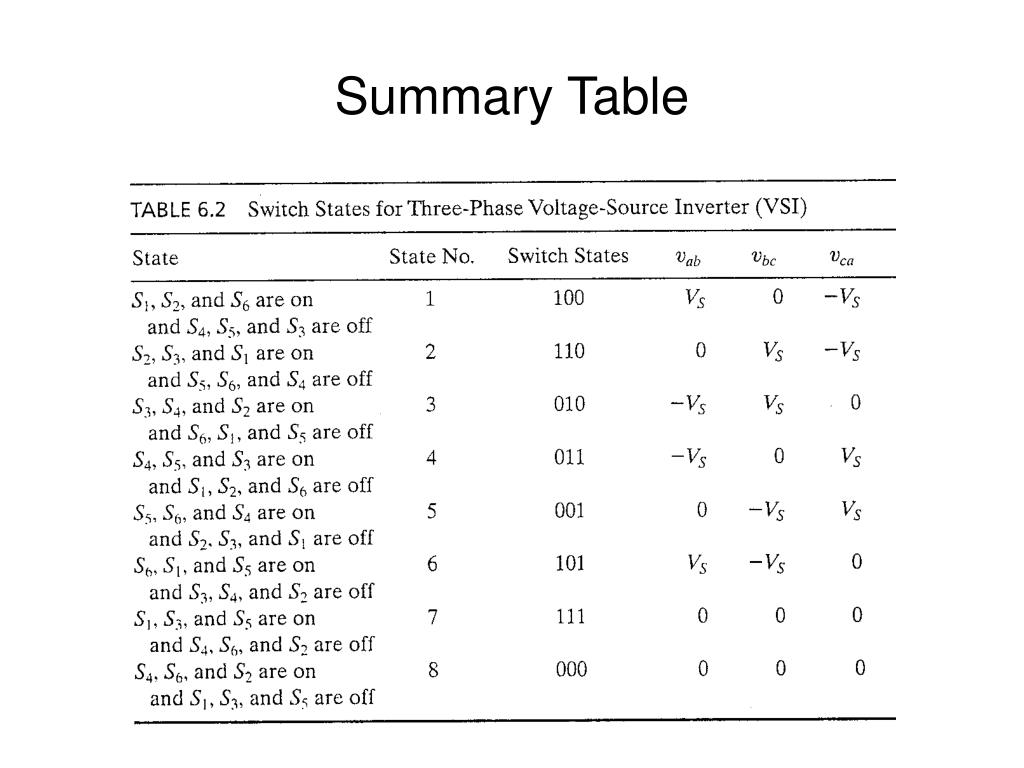

  5. Summary Table

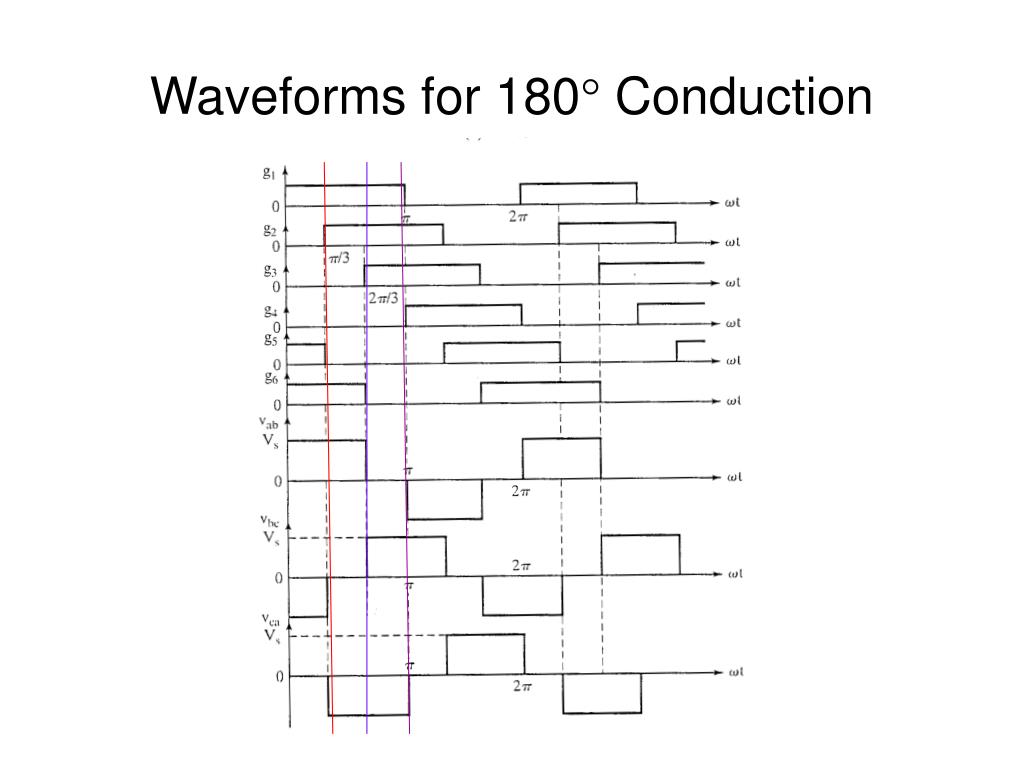

  6. Waveforms for 180 Conduction

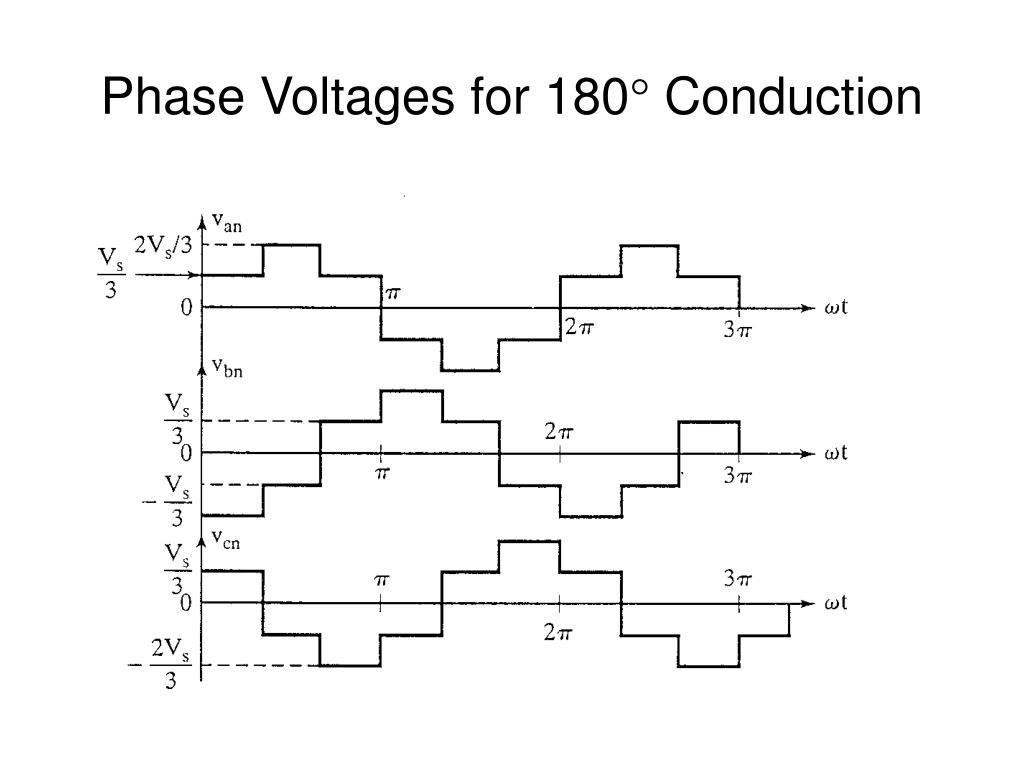

  7. Phase Voltages for 180 Conduction

  8. Waveforms for 180 Conduction

  9. Summary Table

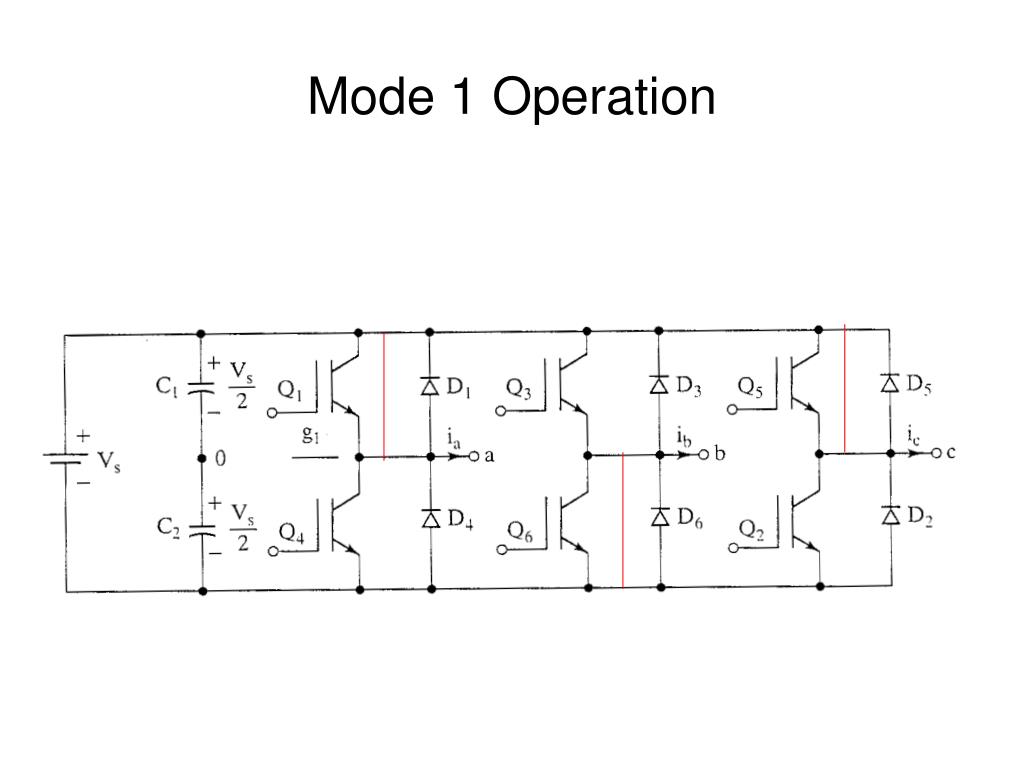

  10. Mode 1 Operation

  11. Mode 1 Operation Q1, Q5, Q6 conduct

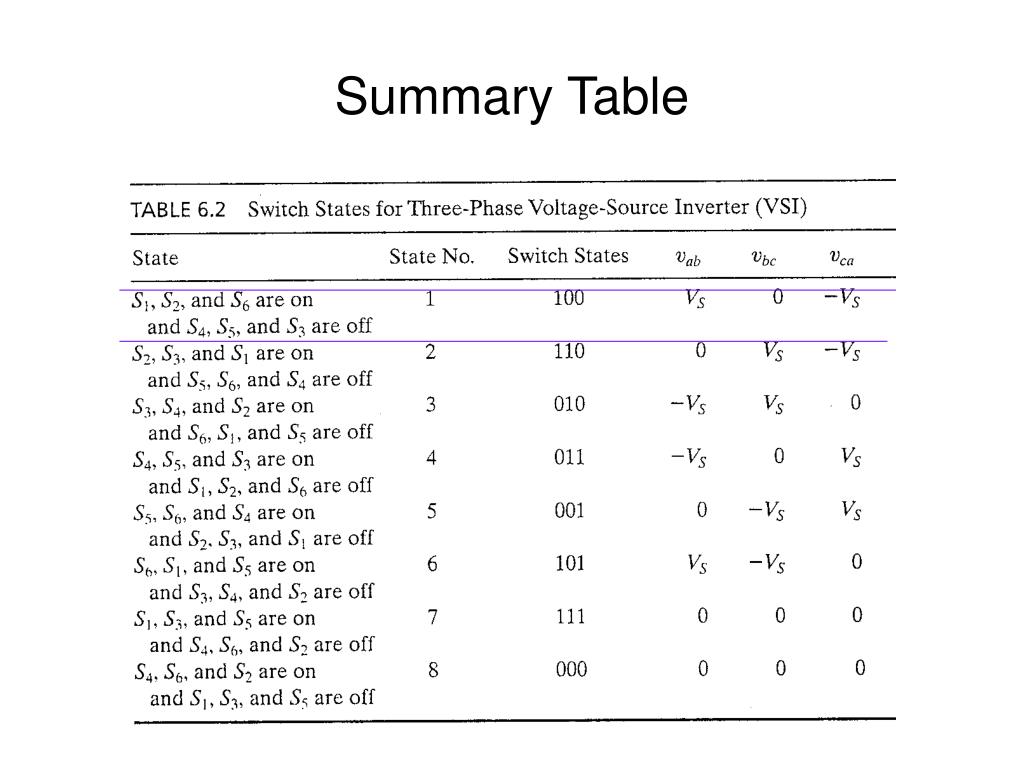

  12. Summary Table

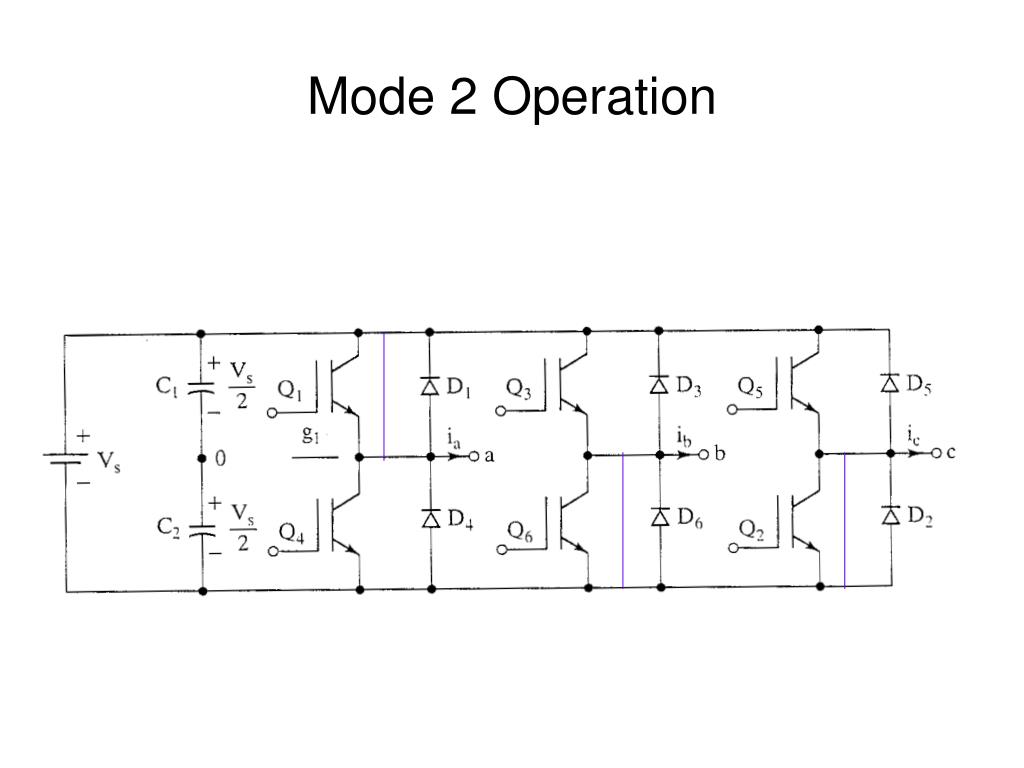

  13. Mode 2 Operation

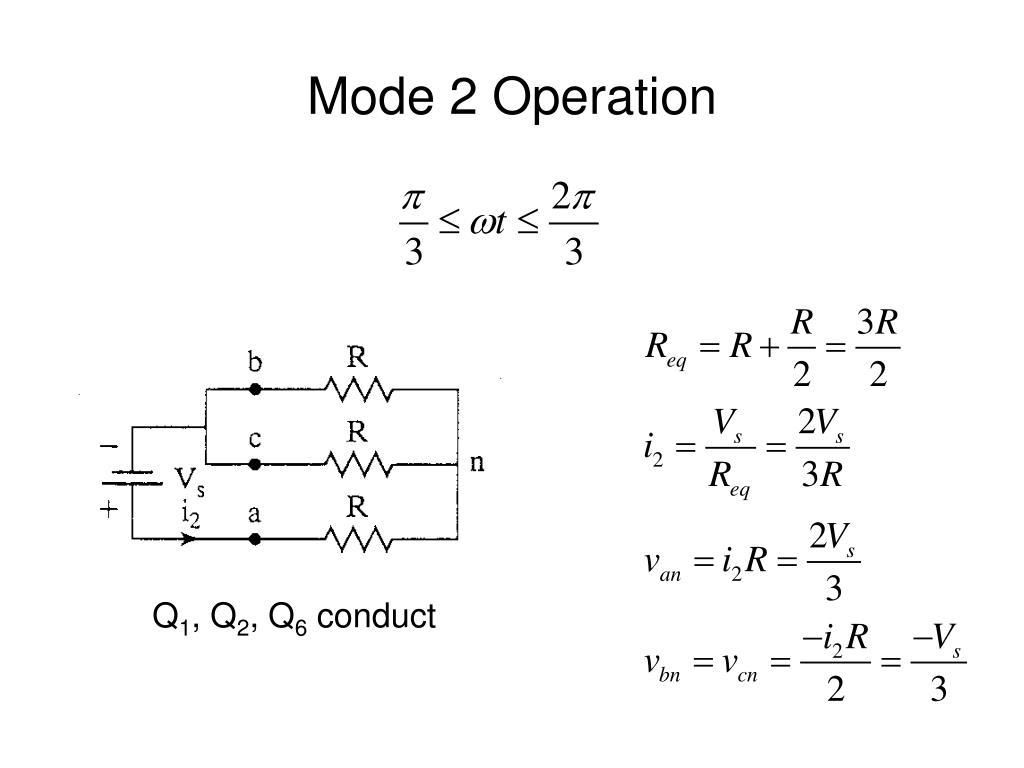

  14. Mode 2 Operation Q1, Q2, Q6 conduct

  15. Summary Table

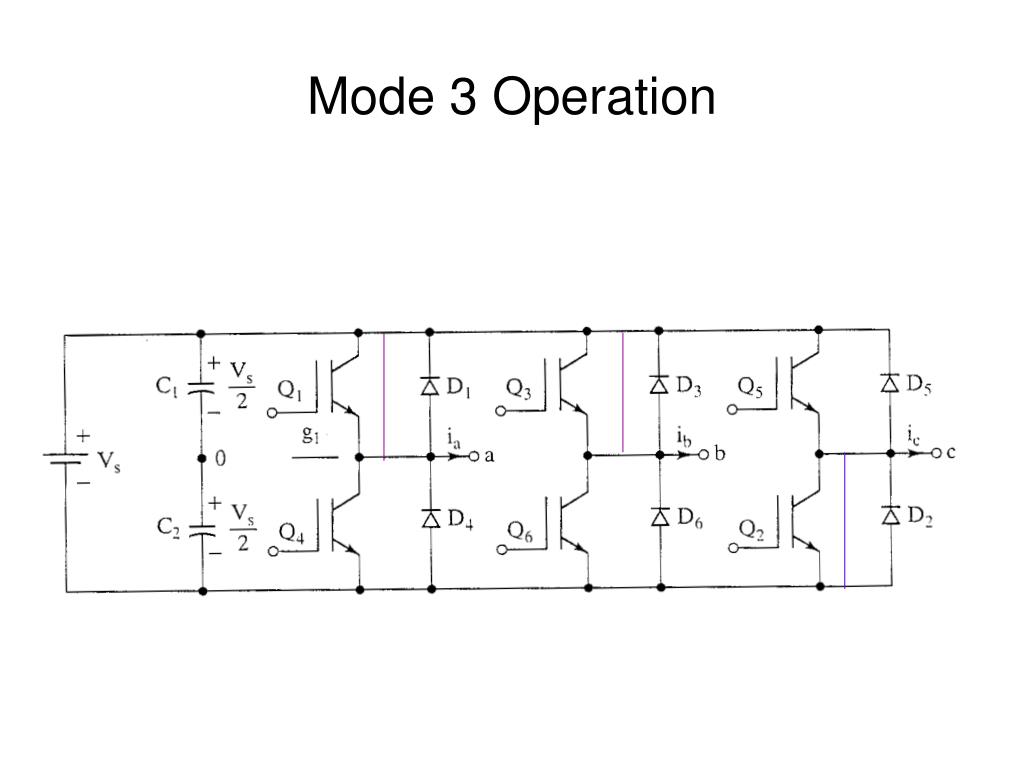

  16. Mode 3 Operation

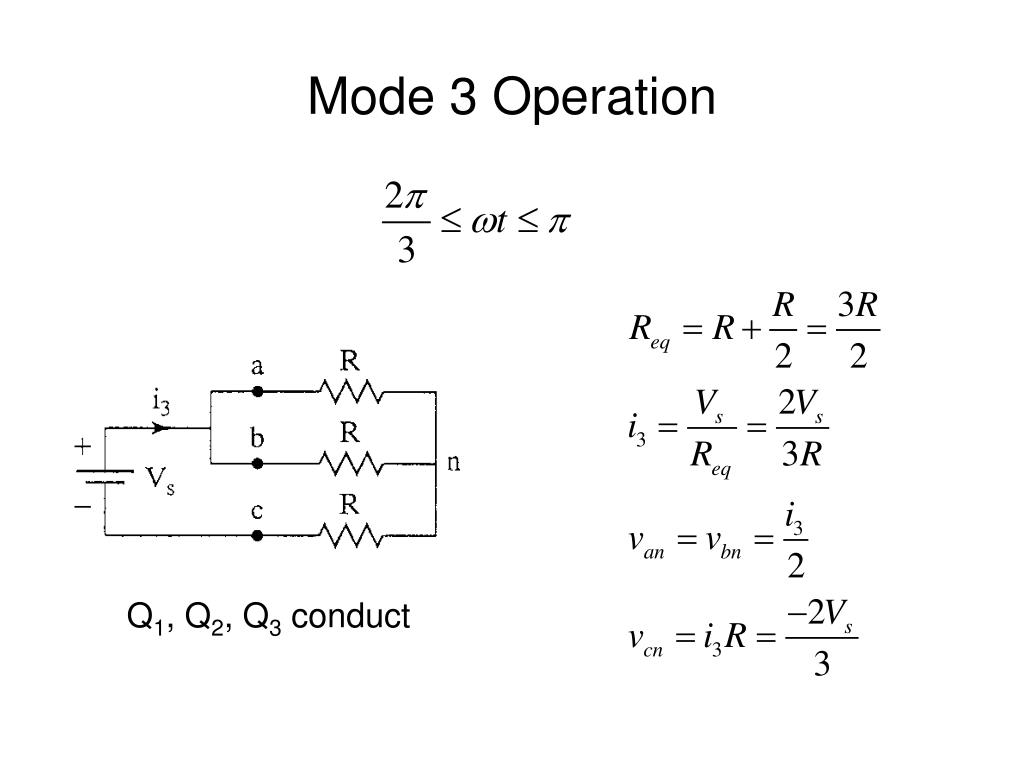

  17. Mode 3 Operation Q1, Q2, Q3 conduct

  18. Phase Voltages for 180 Conduction

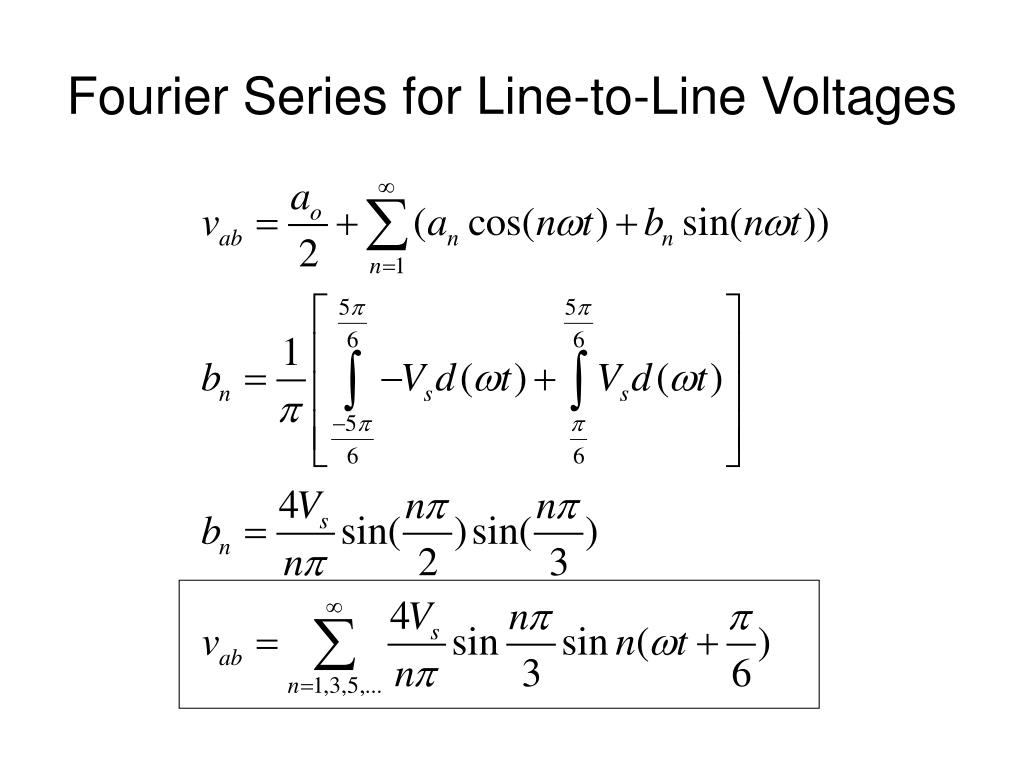

  19. Fourier Series for Line-to-Line Voltages

  20. For the other Line-to-Line Voltages

  21. Line-to-Line rms Voltage

  22. rms value of the nth Component Fundamental Component

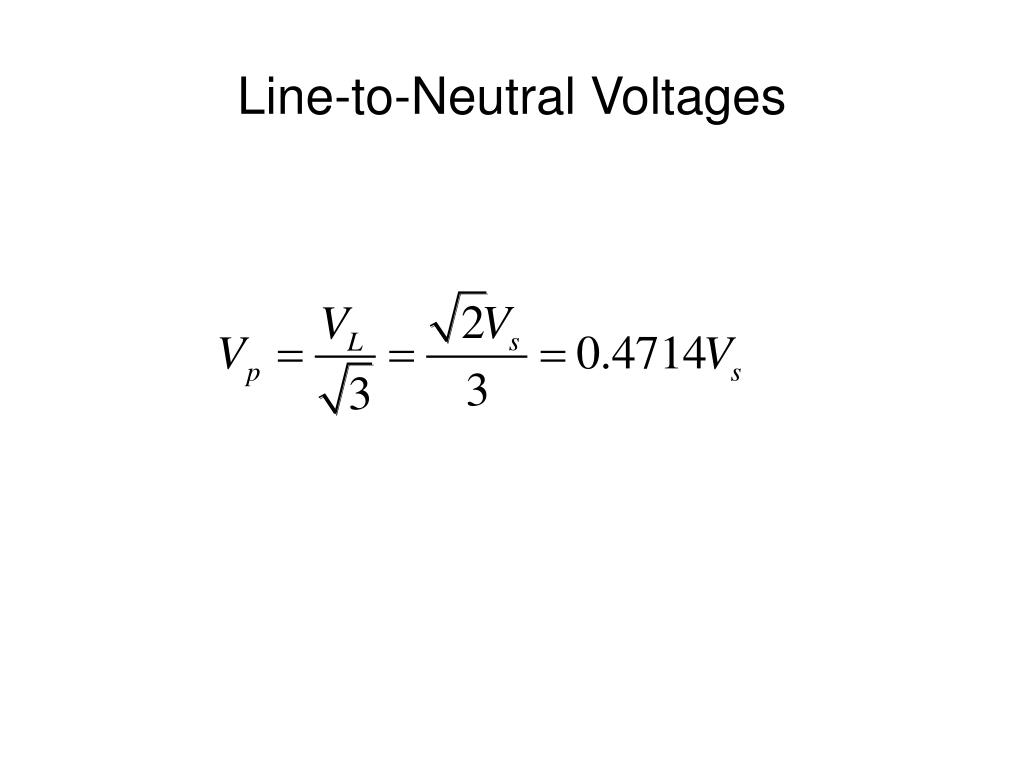

  23. Line-to-Neutral Voltages

  24. Phase Voltages (Y-connected load)

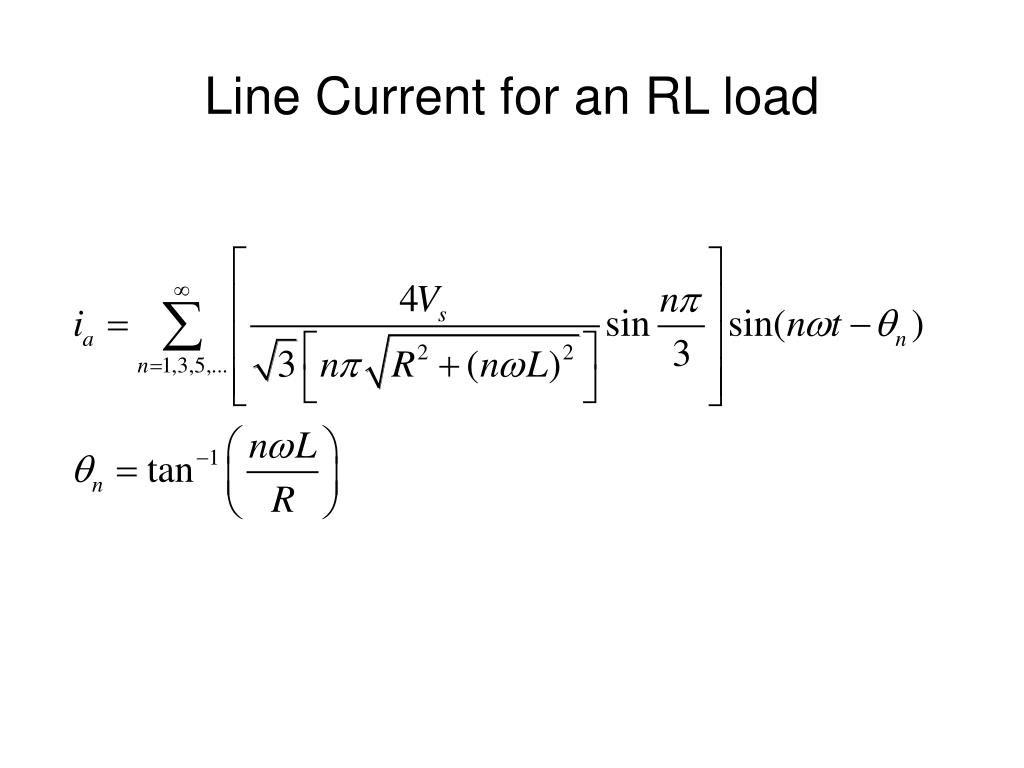

  25. Line Current for an RL load

  26. DC Supply Current IL=√3Io is the rms load line current Vo1= fundamental rms output line voltage Io is the rms load phase current Θ1 = the load impedance angle at the fundamental frequency

  27. Three-Phase Inverter with RL Load
