LINEAR TEMPORAL LOGIC

LINEAR TEMPORAL LOGIC. Fall 2013 Dr. Eric Rozier. Propositional Temporal Logic. Does the following hold?. yes. Propositional Temporal Logic. Does the following hold?. no. G F p p holds infinitely often F G p Eventually, p holds henceforth G ( p => F q )

natara
Download Presentation

LINEAR TEMPORAL LOGIC

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. LINEAR TEMPORAL LOGIC Fall 2013 Dr. Eric Rozier

  2. Propositional Temporal Logic Does the following hold? yes

  3. Propositional Temporal Logic Does the following hold? no

  4. G Fp p holds infinitely often F Gp Eventually, p holds henceforth G( p=> Fq ) Every p is eventually followed by a q F( p => (X Xq) ) Every p is followed by a q two reactions later Examples: What do they mean? Remember: Gp p holds in all states Fp p holds eventually Xp p holds in the next state

  5. “Whenever the iRobot is at the ramp-edge (cliff), eventually it moves 5 cm away from the cliff.” p – iRobot is at the cliff q – iRobot is 5 cm away from the cliff G (p => F q) “Whenever the distance between cars is less than 2m, cruise control is deactivated” p – distance between cars is less than 2 m q – cruise control is active G (p => X ! q) Examples: Write in Temporal Logic

  6. Remember, LTL Formulas are Formulas • Suppose the robot must visit a set of n locations l1, l2, …, ln. Let pi be an atomic formula that is true if and only if the robot visits location li. • Express the following: • The robot must eventually visit at least one of the n locations.

  7. Remember, LTL Formulas are Formulas • Suppose the robot must visit a set of n locations l1, l2, …, ln. Let pi be an atomic formula that is true if and only if the robot visits location li. • Express the following: • The robot must eventually visit all n locations, but in any order.

  8. Remember, LTL Formulas are Formulas • Suppose the robot must visit a set of n locations l1, l2, …, ln. Let pi be an atomic formula that is true if and only if the robot visits location li. • Express the following: • The robot must eventually visit all n locations, in numeric order.

  9. What does this property mean? • F(p => Xq) • Is it satisfied by this trace? p -> p -> p -> __ -> q -> p -> …

  10. What does this property mean? • F(p => Xq) • Is it satisfied by this trace? p -> p -> p -> __ -> q -> p -> q -> …

  11. Does this automaton satisfy the property? • pUq

  12. Does this automaton satisfy the property? • pUq

  13. Does this automaton satisfy the property? • qRp

  14. Does this automaton satisfy the property? • qRp

  15. Does this automaton satisfy the property? • qRp

  16. Does this automaton satisfy the property? • qRp

  17. Does this automaton satisfy the property? • F(p & XXX !q)

  18. Does this automaton satisfy the property? • F(p & XXX !q)

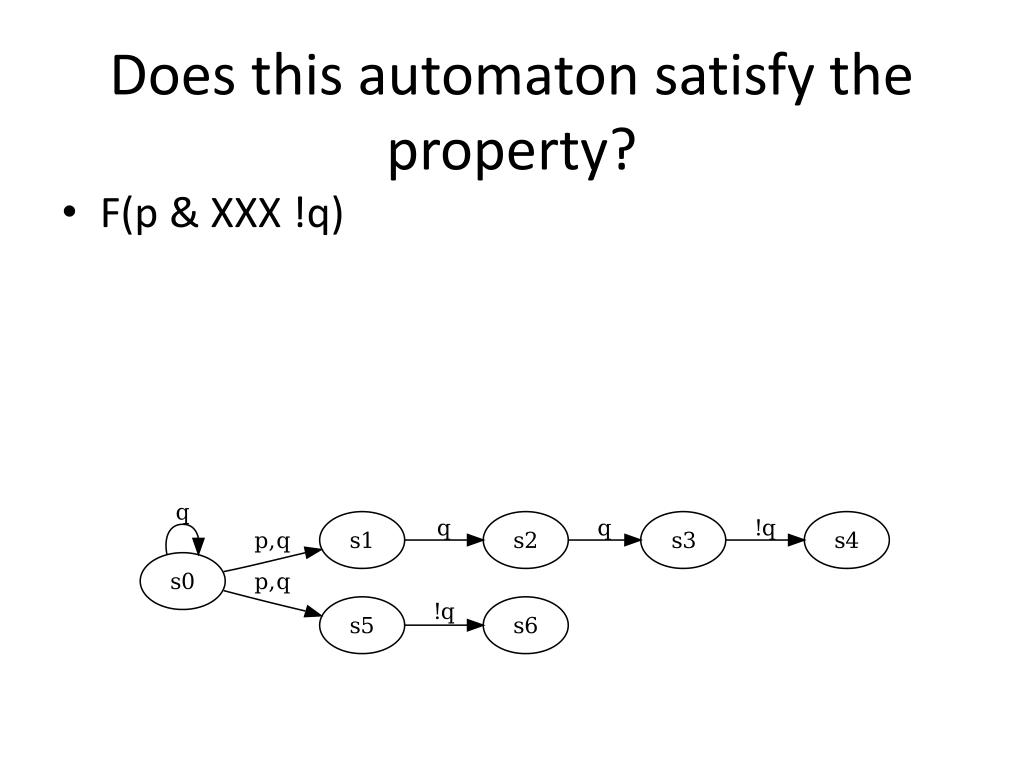

  19. Does this automaton satisfy the property? • F(p & XXX !q)
