Cs351 week 1

CS351 – Week 1


Topics

Topics

  • Native Types

  • Memory representation

  • Variable initialization declaration and allocation


Previous knowledge

Previous knowledge

  • How to select variable type (string, integer, float, or boolean)

  • Concept of capturing external files for use in programming (import or include)

  • Reading strings from standard input and parsing for numeric types if needed

  • Converting and concatenating strings for output to screen

  • Compute and save numerical results

  • Understanding of how to use a randomize function


Objectives

Objectives

  • Identify native types in C++ that are generally available

  • Understand how to declare, allocate and initialize a variable

  • Declare variables in global or local scope

  • Create a basic C++ program that takes input from standard in, computes a value and prints the value to the screen

    • Using constant values

    • Appropriately including needed files

    • Correctly coding the main signature

    • Using object for inputting and outputting values


Including files

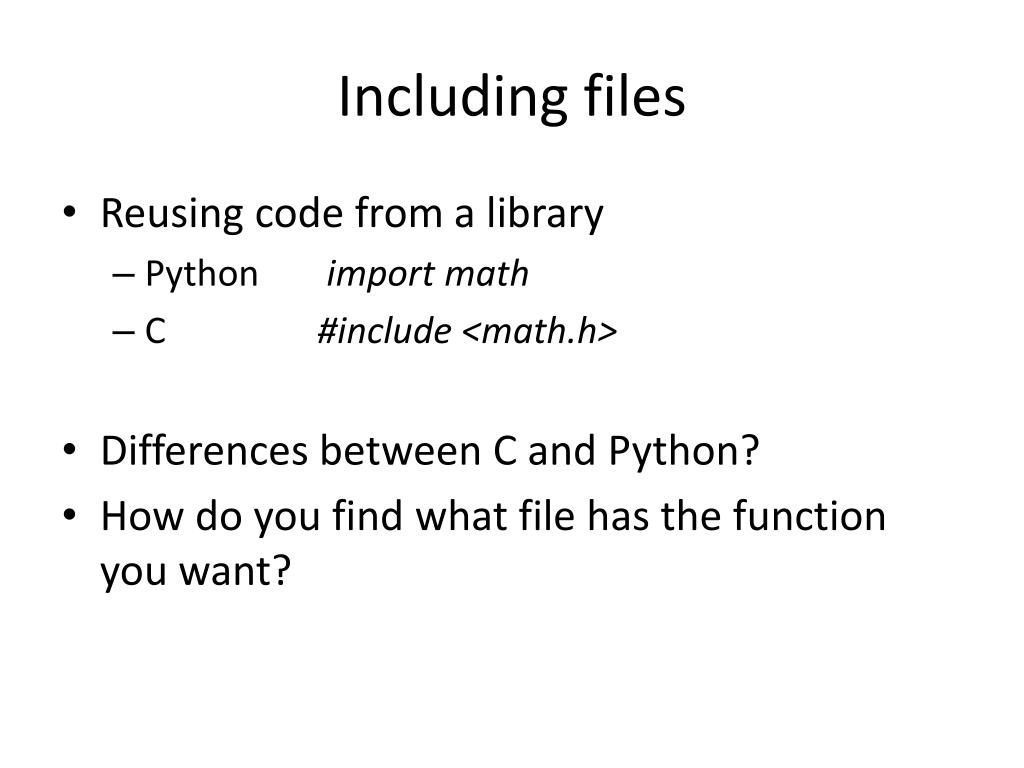

Including files

  • Reusing code from a library

    • Python import math

    • C#include <math.h>

  • Differences between C and Python?

  • How do you find what file has the function you want?


Computer memory

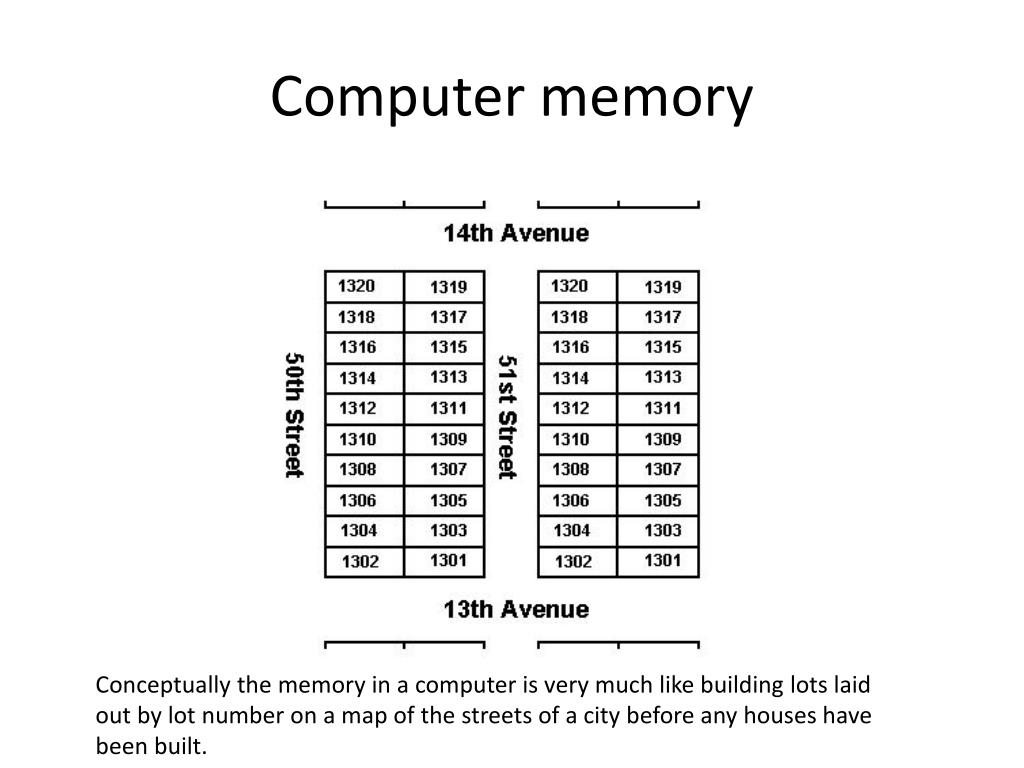

Computer memory

Conceptually the memory in a computer is very much like building lots laid out by lot number on a map of the streets of a city before any houses have been built.


Computer memory1

Computer memory

Lots can be used individually or as groups

Although memory has a basic unit, units can be used together to represent more complex data


Data for variables

Data for variables

  • “Jane Doe”

  • $475.24

  • 123-45-6789

  • 26 years of age

  • January


Native types in c

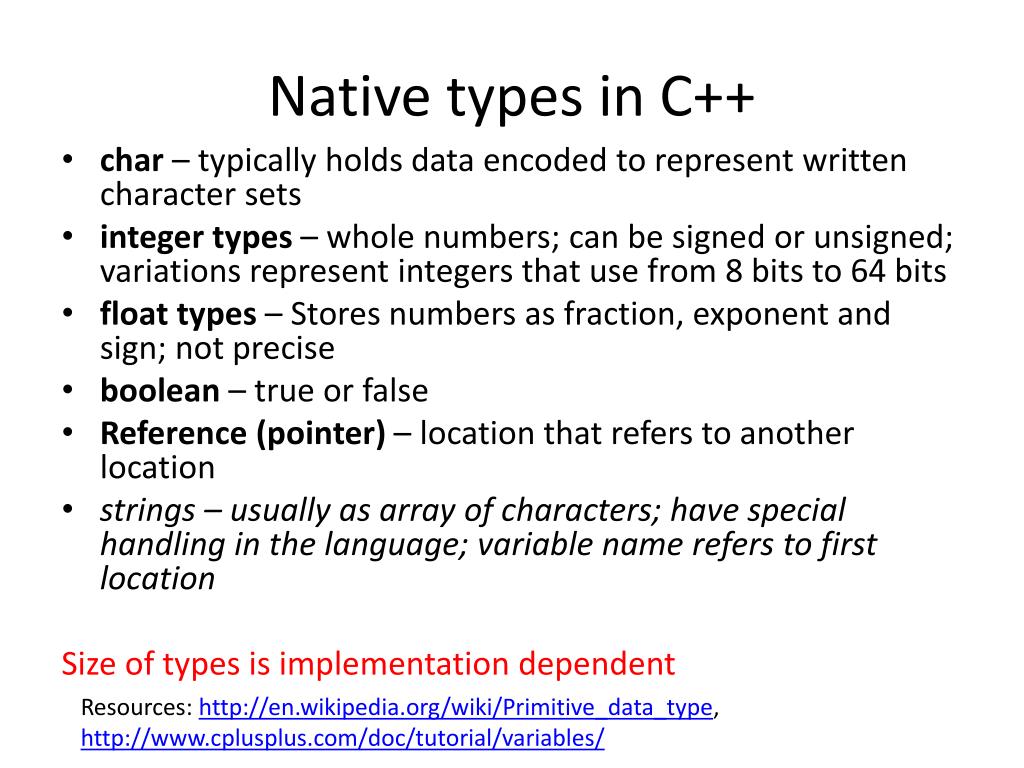

Native types in C++

  • char – typically holds data encoded to represent written character sets

  • integer types – whole numbers; can be signed or unsigned; variations represent integers that use from 8 bits to 64 bits

  • float types – Stores numbers as fraction, exponent and sign; not precise

  • boolean – true or false

  • Reference (pointer) – location that refers to another location

  • strings – usually as array of characters; have special handling in the language; variable name refers to first location

    Size of types is implementation dependent

Resources: http://en.wikipedia.org/wiki/Primitive_data_type, http://www.cplusplus.com/doc/tutorial/variables/


Sample program

wget http:/bama.ua.edu/~anderson/size.cc

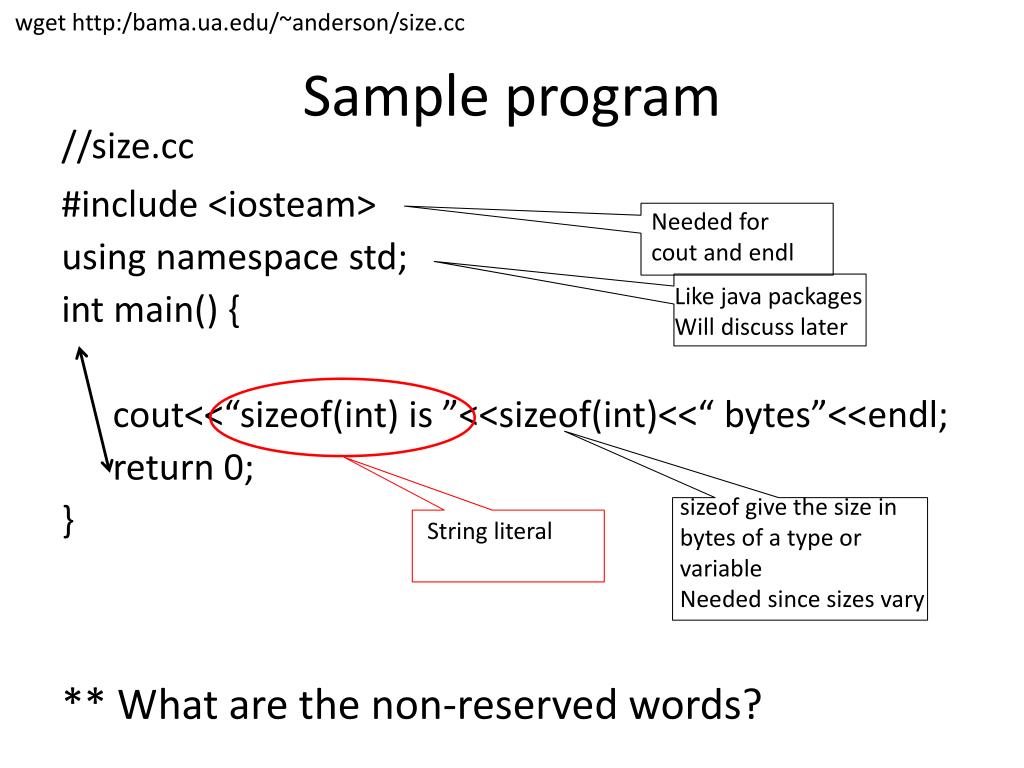

Sample program

//size.cc

#include <iosteam>

using namespace std;

int main() {

cout<<“sizeof(int) is ”<<sizeof(int)<<“ bytes”<<endl;

return 0;

}

Needed for cout and endl

Like java packages

Will discuss later

sizeof give the size in bytes of a type or variable

Needed since sizes vary

String literal

** What are the non-reserved words?


Sample program1

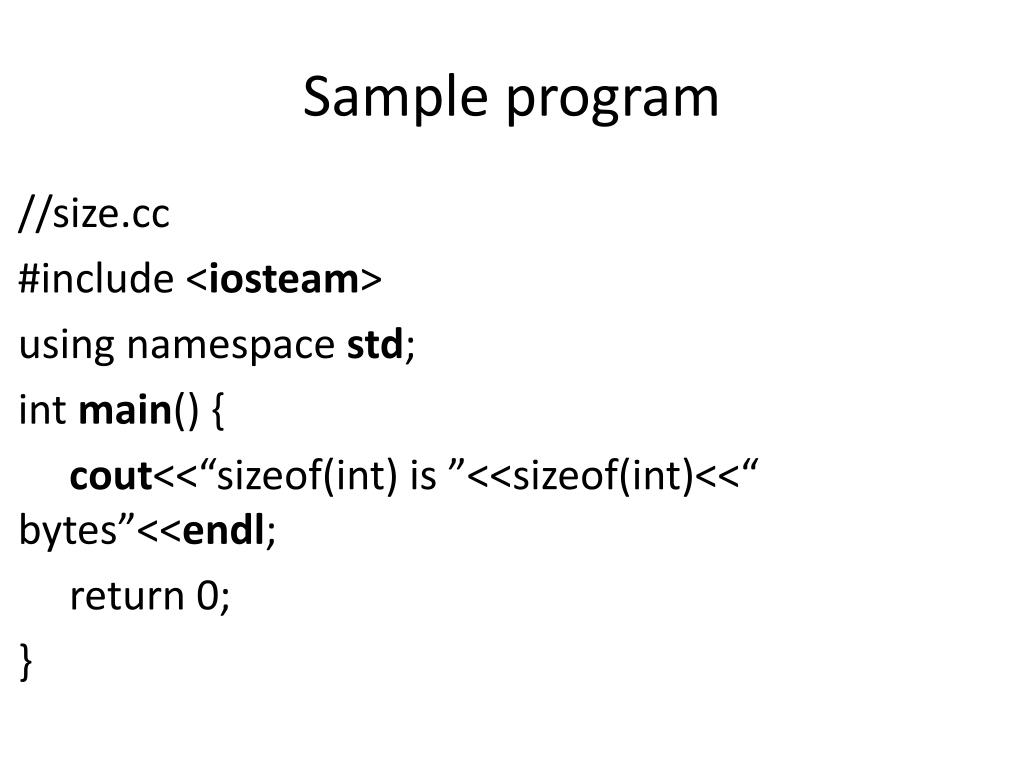

Sample program

//size.cc

#include <iosteam>

using namespace std;

intmain() {

cout<<“sizeof(int) is ”<<sizeof(int)<<“ bytes”<<endl;

return 0;

}


Other general rules

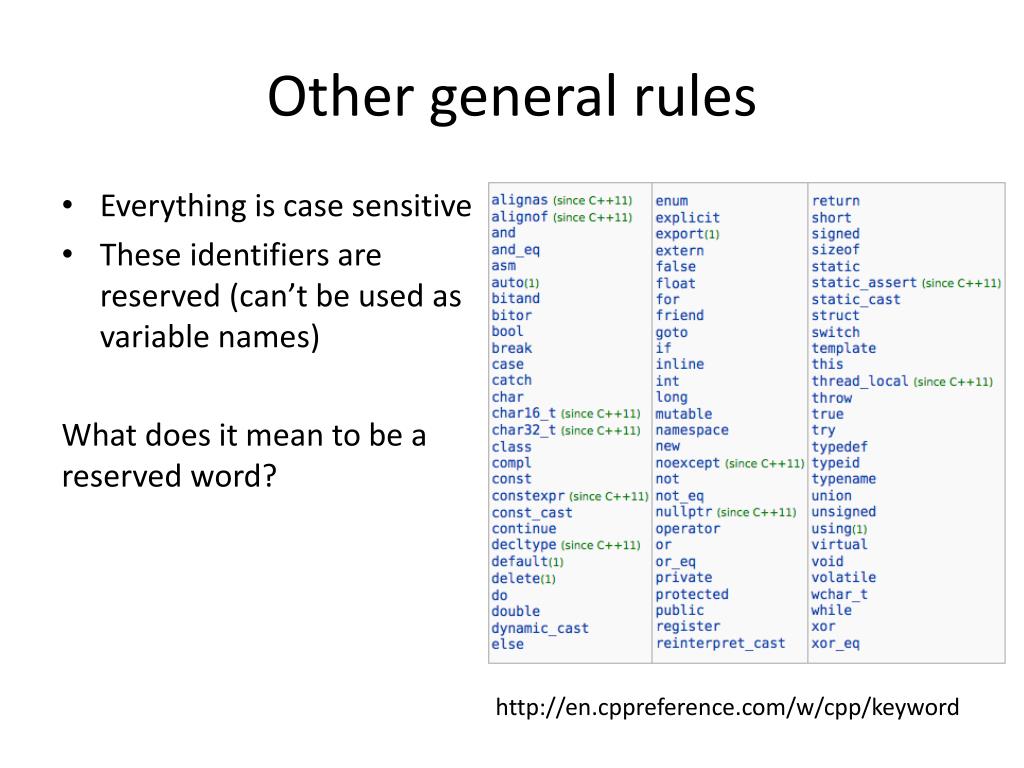

Other general rules

  • Everything is case sensitive

  • These identifiers are reserved (can’t be used as variable names)

    What does it mean to be a reserved word?

http://en.cppreference.com/w/cpp/keyword


Other syntax

Other syntax

  • semicolons are used to denote the end of a statement except

    • after the #include statement

    • before a block

  • Whitespace is not part of syntax

    //size.cc

    #include <iosteam>

    using namespace std;

    int main() {

    cout<<“sizeof(int) is ”<<sizeof(int)<<“ bytes”<<endl;

    return 0;

    }


Programmed example 10 min work in pairs only pairs

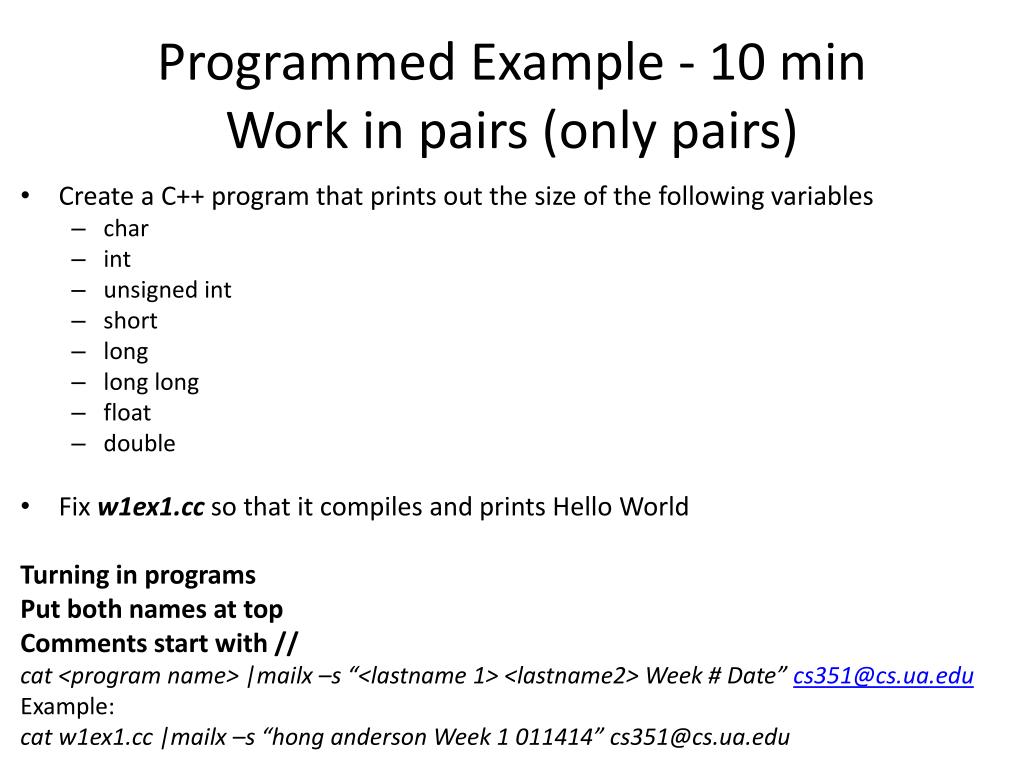

Programmed Example - 10 minWork in pairs (only pairs)

  • Create a C++ program that prints out the size of the following variables

    • char

    • int

    • unsigned int

    • short

    • long

    • long long

    • float

    • double

  • Fix w1ex1.cc so that it compiles and prints Hello World

    Turning in programs

    Put both names at top

    Comments start with //

    cat <program name> |mailx –s “<lastname 1> <lastname2> Week # Date” [email protected]

    Example:

    cat w1ex1.cc |mailx –s “honganderson Week 1 011414” [email protected]

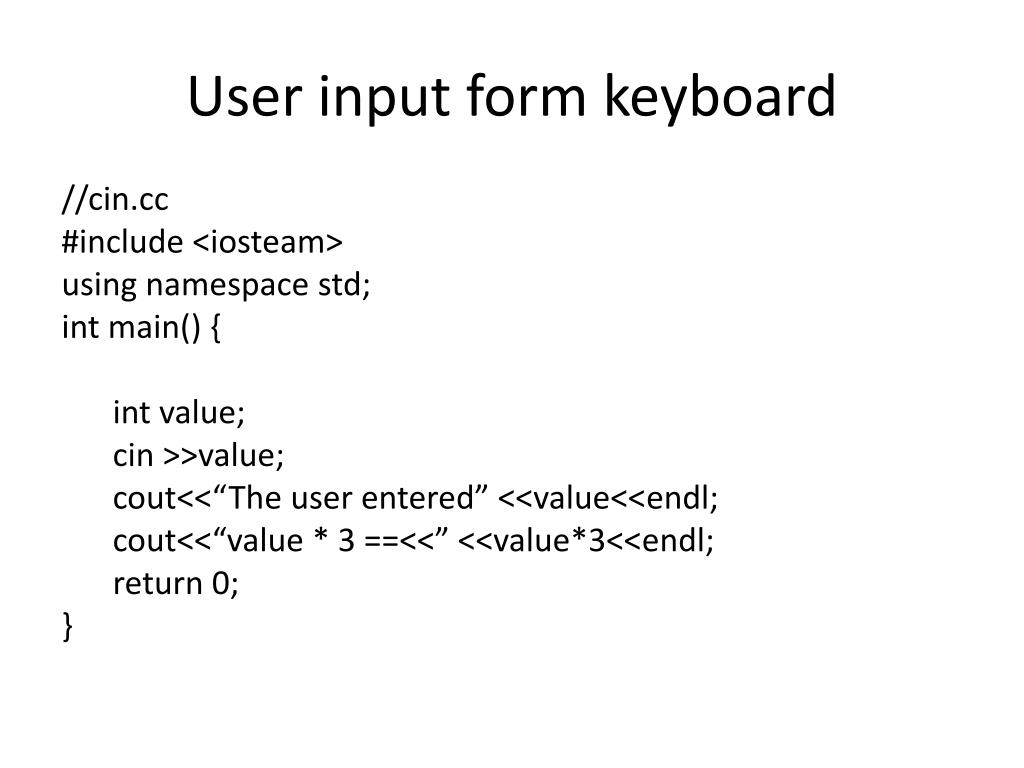

User input form keyboard

User input form keyboard

//cin.cc

#include <iosteam>

using namespace std;

int main() {

int value;

cin >>value;

cout<<“The user entered” <<value<<endl;

cout<<“value * 3 ==<<” <<value*3<<endl;

return 0;

}


1st assignment 5 min work in pairs only pairs

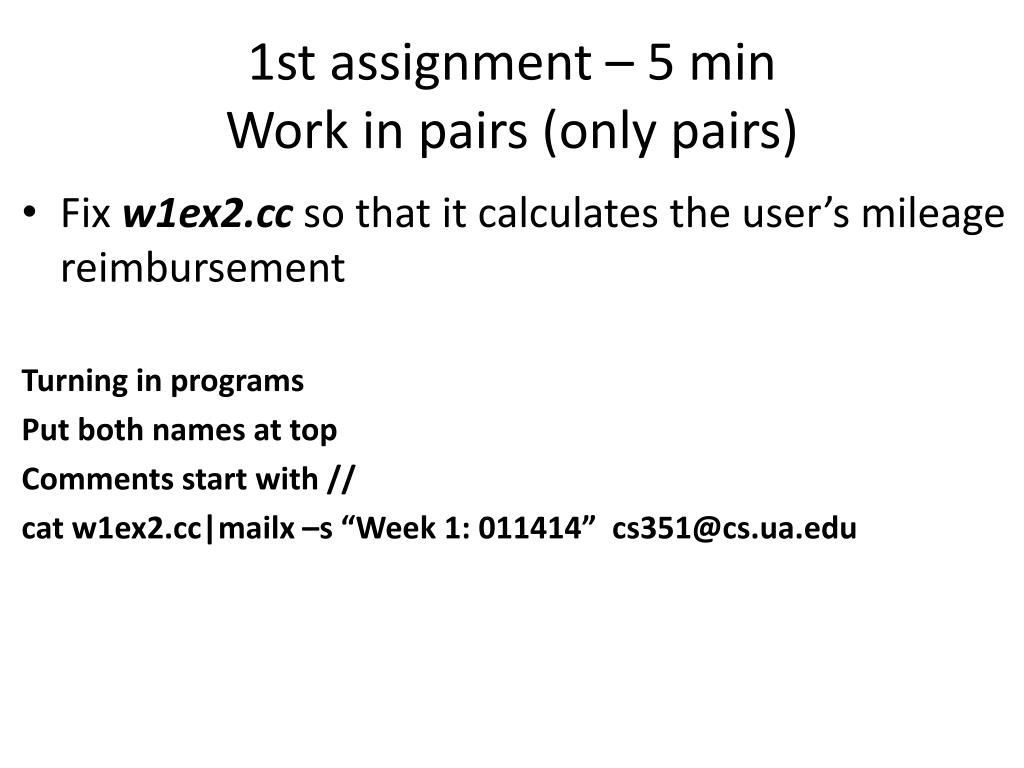

1st assignment – 5 minWork in pairs (only pairs)

  • Fix w1ex2.cc so that it calculates the user’s mileage reimbursement

    Turning in programs

    Put both names at top

    Comments start with //

    cat w1ex2.cc|mailx –s “Week 1: 011414” [email protected]


C variables

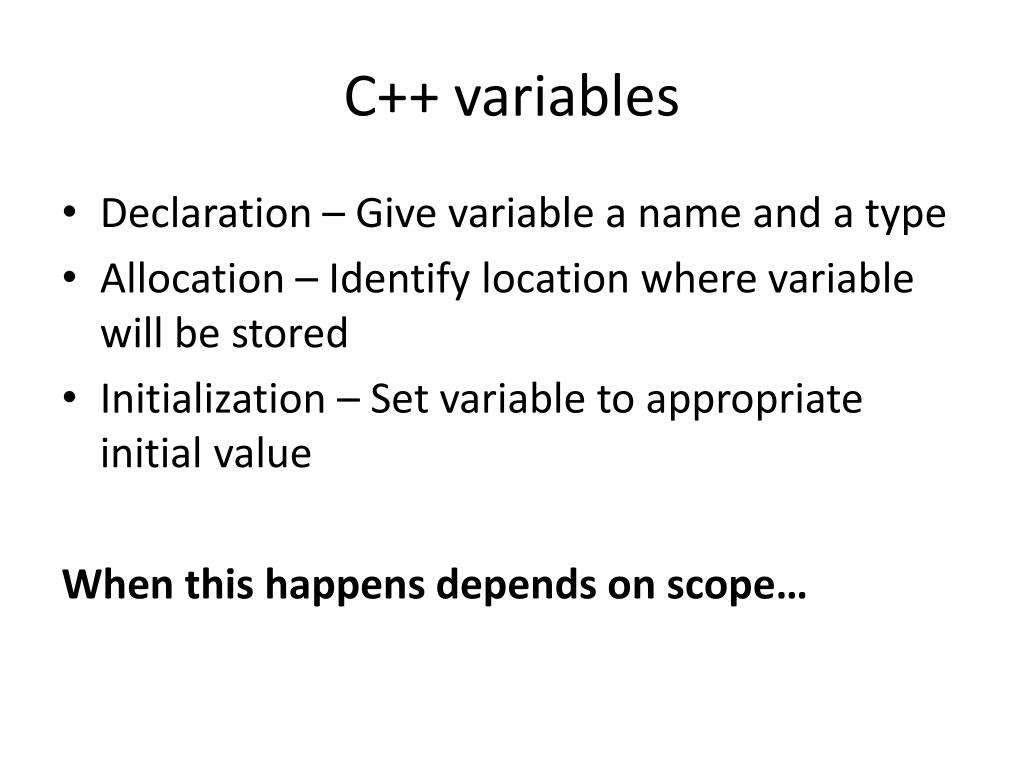

C++ variables

  • Declaration – Give variable a name and a type

  • Allocation – Identify location where variable will be stored

  • Initialization – Set variable to appropriate initial value

    When this happens depends on scope…


Variable scope

Variable scope

  • A scope is a region of the program and broadly speaking there are three places, where variables can be declared:

    • Inside a function or a block which is called local variables,

    • In the definition of function parameters which is called formal parameters.

    • Outside of all functions which is called global variables.


C native type rules

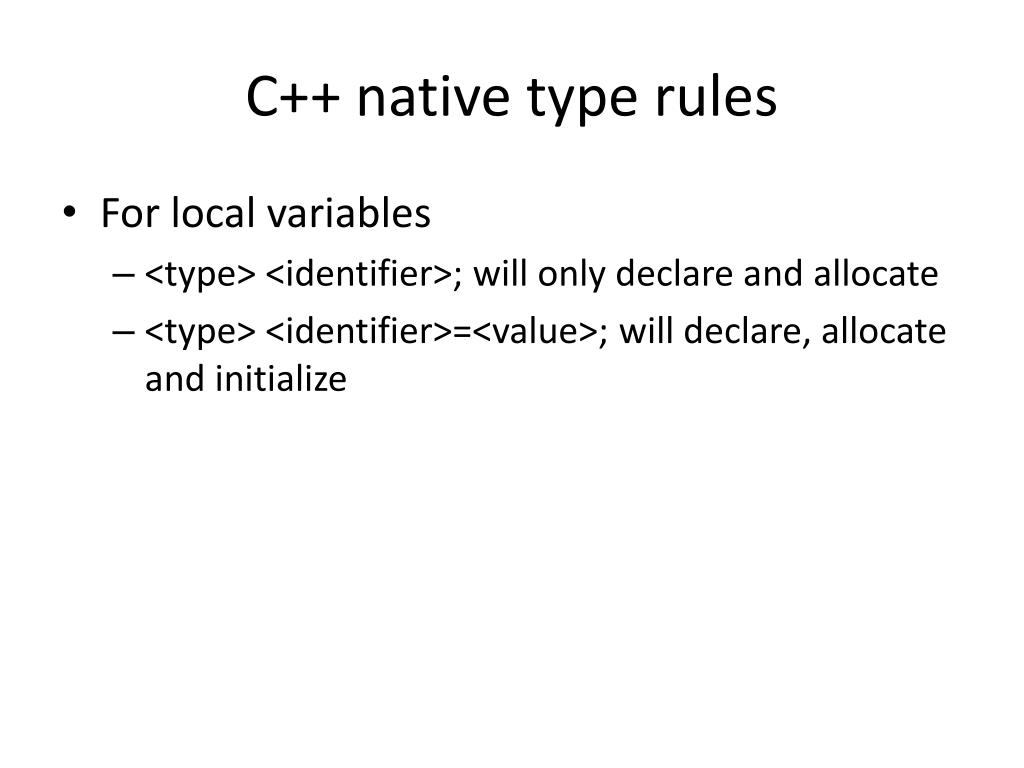

C++ native type rules

  • For local variables

    • <type> <identifier>; will only declare and allocate

    • <type> <identifier>=<value>; will declare, allocate and initialize


Local variable declaration

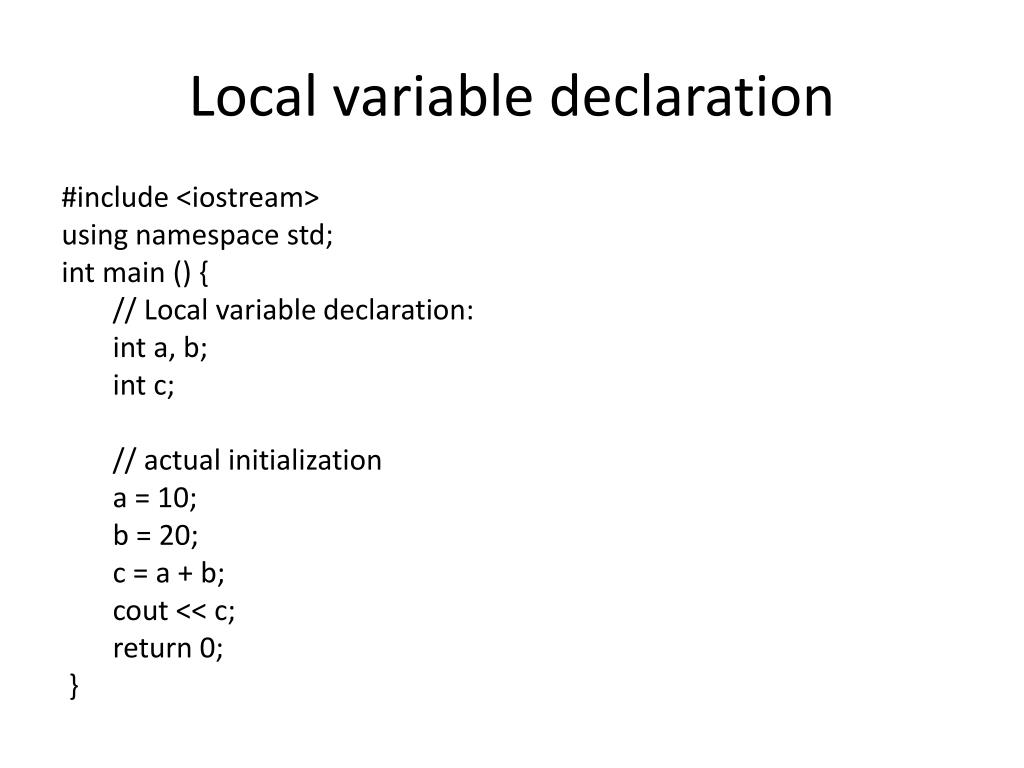

Local variable declaration

#include <iostream>

using namespace std;

int main () {

// Local variable declaration:

int a, b;

int c;

// actual initialization

a = 10;

b = 20;

c = a + b;

cout << c;

return 0;

}


C native type rules1

C++ native type rules

  • For global declarations

    • <type> <identifier>; will declare, allocate and initialize

    • <type> <identifier>=<value>; will declare, allocate and initialize


Mixed declaration

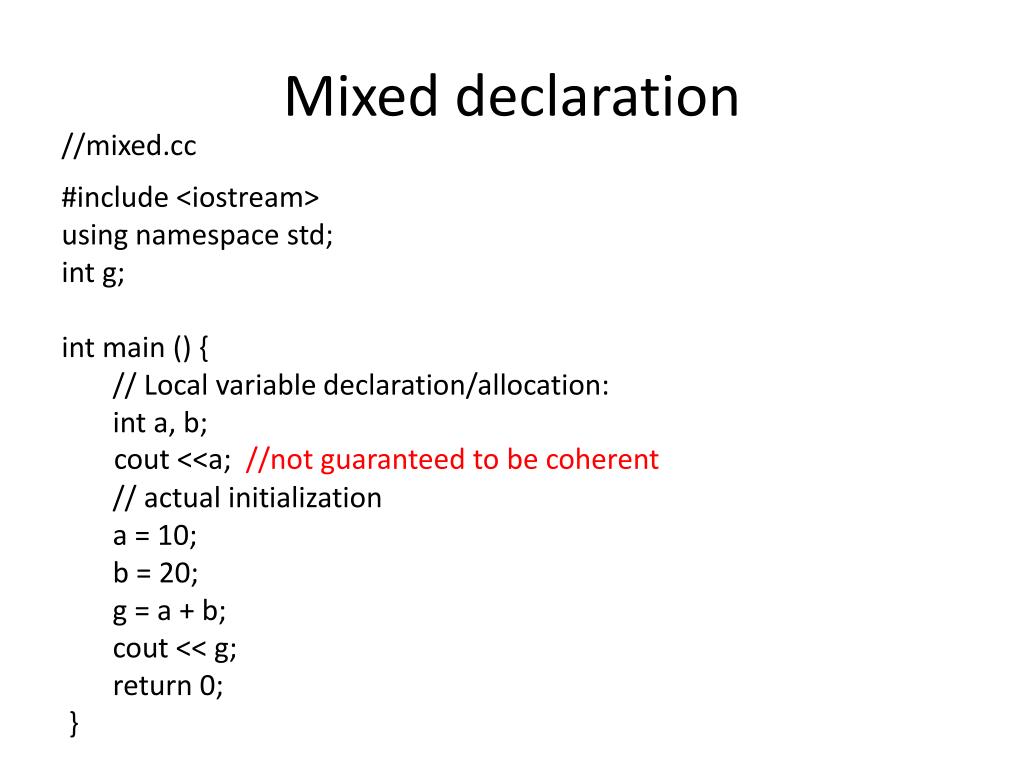

Mixed declaration

//mixed.cc

#include <iostream>

using namespace std;

int g;

int main () {

// Local variable declaration/allocation:

int a, b;

// actual initialization

a = 10;

b = 20;

g = a + b;

cout << g;

return 0;

}

cout <<a; //not guaranteed to be coherent


Same variable in two scopes

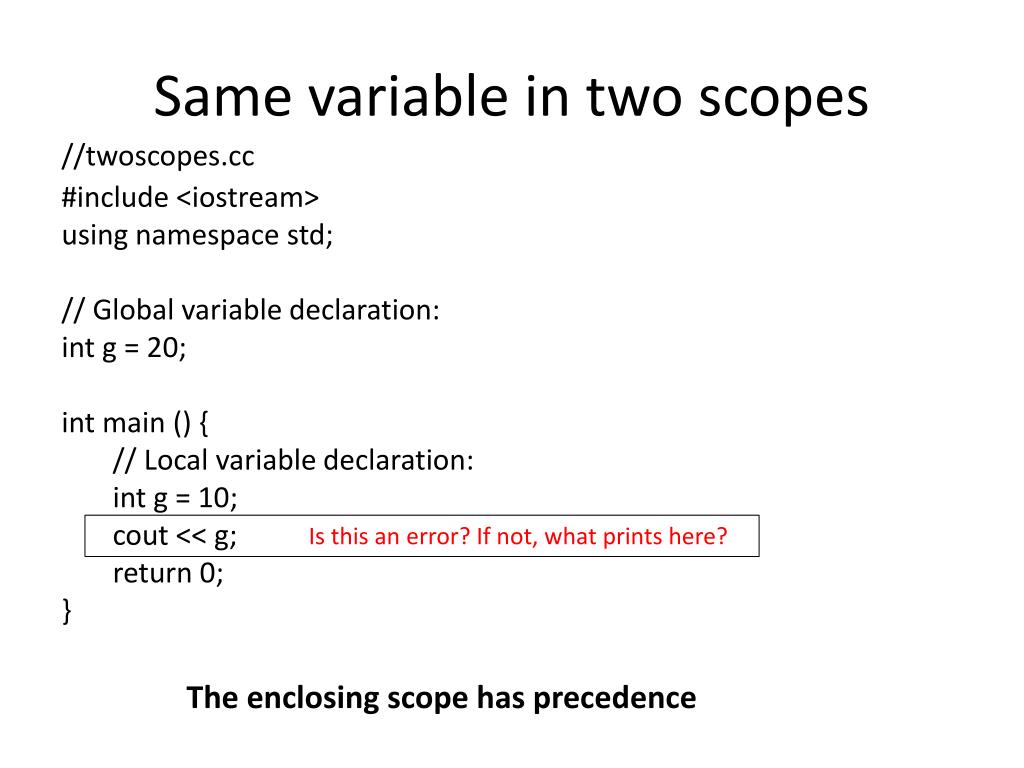

Same variable in two scopes

//twoscopes.cc

#include <iostream>

using namespace std;

// Global variable declaration:

int g = 20;

int main () {

// Local variable declaration:

int g = 10;

cout << g;

return 0;

}

Is this an error? If not, what prints here?

The enclosing scope has precedence


Variable scope matters

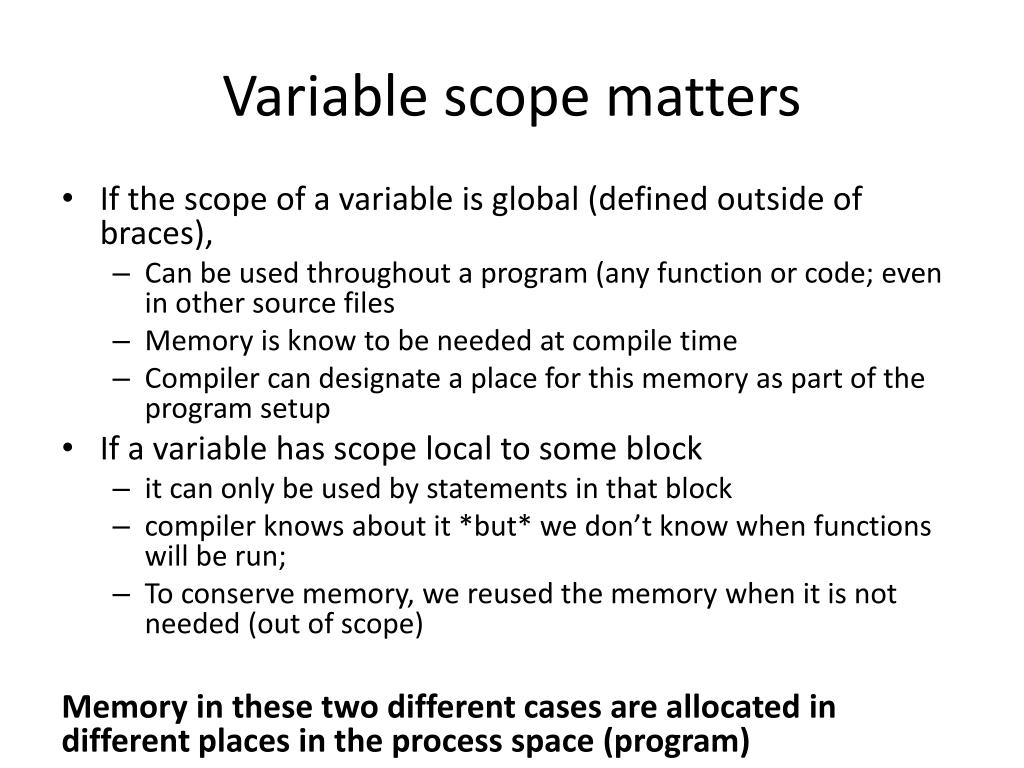

Variable scope matters

  • If the scope of a variable is global (defined outside of braces),

    • Can be used throughout a program (any function or code; even in other source files

    • Memory is know to be needed at compile time

    • Compiler can designate a place for this memory as part of the program setup

  • If a variable has scope local to some block

    • it can only be used by statements in that block

    • compiler knows about it *but* we don’t know when functions will be run;

    • To conserve memory, we reused the memory when it is not needed (out of scope)

      Memory in these two different cases are allocated in different places in the process space (program)


C constants

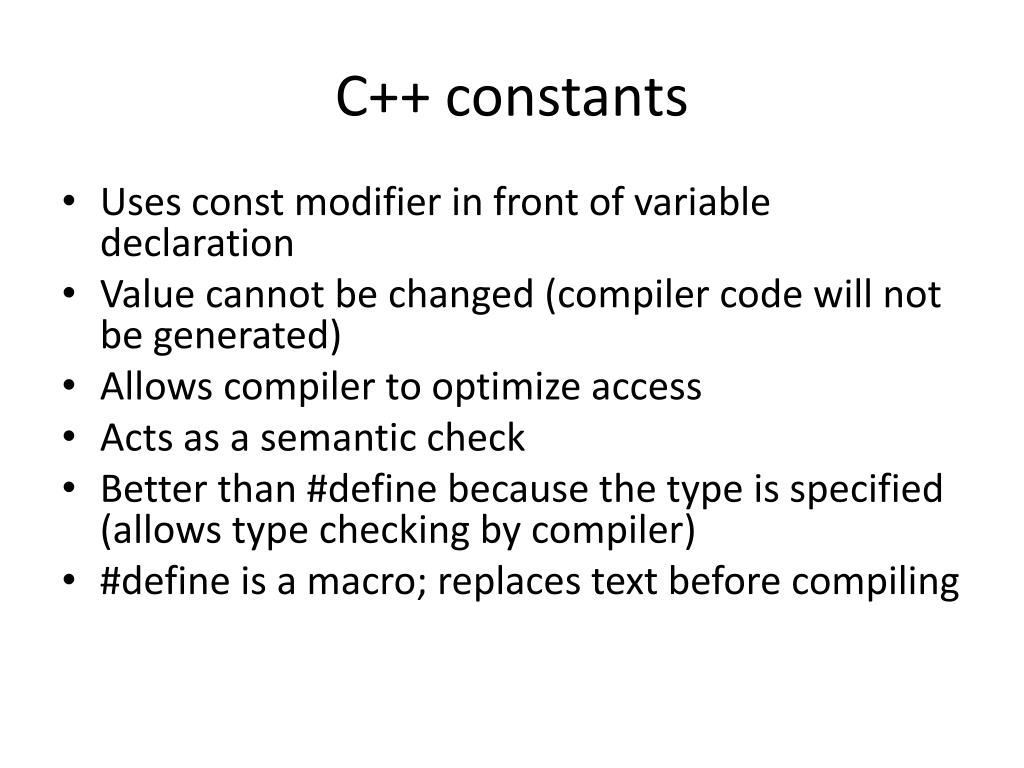

C++ constants

  • Uses const modifier in front of variable declaration

  • Value cannot be changed (compiler code will not be generated)

  • Allows compiler to optimize access

  • Acts as a semantic check

  • Better than #define because the type is specified (allows type checking by compiler)

  • #define is a macro; replaces text before compiling


Constants

Constants

//const.cc

#include <iostream>

using namespace std;

// Global variable declaration:

constintmonthsInYear = 12;

int main () {

cout<<monthsInYear<<endl;

int age;

cin>>age; //what happens if you put in a floating poitn number?

cout<<“Entered age “<<age<<endl;

monthsInYear=0; //error line

inttotalMonths = monthsInYear*age;

count<<totalMonths<<endl;

return 0;

}


C reference types

C++ reference types

  • Strings, objects, arrays, and structures are not native types but are reference types

  • Composed of primitive types

  • Different rules for declaration, allocation and initialization

  • For all types, if you initialize, you automatically allocate


2 nd assignment

2nd Assignment

  • Fix w1ex3.cc so that it:

    • prints prompts for user input

    • prints out the number of weeks in the current month

    • Calculates the current weekly salary based on monthly salary input and weeks in the current month

  • Write a program that takes an angle in degrees from the user and converts it to radians. Use a constant for π

  • Consult instructions for submission

  • Quiz online on this material posted Monday; complete before class on Tuesday
