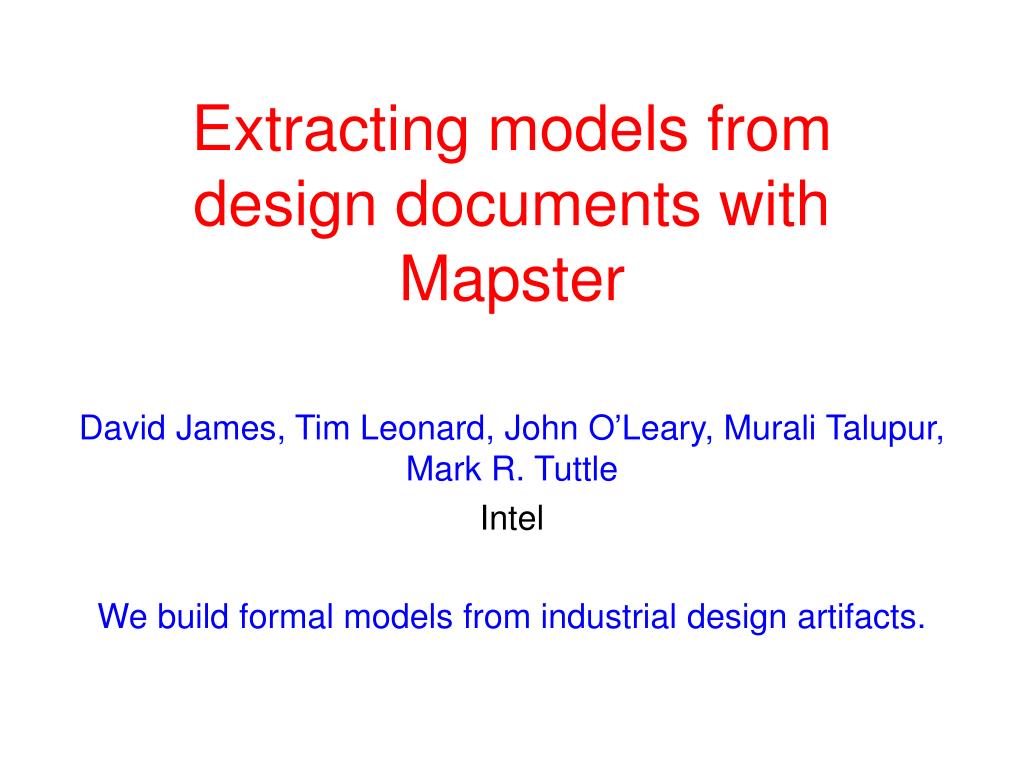

  1. Extracting models from design documents with Mapster David James, Tim Leonard, John O’Leary, Murali Talupur, Mark R. Tuttle Intel We build formal models from industrial design artifacts.

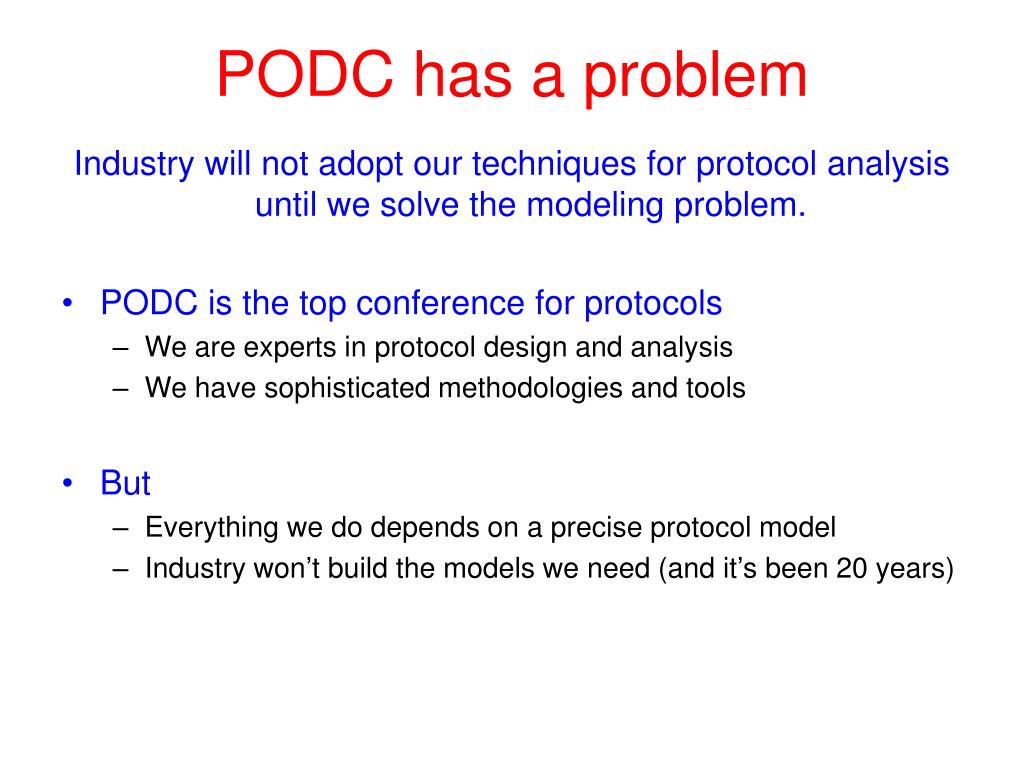

  2. PODC has a problem Industry will not adopt our techniques for protocol analysis until we solve the modeling problem. • PODC is the top conference for protocols • We are experts in protocol design and analysis • We have sophisticated methodologies and tools • But • Everything we do depends on a precise protocol model • Industry won’t build the models we need (and it’s been 20 years)

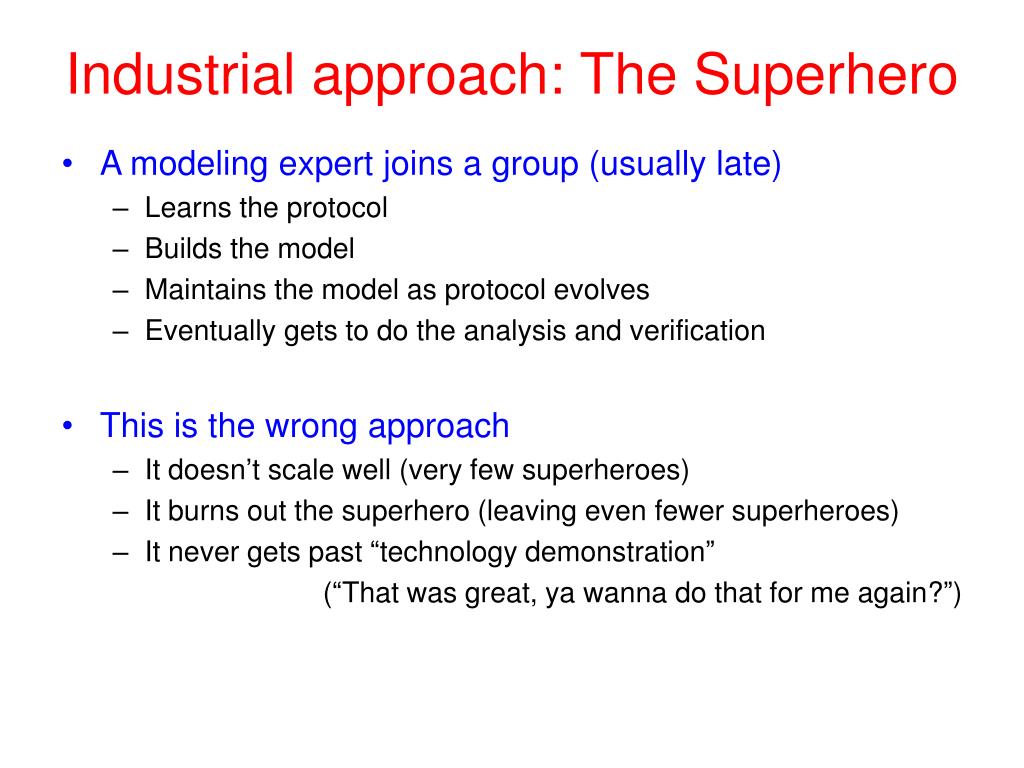

  3. Industrial approach: The Superhero • A modeling expert joins a group (usually late) • Learns the protocol • Builds the model • Maintains the model as protocol evolves • Eventually gets to do the analysis and verification • This is the wrong approach • It doesn’t scale well (very few superheroes) • It burns out the superhero (leaving even fewer superheroes) • It never gets past “technology demonstration” (“That was great, ya wanna do that for me again?”)

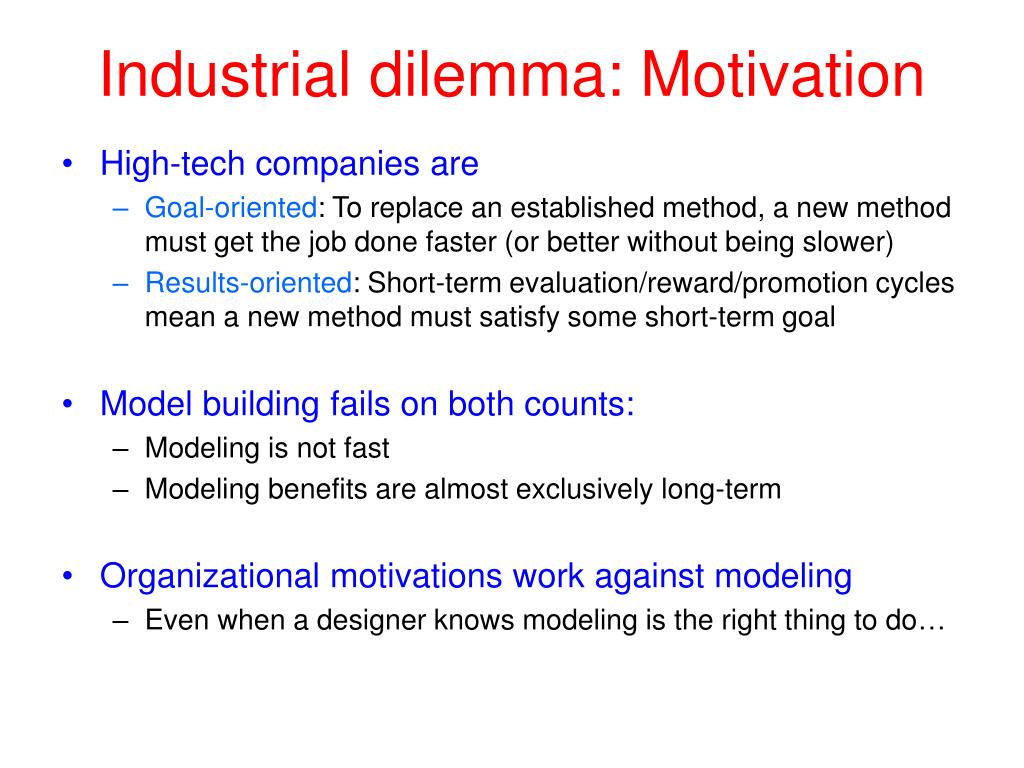

  4. Industrial dilemma: Motivation • High-tech companies are • Goal-oriented: To replace an established method, a new method must get the job done faster (or better without being slower) • Results-oriented: Short-term evaluation/reward/promotion cycles mean a new method must satisfy some short-term goal • Model building fails on both counts: • Modeling is not fast • Modeling benefits are almost exclusively long-term • Organizational motivations work against modeling • Even when a designer knows modeling is the right thing to do…

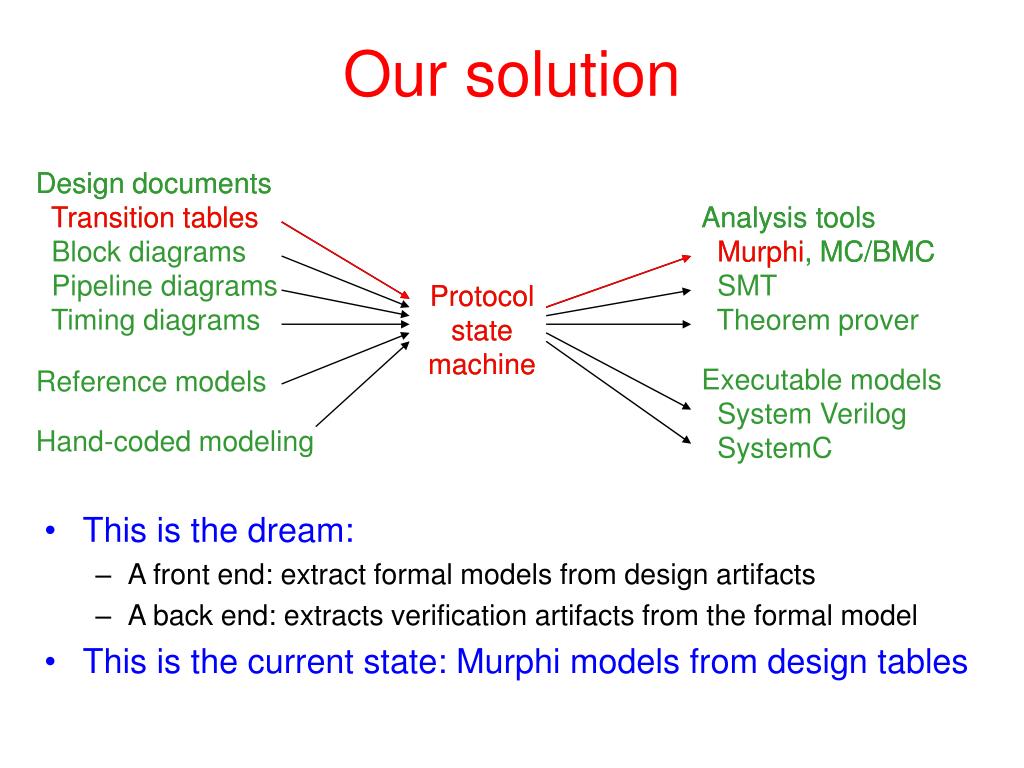

  5. Our solution • This is the dream: • A front end: extract formal models from design artifacts • A back end: extracts verification artifacts from the formal model • This is the current state: Murphi models from design tables Design documents Transition tables Block diagrams Pipeline diagrams Timing diagrams Design documents Transition tables Analysis tools Murphi, MC/BMC SMT Theorem prover Analysis toolsMurphi, MC/BMC Protocol state machine Protocol state machine Executable models System Verilog SystemC Reference models Hand-coded modeling

  6. Our solution: Mapster • Mapster is a tool that • Extracts tabular information from protocol design documents • Provides a method of assigning semantics to these tables • Produces a Murphi model for model checking the protocol • With some hand-coded modeling for nontabular aspects • Mapster is not just another tabular specification project • It’s one thing to analyze tables written for analysis • Much harder to analyze tables written by designers for designers • Let designers use the style most appropriate for a project • We impose no language or GUI on the designer for table building • We impose no philosophy on how protocols should be described • Application: Mapster used on Intel coherence protocol

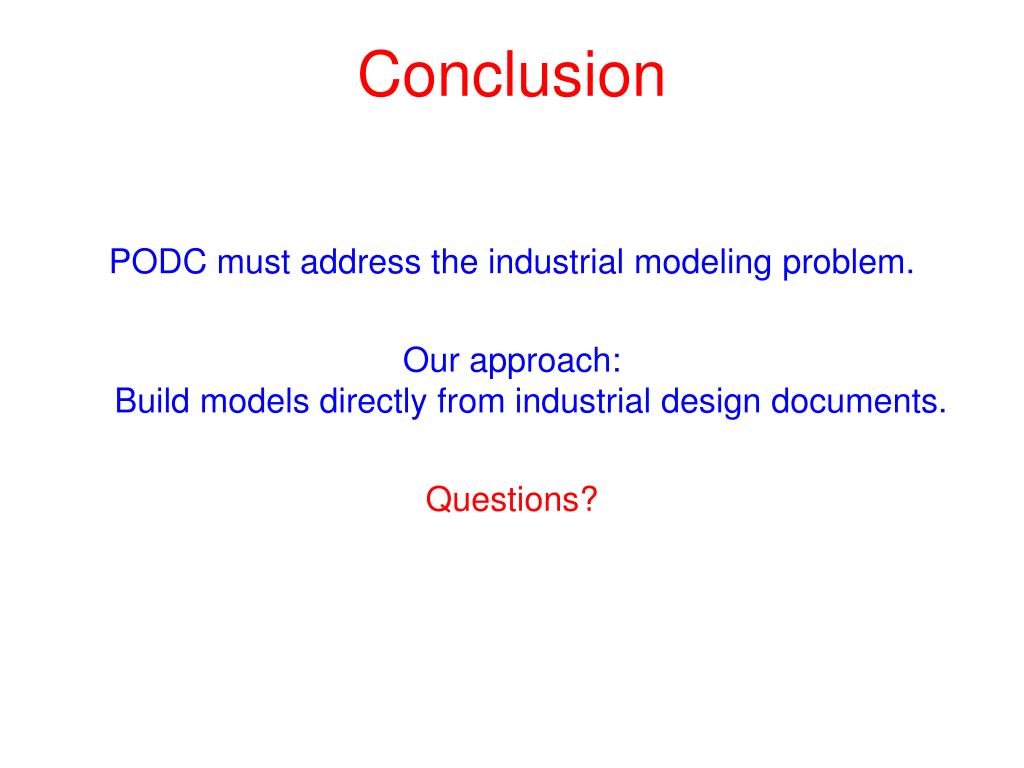

  7. Conclusion PODC must address the industrial modeling problem. Our approach: Build models directly from industrial design documents. Questions?
