1

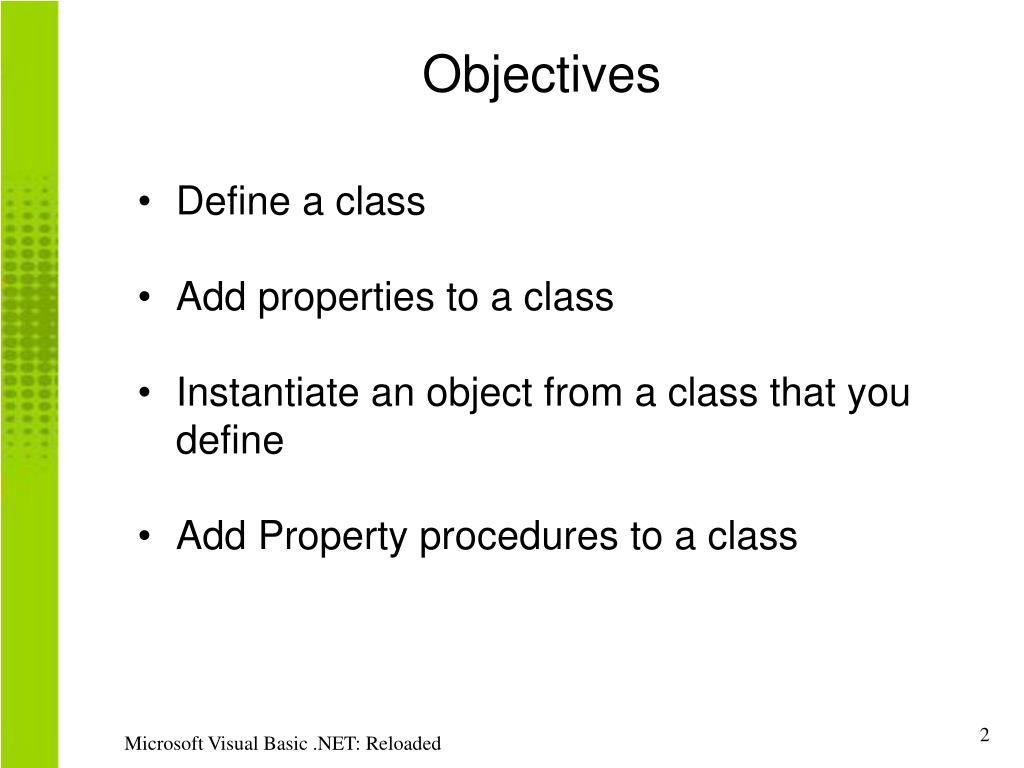

Objectives
Objectives

  • Define a class

  • Add properties to a class

  • Instantiate an object from a class that you define

  • Add Property procedures to a class

Microsoft Visual Basic .NET: Reloaded

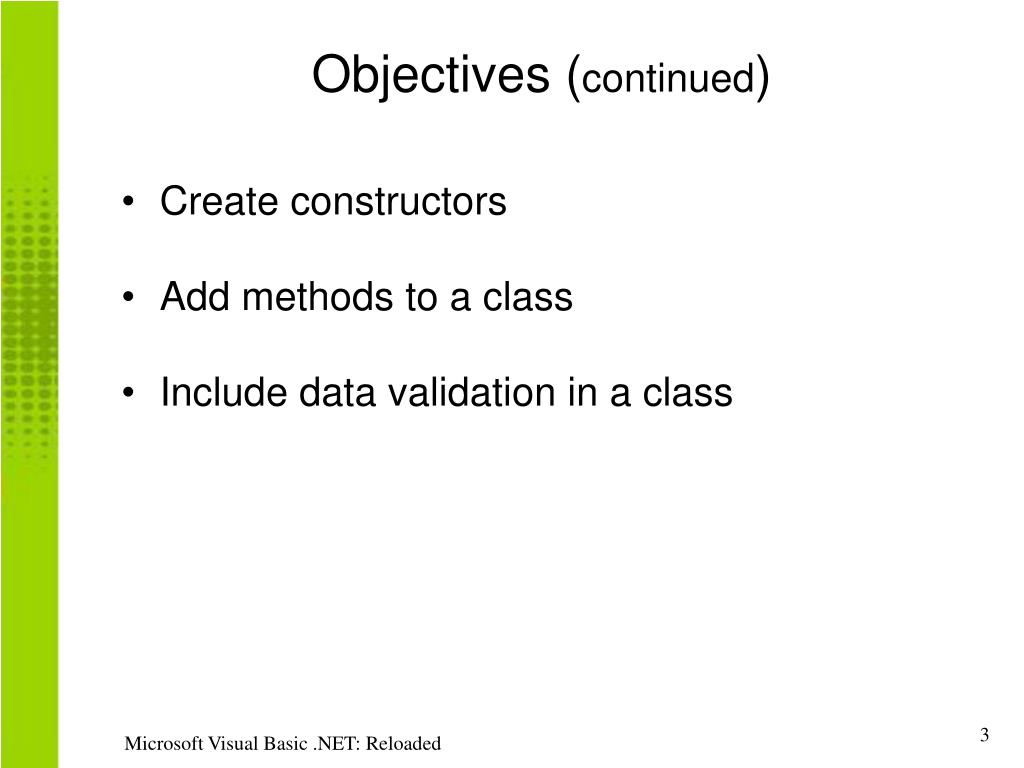

Objectives continued
Objectives (continued)

  • Create constructors

  • Add methods to a class

  • Include data validation in a class

Microsoft Visual Basic .NET: Reloaded


Classes and objects

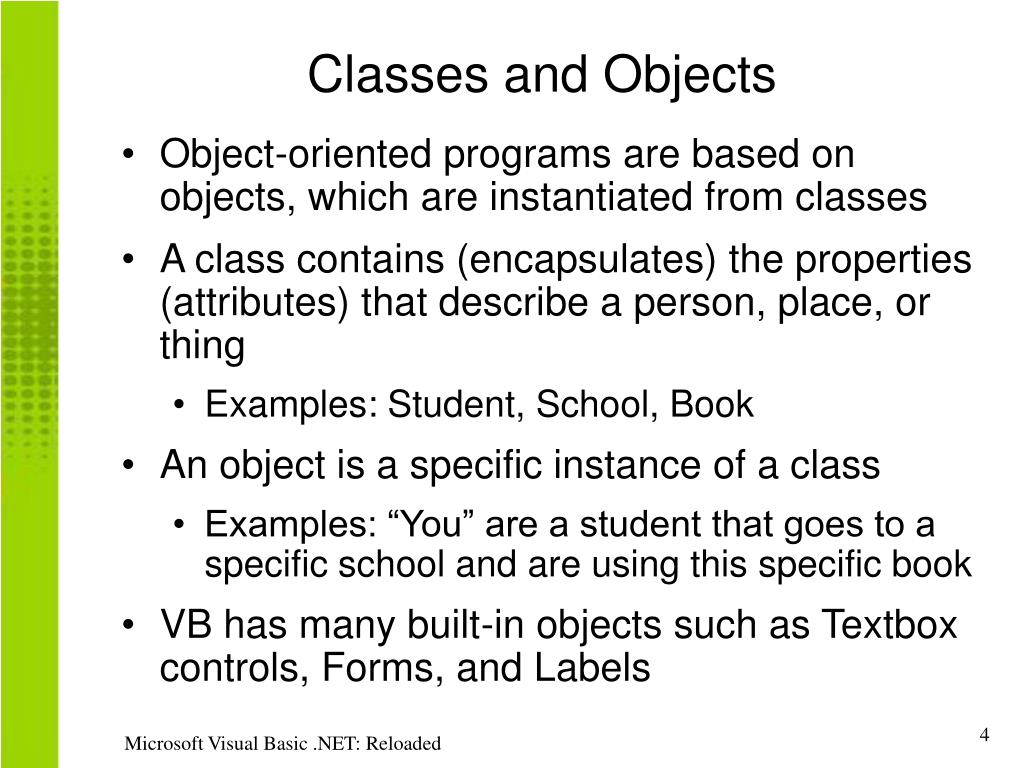

Classes and Objects

  • Object-oriented programs are based on objects, which are instantiated from classes

  • A class contains (encapsulates) the properties (attributes) that describe a person, place, or thing

    • Examples: Student, School, Book

  • An object is a specific instance of a class

    • Examples: “You” are a student that goes to a specific school and are using this specific book

  • VB has many built-in objects such as Textbox controls, Forms, and Labels

Microsoft Visual Basic .NET: Reloaded


Defining a class

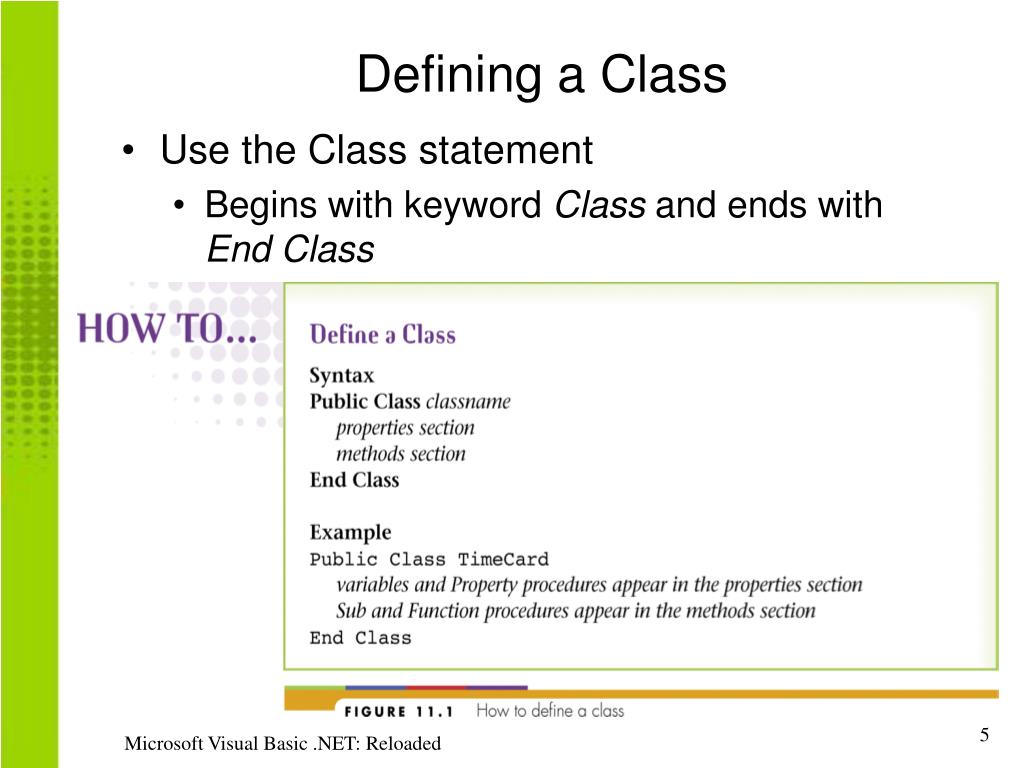

Defining a Class

  • Use the Class statement

    • Begins with keyword Class and ends with End Class

Microsoft Visual Basic .NET: Reloaded


How to
HOW TO…

Microsoft Visual Basic .NET: Reloaded

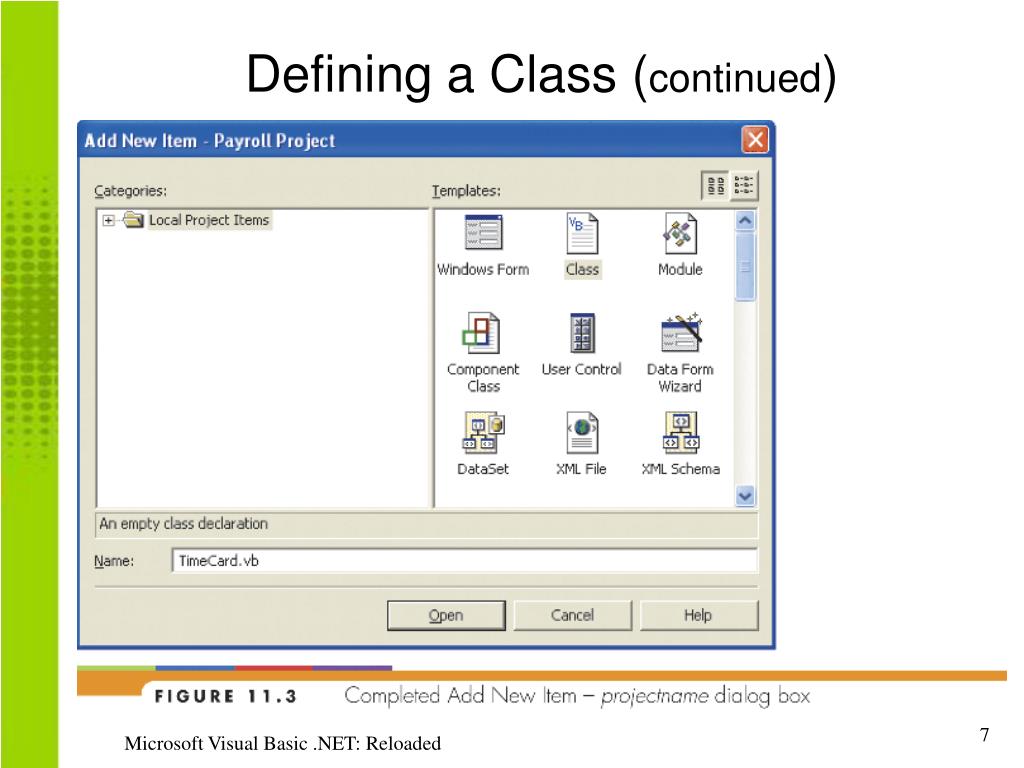

Defining a class continued
Defining a Class (continued)

Microsoft Visual Basic .NET: Reloaded


Defining a class continued1
Defining a Class (continued)

Microsoft Visual Basic .NET: Reloaded

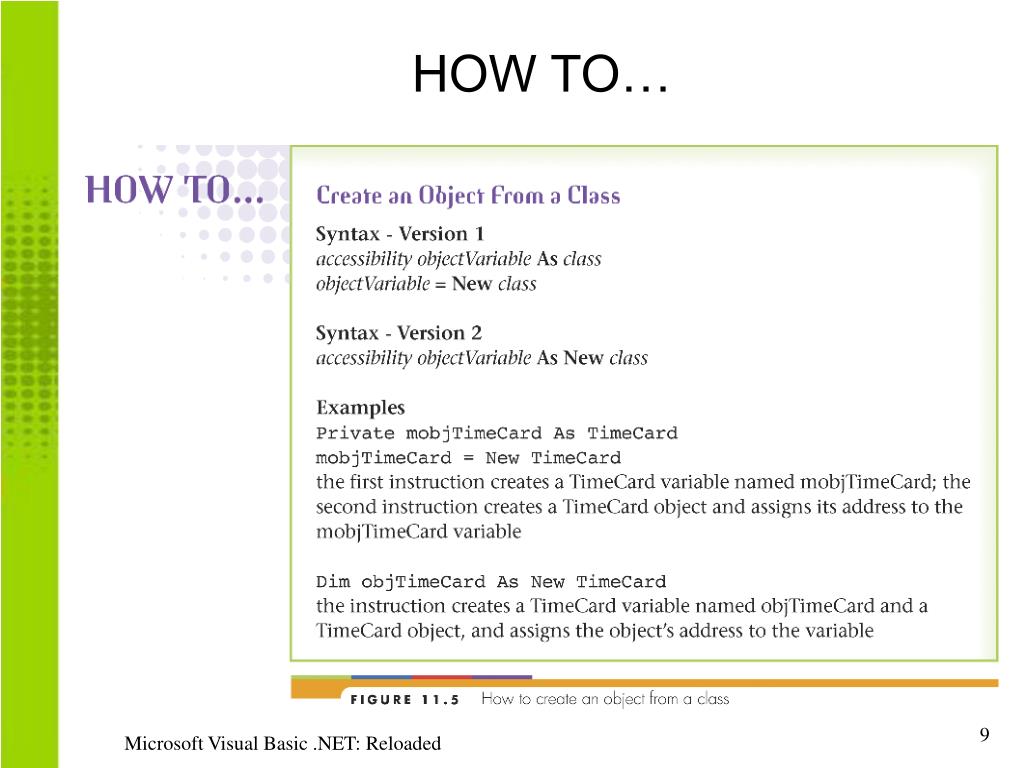

How to1
HOW TO…

Microsoft Visual Basic .NET: Reloaded


Example 1 using a class that contains properties only
Example 1 – Using a Class that Contains Properties Only

  • Assume that the sales manager at Sweets Unlimited wants an application that allows him to save each salesperson’s

    • name

    • quarterly sales amount

    • quarterly bonus amount in a sequential access file

      • The bonus amount is calculated by multiplying the sales amount by 5%

Microsoft Visual Basic .NET: Reloaded


Example 1 using a class that contains properties only continued
Example 1 – Using a Class that Contains Properties Only (continued)

  • Figure 11.6 shows a sample run of the Sweets Unlimited application

Microsoft Visual Basic .NET: Reloaded


Example 1 using a class that contains properties only continued1
Example 1 – Using a Class that Contains Properties Only(continued)

  • Figure 11.7 shows the Salesperson class defined in the Salesperson.vb file

Microsoft Visual Basic .NET: Reloaded

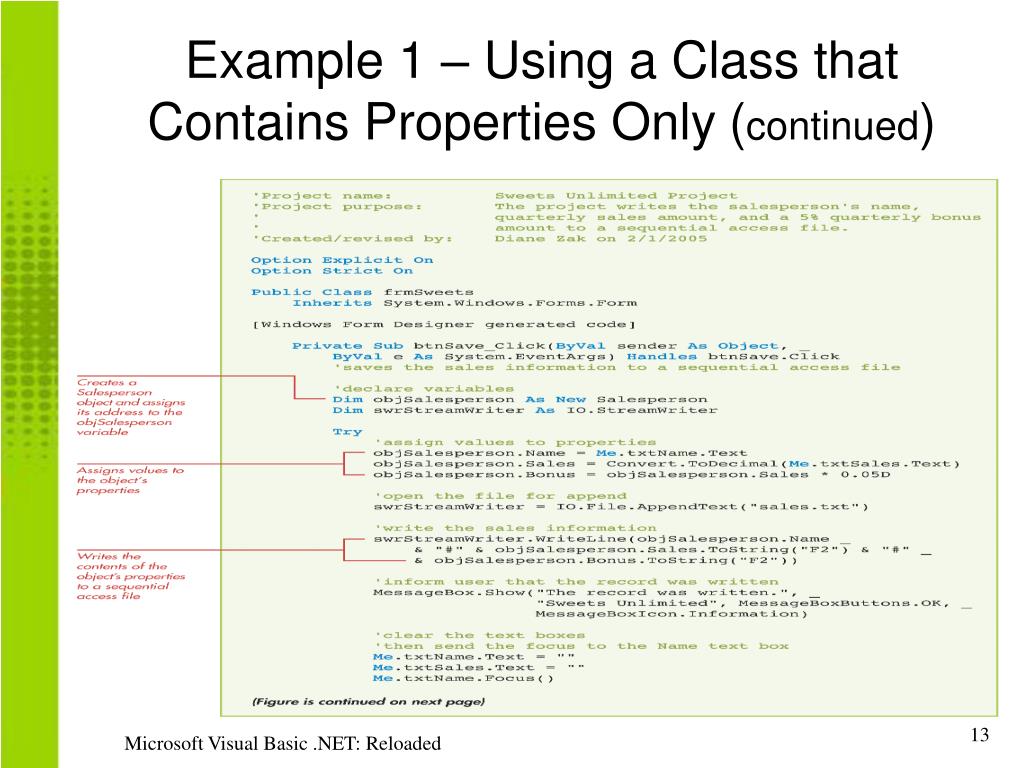

Example 1 using a class that contains properties only continued2
Example 1 – Using a Class that Contains Properties Only(continued)

Microsoft Visual Basic .NET: Reloaded


Example 1 using a class that contains properties only continued3
Example 1 – Using a Class that Contains Properties Only(continued)

Microsoft Visual Basic .NET: Reloaded


Example 2 using a class that contains properties and methods
Example 2 – Using a Class that Contains Properties and Methods

  • Create a class named Square and then use in the Area application

    • Square class creates an object that can calculate and return the area of a square, using side measurement provided by application

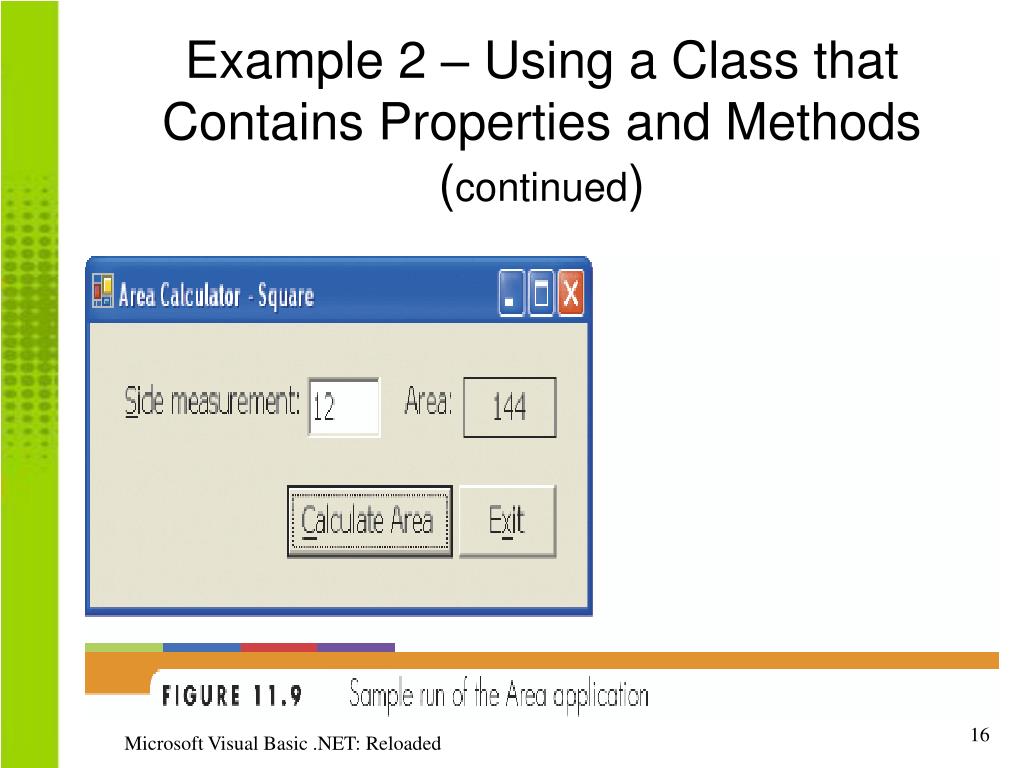

    • Figure 11.9 shows a sample run of the Area application

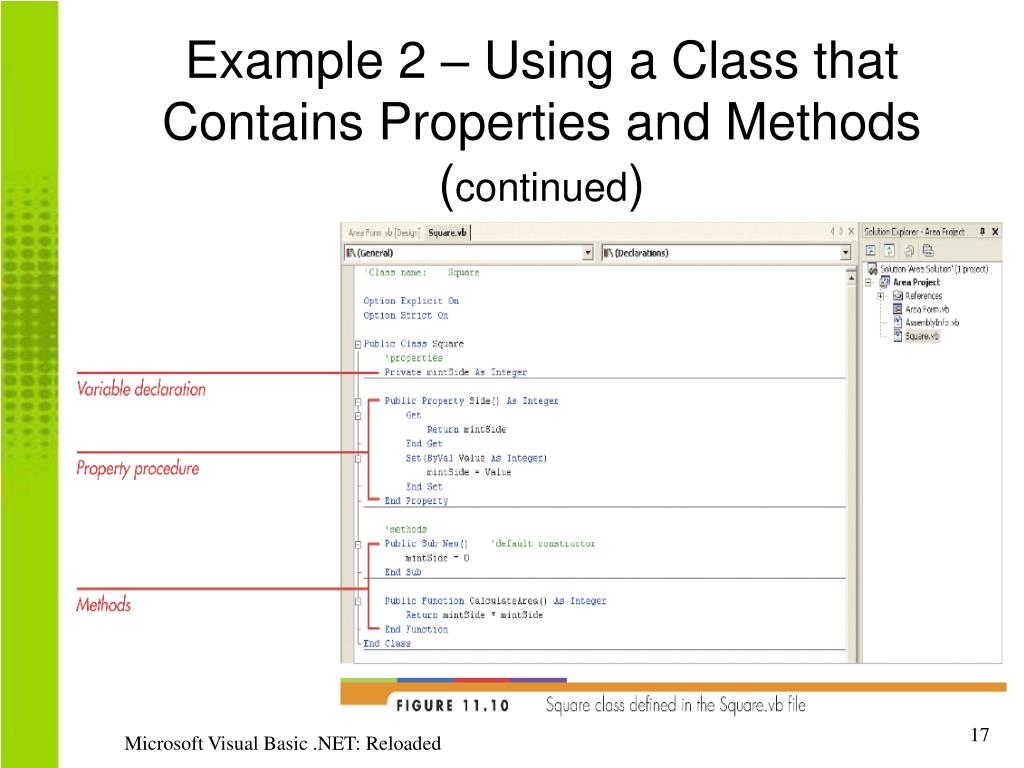

    • Figure 11.10 shows the Square class defined in the Square.vb file

Microsoft Visual Basic .NET: Reloaded


Example 2 using a class that contains properties and methods continued
Example 2 – Using a Class that Contains Properties and Methods(continued)

Microsoft Visual Basic .NET: Reloaded


Example 2 using a class that contains properties and methods continued1
Example 2 – Using a Class that MethodsContains Properties and Methods (continued)

Microsoft Visual Basic .NET: Reloaded


Example 2 using a class that contains properties and methods continued2
Example 2 – Using a Class that Contains Properties and Methods (continued)

  • Creating a Public Property

    • Declare a class-level private variable to hold the value to be stored by the property

    • Data type of property and private variable must match each other

    • Heading begins with keywords Public Property

Microsoft Visual Basic .NET: Reloaded

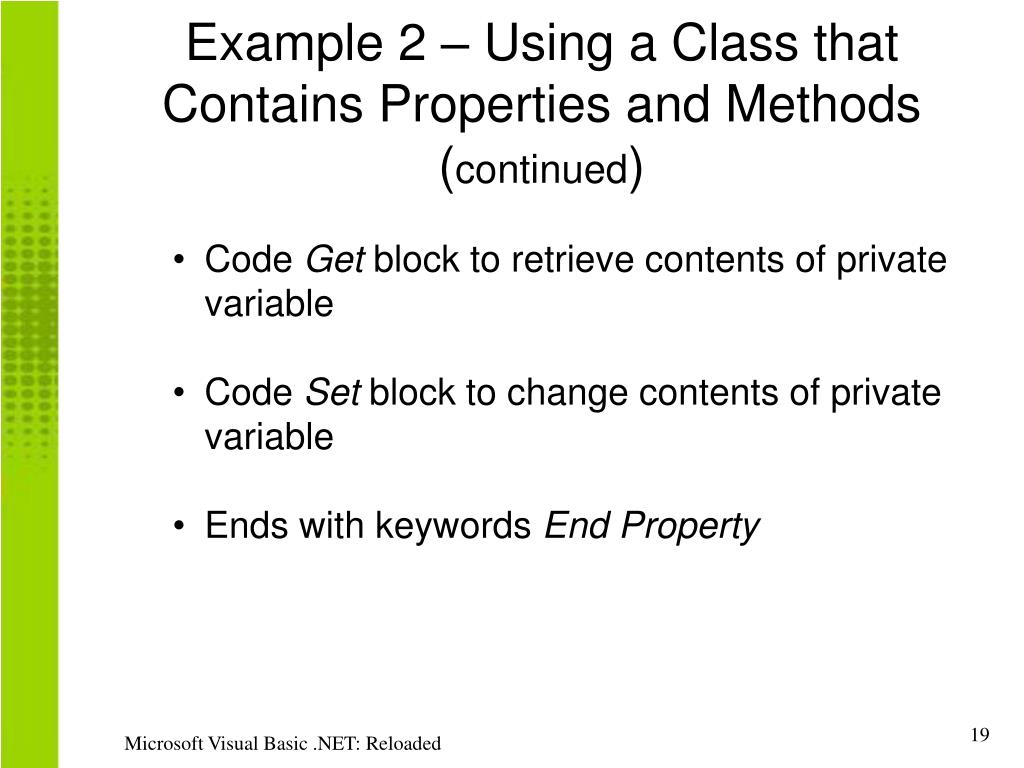

Example 2 using a class that contains properties and methods continued3
Example 2 – Using a Class that Contains Properties and Methods (continued)

  • Code Get block to retrieve contents of private variable

  • Code Set block to change contents of private variable

  • Ends with keywords End Property

Microsoft Visual Basic .NET: Reloaded


How to2
HOW TO… Methods (

Microsoft Visual Basic .NET: Reloaded


Constructors
Constructors Methods (

  • Constructor method whose instructions the computer processes, automatically, each time an object is created (instantiated) from the class

  • Constructor begins with Public Sub New followed by a set of optional parameters

    • Parameter list may be empty - New()

      • No parameters is called “default constructor”

  • Every class should have at least one constructor and may have several

Microsoft Visual Basic .NET: Reloaded


How to3

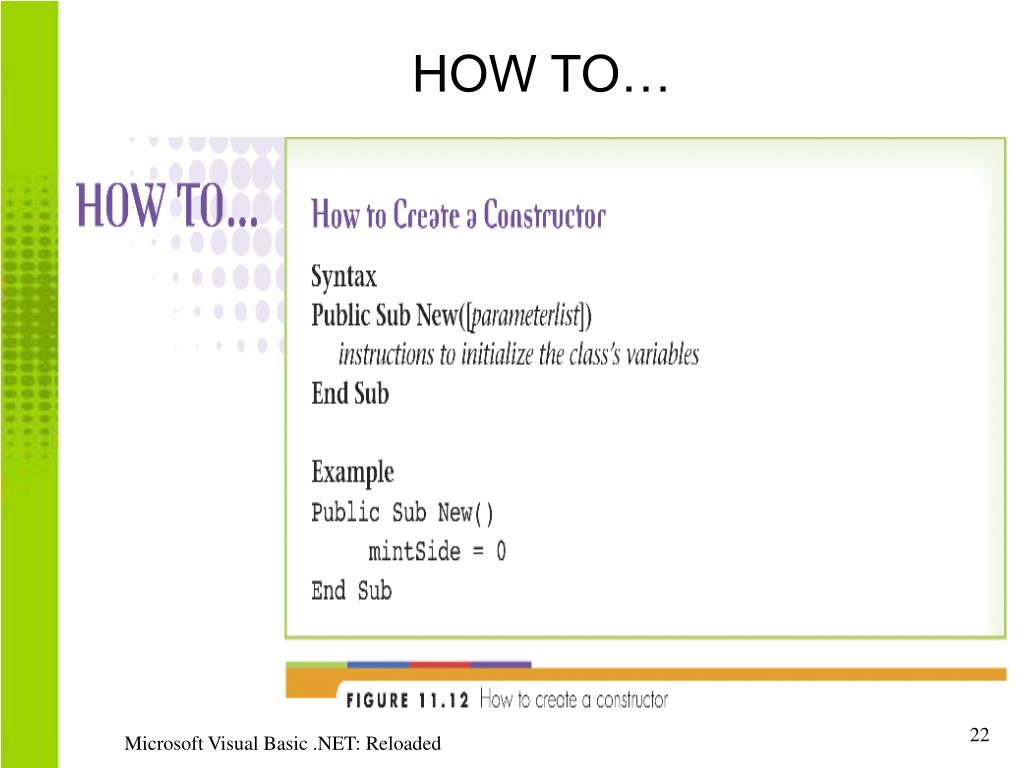

HOW TO… Methods (

Microsoft Visual Basic .NET: Reloaded


Methods other than constructors
Methods Other Than Constructors Methods (

  • Sub methods do not return a value

  • Function methods return a value to the calling procedure

Microsoft Visual Basic .NET: Reloaded


Methods other than constructors continued
Methods Other Than Constructors Methods ((continued)

Microsoft Visual Basic .NET: Reloaded


Example 3 using a class that contains two constructors and data validation
Example 3 – Using a Class that contains two Constructors and Data Validation

  • Create a class named MyDate and then use in the Personnel application

    • MyDate class creates an object that returns a month number, followed by a slash, and a day number

      • Figure 11.15 shows a sample run of the Personnel application

      • Figure 11.16 shows the MyDate class defined in the MyDate.vb file

Microsoft Visual Basic .NET: Reloaded


Example 3 using a class that contains two constructors and data validation continued
Example 3 – Using a Class that contains two Constructors and Data Validation (continued)

Microsoft Visual Basic .NET: Reloaded

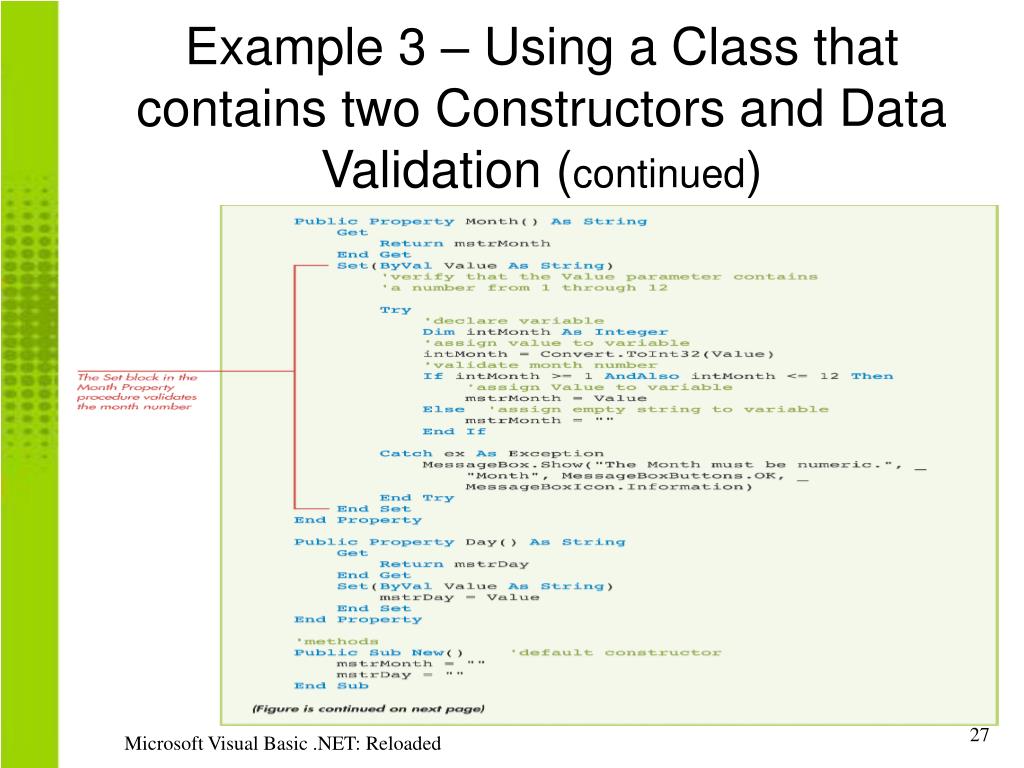

Example 3 using a class that contains two constructors and data validation continued1
Example 3 – Using a Class that contains two Constructors and Data Validation (continued)

Microsoft Visual Basic .NET: Reloaded


Example 3 using a class that contains two constructors and data validation continued2

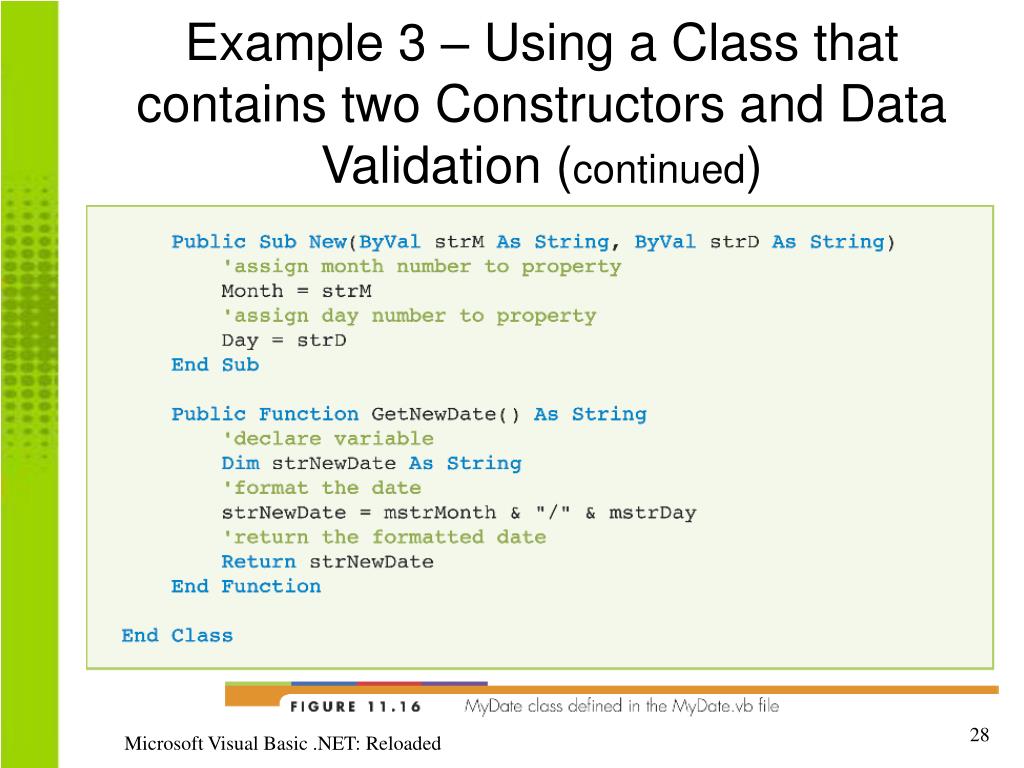

Example 3 – Using a Class that contains two Constructors and Data Validation (continued)

Microsoft Visual Basic .NET: Reloaded


Example 3 using a class that contains two constructors and data validation continued3

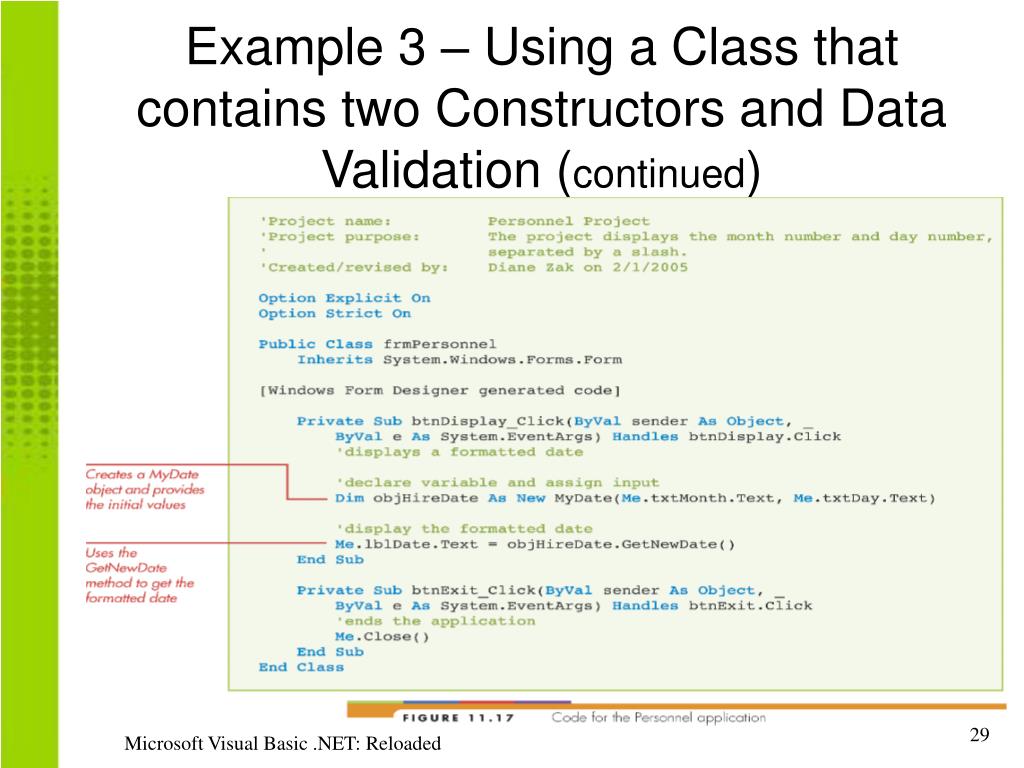

Example 3 – Using a Class that contains two Constructors and Data Validation (continued)

Microsoft Visual Basic .NET: Reloaded

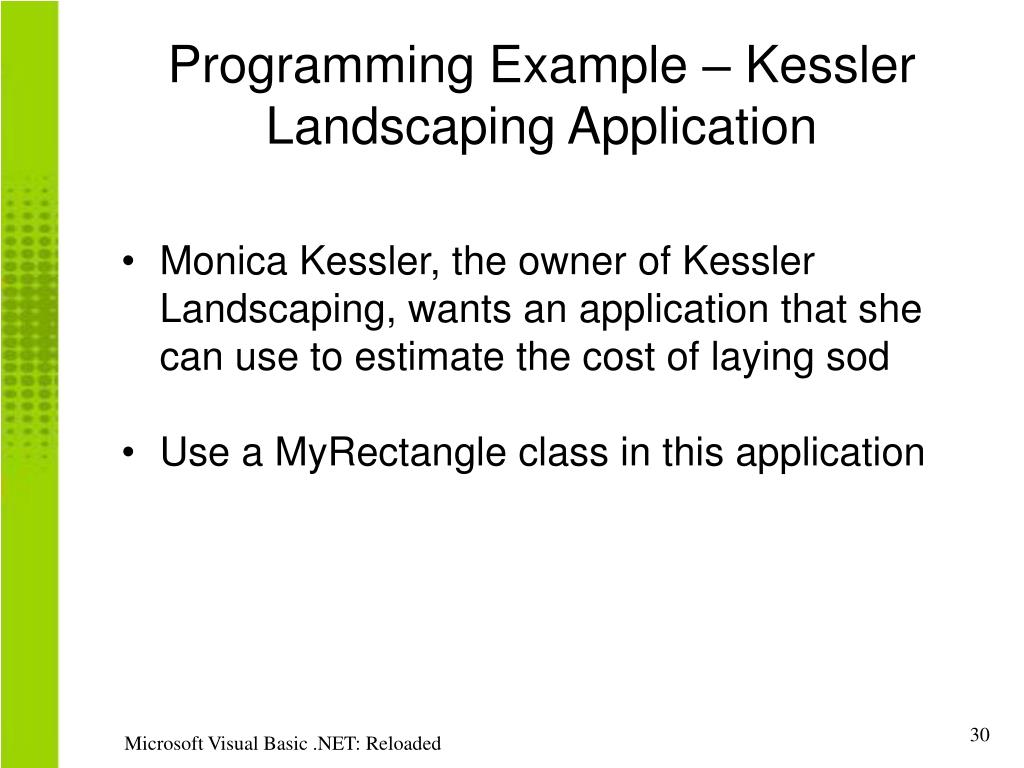

Programming example kessler landscaping application
Programming Example – Kessler Landscaping Application and Data Validation (

  • Monica Kessler, the owner of Kessler Landscaping, wants an application that she can use to estimate the cost of laying sod

  • Use a MyRectangle class in this application

Microsoft Visual Basic .NET: Reloaded


Toe chart
TOE Chart and Data Validation (

Microsoft Visual Basic .NET: Reloaded

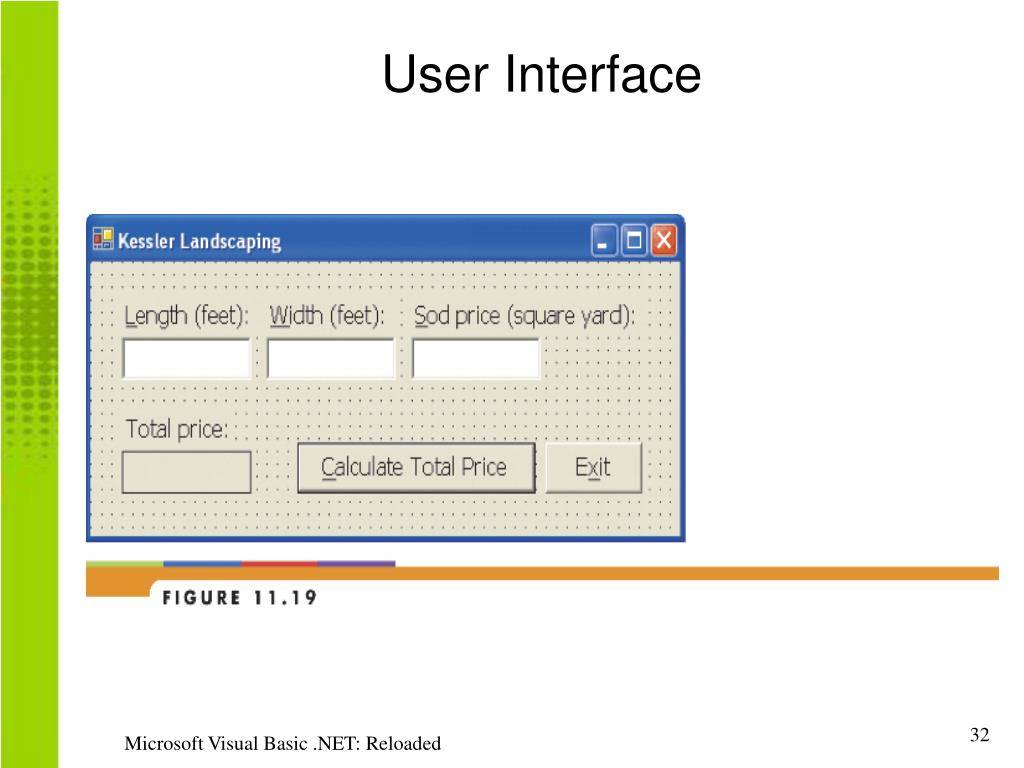

User interface
User Interface and Data Validation (

Microsoft Visual Basic .NET: Reloaded


Objects properties and settings
Objects, Properties, and Settings and Data Validation (

Microsoft Visual Basic .NET: Reloaded


Tab order
Tab Order and Data Validation (

Microsoft Visual Basic .NET: Reloaded


Pseudocode
Pseudocode and Data Validation (

btnExit Click event procedure

1. close application

btnCalc Click event procedure

1. declare a MyRectangle object

2. assign the length and width to the MyRectangle object’s properties

3. assign the sod price to a variable

4. calculate the area of the rectangle

5. calculate the total price of the sod

6. display the total price of the sod in lblTotalPrice

txtLength, txtWidth, and txtPrice TextChanged event procedures

1. clear the contents of the lblTotalPrice control

Microsoft Visual Basic .NET: Reloaded

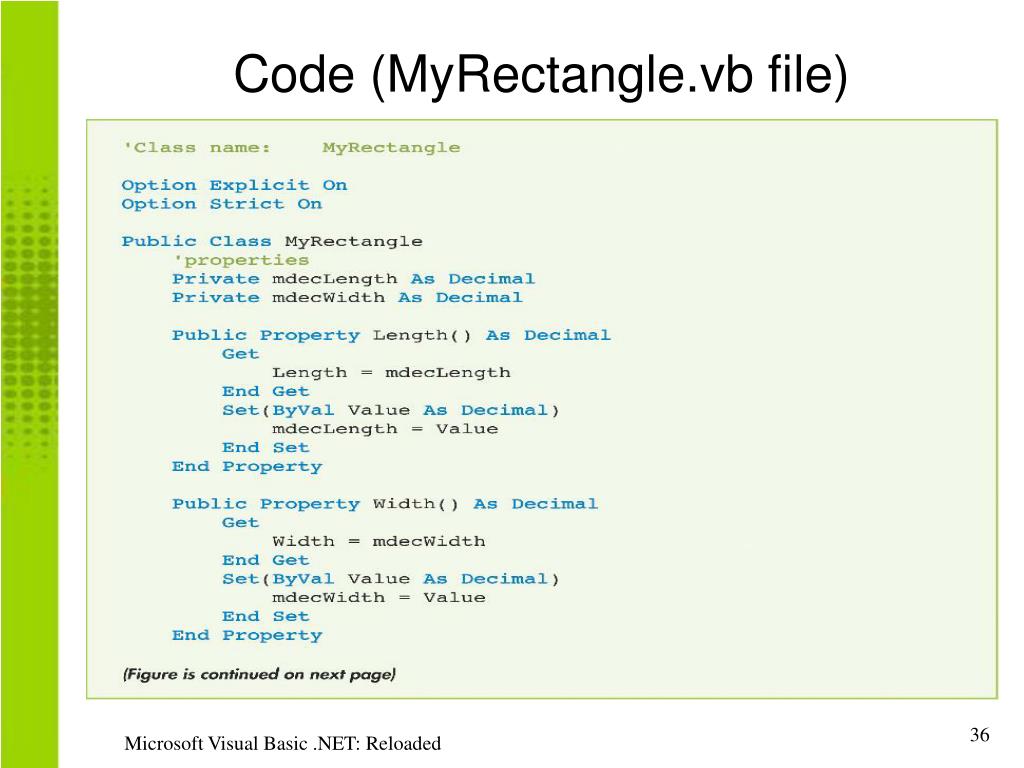

Code myrectangle vb file
Code (MyRectangle.vb file) and Data Validation (

Microsoft Visual Basic .NET: Reloaded


Code myrectangle vb file continued
Code (MyRectangle.vb file) and Data Validation ((continued)

Microsoft Visual Basic .NET: Reloaded

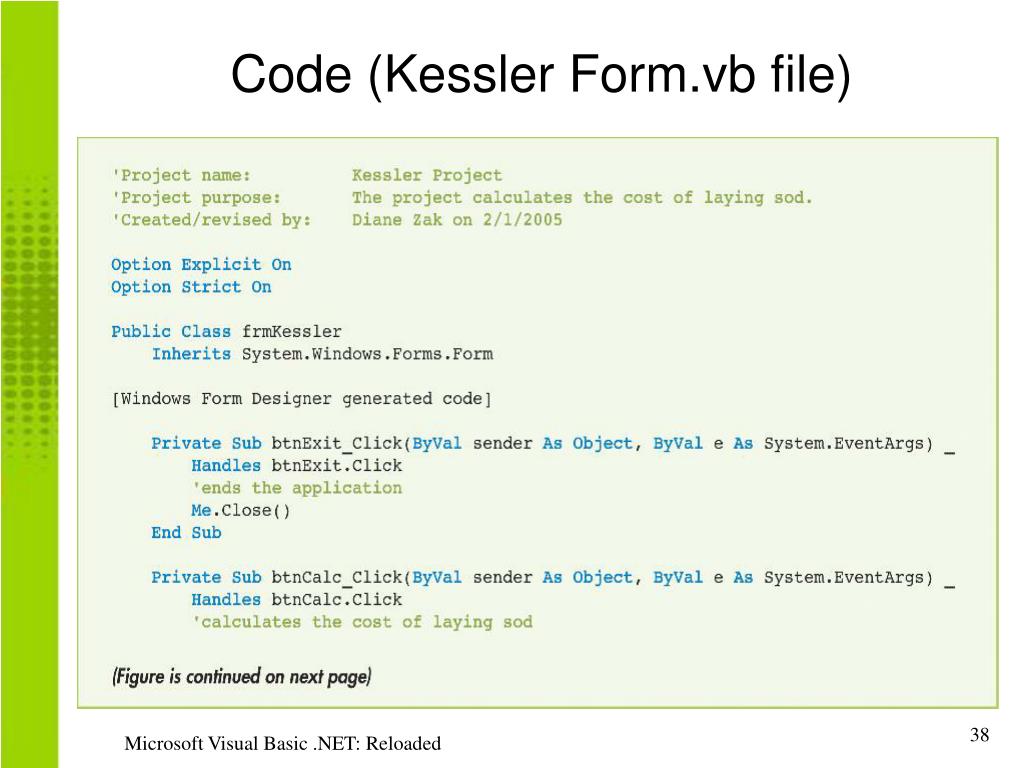

Code kessler form vb file
Code (Kessler Form.vb file) and Data Validation (

Microsoft Visual Basic .NET: Reloaded


Code kessler form vb file continued

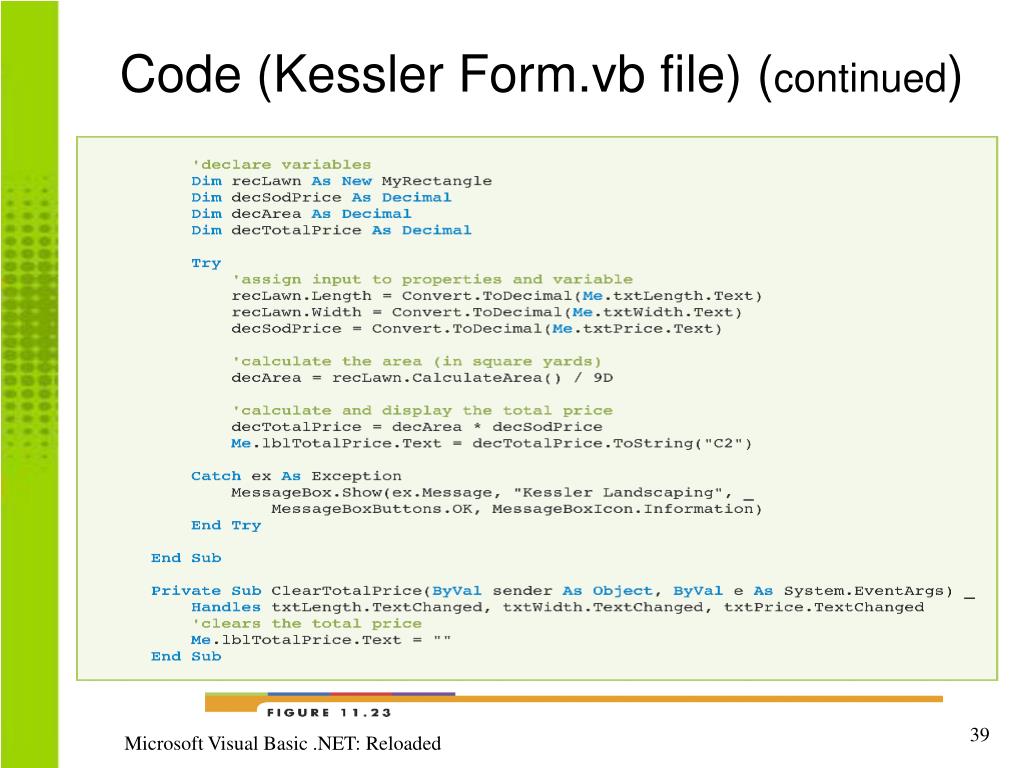

Code (Kessler Form.vb file) ( and Data Validation (continued)

Microsoft Visual Basic .NET: Reloaded

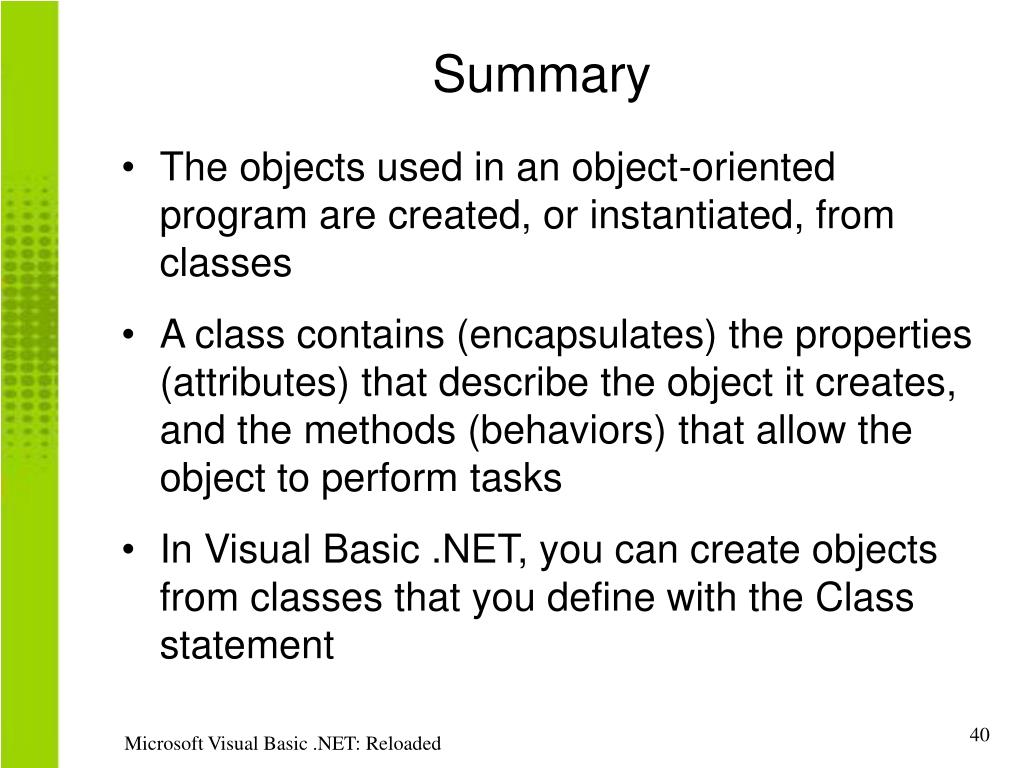

Summary
Summary and Data Validation (

  • The objects used in an object-oriented program are created, or instantiated, from classes

  • A class contains (encapsulates) the properties (attributes) that describe the object it creates, and the methods (behaviors) that allow the object to perform tasks

  • In Visual Basic .NET, you can create objects from classes that you define with the Class statement

Microsoft Visual Basic .NET: Reloaded


Summary continued
Summary ( and Data Validation (continued)

  • Good programming practice to enter Option Explicit On and Option Strict On statement in both the form file and class file

  • The first letter in the class name, as well as the first letter in any subsequent words in the name, should be capitalized

  • The properties in a class should be assigned a name composed of one or more words, with the first letter of each word being capitalized

    • You should use nouns and adjectives to name a property

Microsoft Visual Basic .NET: Reloaded

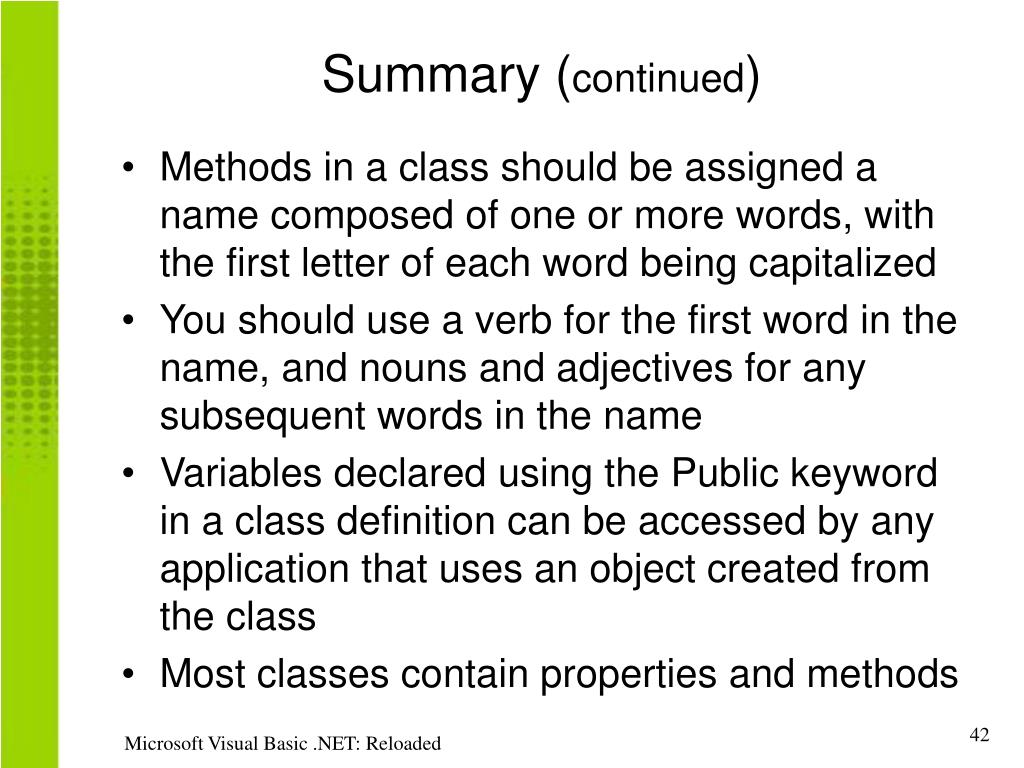

Summary continued1
Summary ( and Data Validation (continued)

  • Methods in a class should be assigned a name composed of one or more words, with the first letter of each word being capitalized

  • You should use a verb for the first word in the name, and nouns and adjectives for any subsequent words in the name

  • Variables declared using the Public keyword in a class definition can be accessed by any application that uses an object created from the class

  • Most classes contain properties and methods

Microsoft Visual Basic .NET: Reloaded

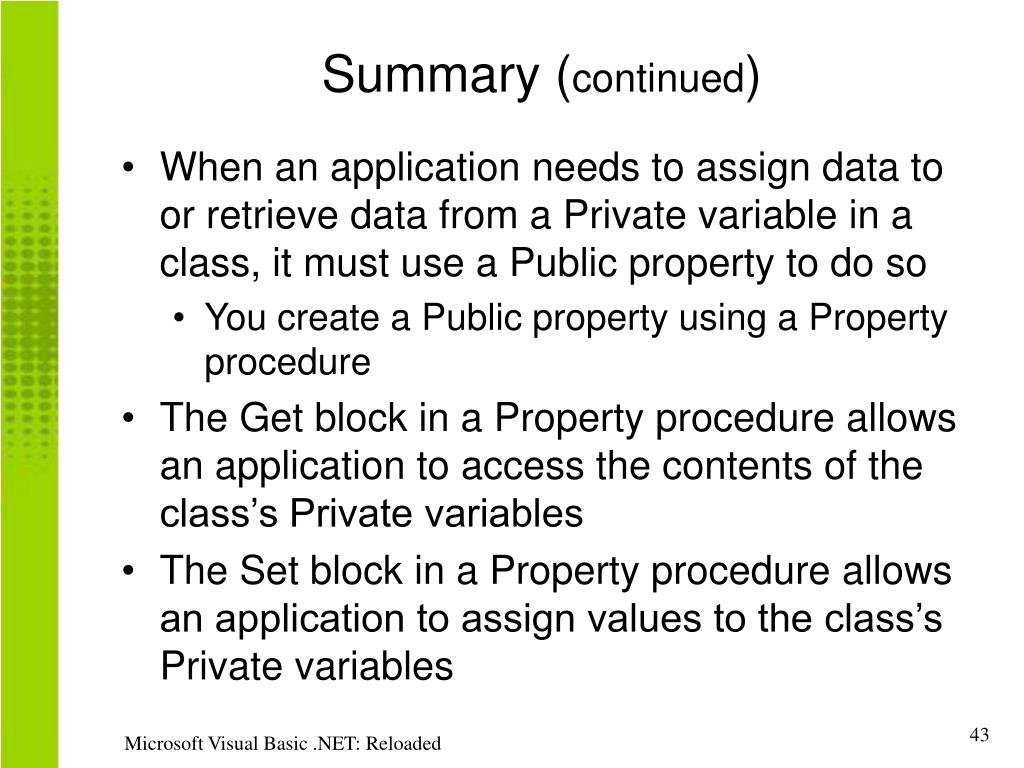

Summary continued2
Summary ( and Data Validation (continued)

  • When an application needs to assign data to or retrieve data from a Private variable in a class, it must use a Public property to do so

    • You create a Public property using a Property procedure

  • The Get block in a Property procedure allows an application to access the contents of the class’s Private variables

  • The Set block in a Property procedure allows an application to assign values to the class’s Private variables

Microsoft Visual Basic .NET: Reloaded


Summary continued3

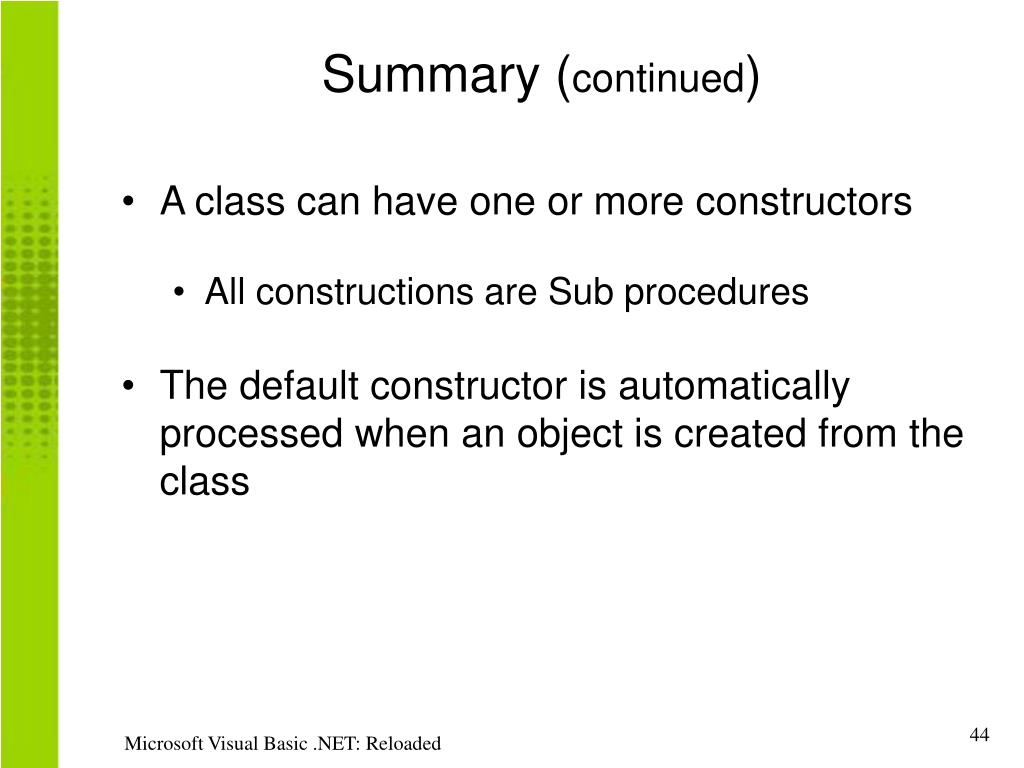

Summary ( and Data Validation (continued)

  • A class can have one or more constructors

    • All constructions are Sub procedures

  • The default constructor is automatically processed when an object is created from the class

Microsoft Visual Basic .NET: Reloaded
