  1. LAS-XML, Validation, and RELAX NG Jon Callahan(standing in for Roland Schweitzer)

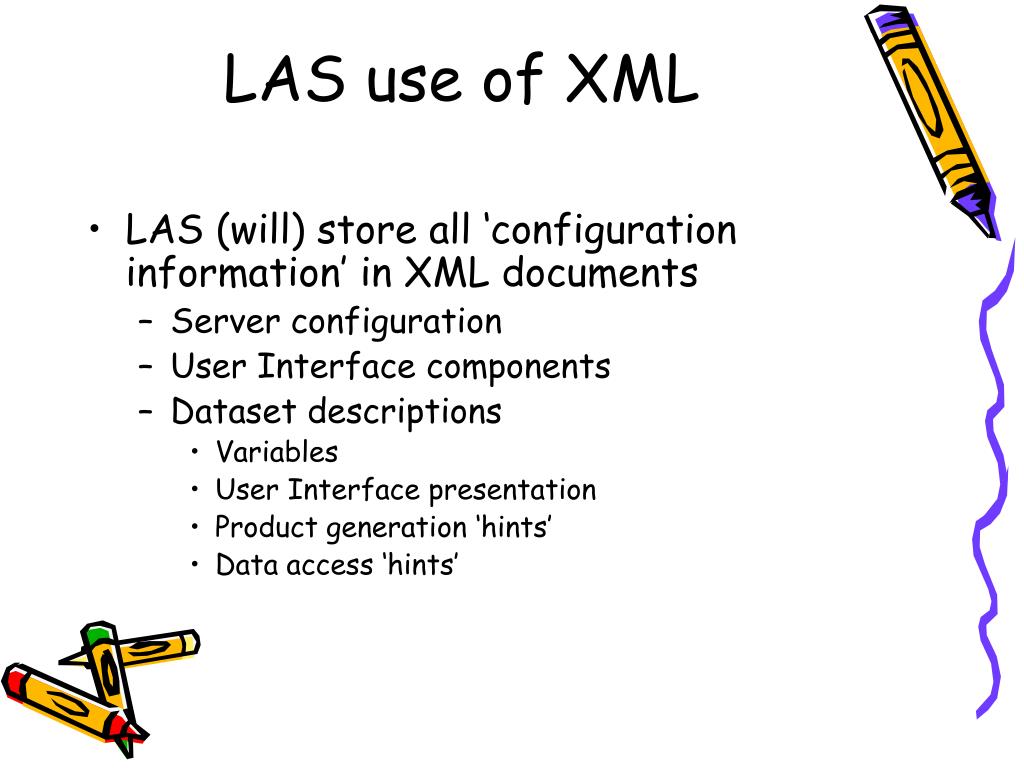

  2. LAS use of XML • LAS (will) store all ‘configuration information’ in XML documents • Server configuration • User Interface components • Dataset descriptions • Variables • User Interface presentation • Product generation ‘hints’ • Data access ‘hints’

  3. LAS use of XML

  4. Sister servers

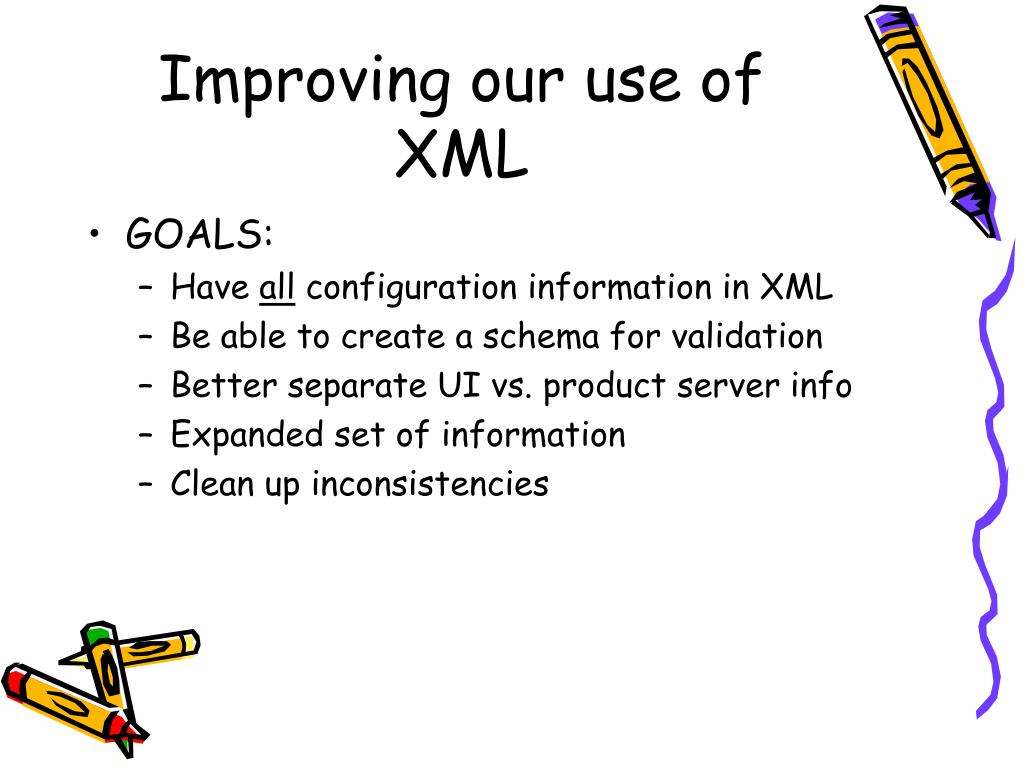

  5. Improving our use of XML • GOALS: • Have all configuration information in XML • Be able to create a schema for validation • Better separate UI vs. product server info • Expanded set of information • Clean up inconsistencies

  6. New dataset XML <lasdata version="6.5"> <dataset doc="http://www.cdc.noaa.gov/cdc/data.coads.ltm.html" ID="CDC014" name="COADS LTMs"> <variable ID="V2" name="Sea Surface Temperature" units="degC" url="file://Datasets/coads_2d_g_std/sst.mean.nc#sst"> <grid IDREF="G88"/> </variable> <variable> … </variable> … </dataset>

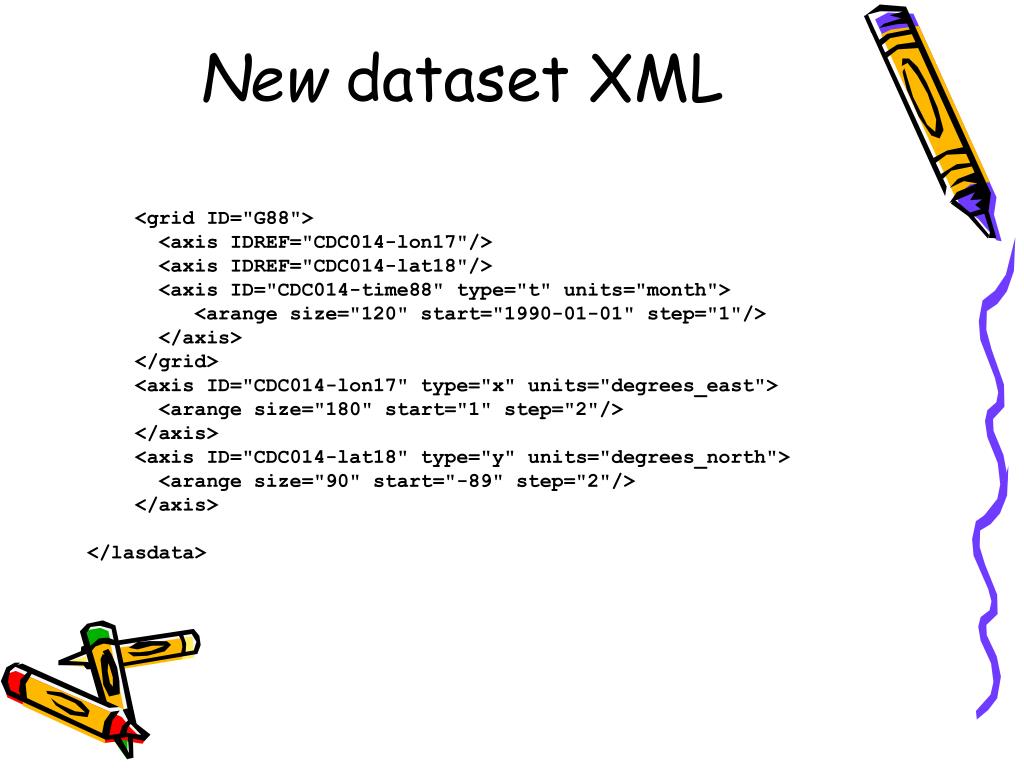

  7. New dataset XML <grid ID="G88"> <axis IDREF="CDC014-lon17"/> <axis IDREF="CDC014-lat18"/> <axis ID="CDC014-time88" type="t" units="month"> <arange size="120" start="1990-01-01" step="1"/> </axis> </grid> <axis ID="CDC014-lon17" type="x" units="degrees_east"> <arange size="180" start="1" step="2"/> </axis> <axis ID="CDC014-lat18" type="y" units="degrees_north"> <arange size="90" start="-89" step="2"/> </axis> </lasdata>

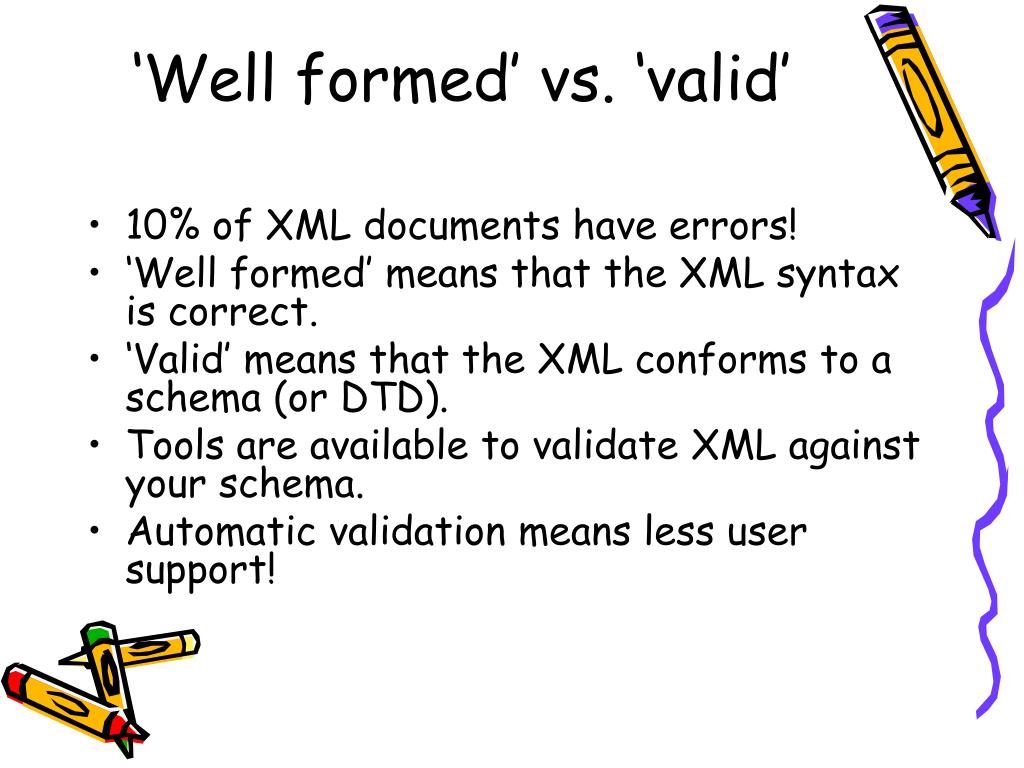

  8. ‘Well formed’ vs. ‘valid’ • 10% of XML documents have errors! • ‘Well formed’ means that the XML syntax is correct. • ‘Valid’ means that the XML conforms to a schema (orDTD). • Tools are available to validate XML against your schema. • Automatic validation means less user support!

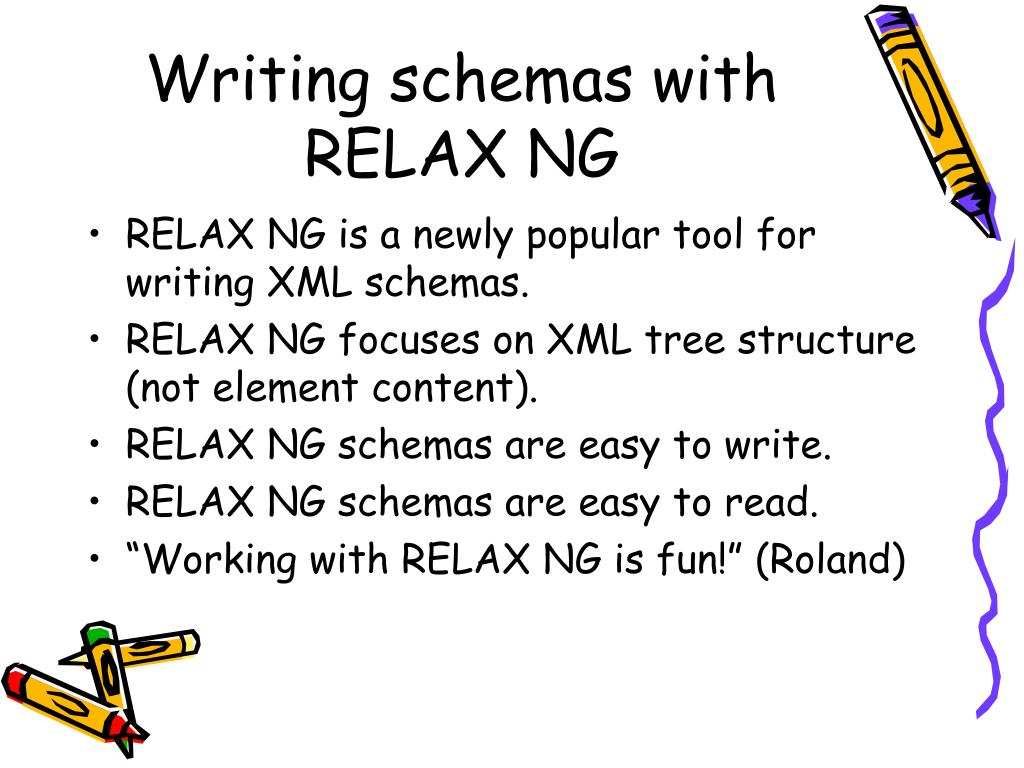

  9. Writing schemas with RELAX NG • RELAX NG is a newly popular tool for writing XML schemas. • RELAX NG focuses on XML tree structure(not element content). • RELAX NG schemas are easy to write. • RELAX NG schemas are easy to read. • “Working with RELAX NG is fun!” (Roland)

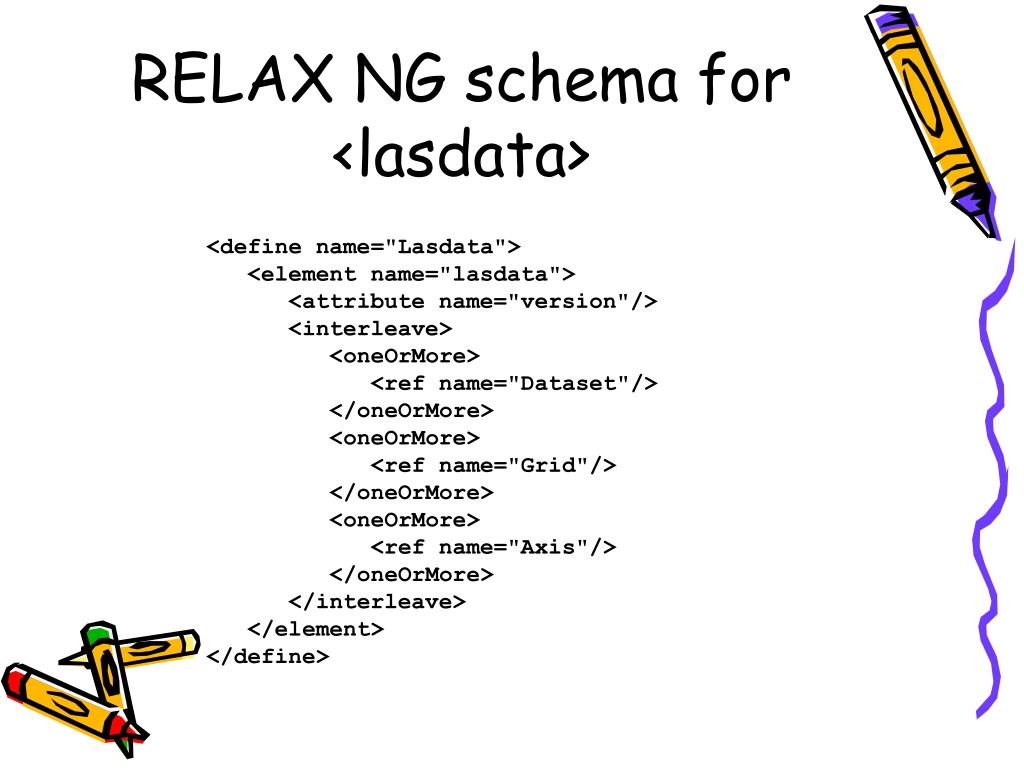

  10. RELAX NG schema for <lasdata> <define name="Lasdata"> <element name="lasdata"> <attribute name="version"/> <interleave> <oneOrMore> <ref name="Dataset"/> </oneOrMore> <oneOrMore> <ref name="Grid"/> </oneOrMore> <oneOrMore> <ref name="Axis"/> </oneOrMore> </interleave> </element> </define>

  11. Useful links • The RELAX NG Tutorial at Oasis. • A 3-part series of "XML Matters" columns entitled "Kicking back with RELAX NG" by David Mertz (Part 1, Part 2, and Part 3). • An article about the design philosophy behind RELAX NG. • The text of a book on RELAX NG to be published by O'Reilly & Associates. • A C-library that includes RELAX NG validation with Perl bindings via XML-LibXML.
