  1. Earthquakes Source: USGS Source: NPS

  2. Seismic Hazard Source: USGS

  3. California Tectonics: Present Source: USGS

  4. California Tectonics: Past

  5. http://www.nps.gov/prsf/naturescience/images/Subduction-animation_1.gifhttp://www.nps.gov/prsf/naturescience/images/Subduction-animation_1.gif

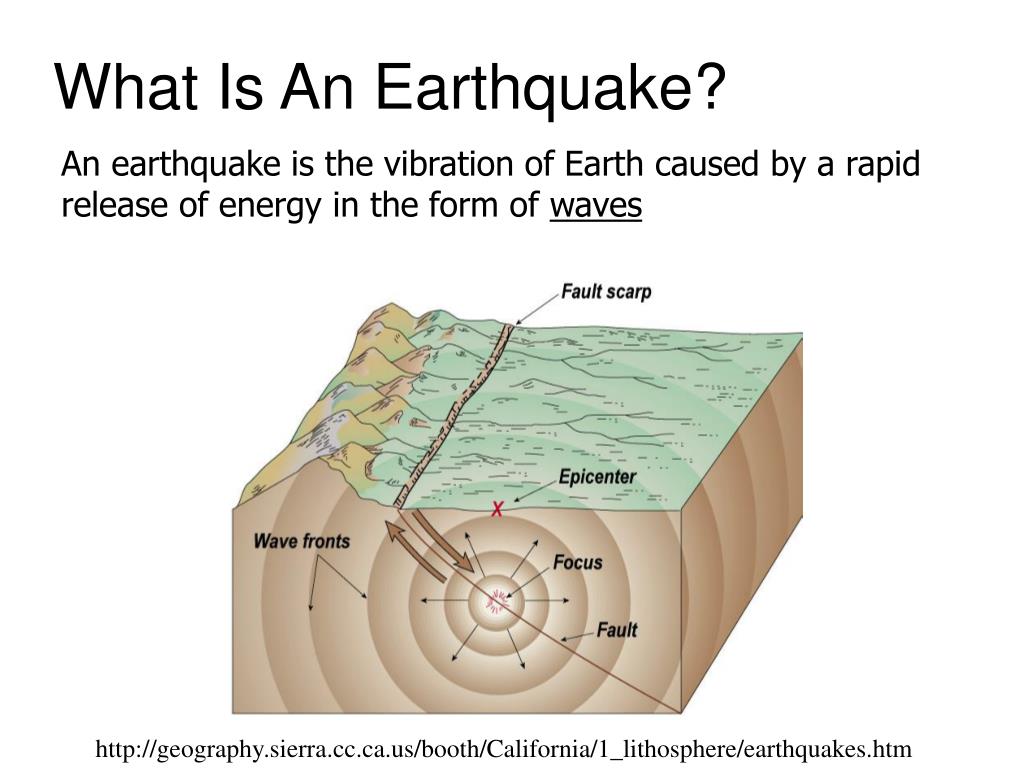

  6. What Is An Earthquake? An earthquake is the vibration of Earth caused by a rapid release of energy in the form of waves http://geography.sierra.cc.ca.us/booth/California/1_lithosphere/earthquakes.htm

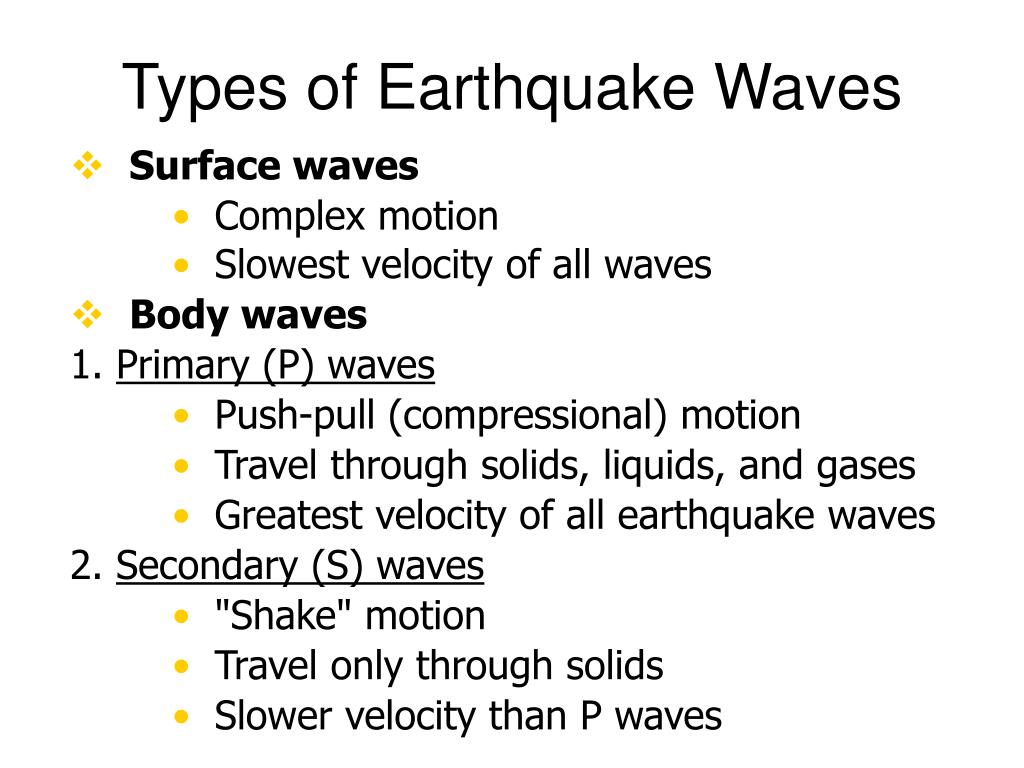

  7. Types of Earthquake Waves • Surface waves • Complex motion • Slowest velocity of all waves • Body waves 1. Primary (P) waves • Push-pull (compressional) motion • Travel through solids, liquids, and gases • Greatest velocity of all earthquake waves 2. Secondary (S) waves • "Shake" motion • Travel only through solids • Slower velocity than P waves

  8. Seismic Waves P-waves S-waves

  9. A seismogram records wave amplitude vs. time http://ww2.lafayette.edu/~malincol/Geol120/seismogram.GIF

  10. Measure the difference in arrival of p and s waves. Locating an Epicenter

  11. Step 2 of locating the epicenter • 2. Use a graph to determine the distance from the monitoring station to the epicenter.

  12. Draw a circle, centered around the monitoring station with a radius equal to the distance from the epicenter. Repeat two more times. 5. The point where all three circles intersect is the location of the Epicenter. Steps 3, 4 & 5 of Locating the Epicenter

  13. Measuring The Size of An Earthquake • Intensity – determined by effects on people, structures, and the environment • Magnitude – measures energy released at the source of the earthquake.

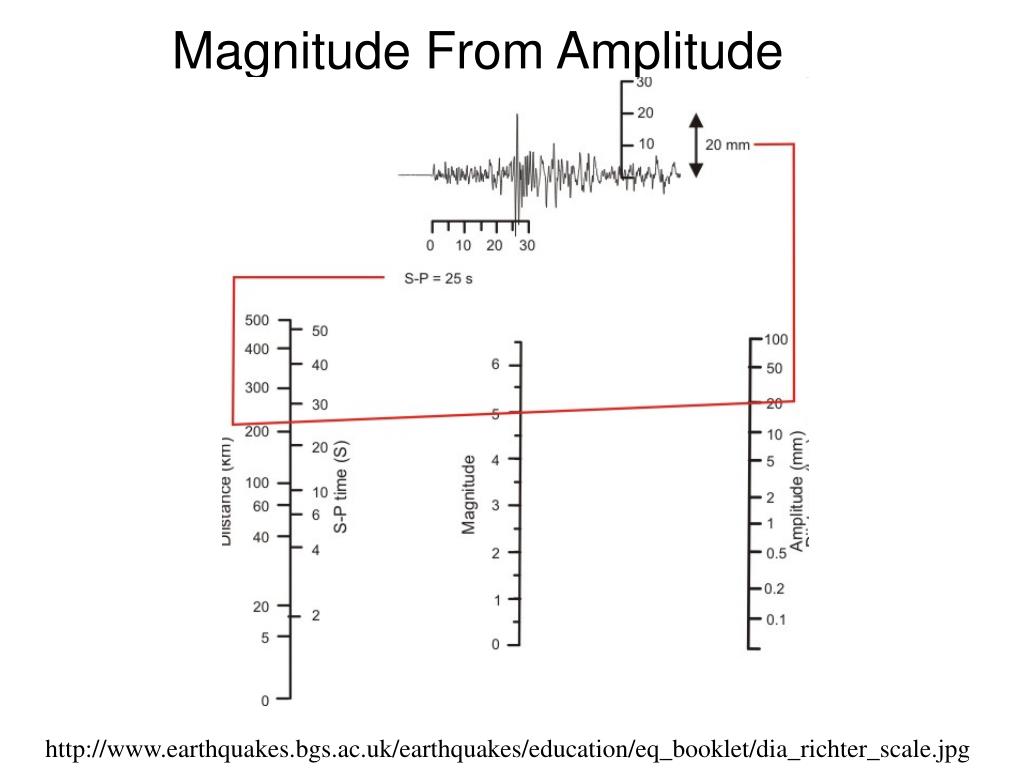

  14. Magnitude From Amplitude http://www.earthquakes.bgs.ac.uk/earthquakes/education/eq_booklet/dia_richter_scale.jpg

  15. Intensity Witness observations I Felt by very few people; barely noticeable II Felt by a few people, especially on upper floors. III Noticeable indoors, especially on upper floors, but may not be recognized as an earthquake. Hanging objects swing. IV Felt by many indoors, by few outdoors. May give the impression of a heavy truck passing by. V Felt by almost everyone, some people awakened. Small objects move. Trees and poles may shake. VI Felt by everyone. Difficult to stand. Some heavy items of furniture move, plaster falls. Slight damage to chimneys possible. VII Slight to moderate damage in well-built, ordinary structures. Considerable damage to poorly built structures. Some walls may fall. VIII Little damage in specially built structures. Considerable damage to ordinary buildings, severe damage to poorly built structures. Some walls collapse. IX Considerable damage to specially built structures, buildings shifted off foundations. Noticeable cracks in ground. Wholesale destruction. Landslides. X Most masonry and frame structures and their foundations destroyed. Ground badly cracked. Landslides. Wholesale destruction. XI Total damage. Few, if any, structures standing. Bridges destroyed. Wide cracks in ground. Waves seen on ground. XII Total damage. Waves seen on ground. Objects thrown up into air. Abbreviated Modified Mercalli Intensity Scale

  16. Did You Feel It? http://earthquake.usgs.gov/eqcenter/dyfi.php

  17. Earthquake Hazards • Ground shaking • Liquefaction • Ground Rupture • Landslides • Tsunamis • Fire

  18. http://www.abag.ca.gov/bayarea/eqmaps/gif99/bayas06m.gif Shaking

  19. Liquefaction http://www.tulane.edu/~sanelson/images/liquefaction.gif Niigata Earthquake, Japan, 1964: Tilting of apartment buildings http://cee.uiuc.edu/sstl/education/liquefaction/Pictures/APTS.jpg

  20. Asian Earthquake and Tsunami of 2004What Happened and Why? • Magnitude 9 earthquake • Largest earthquake since the 9.2 magnitude Alaskan earthquake (1964) • Energy release equivalent of 23,000 atom bombs such as the one that destroyed Hiroshima • Why did it occur here?

  21. Wind-generated Waves vs. Tsunamis

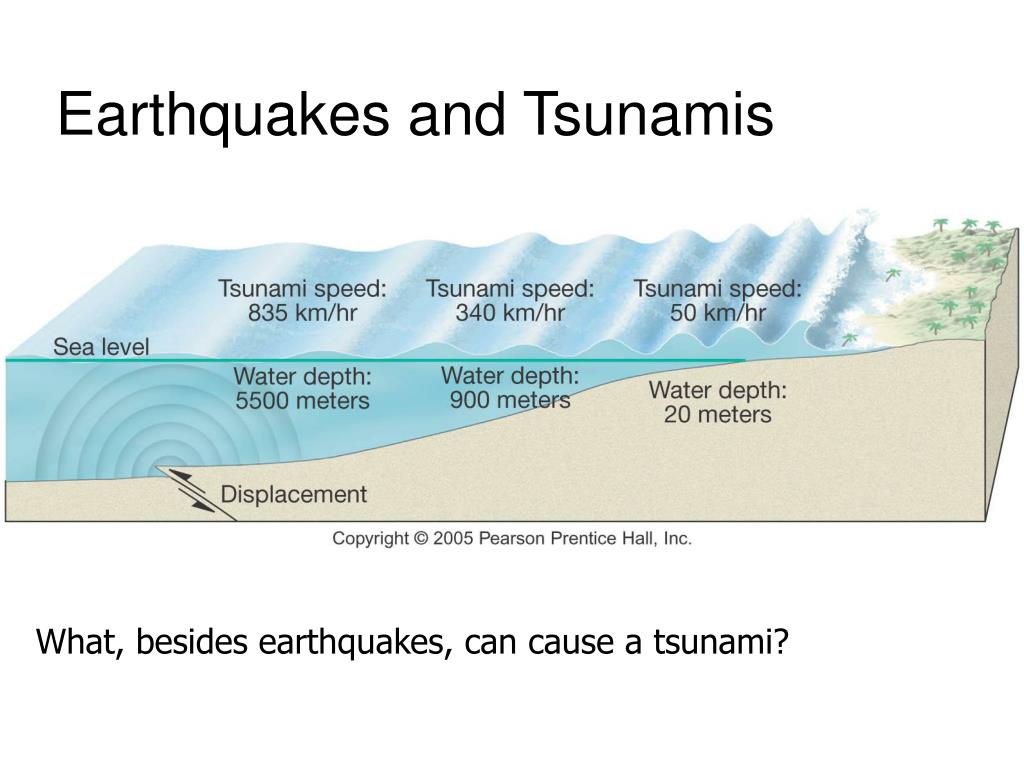

  22. Earthquakes and Tsunamis What, besides earthquakes, can cause a tsunami?

  23. Tsunami Risk in California • California is at risk of tsunamis that are generated locally and from a distance. • 1964: 10 killed and 35 injured when tsunami from the 1964 Alaska earthquake reached Crescent City (Oregon/CA border). • A Cascadia earthquake could bring a tsunami to Northern CA in ~ 15 minutes.

  24. Short-term Prediction • Precursors: May or may not occur • Uplift • Foreshocks • Anomalous animal behavior • Changes in water levels in wells • Release of radon gas • Changes in velocity of P waves

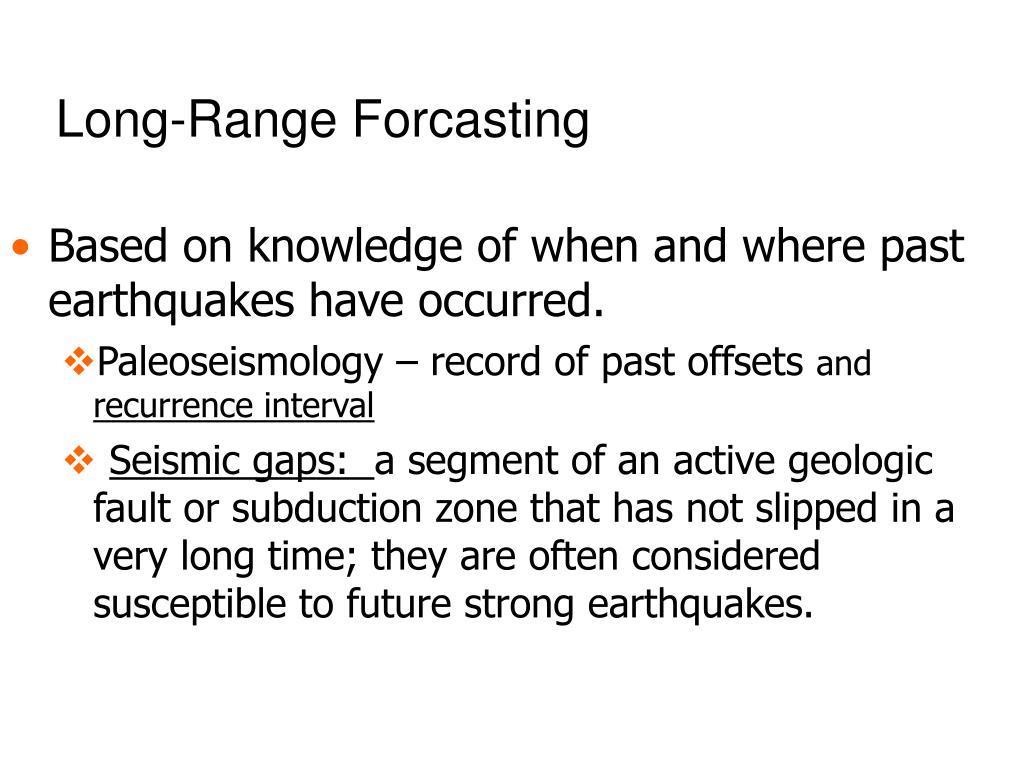

  25. Long-Range Forcasting • Based on knowledge of when and where past earthquakes have occurred. • Paleoseismology – record of past offsets and recurrence interval • Seismic gaps: a segment of an active geologic fault or subduction zone that has not slipped in a very long time; they are often considered susceptible to future strong earthquakes.

  26. Bay Area EQ Probabilities Hayward – Rodgers Creek Faults have the highest probabilities Forecasting (probability) vs. prediction Source: USGS

  27. Paleoseismology - the study of prehistoric earthquakes.  http://www.tulane.edu/~sanelson/images/paleosseis.gif http://pubs.usgs.gov/fs/1999/fs152-99/images/faults.jpg

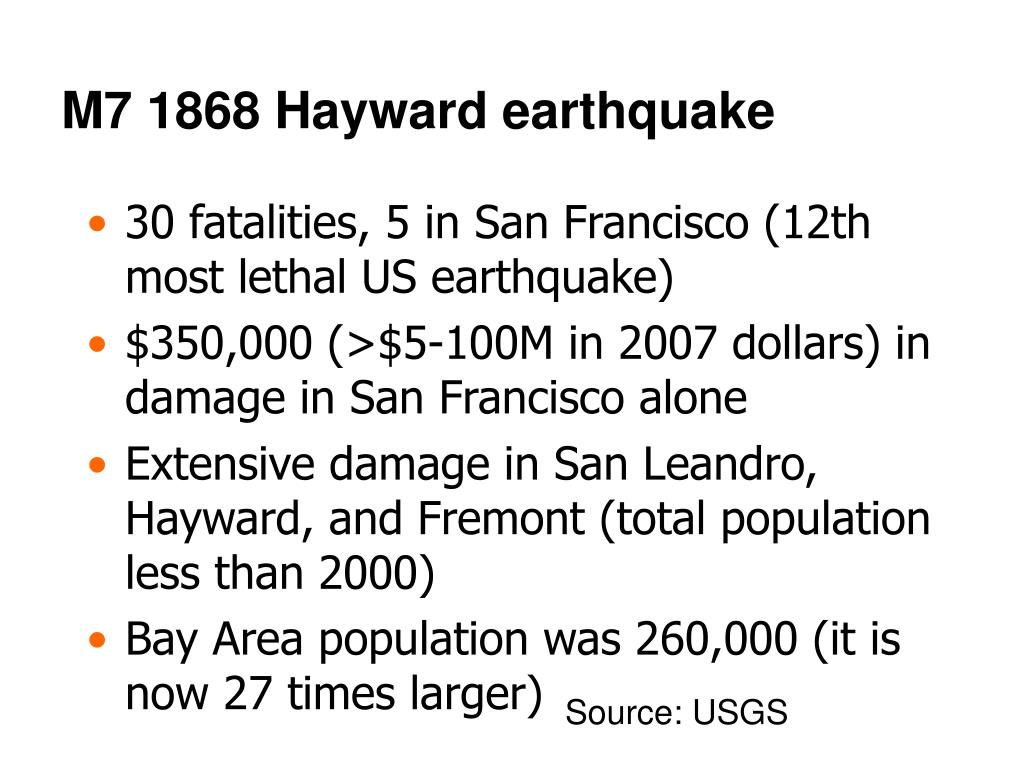

  28. M7 1868 Hayward earthquake • 30 fatalities, 5 in San Francisco (12th most lethal US earthquake) • $350,000 (>$5-100M in 2007 dollars) in damage in San Francisco alone • Extensive damage in San Leandro, Hayward, and Fremont (total population less than 2000) • Bay Area population was 260,000 (it is now 27 times larger) Source: USGS

  29. 1868 Hayward Earthquake (“The Great SF Earthquake”) Source: USGS 38° 37.5° -121°

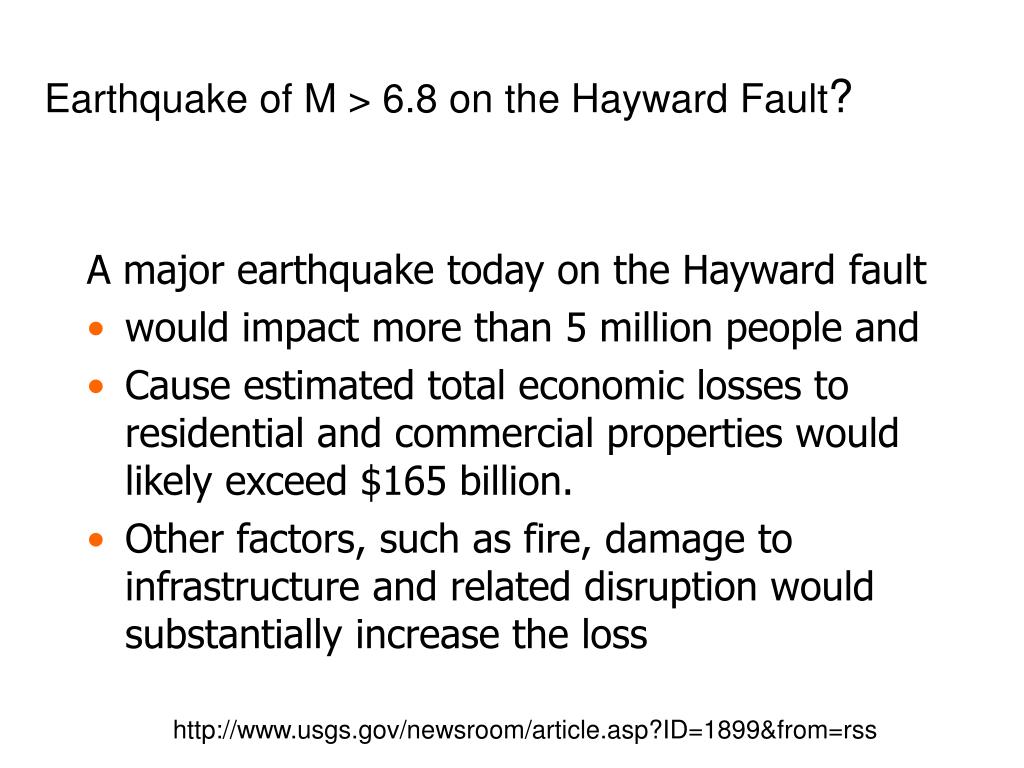

  30. Earthquake of M > 6.8 on the Hayward Fault? • A major earthquake today on the Hayward fault • would impact more than 5 million people and • Cause estimated total economic losses to residential and commercial properties would likely exceed $165 billion. • Other factors, such as fire, damage to infrastructure and related disruption would substantially increase the loss http://www.usgs.gov/newsroom/article.asp?ID=1899&from=rss
