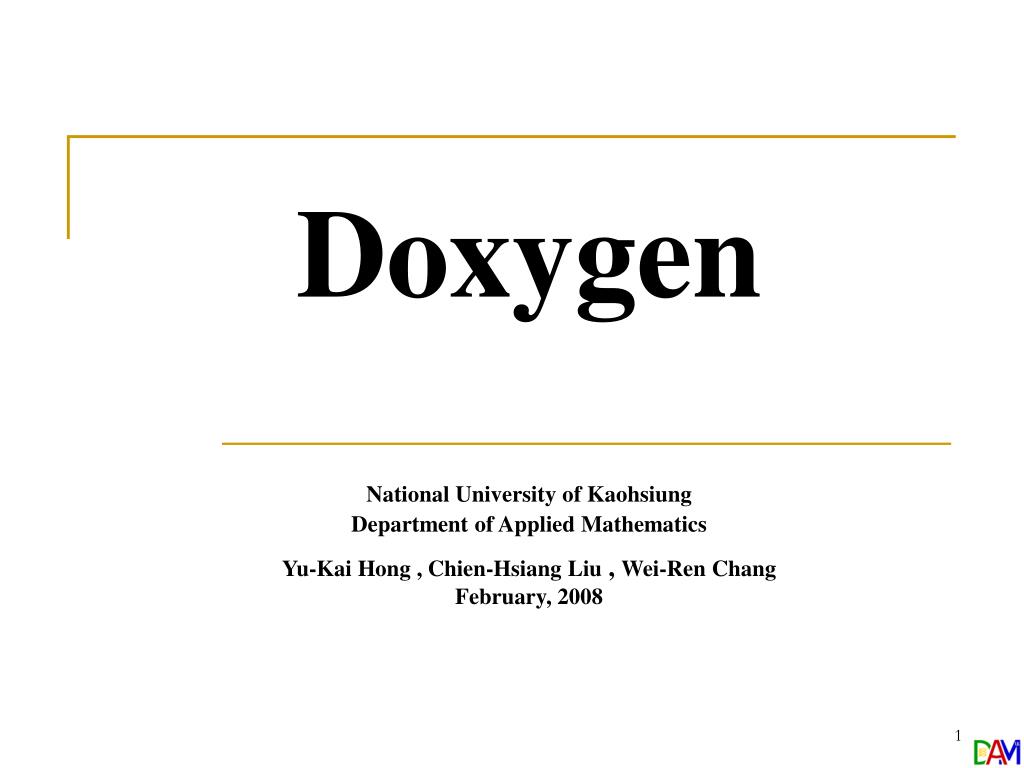

  1. DoxygenNational University of Kaohsiung Department of Applied MathematicsYu-Kai Hong , Chien-Hsiang Liu , Wei-Ren ChangFebruary, 2008

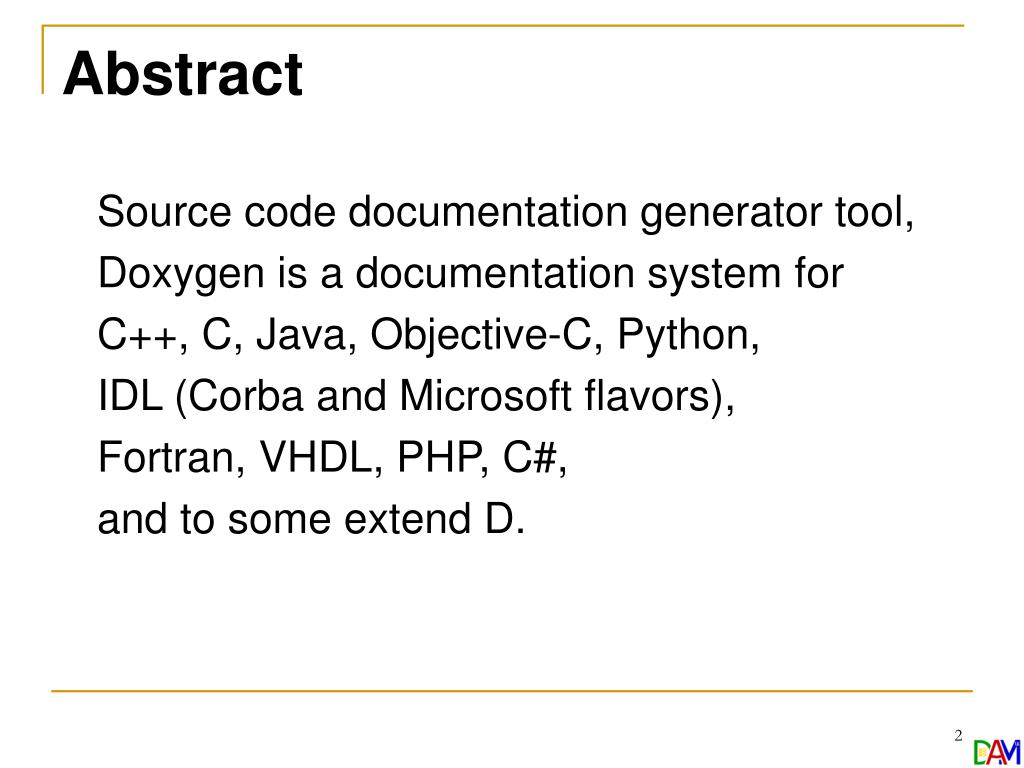

  2. Abstract Source code documentation generator tool, Doxygen is a documentation system for C++, C, Java, Objective-C, Python, IDL (Corba and Microsoft flavors), Fortran, VHDL, PHP, C#, and to some extend D.

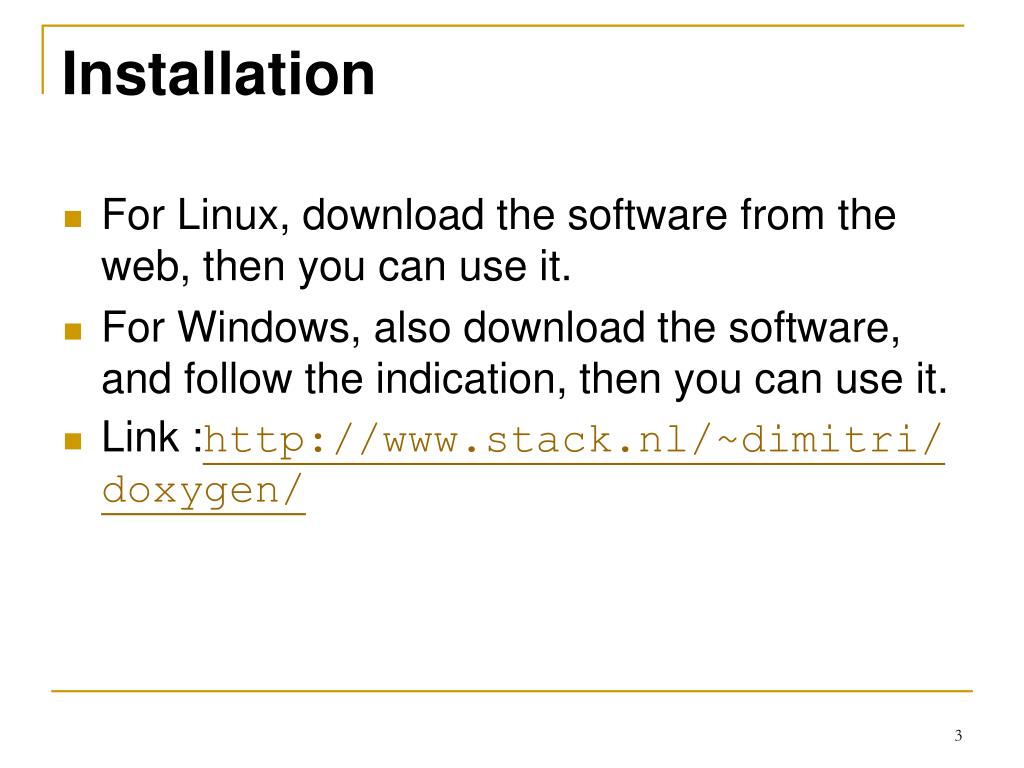

  3. Installation • For Linux, download the software from the web, then you can use it. • For Windows, also download the software, and follow the indication, then you can use it. • Link :http://www.stack.nl/~dimitri/doxygen/

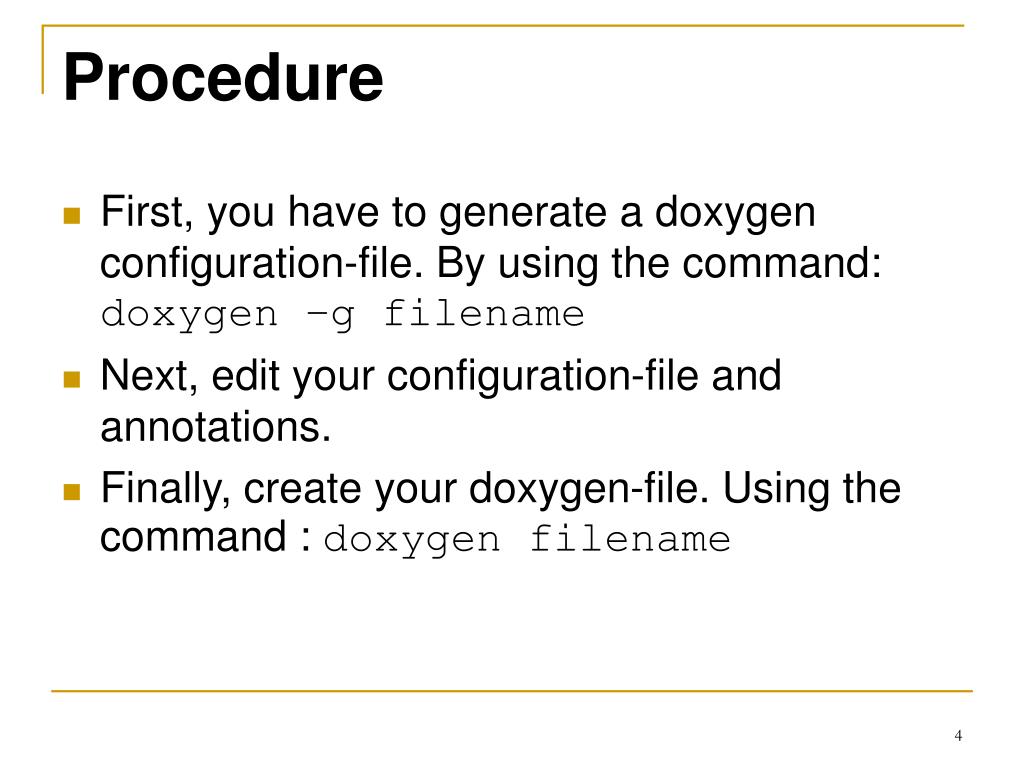

  4. Procedure • First, you have to generate a doxygen configuration-file. By using the command: doxygen –g filename • Next, edit your configuration-file and annotations. • Finally, create your doxygen-file. Using thecommand : doxygen filename

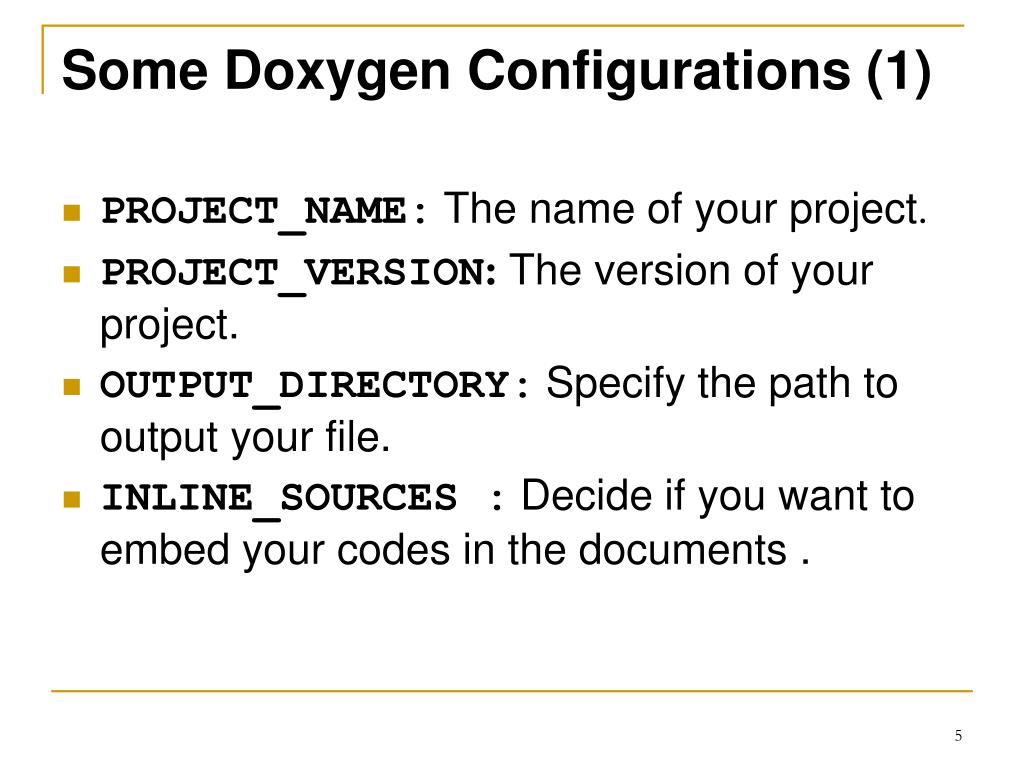

  5. Some Doxygen Configurations (1) • PROJECT_NAME:The name of your project. • PROJECT_VERSION: The version of your project. • OUTPUT_DIRECTORY:Specify the path to output your file. • INLINE_SOURCES :Decide if you want to embed your codes in the documents .

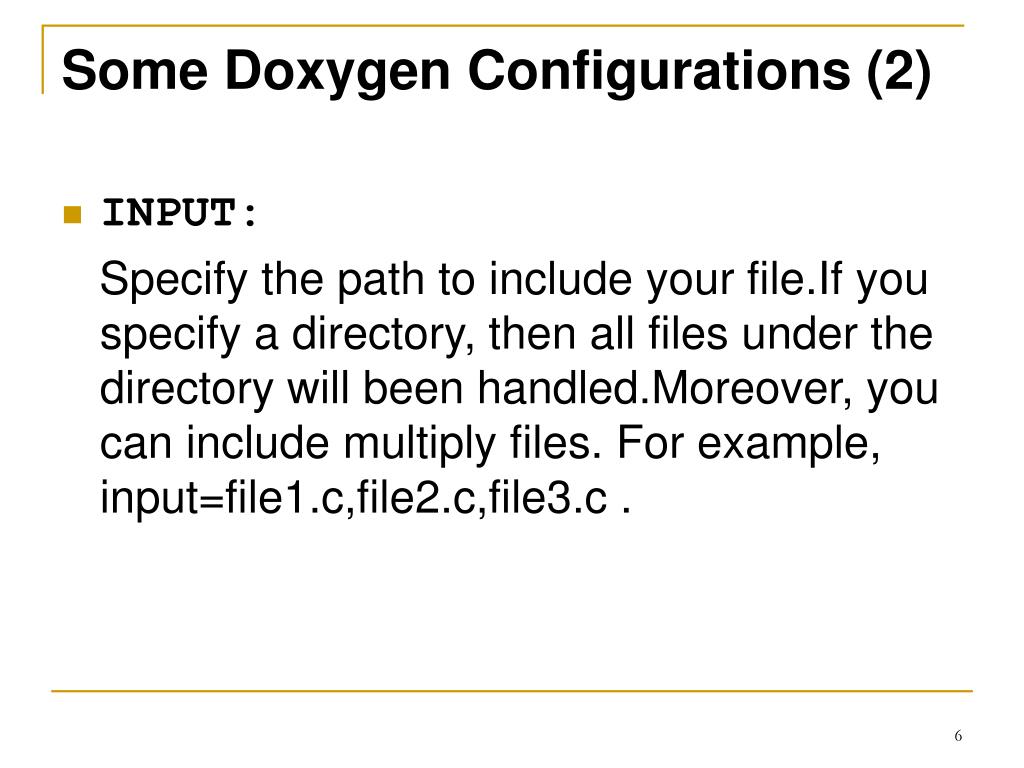

  6. Some Doxygen Configurations (2) • INPUT: Specify the path to include your file.If you specify a directory, then all files under the directory will been handled.Moreover, you can include multiply files. For example, input=file1.c,file2.c,file3.c .

  7. Some Doxygen Configurations (3) • GENERATE_HTML :Decide if you want to generate html-file. • GENERATE_LATEX :Decide if you want to generate LATEX-file.

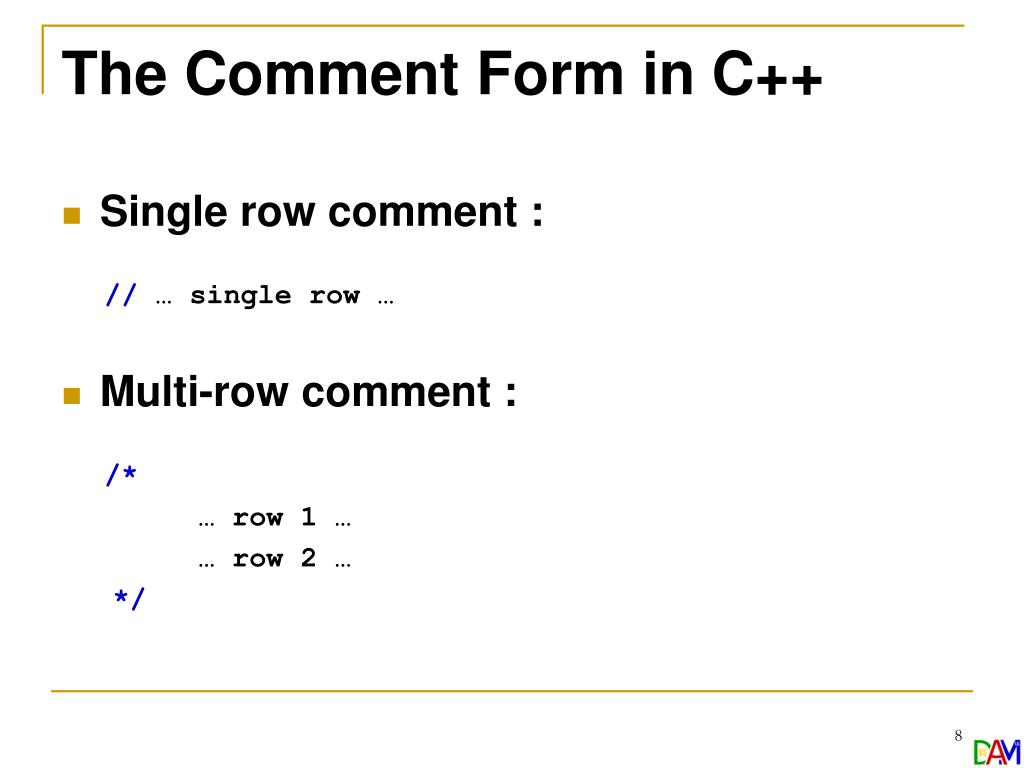

  8. The Comment Form in C++ • Single row comment : // … single row … • Multi-row comment : /* … row 1 … … row 2 … */

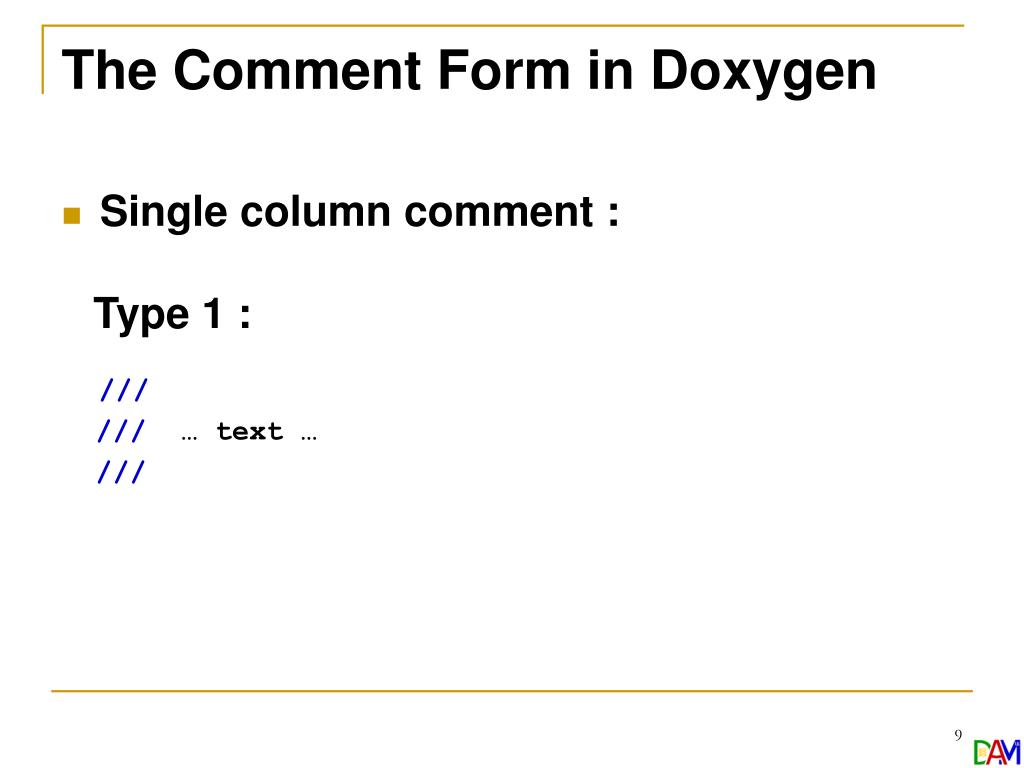

  9. The Comment Form in Doxygen • Single column comment : Type 1 : /// /// … text … ///

  10. The Comment Form in Doxygen • Single column comment : Type 2 : //! //! … text … //!

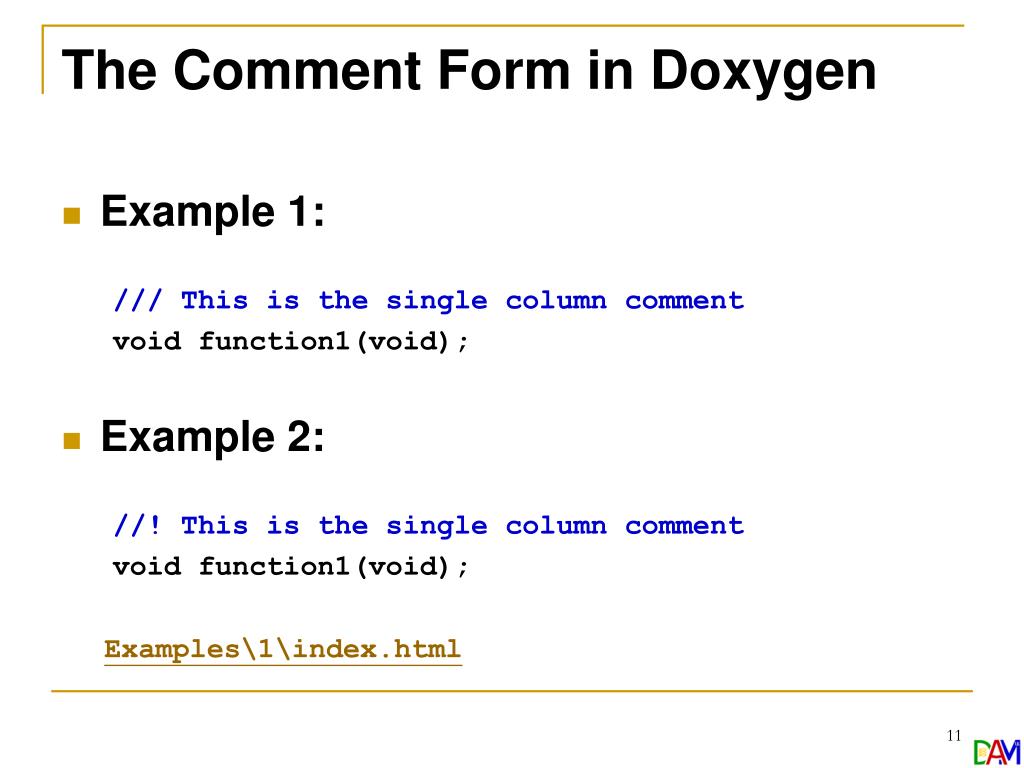

  11. The Comment Form in Doxygen • Example 1: /// This is the single column comment void function1(void); • Example 2: //! This is the single column comment void function1(void); Examples\1\index.html

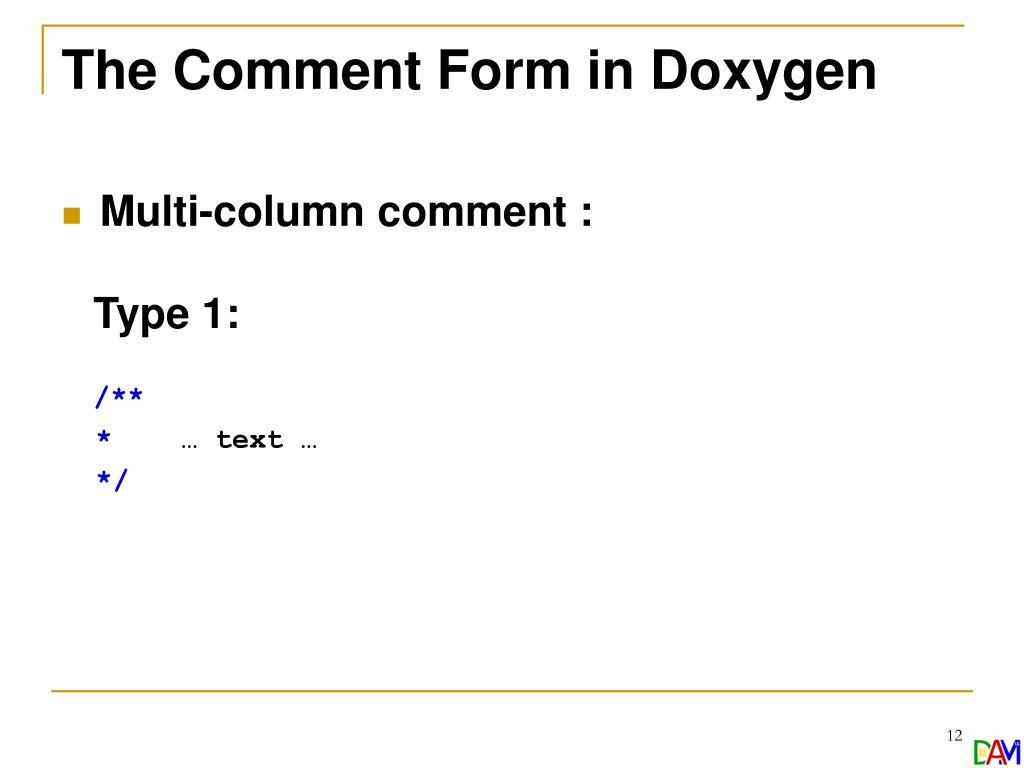

  12. The Comment Form in Doxygen • Multi-column comment : Type 1: /** *… text … */

  13. The Comment Form in Doxygen • Multi-column comment : Type 2 : /*! *… text … */

  14. The Comment Form in Doxygen • Multi-column comment : Type 2 : /*! … text … */

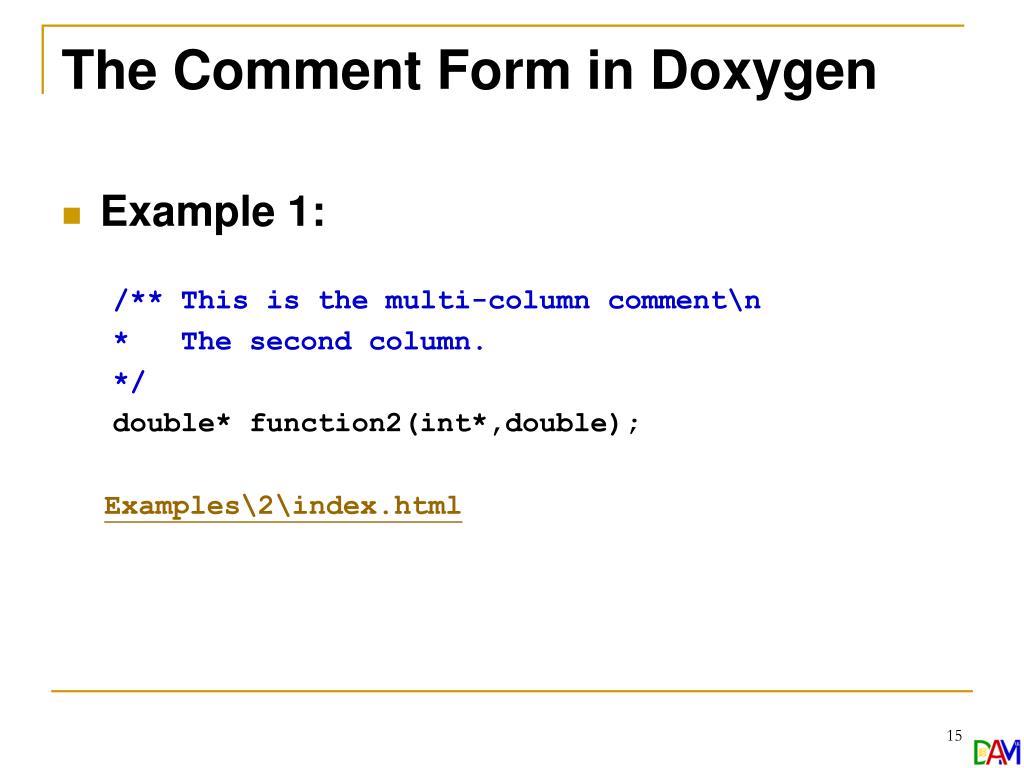

  15. The Comment Form in Doxygen • Example 1: /** This is the multi-column comment\n * The second column. */ double* function2(int*,double); Examples\2\index.html

  16. The Comment Form in Doxygen • Example 2: /*! This is the multi-column comment\n * The second column. */ double* function2(int*,double); Examples\2\index.html

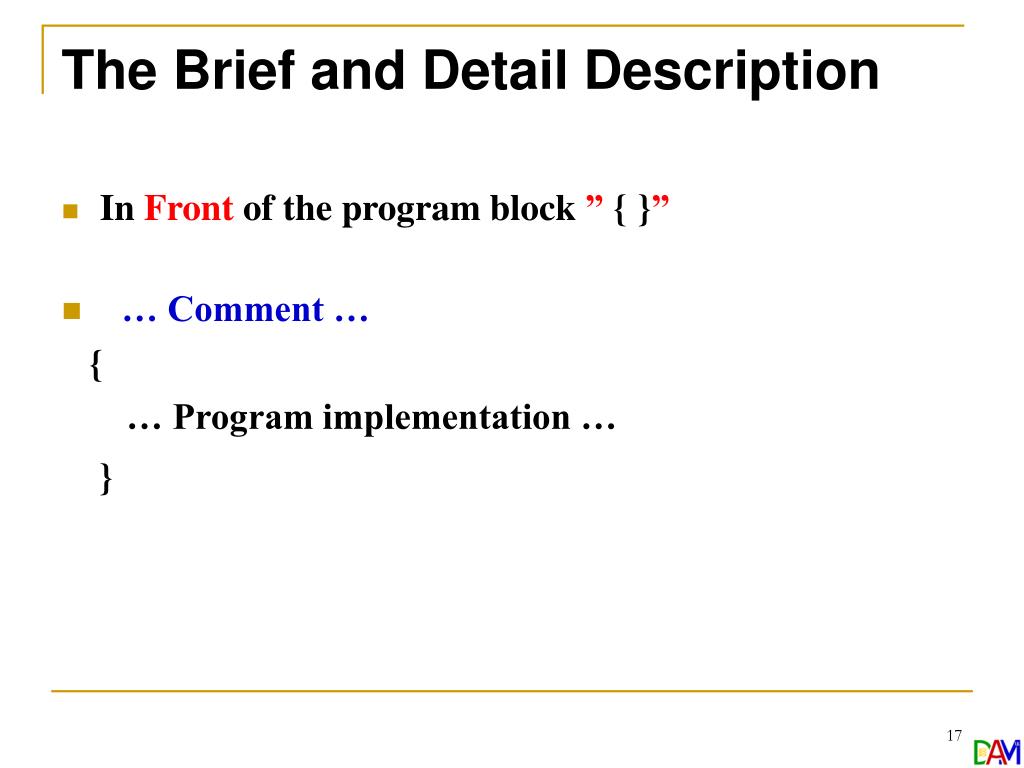

  17. The Brief and Detail Description • In Front of the program block ” { }” • … Comment … { … Program implementation … }

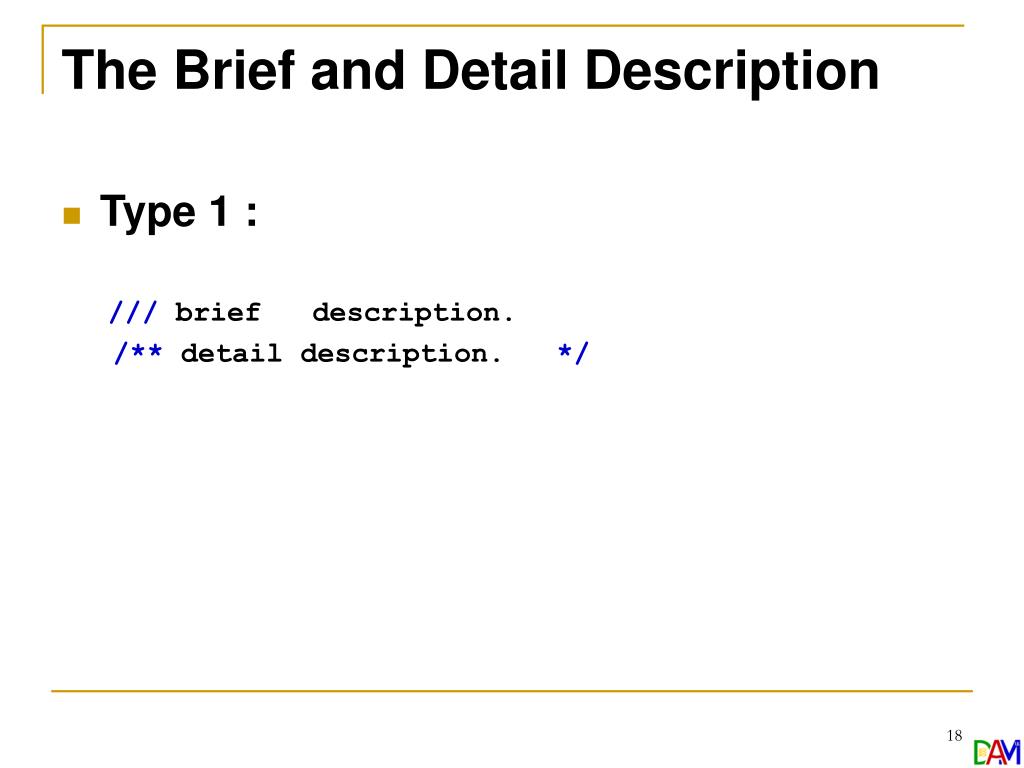

  18. The Brief and Detail Description • Type 1 : /// brief description. /** detail description. */

  19. The Brief and Detail Description • Type 2 : //! brief description. //! detail description //! … text …

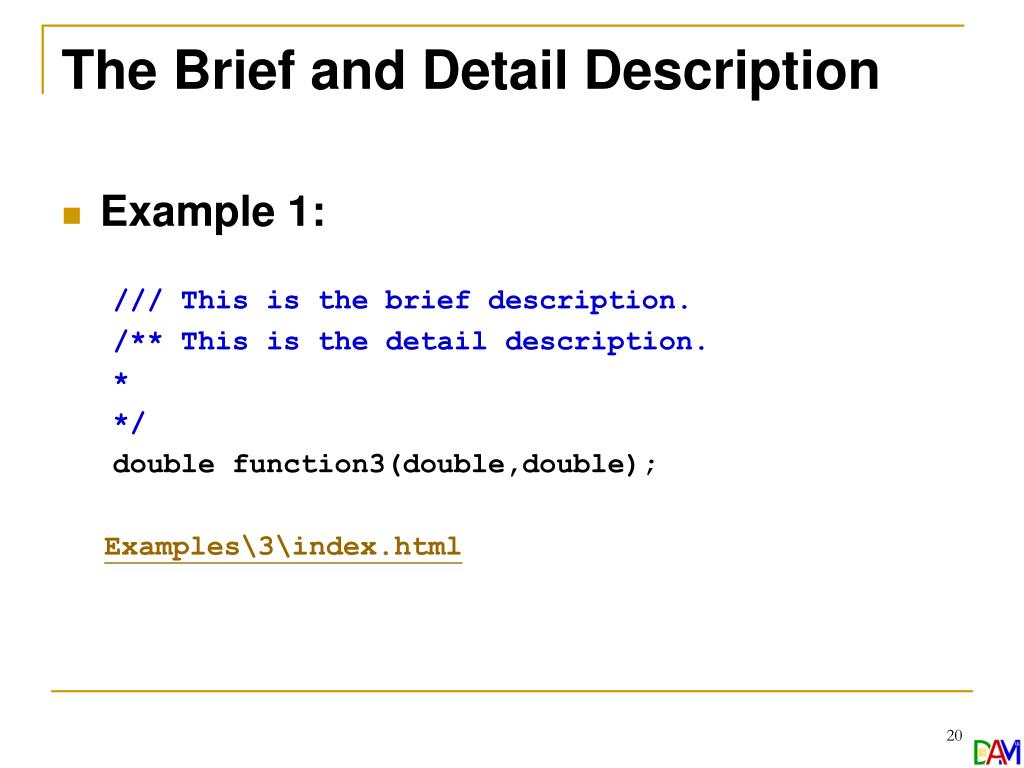

  20. The Brief and Detail Description • Example 1: /// This is the brief description. /** This is the detail description. * */ double function3(double,double); Examples\3\index.html

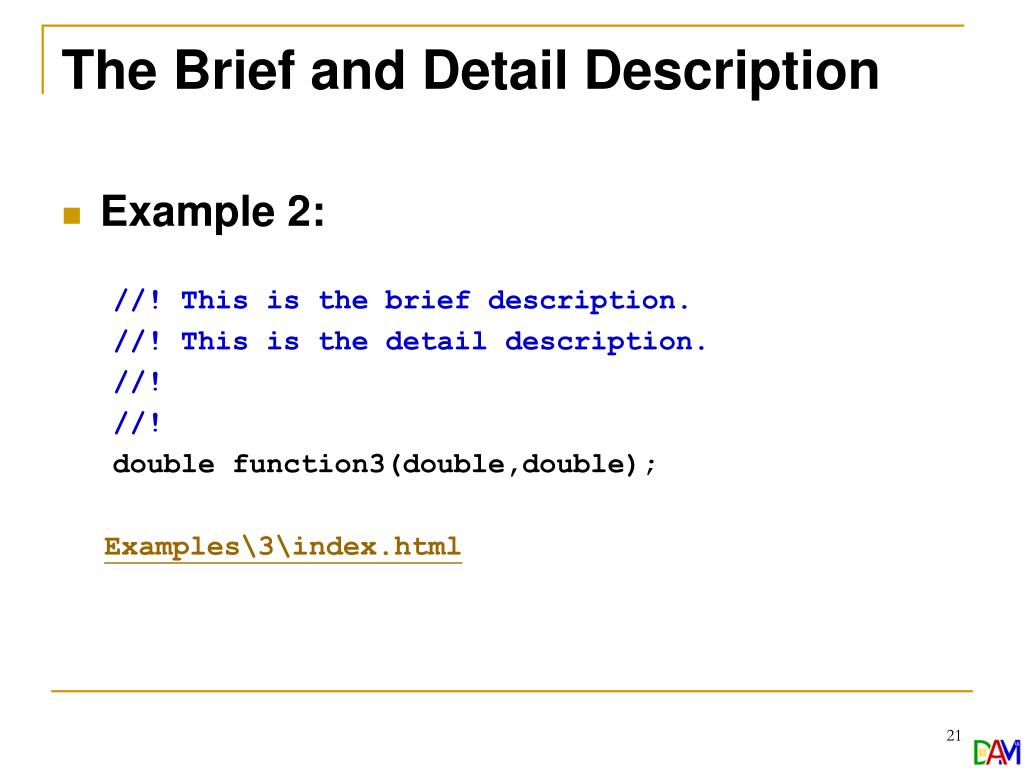

  21. The Brief and Detail Description • Example 2: //! This is the brief description. //! This is the detail description. //! //! double function3(double,double); Examples\3\index.html

  22. The Brief and Detail description • Note1 : Only one brief and detail description are valid. • Note2 : There is one brief description before a declaration and before a definition of a code item, only the one before the declaration will be used. • Note3 : The situation for the detail description is adverse of the brief description.

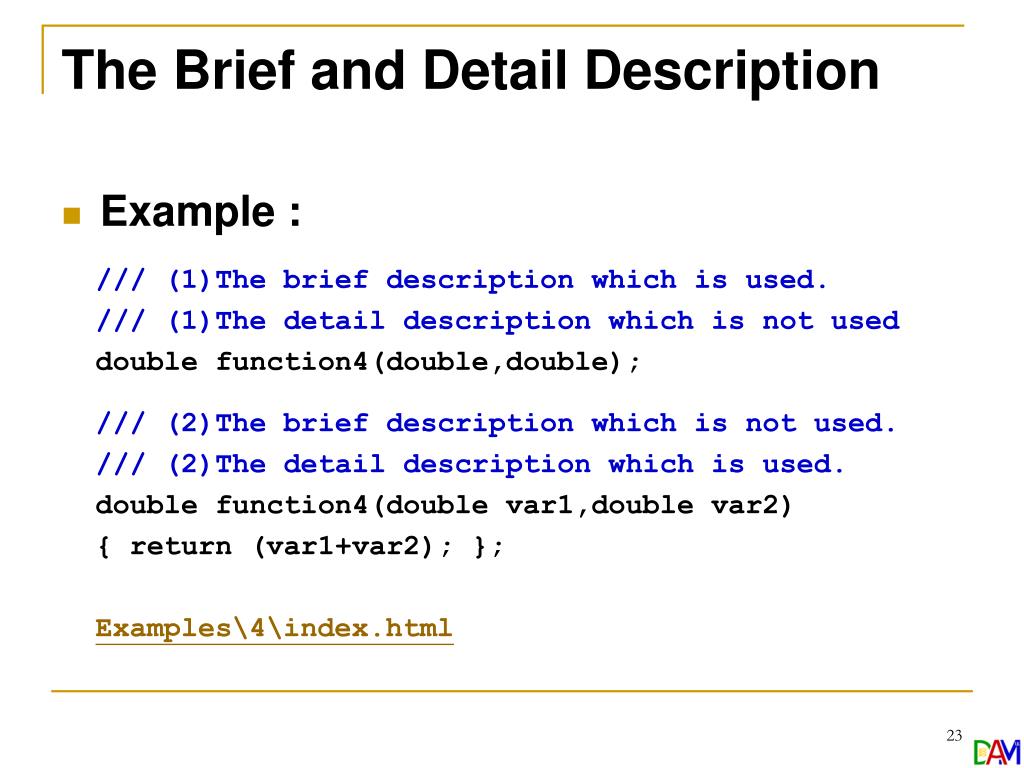

  23. The Brief and Detail Description • Example : /// (1)The brief description which is used. /// (1)The detail description which is not used double function4(double,double); /// (2)The brief description which is not used. /// (2)The detail description which is used. double function4(double var1,double var2) { return (var1+var2); }; Examples\4\index.html

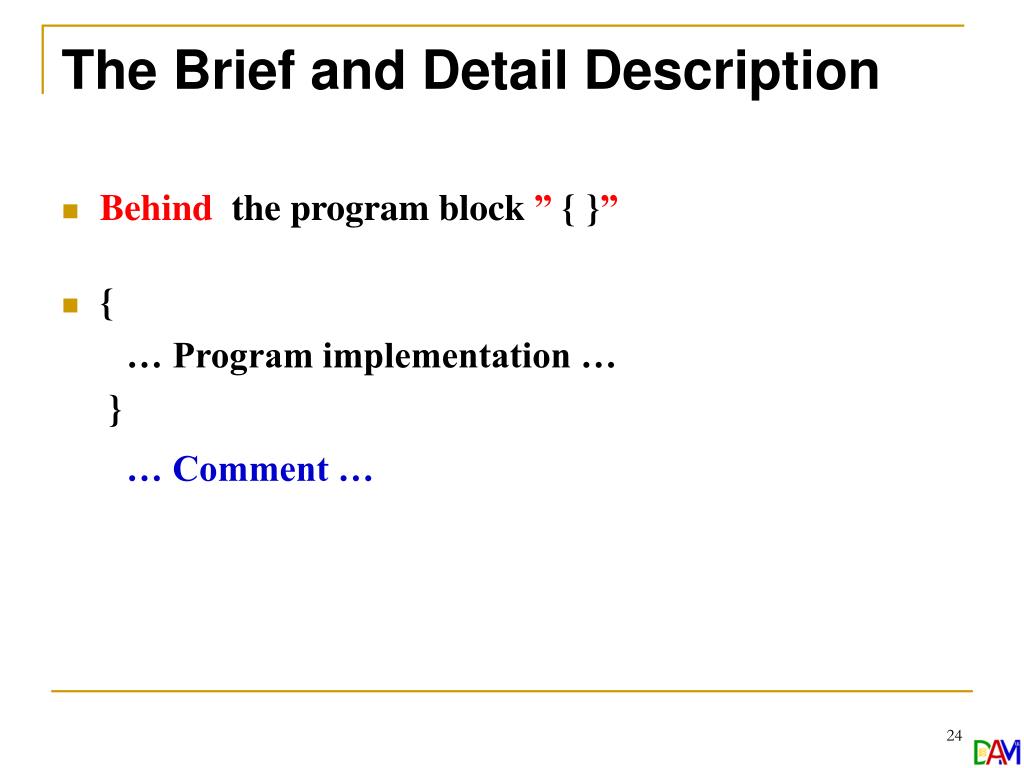

  24. The Brief and Detail Description • Behind the program block ” { }” • { … Program implementation … } … Comment …

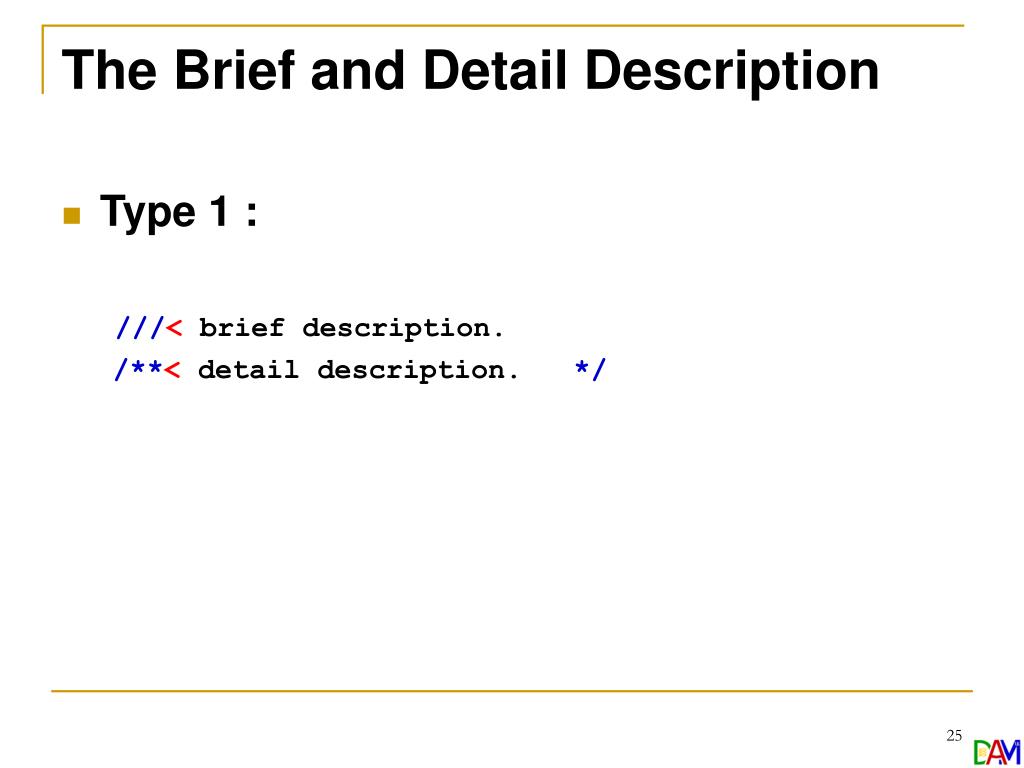

  25. The Brief and Detail Description • Type 1 : ///< brief description. /**< detail description. */

  26. The Brief and Detail Description • Type 2 : //!< brief description //!< detail description //!< ... Text ...

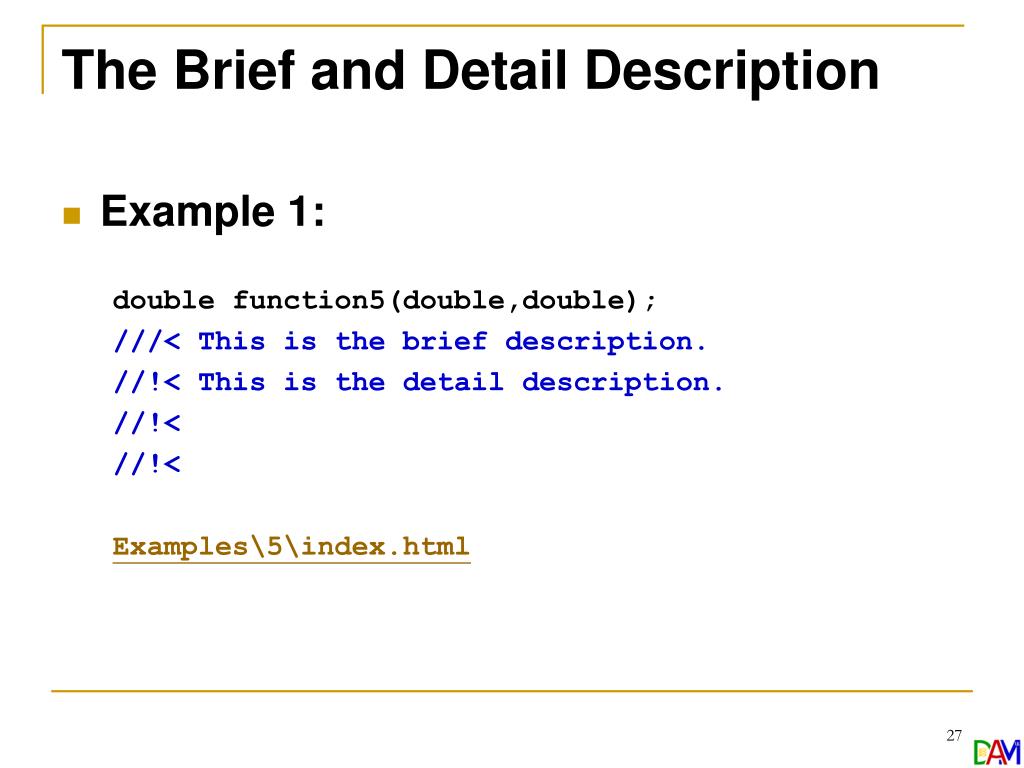

  27. The Brief and Detail Description • Example 1: double function5(double,double); ///< This is the brief description. //!< This is the detail description. //!< //!< Examples\5\index.html

  28. The Brief and Detail Description • Example 2: double function5(double,double); //!< This is the brief description. /*!< This is the detail description. * */ Examples\5\index.html

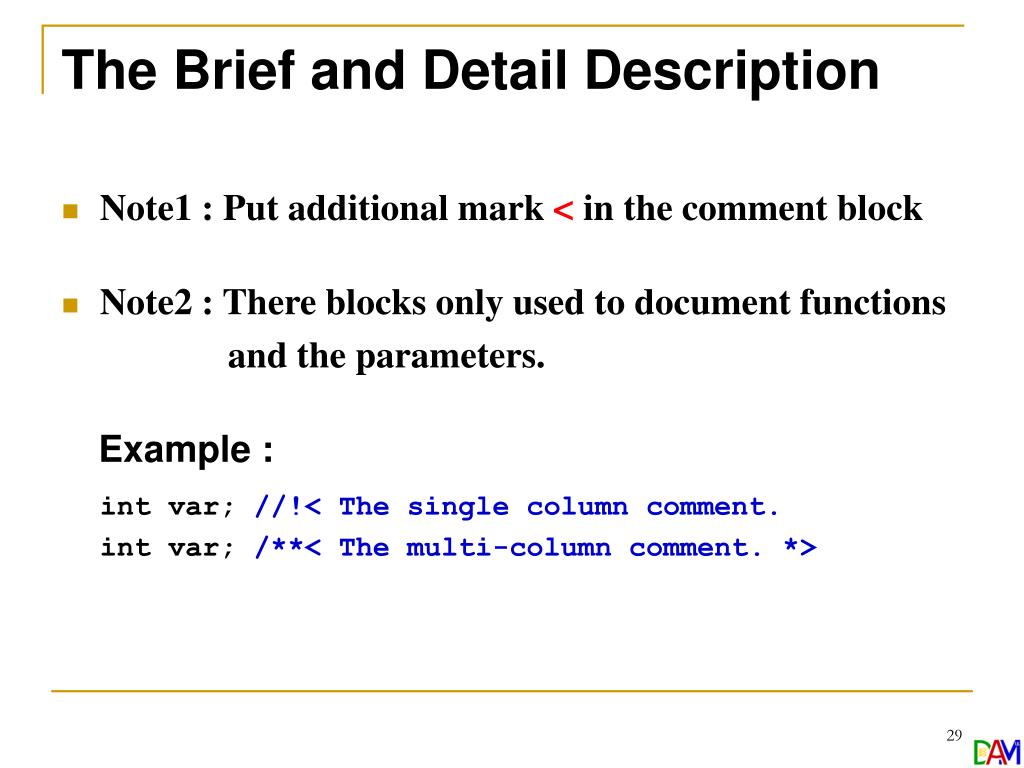

  29. The Brief and Detail Description • Note1 : Put additional mark < in the comment block • Note2 : There blocks only used to document functions and the parameters. Example : int var; //!< The single column comment. int var; /**< The multi-column comment. *>

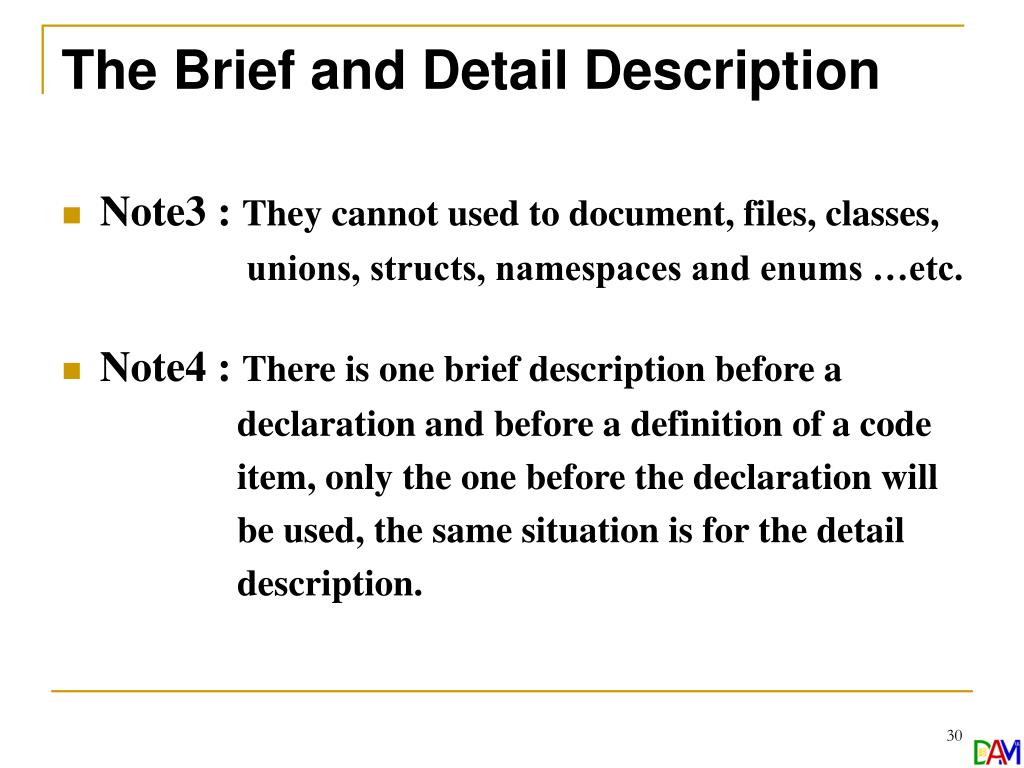

  30. The Brief and Detail Description • Note3 : They cannot used to document, files, classes, unions, structs, namespaces and enums …etc. • Note4 : There is one brief description before a declaration and before a definition of a code item, only the one before the declaration will be used, the same situation is for the detail description.

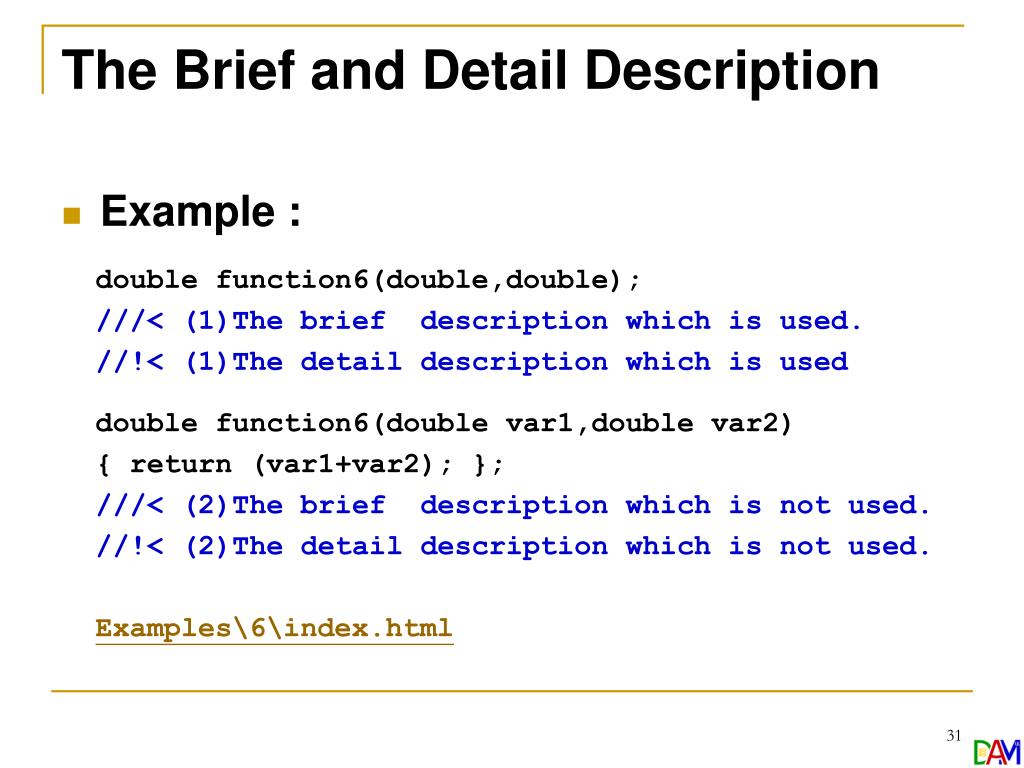

  31. The Brief and Detail Description • Example : double function6(double,double); ///< (1)The brief description which is used. //!< (1)The detail description which is used double function6(double var1,double var2) { return (var1+var2); }; ///< (2)The brief description which is not used. //!< (2)The detail description which is not used. Examples\6\index.html

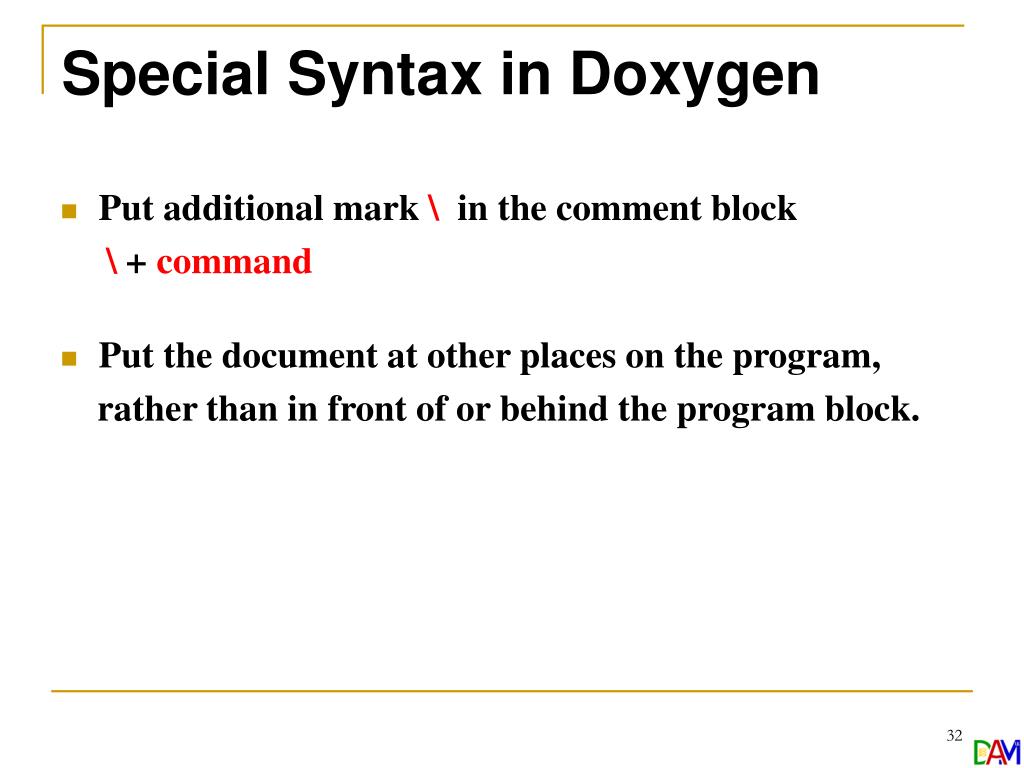

  32. Special Syntax in Doxygen • Put additional mark \ in the comment block \ + command • Put the document at other places on the program, rather than in front of or behind the program block.

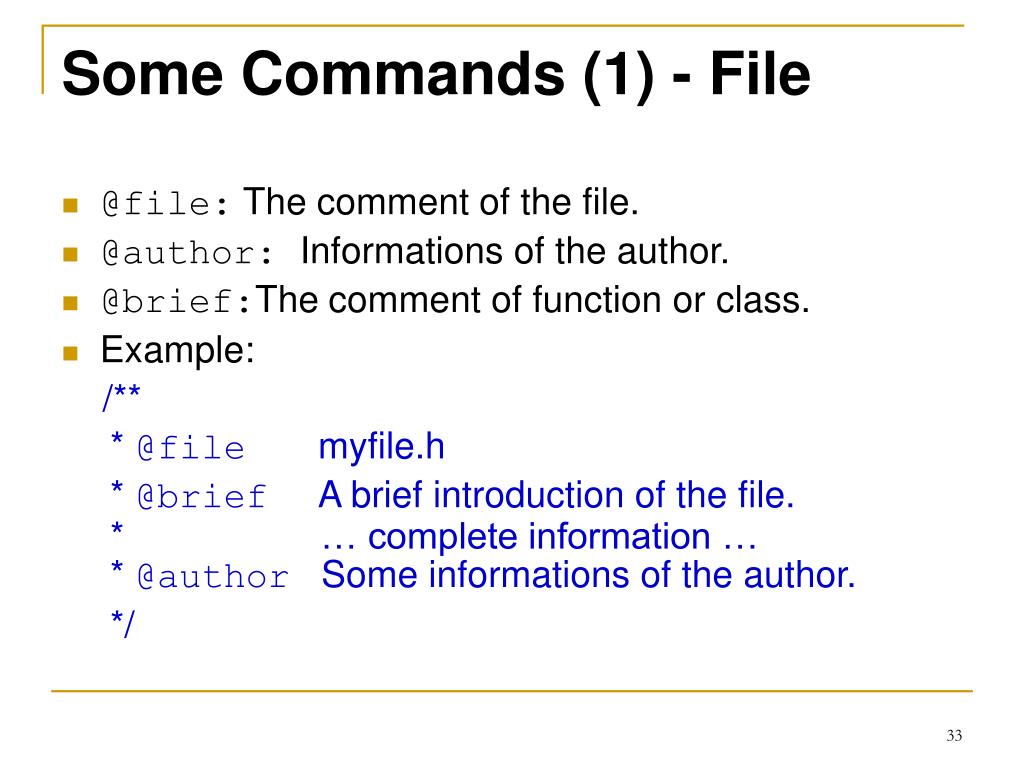

  33. Some Commands (1) - File • @file: The comment of the file. • @author: Informations of the author. • @brief:Thecomment of function or class. • Example:     /** * @file myfile.h  * @brief A brief introduction of the file.    *        … complete information …          * @author Some informations of the author. */

  34. Some Commands (2) - Function • @param: The comment of the parameter syntax : @param arg_namecomment of arg_name e.g.@param mtxA Return the Laplacian matrix called A

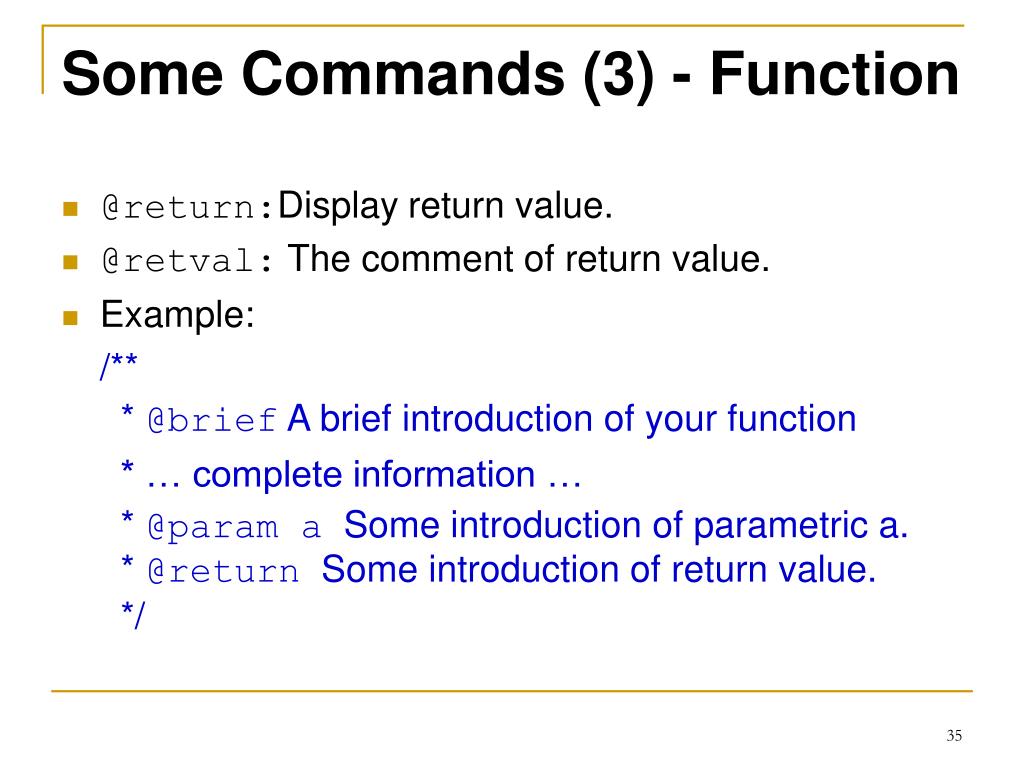

  35. Some Commands (3) - Function • @return:Displayreturn value. • @retval: The comment of return value. • Example: /**     * @brief A brief introduction of your function * … complete information … * @param a Some introduction of parametric a.    * @return Some introduction of return value.  */

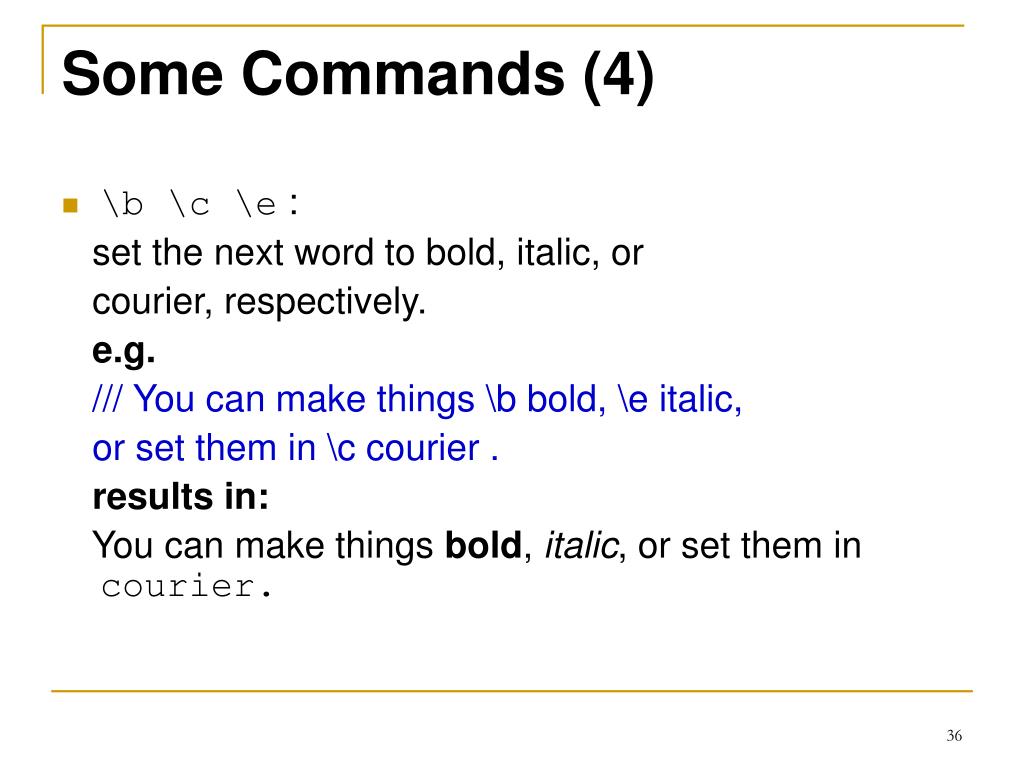

  36. Some Commands (4) • \b \c \e : set the next word to bold, italic, or courier, respectively. e.g. /// You can make things \b bold, \e italic, or set them in \c courier . results in:   You can make things bold, italic, or set them in courier.

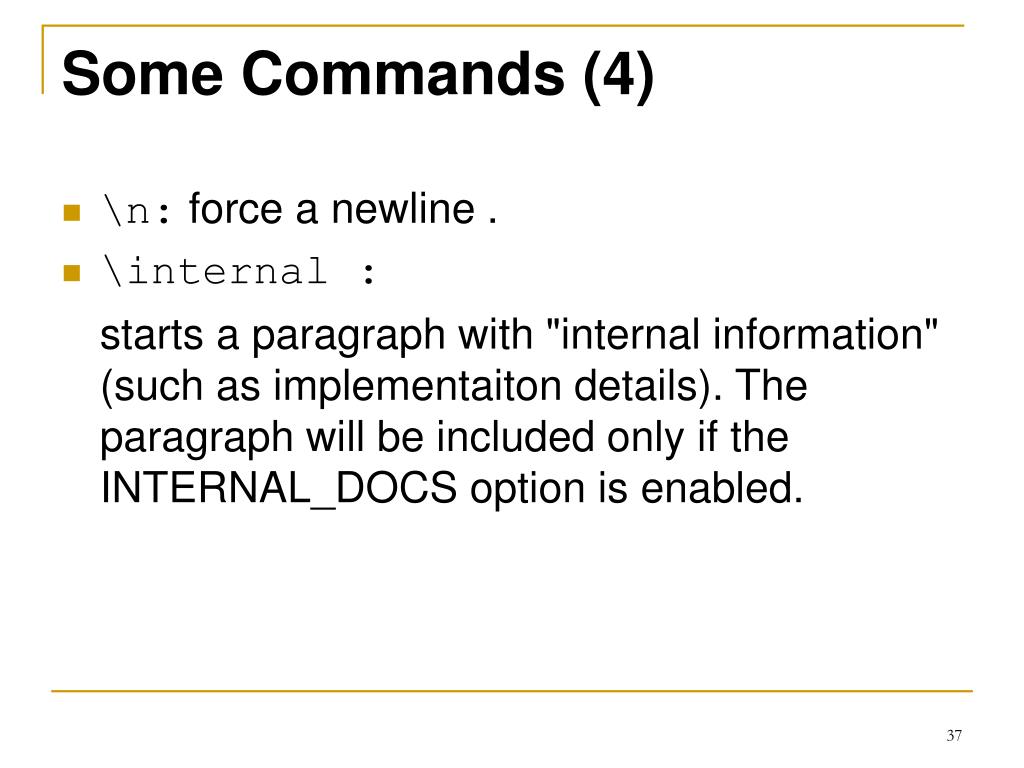

  37. Some Commands (4) • \n: force a newline . • \internal : starts a paragraph with "internal information" (such as implementaiton details). The paragraph will be included only if the INTERNAL_DOCS option is enabled.

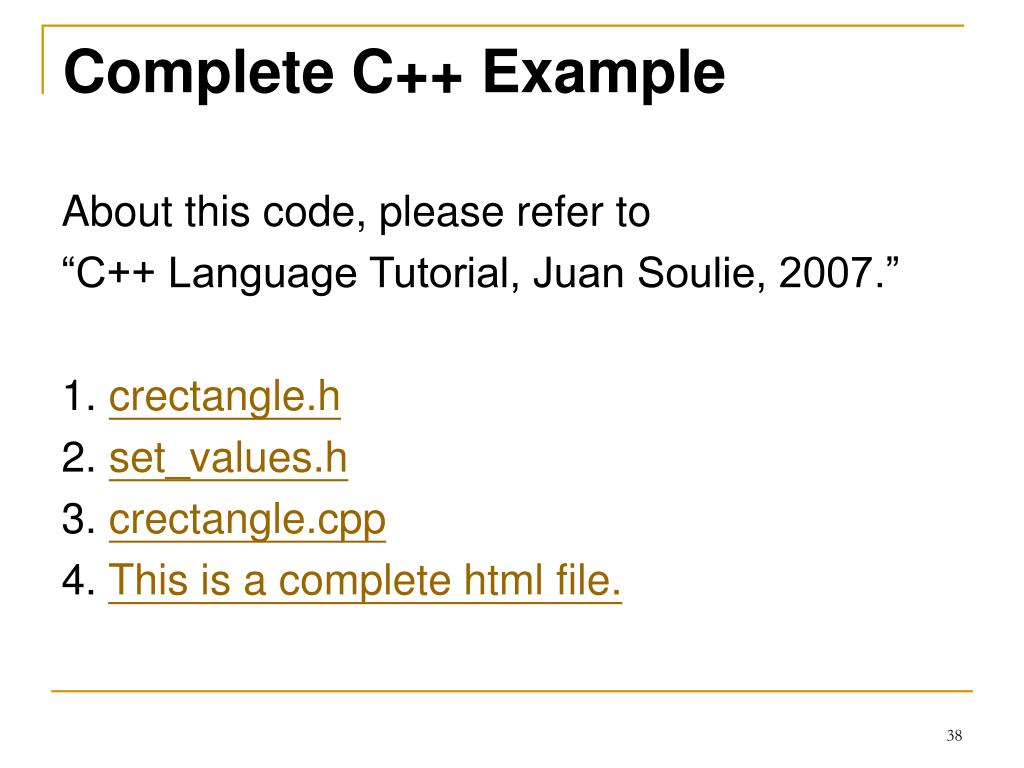

  38. Complete C++ Example About this code, please refer to “C++ Language Tutorial, Juan Soulie, 2007.” 1. crectangle.h 2. set_values.h 3. crectangle.cpp 4. This is a complete html file.

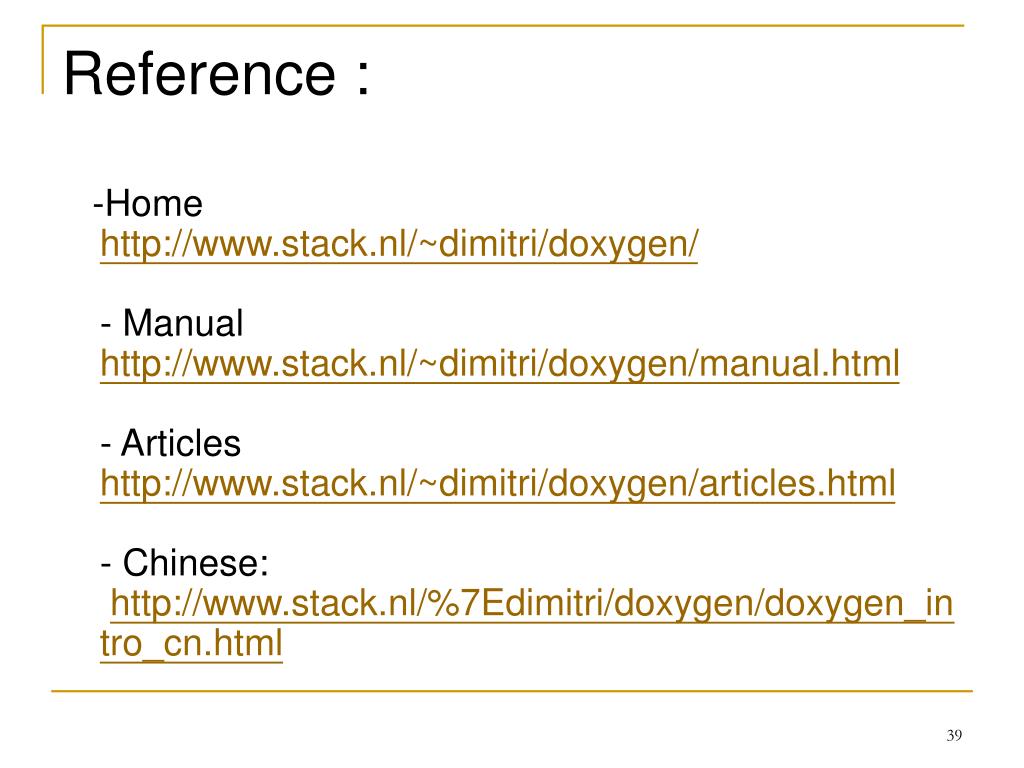

  39. Reference : -Home http://www.stack.nl/~dimitri/doxygen/- Manual http://www.stack.nl/~dimitri/doxygen/manual.html- Articles http://www.stack.nl/~dimitri/doxygen/articles.html- Chinese: http://www.stack.nl/%7Edimitri/doxygen/doxygen_in tro_cn.html
