  1. 4-Port 10/100/1000Mbps + 4G TP/SFP Combo Managed Industrial Switch with Wide Operating Temperature (-40 ~ 75°C) IGS-8044MT

  2. Presentation Outline • Product Overview • Product Benefits • Product Features • Application • Comparison • Appendix

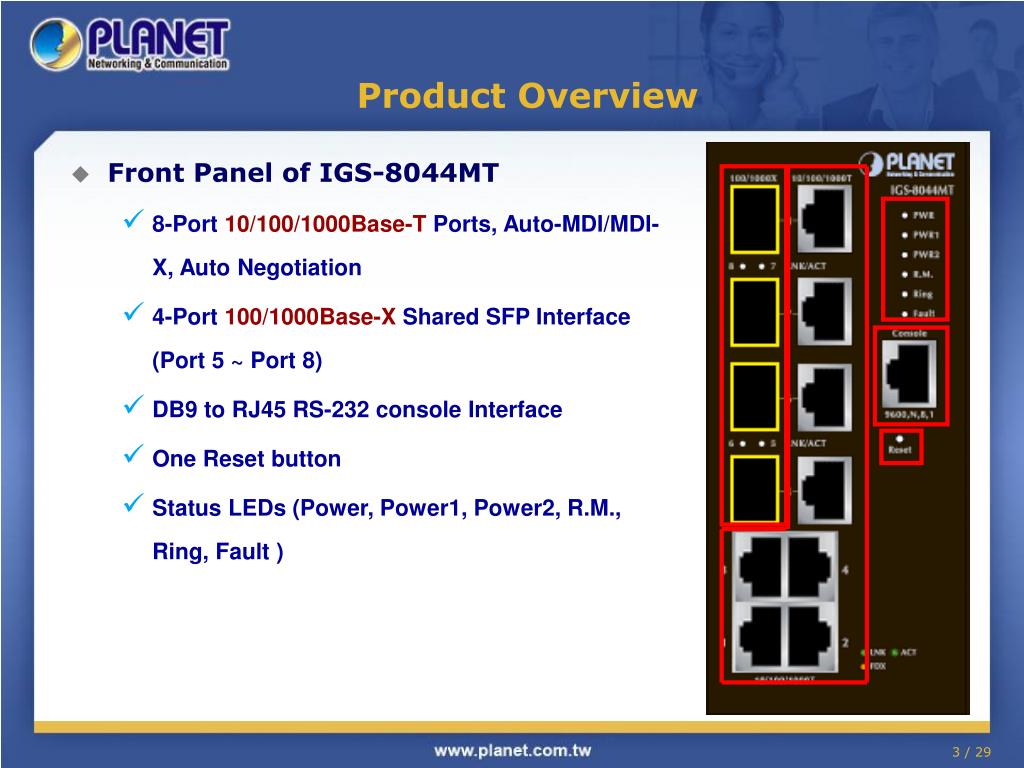

  3. Product Overview • Front Panel of IGS-8044MT • 8-Port 10/100/1000Base-T Ports, Auto-MDI/MDI-X, Auto Negotiation • 4-Port 100/1000Base-X Shared SFP Interface (Port 5 ~ Port 8) • DB9 to RJ45 RS-232 console Interface • One Reset button • Status LEDs (Power, Power1, Power2, R.M., Ring, Fault )

  4. Product Overview • Rear Panel of IGS-8044MT • 12V-48V DC, redundant power Input • Grounding screw • Rack-mount kit screw hole • DIN-Rail Kit

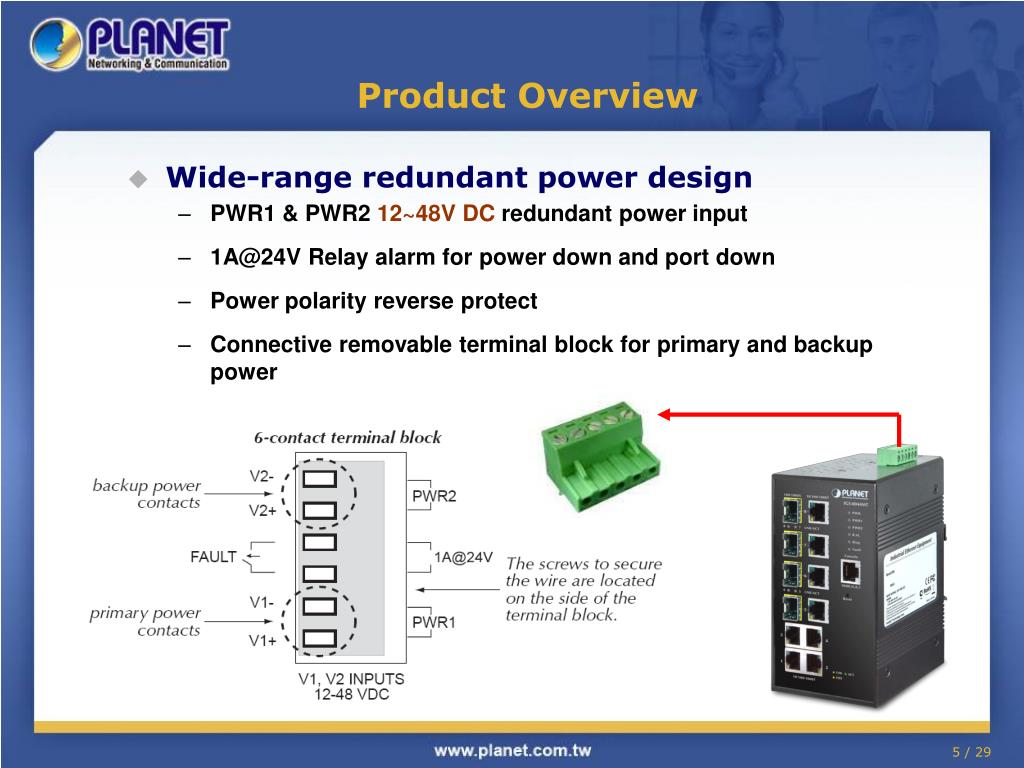

  5. Product Overview • Wide-range redundant power design • PWR1 & PWR2 12~48VDC redundant power input • 1A@24V Relay alarm for power down and port down • Power polarity reverse protect • Connective removable terminal block for primary and backup power

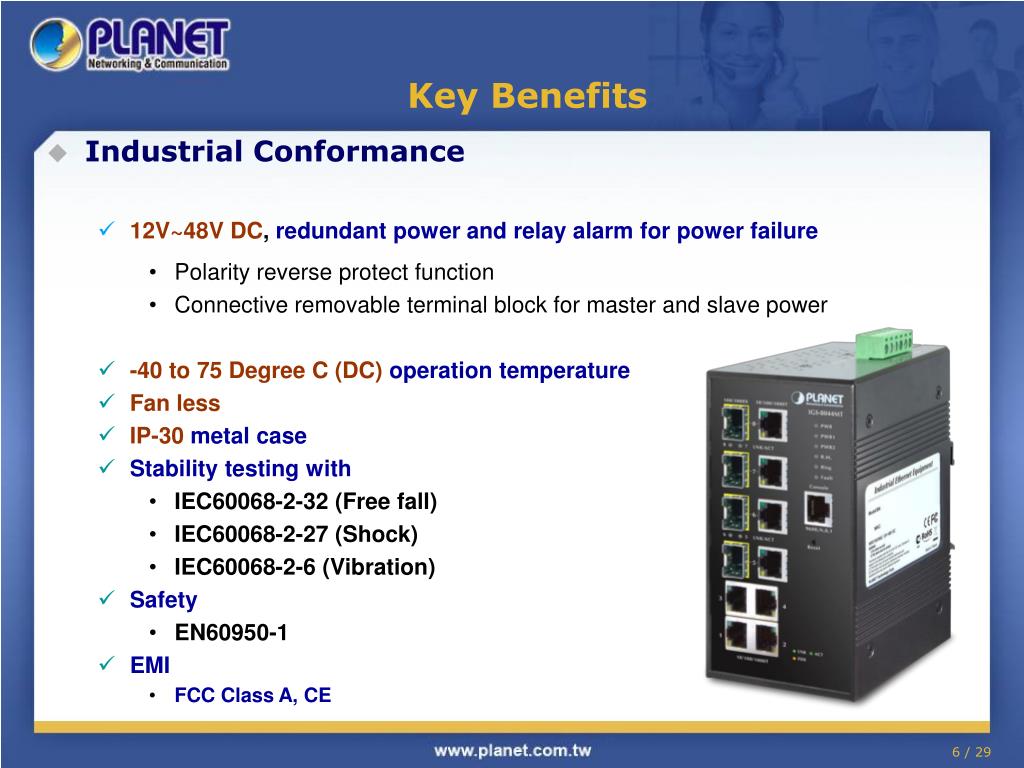

  6. Key Benefits • Industrial Conformance • 12V~48V DC, redundant power and relay alarm for power failure • Polarity reverse protect function • Connective removable terminal block for master and slave power • -40 to 75 Degree C (DC) operation temperature • Fan less • IP-30metal case • Stability testing with • IEC60068-2-32 (Free fall) • IEC60068-2-27 (Shock) • IEC60068-2-6 (Vibration) • Safety • EN60950-1 • EMI • FCC Class A, CE

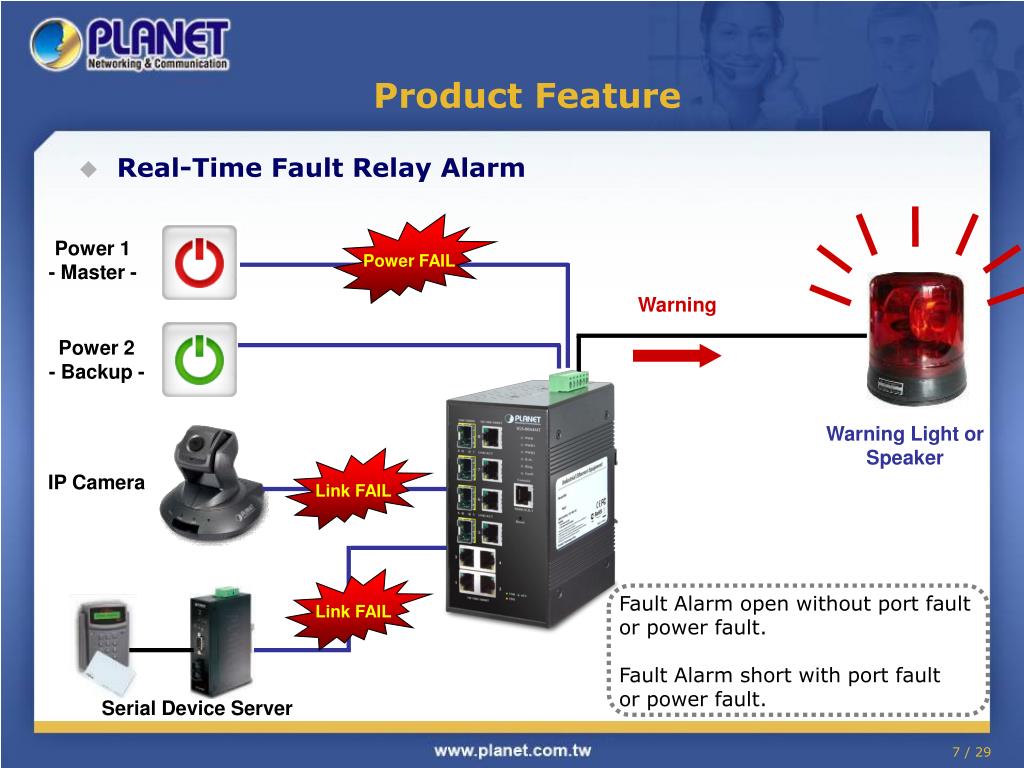

  7. Warning Fault Alarm open without port fault or power fault. Fault Alarm short with port fault or power fault. Product Feature • Real-Time Fault Relay Alarm Power FAIL Power 1 - Master - Power 2 - Backup - Warning Light or Speaker Link FAIL IP Camera Link FAIL Serial Device Server

  8. DIN-Rail Installation Wall Mount Installation Product Feature • DIN rail and wall mount design

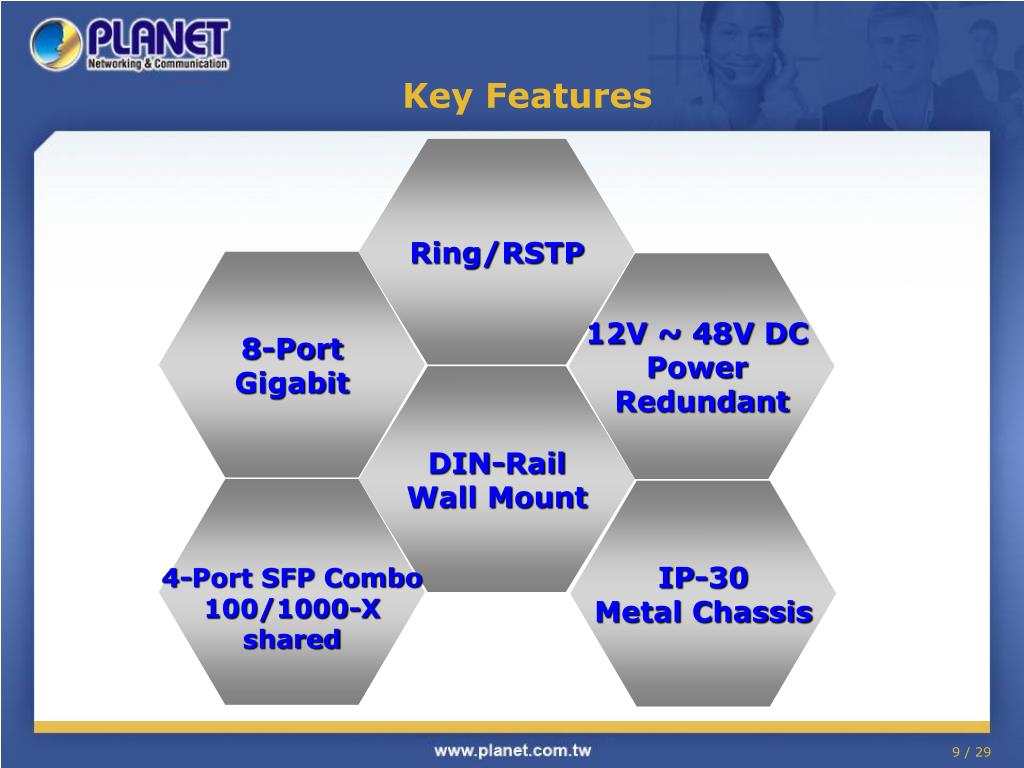

  9. Key Features Ring/RSTP 8-PortGigabit 12V ~ 48V DC Power Redundant DIN-Rail Wall Mount 4-Port SFP Combo 100/1000-X shared IP-30 Metal Chassis

  10. Product Features • Hardware • 8-Port 10/100/1000Mbps RJ45 interface • 4-Port 100/1000Mbps SFP shared mini-GBIC slot • IndustrialIP-30 level chassis • RSTP and Redundant Ring Support (<20ms recovery time) • Fault Alarm relay (Power and Port Alarm) • Fan less design deliver a quite operation • Redundant 12V ~ 48VDC power input • -40 ~ 75 Degree Cextended temperature • DIN-railand Wall-mountSupport

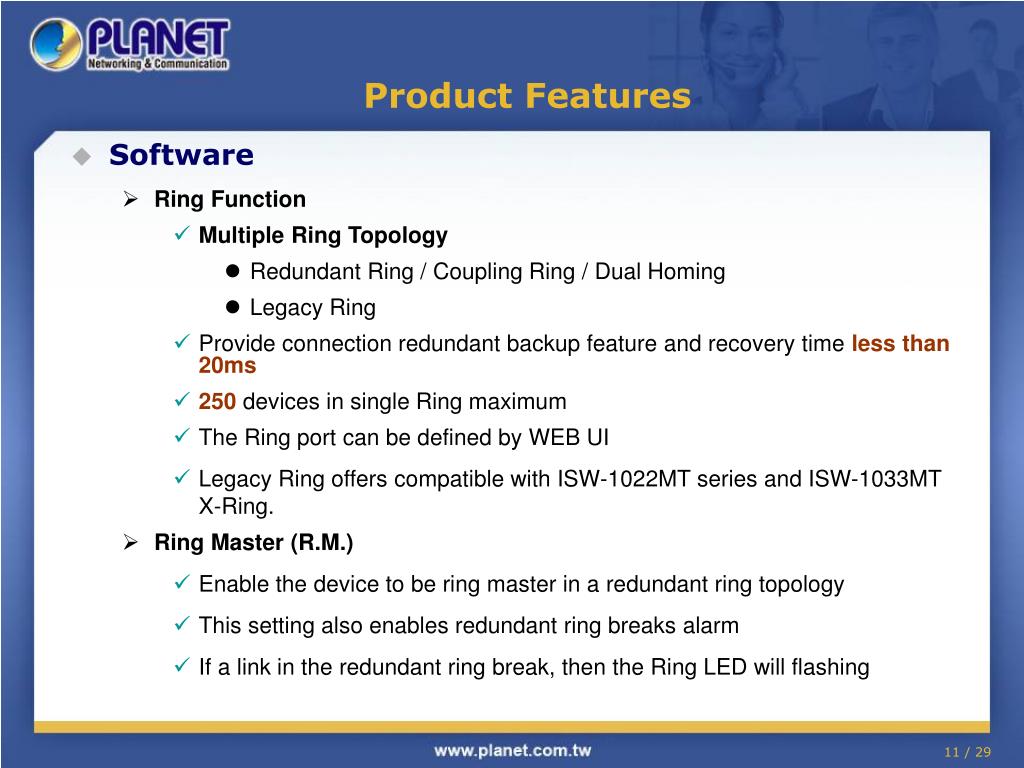

  11. Product Features • Software • Ring Function • Multiple Ring Topology • Redundant Ring / Coupling Ring / Dual Homing • Legacy Ring • Provide connection redundant backup feature and recovery time less than 20ms • 250 devices in single Ring maximum • The Ring port can be defined by WEB UI • Legacy Ring offers compatible with ISW-1022MT series and ISW-1033MT X-Ring. • Ring Master (R.M.) • Enable the device to be ring master in a redundant ring topology • This setting also enables redundant ring breaks alarm • If a link in the redundant ring break, then the Ring LED will flashing

  12. Product Feature – Redundant Ring • Redundant Ring Topology Backup Path Serial Device Server Ring Group Recovery Time < 20ms Link FAIL

  13. Product Feature – Coupling Ring • Coupling Ring Topology Coupling Ring Master Coupling Ring Slave Primary Path Link FAIL Link FAIL Ring Group B Ring Group A Recovery Time < 20ms Recovery Time < 20ms Backup Path

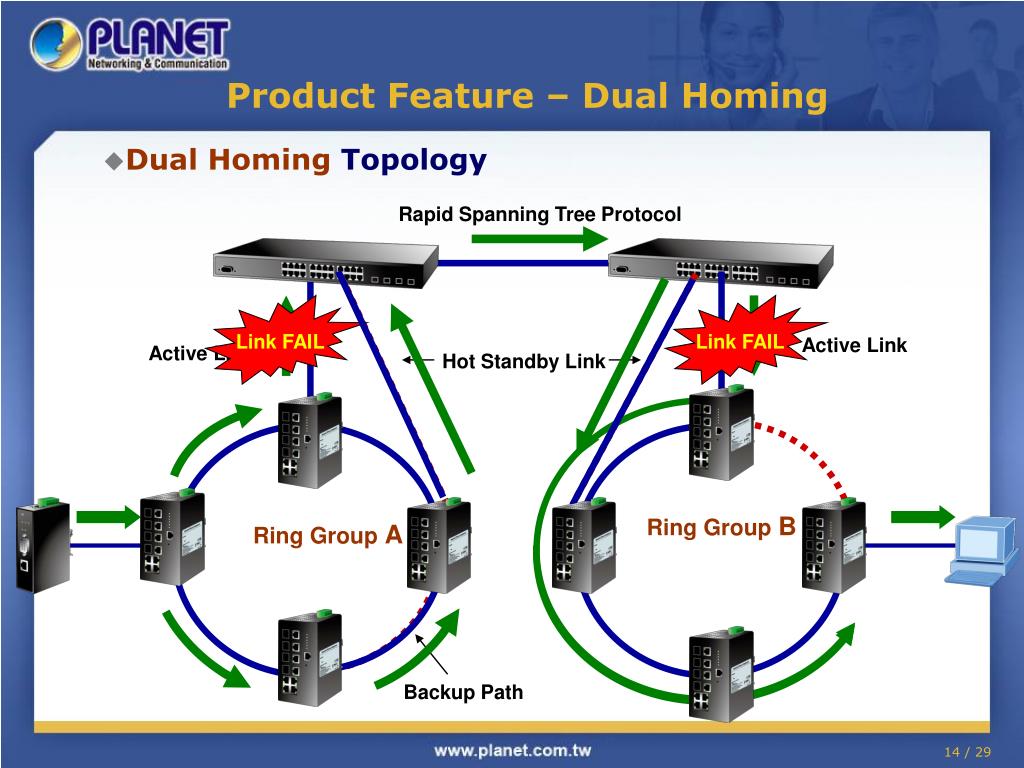

  14. Product Feature – Dual Homing • Dual Homing Topology Rapid Spanning Tree Protocol Link FAIL Link FAIL Active Link Active Link Hot Standby Link Ring Group B Ring Group A Backup Path

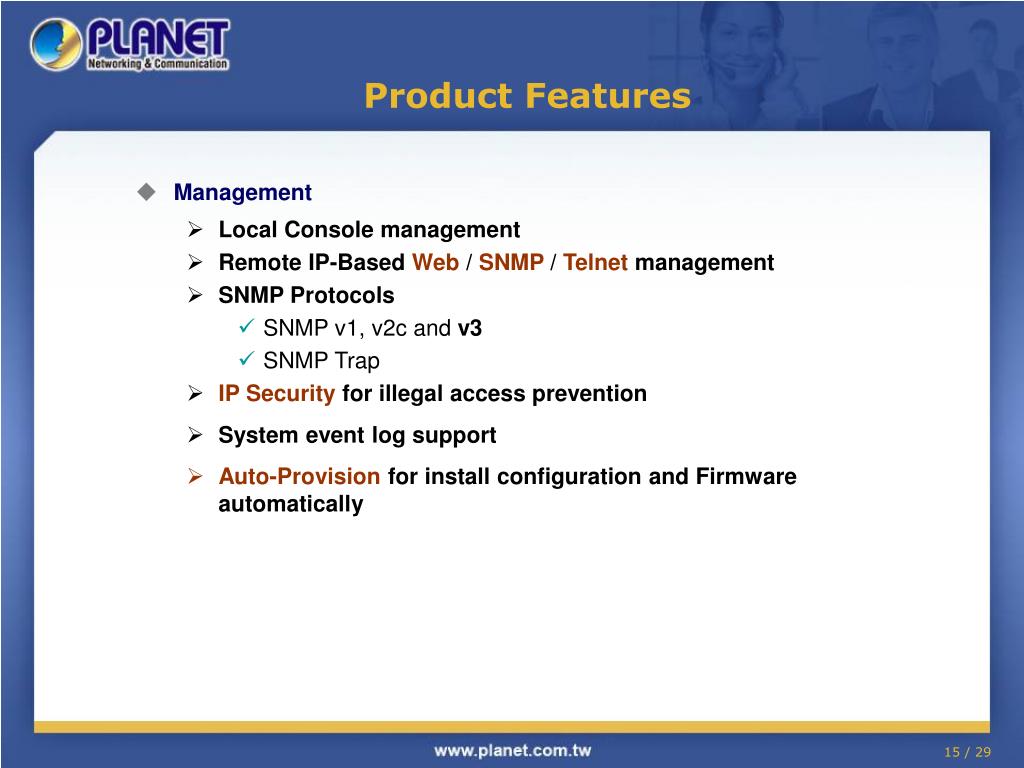

  15. Product Features • Management • Local Console management • Remote IP-Based Web / SNMP / Telnet management • SNMP Protocols • SNMP v1, v2c and v3 • SNMP Trap • IP Security for illegal access prevention • System event log support • Auto-Provision for install configuration and Firmware automatically

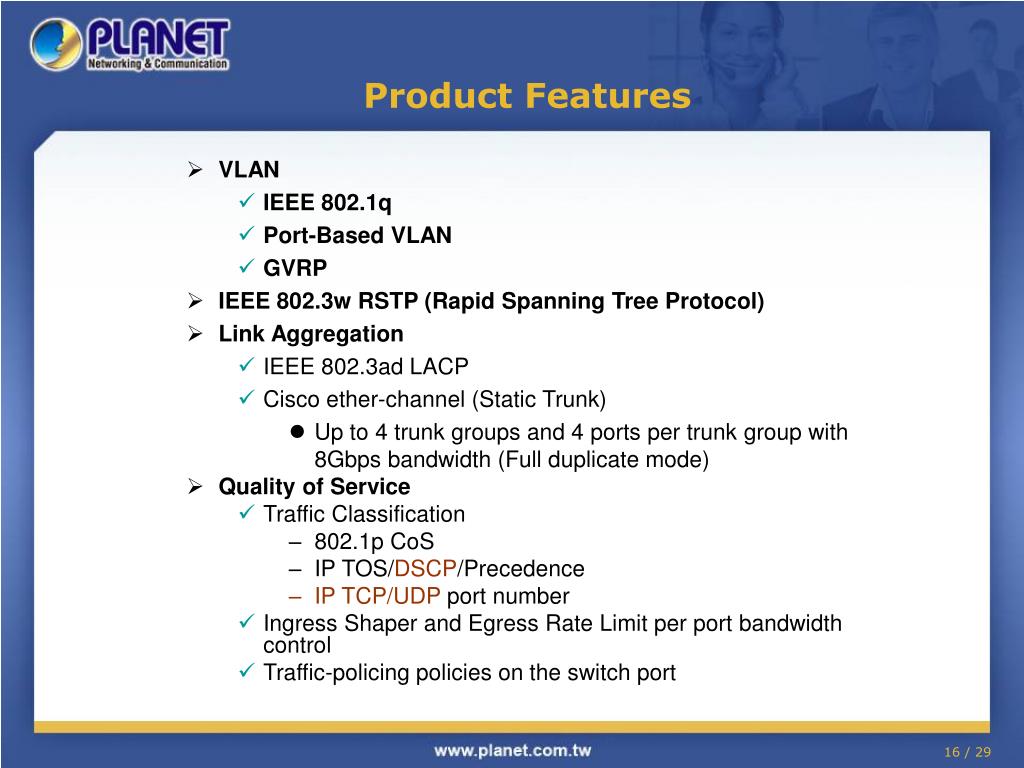

  16. Product Features • VLAN • IEEE 802.1q • Port-Based VLAN • GVRP • IEEE 802.3w RSTP (Rapid Spanning Tree Protocol) • Link Aggregation • IEEE 802.3ad LACP • Cisco ether-channel (Static Trunk) • Up to 4 trunk groups and 4 ports per trunk group with 8Gbps bandwidth (Full duplicate mode) • Quality of Service • Traffic Classification • 802.1p CoS • IP TOS/DSCP/Precedence • IP TCP/UDP port number • Ingress Shaper and Egress Rate Limit per port bandwidth control • Traffic-policing policies on the switch port

  17. Product Features • Multicast • Supports IGMP Snooping v2 and v3 • Query mode Support • Multicast Filtering • Security • Network Access Authentication • IEEE 802.1x Port-Based • RADIUS, port-based authentication • Static MAC • MAC Blacklist

  18. Application - Heavy Industry • Harden Environment Core Switch Application • Offers full port Gigabit speed. • Operating under -40 ~ 75 Degree C temperature environment • 4-Port 100/1000Mbps dual speed shared SFP interfaces in the IGS-8044MT, offers flexible Gigabit TP or fiber connection for uplink to public server groups or Backbone network.

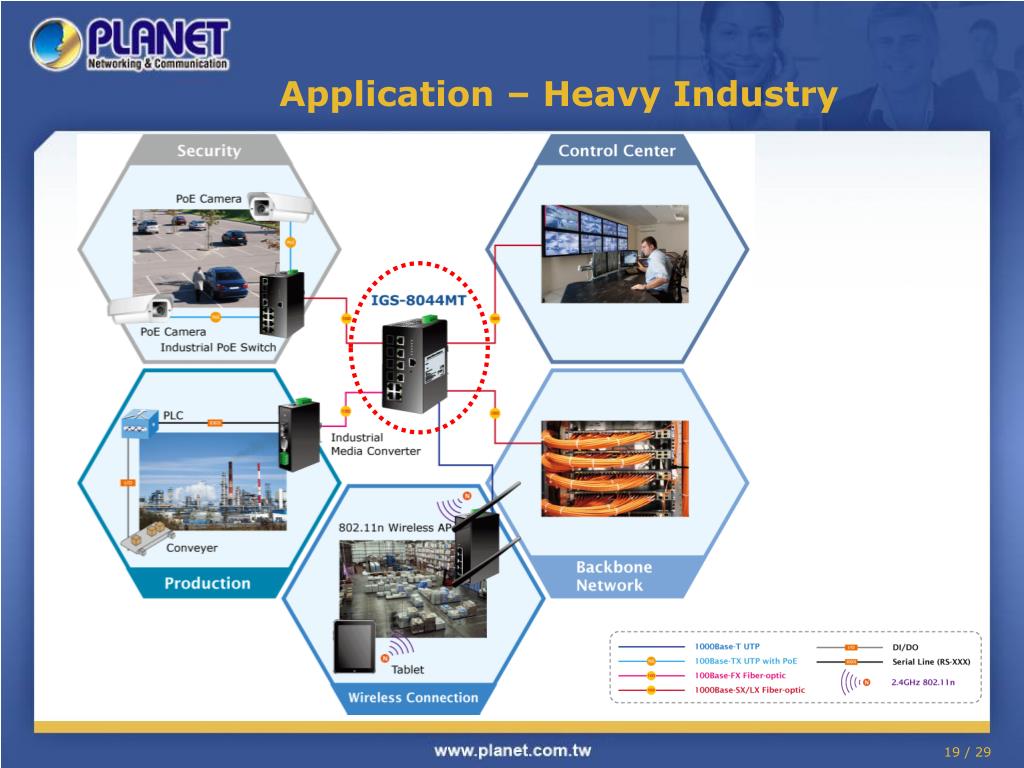

  19. Application – Heavy Industry

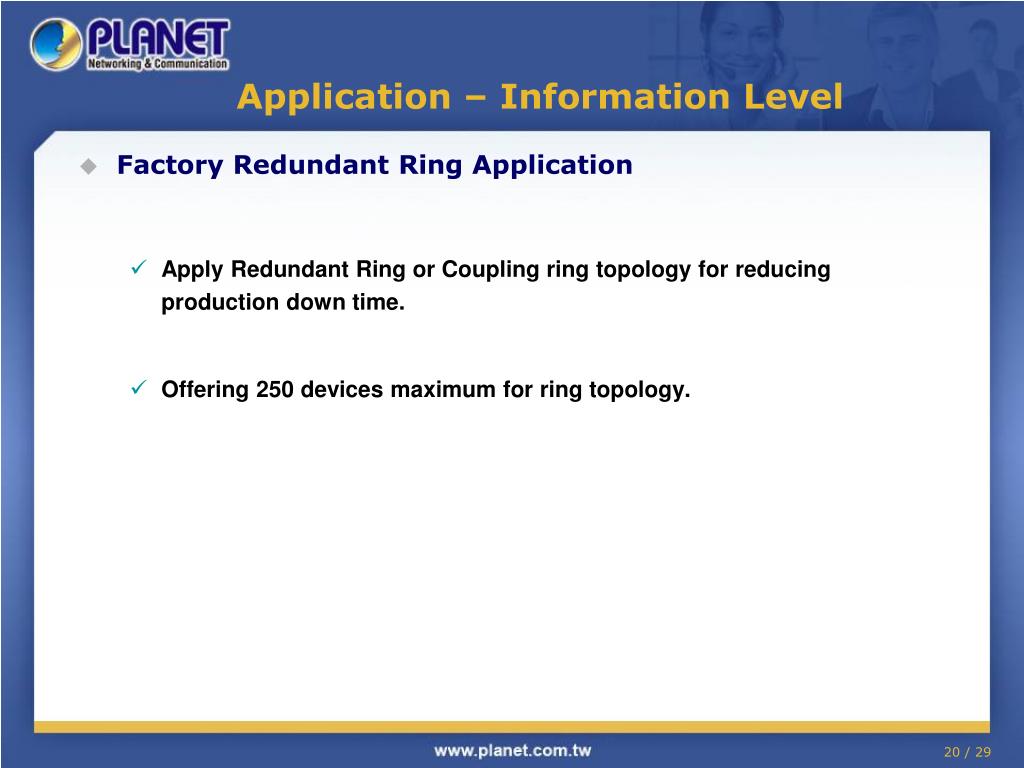

  20. Application – Information Level • Factory Redundant Ring Application • Apply Redundant Ring or Coupling ring topology for reducing production down time. • Offering 250 devices maximum for ring topology.

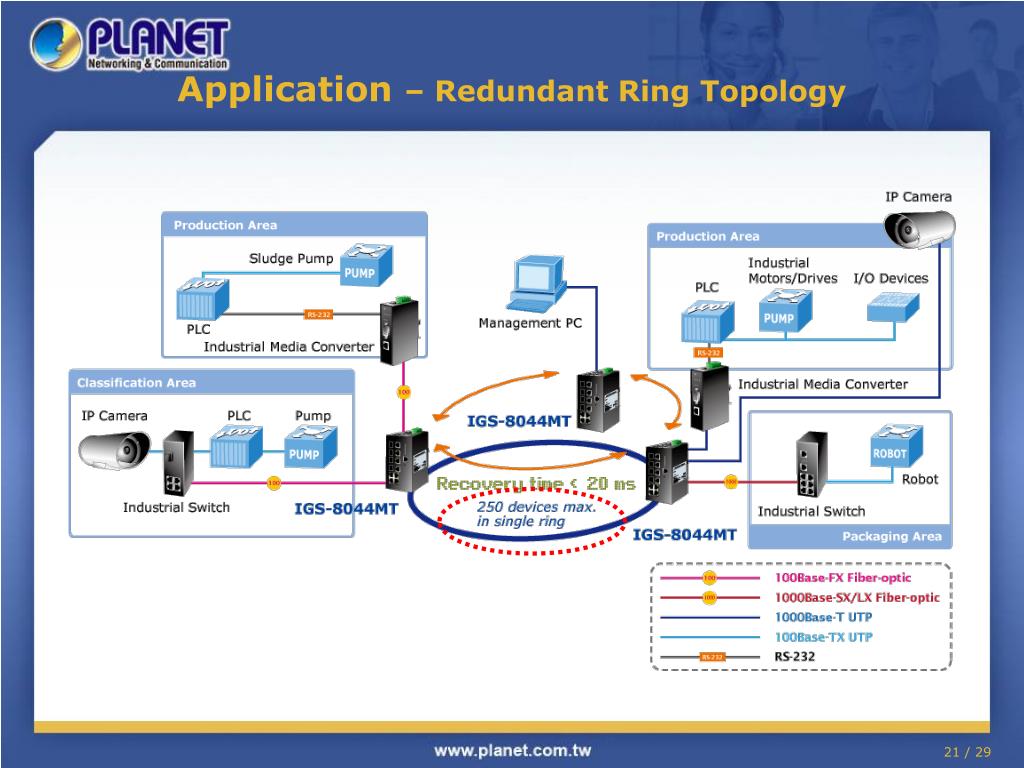

  21. Application – Redundant Ring Topology

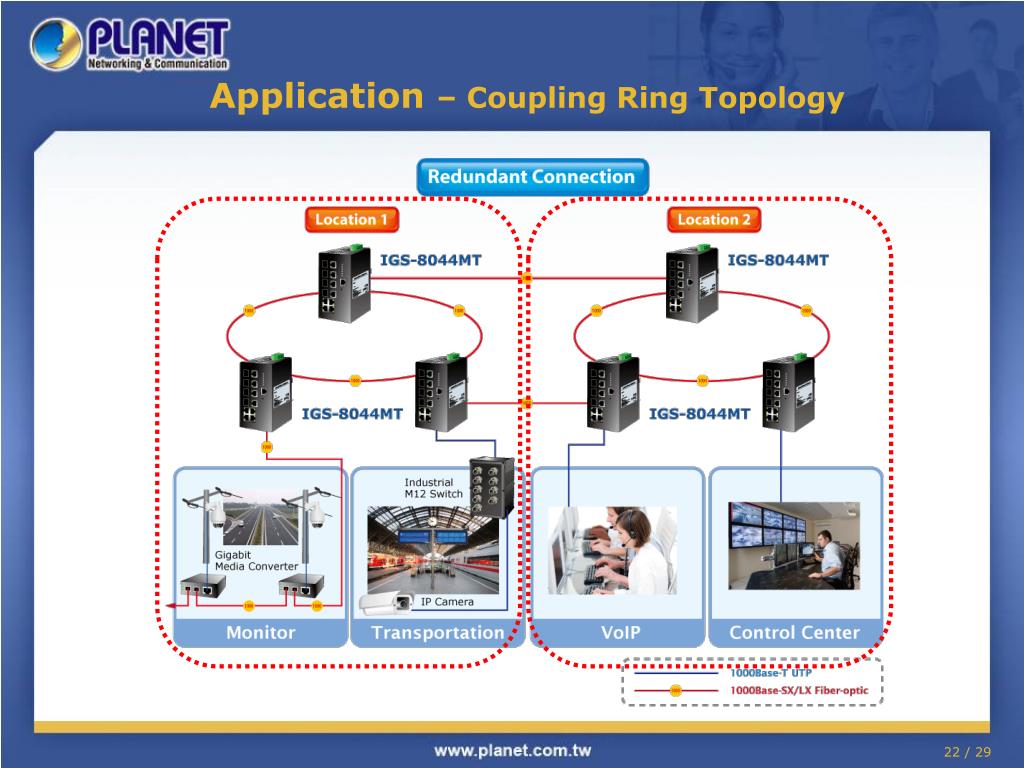

  22. Application – Coupling Ring Topology

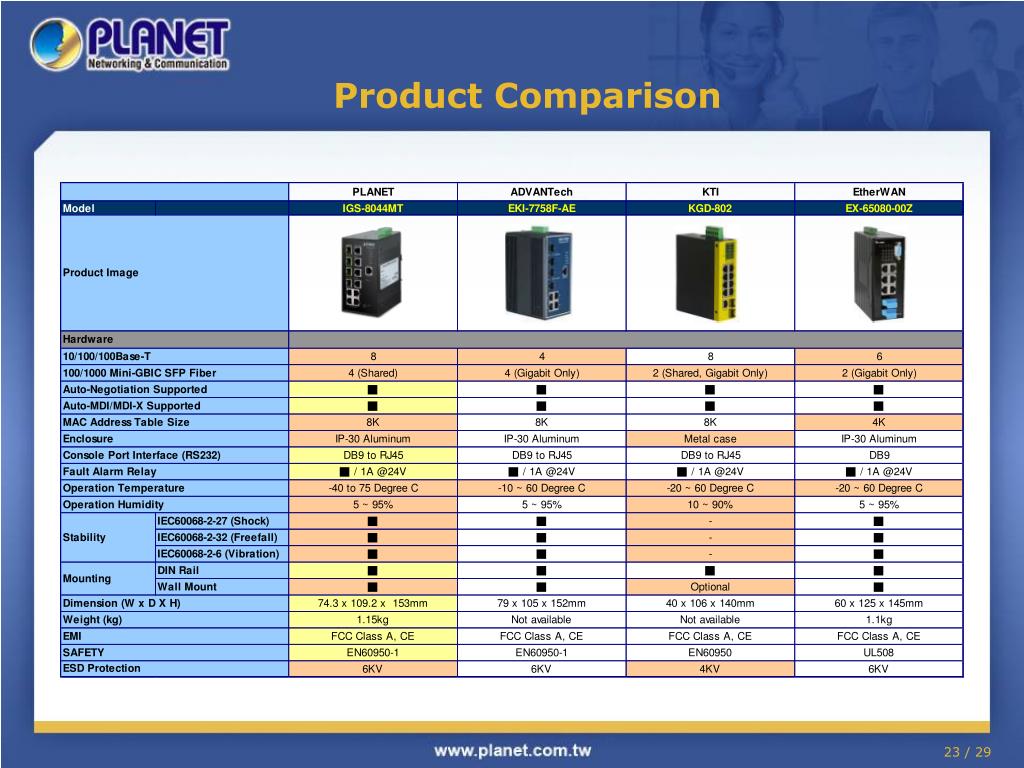

  23. Product Comparison

  24. Product Comparison

  25. Product Comparison

  26. Appendix - Sales Target • Target Markets • Government / Campus. • ISP / TELECOM / Service Provider. • System Integrator. • Hash Environment, such as High-Way, Colder Country, Heavy Industry etc. • Target Customers • Who need extended temperature operating -40 to 75 Degree C. • Who need IP code as IP-30 to deploy on hash environment . • Who need full management and highly security feature, such as SSL , SSH. • Who ever been bought Industrial Switch, Industrial PoE switch or Industrial media, such as ISW-1022MT, ISW-1022MPT, ISW-1033MT, ICS-210x, IGT-90x, ISW-514Px / ISW-504Px, IGSW-24040T.

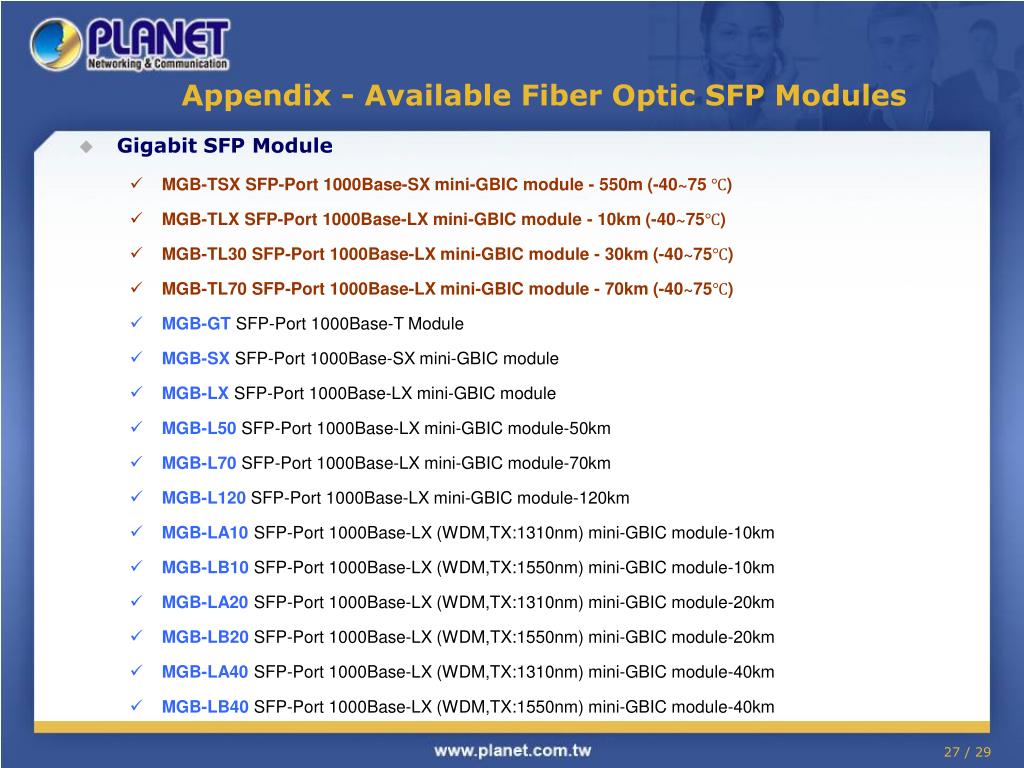

  27. Appendix - Available Fiber Optic SFP Modules • Gigabit SFP Module • MGB-TSX SFP-Port 1000Base-SX mini-GBIC module - 550m (-40~75 ℃) • MGB-TLX SFP-Port 1000Base-LX mini-GBIC module - 10km (-40~75℃) • MGB-TL30 SFP-Port 1000Base-LX mini-GBIC module - 30km (-40~75℃) • MGB-TL70 SFP-Port 1000Base-LX mini-GBIC module - 70km (-40~75℃) • MGB-GTSFP-Port 1000Base-T Module • MGB-SXSFP-Port 1000Base-SX mini-GBIC module • MGB-LX SFP-Port 1000Base-LX mini-GBIC module • MGB-L50 SFP-Port 1000Base-LX mini-GBIC module-50km • MGB-L70 SFP-Port 1000Base-LX mini-GBIC module-70km • MGB-L120SFP-Port 1000Base-LX mini-GBIC module-120km • MGB-LA10SFP-Port 1000Base-LX (WDM,TX:1310nm) mini-GBIC module-10km • MGB-LB10SFP-Port 1000Base-LX (WDM,TX:1550nm) mini-GBIC module-10km • MGB-LA20SFP-Port 1000Base-LX (WDM,TX:1310nm) mini-GBIC module-20km • MGB-LB20SFP-Port 1000Base-LX (WDM,TX:1550nm) mini-GBIC module-20km • MGB-LA40SFP-Port 1000Base-LX (WDM,TX:1310nm) mini-GBIC module-40km • MGB-LB40SFP-Port 1000Base-LX (WDM,TX:1550nm) mini-GBIC module-40km

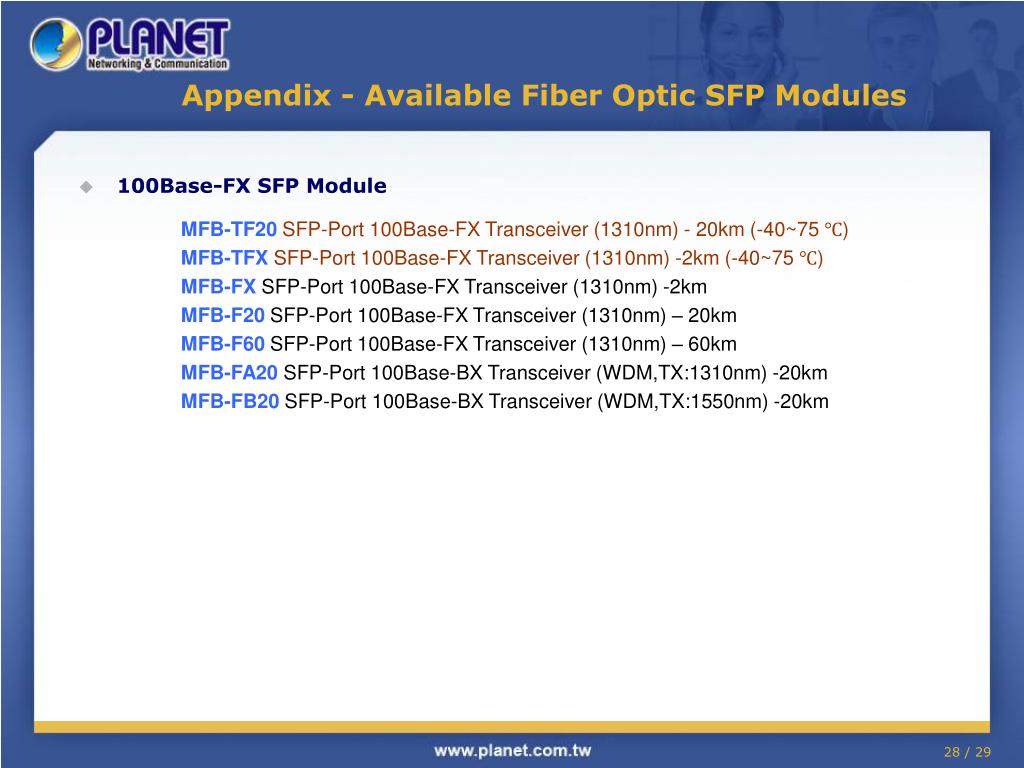

  28. Appendix - Available Fiber Optic SFP Modules • 100Base-FX SFP Module • MFB-TF20 SFP-Port 100Base-FX Transceiver (1310nm) - 20km (-40~75 ℃) • MFB-TFX SFP-Port 100Base-FX Transceiver (1310nm) -2km (-40~75 ℃) • MFB-FX SFP-Port 100Base-FX Transceiver (1310nm) -2km • MFB-F20SFP-Port 100Base-FX Transceiver (1310nm) – 20km • MFB-F60 SFP-Port 100Base-FX Transceiver (1310nm) – 60km • MFB-FA20 SFP-Port 100Base-BX Transceiver (WDM,TX:1310nm) -20km • MFB-FB20SFP-Port 100Base-BX Transceiver (WDM,TX:1550nm) -20km
