Mineral identification

Mineral Identification

8th Grade Earth Science

Dalton, Henry, O’Rourke


Physical properties

Physical properties

  • To identify unknown minerals, scientists test various physical properties of the minerals using lots of different tools.


Mineral identification kit

Mineral Identification Kit


Color

Color

  • Is the mineral light colored or dark colored?

  • (The actual color of the mineral is important, but is not a characteristic that alone can be used to identify a mineral. Several minerals are the same color.)


Luster

Luster

  • How does the mineral reflect light?

  • Metallic Luster (Reflects light like a piece of metal)


Luster cont

Luster (cont.)

  • Non-Metallic Luster (Has a dull, pearly, silky, or glassy surface that does not reflect light.)

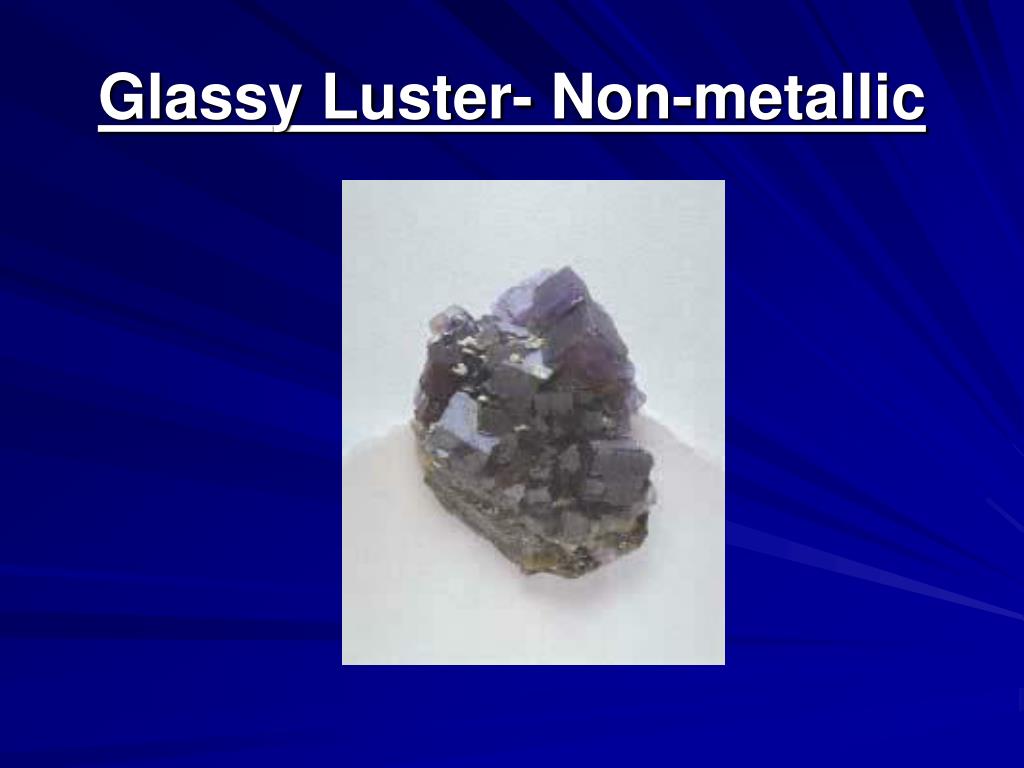

Glassy luster non metallic

Glassy Luster- Non-metallic

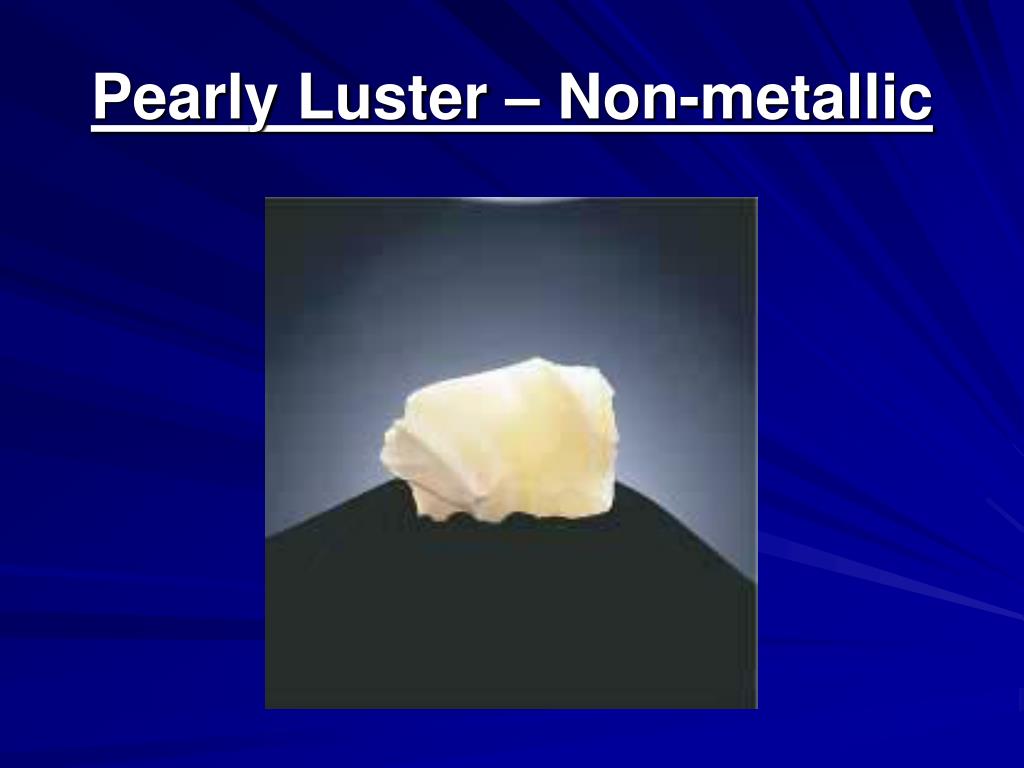

Pearly luster non metallic

Pearly Luster – Non-metallic


Hardness

Hardness

  • Since glass has a hardness of 5.5, if we first test the mineral to see if it will scratch glass, we can eliminate all minerals either above it or below it on the Moh’s hardness scale.


Hardness cont

After testing to see if the mineral will scratch glass, we can then test and determine the actual hardness of the mineral.

Hardness of common objects:

Fingernail- 2.5

Copper Penny- 3.5 (1981 or older)

Nail- 5.0

Glass- 5.5-6

Piece of steel- 6.5-7

(like the head of a geologist’s hammer)

Hardness (cont.)


Glass hardness plates

Glass hardness plates


Cleavage fracture

Cleavage/Fracture

  • Cleavage- The mineral breaks into layers along nice flat edges.

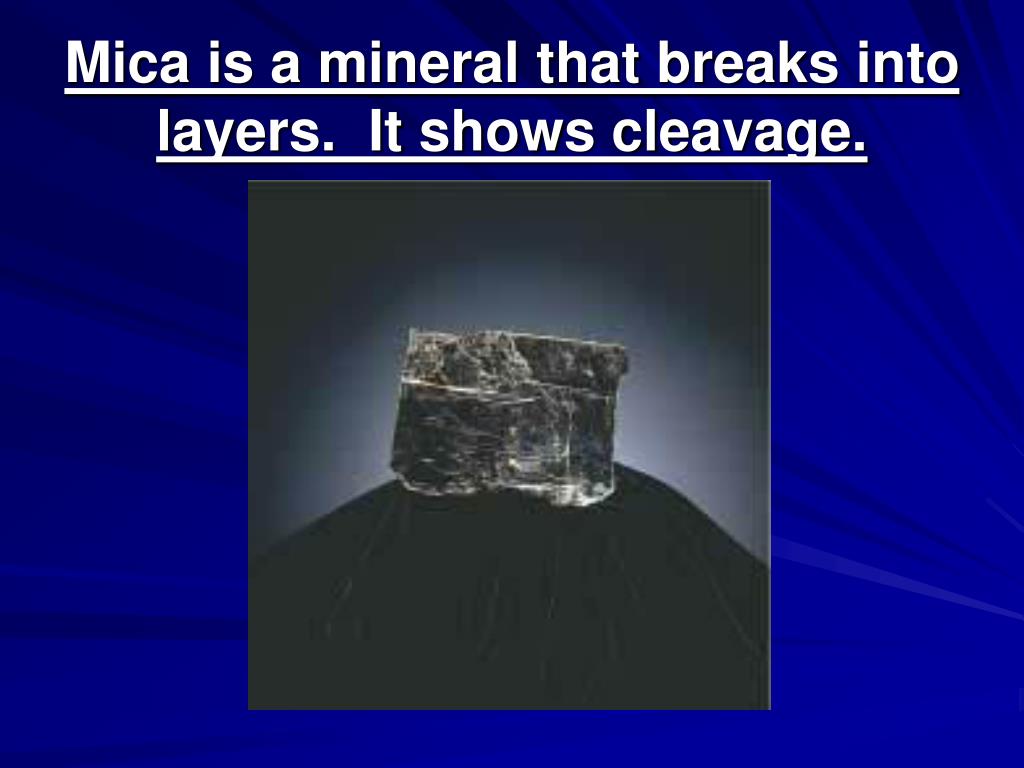

Mica is a mineral that breaks into layers it shows cleavage

Mica is a mineral that breaks into layers. It shows cleavage.


Cleavage fracture cont

Cleavage/Fracture (cont)

  • Cleavage occurs because the atomic bonds are weaker in that direction.

  • Remember: Covalent bonds are weaker than ionic bonds.


Cleavage fracture cont1

Cleavage/Fracture (Cont.)

  • Fracture- The mineral breaks with rough jagged edges.


Streak

Streak

  • Streak- colored powder left behind when a mineral is rubbed on an unglazed porcelain plate.

  • This is similar to a teacher writing on a chalkboard with a piece of chalk. The chalkboard is harder than the chalk, so pieces of the chalk are left behind and a “streak” is left on the chalkboard.

  • Minerals with a hardness of greater than seven will not leave a streak on an unglazed porcelain plate.


Streak plates are used to test the color of a minerals streak

Streak plates are used to test the color of a minerals streak.

  • The dark colored plate is used for mineral with light colored streak.

  • The white plate is used for minerals with dark colored streaks.


Density

Density

  • Density- Typically, we do not measure the actual density of a mineral sample in 8th grade science class, but density if a property used to identify minerals.

  • A simple HEFT test can be conducted to see if the mineral is more or less dense than typical objects of that size.

  • If you are going to calculate the actual density of the mineral, you would use the formula, Density= mass/volume.


Special properties

Special Properties

  • Special Properties- Some minerals have special properties that make them very easy to identify.


Magnetite is magnetic

Magnetite is magnetic.


Fluorite and calcite glow under an ultraviolet light

Fluorite and Calcite glow under an ultraviolet light.


Halite tastes like salt

Halite tastes like salt.


Sulfur smells like rotten eggs

Sulfur smells like rotten eggs.


Calcite fizzes when treated with hydrochloric acid chemical property

Calcite fizzes when treated with hydrochloric acid. (Chemical Property)
