Mineral identification

Mineral Identification


Mineral 1

Mineral #1


Mineral 11

Mineral #1

  • It will scratch a glass plate but not a streak plate.

  • It produces no streak.

  • Is the luster metallic or nonmetallic?

  • Look at the broken piece. Does it have cleavage or fracture?


Mineral 2

Mineral # 2


Mineral 21

Mineral # 2

  • You can easily scratch it with your fingernail.

  • It breaks into flat layers.

  • The color of its streak is white.

  • What kind of luster does it have?

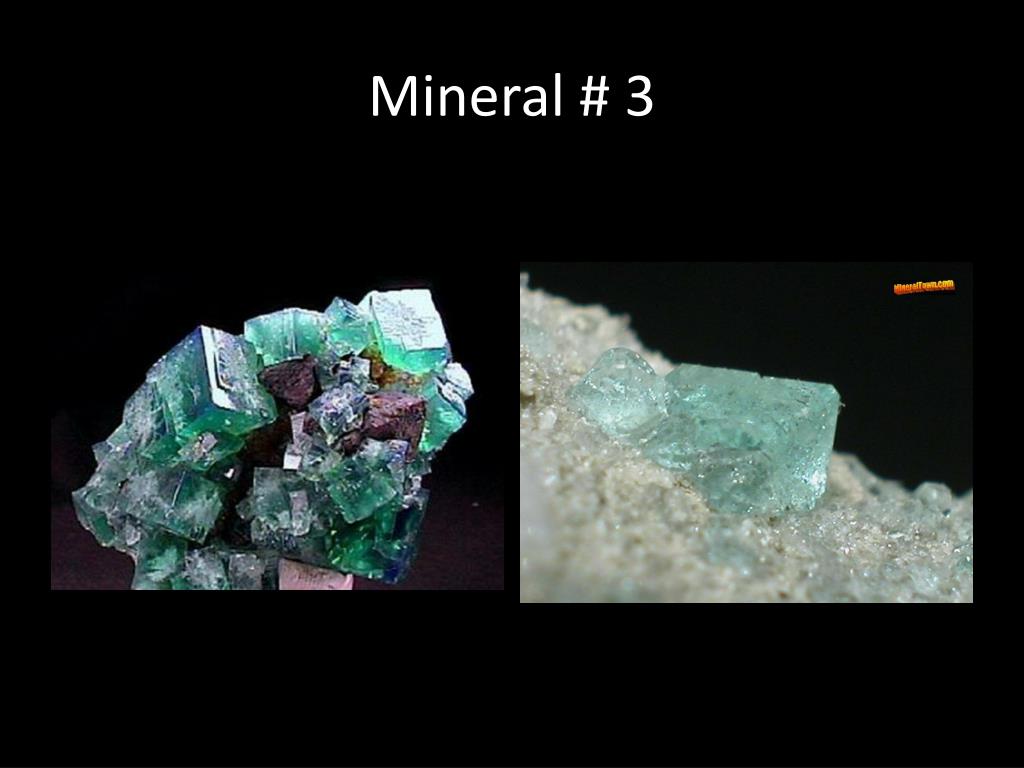

Mineral 3

Mineral # 3


Mineral 31

Mineral # 3

  • A copper penny will NOT scratch this mineral, but a steel nail will.

  • It’s streak is white.

  • Metallic or nonmetallic luster?

  • Cleavage or fracture? (see the cubes)


Mineral 4

Mineral # 4


Mineral 41

Mineral # 4

  • You can scratch this mineral with either a strong fingernail or a copper penny.

  • Its streak is gray.

  • Luster?

  • Cleavage or fracture? (see the cubes)

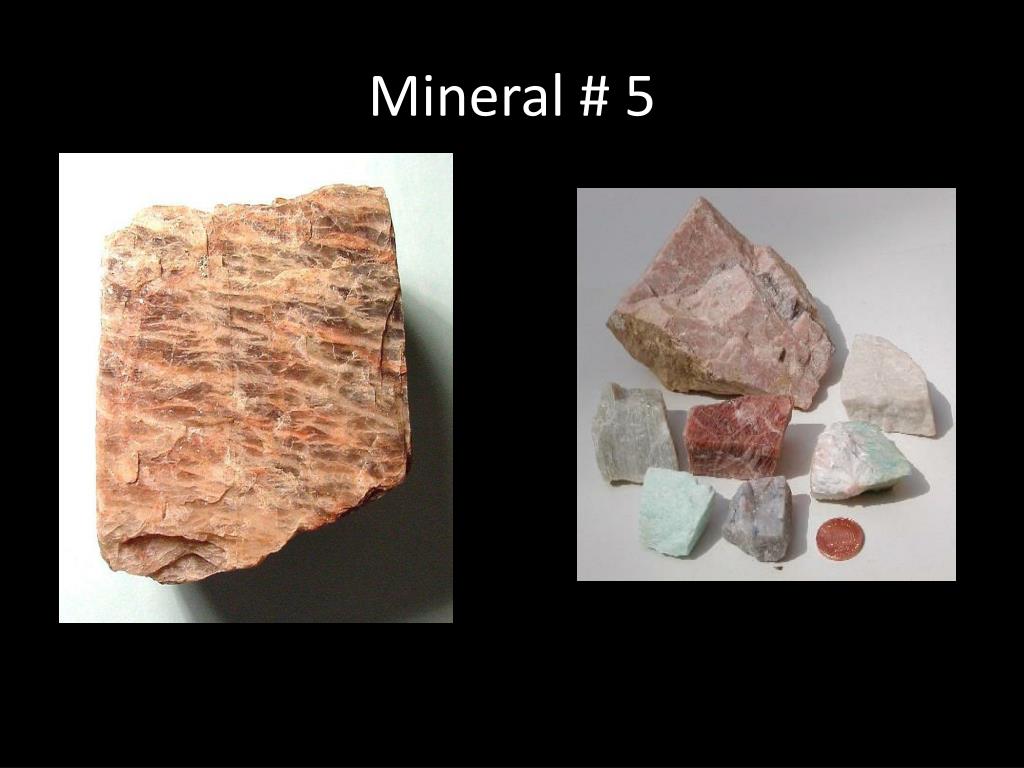

Mineral 5

Mineral # 5


Mineral 51

Mineral # 5

  • It will scratch a glass plate.

  • It breaks along flat planes.

  • Its streak is white.

  • Luster?


Mineral 6

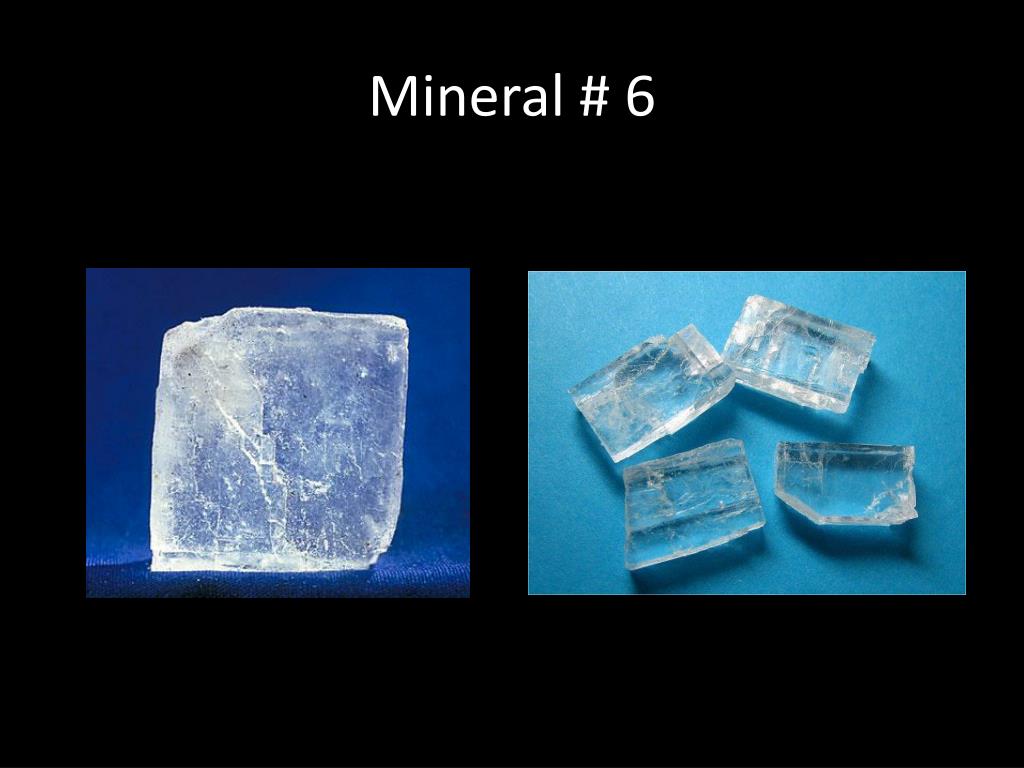

Mineral # 6

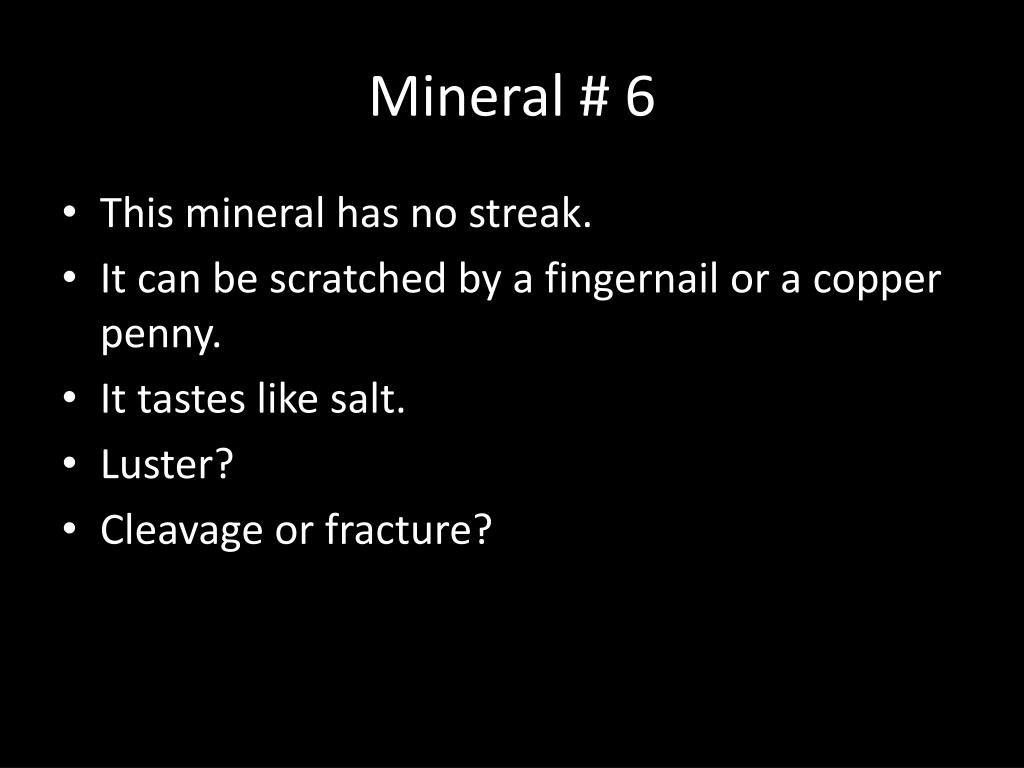

Mineral 61

Mineral # 6

  • This mineral has no streak.

  • It can be scratched by a fingernail or a copper penny.

  • It tastes like salt.

  • Luster?

  • Cleavage or fracture?

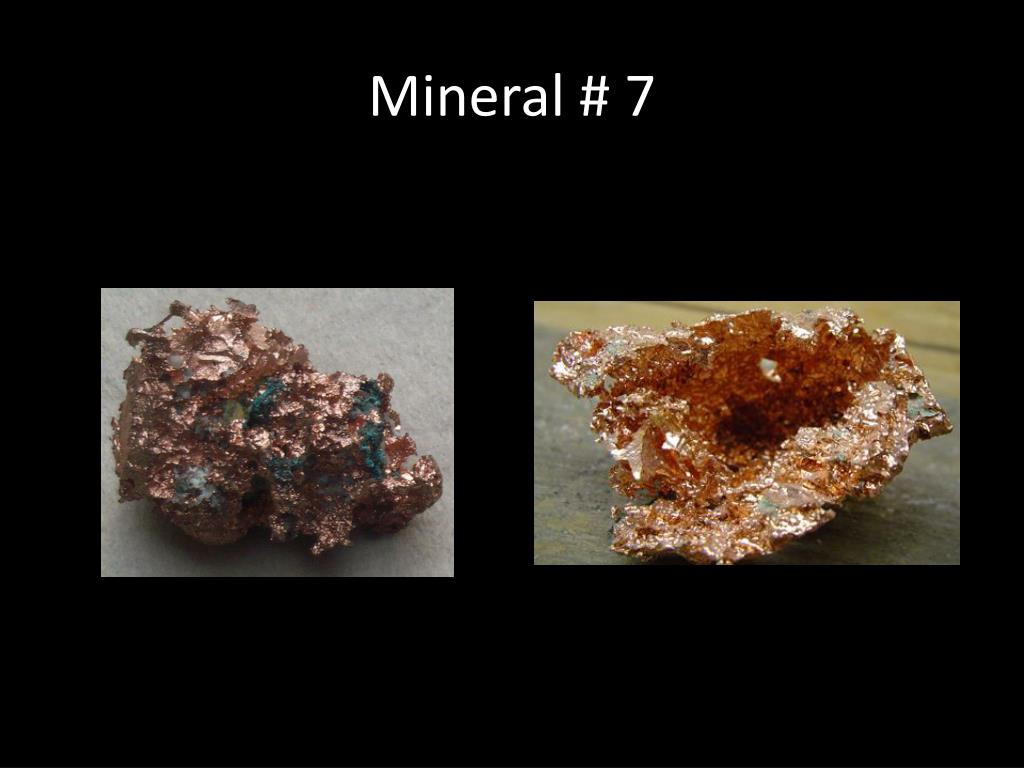

Mineral 7

Mineral # 7


Mineral 71

Mineral # 7

  • You can scratch it with a penny.

  • Its streak is red.

  • Luster?

  • Cleavage or fracture?


Mineral 8

Mineral # 8

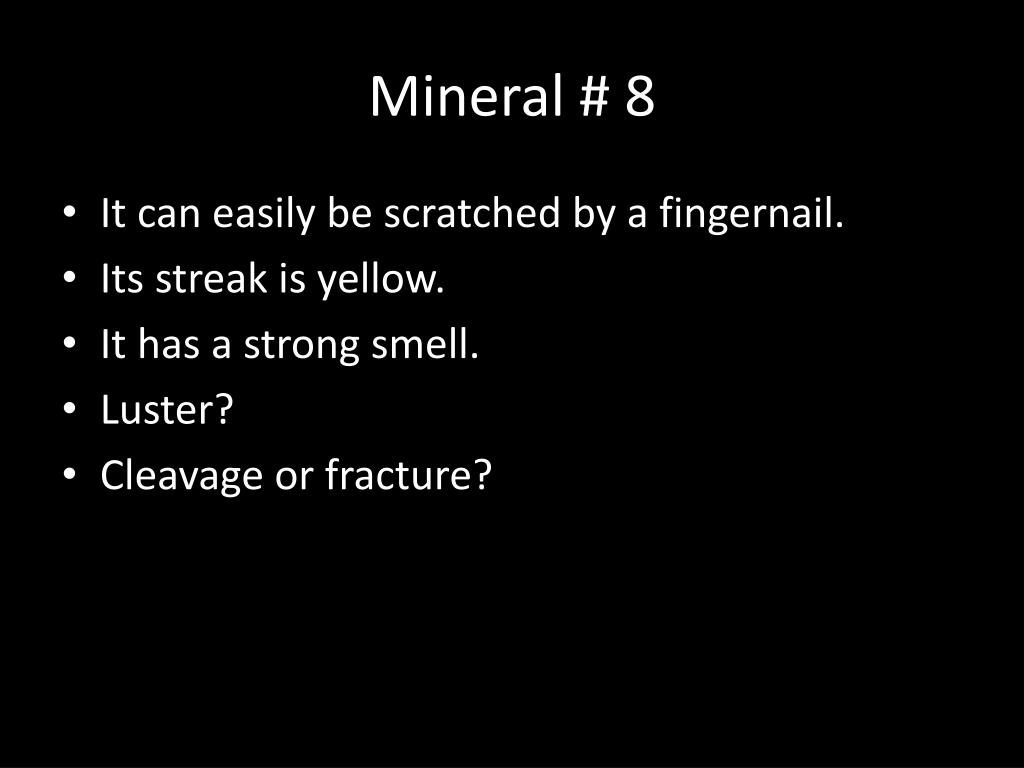

Mineral 81

Mineral # 8

  • It can easily be scratched by a fingernail.

  • Its streak is yellow.

  • It has a strong smell.

  • Luster?

  • Cleavage or fracture?


Mineral 9

Mineral # 9


Mineral 91

Mineral # 9

  • Its hardness varies from sample to sample.

  • Its streak is red.


Mineral 10

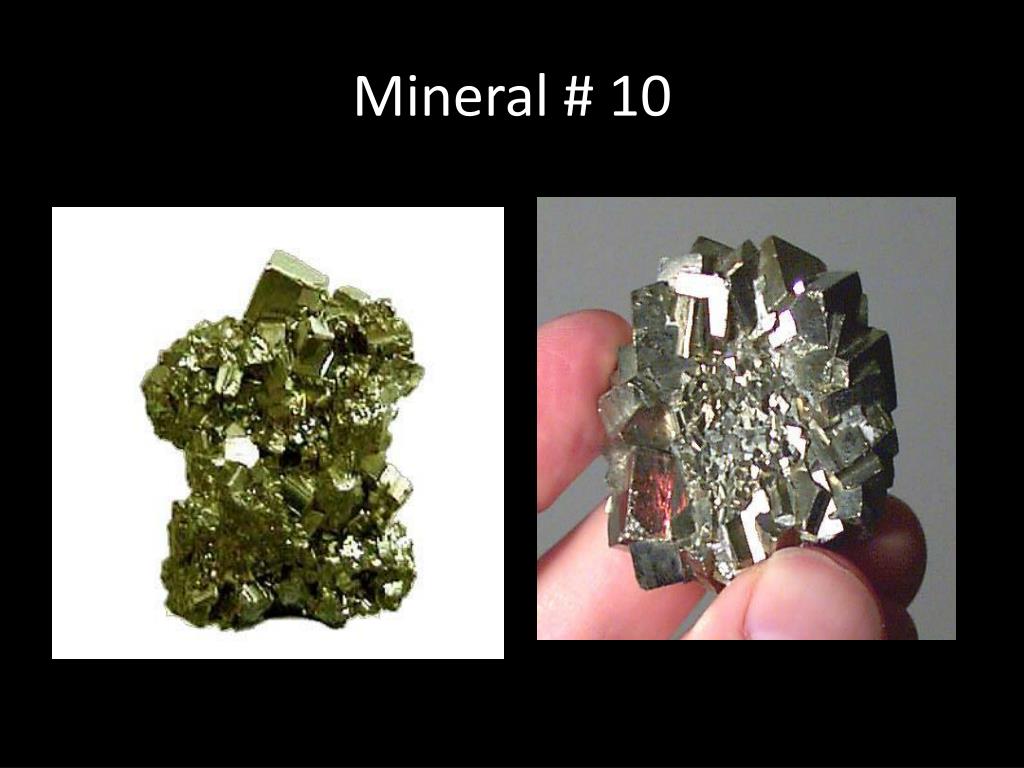

Mineral # 10


Mineral 101

Mineral # 10

  • It can scratch a glass plate.

  • Its streak is black.

  • Luster?

  • Cleavage or fracture?


Mineral 111

Mineral # 11

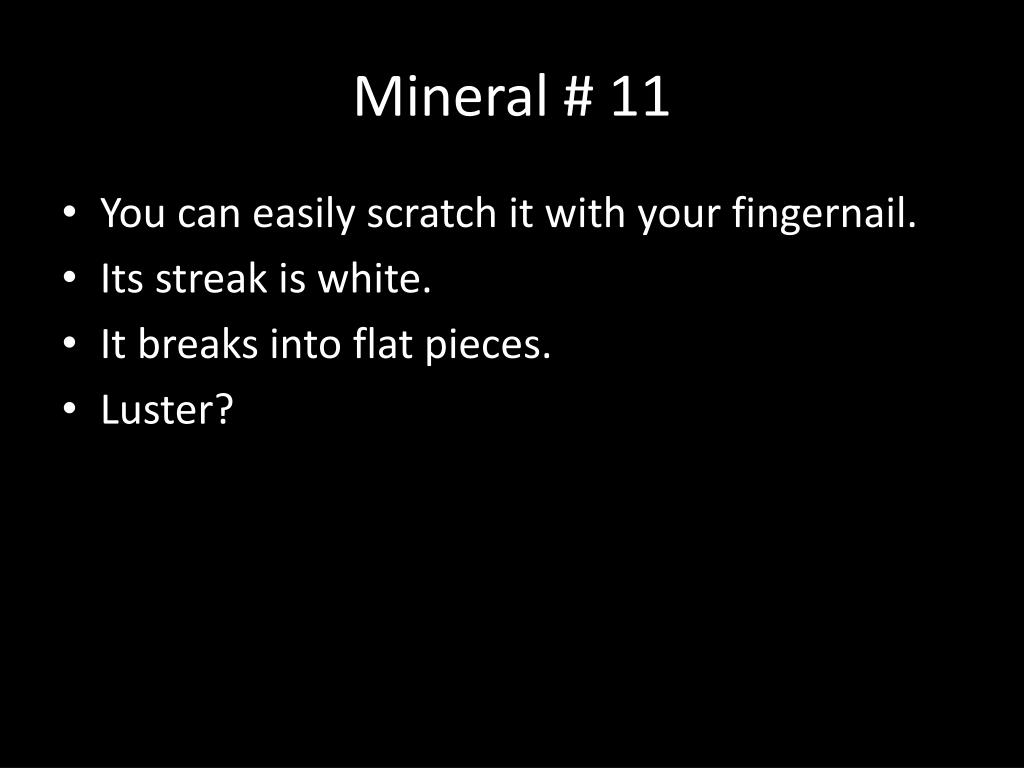

Mineral 112

Mineral # 11

  • You can easily scratch it with your fingernail.

  • Its streak is white.

  • It breaks into flat pieces.

  • Luster?


Mineral 12

Mineral # 12


Mineral 121

Mineral # 12

  • It can be scratched by a penny or a fingernail.

  • It breaks into flat sheets.

  • It has no streak.

  • Luster?


Mineral 13

Mineral # 13


Mineral 131

Mineral # 13

  • It can be scratched by a penny.

  • It has no streak.

  • It breaks along flat planes.

  • It reacts with acid.


Mineral 14

Mineral # 14


Mineral 141

Mineral # 14

  • It is very soft and can easily be scratched by your fingernail.

  • Its streak is black.

  • When broken, it forms flat planes.

  • Luster?

  • It is used to make pencil lead.


Mineral 15

Mineral #1

quartz


Mineral 22

Mineral # 2

talc


Mineral 32

Mineral # 3

fluorite


Mineral 42

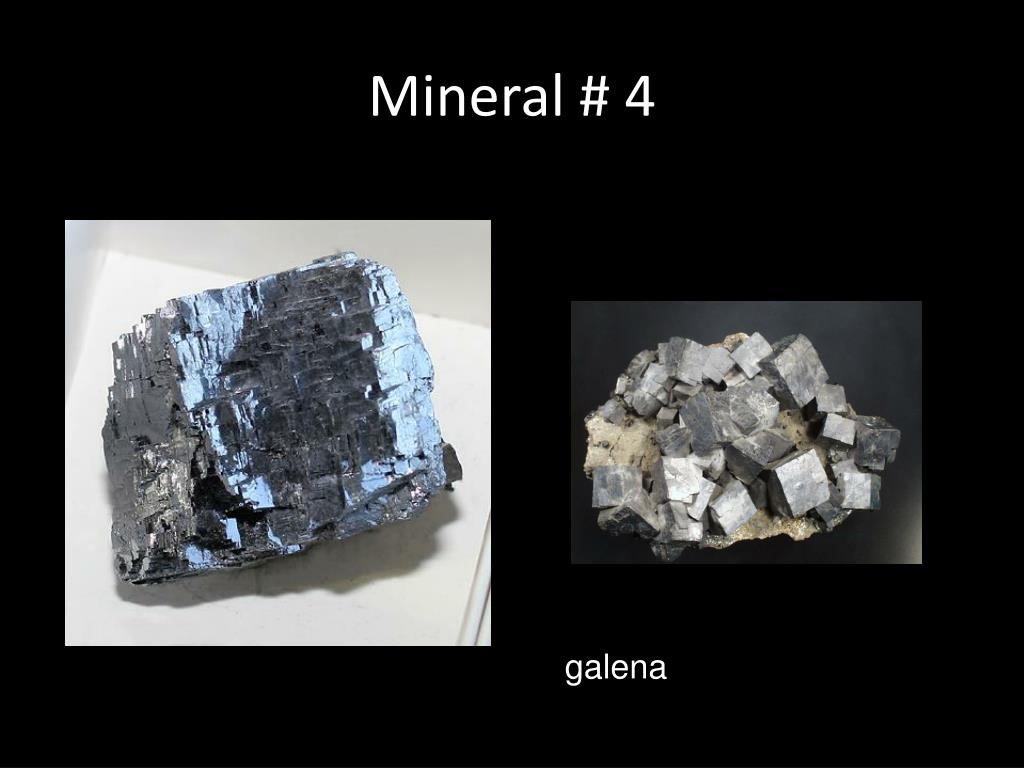

Mineral # 4

galena

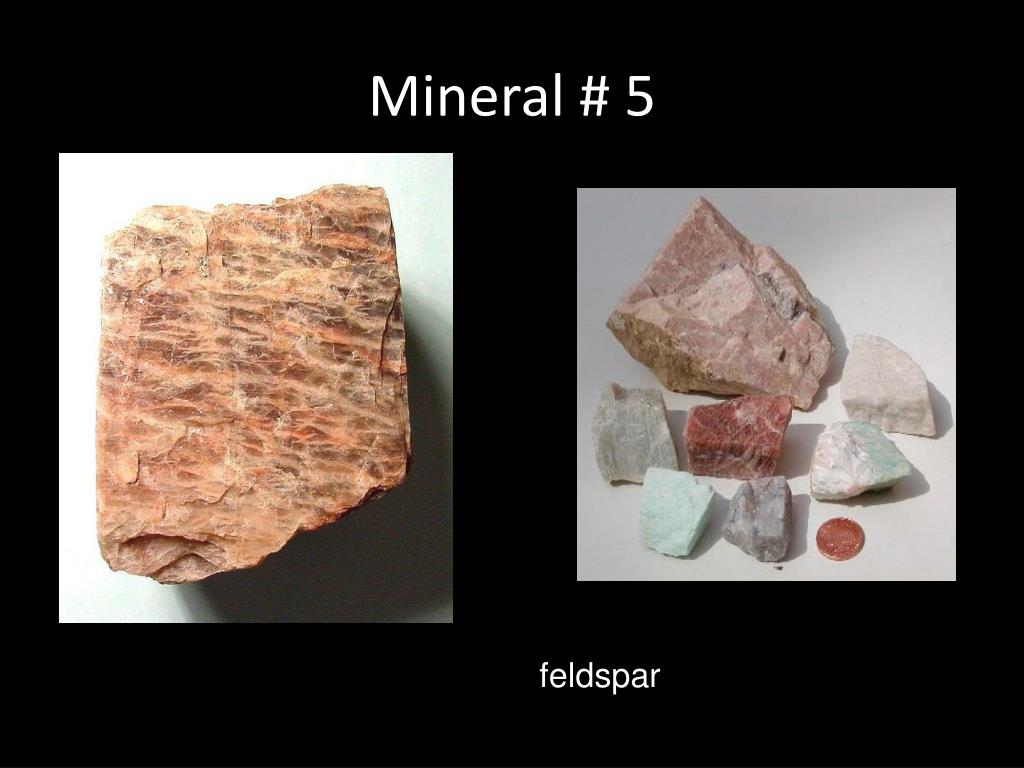

Mineral 52

Mineral # 5

feldspar


Mineral 62

Mineral # 6

halite

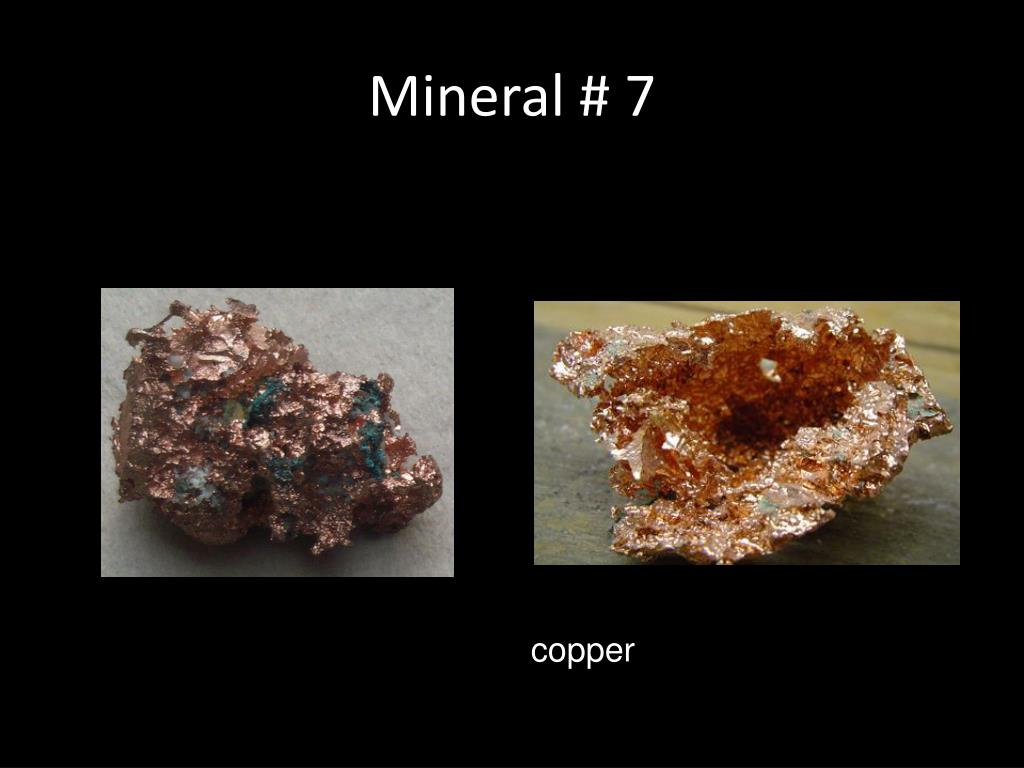

Mineral 72

Mineral # 7

copper


Mineral 82

Mineral # 8

sulfur


Mineral 92

Mineral # 9

hematite


Mineral 102

Mineral # 10

pyrite


Mineral 113

Mineral # 11

gypsum


Mineral 122

Mineral # 12

muscovite


Mineral 132

Mineral # 13

calcite


Mineral 142

Mineral # 14

graphite
