  1. WEEK OF NOVEMBER 25-29 7TH GRADE HOMEWORK- Read Fungi Section 236-241 (Study for Reading Quiz Friday) DUE MONDAY- KINDOM PROTISTA AND KINDGOM FUNGI READING GUIDE. Science Fair Abstract (details Wednesday) 8TH GRADE HOMEWORK- Individual homework due Monday- inventor info! (when you present you can’t use the name of the invention…we will guess what it is based on your description) Build a mousetrap supplies and design Quia quiz in two weeks on PE/KE, power, work, efficiency and simple machines Science Fair Abstract (Details Wednesday)

  2. What is a Simple Machine? • A simple machine has few or no moving parts. • Simple machines make work easier • WE CAN CALCULATE: • WORK • POWER • EFFIECIENCY

  3. LEONARDO DESIGNED MACHINES.. • http://www.mos.org/sln/Leonardo/one/one.html

  4. - What Is Work? The Meaning of Work • Work is done on an object when the object moves in the same direction in which the force is exerted.

  5. A tow truck exerts a force of 11,000 N to pull a car out of a ditch. It moves the car a distance of 5 m in 25 seconds. What is the power of the tow truck? What information have you been given? Force of the tow truck (F) = 11,000 N Distance (d) = 5.0 m Time (t) = 25 s - What Is Work? Calculating Power

  6. A tow truck exerts a force of 11,000 N to pull a car out of a ditch. It moves the car a distance of 5 m in 25 seconds. What is the power of the tow truck? What formula contains the given quantities and the unknown quantity? Power= Work/Time Power = (Force X Distance)/Time Perform the calculation. Power = (11,000 N X 5.0 m)/25 s Power = (55,000 N•m)/25 sor 55,000 J/25 s Power = 2,200 J/s = 2,200 W - What Is Work? Calculating Power

  7. A tow truck exerts a force of 11,000 N to pull a car out of a ditch. It moves the car a distance of 5 m in 25 seconds. What is the power of the tow truck? Look Back and Check Does your answer make sense? The answer tells you that the tow truck used 2,200 W to pull the car. This value is about the same power that three horses would exert, so the answer is reasonable. - What Is Work? Calculating Power

  8. Practice Problem A motor exerts a force of 12,000 N to lift an elevator 8.0 m in 6.0 seconds. What is the power produced by the motor? 16,000 W or 16 kW - What Is Work? Calculating Power

  9. Practice Problem A crane lifts an 8,000-N beam 75 m to the top of a building in 30 seconds. What is the crane’s power? 20,000 W or 20 kW - What Is Work? Calculating Power

  10. - How Machines Do Work Input and Output Work • The amount of input work done by the gardener equals the amount of output work done by the shovel.

  11. - How Machines Do Work What Is a Machine? • A machine makes work easier by changing at least one of three factors. A machine may change the amount of force you exert, the distance over which you exert your force, or the direction in which you exert your force.

  12. - How Machines Do Work Mechanical Advantage • The input force and output force for three different ramps are shown in the graph.

  13. 400 N Interpreting Data: If an 80-N input force is exerted on Ramp 2, what is the output force? - How Machines Do Work Mechanical Advantage

  14. The slope of each ramp’s graph equals the change in output force divided by the change in input force. This is the formula for mechanical advantage. Ramp 1 has the greatest mechanical advantage. Drawing Conclusions: Why does the slope represent each ramp’s mechanical advantage? Which ramp has the greatest mechanical advantage? - How Machines Do Work Mechanical Advantage

  15. You do 250,000 J of work to cut a lawn with a hand mower. If the work done by the mower is 200,000 J, what is the efficiency of the lawn mower? What information have you been given? Input Work (Winput) = 250,000 J Output Work (Woutput) = 200,000 J - How Machines Do Work Calculating Efficiency

  16. You do 250,000 J of work to cut a lawn with a hand mower. If the work done by the mower is 200,000 J, what is the efficiency of the lawn mower? What formula contains the given quantities and the unknown quantity? Efficiency = Output work/Input work X 100% Perform the calculation. Efficiency = 200,000 J/250,000 J X 100% Efficiency = 0.8 X 100% = 80% The efficiency of the lawn mower is 80 percent. - How Machines Do Work Calculating Efficiency

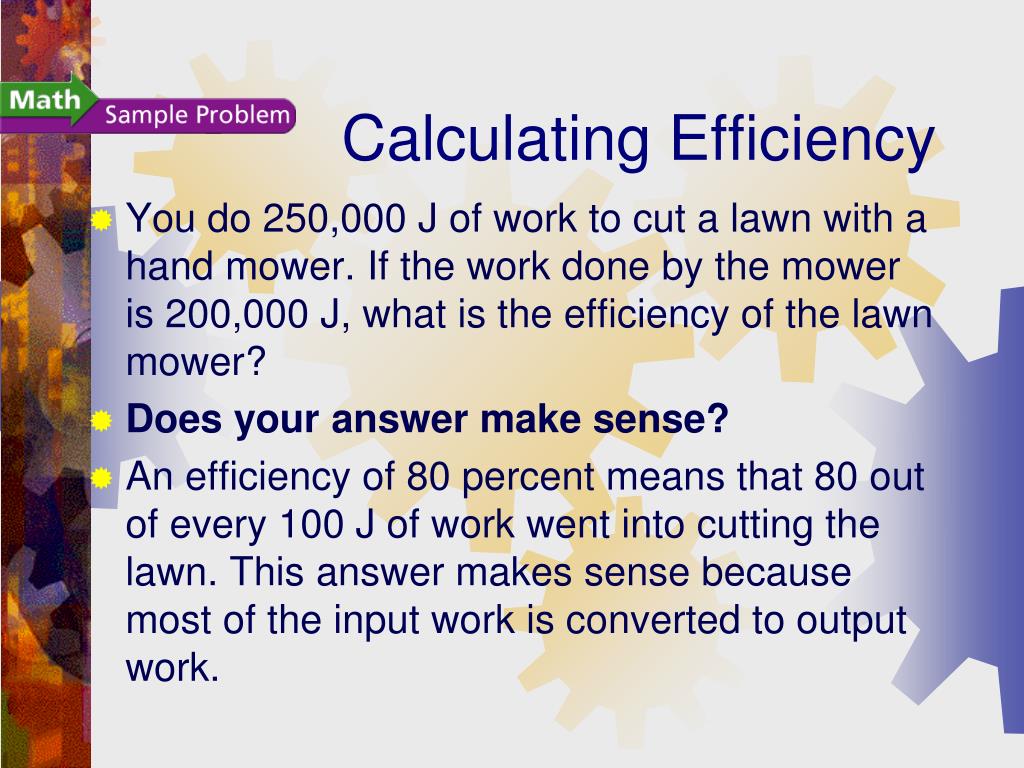

  17. You do 250,000 J of work to cut a lawn with a hand mower. If the work done by the mower is 200,000 J, what is the efficiency of the lawn mower? Does your answer make sense? An efficiency of 80 percent means that 80 out of every 100 J of work went into cutting the lawn. This answer makes sense because most of the input work is converted to output work. - How Machines Do Work Calculating Efficiency

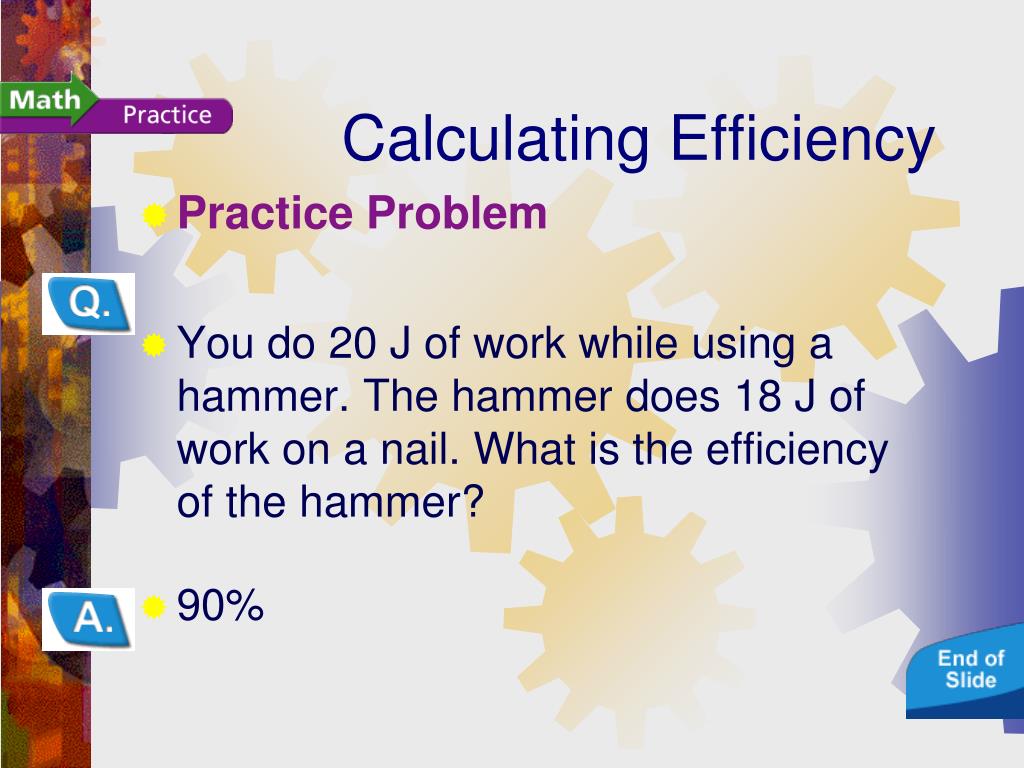

  18. Practice Problem You do 20 J of work while using a hammer. The hammer does 18 J of work on a nail. What is the efficiency of the hammer? 90% - How Machines Do Work Calculating Efficiency

  19. Practice Problem Suppose you left your lawn mower outdoors all winter. Now it’s rusty. Of your 250,000 J of work, only 100,000 J go to cutting the lawn. What is the efficiency of the lawn mower now? 40% - How Machines Do Work Calculating Efficiency

  20. - Simple Machines Compound Machines • A compound machine is a machine that utilizes two or more simple machines.

  21. SIMPLE MACHINES WHEEL AND AXLE The wheel and axle is a simple machine.  The axle is a rod that goes through the wheel.  This lets the wheel turn.  It is easy to move things from place to place with wheels and axles.

  22. Wheels and Axles • The wheel and axle are a simple machine • The axle is a rod that goes through the wheel which allows the wheel to turn • Gears are a form of wheels and axles

  23. EXAMPLES OF WHEEL AND AXLE • Cars • Roller Skates • Wagons • Door Knobs • Gears in Watches, Clocks, and Bicycles

  24. SIMPLE MACHINES PULLEY This simple machine is made up of a wheel and a rope.  The rope fits on the groove of the wheel.  One part of the rope is attached to the load.  When you pull on one side of the pulley, the wheel turns and the load will move.  Pulleys let you move loads up, down, or sideways.  Pulleys are good for moving objects to hard to reach places.  It also makes the work of moving heavy loads a lot easier.

  25. Pulleys • Pulley are wheels and axles with a groove around the outside • A pulley needs a rope, chain or belt around the groove to make it do work

  26. EXAMPLES OF PULLEYS • Flag Poles • Clothes Lines • Sailboat • Blinds • Crane
