Ventricular Assist Device Exit Site Care

Ventricular Assist Device Exit Site Care. Nicole Graney, MSN, CNS-BC VAD Coordinator Advocate Christ Medical Center. Ventricular Assist Device Percutaneous Lead. Referred to also as: Driveline Perc Lead

mirit
Download Presentation

Ventricular Assist Device Exit Site Care

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

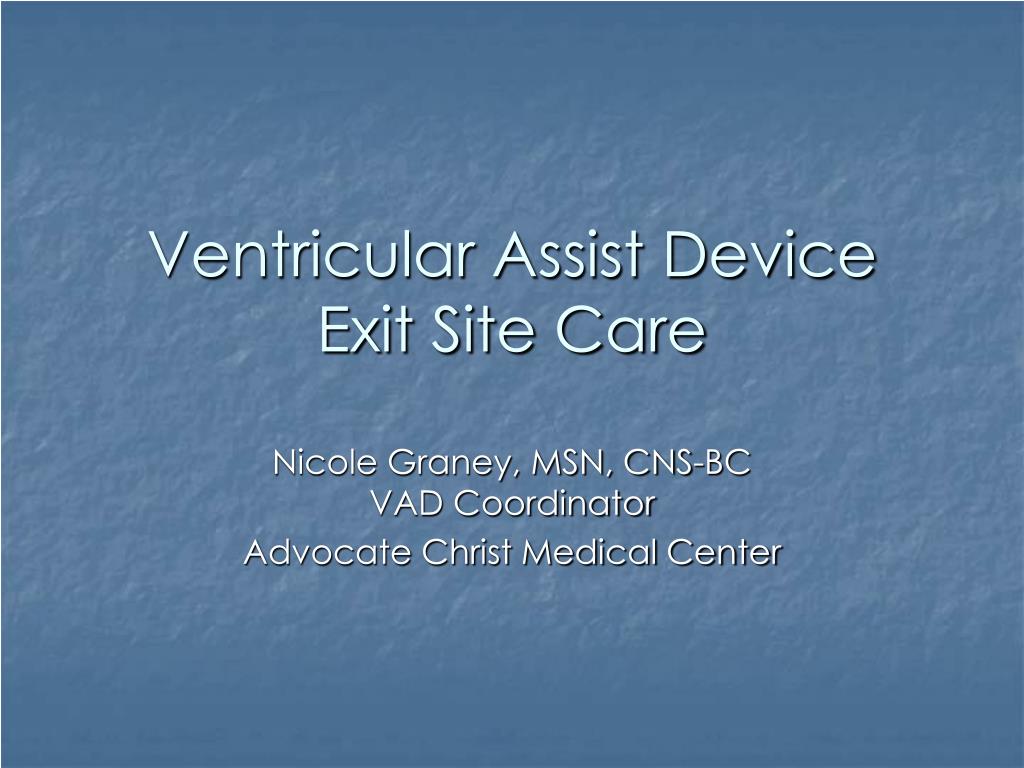

  1. Ventricular Assist DeviceExit Site Care Nicole Graney, MSN, CNS-BCVAD Coordinator Advocate Christ Medical Center

  2. Ventricular Assist DevicePercutaneous Lead Referred to also as: Driveline Perc Lead This lead connects the implanted device to the external controller which provides power to the pump and controls operation. Thoratec Corporation. HeartMate II Patient Handbook, 2008.

  3. Percutaneous Lead The outside of the lead is covered with a special material (velour) that allows skin cells grow into it. A well-healed exit site can lower the risk of infection.

  4. Exit Site The exit site is the location where the percutaneous lead goes out through the skin

  5. Caring for the Perc Lead Exit Site • Keep the exit site clean, dry and covered. • Ensure patient and caregiver performing proper hand washing and “aseptic technique” when changing bandage or handling the exit site. • Keep perc lead stabilized using Stabilization Belt. • Protect the system controller from falling or from pulling on the lead. • Don’t allow the perc lead to catch or snag on anything that will pull or move the lead. • Check lead daily for signs of damage. • Report any concerns of damage or infection to patient’s VAD Coordinator.

  6. Assessment of Exit Site • Tissue in-growth • Drainage • Surrounding Tissue

  7. Assessment of Exit Site • Most VAD infections began at the perc lead exit site. • Accurate assessments allow the health care provider to identify and promptly treat driveline infections. • If any concerns, please contact patient’s VAD coordinator.

  8. Tissue In-growth • Refers to amount of tissue growing into the perc lead. • If complete in-growth, should not be able to retract back on abdomen and expose any velour • Can be describe in percentages • Anywhere from 0 to 100 % • Problem: Percentages may differ between person assessing • Can be described as Partial or Complete • Can specify where tissue in-growth is using hours on a clock using circumference of driveline as the clock. • Complete in-growth from 2-6 o’clock position

  9. Tissue In-growth 100 % Tissue In-growth Or Complete Tissue In-growth

  10. Drainage • Important to Note • Amount • Color • Odor • Consistency

  11. Surrounding Tissue Appearance of surrounding tissue may indicate presence of early infection, even without drainage or fever. Note any erythema, edema, blisters, hypergranulation tissue etc.

  12. Infection • Infection is one of the common causes of mortality in patient’s with VADs. • The treatment of VAD related infections negatively impacts patient’s quality of life and length of survival with VAD. • Prevention of infection is one of the primary goals of patient management.

  13. Risk for Infections • Patients are at an increased risk for infection. • Chronic HF, poor nutrition, advanced age, other co-morbidities (DM, COPD etc.). • Presence of foreign body (VAD and perc lead), trauma to exit site, tension to wound edges, poor dressing care technique.

  14. Signs of Symptoms of Infection • Localized Exit Site: • Redness, warmth, tenderness • With or without positive cultures • New or increased drainage • Severe Exit Site Infections or Pocket Infections: • Fever, Elevated White Blood Cell Count • Purulent drainage • Pain at exit site or over device • Positive wound cultures • Fluid surrounding perc lead up to the device • Patient may become septic as a result • Fluid over device, erythema over pocket

  15. Progression of InfectionLocalized

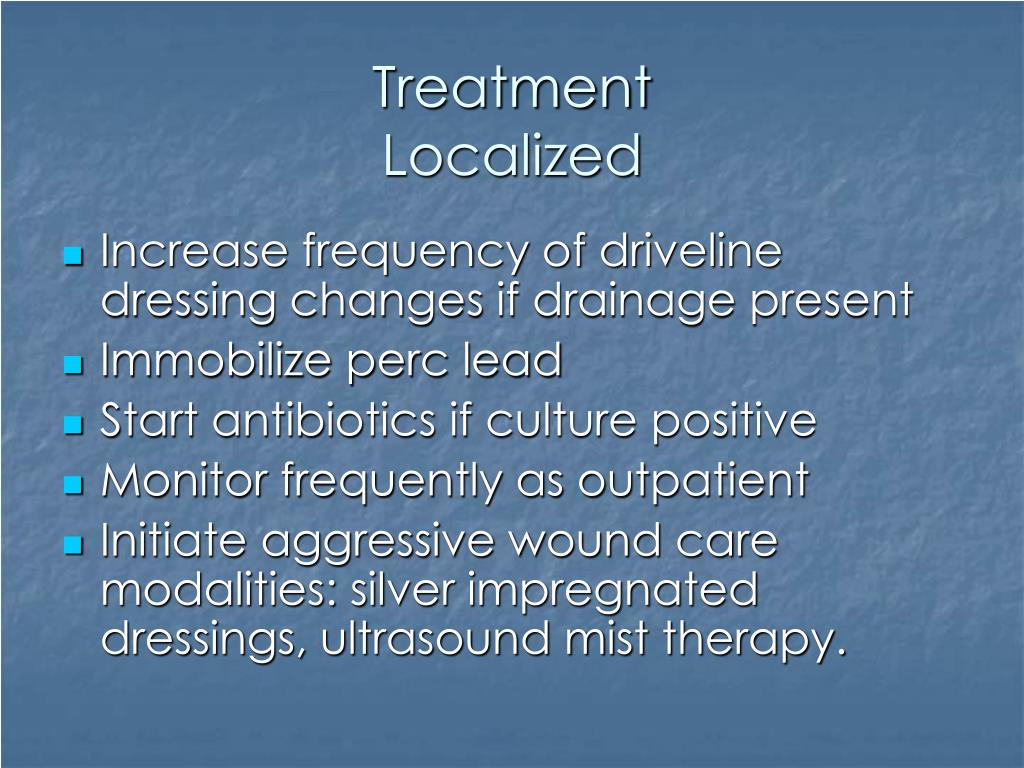

  16. TreatmentLocalized • Increase frequency of driveline dressing changes if drainage present • Immobilize perc lead • Start antibiotics if culture positive • Monitor frequently as outpatient • Initiate aggressive wound care modalities: silver impregnated dressings, ultrasound mist therapy.

  17. Progression of InfectionSevere Exit Site/Pocket Infection

  18. Treatment Severe Exit or Pocket Infections • Hospitalization • IV antibiotics • Aggressive Wound Care Modalities • Surgical Drainage of fluid collection

  19. Device Infection/Sepsis

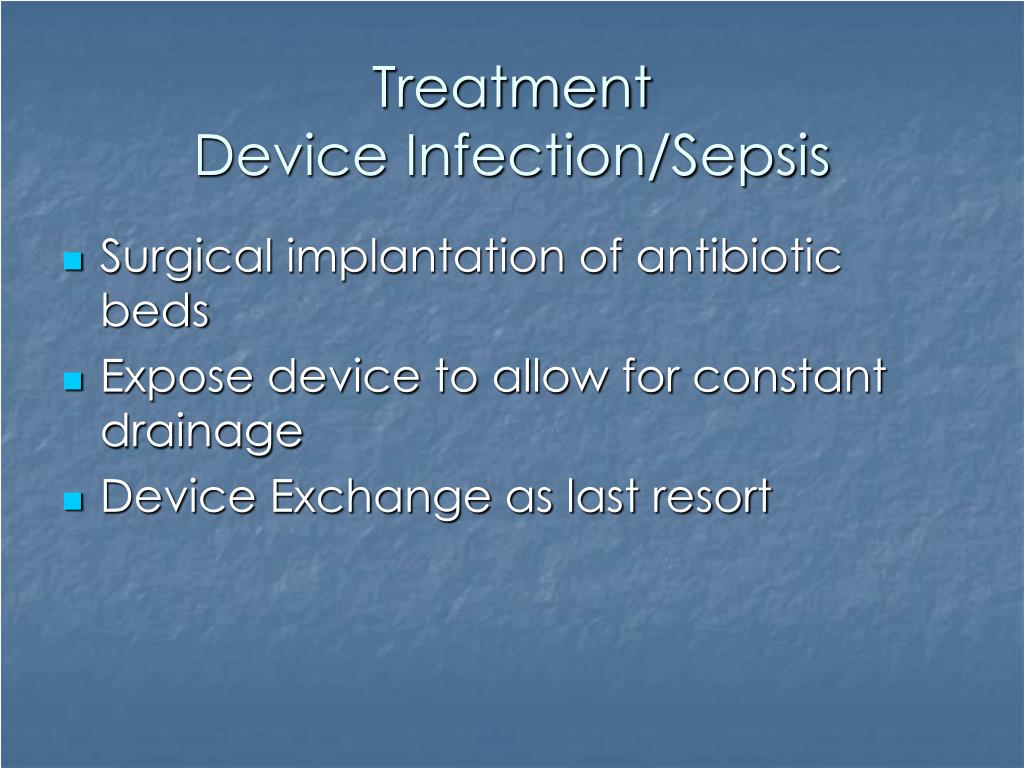

  20. TreatmentDevice Infection/Sepsis • Surgical implantation of antibiotic beds • Expose device to allow for constant drainage • Device Exchange as last resort

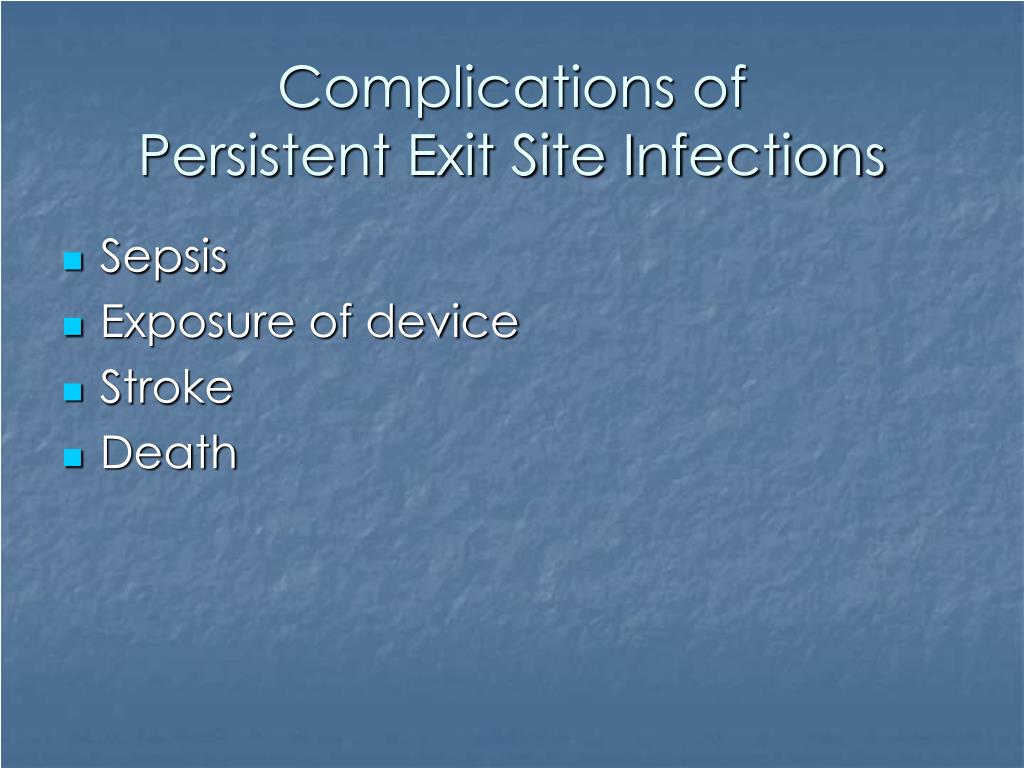

  21. Complications of Persistent Exit Site Infections • Sepsis • Exposure of device • Stroke • Death

  22. Trauma • Trauma to perc lead either due to pulling, tearing, or dropping of equipment may lead to infection, damage of equipment, or pump stoppage.

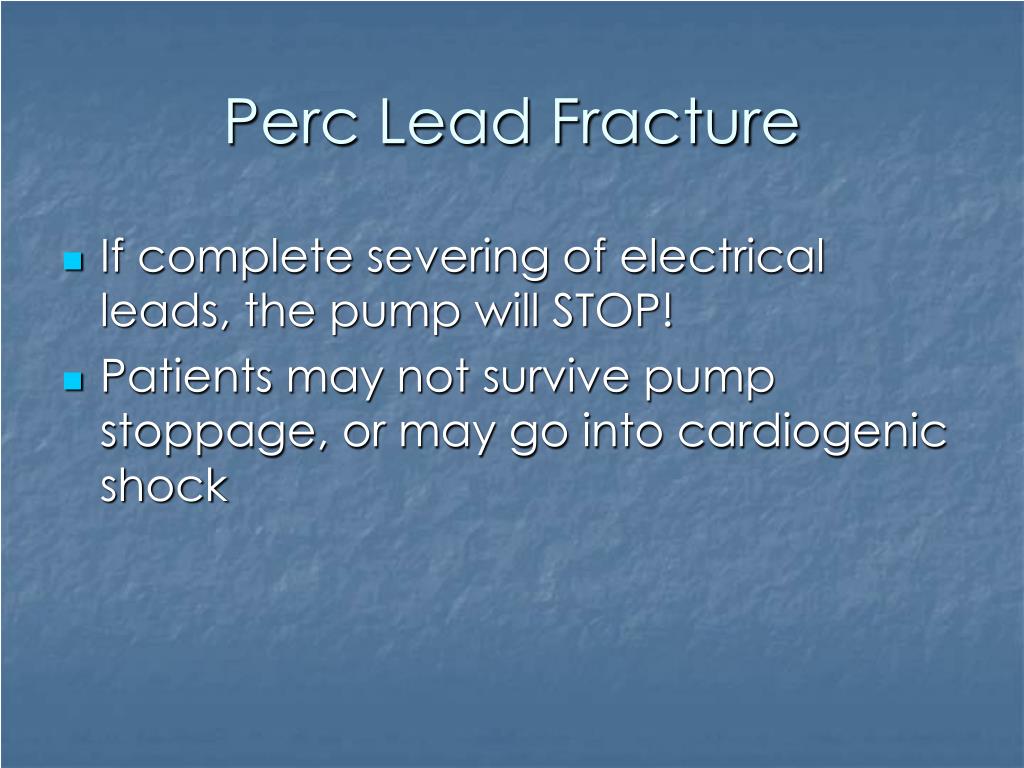

  23. Perc Lead Fracture • If complete severing of electrical leads, the pump will STOP! • Patients may not survive pump stoppage, or may go into cardiogenic shock

  24. Perc Lead Fracture

  25. Perc Lead Fracture

  26. Questions???
