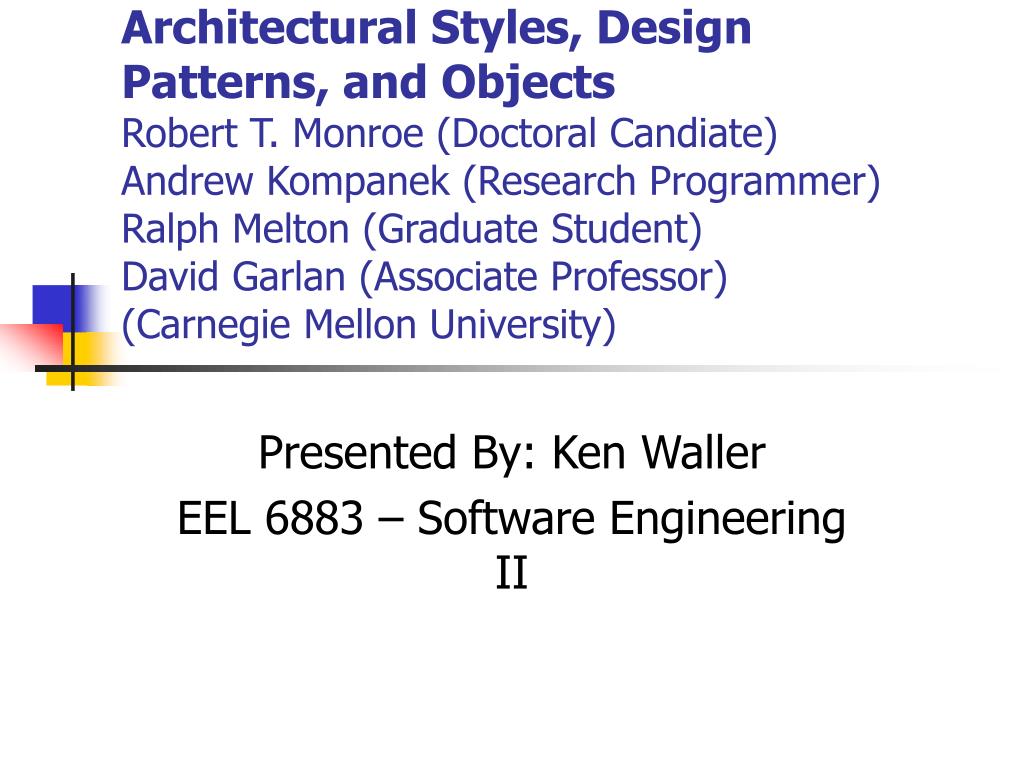

  1. Architectural Styles, Design Patterns, and ObjectsRobert T. Monroe (Doctoral Candiate)Andrew Kompanek (Research Programmer) Ralph Melton (Graduate Student)David Garlan (Associate Professor)(Carnegie Mellon University) Presented By: Ken Waller EEL 6883 – Software Engineering II

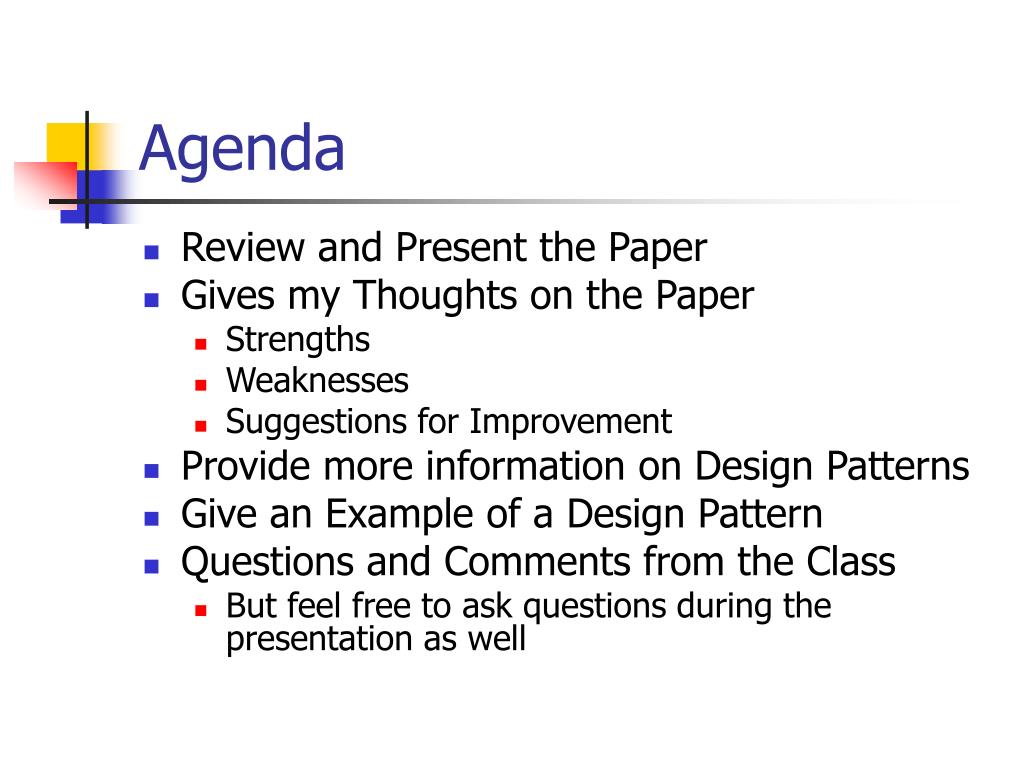

  2. Agenda • Review and Present the Paper • Gives my Thoughts on the Paper • Strengths • Weaknesses • Suggestions for Improvement • Provide more information on Design Patterns • Give an Example of a Design Pattern • Questions and Comments from the Class • But feel free to ask questions during the presentation as well

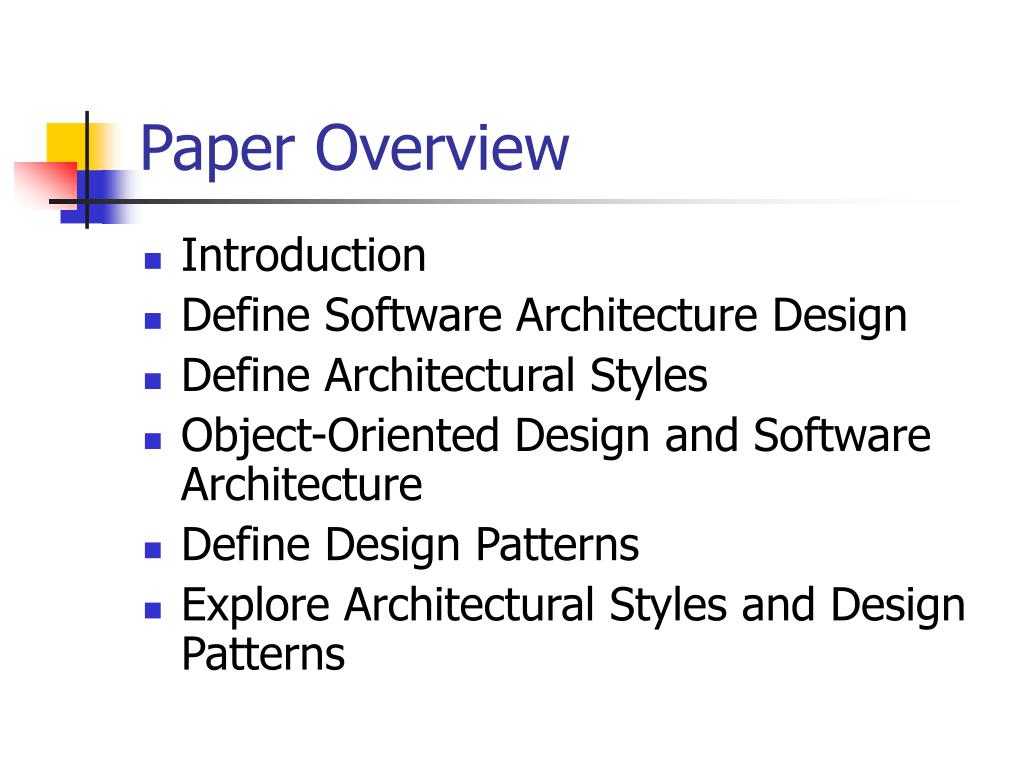

  3. Paper Overview • Introduction • Define Software Architecture Design • Define Architectural Styles • Object-Oriented Design and Software Architecture • Define Design Patterns • Explore Architectural Styles and Design Patterns

  4. Paper Introduction • Goal: Simplify software design by capturing (thus allowing reuse) and exploitingDesign Knowledge • Two approaches: • Architectural Level • Gross structure • Key issues (system wide): scalability, portability, communication protocols, processing rates, performance • Informal (block) diagrams • Architectural Styles • Object Oriented Level • Encapsulate data and behavior • Define public interfaces • Design Patterns

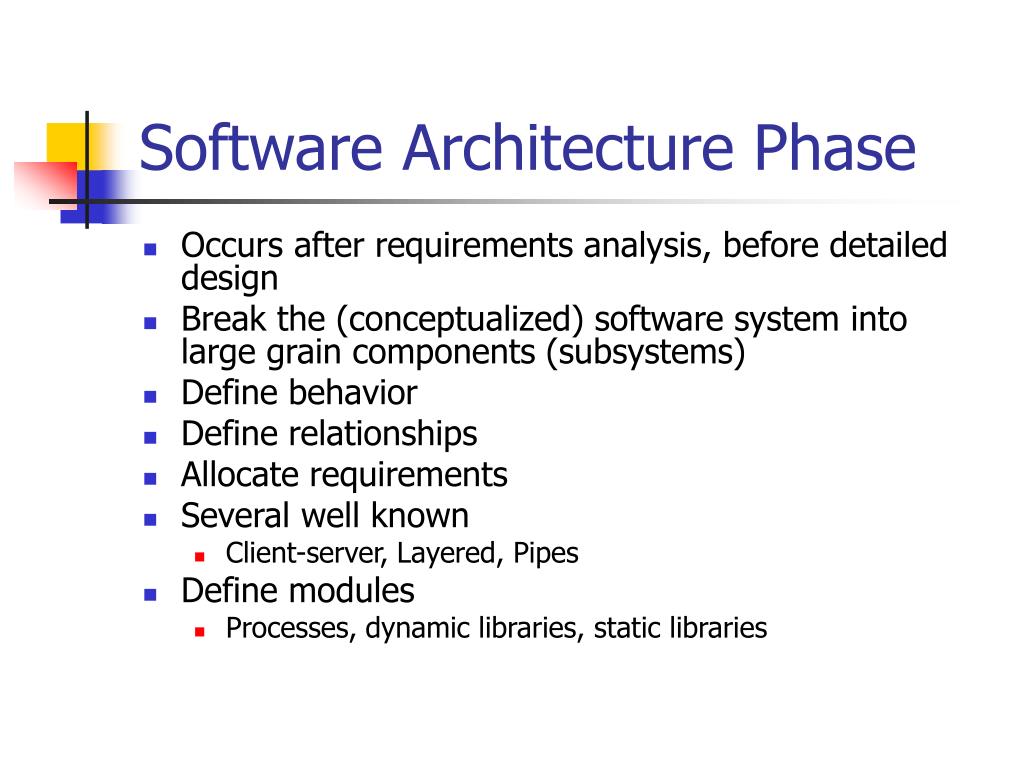

  5. Software Architecture Phase • Occurs after requirements analysis, before detailed design • Break the (conceptualized) software system into large grain components (subsystems) • Define behavior • Define relationships • Allocate requirements • Several well known • Client-server, Layered, Pipes • Define modules • Processes, dynamic libraries, static libraries

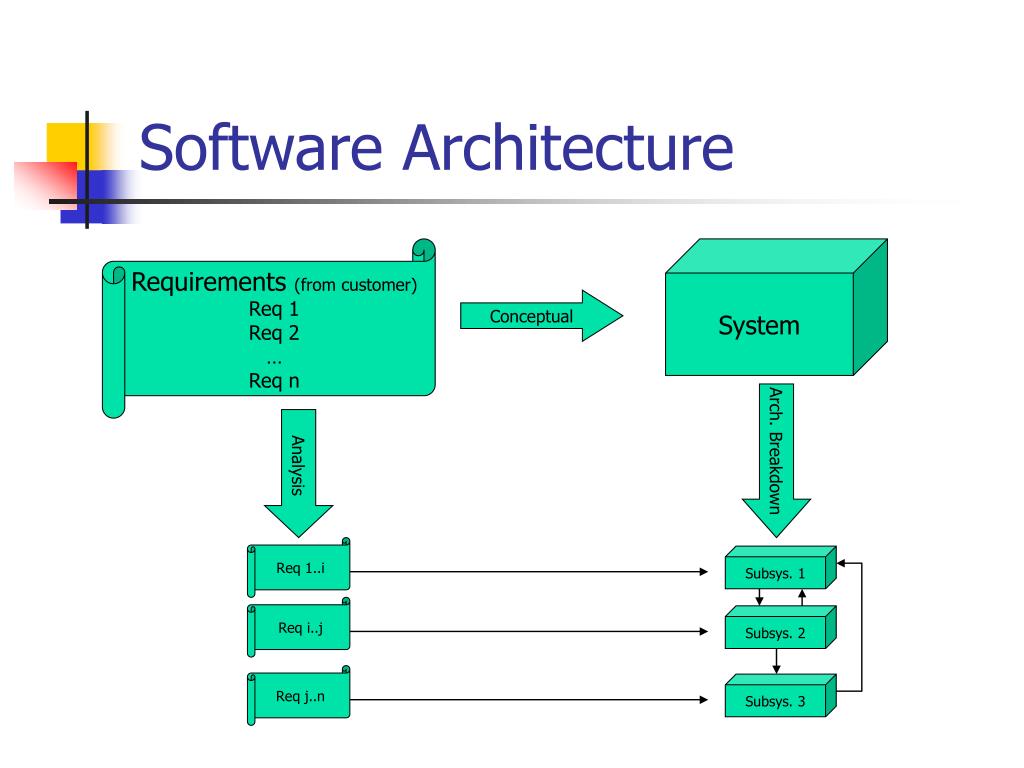

  6. Software Architecture Requirements (from customer) Req 1 Req 2 … Req n System Conceptual Arch. Breakdown Analysis Req 1..i Subsys. 1 Req i..j Subsys. 2 Req j..n Subsys. 3

  7. Software Architecture Design • Serves two purposes: • Captures Behavioral Abstraction (critical requirements) • Describes system’s “Conscience” • Guides system evolution • How easily can changes be made? • How will system integrity be effective by change? • “Load Bearing Walls” – Large Grain components or subsystems

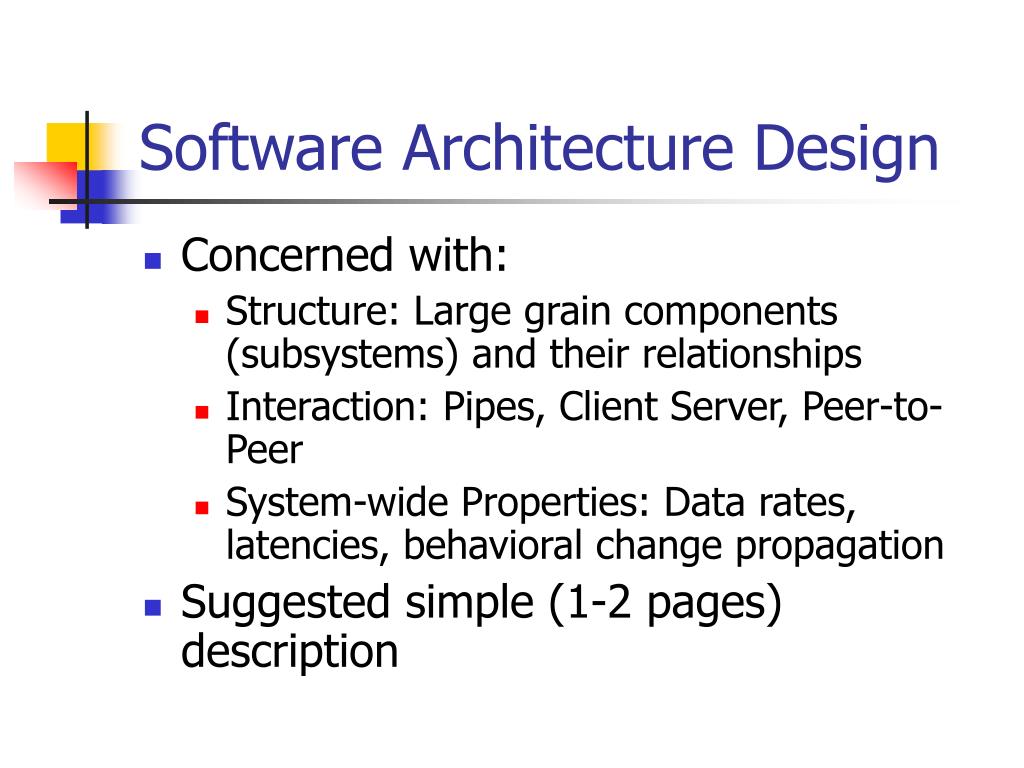

  8. Software Architecture Design • Concerned with: • Structure: Large grain components (subsystems) and their relationships • Interaction: Pipes, Client Server, Peer-to-Peer • System-wide Properties: Data rates, latencies, behavioral change propagation • Suggested simple (1-2 pages) description

  9. Architectural Styles • Capture past experiences with Architectural Design (i.e. Client-Server, Pipes, etc.) • Formal architectural styles provide their own “language” • May be graphical/diagram-based (similar to UML) • May be textual based (similar to pseudo-code – Wright architecture description language) • Provides: • Common Vocabulary of Design Elements (clients, parsers, database) • Design Rules/Constraints • Semantics • System Analysis

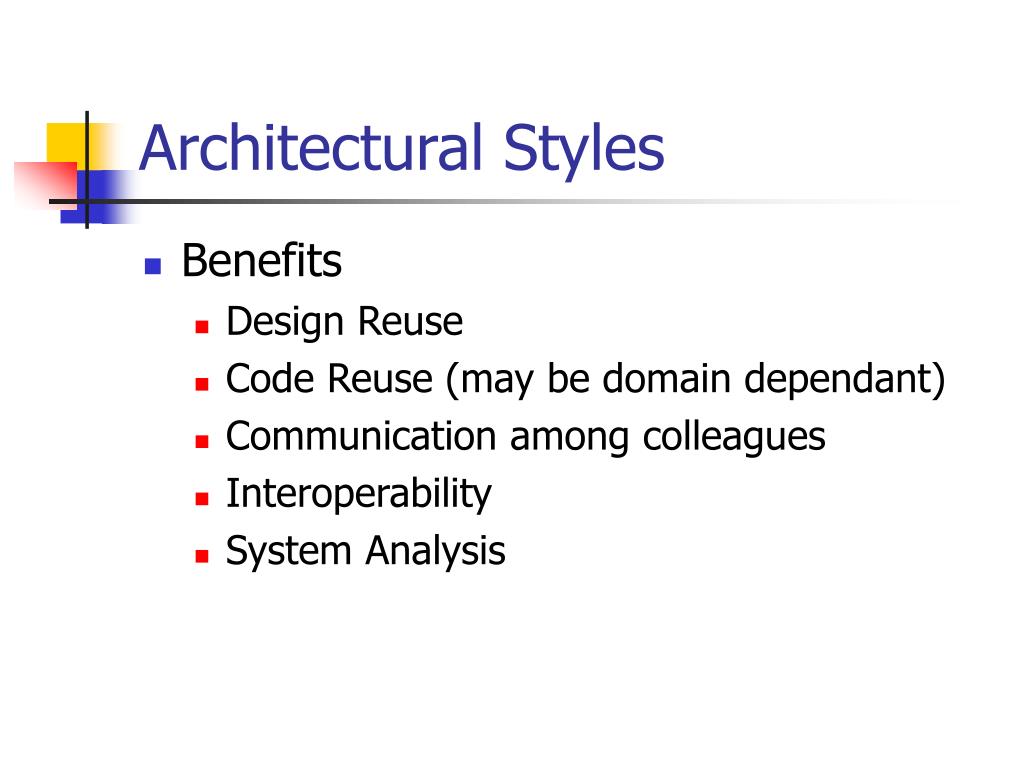

  10. Architectural Styles • Benefits • Design Reuse • Code Reuse (may be domain dependant) • Communication among colleagues • Interoperability • System Analysis

  11. Filter 1 (Source) Filter 2 (Sink) Pipe Architectural Styles • Visual Example: Pipe and filter architecture • Easily Conveys the idea • Filter 1 may only send data to Filter 2 • Filter 2 may only receive data from Filter 1 • Filter 1 may not receive data • Filter 2 may not send data • Pipe is the data transport mechanism

  12. Object-Oriented Design and Software Architecture • Object-Oriented Design can address some issues associated with architecture design • Downfall of OO is inability to describe rich interfaces and protocols

  13. Object-Oriented Design and Software Architecture • Consider a simple UML class diagram to describe the Pipe and Filter architecture • Association between two Filter objects Filter (source) Filter Filter (pipe) (source) (sink) (sink) Doesn’t constrain the direction of communication

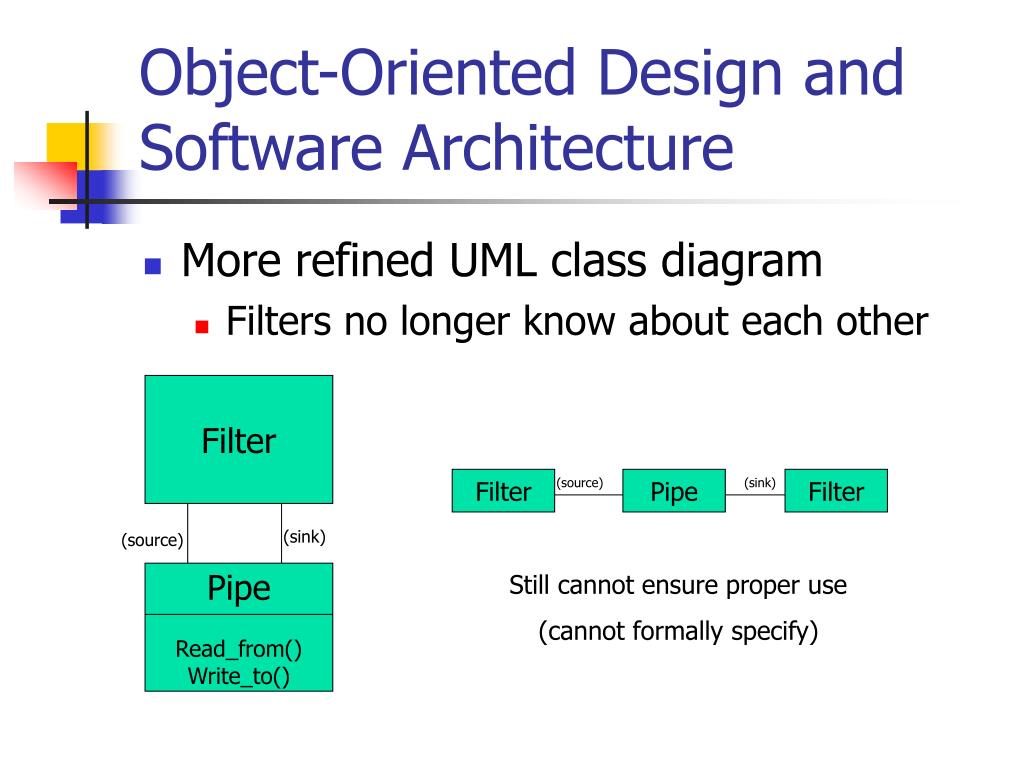

  14. Pipe Read_from() Write_to() Object-Oriented Design and Software Architecture • More refined UML class diagram • Filters no longer know about each other Filter Filter (source) Pipe (sink) Filter (sink) (source) Still cannot ensure proper use (cannot formally specify)

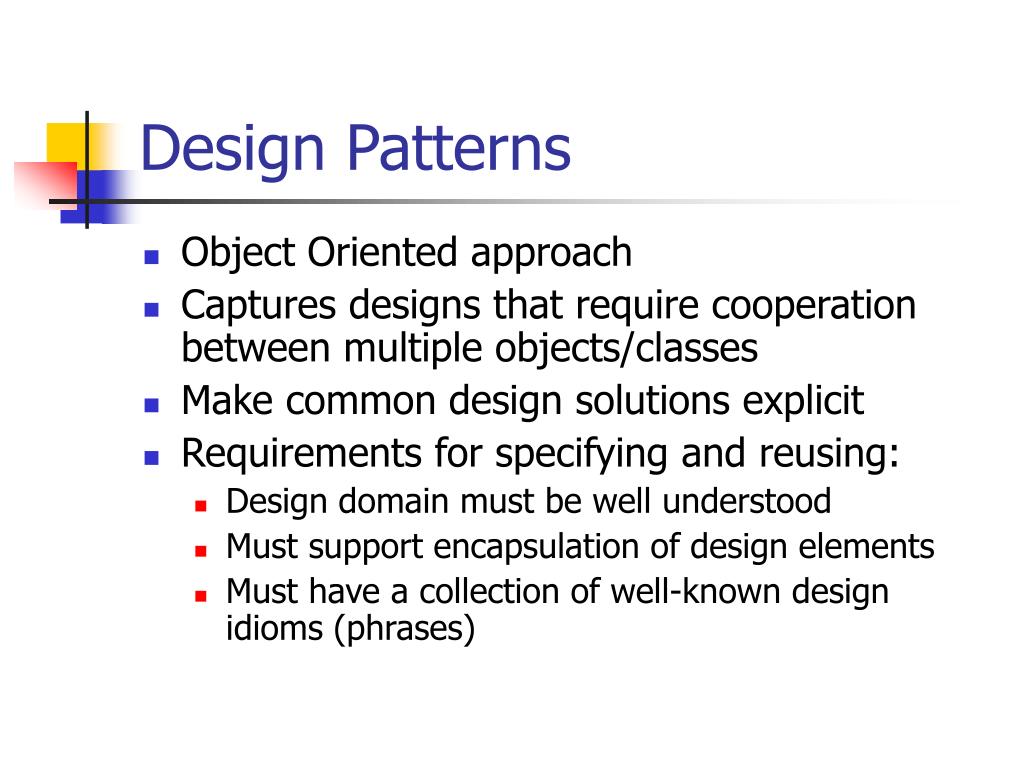

  15. Design Patterns • Object Oriented approach • Captures designs that require cooperation between multiple objects/classes • Make common design solutions explicit • Requirements for specifying and reusing: • Design domain must be well understood • Must support encapsulation of design elements • Must have a collection of well-known design idioms (phrases)

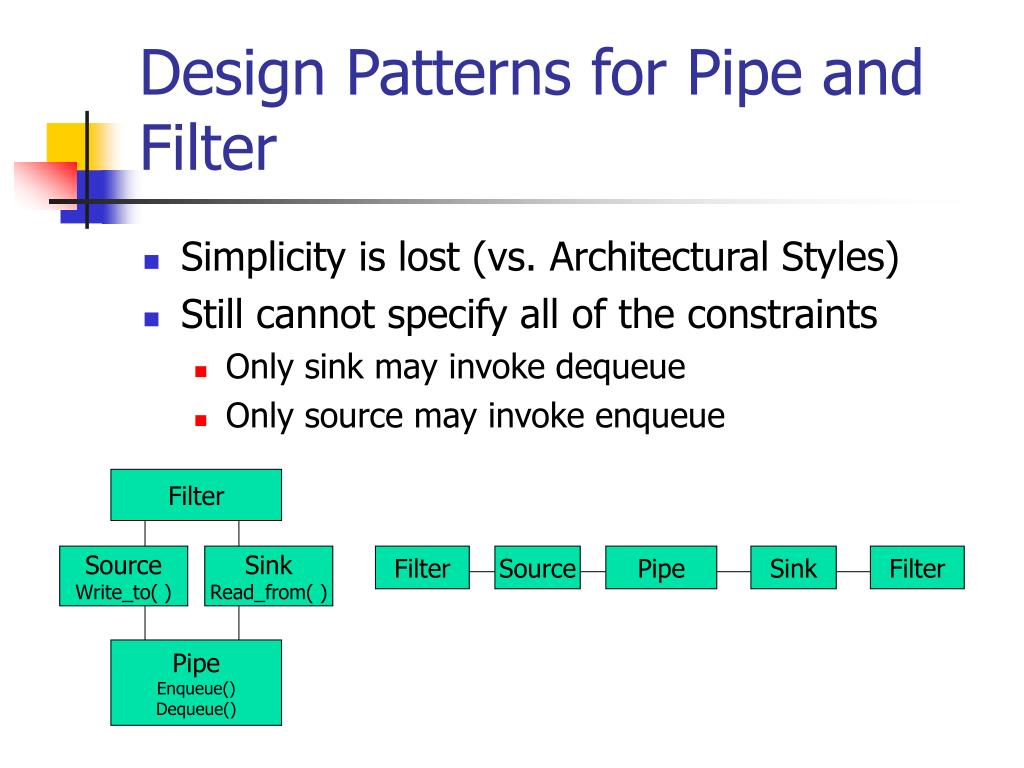

  16. Design Patterns for Pipe and Filter • Simplicity is lost (vs. Architectural Styles) • Still cannot specify all of the constraints • Only sink may invoke dequeue • Only source may invoke enqueue Filter Source Write_to( ) Sink Read_from( ) Filter Source Pipe Sink Filter Pipe Enqueue() Dequeue()

  17. Architectural Styles and Design Patterns • Architectural Styles provide their own design language • Focus on large grain components • Design Patterns utilize UML as the design language • Focus on objects • Architectural Styles tend to solve system wide problems • System wide analysis • Design Patterns tend to solve small, specific problems • Can easily be translated into code

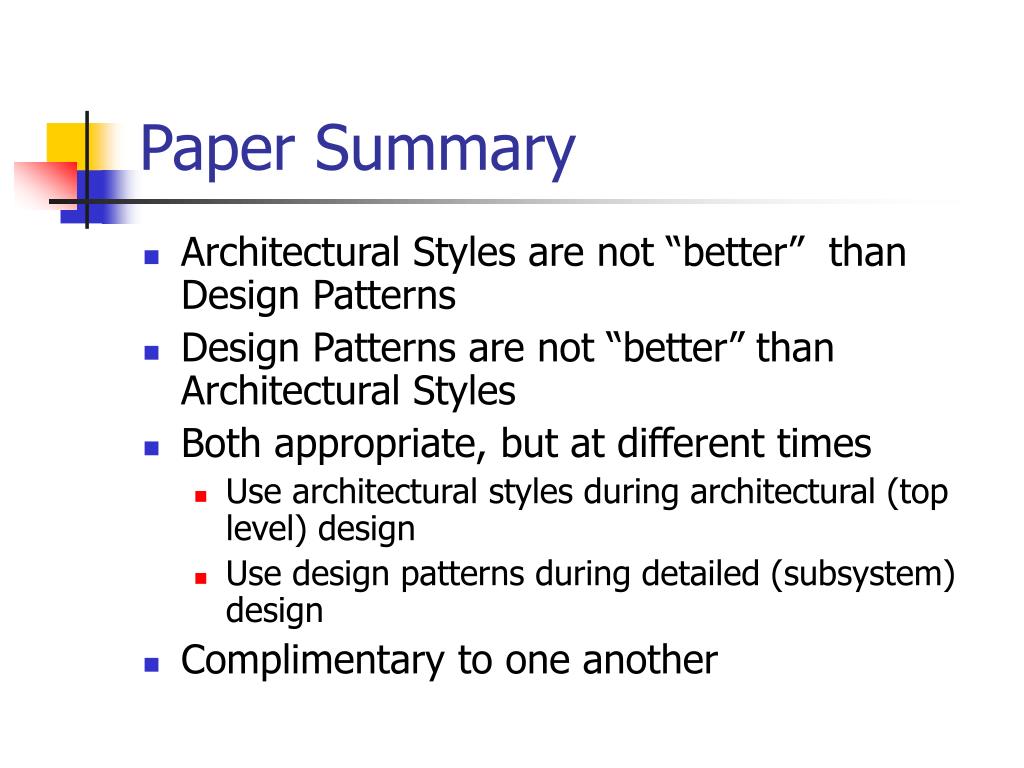

  18. Paper Summary • Architectural Styles are not “better” than Design Patterns • Design Patterns are not “better” than Architectural Styles • Both appropriate, but at different times • Use architectural styles during architectural (top level) design • Use design patterns during detailed (subsystem) design • Complimentary to one another

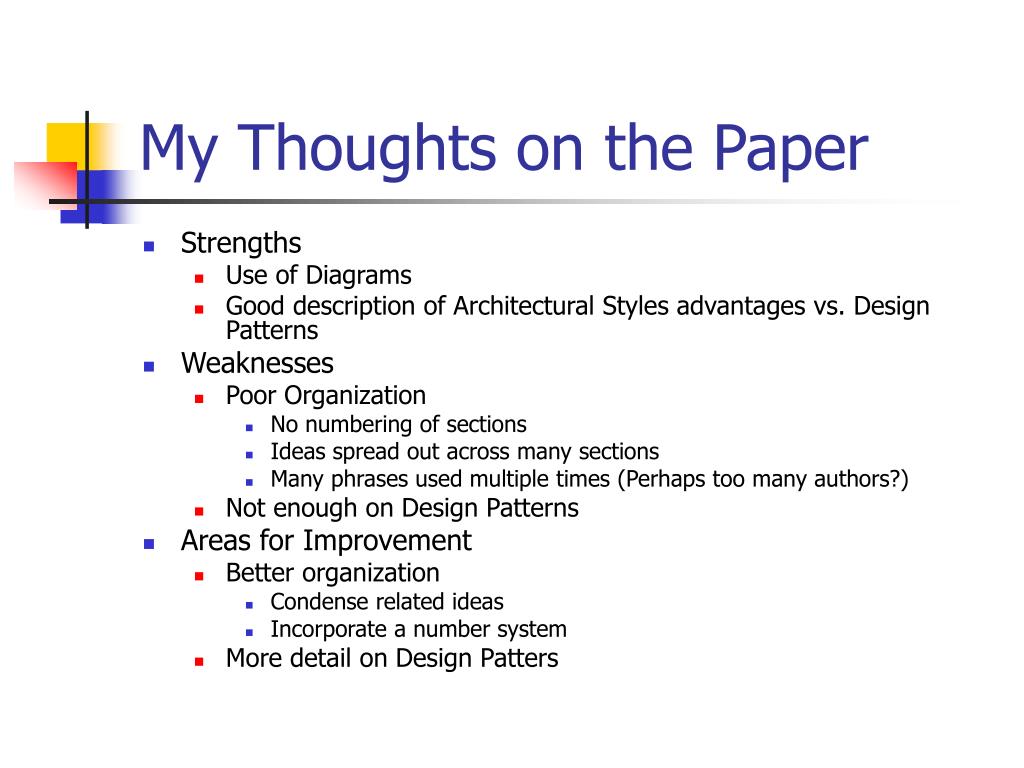

  19. My Thoughts on the Paper • Strengths • Use of Diagrams • Good description of Architectural Styles advantages vs. Design Patterns • Weaknesses • Poor Organization • No numbering of sections • Ideas spread out across many sections • Many phrases used multiple times (Perhaps too many authors?) • Not enough on Design Patterns • Areas for Improvement • Better organization • Condense related ideas • Incorporate a number system • More detail on Design Patters

  20. More on Design Patterns • Summerville (in “Software Engineering”, V7) suggests that a Design Patterns • Are abstract designs • Include algorithms and data types • Have four important elements • Meaningful Name • Problem Description • Solution Description (algorithms, data types) • Consequences (results and trade-offs)

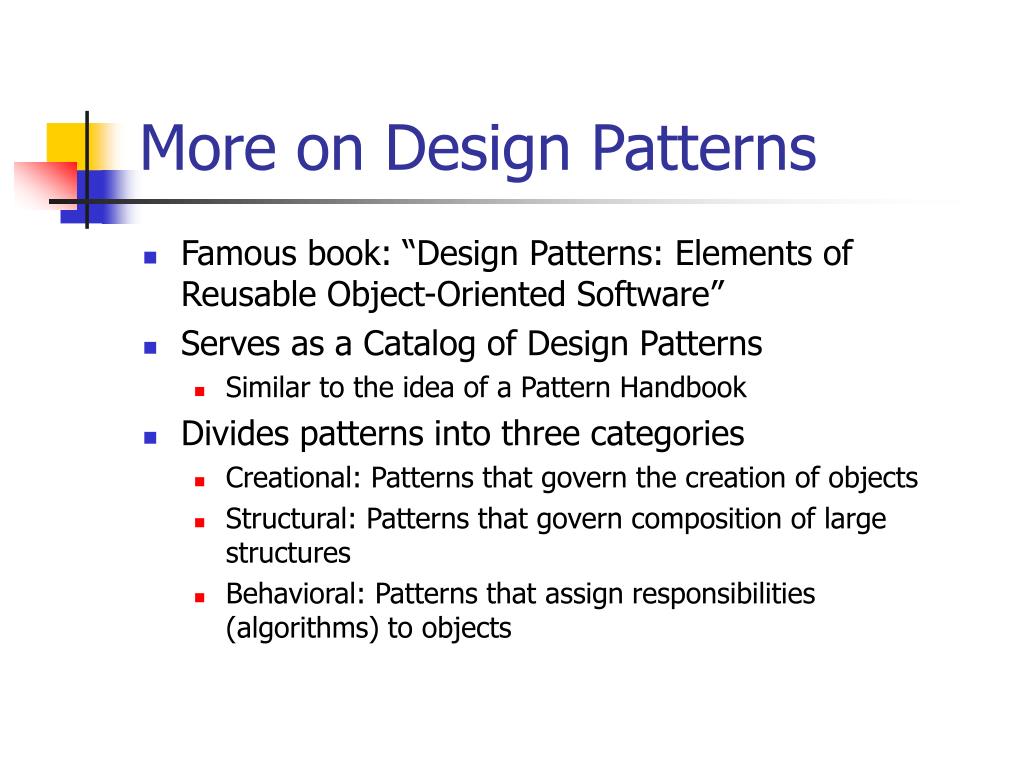

  21. More on Design Patterns • Famous book: “Design Patterns: Elements of Reusable Object-Oriented Software” • Serves as a Catalog of Design Patterns • Similar to the idea of a Pattern Handbook • Divides patterns into three categories • Creational: Patterns that govern the creation of objects • Structural: Patterns that govern composition of large structures • Behavioral: Patterns that assign responsibilities (algorithms) to objects

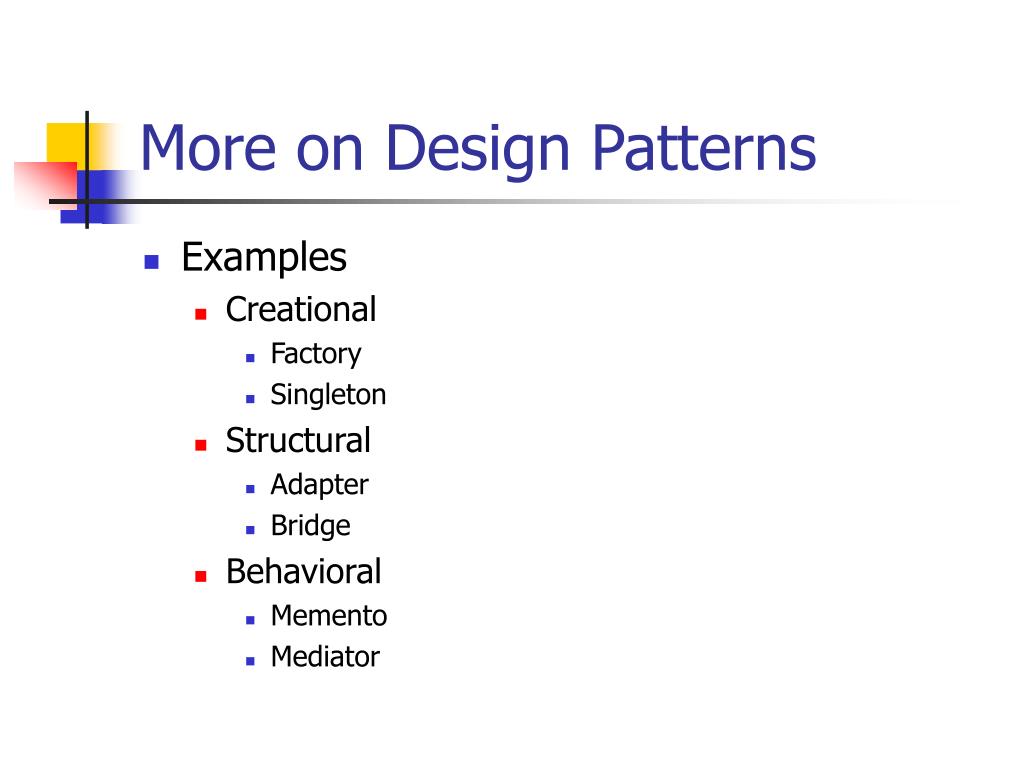

  22. More on Design Patterns • Examples • Creational • Factory • Singleton • Structural • Adapter • Bridge • Behavioral • Memento • Mediator

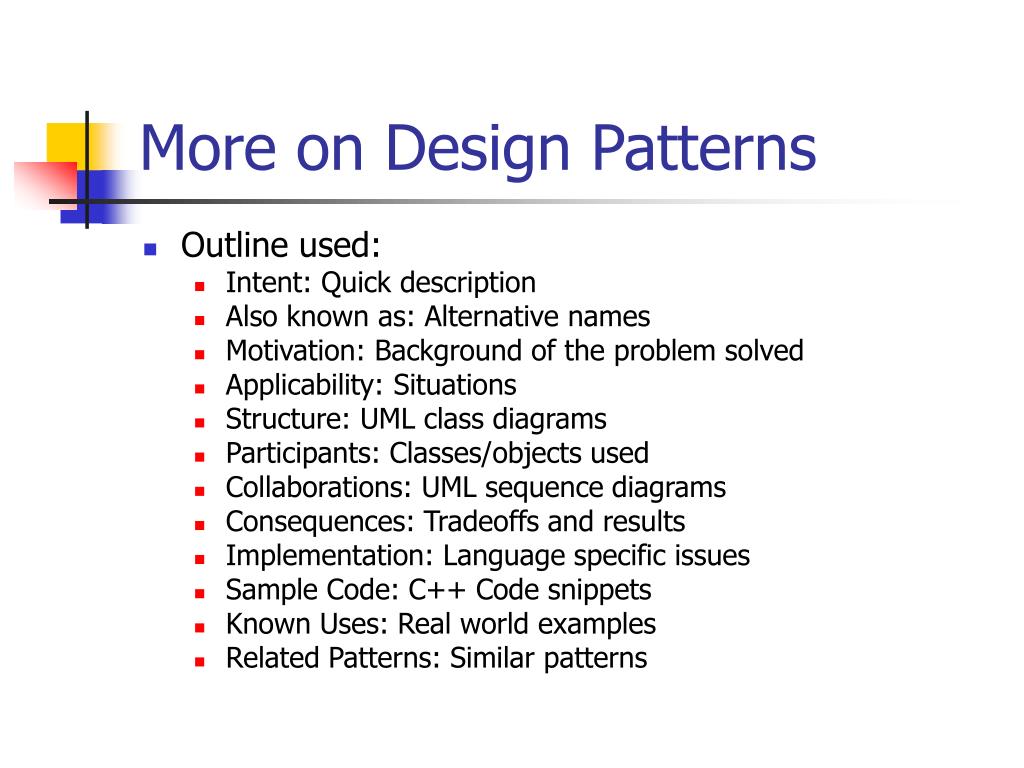

  23. More on Design Patterns • Outline used: • Intent: Quick description • Also known as: Alternative names • Motivation: Background of the problem solved • Applicability: Situations • Structure: UML class diagrams • Participants: Classes/objects used • Collaborations: UML sequence diagrams • Consequences: Tradeoffs and results • Implementation: Language specific issues • Sample Code: C++ Code snippets • Known Uses: Real world examples • Related Patterns: Similar patterns

  24. Example of a Design Pattern:Memento • Intent: Capture an objects internal state • AKA: Token • Motivation: Undo commands • Applicability: When an objects internal state may need to be restored later

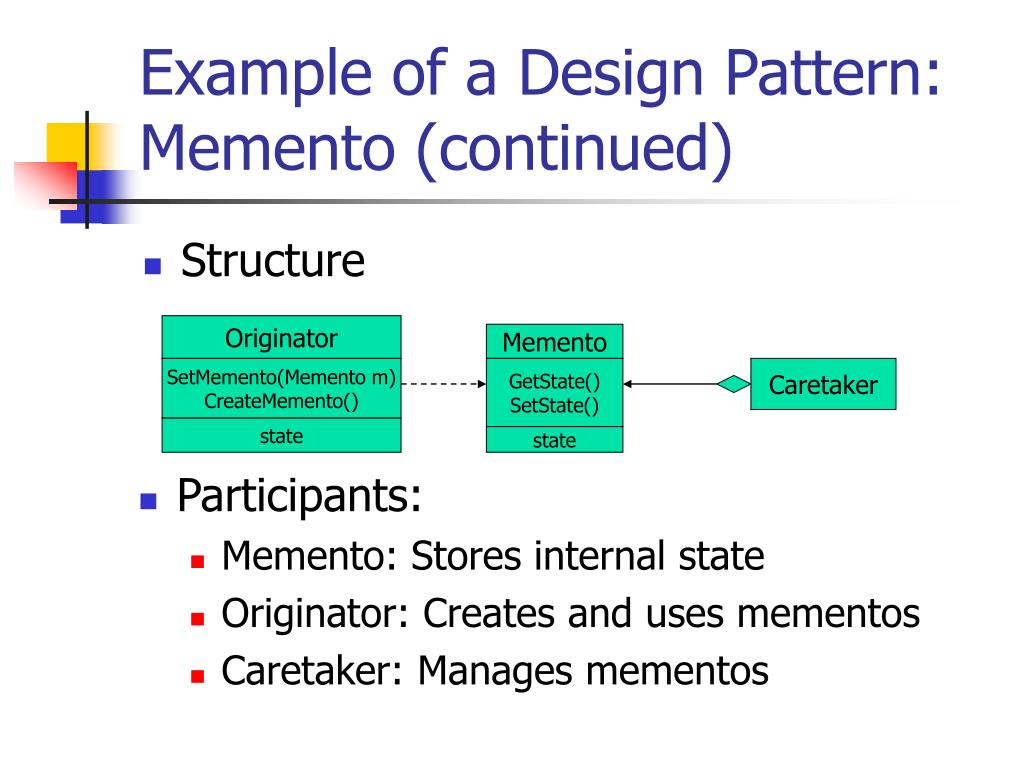

  25. Originator Memento GetState() SetState() SetMemento(Memento m) CreateMemento() state state Example of a Design Pattern:Memento (continued) • Structure Caretaker • Participants: • Memento: Stores internal state • Originator: Creates and uses mementos • Caretaker: Manages mementos

  26. Example of a Design Pattern:Memento (continued) • Collaborations: Caretaker Originator Memento CreateMemento( ) new SetState( ) SetMemento(Memento) GetState( )

  27. Example of a Design Pattern:Memento (continued) • Implementations: class Memento { … private: friend class Originator; Memento(); … }; • Sample Code: Not covered here • Known Uses: Older applications • Related Patterns: Command and Iterator

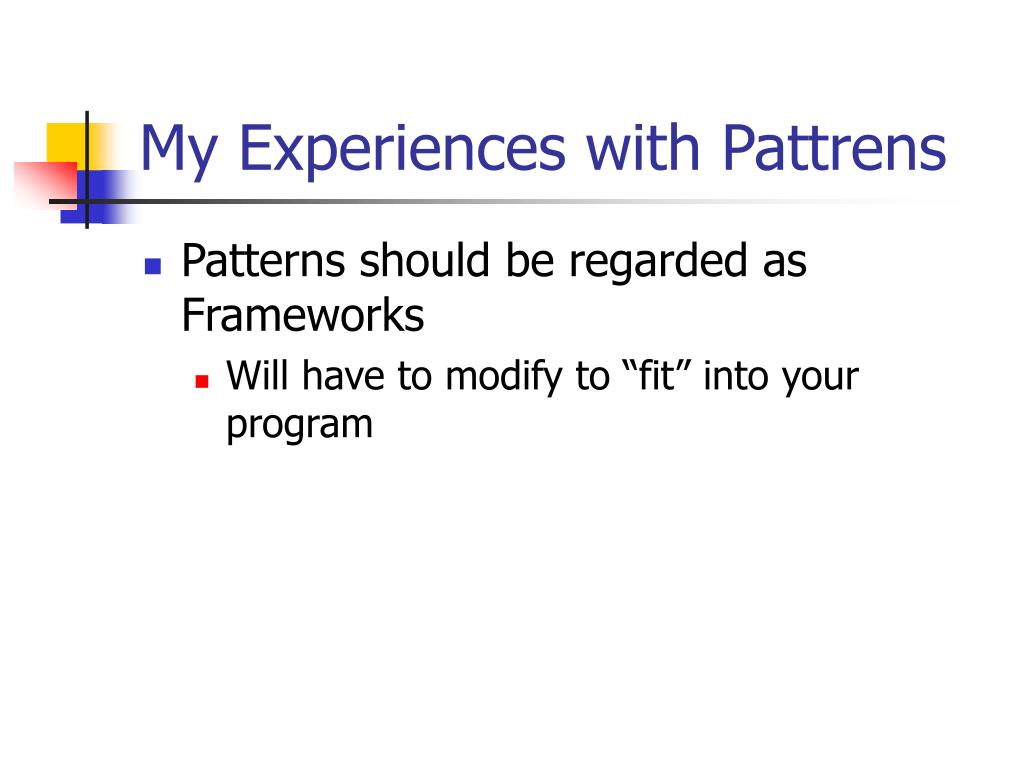

  28. My Experiences with Pattrens • Patterns should be regarded as Frameworks • Will have to modify to “fit” into your program

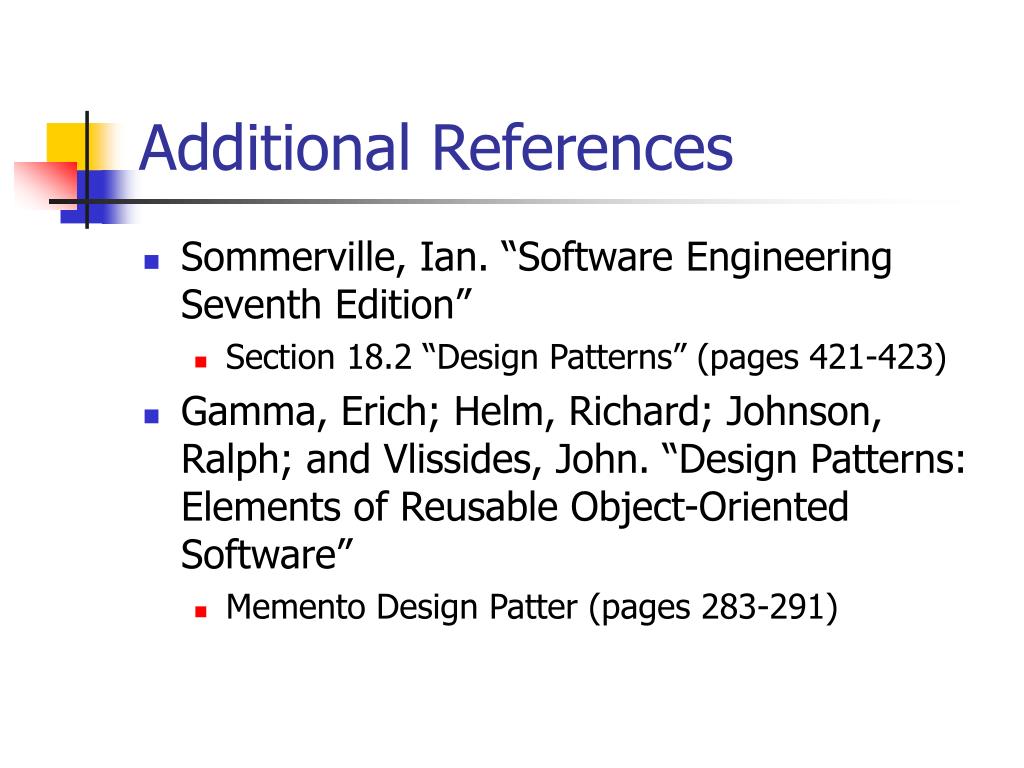

  29. Additional References • Sommerville, Ian. “Software Engineering Seventh Edition” • Section 18.2 “Design Patterns” (pages 421-423) • Gamma, Erich; Helm, Richard; Johnson, Ralph; and Vlissides, John. “Design Patterns: Elements of Reusable Object-Oriented Software” • Memento Design Patter (pages 283-291)

  30. Questions? Comments?

  31. Thank you!
